ucon said:
Just compare
A-57 cross-section from technical descriptin.

From forscoming Bartini Aircraft Vol. 1-4

Best regards to all.

What are those gradient triangles in the fuselage? Lights?


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
284
Hi,

the AL-40 was nuclear powered hydroplane of the 1960s,and look for this
strange concept of 1936.
The drawing shows a 1936 plane, not the AL-40 nuclear powered seaplane. Anyone have drawings or specs for the AL-40 nuclear powered flying boat.


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
97
Reaction score
71
I'm looking for information on the following models
A-58
Al-40
MDR (Морской Дальний rазведчик) 1,2 and 3
R 53.6K
R-AL
STAL-5
T-107
T-108
T-118
T-203
T-210
T-500

https://en.wikipedia.org/wiki/Robert_Ludvigovich_Bartini - no information here

p.s. since I'm from Rijeka where Bartini is from and I'm interested in everything about him


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
My dear Robertino,

for AL-40 please see reply # 35,and for A-58 please see reply # 77,and for STAL-5 please see;

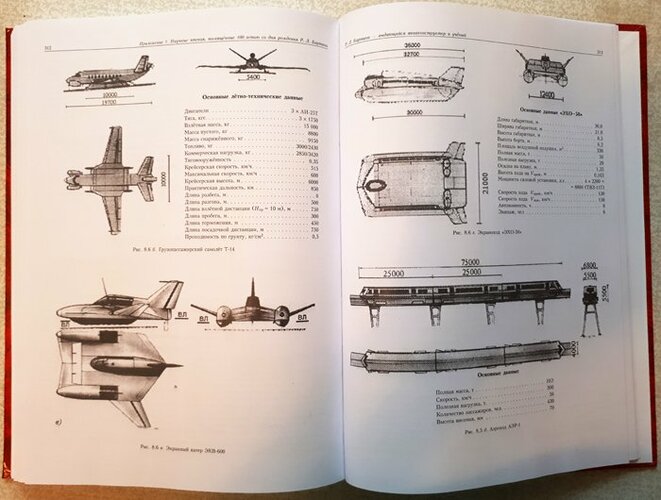

and from a Russian book about Bartini;

The last prison design bureau project proposed in 1947 became a heavy military transport twin-beam and two-
fins aircraft T-200, according to the scheme,close to the T-117, - a high-wing aircraft with a large fuselage, the
contours of which were formed by a wing profile. The Novocherkassk Polytechnic Institute even built a test
bench to verify the proposed technical solutions.The rear of the fuselage, formed by the wing profile, opened
up and down between the two tail beams, and opened a passage five wide and three high meters for loading
bulky goods and equipment.A combined power plant was proposed, including two piston star-shaped four-
row engine (apparently ASH-2) with a capacity of 2800 hp and couples turbojet RD-45F thrust of 2270 kgs
located in common with piston nacelle motors. At the junction of the fuselage with the wing of its chord,
it reached 5.5 meters,and for continuous flow around the bearing surface in the T-210 version provided
boundary layer management.In 1952, Bartini was developing a flying boat T-203, and even more grandiose
was a project of a two-fins T-217 aircraft with four turboprop engines and strut high wing type "reverse gull".
But they are all so remained on paper.

For T-107,T-108 & T-210,a small Info.


Attachments

  • ٢٠٢٠٠١١٦_١٧٥٤٠٩.jpg
    1.1 MB · Views: 255
  • ٢٠٢٠٠١١٦_١٧٥٤٣٦.jpg
    1.2 MB · Views: 242

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,955
Reaction score
323

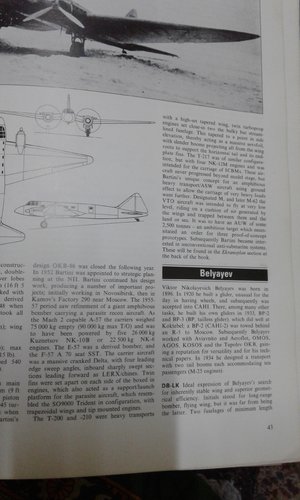

It's either "Osprey Encyclopedia of Russian Aircraft 1875-1995", or "Aircraft of the Soviet Union", both by Bill Gunston . . .

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
It's either "Osprey Encyclopedia of Russian Aircraft 1875-1995", or "Aircraft of the Soviet Union", both by Bill Gunston . . .

That's it my dear Robertino,

and for the Russian book; великий бартини воланд советской авиации


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
108
Website
www.avicopress.ru
I'm looking for information on the following models
A-58
Al-40
MDR (Морской Дальний rазведчик) 1,2 and 3
R 53.6K
R-AL
STAL-5
T-107
T-108
T-118
T-203
T-210
T-500

https://en.wikipedia.org/wiki/Robert_Ludvigovich_Bartini - no information here

p.s. since I'm from Rijeka where Bartini is from and I'm interested in everything about him
T-203 never existed, it is designatiob of wind tube. For another projects - pm me


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
108
Website
www.avicopress.ru
I'm looking for information on the following models
A-58
Al-40
MDR (Морской Дальний rазведчик) 1,2 and 3
R 53.6K
R-AL
STAL-5
T-107
T-108
T-118
T-203
T-210
T-500

https://en.wikipedia.org/wiki/Robert_Ludvigovich_Bartini - no information here

p.s. since I'm from Rijeka where Bartini is from and I'm interested in everything about him
T-203 never existed, it is designation of wind tube. For another projects - pm me


Attachments

  • T-107 models.jpg
    T-107 models.jpg
    210.7 KB · Views: 273
Last edited:

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,287
Reaction score
680
Was Bartini T-107 the first Russian airplane with a cargo ramp under the tail?


Wyvern

ACCESS: Secret
Senior Member
Joined
Jan 25, 2020
Messages
458
Reaction score
439

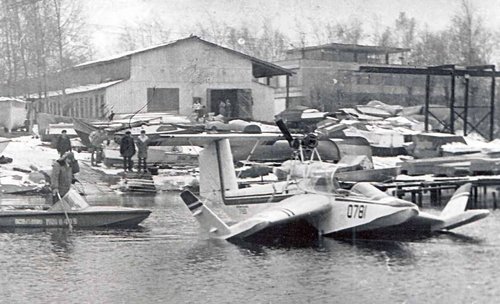

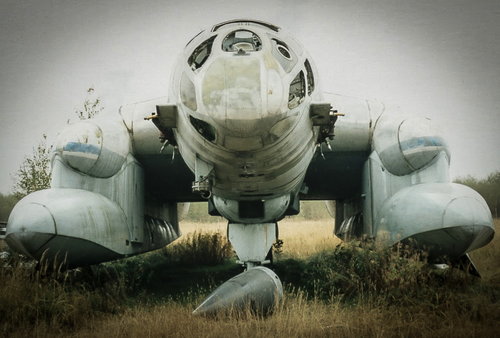

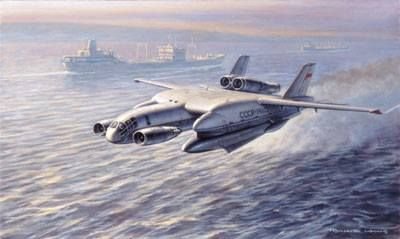

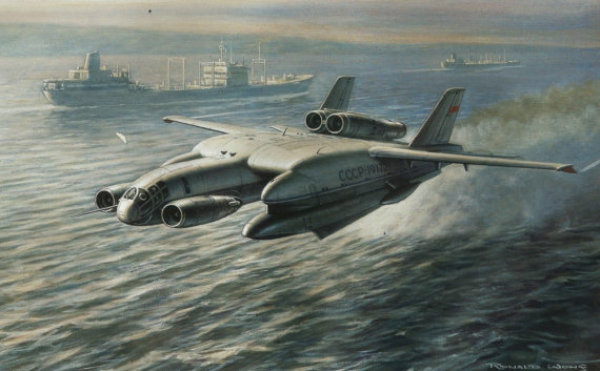

Anyways, from what I've read, the Bartini-Beriev VVA-14 was built as a response to the United State's Polaris-armed submarines. The aircraft could fly normally, but could also transition into the Ground Effect and fly as if it were an ekronoplan. Some sources also state that the aircraft could take-off vertically, however, I don't believe that it was capable of doing so.

Cheers,

Wyvern


Attachments

  • Bartini Beriev VVA-14.jpg
    Bartini Beriev VVA-14.jpg
    17.2 KB · Views: 252
Last edited by a moderator:

Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
95
Actually the VVA-14 was designed to have VTOL capability, but the lift engines were not delivered in time for the tests.

Last edited by a moderator:

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
108
Website
www.avicopress.ru

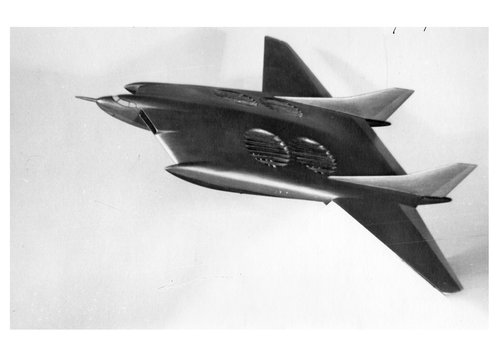

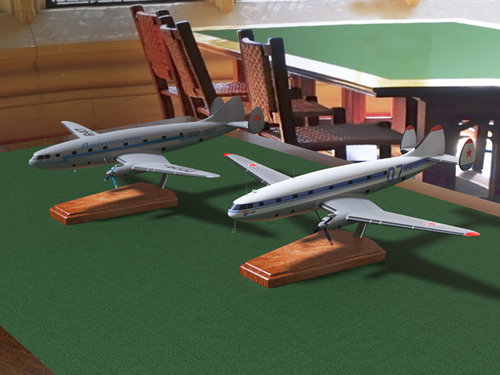

From le Fana 293,

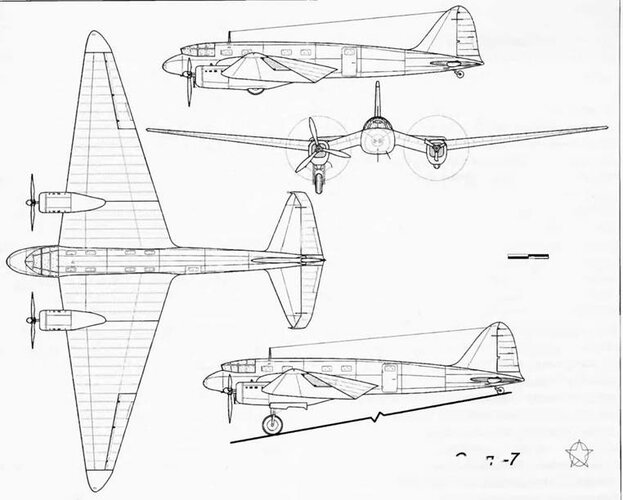

here is some Batini aircraft and Projects,the mystery in picture # 3,and whole known
airplanes from him is in # 4.

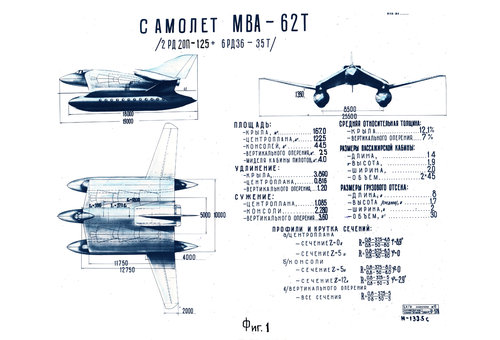

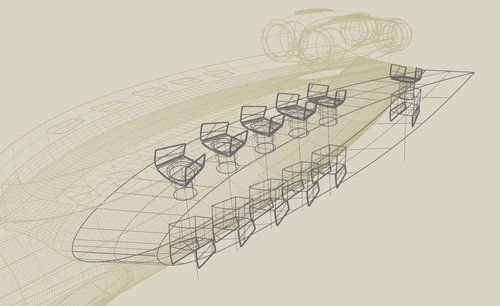

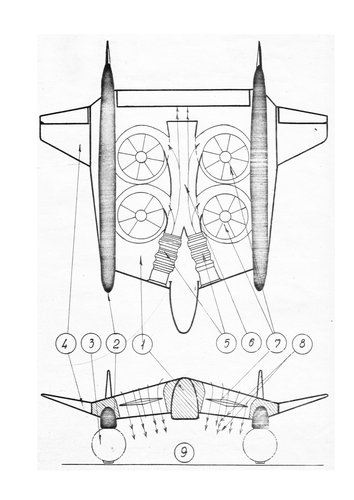

In the middle is OVA-62 project (with two engines) and PVA-62 (with four engines). There were some another projects on base MVA-62. One of the interesting was MVA-62T with passangers inside floats.


Attachments

  • OVA-62-spf-001.jpg
    360.8 KB · Views: 115
  • OVA-62-spf-002.jpg
    431.4 KB · Views: 115
  • MVA-62T-spf-001.jpg
    498.3 KB · Views: 110
  • MVA-62T-spf-002.jpg
    396.2 KB · Views: 144
Last edited:

gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
124
Reaction score
82
Hi to all!
Ucon (Konstantin Udalov) and I just created a Facebook group devoted to Bartini's projects. We will post many drawings, pictures and documents about his work. It is another good place for discussion about this subject. You are all invited!!


Attachments

  • 2020-07-09 22.43.18.png
    2020-07-09 22.43.18.png
    757.6 KB · Views: 144

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,003
Reaction score
684
Hi to all!
Ucon (Konstantin Udalov) and I just created a Facebook group devoted to Bartini's projects. We will post many drawings, pictures and documents about his work. It is another good place for discussion about this subject. You are all invited!!
you have an error in the text - "Aircrtaft ...


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
124
Reaction score
82
Hi to all!
Ucon (Konstantin Udalov) and I just created a Facebook group devoted to Bartini's projects. We will post many drawings, pictures and documents about his work. It is another good place for discussion about this subject. You are all invited!!
you have an error in the text - "Aircrtaft ...
Thanks!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057

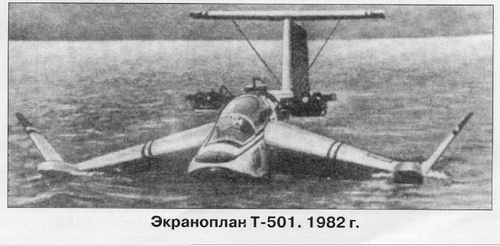

From, Экранопланы (Техника и вооружение),

was that T-501 belong to Bartini or not ?.


Attachments

  • 1.png
    474.6 KB · Views: 98

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
570
Reaction score
190
My notes have it as a Grunin design built in Kaliningrad in 1982 with a large chunk of design work performed by MIIGA students.

Wingspan: 9.0 m
Length: 8.8 m
Wing area: 17.0 m2
Empty weight: 580 kg
Flight weight: 660 t
Engines: 1x Neptune-23
Crew: 2

Sources:


Attachments

  • Grunin_T-501.JPG
    93.2 KB · Views: 130

Wyvern

ACCESS: Secret
Senior Member
Joined
Jan 25, 2020
Messages
458
Reaction score
439
Bartini's designs never fail to impress and intrigue. Shows you how talented he was as an aircraft designer.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,962

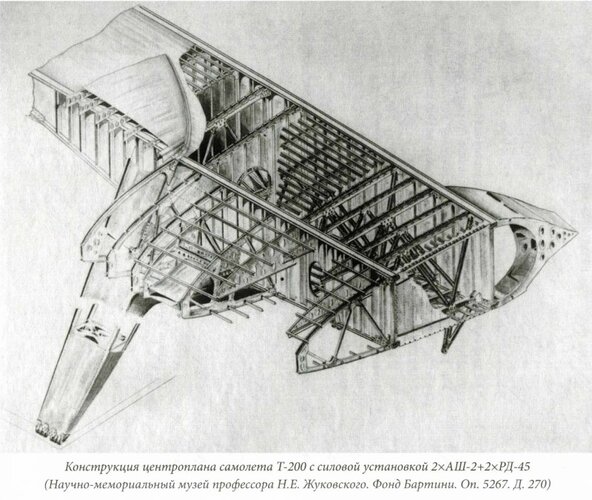

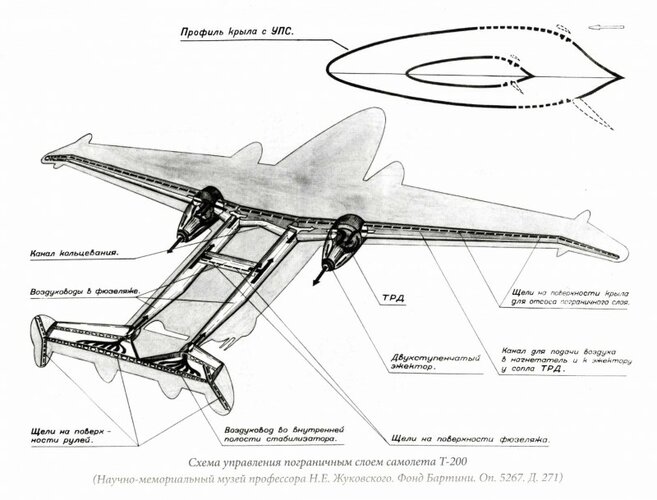

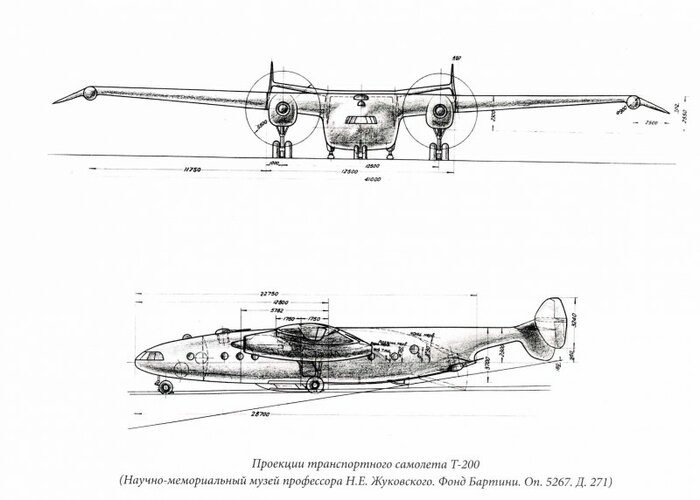

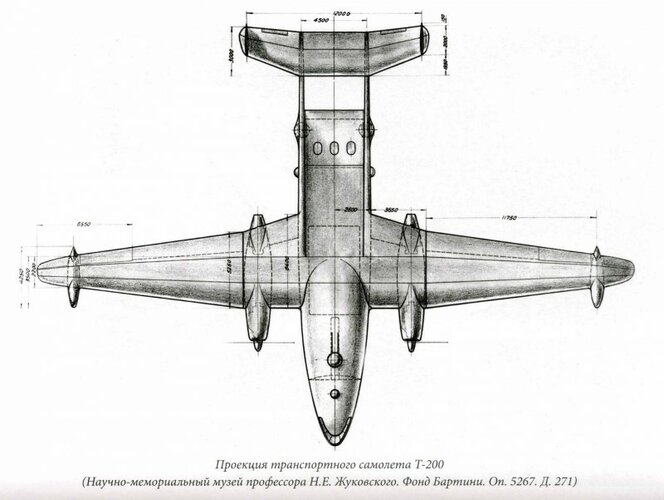

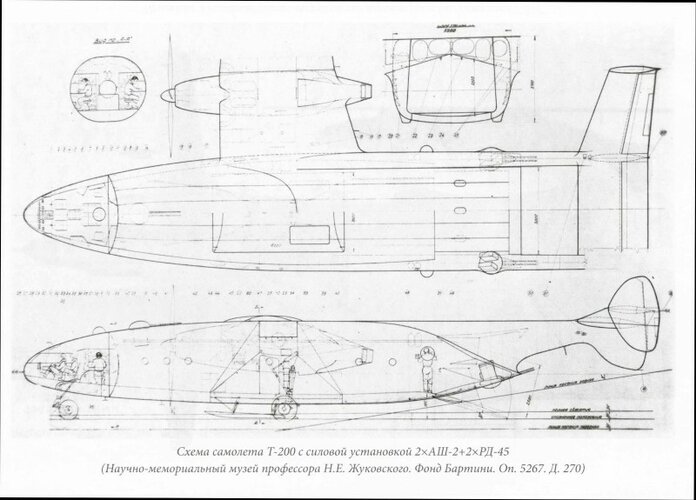

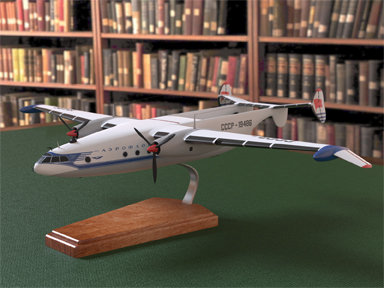

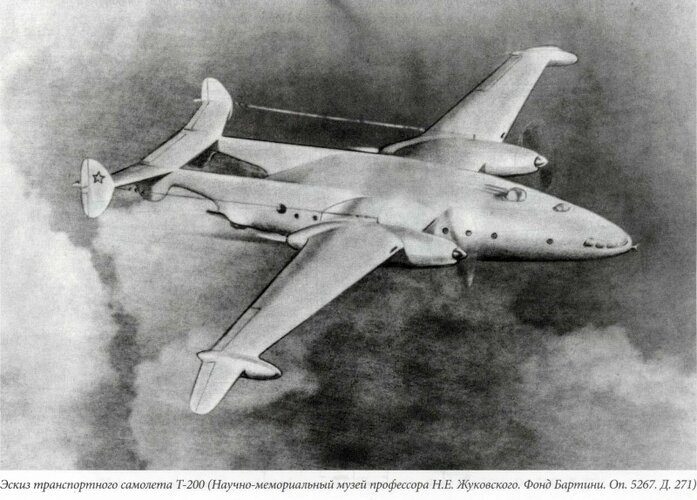

Hi! T-200.
https://antonkachinskiy.livejournal.com/29910.html
"The T-200 did not reach the manufacturing stage, which could be for the better, as it would hardly have been possible to bring it, and aviation during its creation developed so quickly that by the time of its first flight it would have become obsolete.

The T-200 is a transport aircraft project, to some extent a development of the previous project - the T-117. However, it is also an indirect descendant of the German transport aircraft of the time WW2 - Arado -232. The report on this aircraft was released in 1944, and Bartini seems to have read it, and borrowed from there the border layer control system. But it's not all relatives of the T-200. The aircraft was to install the fuselage in the form of a wing profile. The idea was that it would create a lifting force, and in addition, the large size of the width contributed to the placement of large cargoes. At least that's what it was in theory. But on the practice built aircraft of such a scheme usually flew badly ..."


Attachments

  • 254809_800.jpg
    98.1 KB · Views: 50
  • 255177_800.jpg
    133.2 KB · Views: 50
  • 255466_800.jpg
    62.4 KB · Views: 51
  • 255635_800.jpg
    79 KB · Views: 49
  • 255932_800.jpg
    91.9 KB · Views: 48
  • 256161_800.jpg
    159.9 KB · Views: 60
Last edited:

athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
314
Reaction score
140

Attachments

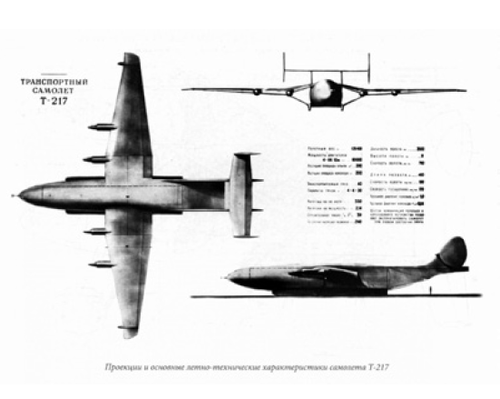

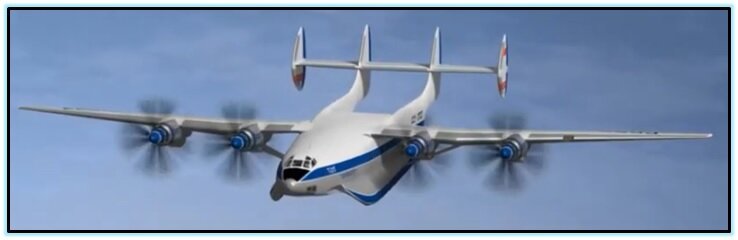

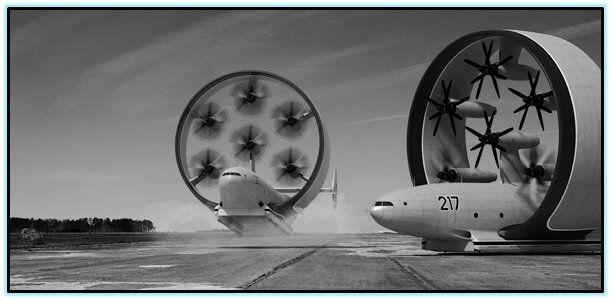

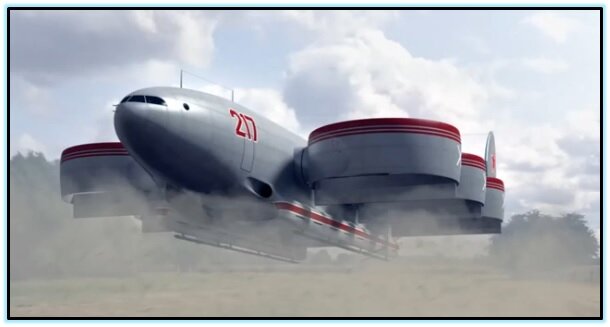

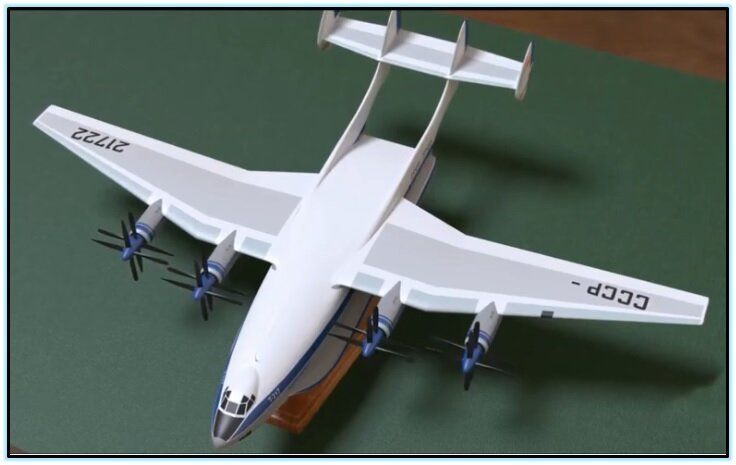

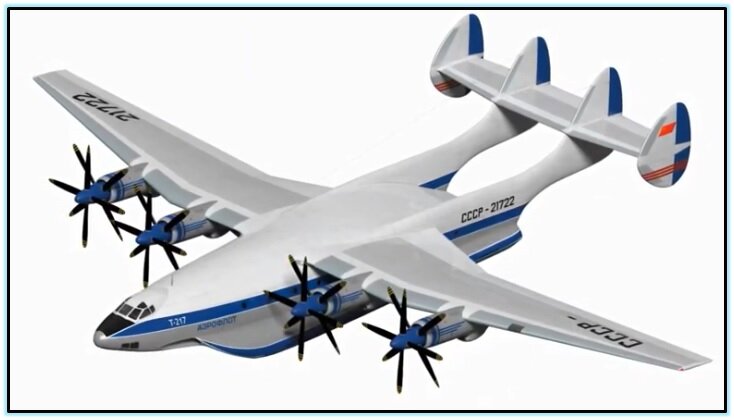

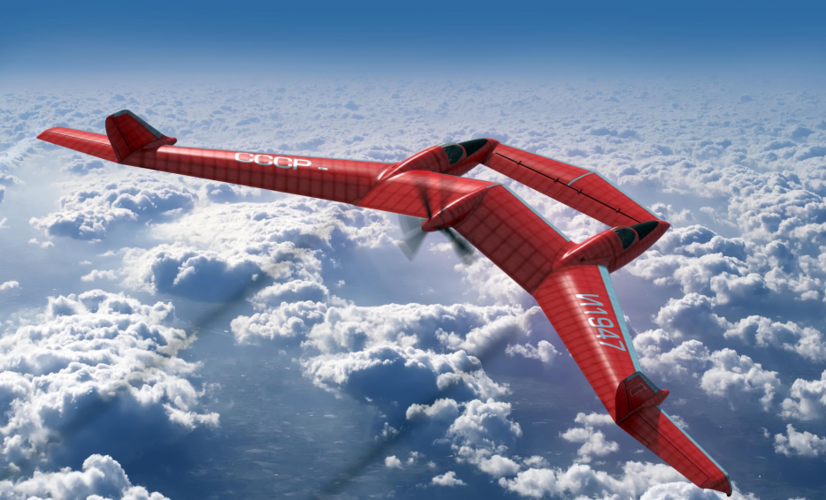

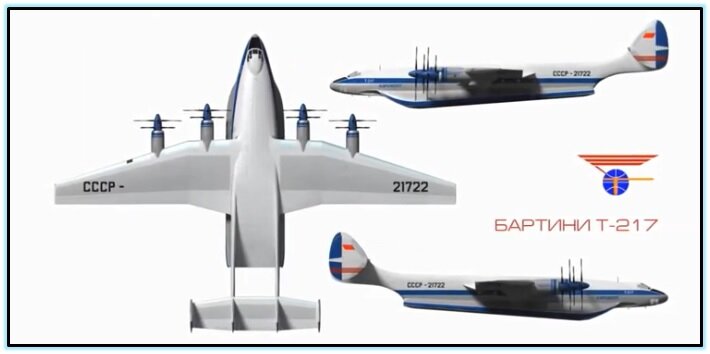

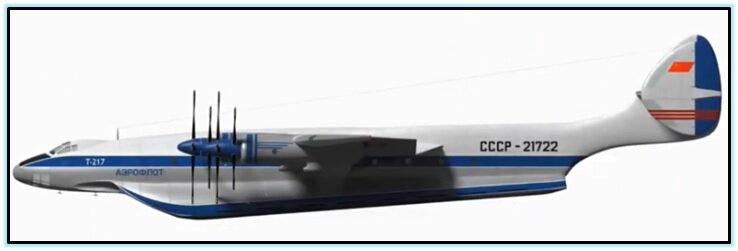

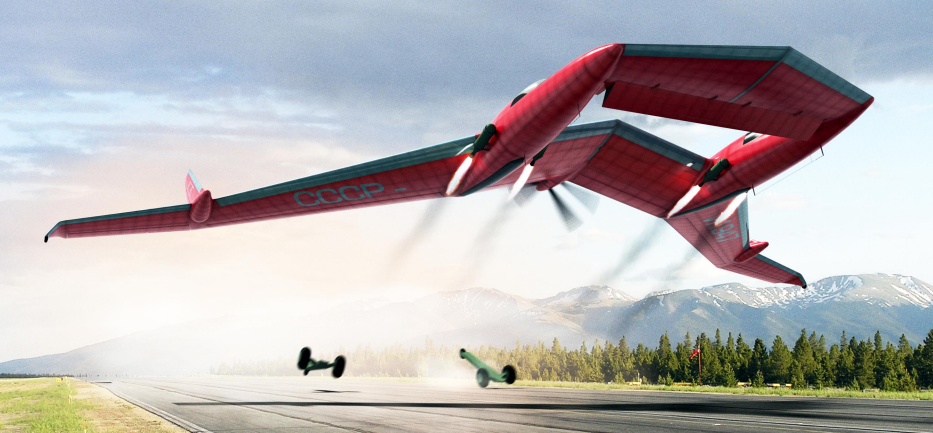

  • T-217_3160968_кольцеплан.jpg
    54.6 KB · Views: 37
  • T-217_316124.jpg
    39.1 KB · Views: 43
  • T-217_3160737.jpg
    63.5 KB · Views: 46
  • T-217_3160525.jpg
    34 KB · Views: 44
  • T-217_3160065.jpg
    60.4 KB · Views: 45
  • T-217_3159846.jpg
    43.5 KB · Views: 45
  • T-217_3159700.jpg
    32.1 KB · Views: 51
