That's a problem with that site, I think, that otherwise holds a lot of information about
real project. But for all those not speaking/reading Russian, it's hard to differentiate.
Perhaps one of our native Russian speakers can give a clue ?


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
igor-mich said:
Well, carefully read as called site alternathistory.org.ua. Here the guys fantasize and this is not a historical fact and fiction.

Not as simple as that, igor-mich, and that's the problem. The site in question has pages that are pure fantasy and others which contain accurate historical information... and unless you read Russian fluently it's often hard to tell which are which...


igor-mich

CLEARANCE: Secret
Joined
May 10, 2010
Messages
211
Reaction score
49
All historical information on this website you can find more reliable sources. There is no exclusive information.


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,966
Reaction score
81
Maybe you can find - but, some of us have more trouble finding information (especially the rarer kinds or ones in some languages) ;D


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
flateric said:

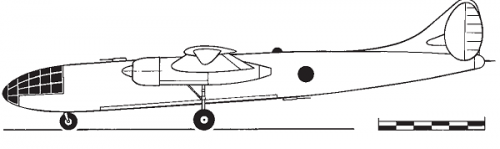

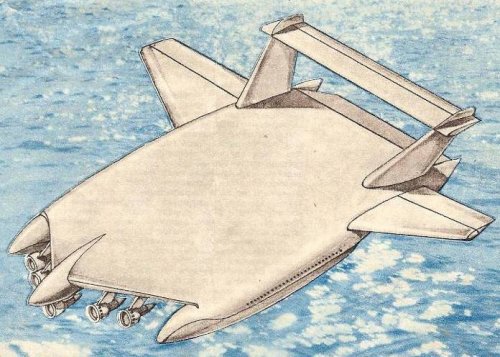

Little bit more on -107 and -117

So weird,in anther Russian book about Bartini,this artist drawing to a Project T-200 and not for T-107
or T-117,who we can believe my dear Flateric ?.

великий бартини воланд советской авиации


Attachments

  • T-200.png
    354.7 KB · Views: 912

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
hesham said:
I can't translate this Russian language for that project.
http://www.navylabs.ru/avia/bartini/

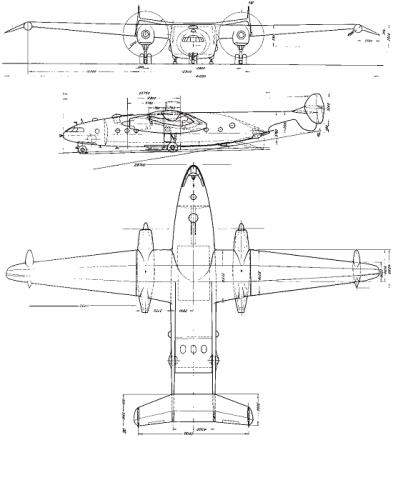

This Project called T-14.


Attachments

  • T-14.jpg
    9.1 KB · Views: 1,052

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,966
Reaction score
81
Re: Unknown Bartini projects

ucon said:
Development of some VVA-14 variants

That is a fascinating set of development studies!

This is my current understanding of what was planned by the mid-1970s:

- 14M1 initial prototype as built (2 cruise engines, inflatable floats)

- 14M2 planned VTOL lift jet prototype (2 cruise engines, augmented by 12 lift jets, inflatable floats)

- 14M1P rebuilt M1 prototype now as a WIG aircraft (2 cruise engines, augmented by 2 takeoff engines, steel floats). Correct me if I'm wrong, but it appears the fuselage was lengthened as well.


Production versions would include:
- A folding wing/tail ship born version (for use on the Project 1123 or converted merchant aircraft carriers)
- A transport version (32 people or 5000kg to 3300km)
- A search and rescue version (3 additional crew, 6 stretchers and 9 more evacuees, medical facilities and a motor launch).
- An astronaut and submariner retrieval variant of the search and rescue version (VVA-14PS).
- A version with a 200m-300m antenna (not sure about this?).
- A version with the polus anti-submarine complex which would engage submarines at 200 km (I assume this would attempt to hit ballistic missile submarines as they were launching their weapons?).

Correct me if I'm wrong on any of this.


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
118
Reaction score
76
Re: Unknown Bartini projects

ucon said:
Some drawings from technical description of Bartini A-2500 ekranoplane

length - 183 м
width - 129 м
height - 48 м

Hello my friend,
I'm a new user in this forum. I'm building a scale model of this WIG carrier designed by Bartini. Where did you find these plans? There are more of them? I really need more references of this monster. Tnak you!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Welcome aboard Gabrielorosco,

for my dear Ucon,he got it from Bartini/Beriev archive,and I will search to you in my files
about high quality of A-57 drawing.


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
118
Reaction score
76
Thank you so much! I'm planning to build a large scale model of this bomber, and with good references I can make a better work. Thanks!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi Gabrielorosco,

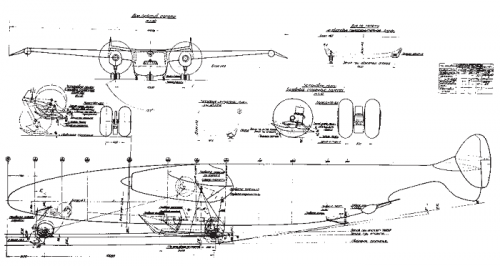

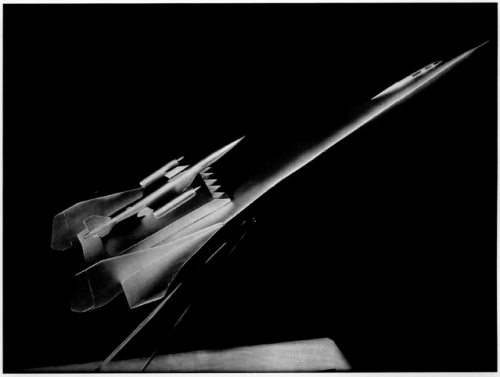

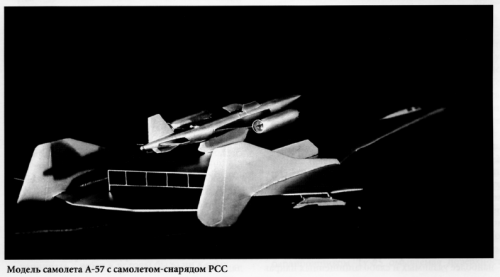

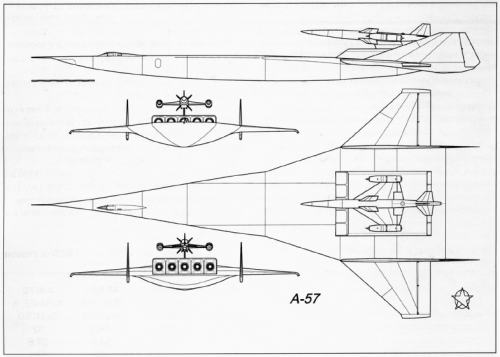

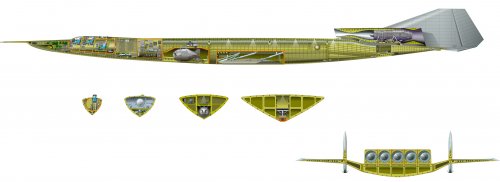

here is all I have about Bartini A-57 and F-57.


Attachments

  • F-57  II.png
    F-57 II.png
    134.4 KB · Views: 125
  • F-57.png
    190.8 KB · Views: 108
  • 4.png
    291.3 KB · Views: 298
  • 3.png
    259.7 KB · Views: 331
  • 2.png
    106.8 KB · Views: 324
  • 1.png
    87.1 KB · Views: 341

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,327
Reaction score
2,458

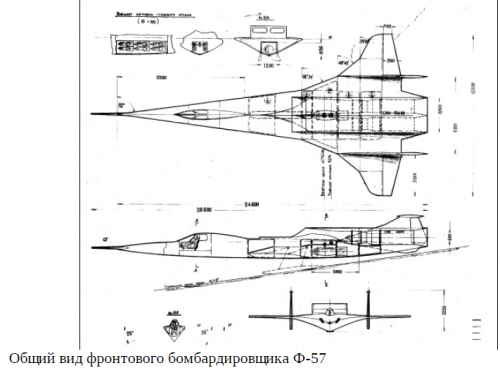

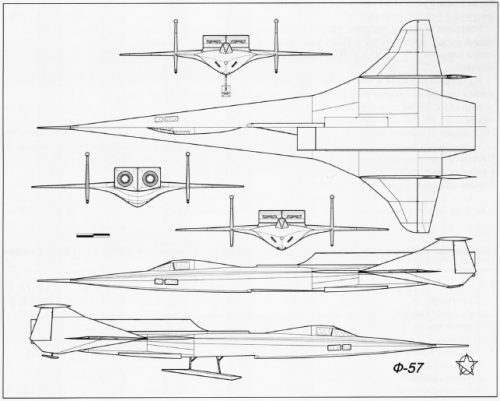

Hi! F-57.
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=https%3A%2F%2Fwww.ecured.cu%2FBartini_F-57&sandbox=1
Bartini F-57 (Russian: Бартини Ф-57) - Frontier bomber project of 1957 . The priority given by the country's leadership to the development of ballistic missiles resulted in the cancellation of the project. A development was also conceived as a reconnaissance aircraft under the name R-57 .

"History
With the lack of success of the A-57 strategic plane and the medium-range Ye-57 , and taking into account the recommendations of the GKAT scientific-technical council, Bartini decided to develop a less ambitious project in the form of the F- amphibious frontal bomber -57 of 25 tons of weight. The F-57 was developed was developed in the same year 1957 in the OKB -256 directed by Tsybin
The calculations showed that using two VK-13 turbojets calculated for 10000 kg of thrust this aircraft could fly at a speed of 2500 km / h and a distance of not less than 2800 km, maintaining a landing speed of only 260 km / h. With additional fuel the range could increase to 4100 km.
The aircraft, like its predecessors, featured a skid landing gear consisting of a central unit located below the fuselage along the longitudinal axis and two additional units located at the bottom of the vertical empties.
The Bartini F-57 was able to load 1500 kg of pumps in a composition of 10 pumps of 100 kg or a pump of 1500 kg.
One of the GKAT documents specified that the aircraft more than fully covered all the characteristics demanded by the VVS for a frontal exploration aircraft. Factory No.30 was chosen to prepare the production of the F-57 . It seemed that this time, eventually, everything would mesh. But soon the situation changed radically. The country's top management took the decision to cut back the armed forces, which also affected the SVVs and decided to give priority to coheteril development. Under these conditions the F-57 project was closed.
Technical specifications
(Calculated data)
• Function : Front Bomber
• Year : 1957
• Power plant : two VK-13 turbojets of 10000 kg of unitary thrust
• Accommodation : 1 crew
• DIMENSIONS ◦ Wingspan : 12.9 m
◦ Length : 26.6 m
• Take-off weight : 25000 kg
• Maximum speed : 3000 km / h
◦ Maximum range : 3800 - 4100 km
◦ Practical roof : 22 - 25000 m
◦ Take-off run : 900 m
• Armament: 1500 kg of bombs in a composition of 10 pumps of 100 kg or a pump of 1500 kg. "


Attachments

  • f-57-2.jpg
    9.7 KB · Views: 71
  • f57_1.jpg
    10.9 KB · Views: 70
  • f57.jpg
    18.8 KB · Views: 59

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,327
Reaction score
2,458
Hi! Medium strategic bomber E-57.
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=http%3A%2F%2Ftestpilot.ru%2Frussia%2Fbartini%2Fe%2F57%2Fe57.htm&sandbox=1

Three side view.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=396.0;attach=46699;image


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,327
Reaction score
2,458
Hi!
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=http%3A%2F%2Ftestpilot.ru%2Frussia%2Fbartini%2Fa%2F57%2Fa57.htm&sandbox=1

"Following this, in 1958, proposals were made on nuclear Sea bomber A-58."

A-58 three side view by borovik-san.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=396.0;attach=119997;image

Bottom picture source
http://imperiiia.com/2015/05/su-27-luchshij-v-mire-istrebitel.html

Nuclear reactor is like this?
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=16450.0;attach=573341;image


Attachments

  • a57_c.jpg
    46 KB · Views: 926
  • 052515_1732_274.png
    14.1 KB · Views: 930

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,327
Reaction score
2,458
Hi! A-55.
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=https%3A%2F%2Fwww.ecured.cu%2FBartini_A-55&sandbox=1

"The project was presented in 1955 as a proposal for a mid-range supersonic bombardment hydroplane. The denomination A-55 was proposed where the figures represented in year of presentation of the project. The selection of the hydrokinea configuration allowed for the replenishment of the apparatus on the ocean near enemy coasts, from surface ships or submarines. On the other hand, the hydro-jet configuration made it possible to eliminate the need for airports prepared for the long take-off and landing races of a supersonic device, otherwise very vulnerable to the attacks of enemy wear. "

Ucon-san's contribution.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=396.0;attach=63442;image

Another site. Chapter 8 How to conquer America?
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=https%3A%2F%2Fmilitary.wikireading.ru%2F21616&sandbox=1

"The first version of the A-55 had canards and discharged after takeoff chassis truck. In the process of refining the look of this car on the wheels refused, replacing them with skis and betting on the amphibious version.Amphibian A-55 can take off and land on the water surface, the snow and ice, allowing it to operate from airfields in forward-based, prepared in the Arctic drifting ice floes. "

Interesing bottom picture(by Bartini?) source.
http://ruskaljetopis.hr/info.phtml?c=13&id=380


Attachments

  • 56bfc83faa06a.jpg
    34 KB · Views: 137
  • 369535_9_i_077.jpg
    18.9 KB · Views: 103
  • 383217_10_pic_53.jpg
    10.3 KB · Views: 862
  • Портрет%20(3).jpg
    59.4 KB · Views: 897
  • A-55.jpg
    22.3 KB · Views: 919

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
A hypothetical airplane by Bartini.

http://bezogr.ru/aktualenoste-temi.html


Attachments

  • 96784_html_14c02774.jpg
    80 KB · Views: 98

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
In my files,

in early 1950s,Mr Bartini had a Project for intercontinental bomber,but no more
details are known ?,it was not related to A55 & A57.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
In my files,

there was a Project for VVA-14,with retractable floats,was that right ?.


dan_inbox

CLEARANCE: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
748
Reaction score
263

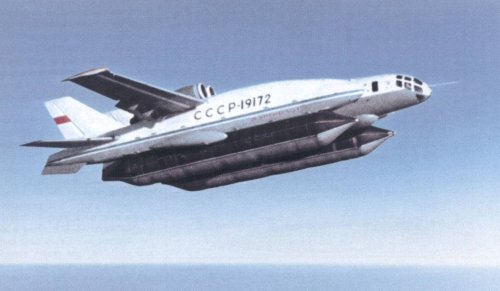

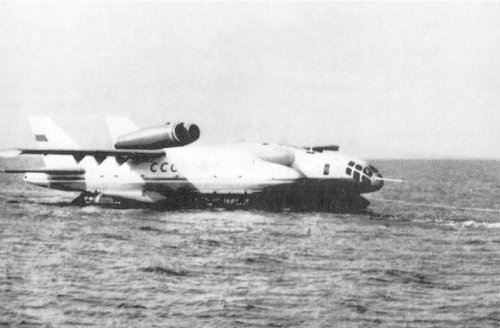

Depends on how one defines "retractable", I guess. The VVA-14M1 had "inflatable" floats.
Is this what you refer to?


Attachments

  • wig Beriev-Bartini VVA-14 M1 19172 with floats inflated.jpg
    wig Beriev-Bartini VVA-14 M1 19172 with floats inflated.jpg
    62.2 KB · Views: 100
  • wig Beriev-Bartini VVA-14 M1 afloat 2.jpg
    wig Beriev-Bartini VVA-14 M1 afloat 2.jpg
    49.3 KB · Views: 98

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Thank you Dan,

but it had a different way as I think,and it was a Project only.


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,851
Reaction score
1,126
Yes, there was a second VVA-14 configuration with floats on telescopic struts and conventional stepped windscreen.
A model is illustrated in Sergey Komissarov's Russia's Ekranoplans, Red Star Volume 8.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

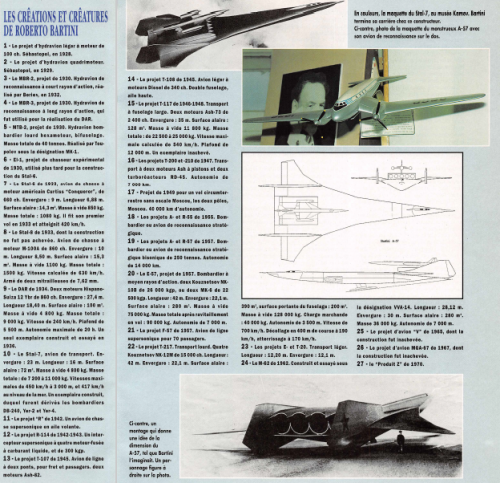

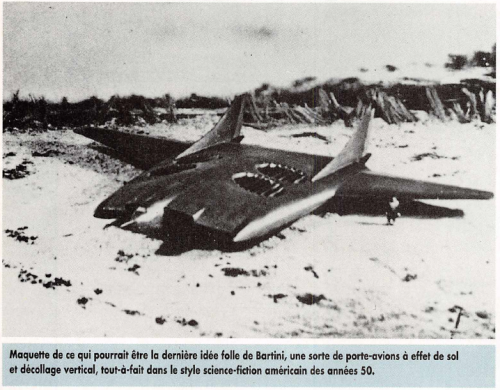

From le Fana 293,

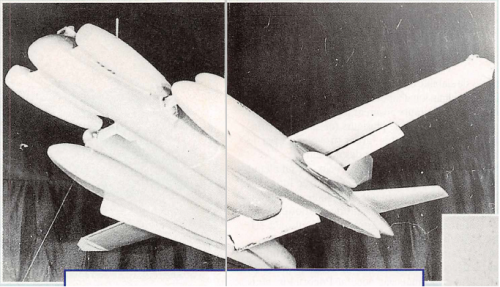

here is some Batini aircraft and Projects,the mystery in picture # 3,and whole known
airplanes from him is in # 4.


Attachments

  • 4.png
    707.3 KB · Views: 132
  • 3.png
    657.9 KB · Views: 102
  • 2.png
    453.6 KB · Views: 91
  • 1.png
    234.2 KB · Views: 88

robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
95
Reaction score
68
why Bartin locked up his projects
whether they are really so advanced?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
robertino said:
why Bartin locked up his projects
whether they are really so advanced?

I think it so far from realism and Mythical.


sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
636
Reaction score
251

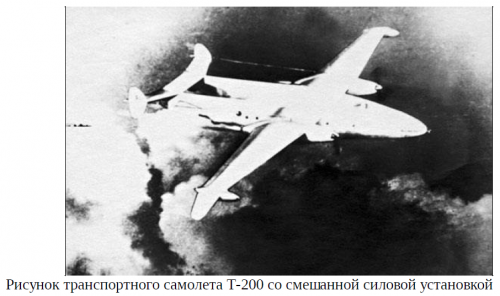

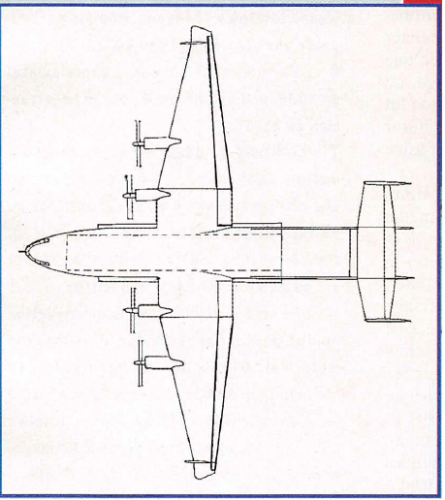

From the september issue of M-Hobby


Attachments

  • bartinit t118.png
    bartinit t118.png
    21.2 KB · Views: 671
  • bartinit t200.png
    bartinit t200.png
    121.8 KB · Views: 670
  • bartinit t210.png
    bartinit t210.png
    101.6 KB · Views: 650
  • bartinit t210 usb.png
    bartinit t210 usb.png
    126.7 KB · Views: 618
  • bartinit t200 2.png
    bartinit t200 2.png
    89.1 KB · Views: 623

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Amazing find my dear Sienar,

and the T-118 is new for me.


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,966
Reaction score
81
What is being depicted in bartinit t210 usb.png?

Also, source?


sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
636
Reaction score
251
Avimimus said:
What is being depicted in bartinit t210 usb.png?

Also, source?

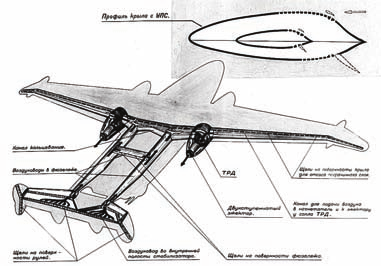

Boundary layer control. I listed the source in my post.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,861
Reaction score
1,074
Website
www.aerospaceprojectsreview.com

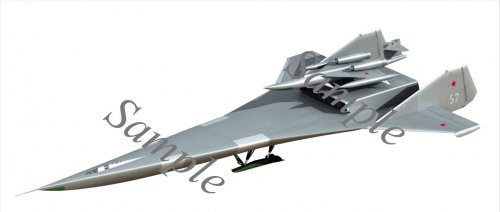

http://fantastic-plastic.com/bartini-a-57-bomber---catalog.html






hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
ucon said:
Fantastic plastic is really fantastic - pure 100% fake. For children only.

Thank you for clarify us my dear Ucon.


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Just compare
A-57 cross-section from technical descriptin.

From forscoming Bartini Aircraft Vol. 1-4

Best regards to all.


Attachments

  • ?-57 cross-sections.jpg
    ?-57 cross-sections.jpg
    567.6 KB · Views: 181

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
ucon said:
Just compare
A-57 cross-section from technical descriptin.

From forscoming Bartini Aircraft Vol. 1-4

Best regards to all.

Wow,oh my God,it will be great,thanks.


Similar threads

Top
