Re: Unknown Bartini projects

ucon said:
Hi, Retrofit)
This photo circulates from my archiev, so if you need big sized just let me know.
Best regards

Ooops, sorry ucon! I didn't know about its origin.

What final status was reached by this incredible project?


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr
Re: Unknown Bartini projects

ucon said:
Round the world (via both Poles) record aircraft. 1945-1947 project.
Do you mean a round-the-World record without stop, decades before the Voyager?
Wonderful twin-boomer anyway, thanks! ;D


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Unknown Bartini projects

Amazing project! It looks like it could be Burt Rutan's brainchild, not like a 65-year-old design! Just love it.


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

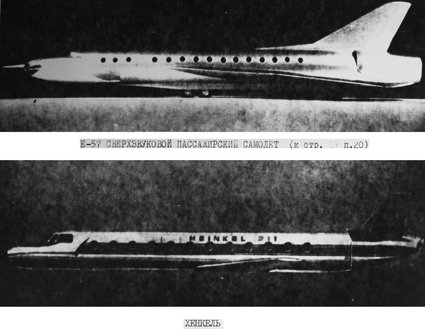

Bartini E-57 supersonic jet-liner. 1957. E means Europe.
Compare with Heinkel-211B-1 four years later.
Source: technical description of E-57.


Attachments

  • E-57 jet-liner.jpg
    E-57 jet-liner.jpg
    94 KB · Views: 925

Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr
Re: Unknown Bartini projects

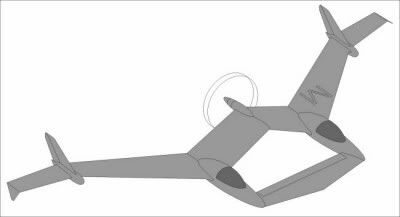

Thanks Ucon for having revealed it. Now, I can show the drawing I made of it:

(for my Web site about twin-boomers 1939-45 http://cmeunier.chez-alice.fr/update_FG.htm
, as the first drawing seems dated 1945 even if the project continued till 1947)


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
145
Re: Unknown Bartini projects

@ucon,

please give us some more details on this book/brochure:


Attachments

  • 015mem.jpg
    64.6 KB · Views: 1,635

ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

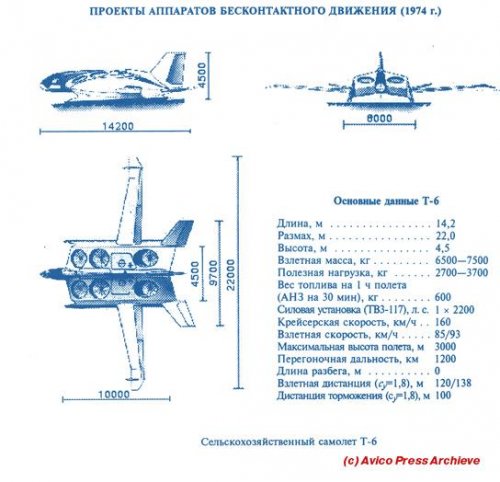

Bartini T-6 agrycultural WIG project


Attachments

  • Bartini T-6 agrycultural WIG project.jpg
    Bartini T-6 agrycultural WIG project.jpg
    44.5 KB · Views: 183

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Re: Unknown Bartini projects

My dear Ucon,

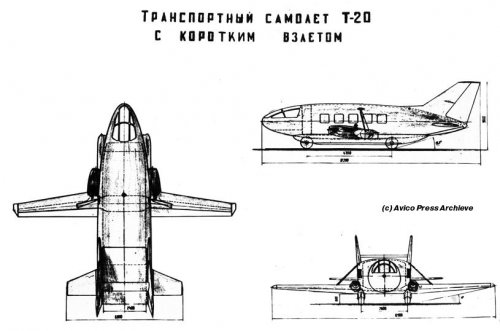

could you please tell us about the project T-20,I think it was WIG aircraft,and if you have any drawing
to Bartini T-203 variable swept wing aircraft.


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
hesham said:
Hi,

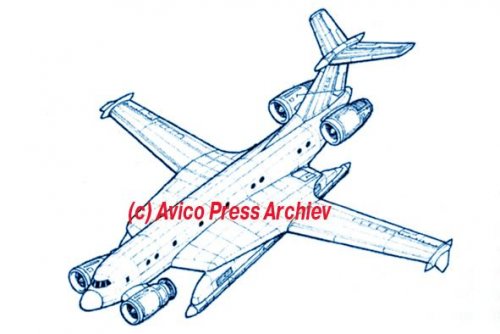

anther artist drawing to Bartini T-117 project.

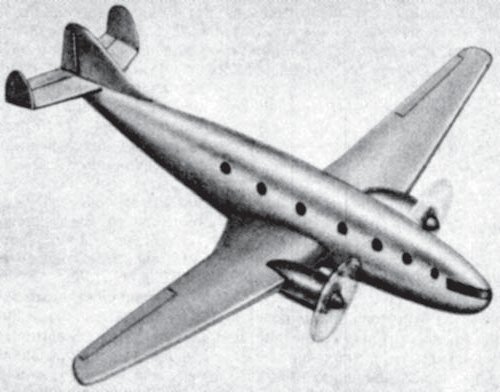

I'm afraid that's the T-107, not the T-117. Here's a better version of it:


Attachments

  • T-107.jpg
    91.3 KB · Views: 335

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
Star.. is closest I think.

The 117 design had a tripple horizontal lobe fuselage.


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Yeah, and the 107 designation wasn't my own speculation, anyway... it was the caption to the image from the original Russian magazine in which I found it.


igor-mich

CLEARANCE: Secret
Joined
May 10, 2010
Messages
211
Reaction score
49
At the beginning of this thread on the first page is the answer to your riddle. This T-117, which was the building but due to lack of engines was not up in the air


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
igor-mich said:
At the beginning of this thread on the first page is the answer to your riddle. This T-117, which was the building but due to lack of engines was not up in the air

I'm afraid you misread the first post. What is said there is clear:

T-107 - 1945 passenger airliner
T-117 Kit (Whale)- 1947 military transport project

As the image clearly shows a passenger transport, it can only be the T-107...


igor-mich

CLEARANCE: Secret
Joined
May 10, 2010
Messages
211
Reaction score
49
Are you familiar with the notion of a multi-purpose aircraft. So in the construction of a transport version and had the T-117. The figure is one of the variants of T-117


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
See : Flateric's post in the first page of this thread
and compare...


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

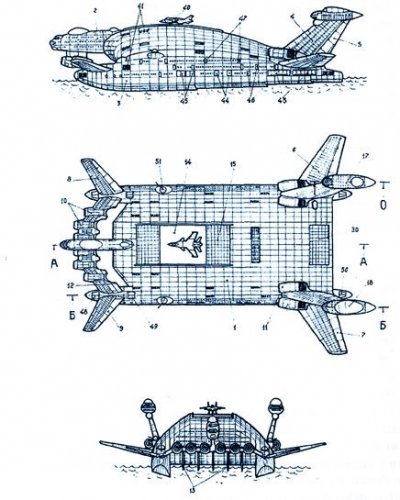

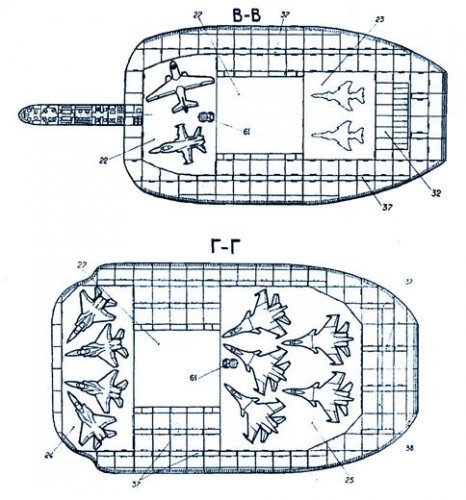

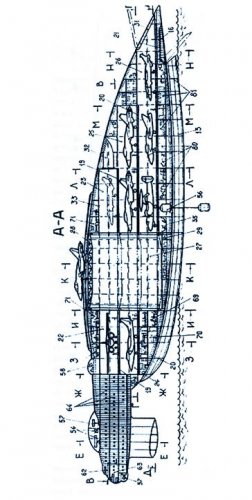

Some drawings from technical description of Bartini A-2500 ekranoplane

length - 183 м
width - 129 м
height - 48 м


Attachments

  • 2500-04.jpg
    55.7 KB · Views: 310
  • 2500-03.jpg
    31.2 KB · Views: 312
  • 2500-02.jpg
    52.3 KB · Views: 351
  • 2500-01.jpg
    48.7 KB · Views: 365

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Unknown Bartini projects

Very nice ucon, as usual...

This "2500" was studied while under Beriev, right? But are the more recent Be-2500 proposals related to the Bartini KB in any way?


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Unknown Bartini projects

ucon said:
Beriev 2500 and Bartini 2500 are not equal, Stargazer))

I know that! Allow me to rephrase my question:
[list type=decimal]
[*]Some Bartini projects were developed while Bartini worked for Beriev. Did Beriev develop the "2500" when he was still at Beriev, and can it be considered both as a Bartini AND a Beriev? Or was it developed after that?*
[*]Is the current Be-2500 (which is also a WIG) derived in any way from Bartini's work?
[/list]


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

1. А-500, A-2000, A-2500 were startarted in Novossibirsk, then continue in Ukhtomka and OKB-86
2. Yes


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

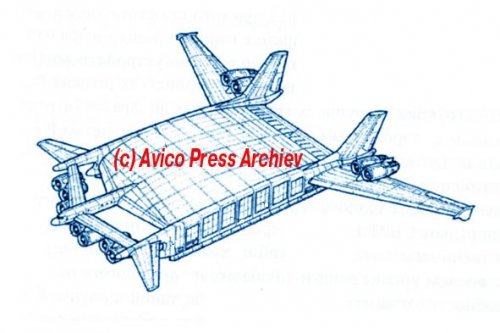

Some not well-known Bartini porojects from early 70-ies


Attachments

  • Some projects of Bartini.jpg
    Some projects of Bartini.jpg
    63.9 KB · Views: 918

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
586
Reaction score
85
Re: Unknown Bartini projects

ucon said:
Bartini E-57 supersonic jet-liner. 1957. E means Europe.
Compare with Heinkel-211B-1 four years later.
Source: technical description of E-57.
Dear ucon,
Was this E-57 supersonic jet-liner equiped with a delta wing without tailplane? (it is difficult to see on the photo)


Meteorit

CLEARANCE: Secret
Joined
Jan 5, 2006
Messages
428
Reaction score
14
Re: Unknown Bartini projects

ucon said:
Some not well-known Bartini porojects from early 70-ies

Thank you, ucon. Any chance of having the designations/descriptions to those numbers?


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

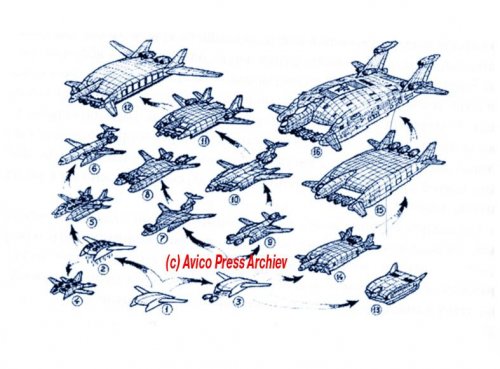

Some more Bartini projects


Dear Meteorit! Just to avoid any mistakes I will post Bartini's designations after making full order in my archiev)


Attachments

  • Bartini A-900 project.jpg
    Bartini A-900 project.jpg
    30.9 KB · Views: 920
  • Bartini A-250 project.jpg
    Bartini A-250 project.jpg
    29.8 KB · Views: 948
  • Bartini A-100 project.jpg
    Bartini A-100 project.jpg
    29.1 KB · Views: 970

foiling

CLEARANCE: Secret
Joined
Aug 12, 2007
Messages
277
Reaction score
8
Re: Unknown Bartini projects

These are amazing; big thanks Ucon.


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

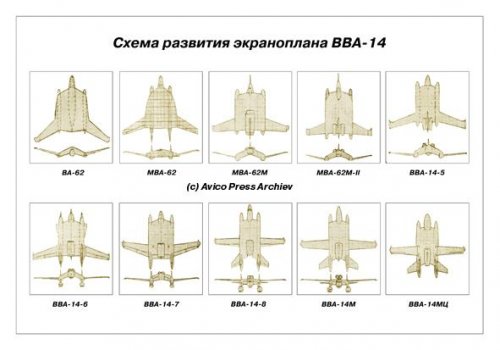

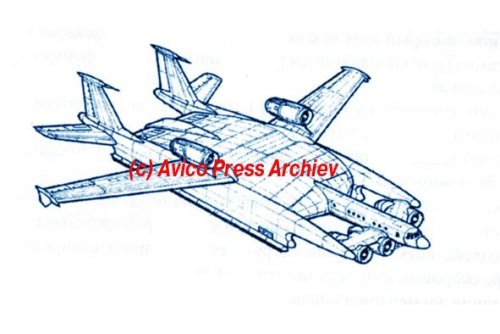

Development of some VVA-14 variants


Attachments

  • Development of someVVA-14 variants.jpg
    Development of someVVA-14 variants.jpg
    31.5 KB · Views: 811

ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

Hi all!

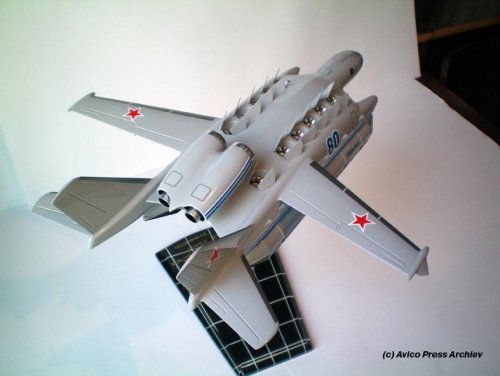

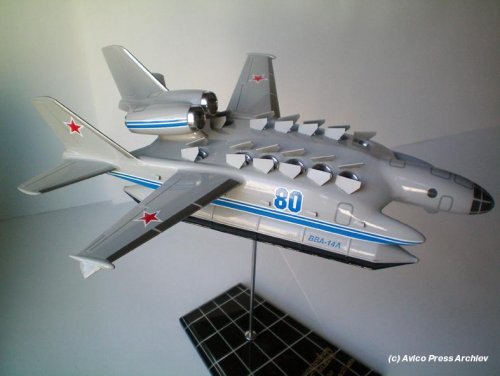

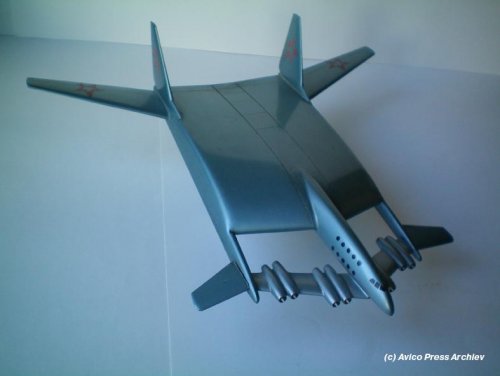

Four pix of two original Bartini models
VVA-14 and T-500 WIG


Attachments

  • VVA-14 model-01.jpg
    VVA-14 model-01.jpg
    43.7 KB · Views: 552
  • VVA-14 model-02.jpg
    VVA-14 model-02.jpg
    41.2 KB · Views: 223
  • Bartini T-500-01.jpg
    Bartini T-500-01.jpg
    27.1 KB · Views: 185
  • Bartini T-500-02.jpg
    Bartini T-500-02.jpg
    29.8 KB · Views: 167

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Re: Unknown Bartini projects

Very nice Models my dear Ucon.


ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Re: Unknown Bartini projects

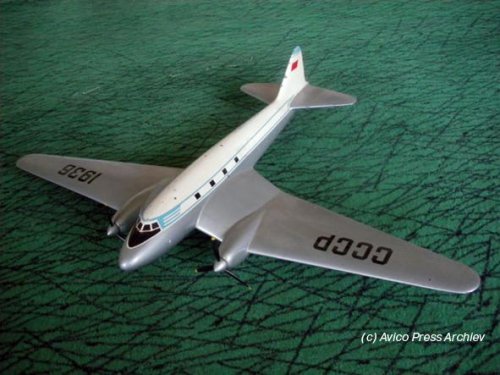

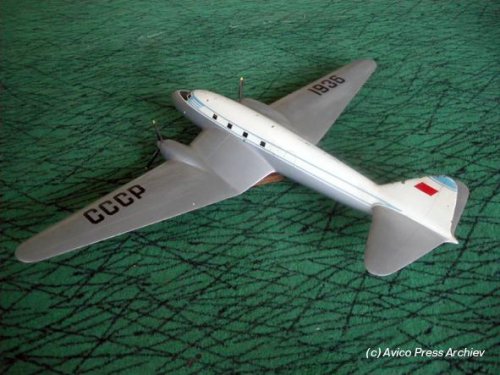

Bartini Stal-7 model


Attachments

  • Bartini Stal-7 original model-01.jpg
    Bartini Stal-7 original model-01.jpg
    45.5 KB · Views: 124
  • Bartini Stal-7 original model-02.jpg
    Bartini Stal-7 original model-02.jpg
    47.7 KB · Views: 124

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Unknown Bartini projects

Some amazing models here, ucon... Are they part of a museum's collection?


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Only ucon would know for sure... but he doesn't seem to be roaming the forum much these days... :(
