ALR Piranha

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
I'm still working on the text, in the meantime, enjoy some pics.

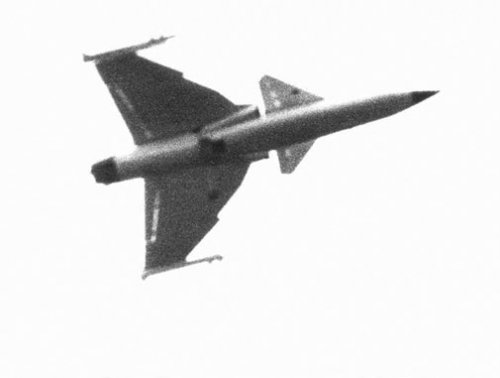

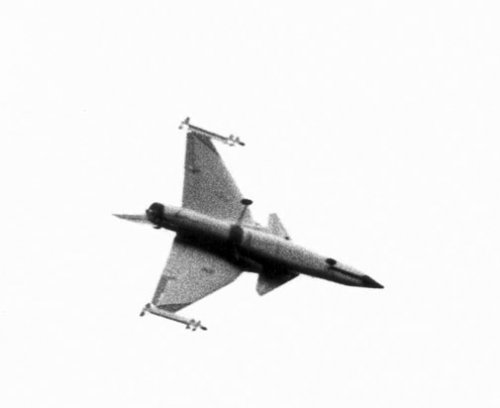

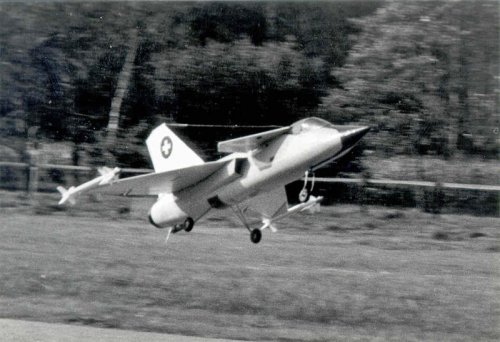

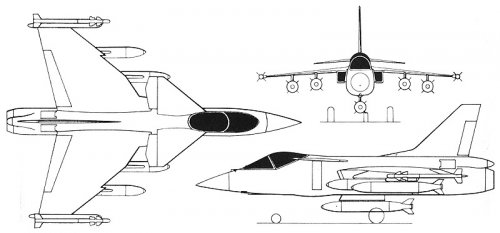

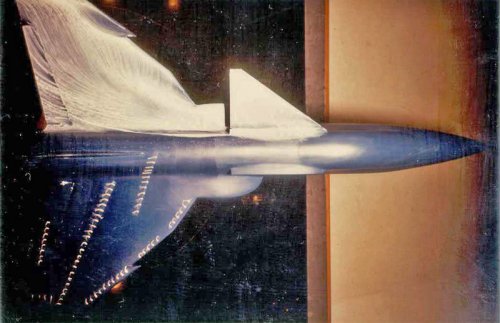

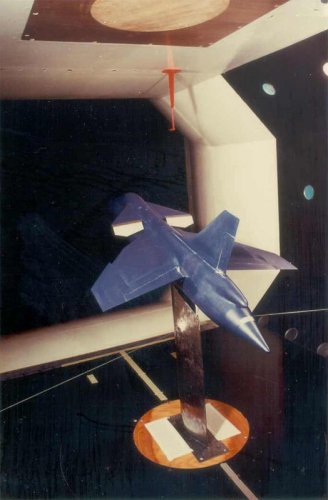

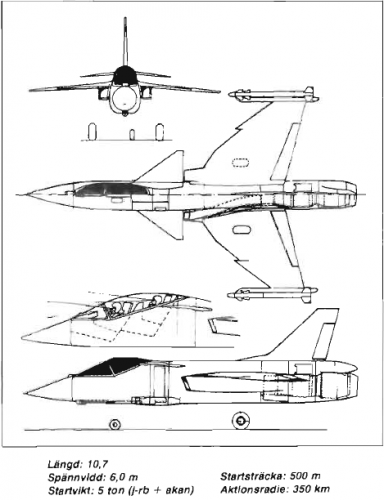

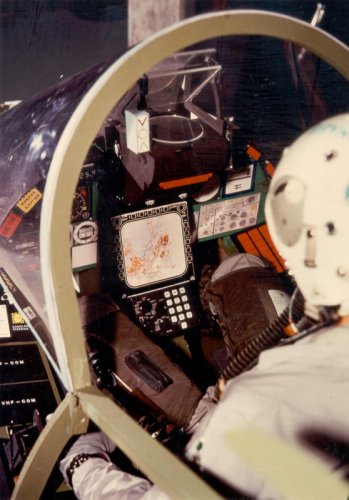

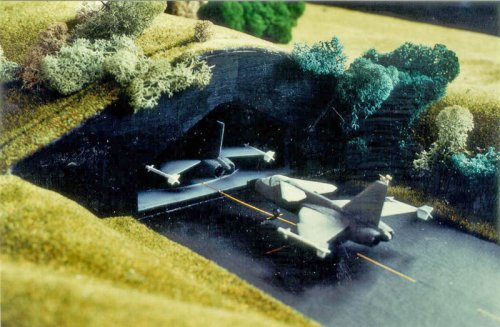

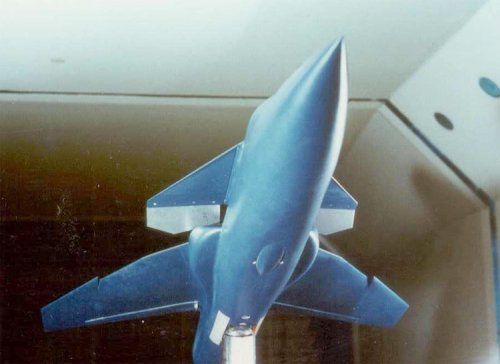

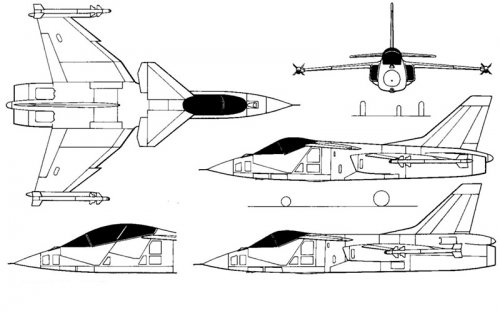

Plan view is ALR Piranha 4, with additional side view of Piranha 2D and scrap view of two seat nose.


Attachments

  • 1.jpg
    85.5 KB · Views: 1,402
  • 8.jpg
    144.8 KB · Views: 274
  • 7.jpg
    18 KB · Views: 232
  • 6.jpg
    13.2 KB · Views: 295
  • 5.jpg
    142.6 KB · Views: 1,414
  • 4.jpg
    76 KB · Views: 1,564
  • 3.jpg
    99.1 KB · Views: 1,281
  • 2.jpg
    122.3 KB · Views: 1,298

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
more pics


Attachments

  • 9.jpg
    214.1 KB · Views: 369
  • 10.jpg
    173.7 KB · Views: 353
  • 11.jpg
    56.5 KB · Views: 539
  • 12.jpg
    90.1 KB · Views: 349

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
Sources:

Bill Gunston Future Fighters & Combat Aircraft Salamander 1983
http://www.alr-aerospace.ch/Piranha.php
Two Air International articles I've lost references to temporarily


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Dear overscan,

good work,and there was also a twin engined Piranha project.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Didnt we speak about Piranha yet, did we? I was not able to find anything with the search engine so:

1. probably it was in the different forum
2. somebody tidy this forum

To hesham: I didnt know that there was a twin engined version. I always was under impression, that Piranha was as light and small, as the man can do. So its strange for me that there was also a twin engined proposal.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
Yes, thats in the article - when I find it. Twin Adour turbofans I think from memory.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,726
Reaction score
487

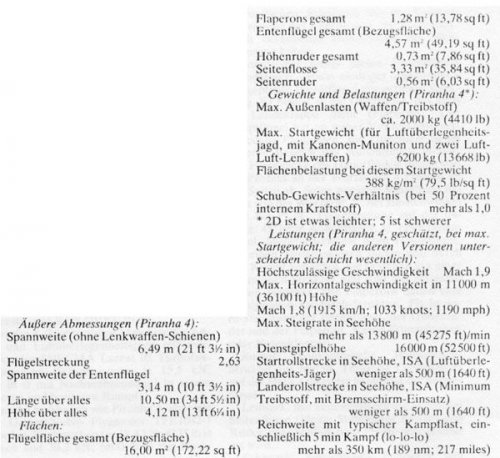

... just some more data, even if in German !! :eek:


Attachments

  • Piranha - 04.jpg
    Piranha - 04.jpg
    74.9 KB · Views: 420

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
overscan said:
Yes, thats in the article - when I find it. Twin Adour turbofans I think from memory.

As I recollect, the Piranha started with a single reheated Adour, with successive models proposing two Adours and finally a single RB.199.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
PIRANHA

Young engineers, physicist, electronics engineer, military pilot and officers of maintenance and maintenance organization of the Swiss flight weapon completed the combat aircraft study Piranha in two-year joint venture work under the direction of Dr. Ing. Georges Bridel, Zurich.

With application of modern technology in design and equipment expect Piranha Vaeter "in relation to existing types substantially improved flight and weapon performances, which found their first confirmation by windkanalversuche and by flights with steered free flight model.

On the basis of the fact that the equipment of air forces with modern aircraft for small states becomes ever more problematic it resulted, the interesting and perhaps trailblazing project study Piranha. Current raising the price of of the flight material and its armament lets the fleet sizes together-shrink in such a manner that their efficiency in the combat mission becomes questionable.

As well known valuable aircraft - distributed on few bases - represent first-rate targets. So it might not fall a strong opponent too with difficulty to prevent the flying operation on these airfields by combined air raids and act of sabotage ions. Thereby it becomes however clear that the survival factor of a fleet with high-performance aircraft at the ground is crucial and that the question, whether the probability of survival in air reaches values around 0,95 or 0,97, can be neglected practically.

In addition it comes that combat tactics in the process of combat is adapted to conditions, against what the flexibility of the ground troops with their fixed systems - which airfield-own flier defense included - leaves only small possibilities open. The survival factor of an only small fleet at the ground depends in such a manner on the combat technique of the opponent that it can be approximately exactly predicted hardly.

A small fleet of high-performance aircraft might be sufficient therefore only in a situation, with which yet on enemy reactions to the own bases is not to be counted, thus for pure tasks of air police, which admits neutrality protection in Switzerland for example under the term is. In this case the mission achievment of the flight weapon of the calculation is rather accessible, because these are flown with support of a very efficient early warning and fighter control system.

A small fleet of high-performance aircraft might hardly be sufficient for the reasons mentioned therefore for a longer lasting conduct of operations. In contrast to it a larger fleet of light combat aircraft - to a large extent decentralized distributed on a larger number of airfields - would be in the position to lead the defense fight with the army longer time.

In addition it comes that the entire fleet is held at combat aircraft, including crews and equipment for maintenance and repair, under rock and concrete in readiness. Vulnerably are natural the launch and runways, the rolling races and the systems due to it outside of the covering, which must be placed by made available specialists of the airfield ground troops maintained and after destruction within useful period. It is with the fact obvious that only a to some extent homogeneous fleet can meet the requirements for the readiness of large a number of the existing combat aircraft as possible. That means: Type variety causes a too large expenditure for the training of the flying and ground personnel for supply, Munitionierung, maintenance and repair.

Concept for a new generation

The project authors see on the one hand an obligation to the standardization of the aircraft. On the other hand a new combat aircraft in as much as possible variants would have to be built. That means: The aircraft should be able to be used during continuous basic equipment for air and ground combat, reconnaissance, electronic warfare and application/mission training. The procurement of a type row would have to extend over longer periods, during which the grundtyp be improved and different variants can be introduced. The core of the problem lies then according to opinion of the project group in the question, which tasks these aircraft are to be transferred. These basic conditions refer to the need after a small light combat aircraft available in larger number, whereby without all-weather Interzeption and all-weather low attack (also from cost reasons) consciously is done. The project authors explain:
A small, light combat aircraft is generally cheaper than an aircraft with larger dimensions and weights.
New, high-quality weapons increase the value of the aircraft used in the fight; the disposable load can be reduced.
A small aircraft offers also in tactical regard large advantages.
Today's air and space technology make it possible to decrease or eliminate the disadvantages of former light fighters. New fan jets improve the range; the high conditions of the miniaturization technology reduce volume need and weight of the entire equipment.
When a theater regarded basis for the project Piranha, which is characterized by the application/mission of strong mechanized formations, which are protected by flier defense and fighter and supported by efficient ground combat aircraft. This view could be transferred in increasing dimension also to areas outside of Europe. The design of this new aerial engagement means would be limited therefore to the following ways of application:

Clear weather air defense,
Low-altitude flight attack in front proximity and behind the front, primarily with view conditions,
Reconnaissance and electronic conduct of operations and
Application/mission training.
All-weather capability would be actually desirable, means the members of the project group. It presupposes however efficient radar mechanisms and radar guided weapons, which are at present large and heavy (Sparrow Folgemuster) and already with central combat aircraft the flight performances through increased aerodynamic resistance considerably lowered. Same is valid to an efficient radar mechanism on board.

The concept of a clear weather combat aircraft for inferior to central flight altitudes justifies the tendency toward smaller dimensions and lower combat weight. To it equipment and combat procedures became parallel more simply and procurement costs for each combat unit lower. Further it is to be placed in calculation that attack methods for all-weather operation (target location with FLIR, thus no fast approach), which expose used flying formations straight by all-weather flier defense to increased endangerment, which would require again additional electronic counter measures. For the bulk of this fleet therefore visual flight attack methods would be sufficient, with which also the equipment catalog would be to be expected reduced and a work overloading of the crews not. An adequate use of Miliz pilots (for Swiss conditions) in air and ground combat would be ensured.

Now run out however the design for the double roll - air and ground combat - inevitably on a supersonic aircraft. This configuration favours the low-altitude flight in the transsonic flying range, which equals a crucial advantage regarding the threat by flier defense and fighter - an example for the fact that itself the requirements relative. Ground connection and aerial combat in substantial aspects would not contradict.

High-quality armament

A high-quality armament is to be aimed at in principle and be planned in the context of the possibilities of the modern weapon technology and improved flier defense.

For the aerial combat: High-performance gun, short-distance air-to-air guided weapons as well as medium range guided weapons for attacks from as large a angle divisions as possible.

For ground combat: High-performance gun, air-to-surface guided weapons, TV -, infrared or laser-guided weapons, cluster bombs, braked bombs and conventional bombs.

For reconnaissance and electronic combat measures a reduced active equipment can be taken into account.

Application/mission procedure

The safety mechanism of one locally and temporally it limited air superiority can only by as large a number of weapon beams in the combat area as possible be tried with which a saturation of the enemy air defense had to be achieved. The application/mission can take place from ground or air-steered radar stations out. The small dimensions of the aircraft decrease thereby the probability of discovery like also the chance with cannon bombardment to be met.

Abb. 3 shows a comparison of conventional low attacks with the attack methods with the application/mission with modern weapons. Likewise the effective ranges of some typical flier defensive weapons are represented. Modern bombs and the new high-performance gun KCA were used with very flat attack angles, whereby the aircraft flies through expanded neutral zones of flier defense. Air-to-surface guided weapons were partly used against it outside of the effective range of flier defense.

The disposable load with such weapons is on the one hand limited by the kleinheit of the carrier aircraft, on the other hand one carrying of a multiplicity of precision weapons is unwanted, because their launching presupposes a too long retention time in the target area, which is conceivable without application of extensive, most modern electronic means and only under the condition of an effective fighter protection. Both measures exceeded however smallnational possibilities by far.

Centre of gravity of all ground combat-in-corrodes must that surprisingly and extremely fast flown low attack be. Benefit the design of the light combat aircraft suitable for the aerial combat also the low attack, because supersonic aerodynamics necessary for the aerial combat as well as the engine power favoured the fast low-altitude flight.

The equipment of the projected light combat aircraft covers a navigation system which are based on passive sensors (e.g. LINAS von Ferranti), a bomb release system, a small air-to-air radar as well as an appropriate sight. When boundary condition for the use from decentralized bases STOL characteristics become required, thus runways can be used around 1000 m length, which is present in large number.

The system Piranha

The project authors placed themselves the task to examine a possible variant of the concept on his feasibility. Thus existing or systems in development were selected, in order to guarantee as realistic a conditions as possible. From several possible propulsion variants a solution on the basis of the engine roll Royce/Turbomeca Adour was aimed at. The design of the aircraft resulted from the synthesis of different requirements, which are given to others under, by short takeoff ability, good maneuverability, favorable weapon arrangement and appropriate accommodation of the engine and the various systems.

The project Piranha is characterized by the following outstanding features:
Also fully mobile canard wing and aileron landing flaps acre main wing combined shortcoupled canard configuration. The canard wing is set above the main wing level, from which favorable aerodynamic interference effects (polar one, laengsmoment) result.
Shoulder-wing monoplane arrangement, favorable accommodation of the external stores regarding aerodynamic interference effects (laengsmoment), free space for external stores (landing gear in the fuselage) and good accesibility for Munitionierung and maintenance.
Engine hanging inserted, whereby the free standing part of the cardan shaft housing can bear damages by IR guided weapon hits, without aircraft command is impaired.
Fly by wire control, whereby the operating cylinders come to lie completely in the fuselage and the wing by control assemblies would remain to a large extent free. The relatively simple flight control can be adapted by programming to the flying range optimally.
Central inserted high-performance gun 30 mm of Oerlikon, whose relatively high recoil force does not authorize a disturbing course moment (fig. 4). Rapidly replaceable ammunition container.
Application of conventional methods in the cellular construction.
Expandability: Artificial stability (CCV), application of composite materials.
In principle a light inertia system, laser rangefinder, small radar for target acquisition, zielfolge and ranging, head-up display system (or display system) and general-purpose display unit would cover navigation and attack system central in the cockpit, 360-Grad-Radarwarnempfaenger and a simple, active jammer. The intended system can be used in substantial parts both for air and for ground combat, so that neither into the one nor in the other roll much totes "weight would have to be built. Depending upon engine choice can be planned different types of the Piranha, so for instance an air and a ground-combat engagement version, a pure ground-combat engagement version as well as training and school versions.

The take-off weight is smaller for an equivalent mission, the dimensions is smaller than those the f-ë tiger II (20% smaller surface). The advantages of this small aircraft - higher probability of survival (smaller silhouette), good maintenance conditions in smaller shelters - are primarily also in the fact that the Piranha could profit from the increasing Miniaturierung the equipment at most.

In summary the features know this Projektswie follow to be emphasized:
Smaller procurement costs,
higher fleet sizes,
the entire application/mission aircraft can be distributed on more bases with allocation of the auxiliary bases, with which vulnerability at the ground became substantially smaller.
As a result of application of a small fan jet on small temperature level a weak IR characteristic would arise; thus increase of the chances of survival opposite IR guided weapons; smaller fuel consumption as well as reduction of the costs of training and training before transition to high-performance aircraft.
Text: Paul Kueng. Document reference: ALR (working group air and space travel, Zurich)

Translated from http://www.flug-revue.rotor.com/FRHeft7X/FRHeft79/FRH7901/FR7901b.htm


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
Variants
Piranha 1: initial subsonic project
Piranha 2C: 1 x Adour Mk 811 (RT172-58), 3900kgp thrust, reduced avionics, small wing (13.5 sq m)
Piranha 2D(1): 1 x Adour (RT172-63), 4580kgp thrust, full avionics, small wing (13.5 sq m)
Piranha 2D(2): as (1) but large wing (16 sq m)
Piranha 4: 2 x reheated Larzac M-74/05 (15% more thrust at supersonic speeds than RT172-63)
Piranha 5: 2 x Garrett/Volvo TFE 1042-7 (3080kgp dry, afterburning thrust unknown)
Piranha 6: 1 x RB.199 Mk 104

Avionics
Initially, Ferranti FIN 1020 nav/attack system, Type 105D laser rangefinder , Smiths HUD, Thomson-CSF Agave radar.
Later on, Ferranti FINAS 2000 INS, Ferranti 4510 HUD, Type 105D laser rangefinder , Emerson APG-69, General Electric APG-67 or Blue Vixen radar.

Armament
1 x cannon (30mm KCA, Mauser 27mm, General Electric GE-430 30mm)
Piranha 6 /Piranha 4 /Piranha 2D(2) /Piranha 2D(1) specs
Length: 11.57m / 10.50m / 10.7m / 10.7m
Span: 7.62m / 6.49m / 6.49m / 6m
Height: 4.25m / 4.12m / ? / ?
Wing area: 22 sq m / 16 sq m /16 sq m / 13.5 sq m
Empty Weight: 4,340kg / ? / ? / 3800kg
Max Fuel: 2,160kg+ / ? / ? / ?
Max External stores: 3,500kg
Normal TOW: 7,040kg / ? / ? / 5900kg
Maximum TOW: 10,000kg / ? / ? / ?
Maximum speed: Mach 1.8/ ? / ? / Mach 1.6
Max rate of climb: 18,000m/minute / ? / ? / ?
Service ceiling: 16,800m / ? / ? / ?
TO run: 300m / ? / ? / 450m
Combat radius, lo-lo-lo, 2,000kg warload, 20 min loiter, 5 min combat: 400km / ? / ? / 300km

Sources:

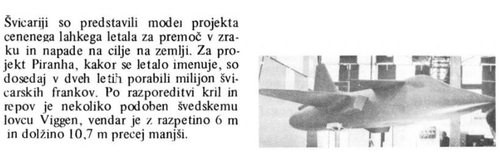

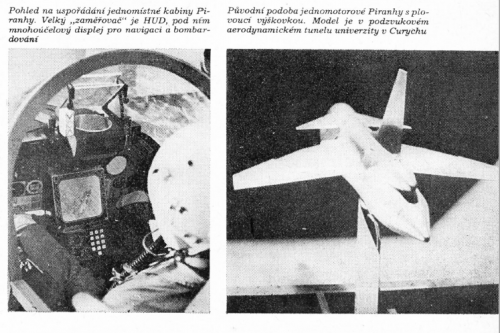

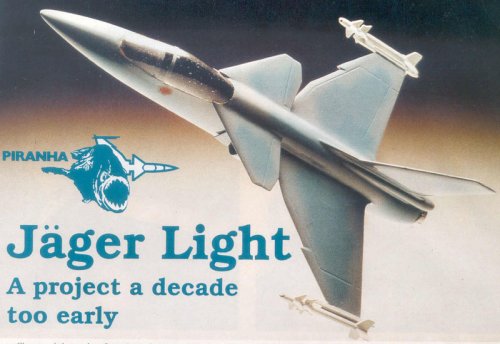

Brian Walters "Jager Light: A project a decade too early" Air International November 1992
The Light Fighter Market... and a European proposal Air International Febrary 1980
Jane's All The World's Aircraft


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
In the line drawings above, what is in the small fairing with a window just ahead of the windscreen? Is that for the laser rangefinder?


K5054NZ

ACCESS: Restricted
Joined
Jan 17, 2007
Messages
1
Reaction score
0
Hi all,

The Piranha has intrigued me ever since seeing it on a 1980s vintage "Future Combat Aircraft" DVD some time ago. I'm guessing no-one has produced a model kit of it (my preferred scale is 1:72), so what do you think I should butcher to produce one?

Cheers,

Zac


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
Found the second article;

The Light Fighter Market... and a European proposal, Air International February 1980

Added extra info to the earlier postings.


ysi_maniac

ACCESS: Confidential
Joined
Jan 26, 2007
Messages
82
Reaction score
2
K5054NZ said:
Hi all,

The Piranha has intrigued me ever since seeing it on a 1980s vintage "Future Combat Aircraft" DVD some time ago. I'm guessing no-one has produced a model kit of it (my preferred scale is 1:72), so what do you think I should butcher to produce one?

Cheers,

Zac
I am currently scratch building one using:
-cockpit and nose from a Matchbox SeaHarrirer
-Hobbycraft Crusader 1/100 for fuselage
-half a tank from a 1/32 MiG-21 to add heigh to fuselage
-main wingd from a Tamiya Phantom 1/100
-forward small wings from an ARII Phantom 1/144
-intake from the same ARII model

Pics soon ...


mz

ACCESS: Top Secret
Joined
May 28, 2007
Messages
681
Reaction score
8
I guess nobody commented since it was so obvious but it is very very much a Gripen lookalike.
The high close coupled canard just behind the cockpit, the single engine and single tail, the long tail behind the main wing...
Only the wing is somewhat narrower and Gripen's intakes are a bit different and the canards are mounted on the intake tube sides.


ysi_maniac

ACCESS: Confidential
Joined
Jan 26, 2007
Messages
82
Reaction score
2
In progress thread in our sister site:
http://www.whatifmodelers.com/index.php/topic,22435.0.html
;)


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,014
Reaction score
239
Conceptually, it seems more like a miniaturized JA-37 though, particularly if the thrust reverser on the RB.199 was intended to be kept. High-bypass engine, fixed canards with trailing edge control surfaces, the wing leading edge design...


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
492

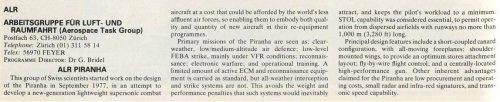

Source: Jane's all the world's aircraft 1980-81


Attachments

  • piranha2.JPG
    358.8 KB · Views: 1,222
  • piranha1.JPG
    73.4 KB · Views: 1,090

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,763
Reaction score
1,907
In a number of respects, it could be said, at least in it's initial form, to have been a contemporary of Vought's (originally LTV) ATLAS 100 concept (not to be confused with Lockheed's Anti-Tank Light Attack System).

http://www.secretprojects.co.uk/forum/index.php/topic,170.45.html
http://www.secretprojects.co.uk/LTV%20Atlas%20Concept.pdf


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,726
Reaction score
487

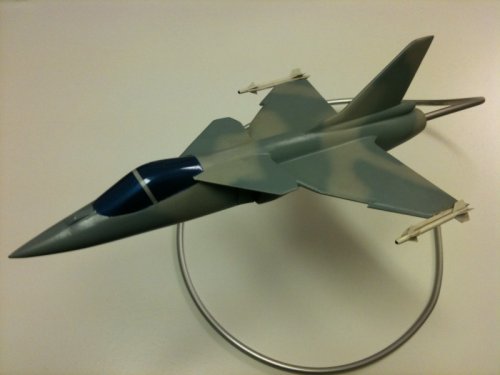

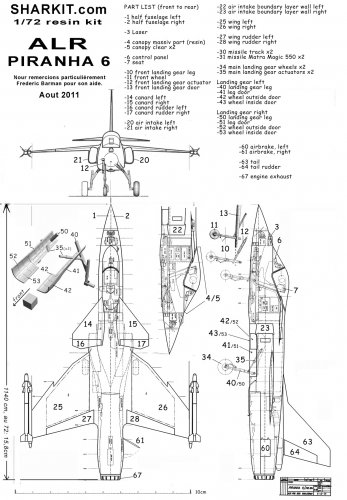

Has anyone noticed !!!??

http://www.sharkit.com/sharkit/piranha/piranha.htm

Deino


Attachments

  • piranha_notice.jpg
    371.6 KB · Views: 886

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Ironic that Switzerland has now officially purchased the Gripen, which resembles the Piranha a great deal.


helmutkohl

ACCESS: Secret
Joined
Nov 29, 2010
Messages
240
Reaction score
231
but would it perform the same?
its length is about 35 feet.. that's smaller than the AMX, and slightly shorter than the Yak-130.
not much room for fuel for range, or a decent radar?
but perhaps range is not an issue for the Swiss.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
helmutkohl said:
but would it perform the same?
its length is about 35 feet.. that's smaller than the AMX, and slightly shorter than the Yak-130.
not much room for fuel for range, or a decent radar?
but perhaps range is not an issue for the Swiss.

I think you have hit the nail right on the head helmutkohl -
but perhaps range is not an issue for the Swiss
I like the fact that the Swiss had the guts and tenacity to design a 'purpose' designed combat aircraft which meet their own unique operational stipulations and requirements!

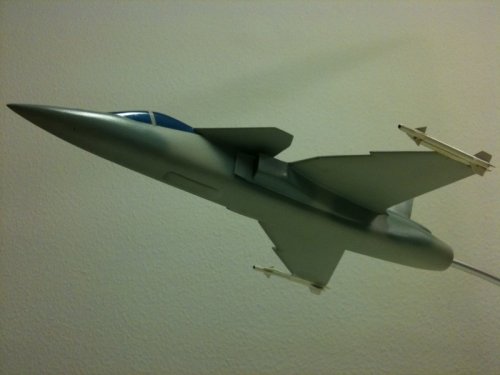

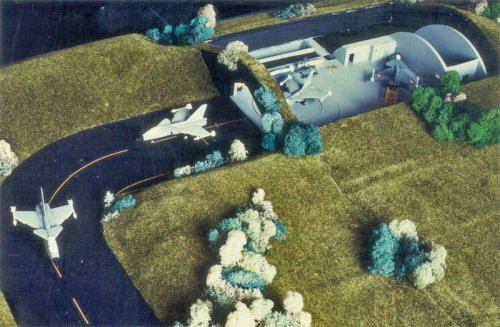

Also of note (and consideration) is the envious and very sensible 'Swiss' air basing and operations arrangements - which emphasis dispersed air operations throughout the country.
The ALR Piranha I personally believe was a lost cost and operationally effective opportunity :-\

Regards
Pioneer


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,379
Reaction score
683
Re: twin engined ALR Piranha

Artist's impression of a twin engined ALR Piranha, from 'Warplanes of the future' by Bill Gunston, page 13.


Attachments

  • ALR Piranha_2_engines.jpg
    ALR Piranha_2_engines.jpg
    100.4 KB · Views: 872

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Hi,


here is a very early 3-view concept for Piranha.


Flygvapennytt 2-1980


Attachments

  • Piranha   2-1980.png
    Piranha 2-1980.png
    63.3 KB · Views: 638

Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
103
Reaction score
5
The trouble with what were called "jockey" fighters in the 30s, up to the Folland Gnat, is you reduce quality and effectiveness faster than you reduce cost. First, you have irreducible life support for the pilot. Next, you need a worthwhile weapons system. Finally, for a given time period the radar and associated electronics will again degrade in usefulness faster than it will lose size/weight/price. Switzerland is not some 3rd world country dealing with equally cheesy enemy forces or AK-47 armed homegrown malcontents. They simply couldn't afford to cut corners and retain a credible air force.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377

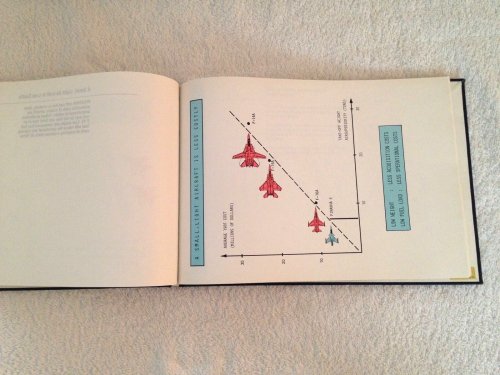

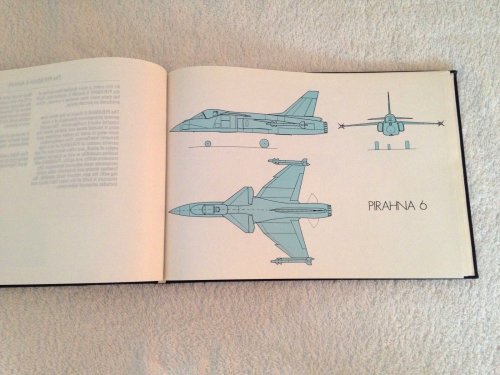

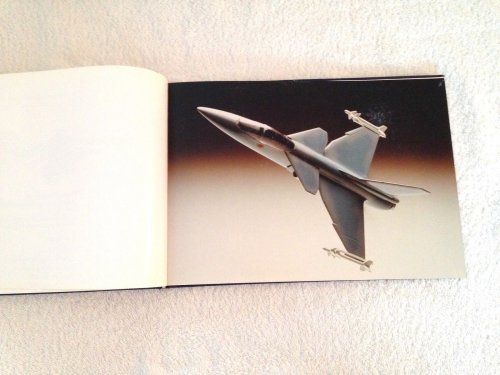

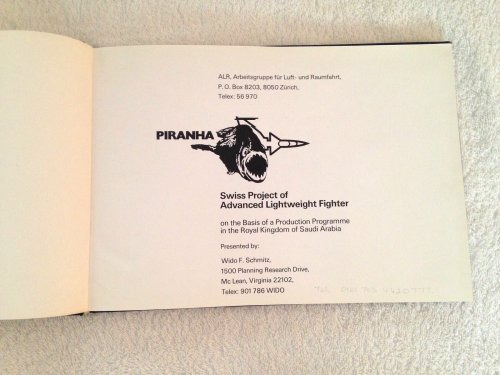

ALR Piranha Brochure for Saudi Arabia

https://www.ebay.co.uk/itm/Swiss-Project-of-Advanced-Lightweight-Fighter-Piranha/153039089332?hash=item23a1d72eb4:g:948AAOSw2VFbCvdB


Attachments

  • s-l1600-5.jpg
    294.5 KB · Views: 220
  • s-l1600-4.jpg
    308.6 KB · Views: 186
  • s-l1600-3.jpg
    267.5 KB · Views: 310
  • s-l1600-2.jpg
    274.6 KB · Views: 316
  • s-l1600-1.jpg
    302.4 KB · Views: 366

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Re: ALR Piranha Brochure for Saudi Arabia

Great find my dear Paul.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,628
Reaction score
509
Re: ALR Piranha Brochure for Saudi Arabia

Nice find! Never thought of it 'til seeing this 3V but the fuselage looks much like the AMX.

Thanks! Mark


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,632
Reaction score
562
Similar planform to the Gripen.

Last edited by a moderator:
Top
