more pics

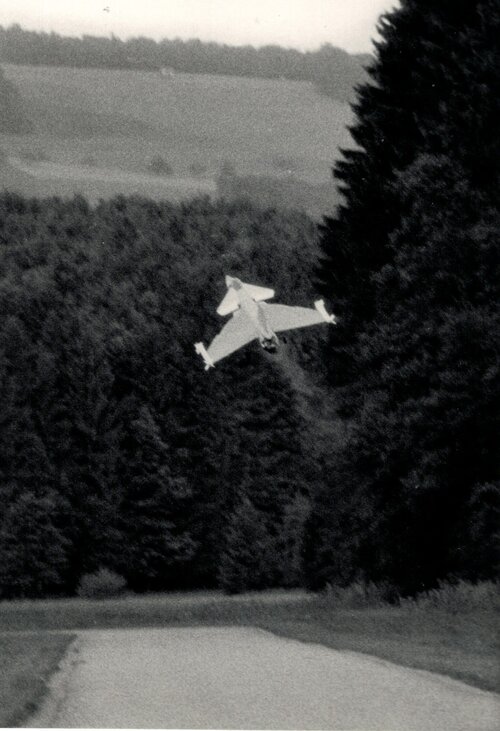

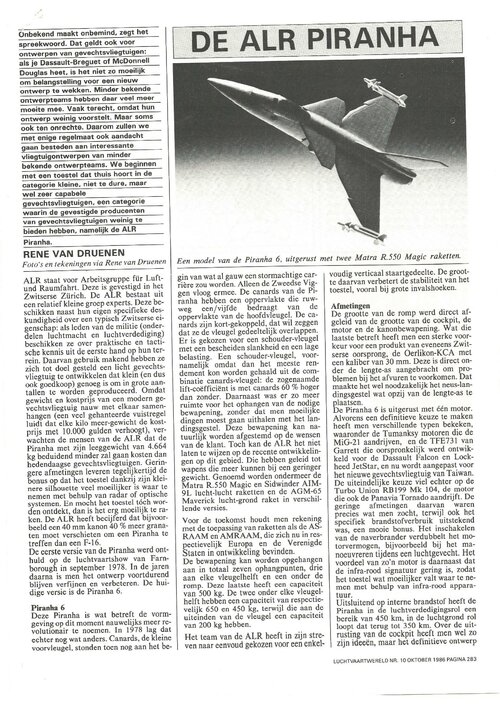

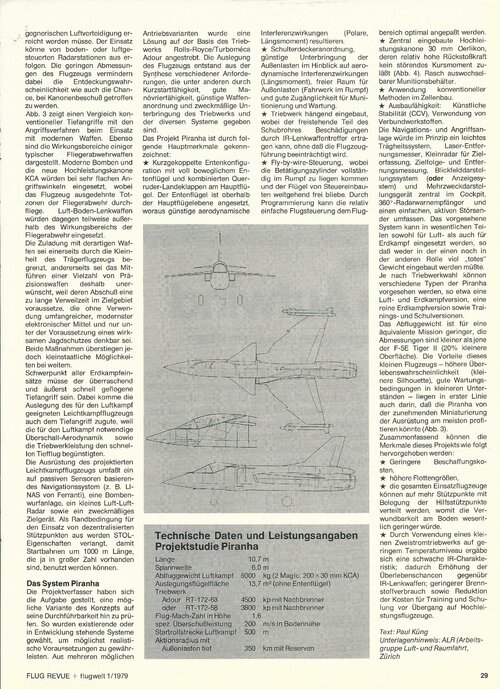

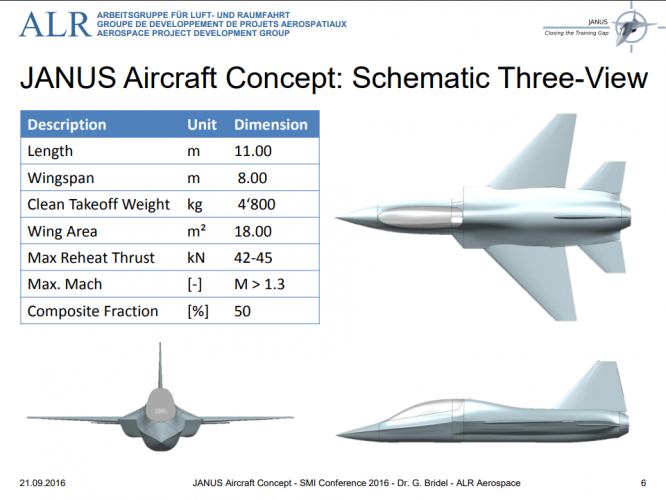

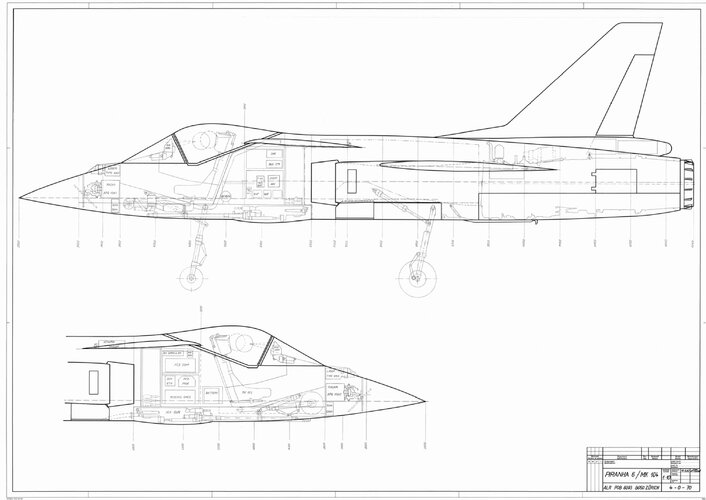

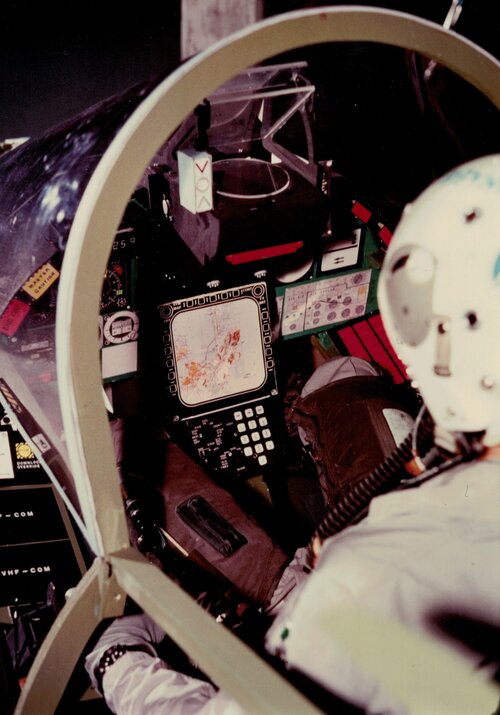

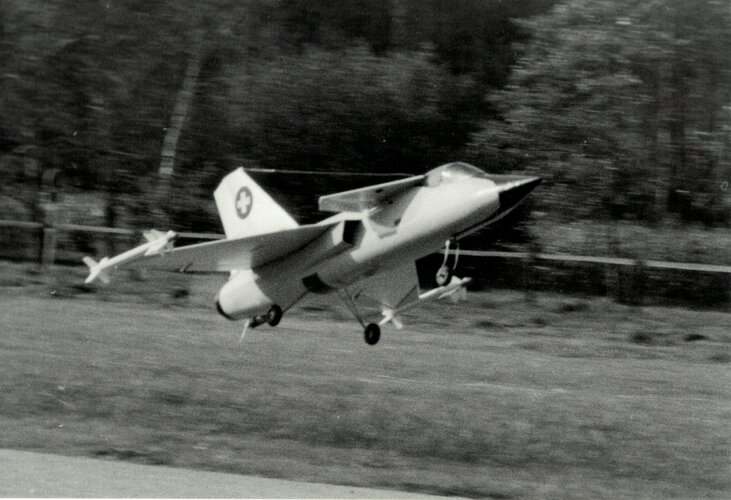

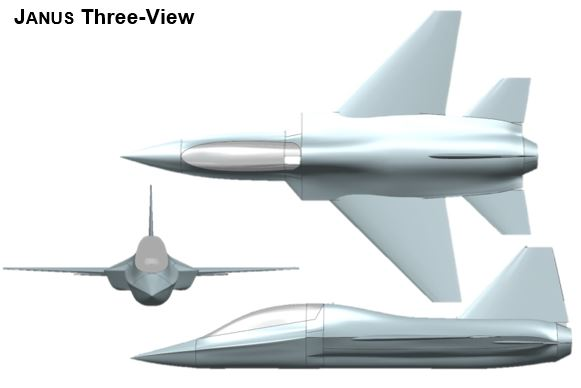

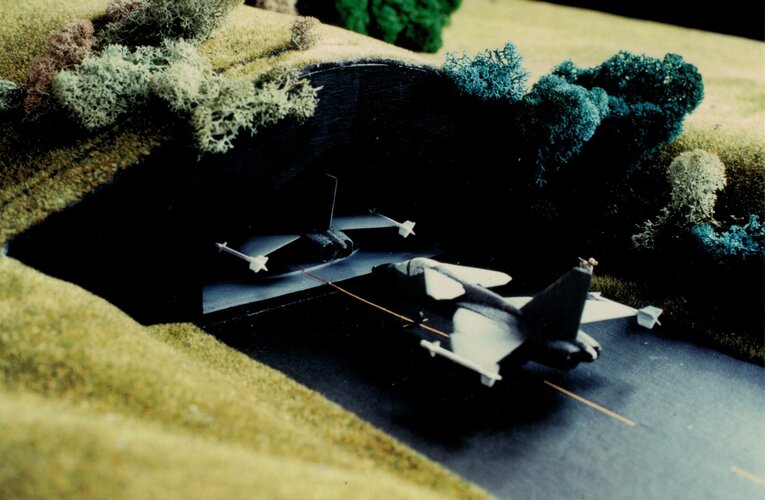

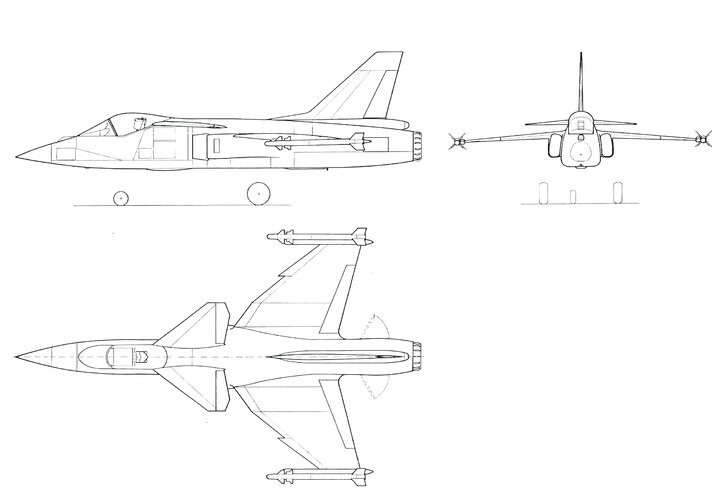

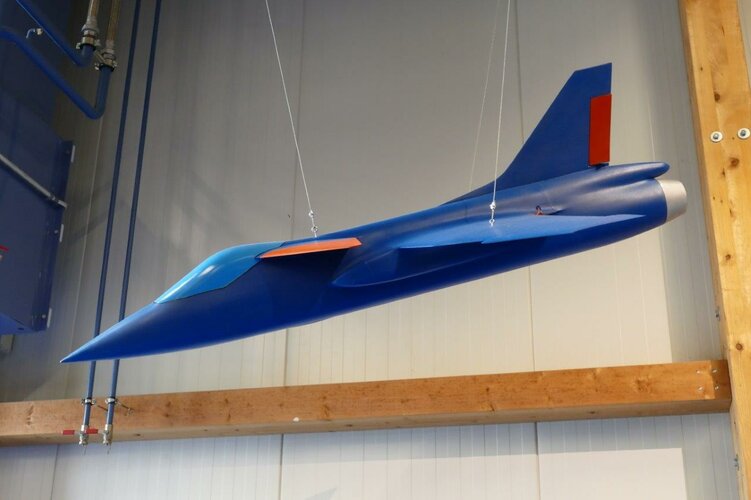

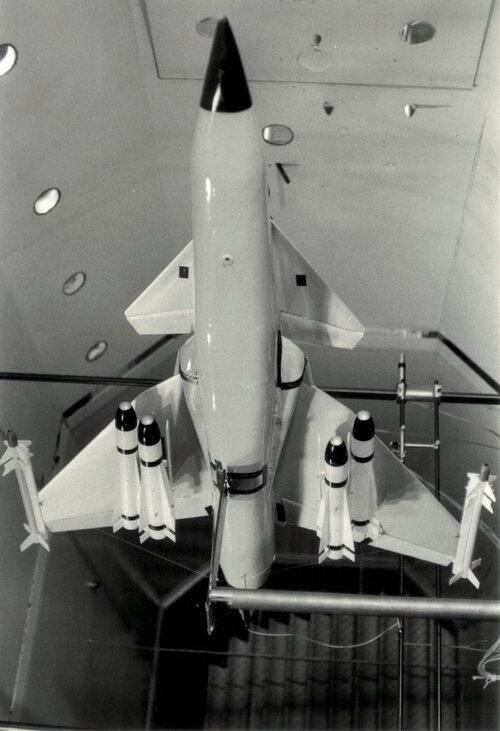

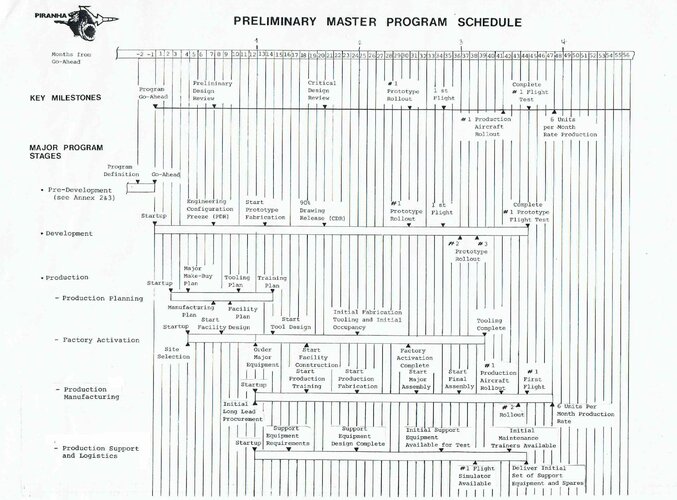

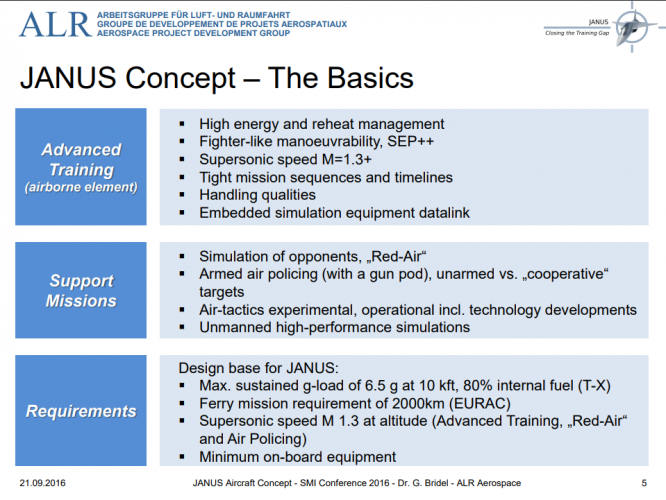

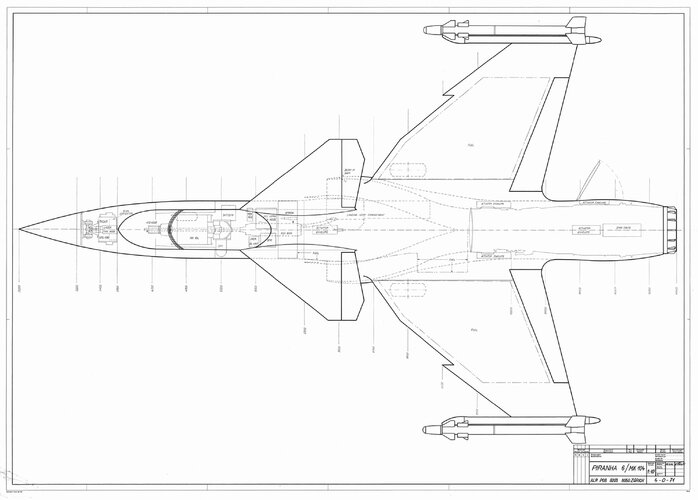

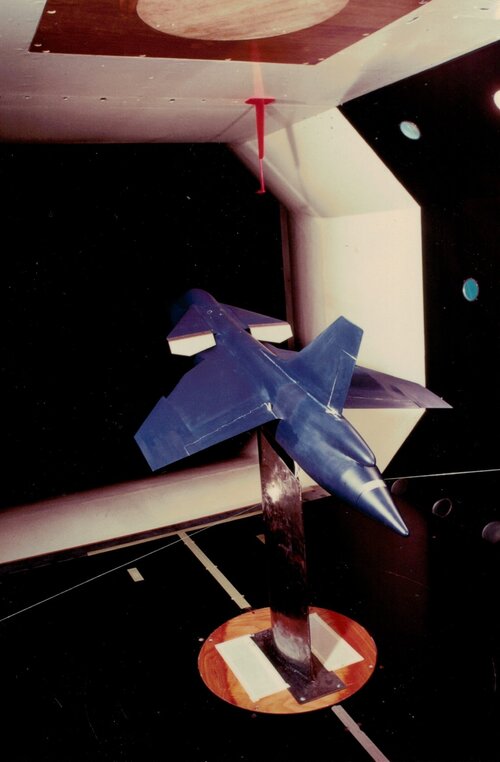

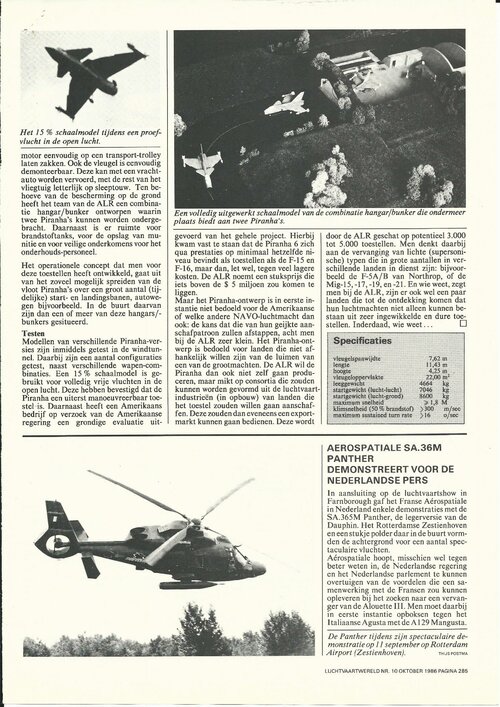

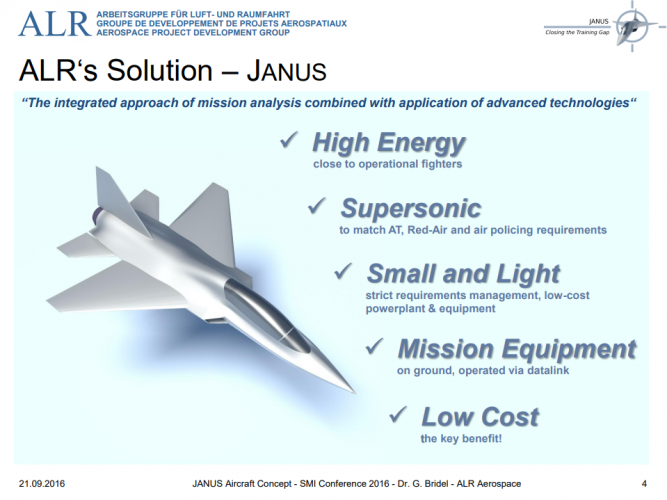

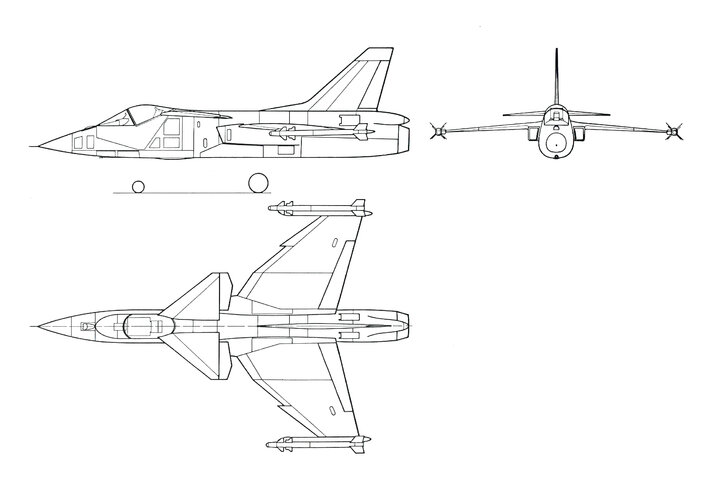

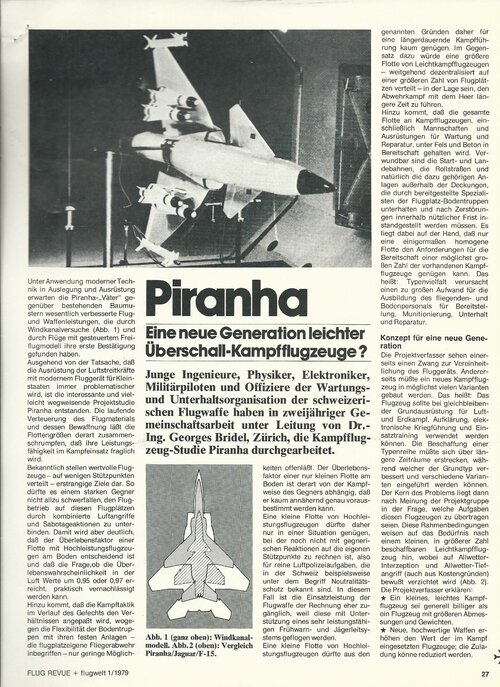

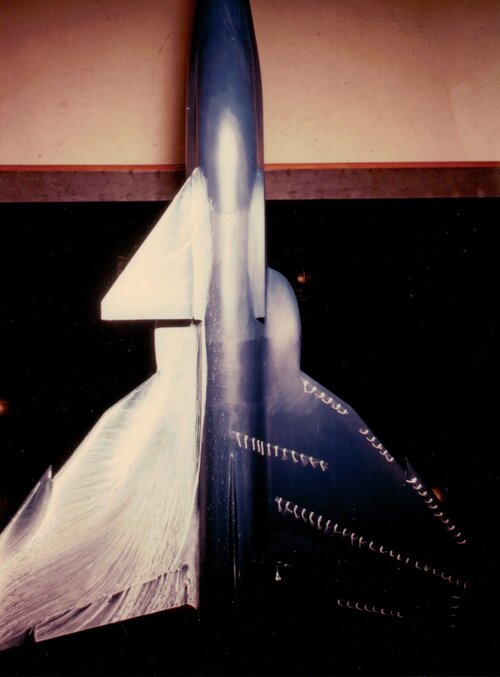

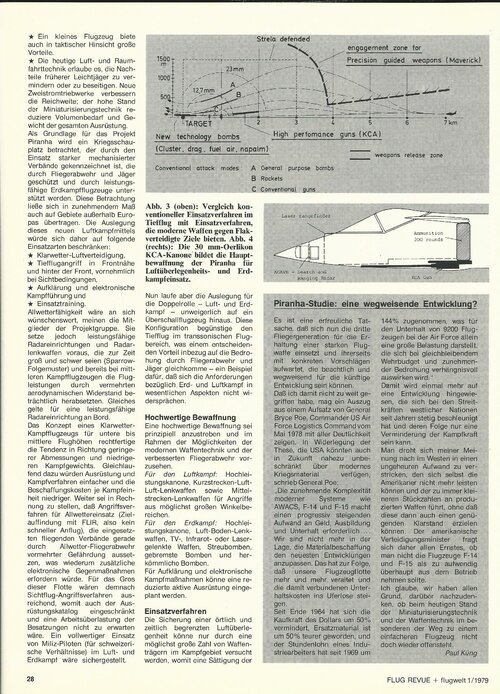

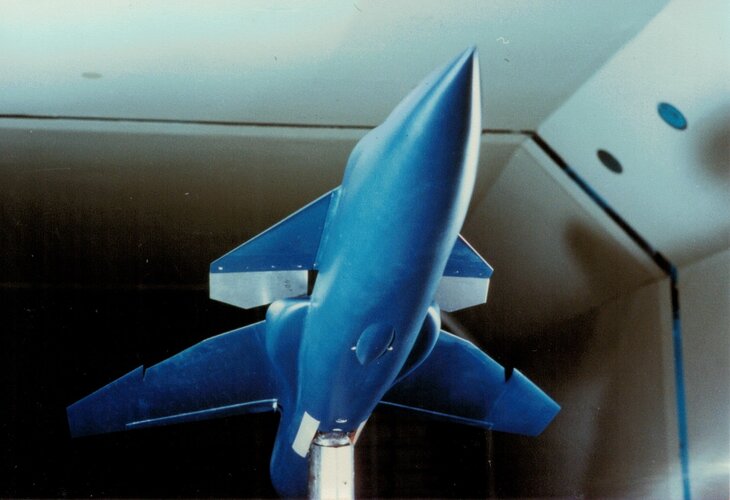

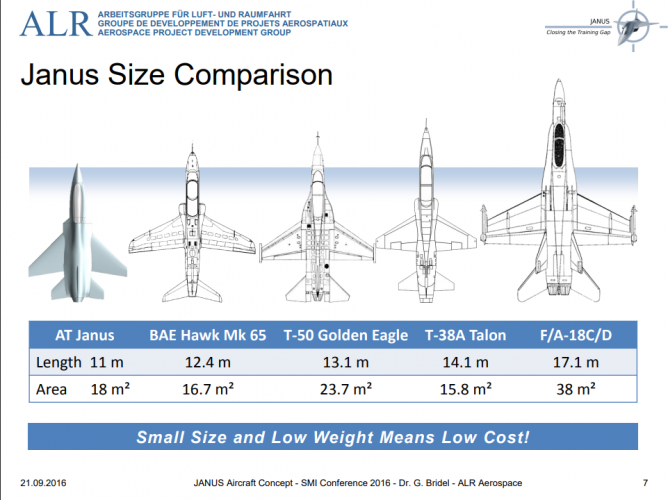

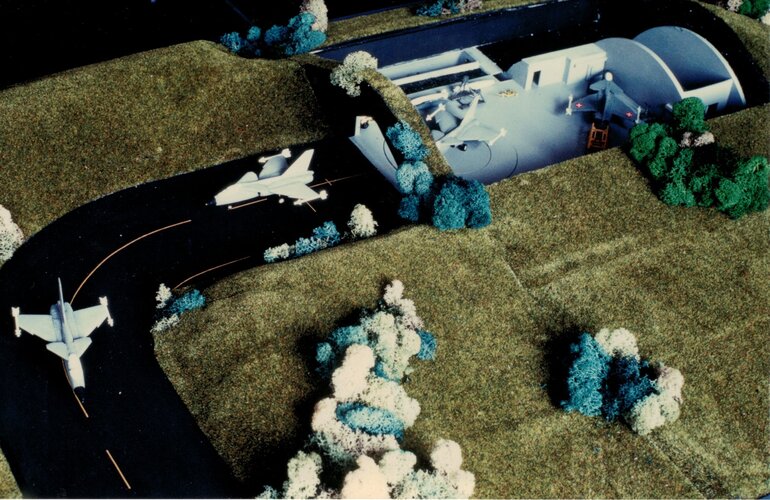

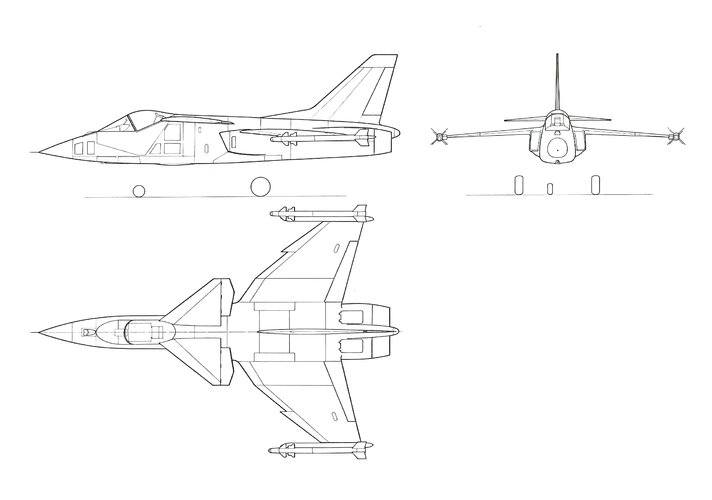

I got a book on swiss fighter jets a while ago, they include some drawings as well as specs. It’s in French so I’ll translate it to the best of my abilities (my french isn’t great).

If anyone is interested, the book is called “P-16 prototypes suisses d’avions à réaction: N-20, piranha, learjet” Annoyingly, I’m on a bus right now and no site tells me the ISBN number. The book was about 70.- in the aviation museum at Payerne, CH. It goes into the development history of swiss domestic jet aircraft, som of the images you posted look familiar so I’ll see if I can find anything new this evening.


ConnieTheTomcat

ACCESS: Restricted
Joined
Nov 14, 2020
Messages
4
Reaction score
13
Firstly, apologies for my tardiness as to posting this. I meant to do this as soon as I got home yesterday but I was very tired.
Secondly, and more importantly, there's a whole page on specs. The specs posted in this thread of the Piranha 4 seem to conflict with what's on the book slightly, and I cannot say which one is correct.
The specifications on the book [ISBN 978-2-88268-015-5 page 203] (translated to the best of my ability) are as follows:
TypePiranha 2DPiranha 4Piranha 6 (small wing)Piranha 6 (large wing)
Engine(s)1x Rolls royce Adour RT172-632x LARZAC M74-05 (this conflicts with other info I found on the web, which states M74-08, however I can't find much info on either)1x Rolls royce RB199 Mk1041x RR RB199 Mk104
Max thrust at sea level M=0 (kgf)
This figure seems to be the engines' thrust on the test stand
45005000-600075007500
Wingspan (clean configuration)6.0m6.5m6.5m7.6m
Length10.7m10.57m11.57m11.57m
Height4.12m4.12m4.25m4.25m
Wing area13.7m^216m^216m^222m^2
Empty weight3,800kg3,950kg4,337kg4,487kg
MTOW8,000kg6,200kgnot stated, however the nominal takeoff weight is stated at 6,896kg10,500kg
Max. speed at 11,000m with 2x heat seeking missiles on the wingtips, 50% internal fuelMach 1.5Mach 1.6Mach 1.8Mach 1.8
Max. sustained rate of turn14deg/sec14deg/sec14.5deg/sec16.5deg/sec
T/O distance with cannon, ammo, 2 heat seeking missiles, and maximum fuel load450m400m360m350m
