Hi everybody

Here the ultra-heavy O-I tank
http://mailer.fsu.edu/~akirk/tanks/japan/japan-exp.html

There was also another japanese giant ?
The 100 ton tank "Mi-To" ?
http://uk.geocities.com/sadakichi09/army/IJAV.htm
Maybe someone knows more ?

Here the Type 5 Chi-Ri
http://en.wikipedia.org/wiki/Type_5_Chi-Ri

Maybe someone knows some other japanese late war tank projects ?

Many greetings and thanks


tom!

ACCESS: Restricted
Joined
Sep 11, 2008
Messages
32
Reaction score
32
Website
www.ww2technik.de
Hi.

moin1900 said:
Hi everybody

Here the ultra-heavy O-I tank
http://mailer.fsu.edu/~akirk/tanks/japan/japan-exp.html

Tank project, last version was mainly an massively enlarged type 5 Chi-Ri chassis with a weight of 120 to 140 t. Armed with a type 5 105 mm tank gun and a type 98 20 mm aa-gun in a cupola on top plus a Shinhoto turret with a type 1 47 mm tank gun and a 7,7 mm tank MG turret on the bow. The vehicle only reached early prototype stage. There are rumors that a prototype was tested in summer 1945 in Manchuria but nothing more than rumors.

http://www3.plala.or.jp/takihome/O-I.htm

There was also another japanese giant ?
The 100 ton tank "Mi-To" ?
http://uk.geocities.com/sadakichi09/army/IJAV.htm
Maybe someone knows more ?

Maybe an early prototype of the O-I project but most probable nothing more than a rumor.

Here the Type 5 Chi-Ri
http://en.wikipedia.org/wiki/Type_5_Chi-Ri

Maybe someone knows some other japanese late war tank projects ?

There were quite a lot of late-war projects from which (following Taki) , the type 5 tank Chi-Ri, the type 5 tank destroyer Na-To, the type 5 tank hunter Ku-Se, the type 5 tank destroyer Ho-Ru, the type 5 light tank Ke-Ho and the 120mm SPG Ho-To reached prototype stage and the type 4 tank Chi-To became ready for production (200 were ordered for late 1945 before surrender).

Yours

tom! ;)


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

Thanks for the reply ! There was the Type 5 Chi-Ri.
Was there a candidate for a Type 6 tank ?!?

Many greetings


tom!

ACCESS: Restricted
Joined
Sep 11, 2008
Messages
32
Reaction score
32
Website
www.ww2technik.de
Hi.

In mid 1945 the japanese tank designers and producers were busy developing the type 4 Chi-To and Type 5 Chi-Ri with a massive lack of ressources (tanks were low priority)

At surrender there were only plans to develop a tank hunter (Ka-To) and a tank destroyer (Ho-Ri) both armed with the type 5 105 mm tank gun plus up-armouring the Chi-Ri to up to 135 mm frontal armour in 1946 ("type 6" = 2606 indicates the Jimmu calendar year in which the weapon system was officially adopted, Jimmu calendar started 660 BC)

Yours

tom! ;)


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

bigger picture: http://radikal.ru/F/s019.radikal.ru/i604/1203/18/c6ec157a5d16.jpg.html
Not sure, but maybe it's O-I turret. Photo taken on the Far East shortly after the war.


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

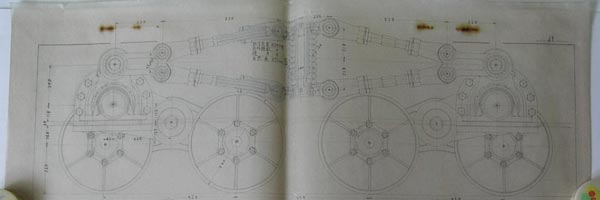

Torsion suspension for improved design of Type 5 Chi-Ri


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,001
Reaction score
5,585
http://www.youtube.com/watch?v=R1H3u7Btk8M

Uploaded on Nov 16, 2008
The Japanese original tank type 89 was used in Chinese front and Pacific front before and during WWII. This one is restored By Japanese Self Defence Army in 2007 at Tuchiura wepon scool near Tokyo as an educational technical method.

We saw it at the base day in October 2007 and it runed again in 15th November 2008. It's an important Japanese histrical thing,we think it.


http://www.youtube.com/watch?v=gDFcT1g47fU

http://www.youtube.com/watch?v=0snxs-JL8i8


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,001
Reaction score
5,585
http://www.youtube.com/watch?v=OolaPCZx5nc


http://www.youtube.com/watch?v=dpTLAAT_jnA


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386
As I just have the book from Ferdinand M. von Senger und Etterlin "Die Kampfpanzer von 1916 - 1966"
at hand, I'll post some drawings of Japanese tanks. The type 3, 4 and 5 remained prototypes, only.


Attachments

  • Shinhoto_Chiha.jpg
    96.4 KB · Views: 315

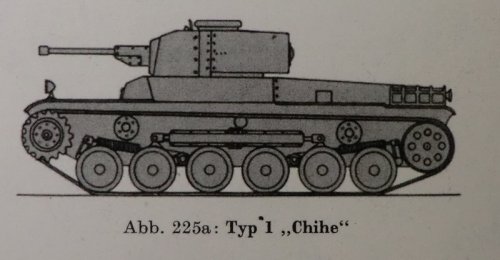

  • Typ-1_Chihe.jpg
    96.4 KB · Views: 307

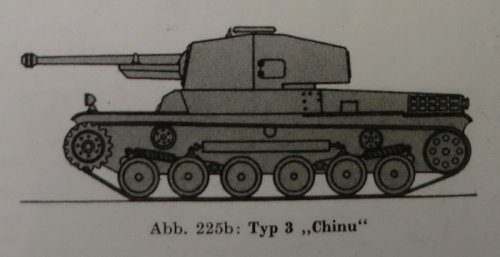

  • Typ-3_Chinu.jpg
    78.7 KB · Views: 67

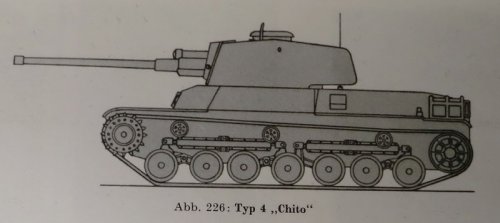

  • Typ-4_Chito.jpg
    70.1 KB · Views: 75
  • Typ-5_Chiri.jpg
    71.5 KB · Views: 118

eltf177

ACCESS: Restricted
Joined
Sep 8, 2006
Messages
48
Reaction score
2
Jemiba said:
As I just have the book from Ferdinand M. von Senger und Etterlin "Die Kampfpanzer von 1916 - 1966"
at hand, I'll post some drawings of Japanese tanks. The type 3, 4 and 5 remained prototypes, only.

Actually some 66 of the Type 3 were built. The Type 4 only had 6 examples (I believe some of those were prototypes) and the Type 5 was an unarmed prototype.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,001
Reaction score
5,585
http://sensha-manual.blogspot.ie/2017/03/theorem-on-newly-discovered-tanks.html

In this new proposed theory, every spot in the Iroha classing system falls into their proper order up until the 1944-1945 gap where many tanks were scrapped and remain unknown.

Chi-I: (Medium First) Tank “A”
Chi-Ro: ( Medium Second) Tank “B”
Chi-Ha: ( Medium Third) Type 97 Chi-Ha
Chi-Ni: (Medium Fourth): Type 97 Chi-Ni
Chi-Ho: (Medium Fifth) Type 98 Chi-Ho
Chi-He: (Medium Sixth): Type 1 Chi-He
Chi-To: (Medium Seventh): Type 4 Chi-To
Chi-Ri: (Medium Ninth): Type 5 Chi-Ri
Chi-Nu: (Medium Tenth): Type 3 Chi-Nu

Ke-I: (Light First) Unreleased Tank*
Ke-Ro: (Light Second) Unreleased Tank*
Ke-Ha: (Light Third) Unreleased Tank*
Ke-Ni: (Light Fourth) Type 98 Ke-Ni
Ke-Ho: (Light Fith) Type 5 Ke-Ho
Ke-He: (Light Sixth) Currently Unknown
Ke-To: (Light Seventh) Type 2 Ke-To
Ke-Ri: (Light Ninth) Type 3 Ke-Ri
Ke-Nu: (Light Tenth) Type 4 Ke-Nu

Ju-I: (Heavy First) Type 96 Heavy*
Ju-Ro: (Heavy Second) Type 97 Heavy*
Ju-Ha: (Heavy Third) Mitsu-104*
Ju-Ni: (Heavy Fourth) Ishi-108*

* = Tanks currently not publicly available. Kept private with David Lister and I until his book, which was recently contracted, is published.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
567
Reaction score
212
Grey Havoc, when will the book be published?


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,001
Reaction score
5,585
Nick Sumner said:
Grey Havoc, when will the book be published?

Sorry, he didn't give specific details on that, though based on a reply of his in the comments section, it's likely to be sometime around mid-May at the earliest.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,001
Reaction score
5,585
Grey Havoc said:
With regards as to the development of the O-I superheavy tank: http://sensha-manual.blogspot.com/2018/09/o-i-superheavy-tank-complete-history.html


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
703
Reaction score
376
Type 97 heavy tank; http://overlord-wot.blogspot.com/2018/11/forgotten-tanks-supplement.html


Attachments

  • mQAp4eK.jpg
    629.6 KB · Views: 209
  • luDM9aO.png
    415.6 KB · Views: 189

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
612
Reaction score
195
my research on the OI:
https://forum.axishistory.com/viewtopic.php?f=65&t=241131
https://forum.axishistory.com/viewtopic.php?f=65&t=241116&p=2197261#p2197261
https://forum.axishistory.com/viewtopic.php?f=65&t=241077


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
612
Reaction score
195
and here the upgraded Chi Nu:
http://sensha-manual.blogspot.com/2017/01/wt-type3-chi-nu-ii.html


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
425
Will you please post a message as soon as your article would be published?

Thanks in advance


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,153
Reaction score
1,052
English would be better. Much more accessible.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,153
Reaction score
1,052
Not a problem, just easier to take in that's all.
