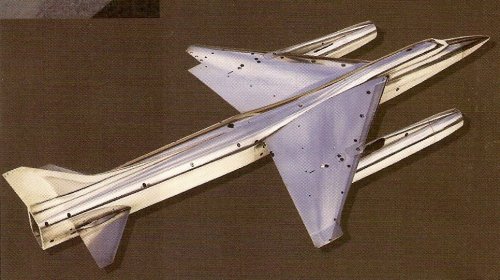

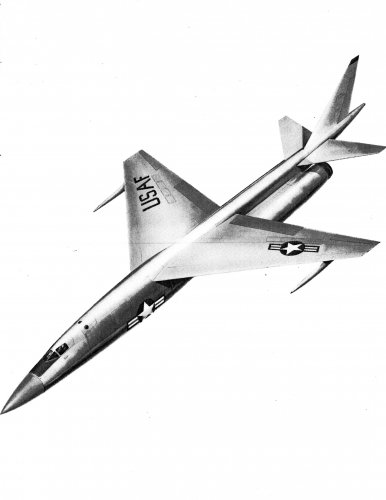

Does anyone know anything about this Douglas design? This is scanned from an article on windtunnel models in the latest Air & Space magazine. The caption says it is the Douglas Model 1355 "supersonic long-range interceptor" and dates from the mid-1950s.


Attachments

  • Douglas 1355.JPG
    Douglas 1355.JPG
    642.4 KB · Views: 511

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
devi said:
final:
North American Model NA-236(the winner of competition)----late,then Model NA-257/XF-108
Northrop Model N-167.

I'll have to disagree here. According to a former co-worker at Northrop (he retired after 55 years there), Northrop's design was the loser at the semi-final phase and the final competition was between NAA and Lockheed. Supposedly Northrop got this news while they were doing a final round of testing in Cal Tech's wind tunnel.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
342
devi said:
Ihave forgotten Vought Model V-391 & Model V-394(LRI-X, different time:)

Sorry Devi, but you have mentioned the Vought V-391 & V-394, but attached 3 drawings of North American Aviation designs?

Do you have drawings of the Vought designs ?????

Regards
Pioneer


martinletts

ACCESS: Restricted
Joined
Mar 3, 2007
Messages
48
Reaction score
1
Website
www.xplanes3d.com
Gentlemen.

I am looking for any further info (drawings mainly) on the Northrop N-144 (I have Tony Buttler's book American Secret Projects) This may well be enough to work with (I am starting a new visualisation project and it's the USAF's turn) but any more info is always helpful.

Cheers.

Martin


martinletts

ACCESS: Restricted
Joined
Mar 3, 2007
Messages
48
Reaction score
1
Website
www.xplanes3d.com
Thank you for that link.

Can't think how I missed that on a trawl of the web! These are about the best set of drawings I've seen for a long while. Solid gold, well worth £3.50.

Cheers.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
martinletts said:
Can't think how I missed that on a trawl of the web! These are about the best set of drawings I've seen for a long while. Solid gold, well worth £3.50.

Tell all your friends.

More specifically, tell all your friends who have money...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,426

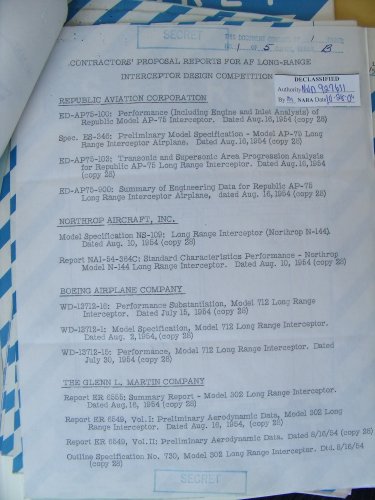

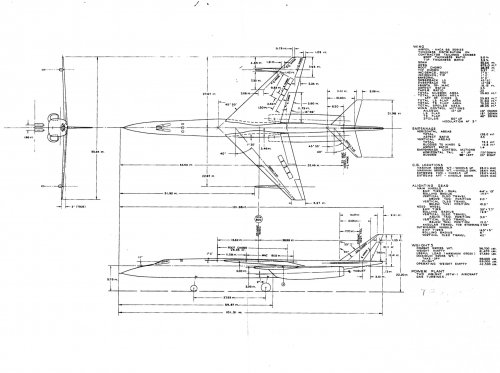

Here is the complete list of WS-202A contenders via Tony Buttler:


Attachments

  • WS-202A-2.JPG
    617.4 KB · Views: 192
  • WS-202A-3.JPG
    624.9 KB · Views: 199

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171
Many thanks to Tony Buttler for this awesome document, and to Overscan for posting it (may I still call you Overscan?)


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

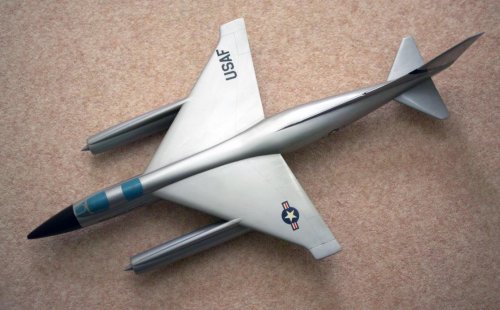

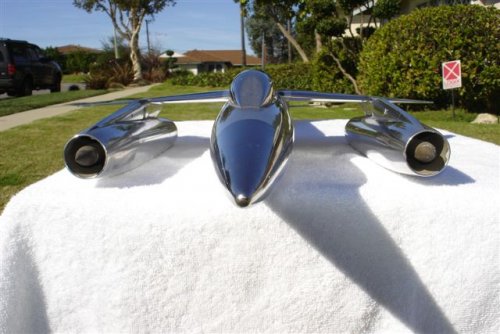

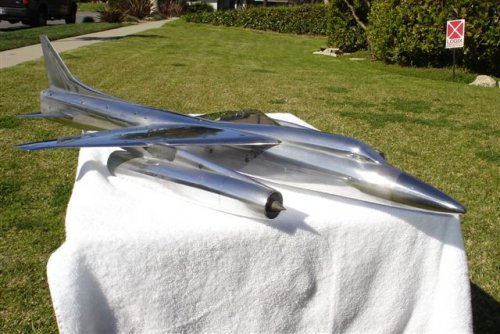

Douglas Model 1355 proposal display model for the USAF WS-202A long range interceptor design competition. Made in late 1954 by the Douglas in-house model shop at the Santa Monica, California plant.

Low ground clearance is noteworthy.


Attachments

  • Douglas 1355 03.jpg
    Douglas 1355 03.jpg
    52.8 KB · Views: 1,207
  • Douglas 1355 02.jpg
    Douglas 1355 02.jpg
    53.6 KB · Views: 1,095

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

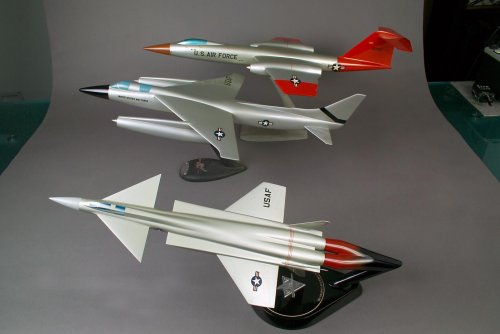

From the long-range interceptor competition came some spectacular designs: powerful, heavy, fast and deadly. Reunited for the first time since 1955, a trio of WS-202A factory proposal models from North American Aviation (front), Douglas (center) and Lockheed (rear).

In case you're wondering, the Lockheed model is a CL-288 -- not a CL-320 -- about halfway between the F-104 and the A-12.


Attachments

  • WS-202A Class Reunion.jpg
    WS-202A Class Reunion.jpg
    91 KB · Views: 1,147

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
circle-5 said:
the Lockheed model is a CL-288 -- not a CL-320 -- about halfway between the F-104 and the A-12.

Looks a bit like a kitbash between a Starfighter and a Canberra... Awesome pic and models, thanks for sharing!


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

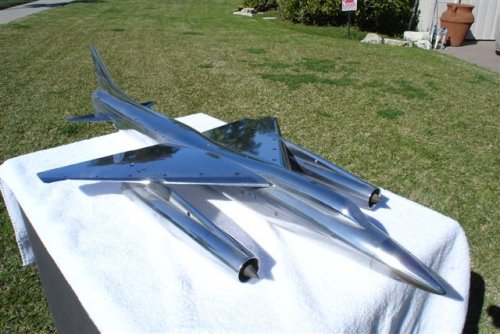

More Douglas 1355 -- an American greeting card for uninvited Socialist "visitors".


Attachments

  • Douglas 1355 05.jpg
    Douglas 1355 05.jpg
    28 KB · Views: 935
  • Douglas 1355 04.jpg
    Douglas 1355 04.jpg
    45.6 KB · Views: 922

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

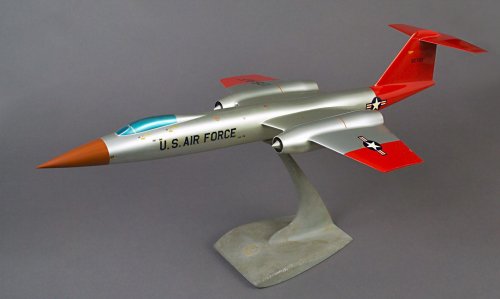

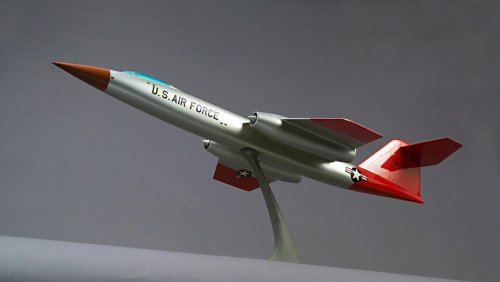

Lockheed CL-288 factory proposal model, presented at the USAF WS-202A long range interceptor competition. Made by the Lockheed model shop in Burbank, around 1954-55. Advanced Projects lettering was removed at some point, but remains visible at certain angles.

This elegant design bears the unmistakable hand of Lockheed's then-chief engineer, Kelly Johnson.


Attachments

  • Lockheed CL-288 02.jpg
    Lockheed CL-288 02.jpg
    58.1 KB · Views: 252
  • Lockheed CL-288 01.jpg
    Lockheed CL-288 01.jpg
    66 KB · Views: 269

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
139
Reaction score
139

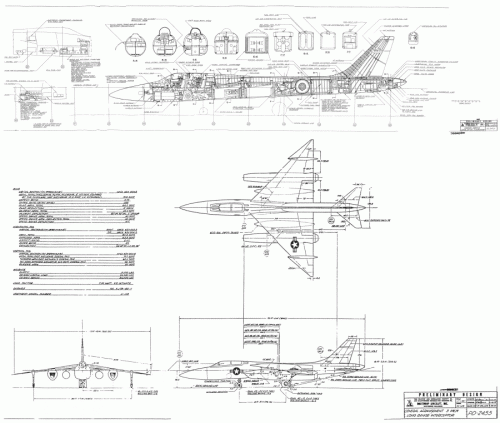

Found this in my picture archive. I think it is the N-168



Attachments

  • adwg32ani.gif
    188.2 KB · Views: 391

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
circle-5 said:
This elegant design bears the unmistakable hand of Lockheed's then-chief engineer, Kelly Johnson.

It does. A true beauty indeed, definitely in the family of Suntan and Starfighter.


Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
139
Reaction score
139
Mhh, Still not sure about it. If I look at Overscans pictures of N-126 history the PD-2455 belongs to that series as Mod 34 of 29 July 1954. Interestingly in this picture that section is crossed out "as if it didn't belong there".
I'm new to this forum, so I'm sure others can cross match PD-dwgs to N numbers. For now I'll place this bird as a N-126.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

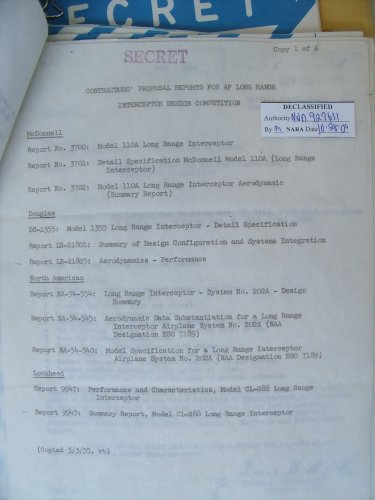

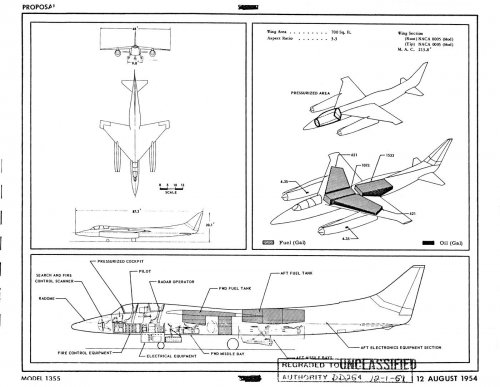

A couple of pages from the original USAF proposal for the Douglas Model 1355 (WS-202A), dated August, 1954.
At nearly 90-ft. long and 70,000lbs T.O. weight, the 1355 would have been an impressive LRI.


Attachments

  • Douglas 1355 Data 1 of 2.jpg
    Douglas 1355 Data 1 of 2.jpg
    271.4 KB · Views: 176
  • Douglas 1355 Data 2 of 2.jpg
    Douglas 1355 Data 2 of 2.jpg
    170.6 KB · Views: 264

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
216
circle-5 said:
A couple of pages from the original USAF proposal for the Douglas Model 1355 (WS-202A), dated August, 1954.
At nearly 90-ft. long and 70,000lbs T.O. weight, the 1355 would have been an impressive LRI.
Nice, looks like a high speed Skywarrior.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

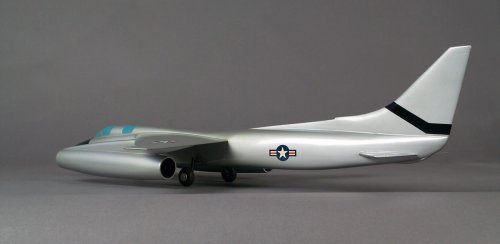

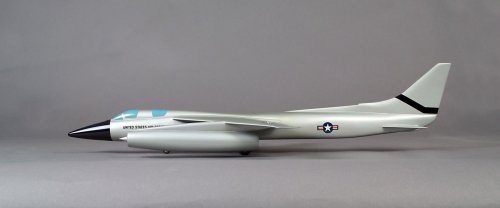

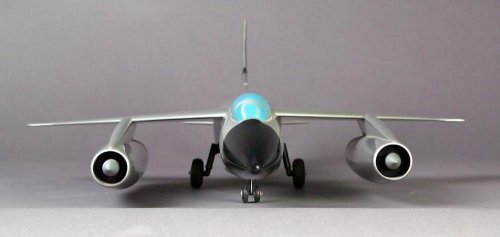

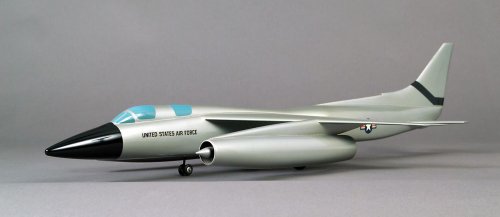

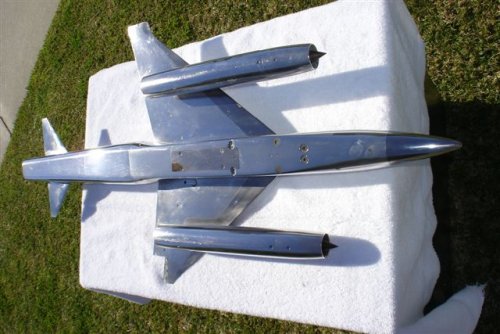

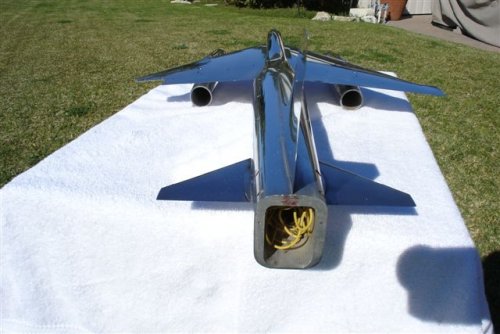

Douglas Model 1355 Long Range Interceptor 1954 Wind Tunnel Model (one wingtip missing) and proposal model.


Attachments

  • Douglas Model 1355 LRI sml.jpg
    Douglas Model 1355 LRI sml.jpg
    111.5 KB · Views: 175
  • Douglas 1355 WTM 10.jpg
    Douglas 1355 WTM 10.jpg
    82.1 KB · Views: 936
  • Douglas 1355 WTM 08.jpg
    Douglas 1355 WTM 08.jpg
    68.5 KB · Views: 969
  • Douglas 1355 WTM 07.jpg
    Douglas 1355 WTM 07.jpg
    71.9 KB · Views: 1,033
  • Douglas 1355 WTM 04.jpg
    Douglas 1355 WTM 04.jpg
    63.4 KB · Views: 1,073
  • Douglas 1355 WTM 01.jpg
    Douglas 1355 WTM 01.jpg
    78 KB · Views: 1,129

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

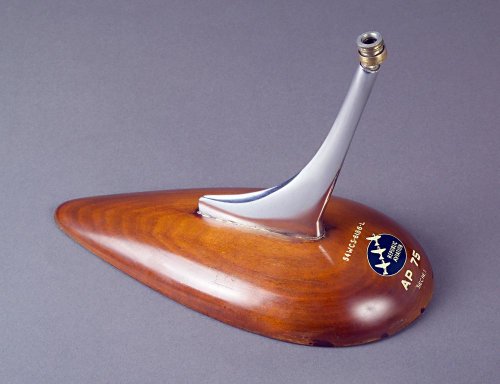

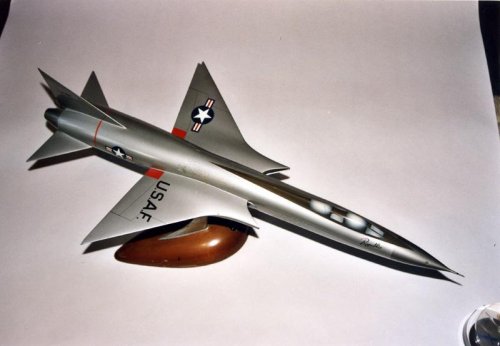

Here's a factory model of the Republic AP-75 LRI competitor. Does anybody know what the code number means on the stand (other than 1954)? Thank you.


Attachments

  • Republic AP-75 -2 sml.jpg
    Republic AP-75 -2 sml.jpg
    41.1 KB · Views: 240
  • Republic AP-75 Stand.jpg
    Republic AP-75 Stand.jpg
    71.4 KB · Views: 221

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Hi,

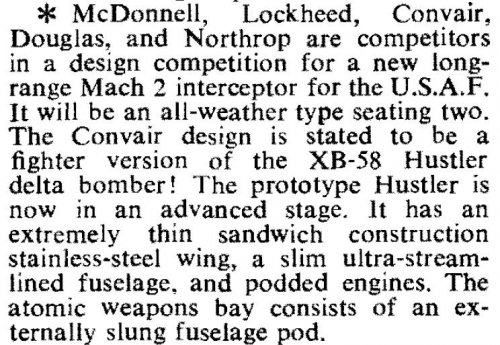

the Convair submitted a fighter version of XB-58 Hustler,as mention in Air Pictorial
1955 magazine.


Attachments

  • WS-202.JPG
    113.7 KB · Views: 68

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
53
Here's the Model 712 LRI proposal from Boeing. Enjoy! -SP


Attachments

  • 07-712-2.jpg
    386.7 KB · Views: 255
  • 07-712-1.jpg
    346.6 KB · Views: 245

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi All!


How are you all ?


No comments...just very excellent as always !!!


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,127
Reaction score
244
Steve Pace said:
I'm surprised... No comments, Gentlemen?....


I just think that's an artifact of the Holiday Season. Comments will surely flow.


Until then: nice work! Thank you!!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,213
Steve Pace said:
Here's the Model 712 LRI proposal from Boeing. Enjoy! -SP
Much of thanks, Steve!


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
Mr Pace,

Obviously a great contribution about a excepcionally interesting project. Many thanks for sharing it!

...and let me add I'm terribly anxious waiting for the moment I could enjoy your next book in my desktop!

Antonio


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,009
Reaction score
709

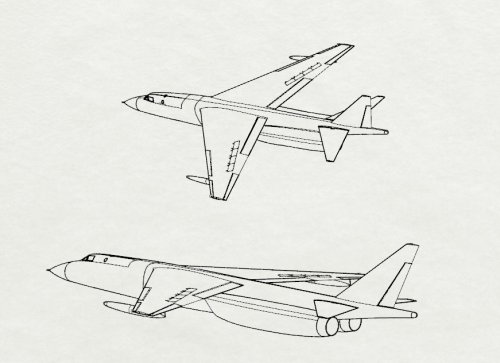

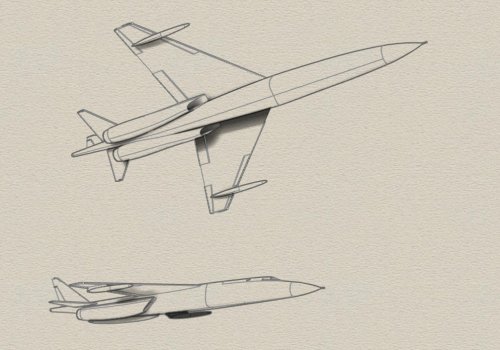

thanks for details and color scheme. Will be 3D printed


Attachments

  • B-712_artist.jpg
    370.9 KB · Views: 173
  • B-712_pen.jpg
    179 KB · Views: 177

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
Mr Gatial,

I love the texture in your drawings. Which is the software you used?
