WS-202A, LRI-X (F-108 Competitors)

O

Overkiller

Guest
overscan said:

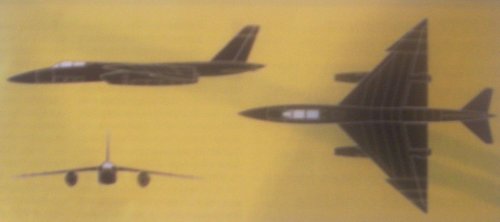

Republic AP-75, from Aviation Week 5th December 1958, via Tony Buttler.

Any chance of a 3 view drawing? :p

This looks like an idea I have had in my head for some time for a twin engined variant of the F105, though I imagined the engines mounted EE Lightning stylee one above the other.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
Ap-75 looks more like a down-to-earth F-103 with two side-by-side engines and a "normal" cockpit. Beautiful aircraft, BTW.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
Overkiller said:
overscan said:
Republic AP-75, from Aviation Week 5th December 1958, via Tony Buttler.

Any chance of a 3 view drawing?

Very little. I'm sure one exists somewhere, but the Republic archives were pretty much *wholly* destroyed. DTIC or NTIS might have further info in some report squirreled away somewhere, and there might be some former Republic employee who packed away drawings... but Republics efforts, unlike Boeing, are very poorly recorded.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,761
Reaction score
1,983
Orionblamblam said:
overscan said:
Republic AP-75, from Aviation Week 5th December 1958, via Tony Buttler.

And to Tony by way of *me*, actually.

*gloat*

LOL! BTW do you happen to know what engine they'd intended for that?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
sferrin said:
Orionblamblam said:
overscan said:
Republic AP-75, from Aviation Week 5th December 1958, via Tony Buttler.

And to Tony by way of *me*, actually.

*gloat*

LOL! BTW do you happen to know what engine they'd intended for that?

It'd be strictly an educated guesstimate on my part, but I'd be inclined to say a pair of late-model J75s, most likely, with a pair of J93s as the second most likely.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
Scott, any hint that Boeing tendered a project to LRI-X? And Convair?

Thanx!


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
There was a very early concept for a LRI based on a Boeing B-47 armed with AAM but I have never heard about LRI fighter designs from Boeing.
Convair proposed a couple of B-58 LRI concepts


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
I seem to remember some design in the Miller's book on the Hustler


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,761
Reaction score
1,983
elmayerle said:
sferrin said:
Orionblamblam said:
overscan said:
Republic AP-75, from Aviation Week 5th December 1958, via Tony Buttler.

And to Tony by way of *me*, actually.

*gloat*

LOL! BTW do you happen to know what engine they'd intended for that?

It'd be strictly an educated guesstimate on my part, but I'd be inclined to say a pair of late-model J75s, most likely, with a pair of J93s as the second most likely.

The nozzles seem more J-79 sized otherwise I'd be in agreement.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
Skybolt said:
Scott, any hint that Boeing tendered a project to LRI-X? And Convair?

I know Boeing did... I got from Tony Buttler a perspective drawing of the Boeing design. As for Convair, not sure. There were a number of F-106 derivatives that may have been.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
sferrin said:
elmayerle said:
sferrin said:
Orionblamblam said:
overscan said:
Republic AP-75, from Aviation Week 5th December 1958, via Tony Buttler.

And to Tony by way of *me*, actually.

*gloat*

LOL! BTW do you happen to know what engine they'd intended for that?

It'd be strictly an educated guesstimate on my part, but I'd be inclined to say a pair of late-model J75s, most likely, with a pair of J93s as the second most likely.

The nozzles seem more J-79 sized otherwise I'd be in agreement.

Going by the size of the nozzles relative to the cockpit, I'd argue that J75s are the most likely for the performance they were looking at, though engines of similar size such as the Orenda Iroquois or the J-67 would be equally likely (note on the J67, Sir Stanley Hooker's autobiography, "Not Much of an Engineer" gives an interesting perspective on this engine, derived from teh 100 series Olympus, he doesn't think much of the Curtiss-Wright management and engineers). I think J79s would be a bit small; Lockheed's entries, as far as I know, used either four J79s or two J93s.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
Lockheed's entries, as far as I know, used either four J79s or two J93s.
Ok, now you HAVE to show at least ONE Lockeed's entry :eek: ;D Or we have to wait until 2007 for Tony's (and a lot of friends') marvel ???


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,424
From Tony Buttler

Just to clear the discussion, the Boeing LRI was the Model 712, a slim high wing design with a tapered swept wing and all-moving tail. This aircraft, like most of the first series of LRIs, was powered by J67 engines.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
Skybolt,

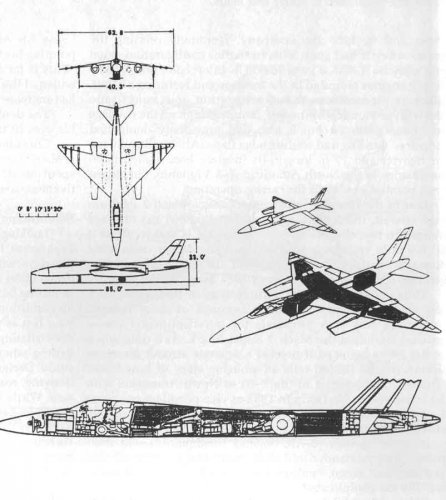

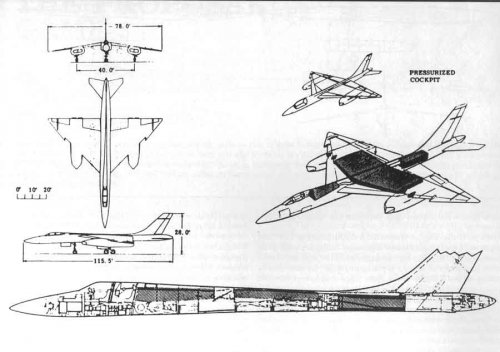

I'm not sure if this couple are Lockheed LRI-X studies

Source: Skunk Works. The first 50 years. Jay Miller. Aerofax


Attachments

  • File0283.jpg
    40.1 KB · Views: 832
  • File0284.jpg
    25.8 KB · Views: 776

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
pometablava said:
Skybolt,

I'm not sure if this couple are Lockheed LRI-X studies

Source: Skunk Works. The first 50 years. Jay Miller. Aerofax

Yep, they are. The versions with four J79s had them twinned in mid-wing pods siimilar to these.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
Evan,

could you post the pic, please ::)?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
pometablava said:
Evan,

could you post the pic, please ::)?

I would if I knew where it was. Several moves since I acquired it have rather jumbled and scattered my files. It's not that much different from what's been posted, save that each engine pod had twinned J79s instead of a single J93.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,424
Evan, if I lived near you I'd volunteer to clean up your files. I'm sure lots of interesting items live in them!


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
overscan said:
Evan, if I lived near you I'd volunteer to clean up your files. I'm sure lots of interesting items live in them!

*gentle chuckle* I'm absolute sure of that, I know some of the stuff in there. Even what I can find is interesting, I just need to scan a few things for here and elsewhere. Good thing I've got a holiday weekend coming up.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
169
Is this the beginning of secret projects forum tourism ;)? Evan, how many people can you accommodate at once ;D?


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4

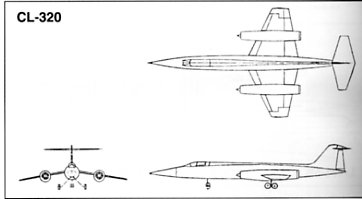

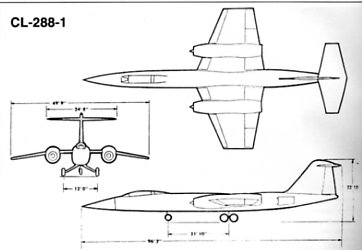

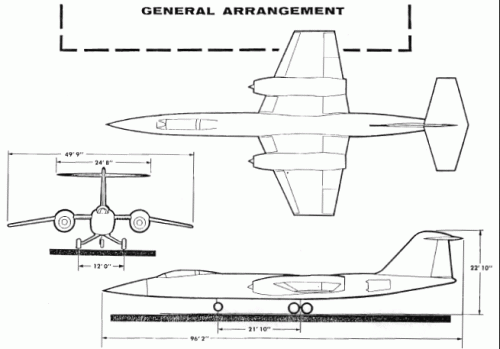

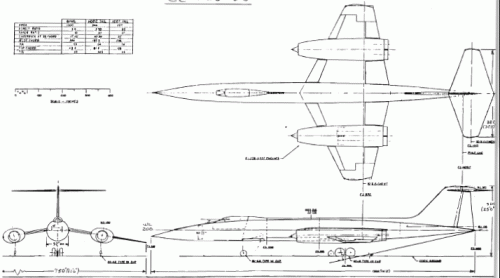

Lockheed TDN Model CL-288-1:

length-----------------------96' 2''
span-------------------------49' 9''
span of the stabilizer----24' 8''
height-----------------------22' 10''
Base the chassis ---------21' 10''
Track the chassis --------12' 0''

WS-202 (LRI-X): F-108 competitors:

LRI-X, different time:

Boeing Model B-712...
GD/Convair Model 4(any version) or Model ?
Douglas Model D-1???...
Lockheed TDN Model CL-288...(CL-288-1)------CL-320
Martin Model M-302-----Model M-308---Model M-314
McDonnell Model M-36(any version)----or Model M-?
North American Model NA-236------------------------------------------------------Model NA-257/XF-108
Northrop Model N-126....Model N-144----Model N-149---Model N-167(---Model N-176)(?)
Republic Model AP-75

Up to final:

Lockheed TDN Model CL-320
North American Model NA-236
Northrop Model N-149 or N-167(?)

final:
North American Model NA-236(the winner of competition)----late,then Model NA-257/XF-108
Northrop Model N-167.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
I think that Devi rationalized info already in this thread (or other similar, like mine on the Martin misterious project numbers, nee XB-68 was originally an interceptor). Kudos to him ;D


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Ihave forgotten Vought Model V-391 & Model V-394(LRI-X, different time:)


Attachments

  • Untitled-3.zip
    257.1 KB · Views: 462
  • Untitled-4.zip
    363.2 KB · Views: 314
  • Untitled-5.zip
    271.7 KB · Views: 330

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
Devi, for a moment I imagined you discovered something more on the Voughts than a simple description in the projects list... ;D


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,109
Reaction score
2,980
February 1953
Northrop starts series of LRI-X studies starting with Delta Scorpion design (F-89D with delta wing)

May 1953
Northrop N-126 to LRI-X. Three designs: F-89D delta evolution, N-126A and N-126B

June 1954
Northrop LRI-X studies: Revised N-126 and N-144


The N-126 and N-144 are particularly interesting. aparently there was also a N-168.
I've got a pic of the N-168 (Le Fana de l'aviation HS, la deuxième génération jets)
Pics of the 126 and 144 anybody ?


Attachments

  • Diapositive1.JPG
    86.6 KB · Views: 818

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,109
Reaction score
2,980
According to Le Fana

Northrop N-168

Wing area 168 m2
4* J-67 turbojets
8° anhedral of the wing


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
Minor note, the cockpits, radar/fire control, and weapons fit of the F-108 were all recycled for the YF-12. I've seen drawings of both the F-108 and YF-12 instrument panels and they're indentical.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
3-views of 126 and 144 in both Air Power 1991 issue on Delta-wing Northrop Interceptors and Minidocavia on Northrop Aircraft by Pelletier.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
First is the N-126, 1954 configuration; second is the N-144. There were also N-149, N-167, N-176 and N-184 (a smaller N-176). N-176 was pitted against the North American F-108 (a a lot of others...) and lost.


Attachments

  • N-144.jpg
    34 KB · Views: 904
  • N-126.jpg
    36 KB · Views: 851

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,109
Reaction score
2,980
Thank you very much, Skybolt!
QUOTE- There were also N-149, N-167, N-176 and N-184 (a smaller N-176). - QUOTE

any pics of these projects ? ::)


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
any pics of these projects ?

Archibald,

all that projects and much more from Northrop can be found at Minidocavia "Les Avions Northrop" (btw I bought my copy at Nancy when I was last June :D)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,424

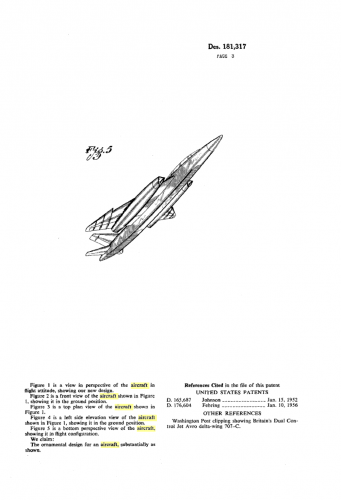

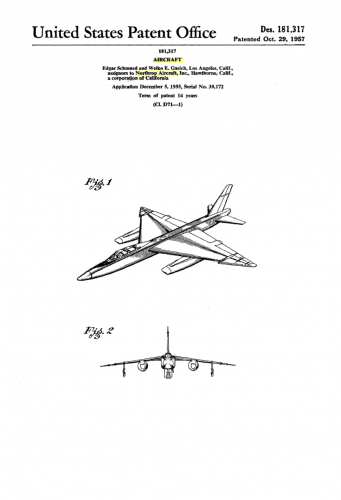

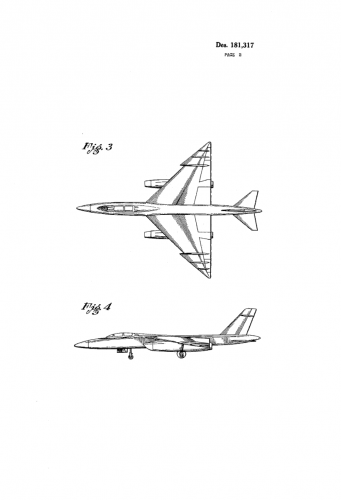

Patent drawings for N-126


Attachments

  • patents1.png
    29.1 KB · Views: 1,048
  • patents2.png
    20.8 KB · Views: 1,015
  • patents3.png
    32.4 KB · Views: 994

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
108
Website
theavgeeks.com
Help, help, there's a Delta Scorpion infesting my computer hard drive!



Work in progress......


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,109
Reaction score
2,980
Already awesome... you'll have to post that in the whatif forum... ;D
