Willoughby Delta 9 twin boom passenger aircraft project

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634
Hi,

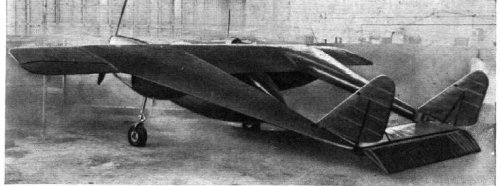

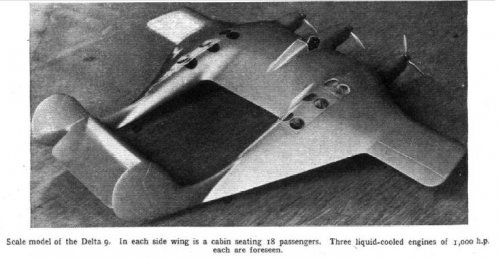

of course we heard about that company,and it built the Delta 8,a twin
engined light aircraft,which was the basis for Delta 9 18-passenger
twin boom aircraft project and powered by three 1000 hp engines.

http://www.flightglobal.com/PDFArchive/View/1939/1939%20-%200371.html
http://www.flightglobal.com/PDFArchive/View/1939/1939%20-%200374.html


Attachments

  • Delta.JPG
    38.9 KB · Views: 1,048
  • Delta 9.JPG
    Delta 9.JPG
    48.2 KB · Views: 970

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
There should be a three view of the Delta 9 in a pre-WW II issue
of 'Der Deutsche Sportflieger'.
Is there someone of the German members who haves it
in his files maybe...?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634
My dear lark,

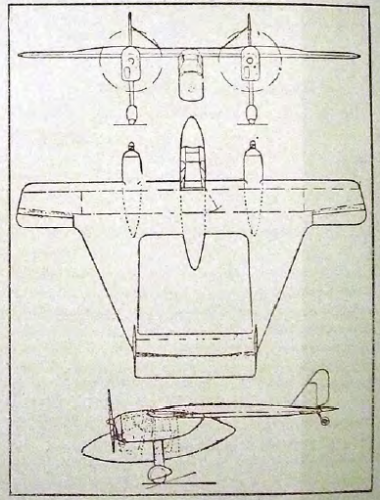

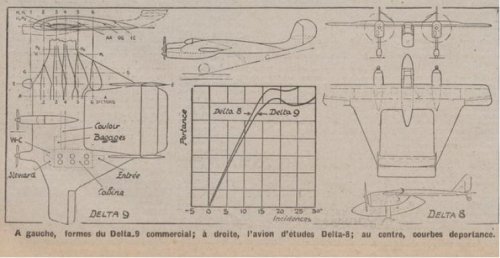

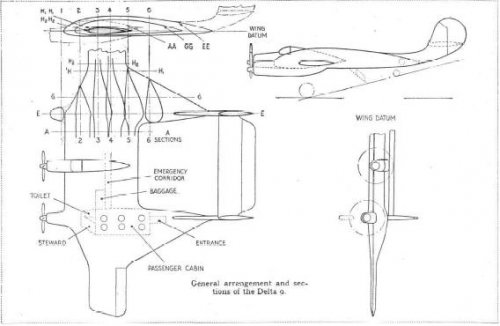

a look like 3-view,from the same source;

http://www.flightglobal.com/PDFArchive/View/1939/1939%20-%200374.html


Attachments

  • Delta 9.JPG
    Delta 9.JPG
    27.4 KB · Views: 964

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,970
Reaction score
375

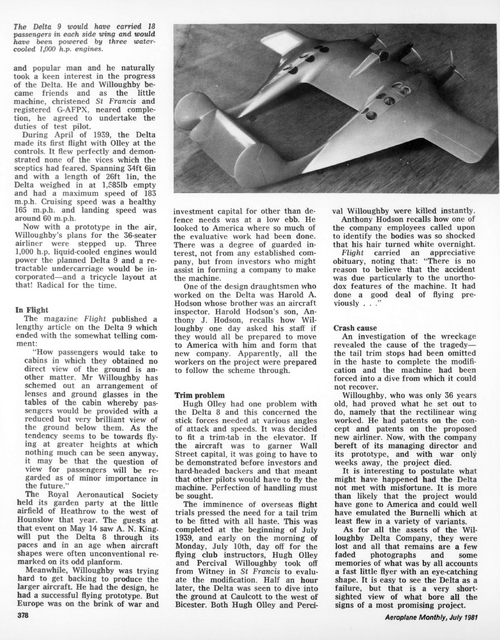

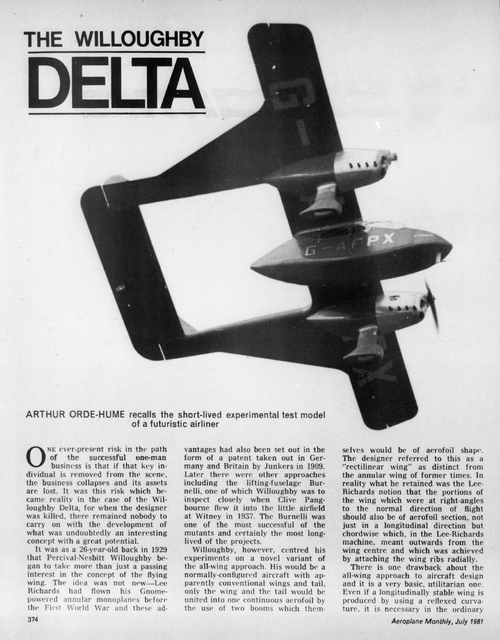

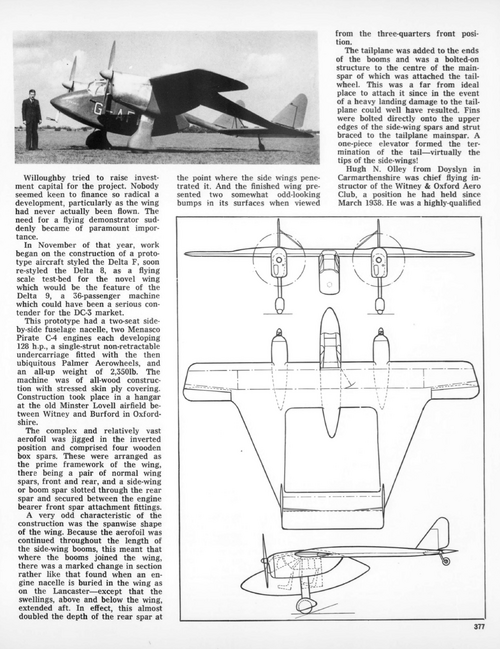

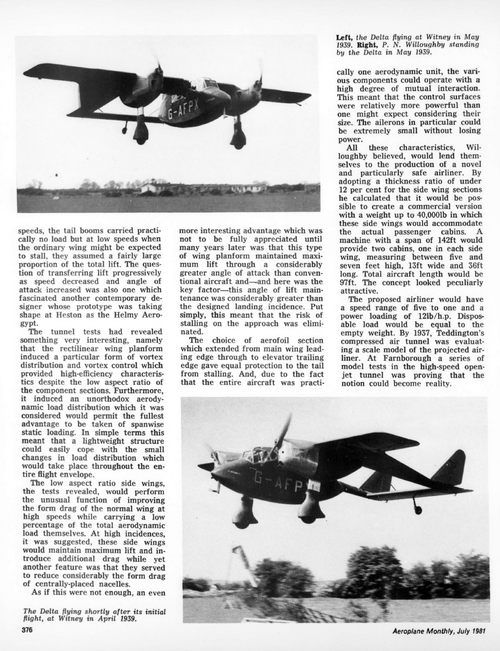

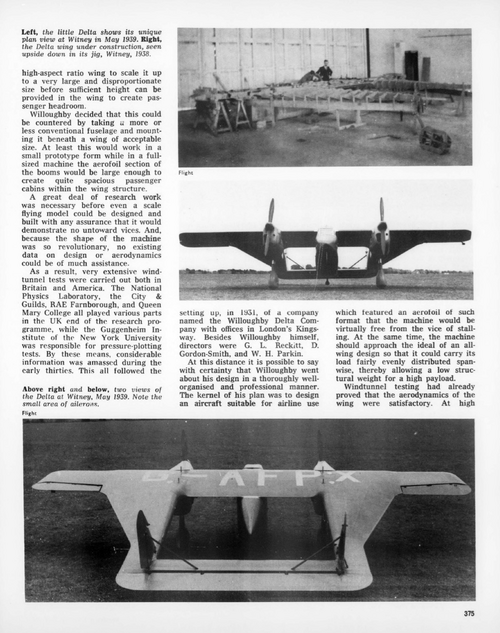

From 'Aeroplane Monthly', July 1981, pp. 374-378.

Originated by Percival Nesbitt Willoughby, the 'Rectilinear Wing' concept was a variation on the all-wing approach to aircraft construction. In this case, an aircraft with conventional wings and tailplane would have them united into one continuous aerofoil by means of twin booms, each of aerofoil section, both fore-and-aft, and chordwise. The aerofoil shaped booms would provide sufficient thickness to serve as passenger cabins.
Since this was a new, revolutionary shape in aircraft, no existing data or information was available. Therefore, extensive tests were carried out, in both Britain, and the USA. In Britain, the National Physical Laboratory, the City and Guilds, the RAE Farnborough, and Queen Mary College all took part, while in the US, the Guggenheim Insitute performed pressure plotting tests.
All this testing showed that the aerodynamic design was satisfactory. At high speeds, the tail booms carried virtually no load, but as speed decreased, the lift load carried by the booms increased markedly. In addition, the unusual vortex distribution of this configuration produced high efficiency despite the low aspect ratio of the wing, booms, and tailplane. Further, it found that lift would still be generated at an angle of attack exceeding the normal landing incidence, in other words, the risk on stalling on the approach was eliminated. In addition, tailplane stall was expected to be impossible, and through aerodynamic interaction, the control surfaces could be made smaller and still retain their power.

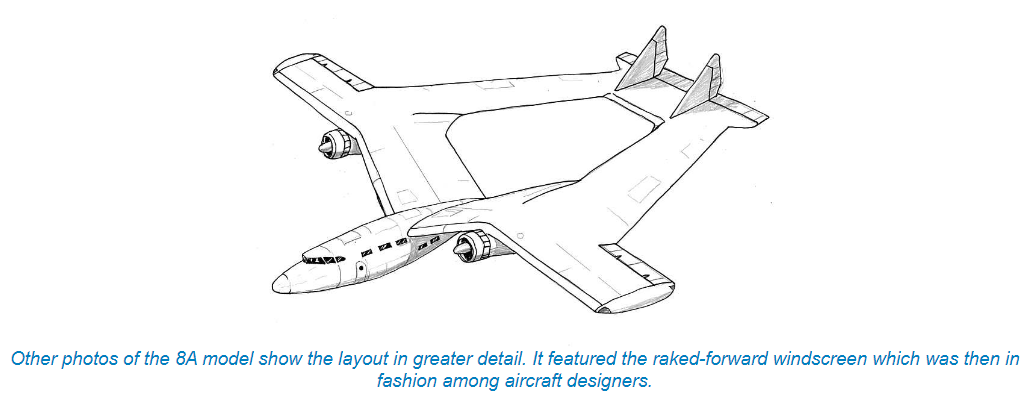

Willoughby schemed a passenger aircraft, the Delta 9, capable of carrying 36 passengers, as a DC-3 competitor. Three engines,liquid cooled, and of 1,000hp each, would power the aircraft, which would feature a retractable tricycle undercarriage (interestingly, the model shows a tailwheel under each boom). Passengers would carried in the booms, with roof windows for lighting, and, as mentioned in Flight magazine, "...an arrangement of lenses and ground glasses in the tables of the cabin whereby passengers would be provided with a reduced but very brilliant view of the ground below them."

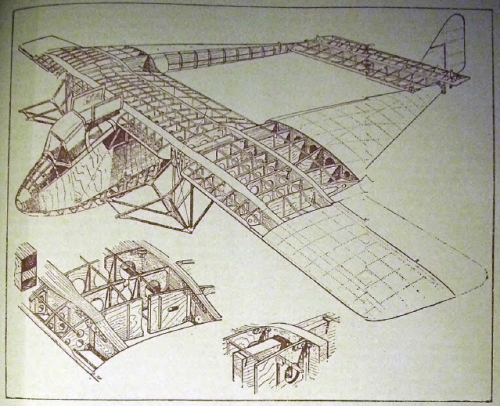

He attempted to raise investment capital but failed, so decided to build a flying demonstrator. This was the Willoughby Delta 8 (also referred to as the Delta F). This was a two-seat prototype, powered by two 128hp Menasco Pirate C-4 engines, and a non-retractable undercarriage. The pilot and observer were housed in a fuselage nacelle attached to the wing undersurface. Construction was all wooden. The wing had two conventional spars, and two boom spars ran aft to the tailplane spar, to the middle of which was attached the tailwheel. Twin fins were attached to the ends of the boom spars, and braced to the tailplane. Span was 34'6", length 26'1", and empty weight was 1,585lbs.
Built at Witney Aerodrome, the Delta 8 was first flown in April 1939 by Hugh Olley. The aircraft flew perfectly, maximum speed was 183mph, cruising speed 165mph, and landing speed 60mph.
Unfortunately, with Europe on the brink of war, Willoughby was unable to raise finance for the development of the large machine. He looked to America, with some limited success, at one point asking his workforce if they were willing to relocate to the US to continue the project. Apparently, they all agreed.
Despite it's good flying characteristics, the Delta 8 suffered from high elevator stick forces, and so it was decided to fit an elevator trim-tab. This was quickly fitted, and on Monday July 10th, Olley, with Willoughby as observer, took off in the Delta 8, named 'St Francis', to test the tab. Half an hour later, the aircraft was seen to dive into the ground near Bicester. Both Olley and Willoughby were killed. Investigations showed that in the haste to fit the trimmer, no limit stops had been fitted, with the result that the aircraft was forced into a 'graveyard dive'. Willoughby was 36 years old. With his death, and war only weeks away, the Delta project evaporated.

cheers,
Robin.


Attachments

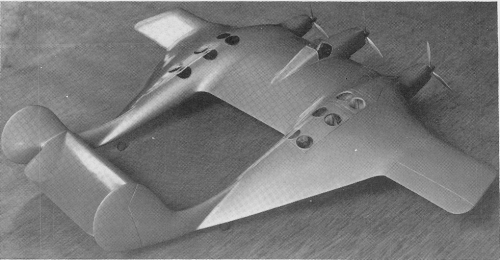

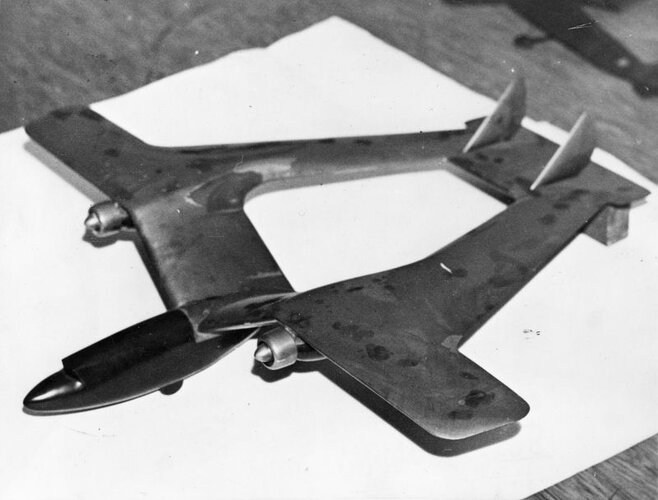

  • willoughy delta 9 model.png
    willoughy delta 9 model.png
    1 MB · Views: 104

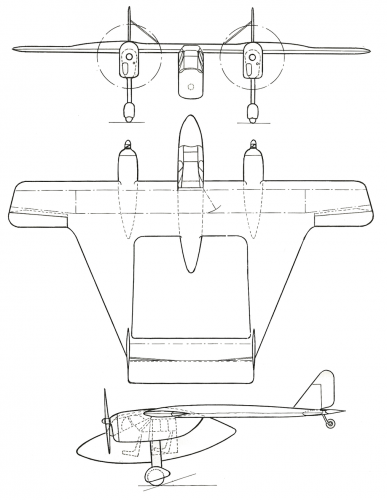

  • willoughy delta 8 3-view.png
    willoughy delta 8 3-view.png
    297.9 KB · Views: 102

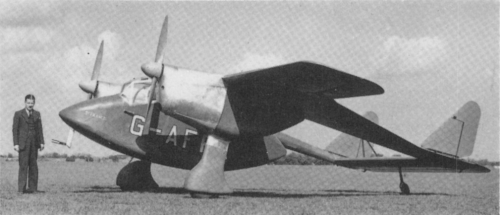

  • Willoughby Delta 8 with designer.png
    Willoughby Delta 8 with designer.png
    351.6 KB · Views: 89

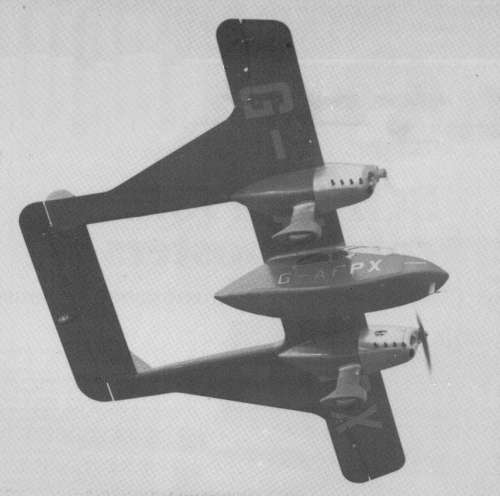

  • Willoughby Delta 8 in flight.png
    Willoughby Delta 8 in flight.png
    715.5 KB · Views: 80

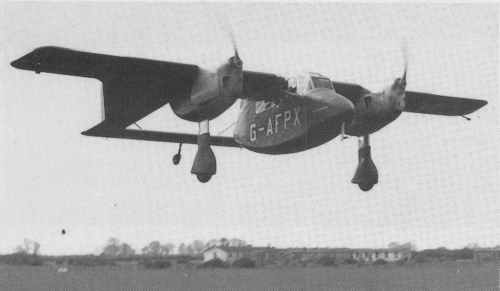

  • Willoughby Delta 8 taking off.png
    Willoughby Delta 8 taking off.png
    759.3 KB · Views: 89

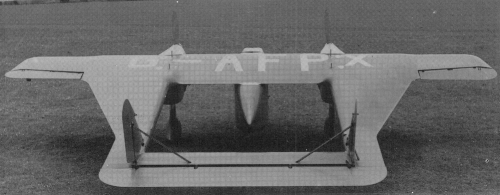

  • Willoughby Delta 8 rear view.png
    Willoughby Delta 8 rear view.png
    440.8 KB · Views: 77

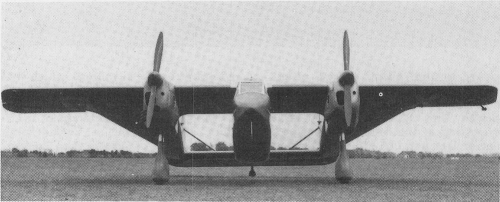

  • Willoughby Delta 8 front view.png
    Willoughby Delta 8 front view.png
    665.4 KB · Views: 79

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634
Also we forget to ask,

was there any earlier series,from Delta 1 to Delta 7 or not?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634
hesham said:
Also we forget to ask,

was there any earlier series,from Delta 1 to Delta 7 or not?.

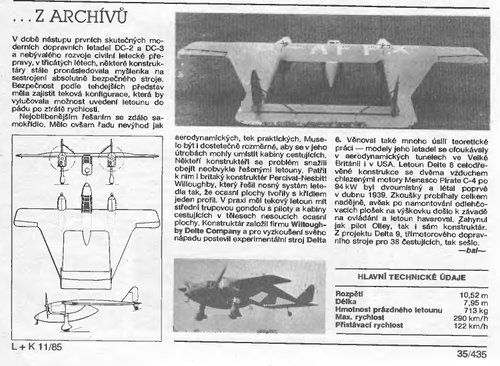

Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201939%2008.pdf


Attachments

  • 1.png
    404.5 KB · Views: 55
  • 2.png
    780.3 KB · Views: 119

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94

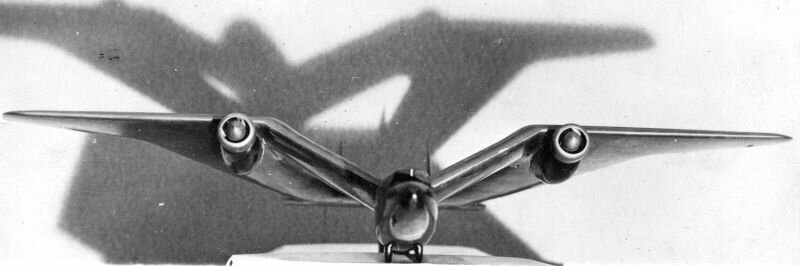

Interestingly one of the designs in Hesham's post (post #4) is clearly a different design from the Delta 8 or Delta 9...

I wonder what the design I and if it belongs to delta one through seven?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634
Avimimus said:
Interestingly one of the designs in Hesham's post (post #4) is clearly a different design from the Delta 8 or Delta 9...

I wonder what the design I and if it belongs to delta one through seven?

Sharp notice my dear Avimimus,

and maybe that's right ?.


bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
29
hesham said:
hesham said:
Also we forget to ask,

was there any earlier series,from Delta 1 to Delta 7 or not?.

Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201939%2008.pdf

The text says it's Delta 8.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
Thank you for checking the text.

If it is - it must be another variant: The landing gear is mounted on the fuselage itself, and the inner wing has a large amount of dihedral (producing a 'gull wing')


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
Another thing to notice - the drawings and the rear view near the top of the page show a constant triangular form to the inner wing.

However, the photographs of the flying machine show this turning into a rectangular section! So clearly modifications were made during/after construction!


ursrius

ACCESS: Confidential
Joined
Dec 13, 2007
Messages
69
Reaction score
4

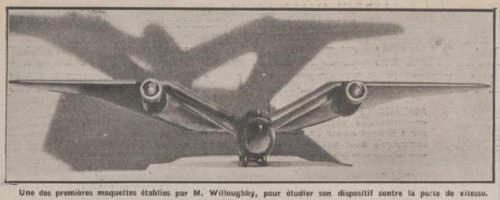

Oh, come on here, the image in reply #4 is nothing more than a company logo! The shadow is a stylized "W". This has absolutely nothing to do with any proposed machine. As for why the Delta 8 and 9 designations, it is possible that earlier numbers referred to various model formats used for wind tunnel testing. I doubt we will ever know.


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151
Since it is related, and there isn't a topic solely dedicated to the Willoughby Delta 8, "St. Francis," (a.k.a. "Willoughby Delta F") (G-AFPX), here is British Pathé newsreel footage of the aircraft.

YouTube: British Pathe - "Heston Aka New Type All Wing Plane Demonstrated (1939)"
https://www.youtube.com/watch?v=rNAoI0S81Q0
