Westland WG.11

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,063
Reaction score
602

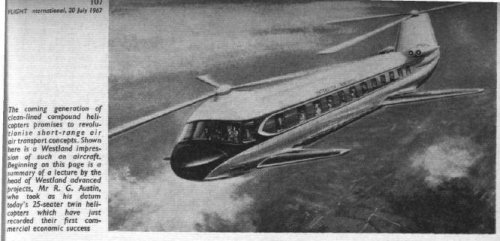

It's the civilian version of the WG.11.......


cheers,
Robin.


Attachments

  • WG.11 civil.jpg
    WG.11 civil.jpg
    124.5 KB · Views: 563

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,088
Reaction score
283
Interesting. Thanks. Are those air-launched Ikara missiles it is carrying?


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
176

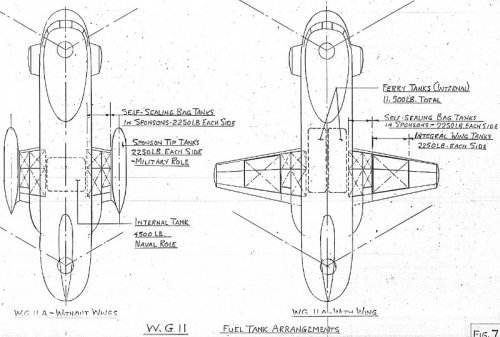

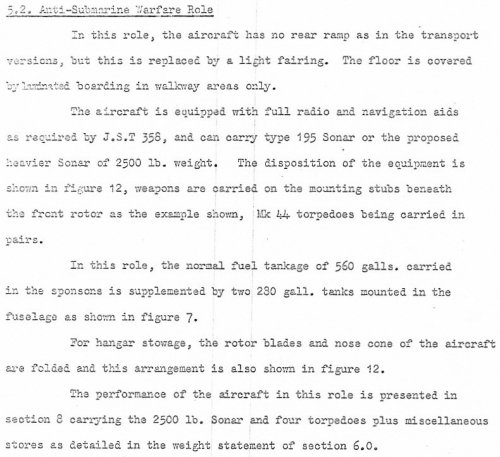

Certainly looks like it but the text only mentions Mk 44 homing torpedoes.


Attachments

  • Misc_0005a.jpg
    371.3 KB · Views: 473

Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,602
Reaction score
3,044
Very interesting. Perhaps the first time I've come across the Ikara as an aerial weapon. Doesn't make too much sense, surely a helicopter doesn't need a stand-off weapon, especially when the dipping sonar is right beneath the helicopter and hopefully the enemy sub not too far away.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
176

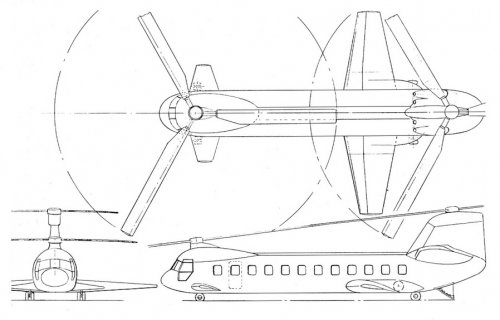

I'll keep my eye out for those then.


Attachments

  • Misc_0002a.jpg
    121.7 KB · Views: 414
  • Misc_0003a.jpg
    129.8 KB · Views: 219

Sea Skimmer

ACCESS: Secret
Senior Member
Joined
Jul 13, 2008
Messages
394
Reaction score
56
Hood said:
Very interesting. Perhaps the first time I've come across the Ikara as an aerial weapon. Doesn't make too much sense, surely a helicopter doesn't need a stand-off weapon, especially when the dipping sonar is right beneath the helicopter and hopefully the enemy sub not too far away.


It does make a little sense if the enemy submarine had a periscope mounted SAM launcher, and thus might shoot down the poor helicopter before it can launch a torpedo normally. Also such a missile being three times the speed of the helicopter would have some value for rapidly chasing down a periscope/snorkel contact by radar or sonar detecting a snorkeling diesel. Attacking the enemy before he can dive deepply would greatly increase the chances of a kill with slow running 1960s/70s vintage lightweight ASW torpedo. It would also provide a safer way to employ nuclear depth bombs set to shallow bursts.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
176
I don't think it did - the only extra bit I have is the following which I scribbled down to save paying for photocopying.
WG11 Anti-Submarine Warfare at S.L. I.S.A+20degreeC
3and a half hours in station at a 30 n. miles datum with 2,500lb sonar and 4 Mk44 torpedoes plus miscellaneous stores.

Regards,
Barry


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,094
Reaction score
225
Hood said:
Very interesting. Perhaps the first time I've come across the Ikara as an aerial weapon. Doesn't make too much sense, surely a helicopter doesn't need a stand-off weapon, especially when the dipping sonar is right beneath the helicopter and hopefully the enemy sub not too far away.

Its the only proposal I've seen. It does make considerable sense when one considers thermoclines and convergence zones and how they affect sonar. The helicopter may well be some distance from where the submarine is when it detects it. A stand off weapon like Ikara would allow it to still engage it. Ikara though is a bit large and heavy for the role, I think. However, its guidance would be almost perfect as it is designed for use when engaging a subsurface contact with sonar and radar combined.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,715
Reaction score
2,684
Sealord

Unusually the various good sources on the RN do not explain much about the Chinook/WG 11 ASW
programme. At some point, 1963? it gives way to the SH3 Sea King. Perhaps because the US Navy had decided it did not need a twin rotor in this role? I think I am correct in saying that no US ASW twin rotors were developed after the early 60s?


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,395
Reaction score
1,118
Some additional details. JAST.358 was a vey real programme and it was intended to use the Chinook with four Gnome engines as shown in the pictures above.

The 2,500b sonar: this didn't really exist as far as I can tell, the weight was based on an estimation of what a 360 degree long range dipping sonar would weigh.

The missile: This was also a real requirement and a staff target (I haven't found a number) was being worked up.
