Wow ... And variable geometry to boot!

Nice one Hesham.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315
Careful, it's a Blackburn/General Aircraft project ! More infos In Tony Buttlers
"British Secret Projects, Jetfighter since 1950" . ;)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
107
Correct !

Text about is in the first column of the Flight file..


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145

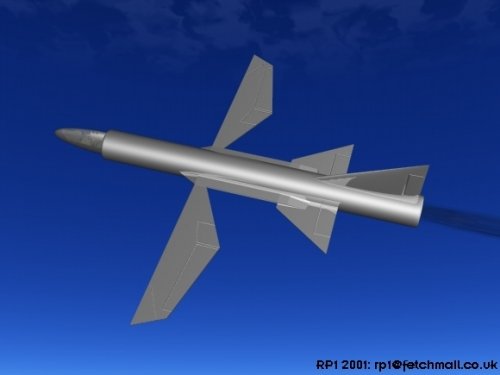

Several remarkable works Richard Pawling to this subjects ,look please here:
http://www.geocities.com/captnrp1/Delta/Delta.html
RP1 -Cheers ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
borovik said:
Several remarkable works Richard Pawling to this subjects ,look please here:
http://www.geocities.com/captnrp1/Delta/Delta.html
RP1 -Cheers ;)

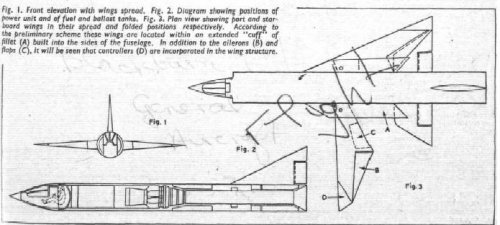

From the same source


Attachments

  • Delta3a.jpg
    55.6 KB · Views: 488

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Jemiba said:
Careful, it's a Blackburn/General Aircraft project ! More infos In Tony Buttlers
"British Secret Projects, Jetfighter since 1950" . ;)


My dear Jemiba,


the amazing think in that Blackburn/General Aircraft research aircraft and its developments,they were intended for E16/49 Specification,in which Armstrong Whitworth AW.58 was also involved.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
107
Prof.G.T.R. Hill was consultant to GAL from 1947-1950.
In this period he designed his 'Transformable delta'.

The AWA 58 was a complete different desing who evolved from a
sweptwing aircraft , over a design with a cranked wing into a delta winged aircraft.
In this last form it became a competitor to the Farey F.D.1.

From : a Ray Williams article in AE nr.43.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Thank you my dear Lark,


for your explanation,and as Tony Butler said; some work to E.16/49 before
concentrated into Blackburn B.90 project.
