McDonnell XFD-1 original design

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468
Hi,

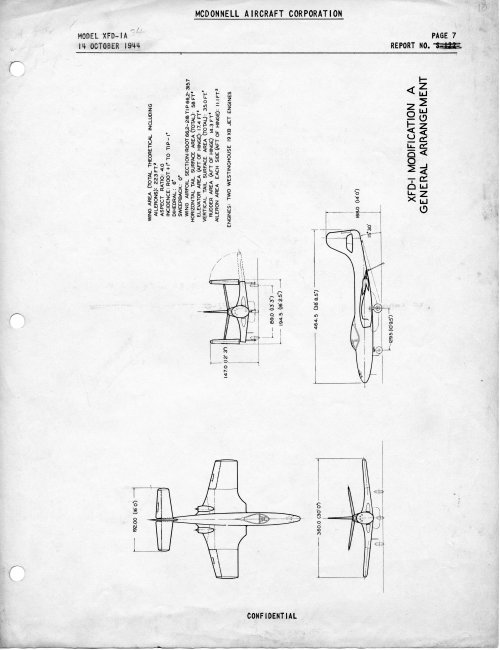

I think that, there is a 3-view to this project,but I don't know where ?.


ksimmelink

Phormer Phantom Phixer
Joined
Mar 23, 2013
Messages
53
Reaction score
0
Website
phantomphacts.blogspot.com
I read somewhere (in the last few days) that McDonnell had looked at variations from nine small diameter turbojets to two "normal" sized turbojets. The turbojets of the day were very poor and were on the minus side of thrust to weight ratio and MAC tried to overcome this very creatively.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
696
Reaction score
77
Website
www.tommythomason.com
ksimmelink said:
I read somewhere (in the last few days) that McDonnell had looked at variations from nine small diameter turbojets to two "normal" sized turbojets. The turbojets of the day were very poor and were on the minus side of thrust to weight ratio and MAC tried to overcome this very creatively.

To oversimplify, McDonnell had been asked by the Navy to design a airplane around the nascent Westinghouse axial-flow jet engine. The first test article was intentionally small and it fit within the wing, which was interesting. The problem wasn't thrust to weight, but simply the amount of thrust, which meant several engines. However, McDonnell thought to ask if the engine could be scaled up and the answer from Westinghouse was yes, of course. The FD-1 was the result.


ksimmelink

Phormer Phantom Phixer
Joined
Mar 23, 2013
Messages
53
Reaction score
0
Website
phantomphacts.blogspot.com
Tailspin Turtle said:
To oversimplify, McDonnell had been asked by the Navy to design a airplane around the nascent Westinghouse axial-flow jet engine. The first test article was intentionally small and it fit within the wing, which was interesting. The problem wasn't thrust to weight, but simply the amount of thrust, which meant several engines. However, McDonnell thought to ask if the engine could be scaled up and the answer from Westinghouse was yes, of course. The FD-1 was the result.

Well that explains why they would try more engines. McDonnell was plagued by the engines they were forced to use ever since the XP-67 (as I am shure so were a lot of aircraft manufacturers). It wasn't until they chose the J79 that they finally had an engine that could do their designs justice. Just think, if they had chosen the J67 as their plans originally called for on the F3H-X early designs instead of the J79, history might be a bit different.
