One of the designs leading up to the TBU-1 (V-174).
I found two flavors of V-169. V-169A first

Vought archives


Attachments

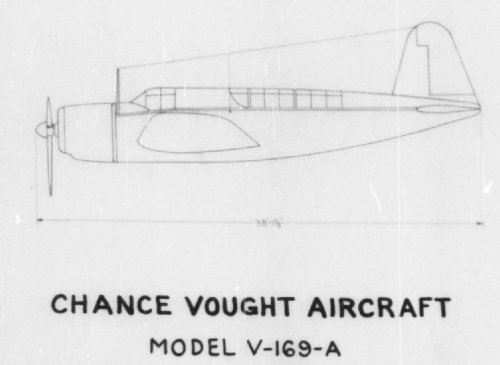

  • V-169A_Side_View.jpg
    36.7 KB · Views: 244

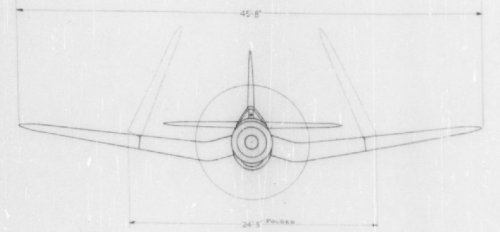

  • V-169A_Front_View.jpg
    26.6 KB · Views: 230

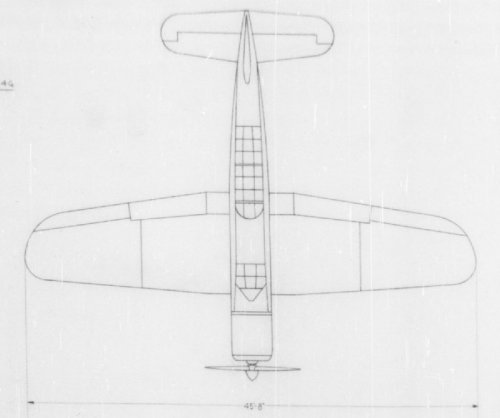

  • V-169A_Top_View.jpg
    44.2 KB · Views: 220

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
582
Reaction score
464
And the V-169B. Again Vought archives


Attachments

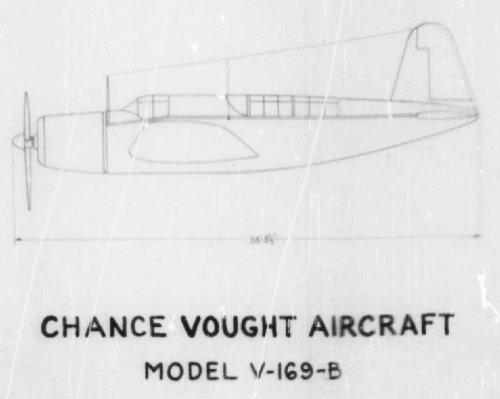

  • V-169B_Side_View.jpg
    16.3 KB · Views: 209

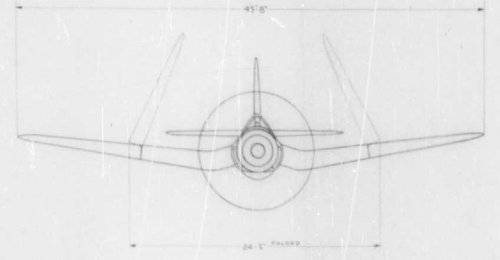

  • V-169B_Front_View.jpg
    10.8 KB · Views: 199

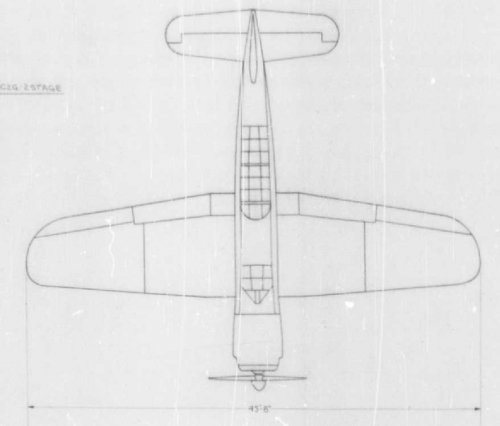

  • V-169B_Top_View.jpg
    18.9 KB · Views: 83

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
293
I have a copy of the book American Secret Projects: Fighters, Bombers, and Attack Aircraft 1937-1945 and it is mentioned on page 193 that the V-169 design was offered to the US Navy scout bomber competition of 1938 that led to the Douglas SBD Dauntless and Curtiss SB2C Helldiver. That said, the V-169 itself was somewhat similar to the TBU/TBY Sea Wolf, but was designed as a scout bomber and not a torpedo bomber.

The two V-169 variants had the same wingspan but differed in length, with the V-169A being 38 feet 1.5 in (11.62 meters) long, and the V-169B measuring 38 feet 8.5 in (11.80 meters) in length.
