Little-known Vought projects from World War II

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
511
Vought mistery fighters: no drawings from that designs


VS-322 1941 X-Wasp engine USN
VS-334 1942 Wasp Major engine USN (I think this could be a mistake from the book and that designation is that from F4U-4)
V-337 1943 tailess USAAF
V-338 1944 single seat/twin engine USN - carrier
V-339 1944 single seat/twin engine USN
V-341 1944 XF5U-1 derivative with special engines
V-343 1945 twin seat high performance night fighter
V-347 1945 high performance fighter USN


Source: Les Avions Vought. Bernard Millot. Docavia


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
Just an FYI the V-343 was not a piston engined design
It came in several versions basically the V-343-A was a three
Westinghouse 24C-4 engined aircraft with straight or swept wings.
The V-343-b-1/2/3 was a twin General Electric T6-100 powered
turboprop aircraft with straight wings.


As I get the scans cleaned up I can post them.


bill


pometablava said:
Vought mistery fighters: no drawings from that designs


V-343 1945 twin seat high performance night fighter

Source: Les Avions Vought. Bernard Millot. Docavia


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Hi,

please,I want a drawings to those Vought naval projects,which was designed
during the WW2;

VS-301 twin engined patrol maritime aircraft
VS-307 torpedo bomber aircraft
VS-308 maritime liaison aircraft


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,131
Reaction score
674
Sound interesting!!I can't say I've heard of these designs :eek: Do you have anything in the way of manufactures artist impressions of these designs? As it might jog someone's data base!! Good luck RegardsPioneer


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Sorry my dear Pioneer,


I have no idea about what they are look like or their artist impressions,but may someone
helps from Vought Archive.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com
From the Vought Aircraft Historical Foundation via Bill Spidle


Attachments

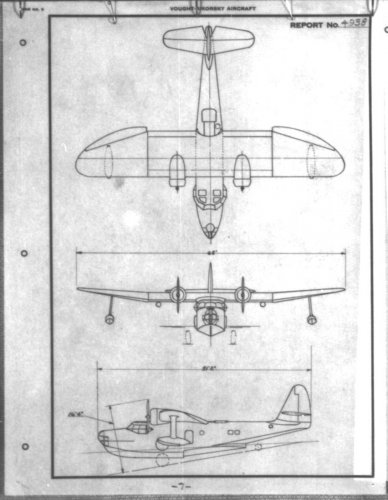

  • VS-308 General Arrangement.jpg
    VS-308 General Arrangement.jpg
    103.4 KB · Views: 1,837

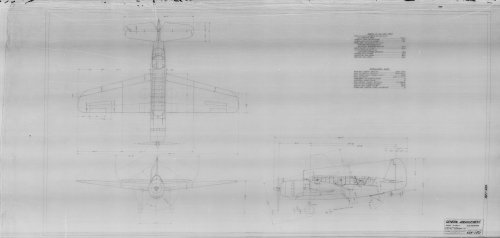

  • VSK-150 VS-307A General Arrangement web.jpg
    VSK-150 VS-307A General Arrangement web.jpg
    401 KB · Views: 1,830

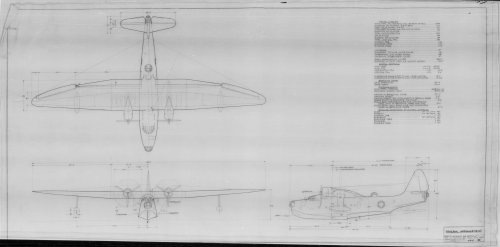

  • VSK-181 VS-301A General Arrangment web.jpg
    VSK-181 VS-301A General Arrangment web.jpg
    435.6 KB · Views: 1,657

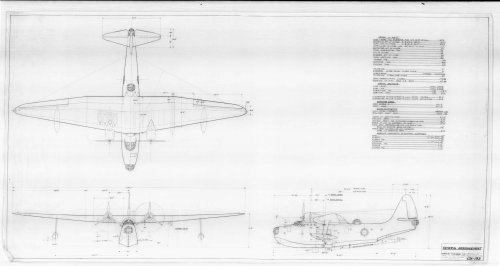

  • VSK-193 VS-301C General Arrangement web.jpg
    VSK-193 VS-301C General Arrangement web.jpg
    397.5 KB · Views: 1,498

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Wow,marvelous my dear Tailspin,


Very Very Great Thanks to you.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
Splendid!!!

At first glance I would say that the VS-301C looks unconfortably similar to a Short Sunderland...


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
152
Reaction score
20
Beautiful planes, all. Would the VS-307A, despite its Helldiver-ish lines, have been a competitor against Grumman's Avenger?


--Ian


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com
Apteryx said:
Beautiful planes, all. Would the VS-307A, despite its Helldiver-ish lines, have been a competitor against Grumman's Avenger?
--Ian

The date on the drawing is 16 September 1939, which ties into the competition that resulted in the Grumman TBF and the backup program, the Vought TBU. So in effect, it became the competitor.


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
152
Reaction score
20
Tailspin Turtle said:
The date on the drawing is 16 September 1939, which ties into the competition that resulted in the Grumman TBF and the backup program, the Vought TBU. So in effect, it became the competitor.


Thank you. I was always fuzzy on the TBU/TBY.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
Sorry I missed this request, thanks Tommy for posting the drawings.


bill


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
My dear Tailspin,


do you have a drawings to those projects, VS-318,VS-319 and VS-322 ?.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
hesham said:
My dear Tailspin,
do you have a drawings to those projects, VS-318,VS-319 and VS-322 ?.


I'm not Tailspin but will look and see if I have found what you seek.


Bill


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655

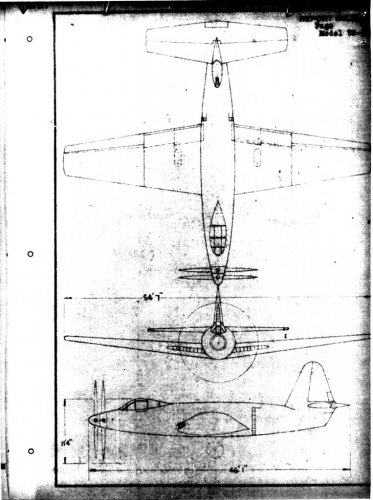

Certainly not the best drawing, but here is a general arrangement of the VS-322
Courtesy of a photocopy from VAHF


bill


Attachments

  • VS-322-GeneralArrangement.jpg
    93.7 KB · Views: 1,145

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
511
Many thanks for sharing that treasure. US WWII unbuilt designs knowledge is really scarce when compared with other nations.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
pometablava said:
Many thanks for sharing that treasure. US WWII unbuilt designs knowledge is really scarce when compared with other nations.

Perhaps it's just that the US probably designed 10 times more aircraft at least that any other nation over that period... ::)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Or that they dumped ten times more in the dustbin
compared with other aircraft building nations...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
lark said:
Or that they dumped ten times more in the dustbin
compared with other aircraft building nations...

... which really amounts to the same, doesn't it?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Bill S said:
Certainly not the best drawing, but here is a general arrangement of the VS-322
Courtesy of a photocopy from VAHF


bill


Many many great thanks for your respond Bill,


and amazing project,nice work.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
63
Bill S said:
Certainly not the best drawing, but here is a general arrangement of the VS-322
Courtesy of a photocopy from VAHF


bill
Interesting for sure. Reminds me of the Douglas Skyshark - though very minor. -SP


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
...or the P-75 Eagle...
Is there any more info available, in particular engine type? I'm thinking BIG radial, but would the R-3350 or R-4360 be available? Or would the R-2800 be powerful enough?

cheers,
Robin.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
352
Reaction score
22
VS-322 1941 X-Wasp engine USN

Isn't the X Wasp the R-4360?


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
A little more VS-322 information:


It is a single-seat, single-engine fighter airplane.
It has a single Pratt and Whitney 28-cylinder air-cooled X-Wasp engine.
It has a contra-rotating eight-blade tractor propeller assembly driven by an extension shaft.
It will use spot-welding, flush riveting and Goodyear "Cycleweld C" process to reduce skin friction.
For weight reduction it will use plastic-treaded plywood for non-structural panels and fabric movable control surfaces.
Armed with four 20mm cannon in the wings outside the propeller arc.


In Normal condition it would Vm at sea level was 334mph and Vm at critical altitude (33,500) was 464mph


bill


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
352
Reaction score
22
I'm surprised no one has mentioned the V-322's similarity to the Japanese Yokosuka R2Y.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
famvburg said:
I'm surprised no one has mentioned the V-322's similarity to the Japanese Yokosuka R2Y.

Now you have!!! And it's true that somehow we automatically thought of U.S. types displaying some vague similarities while missing out the most similar design, the Japanese one! Thanks for the reminder.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
From the AEHS website, here :-

http://www.enginehistory.org/P&W/R-4360/Image31.jpg

A P&W R-4360 with an extension shaft, in this case for the XB-35. I would assume that the VS-322 installation would be similar, with the addition of a contraprop gearbox.

cheers,
Robin.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
352
Reaction score
22
Or even the same gearbox set-up used on the XB-35 maybe.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
hesham said:
do you have a drawings to those projects, VS-318,VS-319 and VS-322 ?.


Is that any hope to get VS-318 and VS-319 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Thank you Bill very much,


and I am not hurry,may be you can find them someday.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
655
I will keep an eye out.


bill


patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
3
Website
www.vignaud.org
In Aero Journal HS8, I found that XF6U-1 designation was first used by Vought for a 2 engine fighter like Grumman F7F. Navu Bureau of Aeronautics chnaged is mind and asked for jet engine fighter, so project was changed to XF6U-1 Pirate.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
patvig said:
In Aero Journal HS8, I found that XF6U-1 designation was first used by Vought for a 2 engine fighter like Grumman F7F. Navu Bureau of Aeronautics chnaged is mind and asked for jet engine fighter, so project was changed to XF6U-1 Pirate.

That's very interesting, Patrick! I don't have HS #8 (HS stands for "Hors-Série", which means "Special"), thanks for this info.
