Vought V-1100 fighter to LWF specification

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,597
Reaction score
3,914
The V-1100 project was a further modification of the V-1000, which in turn was an improved F-8 Crusader. It had an enlarged rear fuselage for an F100 engine and a modified wing for greater manouvreability. The forward fuselage was also redesigned, primarily to improve the rear view from the cockpit.

V-1100 was submitted to the LWF program which resulted in the YF-16 and YF-17, but was rejected. Vought placed second-to-last, ahead of Lockheed.

Sources
  • Jay Miller
  • http://www.aerospaceweb.org/question/planes/q0236.shtml


Attachments

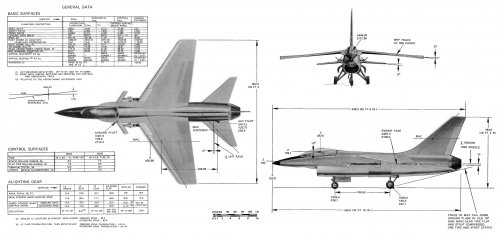

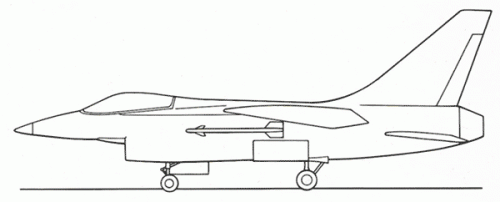

  • v1100-2.gif
    21.2 KB · Views: 2,735
  • v1100-3.gif
    20.1 KB · Views: 2,488

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247
What with the F-8 Crusader’s reputation as the last true gun dogfighter (up until the USAF LWF / ACF program winner – F-16), I would say that with the thrust offered by the F100 turbofan engine, and its new wing and cockpit arrangement, the V-1100 could have been a very capable and effective fighter in its own right.

It’s a pity that there is not too much more information on this LTV design!


Regards
Pioneer


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,453
Reaction score
1,959
there's pictures of the mockup of the V-1100 on this forum. You might be surprise seeing it, cause the plane really look like...a F-16!


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
133
Website
www.hitechweb.genezis.eu
Archibald said:
there's pictures of the mockup of the V-1100 on this forum. You might be surprise seeing it, cause the plane really look like...a F-16!

Thats something new for me. Where?

And regarding to V-1100, its good that USAF pressed more on development potencial than on fast reliability and less development risk. Can you imagine F-8 Block 1860 currently in service instead of F-16E/F? :D


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247
Sorry Archibald but what pictures of the Mock-up V-1100 ???

Regards
Pioneer


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
583
Greetings All -

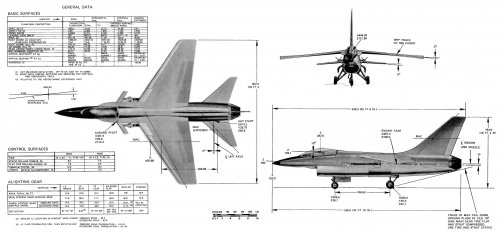

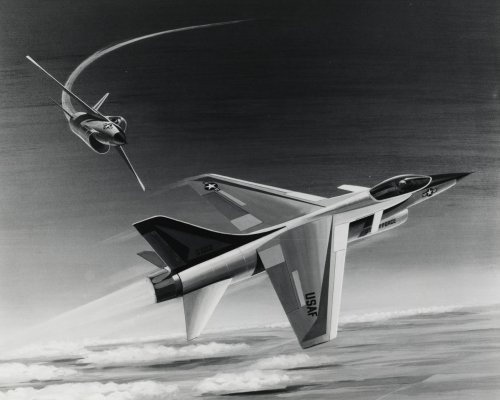

Nothing like resurrecting an old thread! Last week I spent a few fruitful days in the Vought Archives and came away with a lot of new info - will post most of it over the next few months. One of the photos I scanned is a later variant of the V-1100 that appears much like Overscan's drawing but you'll note the installation of small "moustache" strakes forward of the wing itself. No luck in finding any line drawings :-(

Enjoy the Day! Mark


Attachments

  • xLTV LWF V-1100 drawing.jpg
    xLTV LWF V-1100 drawing.jpg
    112.5 KB · Views: 5,053
Last edited by a moderator:

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,086
Reaction score
983
wows! those moustache are sexy!


Pyrrhic victory

This is going to hurt
Joined
Jan 31, 2008
Messages
73
Reaction score
20
Nice picture, Mark! From the original sketch to me it looked more like a Crusader but from that angle its looking more F-16 with the LERX and wing. This makes the whole "three second place finishers but Northrop chosen" story seem more congruent since both the Boeing and LTV entry were similar, with GD's being the most evolved of that type.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247
Its been a while - but do you have a pic or link of this Mock-up V-1100 Archibald????
The suspense has been killing me!!!!!!!!!!

Regards
Rioneer


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
583

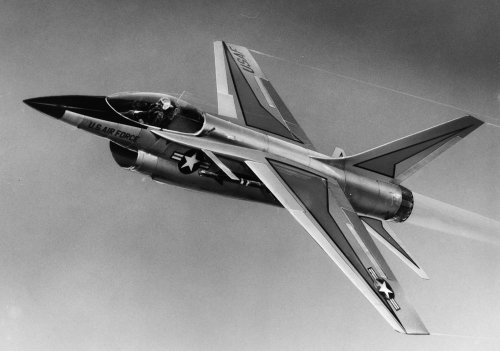

... and another image of the V-1100 LWF from the Vought Archives.

Can't help but think F-8 marries F-16 and the results are....

Enjoy the Day! Mark


Attachments

  • xLTV V-1100 LWF-2.jpg
    xLTV V-1100 LWF-2.jpg
    186.2 KB · Views: 3,130

elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2

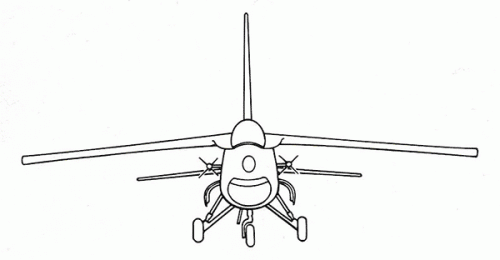

The head-on artist's drawing looks like the V-1100 may have had DSI. If so, would that be the first application of DSI? Boeing's ATF proposal looks as though it may have had DSI?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
583
Grumman tested DSI on an F11F back in the late '50s timeframe.

Enjoy the Day! Mark


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
583


Thanks Paul for posting these - had not gotten there yet myself :)


The one to the left in the full rez scan shows a V-?00 on the stand.

Enjoy the Day! Mark

Last edited by a moderator:

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,041
Reaction score
315
I suppose I'm stating the bleeding obvious when I point out that the one on the left looks remarkably like the V-1100 from that other thread?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
I'd suppose it IS the V-1100 in some iteration.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,597
Reaction score
3,914
Ok, closer analysis leads me to conclude the model on the left is an early iteration of the V-1100 design.

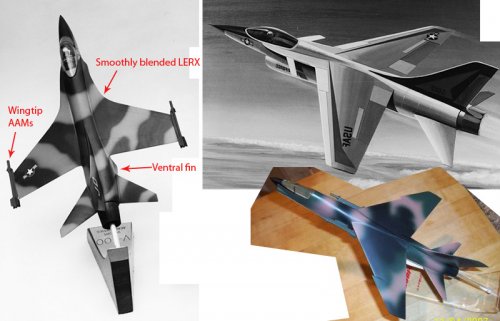

Here's a comparison with the V-1000 and the V-1100. The tail is almost identical across all three, the ventral fin is common to V-1000 and mystery fighter, while the sharp break in the LERX with canard on the V-1100 as opposed to the smooth curve of the mystery fighter is better aerodynamically for vortex generation.


Last edited:

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,041
Reaction score
315
overscan said:
Ok, closer analysis leads me to conclude the model on the left is an early iteration of the V-1100 design.

Here's a comparison with the V-1000 and the V-1100. The tail is almost identical across all three, the ventral fin is common to V-1000 and mystery fighter, while the sharp break in the LERX with canard on the V-1100 as opposed to the smooth curve of the mystery fighter is better aerodynamically for vortex generation.

The model also seems to have a separate windshield where the V-1100 artist's impression shows a frameless canopy - suggests that the model represents an earlier design iteration as well.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,516
Reaction score
250
Another mistery projects are:

V-523 (1973): Very advanced fighter project for the USN.

V-540 (1980): Special project. Classified. Top Secret.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
583
Hi All -

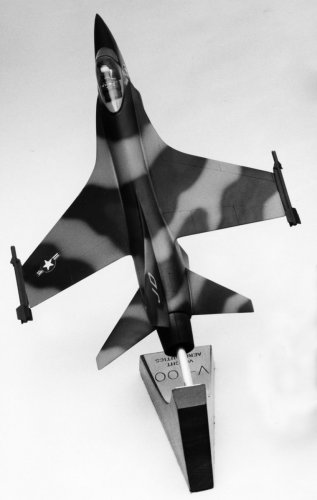

Here's the model cropped out of the original archival file I made.

HTH! Mark


Attachments

  • xLTV Fighter Models1.jpg
    xLTV Fighter Models1.jpg
    96.4 KB · Views: 1,217
Last edited by a moderator:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,597
Reaction score
3,914
The lightweight fighter on the left of the original picture is the only project left to identify.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
478
Trident said:
overscan said:
Ok, closer analysis leads me to conclude the model on the left is an early iteration of the V-1100 design.

Here's a comparison with the V-1000 and the V-1100. The tail is almost identical across all three, the ventral fin is common to V-1000 and mystery fighter, while the sharp break in the LERX with canard on the V-1100 as opposed to the smooth curve of the mystery fighter is better aerodynamically for vortex generation.

The model also seems to have a separate windshield where the V-1100 artist's impression shows a frameless canopy - suggests that the model represents an earlier design iteration as well.

A more realistic one, yes, but earlier? I'm not sure. Blended chines could have replaced canards as a more economical solution.

As for the designation, the stand clearly indicates V-*00. Two possibilities:
1°) If it's a four-digit designation, it can be only "V-1100", since there is no room for two wider digits. This seems the most plausible explanation to me.
2°) If it's a three-digit designation, it could only be V-700, V-800 or V-900 (all others were allocated), but if this was to be a development of the V-1100, I can't see Vought giving it a lower number. Unless of course, it is an EARLIER design as suggested... but it's unlikely because V-1000 had already been allocated for a lightweight "Freedom Fighter" project derived from F-8 in 1969 and also the "Super V-1000" proposal for LWF...


The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
256
Stargazer2006 said:
A more realistic one, yes, but earlier? I'm not sure. Blended chines could have replaced canards as a more economical solution.

As for the designation, the stand clearly indicates V-*00. Two possibilities:
1°) If it's a four-digit designation, it can be only "V-1100", since there is no room for two wider digits. This seems the most plausible explanation to me.
2°) If it's a three-digit designation, it could only be V-700, V-800 or V-900 (all others were allocated), but if this was to be a development of the V-1100, I can't see Vought giving it a lower number. Unless of course, it is an EARLIER design as suggested... but it's unlikely because V-1000 had already been allocated for a lightweight "Freedom Fighter" project derived from F-8 in 1969 and also the "Super V-1000" proposal for LWF...

I've looked closely at the cropped photo and I'm convinced that the bar is obscuring a single digit. Even two 1s would not fit unless they were spaced much closer together than the spacing between the visible characters on the base.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247
Nice work Overscan!
Thanks for you're time and effort!!

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247
Archibald said:
there's pictures of the mockup of the V-1100 on this forum. You might be surprise seeing it, cause the plane really look like...a F-16!

Ok....I give up.....I can't find this pictures of the mockup of the V-1100 on this forum :-[

Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,597
Reaction score
3,914
There aren't any, I've never seen such a thing.


There is a photo of the Boeing design in mockup form, plus the Lockheed CL-1200 mockup.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
563
Reaction score
324

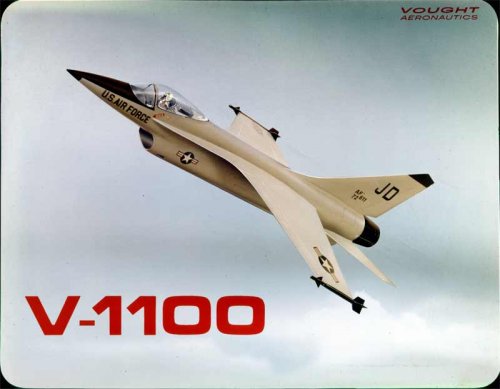

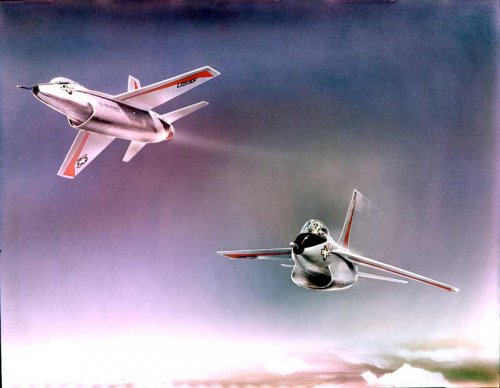

A couple more images have come to light.
VAHF Collection.

Last edited by a moderator:

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,592
Reaction score
1,616
That top one's got some Crusader III look to it.


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
687
Reaction score
399
Fantastic! Thank you Bill.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,597
Reaction score
3,914
I looked at this again and I agree, the gap is too small for anything but a single digit. Rough sizing can be done from the pic with the 2 other designs (V-2000 and AI).



1971 still seems like a good timeframe though V-2000 studies go on to 1976 at least.

Anyone found anything more on this since 2011?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,597
Reaction score
3,914
Engine nozzle seems to be exactly the same size as the V-2000, interestingly. Its roughly 46ft long so its very close to the V-1100 in size. I think its an F100 engine not J101/F404.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,777
PaulMM (Overscan) said:
Engine nozzle seems to be exactly the same size as the V-2000, interestingly. Its roughly 46ft long so its very close to the V-1100 in size. I think its an F100 engine not J101/F404.

Nice Info my dear Paul.
