Boeing Lightweight fighter design to LWF requirement

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871
Boeing's LWF design was rated very highly in the LWF competition. It has been suggested it came second in the evaluation to General Dynamics Model 401 (F-16), but Northrop's P-610 was given the second contract because it was twin engined and hence represented a different approach. Boeing's design was too similar to General Dynamics'.

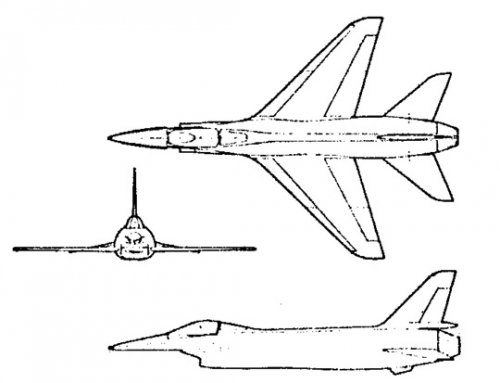

First time I've seen a 3 view presented, albeit very ropey quality.

Sources:

Mockup photos via Gary Morelock
Model photo: Boeing via Jay Miller
William H Ball, "Rapid Calculation of Propulsion System Installation Corrections" AIAA 74-1174


Attachments

  • boeing-908-909.jpg
    34.5 KB · Views: 2,084
  • boeing-908-909a.jpg
    90.5 KB · Views: 2,776
  • boeing-908-909b.jpg
    87.6 KB · Views: 2,555
  • boeing-908-909c.jpg
    43.9 KB · Views: 2,207

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,844
Reaction score
289
The last pic is obviously a different design/derivative, because of the blending. I think it looks better than the non-blended version, IMHO. Do we know which of the designs shown was the actual submission? I would guess the non-blended design, since it's a full scale mock-up, but I was just curious about that.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,978
Reaction score
333
Anybody have some technical data for this project, please.

Servus Maveric


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,985
Reaction score
1,384

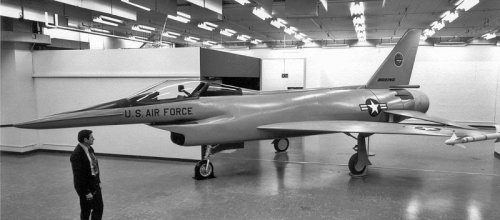

Is that a full size mock-up? Although I guess it shares the semi-reclined seating arrangement of the F-16 the cockpit seems too shallow to fit the pilots legs, rudder pedals and any other avionics in the nose. It would be a very tight squeeze taking references from the man standing beside it.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

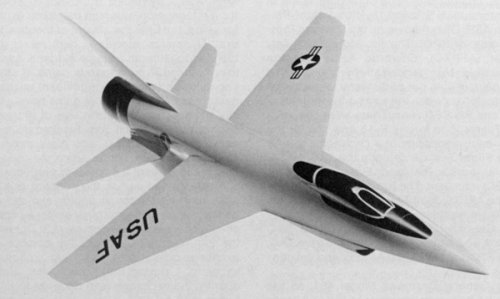

Thanks to Tony Buttler's American Secret Projects we can confirm that the model illustrates Boeing Model 908-618, an earlier study, while the mockup and 3 view is the later 908-909 design. Unfortunately no dimensions are given.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

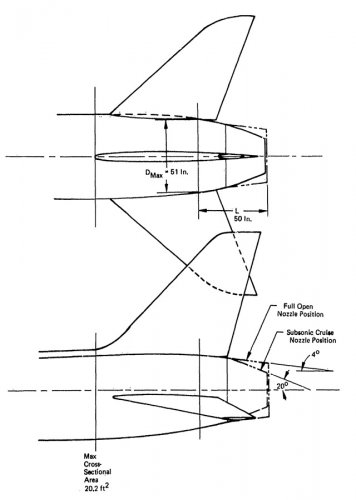

Much better copy of the Boeing LWF 3 view plus 2 detail drawings. It should be possible to calculate size from the dimensions given in the detail drawings.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD907816&Location=U2&doc=GetTRDoc.pdf


Attachments

  • Boeing-LWF-intake.jpg
    37.9 KB · Views: 392
  • Boeing-LWF-tail.jpg
    61.6 KB · Views: 453
  • Boeing-LWF.jpg
    83.3 KB · Views: 2,032

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871
Note the 2D intake, which compared to a simple pitot intake was supposed to optimise performance for Mach 1.6 and allow Mach 2.0 as a fallout.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871
My attempt to scale this drawing from the detail drawing yielded a length of about 44ft 6in, which seems a bit low.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

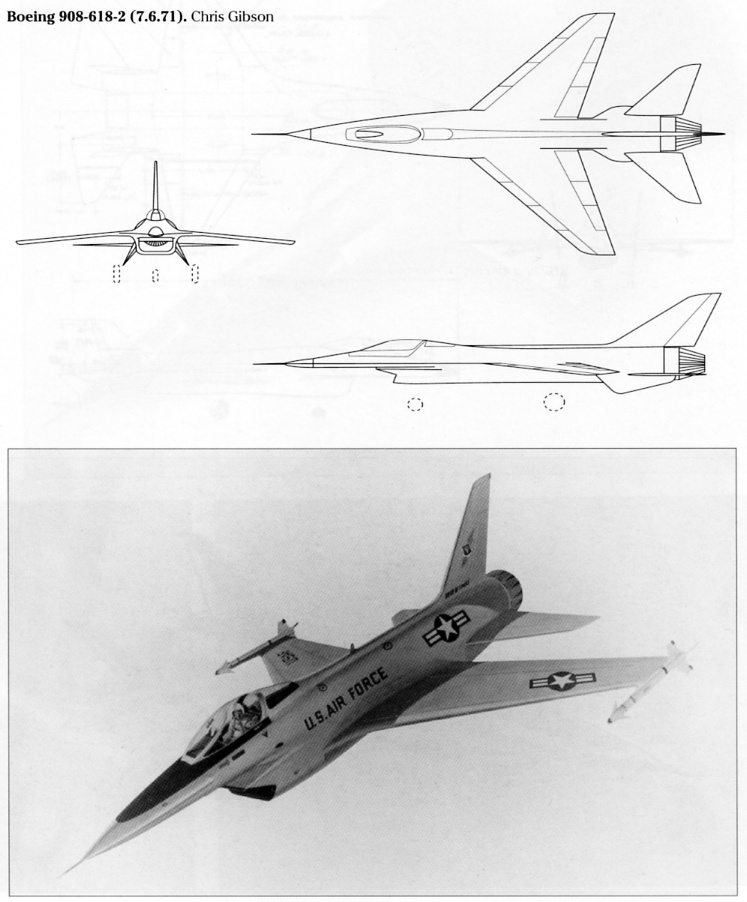

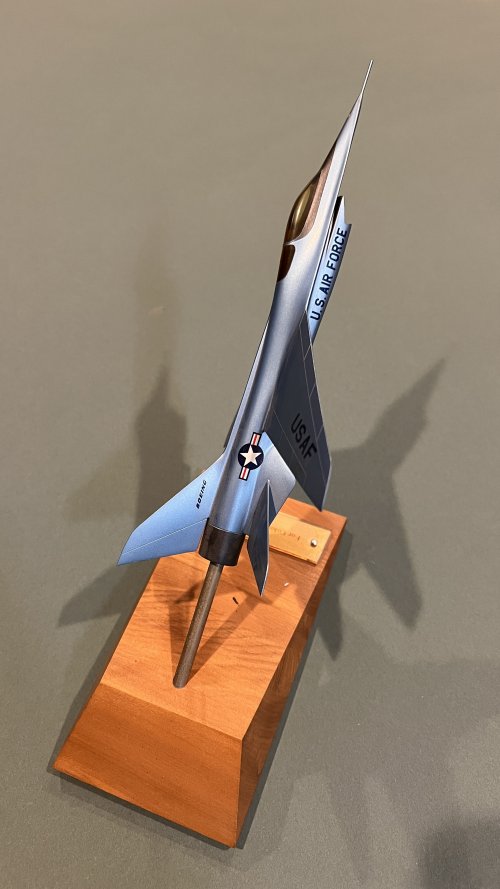

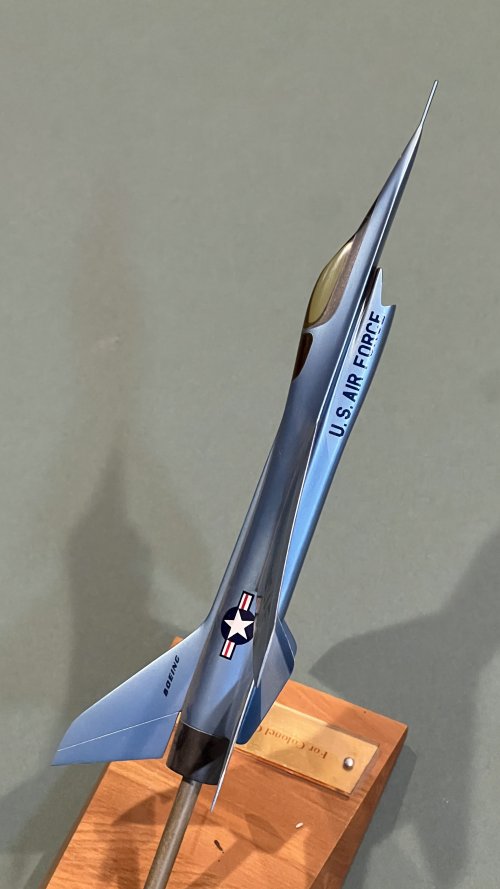

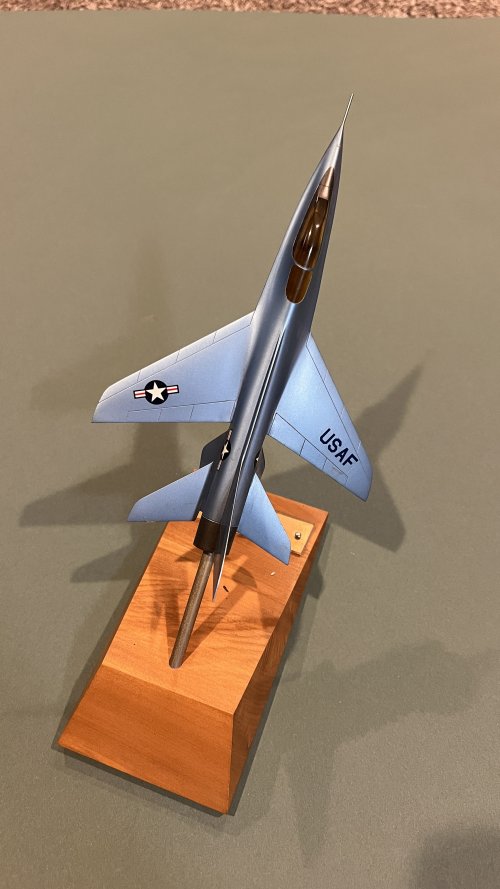

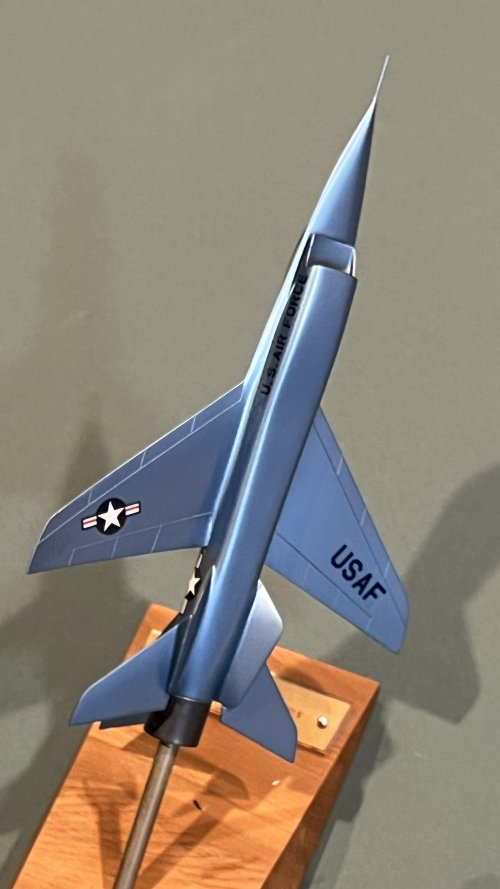

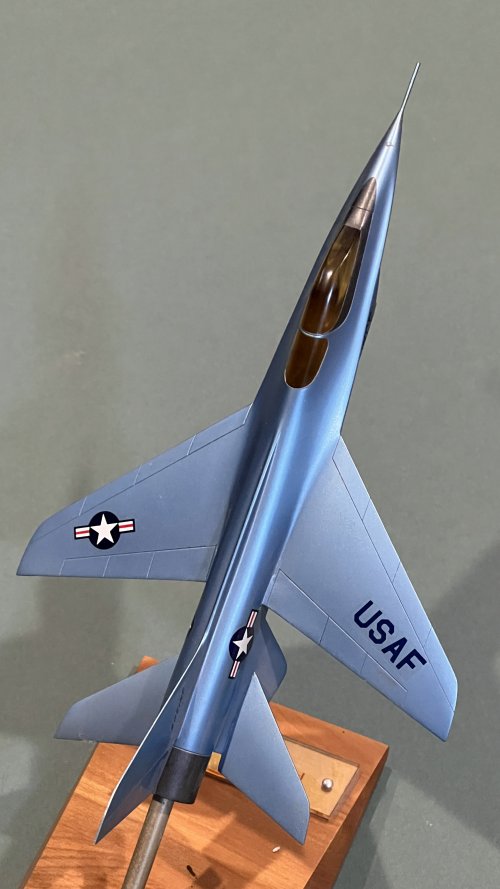

The earlier design with the LERX is the Boeing 908-618. Model 908-618-2 was featured in Riccioni, Boyd and Sprey's "Falcon Brief" presentation.

Apparently, Boeing were unable to converge a workable design for the LERX so removed it from their 908-909 submission.

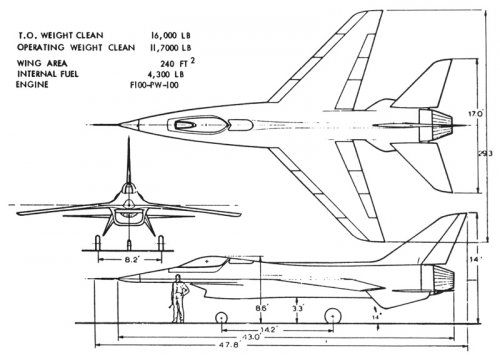

Boeing 908-618-2 was 47.8ft in length from tip of pitot tube to end of tail. Excluding the pitot and tail, length was 43ft. Wing span was 29.3ft, tail span 17ft, height 14ft. Wing area was 240 sq ft. Takeoff weight clean was estimated at 16,000lb, empty weight 11,700lb, with provision for 4,300lb internal fuel. Engine was the F100-PW-100.

Source:
James P Stevenson The Pentagon Paradox


Attachments

  • 908-618-2.jpg
    91.2 KB · Views: 2,982

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,230
Reaction score
86
Website
zeef.com
seems an interpretation of F-16 made by Boeing : an artistic flying technology !!! ;D


prolific1

ACCESS: Secret
Senior Member
Joined
Mar 25, 2008
Messages
449
Reaction score
2
Website
lost-aviation.blogspot.com
The lower of three images (with the blended wing) seems to amount to a significant redesign (as a derivative) as the wing appears to have a higher incidence in it's mounting location to "blend" with the nose strakes.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871
Yes, as stated above, there are two different design in this topic, 908-618 with LERX and mid wing and 908-909 without LERX and low wing.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871
Pioneer said:

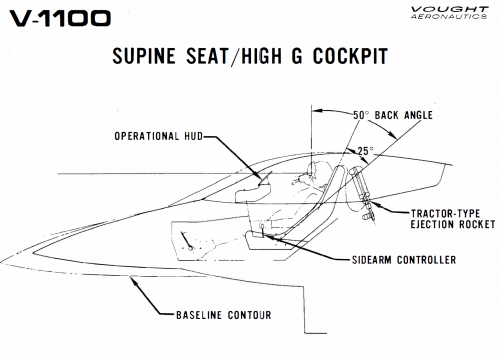

Its been a while - but do you have a pic or link of this Mock-up V-1100 Archibald????
The suspense has been killing me!!!!!!!!!!

Regards
Rioneer

No, the mockup pics are of the Boeing LWF.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
467




All 17 pictures in high-res here:
http://crgis.ndc.nasa.gov/historic/Test_281:_Boeing_Close_Air_Support_Aircraft


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

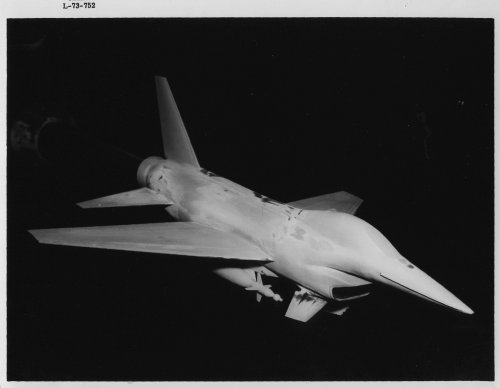

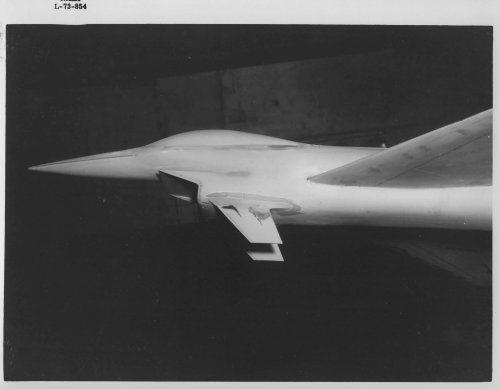

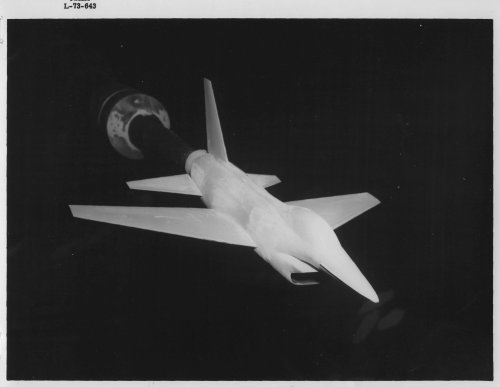

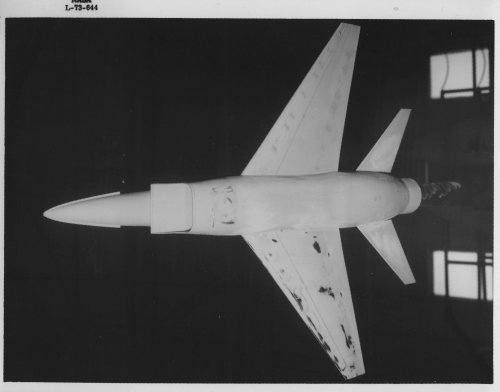

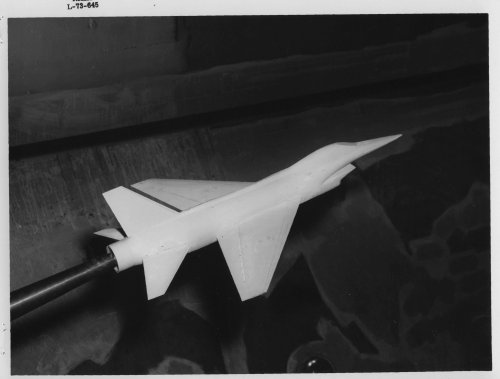

This appears to be a straightforward modification of the Boeing LWF design - probably reusing an LWF wind tunnel model. The vertical canards imply some kind of AFTI style direct side force control.


Attachments

  • L-73-645.jpg
    369.6 KB · Views: 151
  • L-73-644.jpg
    323.9 KB · Views: 132
  • L-73-643.jpg
    308.7 KB · Views: 1,104
  • L-73-854.jpg
    335.1 KB · Views: 1,426
  • L-73-752.jpg
    358.3 KB · Views: 1,661

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

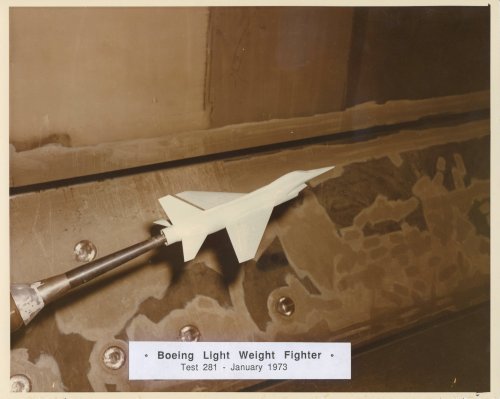

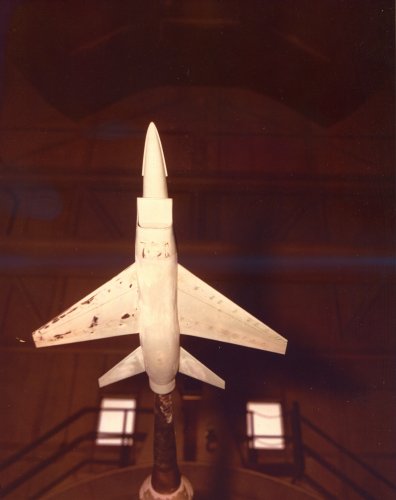

Nice colour view of Boeing LWF model before the canards were added.


Attachments

  • 1973_Boeing_Light_Weight_Fighter.jpg
    595.7 KB · Views: 64

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

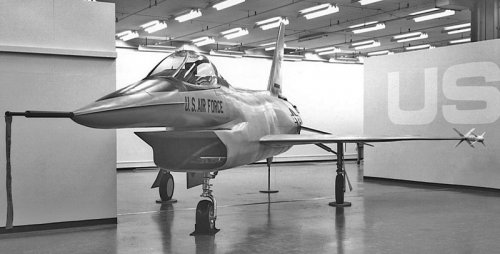

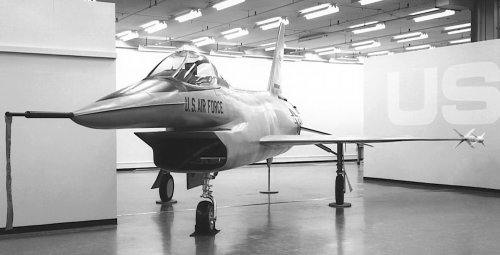

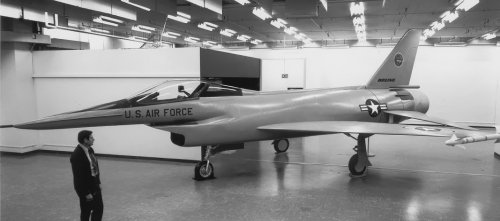

Recently found these higher-res copies on an old hard disk.


Attachments

  • 908-909Mockup1.JPG
    124.7 KB · Views: 282
  • 908-909Mockup2.JPG
    89.6 KB · Views: 346

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871
Interestingly Bob Sandusky (Northrop F-20, YF-23) started at Boeing and did aerodynamic configuration on the Boeing LWF.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
In my files,

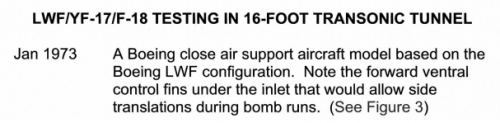

Boeing designed a close air-support airplane based on this design with some improvements
in configuration,but I don't remember the source,need confirm.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
hesham said:
In my files,

Boeing designed a close air-support airplane based on this design with some improvements
in configuration,but I don't remember the source,need confirm.

All I remember it was in early 1973 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
hesham said:
In my files,

Boeing designed a close air-support airplane based on this design with some improvements
in configuration,but I don't remember the source,need confirm.

All I remember that; the forward ventral control fins under the inlet that would allow side
translations during the bomb runs ?.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,871

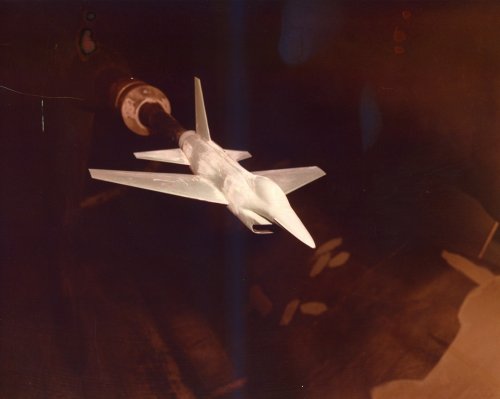

NASA added two more colour photos of the Boeing LWF. I've edited them to bring out the features of the models as much as possible.



Attachments

  • L-73-327_Boeing_Close_Air_Support_Aircraft_Test_281.jpg
    3 MB · Views: 81
  • L-73-329_Boeing_Close_Air_Support_Aircraft_Test_281_1973.jpg
    1.1 MB · Views: 87

Stratodesigner

I really should change my personal text
Joined
Aug 4, 2014
Messages
16
Reaction score
13
There is a drawing with an artist's impression attached. The cockpit area seems to be too shallow to house the ejection seat and pilot and needs to made taller, possibly with an F-16 type canopy.



Stratodesigner

I really should change my personal text
Joined
Aug 4, 2014
Messages
16
Reaction score
13
As some have pointed out, the canopy is too low: take the pilot figure in the last drawing and try to place him in the cockpit (admittedly he would be in seated position), does not seem to fit. Also from the drawing, the cockpit height from floor to top of canopy is (on my screen) 1.2 cm to compared to 4.8 cm for the height of the aircraft, which is 25% of the height. One fourth of the height (14 feet) is 3.5 feet which is 1.1 metres, is this tall enough to include the pilot and ejection seat?
