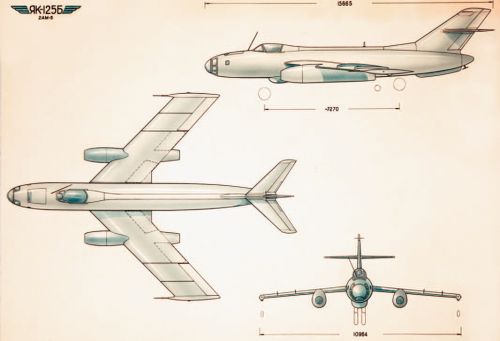

Various Post-War Yakovlev (Yak) Projects & Prototypes

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
Yak-19

More infos from "Early Soviet Jet Fighters", a superb book that I bought immediately after the publication, but left on my shelf for a while. I'm sorry for the quality of the scans, but my scanning device is small and I'm afraid to spoil the book...

This is the Yak-19 development:

1- First version with RD-10 engine, low wing, lateral air intakes, pod-and-boom layout. 6th June 1946.
2- Subsequent variant with same engine, mid wing, pod-and-boom. Closely reminding Lavochkin Samolet 150. 15th June 1946.
3- Definitive layout but Nene engine (not installed on the real thing).
4- Same layout but Lyul'ka TR-1 engine (same fate).
5- Yak-19 with Nene engine.
6- Yak-19 with Derwent engine.

In the real Yak-19 was installed the RD-10F afterburning turbojet.


Attachments

  • Yak-19 RD10-1.jpg
    Yak-19 RD10-1.jpg
    234.4 KB · Views: 225
  • Yak-19 Derwent.jpg
    Yak-19 Derwent.jpg
    161.1 KB · Views: 198
  • Yak-19 Nene-2.jpg
    Yak-19 Nene-2.jpg
    514.3 KB · Views: 191
  • Yak-19 TR-1.jpg
    Yak-19 TR-1.jpg
    234.4 KB · Views: 179
  • Yak-19 Nene.jpg
    Yak-19 Nene.jpg
    185.6 KB · Views: 187
  • Yak-19 RD10-2.jpg
    Yak-19 RD10-2.jpg
    308.4 KB · Views: 230

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
Yakovlev Factory

These are from the book "ОПЫТНОЕ КОНСТРУКТОРСКОЕ БЮРО ИМЕНИ А.С. ЯКОВЛЕВА" - Experimental Design Bureau named after A. S. YAKOVLEV

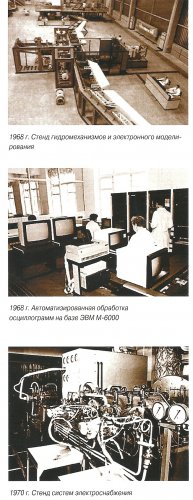

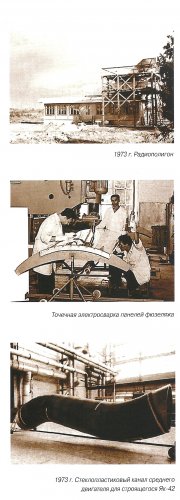

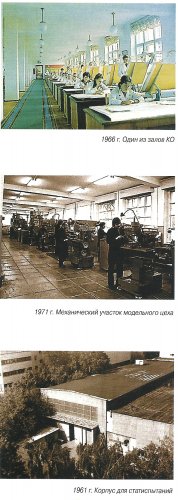

Various aspects of the Yakovlev's production plants.


Attachments

  • Yak Plants 1.jpg
    Yak Plants 1.jpg
    826.2 KB · Views: 178
  • Yak Plants 2.jpg
    Yak Plants 2.jpg
    723 KB · Views: 174
  • Yak Plants 3.jpg
    Yak Plants 3.jpg
    790.2 KB · Views: 161

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Amazing find Visvirtusvoluntas,


I hope to get Yak-35 fighter project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
visvirtusvoluntas said:
Yak-40 designed between January and June 1948. It was a single seat fighter powered by two 850 kgp ramjet engines mounted at the wingtips. The aircraft was 7.5 m long, with a wingspan of 5.05 m and an all-up weight of 1800 kg. Normally the fighter was to take off from a wheeled launch dolly accelerated by solid fuel rocket, landing on a centerline skid. Yakovlev OKB suggested using Yak-40 as parasite fighter to be suspended under Tu-4 wings in number of 6 (see image). The Yak-40A introduced a bicycle retractable landing gear and two rocket boosters for take off. Not built.


From; Аэрокосмическое обозрение №06 (67) 2013

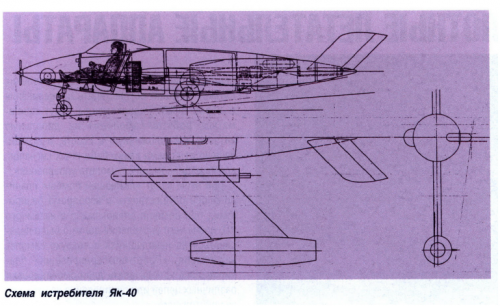

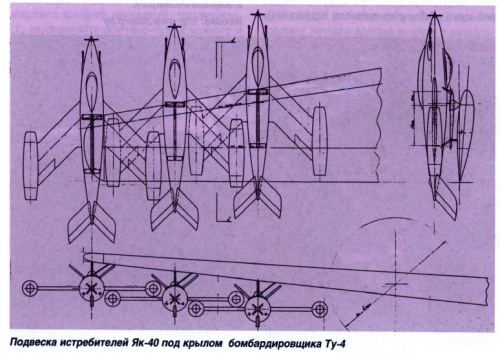

here is again Yak-40 drawings in colors.


Attachments

  • Yak-40  II.png
    Yak-40 II.png
    723.5 KB · Views: 155
  • Yak-40  I.png
    Yak-40 I.png
    882.4 KB · Views: 183
  • Yak-40.png
    547.9 KB · Views: 174

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34

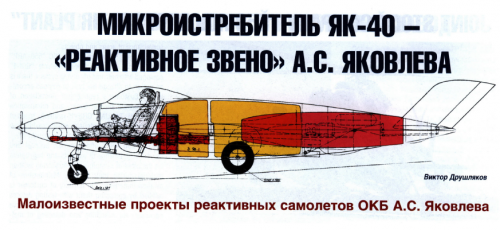

Great color drawing. The inscription reads: "Microfighter Yak-40 Jet Powered Zveno (Coupling) - Little known jet aircraft's project by Yakovlev"


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
862
Re: Yak-19

visvirtusvoluntas said:
More infos from "Early Soviet Jet Fighters", a superb book that I bought immediately after the publication, but left on my shelf for a while.

A fabulous book indeed. Truly one of the highlights of the Red Star series.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
647
Reaction score
404
Re: Yak-19

visvirtusvoluntas said:
More infos from "Early Soviet Jet Fighters", a superb book that I bought immediately after the publication, but left on my shelf for a while. I'm sorry for the quality of the scans, but my scanning device is small and I'm afraid to spoil the book...

This is the Yak-19 development:

1- First version with RD-10 engine, low wing, lateral air intakes, pod-and-boom layout. 6th June 1946.
2- Subsequent variant with same engine, mid wing, pod-and-boom. Closely reminding Lavochkin Samolet 150. 15th June 1946.
3- Definitive layout but Nene engine (not installed on the real thing).
4- Same layout but Lyul'ka TR-1 engine (same fate).
5- Yak-19 with Nene engine.
6- Yak-19 with Derwent engine.

In the real Yak-19 was installed the RD-10F afterburning turbojet.

What is the source of the drawings of Yak-19 early concepts? In the "Early Soviet Jet Fighters" by Yiefim Gordon there is no such drawings.

Piotr


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
Hello Piotr,
the source is "Early Soviet Jet Fighters" 2014 Edition.

Not to be confused with 2002 Edition.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
647
Reaction score
404
visvirtusvoluntas said:
Hello Piotr,
the source is "Early Soviet Jet Fighters" 2014 Edition.

Not to be confused with 2002 Edition.

Thanks for the info. I've never heard of the 2014 Edition. I must look for it.

P.


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
It's essentially a brand new book. Double size than the first and very impressive for the amount of information, data, drawings and photographs.


Attachments

  • SJF.jpg
    938.2 KB · Views: 1,073

Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,041
Reaction score
1,322
Deino said:
Just found at the German FF posted by "Feldmaus": Finally a mock up of the new Yak-152 ! ... looks different to the one Rolf posted above. ??? ... and even more to the Chinese off-spring the CJ-7/L-7:
Deino

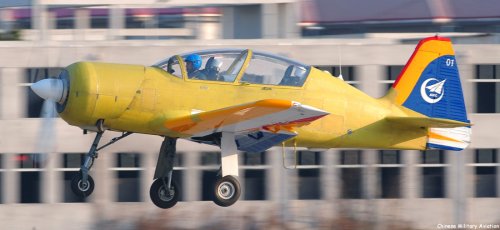

A rare image oft he CJ-7 prototype during its maiden flight ...


Attachments

  • CJ-7 - L-7 maiden flight 2014 - best.jpg
    CJ-7 - L-7 maiden flight 2014 - best.jpg
    156.6 KB · Views: 879

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
862
visvirtusvoluntas said:
It's essentially a brand new book. Double size than the first and very impressive for the amount of information, data, drawings and photographs.

Interesting. I wasn't aware of this new version being so different!


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,657
Reaction score
537
It's essentially a brand new book. Double size than the first and very impressive for the amount of information, data, drawings and photographs.

Almost decided to order a copy.

Could you please show here the contents page or the index?

Thanks in advance

Antonio


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,834
Reaction score
2,379
Website
beyondthesprues.com

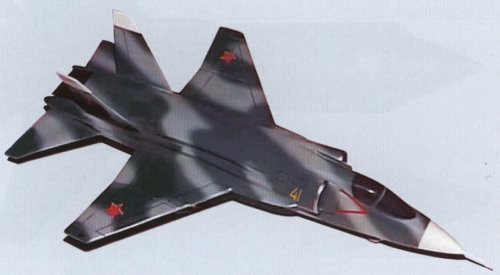

Looks very similar to the Su-49:




visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
pometablava said:
It's essentially a brand new book. Double size than the first and very impressive for the amount of information, data, drawings and photographs.

Almost decided to order a copy.

Could you please show here the contents page or the index?

Thanks in advance

Antonio

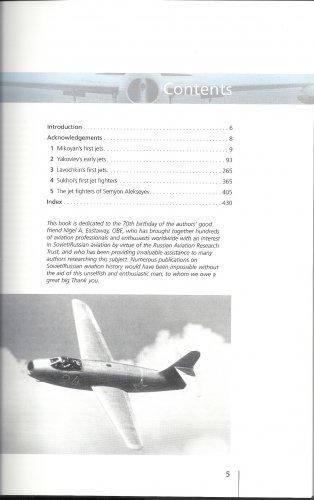

This is the summary:

1- Mikoyan's first jets
2- Yakovlev's early jets
3- Lavochkin's first jets
4- Sukhoi's first jet fighters
5- The jet fighters of Semyon Alekseyev

432 pages, tons of pictures and drawings. Cover price £39.95 - $64.95


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi Visvirtusvoluntas,


first do you have a brief name ?,and second,my dear Pometablava meant that,we want
to see a pages of index itself,can you scan and send them here ?,thanks.


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
hesham said:
Hi Visvirtusvoluntas,


first do you have a brief name ?,and second,my dear Pometablava meant that,we want
to see a pages of index itself,can you scan and send them here ?,thanks.

First, you can call me Al ;)
Second, I'll scan the summary but it is exactly the same as I wrote...


Attachments

  • summary.jpg
    467.8 KB · Views: 727

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34

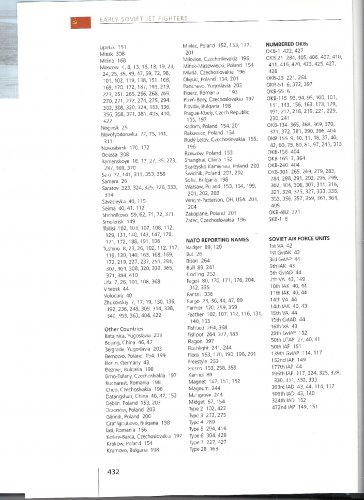

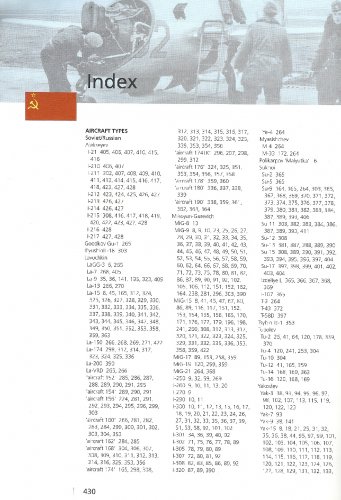

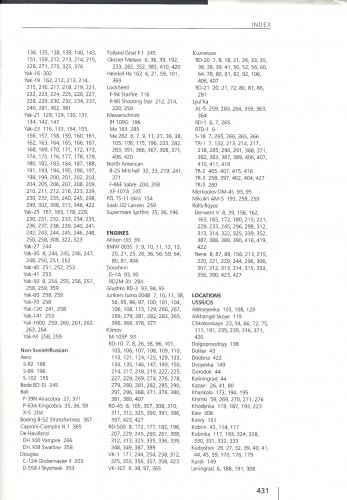

But maybe you need this:


Attachments

  • index3.jpg
    585.3 KB · Views: 105
  • index2.jpg
    580.8 KB · Views: 120
  • index1.jpg
    753.8 KB · Views: 663

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
324

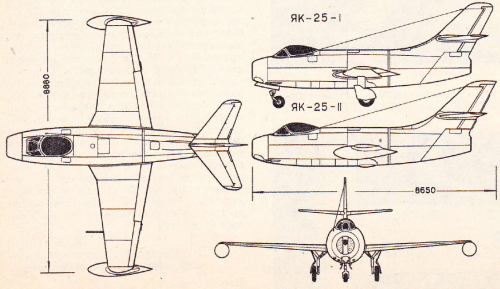

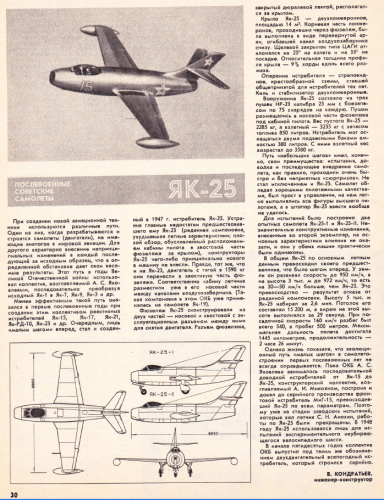

Yakovlev Yak-25 (1947 - 1st use of designation)

A single seat experimental jet fighter derivative of the Yak-19. It also had a straight laminar flow wing but with a different cross-section of only 9% thickness/chord ratio and swept back tail surfaces. Only two were built.

Despite showing exceptional performance and agility characteristics, it lost out to the MiG-15 as the MiG had already been ordered in large quantities.

POWERPLANT: 1x Tumansky RD-500 turbojet (1,590 kgs st)
WING SPAN: 8.88 m
LENGTH: 8.65 m
EMPTY WEIGHT: 2,285 kg
ACCOMODATION: 1

MAXIMUM SPEED: 972 km/h
PRODUCTION: 2
ARMAMENT: 3 x 23 mm machine guns


SOURCES:
Krilya Rodiny 1995-10
University of Southampton Notes 1997


Attachments

  • Yakovlev_Yak-25_(1st_Designation)_KR_1995-10)_Article.PNG
    1.3 MB · Views: 171
  • Yakovlev_Yak-25_(1st_Designation)_KR_1995-10)_Schematic.PNG
    889.6 KB · Views: 233

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
325
Reaction score
174
Re: Yak-19


Are there any more 3view pictures of the early 1946 RD-10 versions of the Yak-19?
The book mentions about 5-6 versions with various dates.

visvirtusvoluntas said:
More infos from "Early Soviet Jet Fighters", a superb book that I bought immediately after the publication, but left on my shelf for a while. I'm sorry for the quality of the scans, but my scanning device is small and I'm afraid to spoil the book...

This is the Yak-19 development:

1- First version with RD-10 engine, low wing, lateral air intakes, pod-and-boom layout. 6th June 1946.
2- Subsequent variant with same engine, mid wing, pod-and-boom. Closely reminding Lavochkin Samolet 150. 15th June 1946.

In the real Yak-19 was installed the RD-10F afterburning turbojet.


kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
673

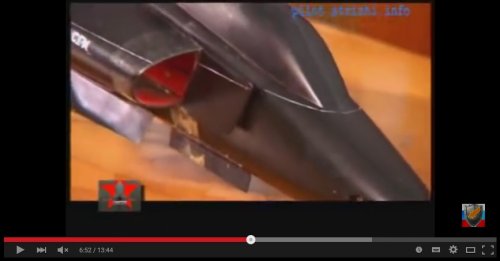

I've had a close look through this thread, and also through the Yak-141 thread, because whilst watching the video below, I noticed something.

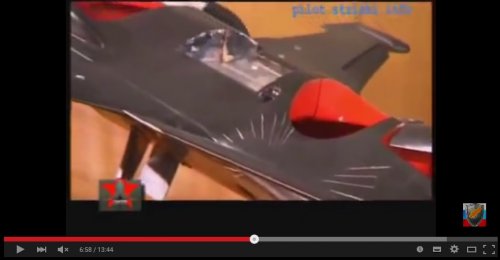

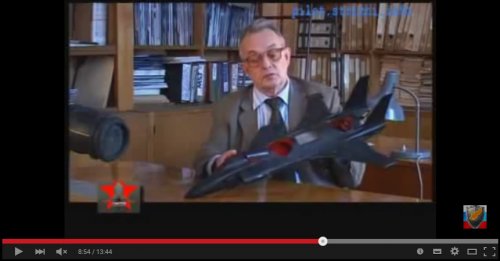

At 6:44 onwards there is a model on the desk that has semi-rounded intakes, canards, and a twin tail. None of the pictures in this thread, nor the Yak-141 thread show an aircraft with that combination. A brief google image search also threw up nothing
Not being able to understand Russian, I assume this is a Yakovlev aircraft, related to the Yak-141......is it an early configuration, or something that was looked at later?


https://www.youtube.com/watch?v=e8_le1seUh8


kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
673
No Paul, although there are similarities....I really must learn how to do a screen grab from a video. :-[

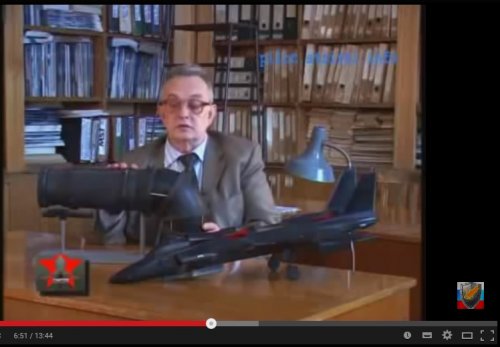

The camera pans over the model between 6:50 to 7:02.
It has upward canted canards on the wing LERX, the twin vertical fins are not as canted as on your model above, and the engine exhaust isn't as far back as on the model above, being more akin to the Yak-141.


CiTrus90

Credibility is down! Kill ratio is up!
Senior Member
Joined
Jan 16, 2015
Messages
476
Reaction score
949

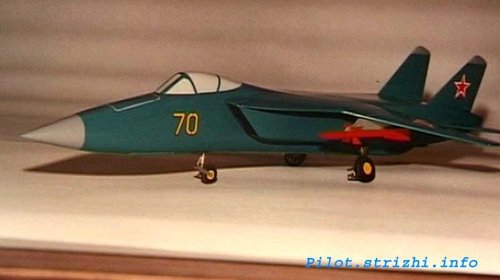

Definitely not a Yak-141, nice catch Kaiserbill ;)

Regards.


Attachments

  • Unknown_Yak-141 - 4.jpg
    Unknown_Yak-141 - 4.jpg
    67.4 KB · Views: 1,317
  • Unknown_Yak-141 - 3.jpg
    Unknown_Yak-141 - 3.jpg
    53.5 KB · Views: 1,293
  • Unknown_Yak-141 - 2.jpg
    Unknown_Yak-141 - 2.jpg
    52.6 KB · Views: 1,327
  • Unknown_Yak-141 - 1.jpg
    Unknown_Yak-141 - 1.jpg
    78.1 KB · Views: 1,371

CiTrus90

Credibility is down! Kill ratio is up!
Senior Member
Joined
Jan 16, 2015
Messages
476
Reaction score
949
Checked my copy of Buttler & Gordon Soviet Secret Projects: fighters since 1945. On page 101 is mentioned a pre-Yak-41 study with semi circular side intakes, twin fins and cranked delta wing a la Yak-45. I think this is our culprit.

Regards.


kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
673
Excellent..thanks for the screengrabs, CiTrus90.


I must have a look through my edition of that book...does it mention the upward canted canards?
It was the canards and semi-circular intakes that grabbed my attention when viewing the video.


ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
151
Reaction score
17

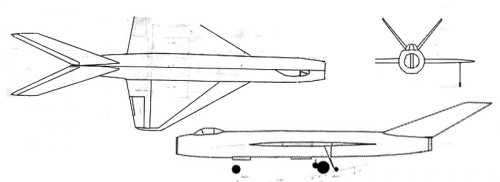

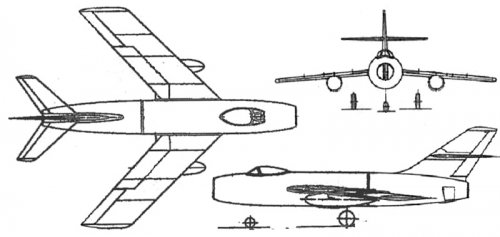

Only 3 view, does anybody have data or dimensions
thanks in advance
very interesning projects


Attachments

  • Yak V-tail fighter.jpg
    Yak V-tail fighter.jpg
    50.1 KB · Views: 1,082

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
ivran said:
Only 3 view, does anybody have data or dimensions
thanks in advance
very interesning projects


Hi Ivran,


it was Yak-70,please see reply # 72.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
173

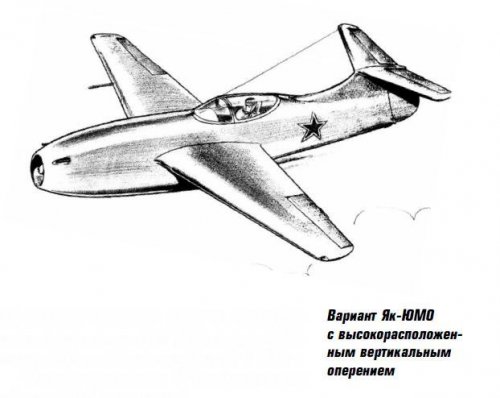

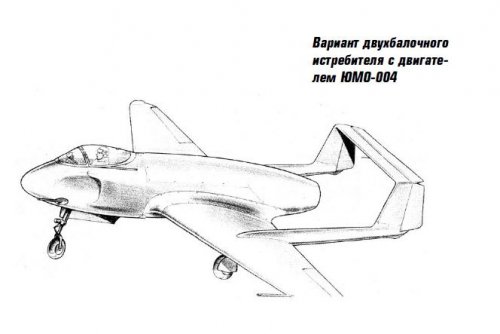

Several options for preliminary designs of OKB-115, the first jet fighter with the engine JUMO-004, before finally was chosen scheme Yak-RD / Yak-15.
(from : N.Yakubovich-"Jet firstborn")


Attachments

  • Clip_91.jpg
    33.2 KB · Views: 240
  • Yak - 'canard' with JUMO-004.jpg
    Yak - 'canard' with JUMO-004.jpg
    20.1 KB · Views: 237
  • Clip_89.jpg
    27.9 KB · Views: 217

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
borovik said:
Several options for preliminary designs of OKB-115, the first jet fighter with the engine JUMO-004, before finally was chosen scheme Yak-RD / Yak-15.
(from : N.Yakubovich-"Jet firstborn")


Oh my God,you made my day,thank you my dear Borovik.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
173
First one maybe an early Yak-19 project!
I had the same thoughts ... (probably is)), but I kept in the post text and punctuation from the aforementioned book. In the chapter on design bureau Yakovlev refers only to the three "birds": Yak-15 / Yak-RD-10 / Yak-17.
The work on the Yak-19, launched in June 1946, almost parallel with the Yak-RD-10, you have a more detailed look at the text of the new book by Gordon and Komissarov (starting with about 113 pages) I unfortunately do not have this book yet.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

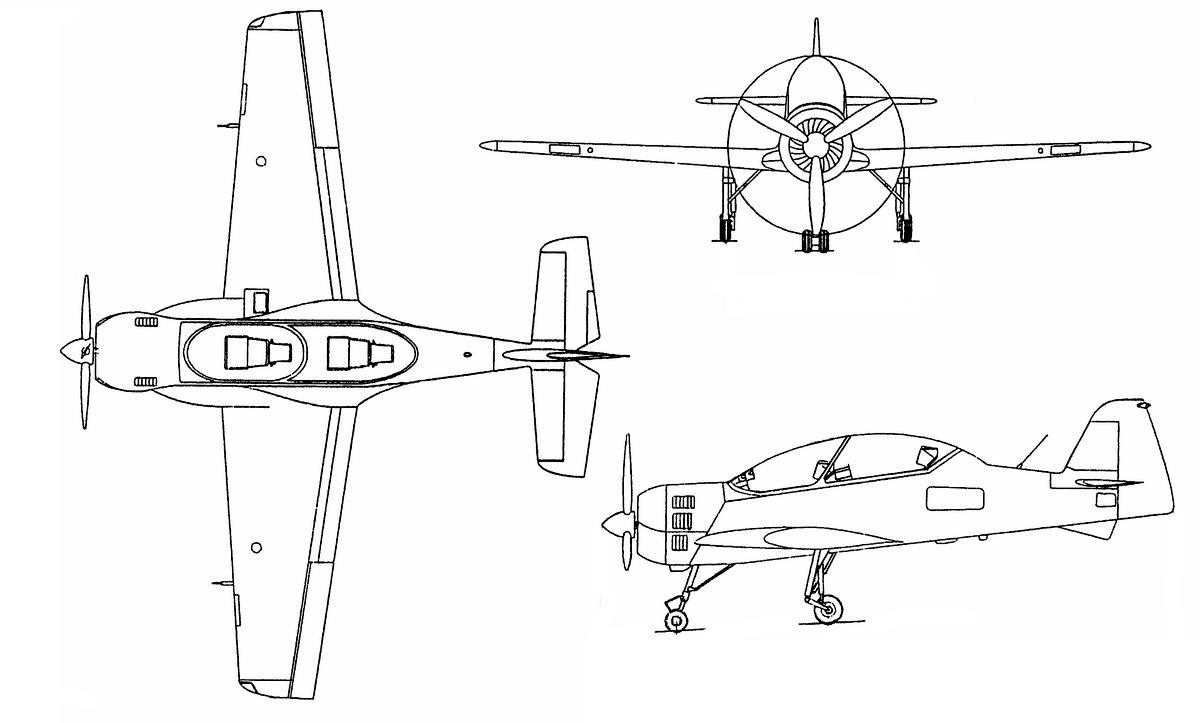

the Yak-SKh was a project of agricultural aircraft,derived from Yak-54,powered by one
M-14 engine,single seat as estimated and second seat optional,has anyone a drawing
to it ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

I know there was a Yakovlev Project derivative from Yak-36 as a Supersonic Fighter,powered
by two engines not one,and had no lift fan engines ?.

Here is also two Yakovlev projects,led to develop Yak-41 and supersonic Yak-38,but had
a lift engines.

http://www.paralay.com/lfsyak.html


Attachments

  • 4152.jpg
    86.2 KB · Views: 180
  • 3911.jpg
    49.4 KB · Views: 177

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299

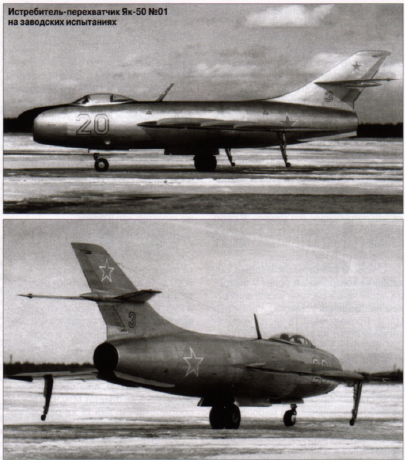

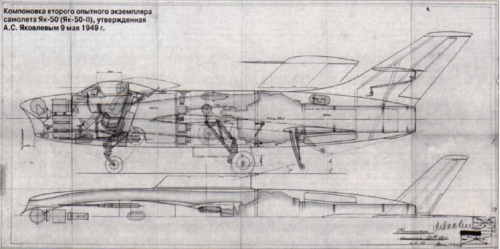

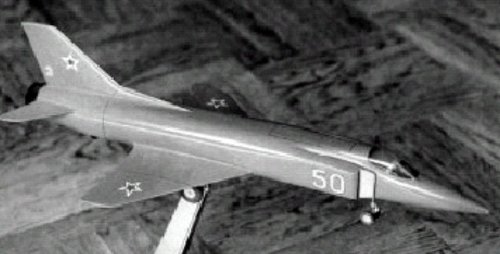

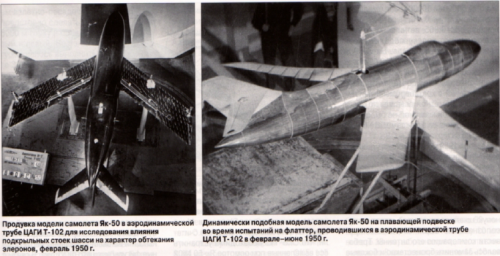

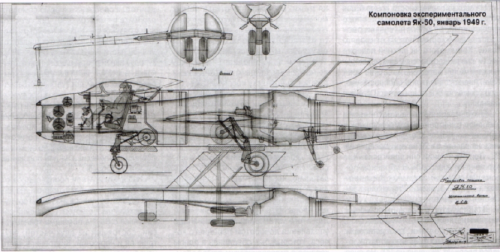

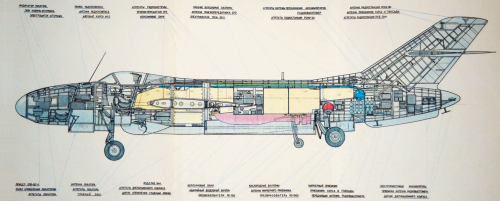

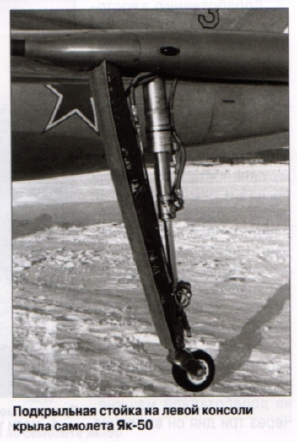

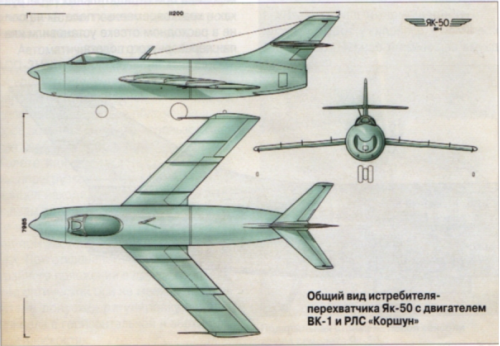

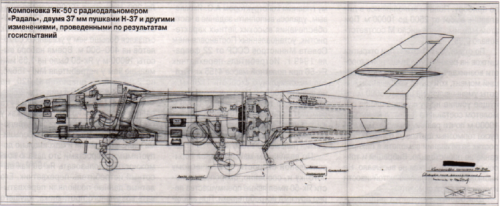

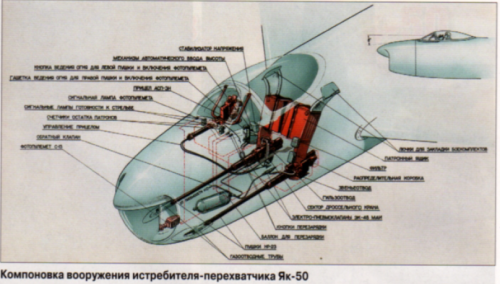

From Авиация и космонавтика 2015-3 & Авиация и космонавтика 2015-4,

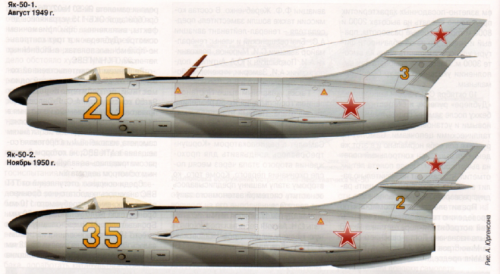

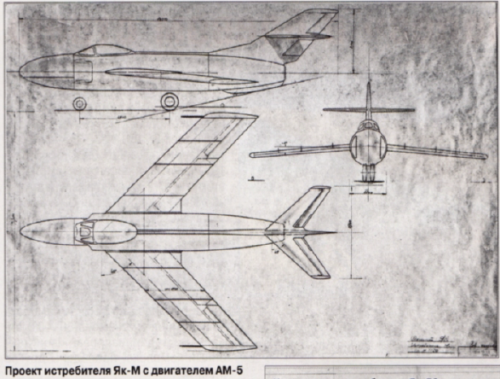

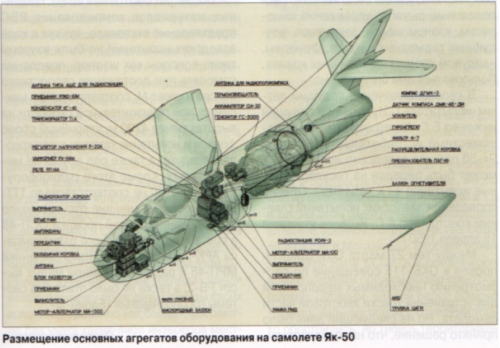

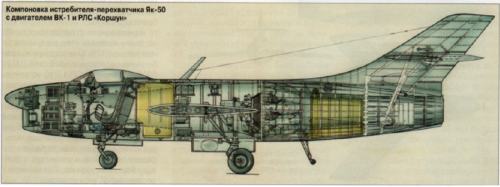

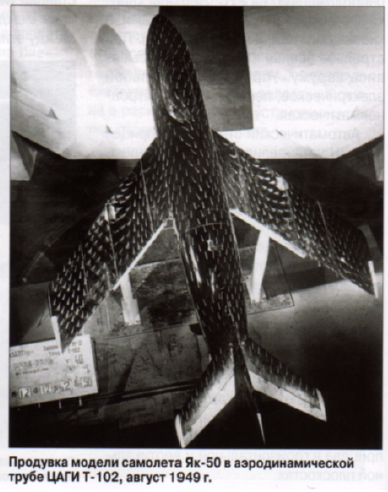

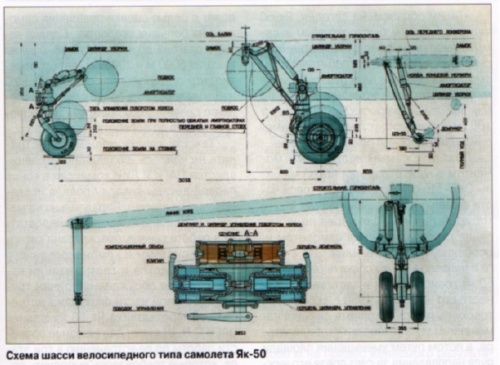

here is a drawings and pictures to Yak-50,also Yak-60.


Attachments

  • Yak-50  I-Model.png
    Yak-50 I-Model.png
    409.9 KB · Views: 129
  • Yak-50  I-6.png
    Yak-50 I-6.png
    289.7 KB · Views: 126
  • Yak-50  I-5.png
    Yak-50 I-5.png
    608.4 KB · Views: 164
  • Yak-50  I-4.png
    Yak-50 I-4.png
    419.7 KB · Views: 148
  • Yak-50  I-3.png
    Yak-50 I-3.png
    929.7 KB · Views: 162
  • Yak-50  I-2.png
    Yak-50 I-2.png
    681.1 KB · Views: 155
  • Yak-50  I-1.png
    Yak-50 I-1.png
    877.4 KB · Views: 165
  • Yak-50  I.png
    Yak-50 I.png
    823.6 KB · Views: 149

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
And;


Attachments

  • Yak-50 Model.png
    Yak-50 Model.png
    758.7 KB · Views: 132
  • Yak-50  V.png
    Yak-50 V.png
    615.7 KB · Views: 141
  • Yak-50  IV.png
    Yak-50 IV.png
    575.5 KB · Views: 162
  • Yak-50  III.png
    Yak-50 III.png
    749.6 KB · Views: 167
  • Yak-50  II-2.png
    Yak-50 II-2.png
    802 KB · Views: 148
  • Yak-50  II.png
    Yak-50 II.png
    673.8 KB · Views: 159

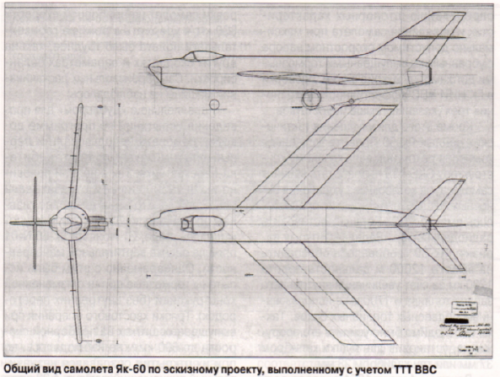

  • Yak-60.png
    510 KB · Views: 182

Similar threads

Top
