Various Post-War Yakovlev (Yak) Projects & Prototypes

[boxkite]

I apologize, I have abbreviated the often quite long titles of magazines in my documents out of laziness. AKO stands for Аэрокосмическое Обозрение.



[hesham]

Many thanks to you my dear Boxkite.



[Stargazer]

Yak-EI (Як-ЭИ)
illustration by Andrey Zhirnov
Source: AKO 5/2021 p54

Your version has a watermark and is cropped.

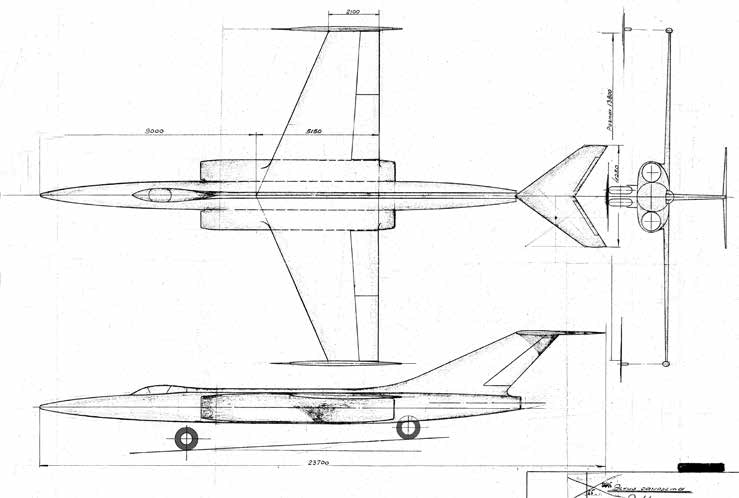

Here is the full, unmarked image, as well as a three-view arrangement, from the same issue.
