USAF Weapon System 302A Tactical Bomber Competition

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221

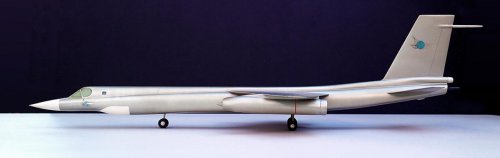

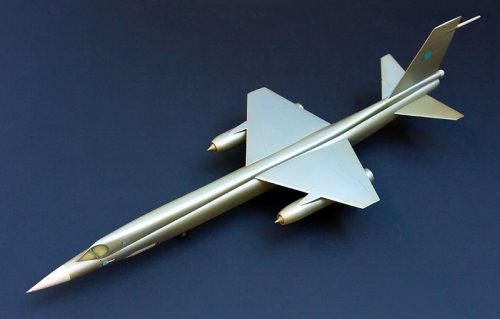

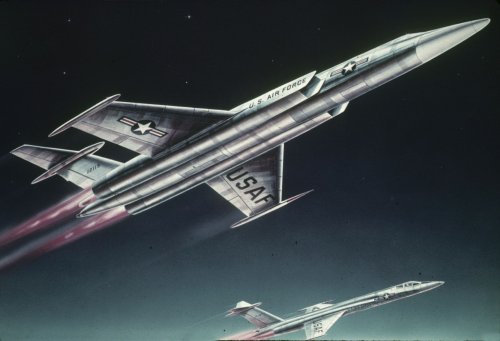

Let's start with the Douglas Model 1364 (January, 1956), which was studied at the Douglas plant in Long Beach, California.

The proposal model was made at the manufacturer's in-house model shop (Santa Monica Plant). Shown here when the design was first revealed (B&W photo), and as it survives today (color photo).


Attachments

  • Douglas Model 1364 : WS-302A 01.jpg
    Douglas Model 1364 : WS-302A 01.jpg
    135.3 KB · Views: 1,136
  • Douglas Model 1364 : WS-302A 02.jpg
    Douglas Model 1364 : WS-302A 02.jpg
    365.7 KB · Views: 1,106

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,110
Amazing project my dear Circle-5,


I guess that,I displayed a bomber looks like it from NASA report before.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
Great discovery! It looks quite ugly in the first image, and quite beautiful in the second one (which depends on the angle, pretty much like the F-117 was a different bird from every different angle).

Looks a bit like a mini-Suntan of sorts...


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221

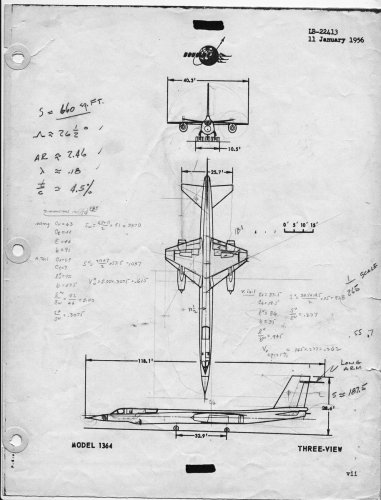

The attached 3-view drawing of the Douglas Model 1364 medium tactical bomber has an interesting history. It did not come from Douglas, but from Glenn L. Martin -- the Douglas competitor who eventually won the WS-302A contest with their B-68 proposal.

This drawing somehow magically appeared at Martin's Baltimore plant. All the calcs, notes and geometry marks were added by Martin engineers, as they analyzed and extracted every bit of information that could be squeezed out of this simple drawing.


Attachments

  • Douglas Model 1364 Dwg.jpg
    Douglas Model 1364 Dwg.jpg
    152.4 KB · Views: 1,000

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
63
Martin's Model 316/XB-68 was really good looking and even made it to mockup stage! -SP


Attachments

  • Cover GLMMAM.jpg
    Cover GLMMAM.jpg
    546.9 KB · Views: 938

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221

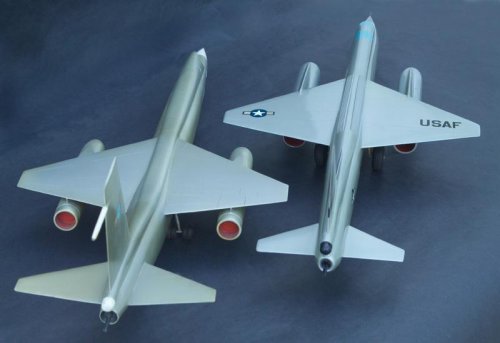

A couple more views of the Douglas Model 1364 (WS-302A) proposal model (ca. January 1956).


Attachments

  • Douglas 1364 (B-68) sml.jpg
    Douglas 1364 (B-68) sml.jpg
    39.5 KB · Views: 792
  • Douglas 1364 (B-68) Side.jpg
    Douglas 1364 (B-68) Side.jpg
    30 KB · Views: 238

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,234
When I saw the first posted b/w picture of the Douglas Model 1364, my first thought was, that it looked Russian from the 1960s.
Just like a smaller, two-engine version of the Myasishchev M-50 Bounder. :eek: ;)


Anyway, thanks Circle-5 for this great contribution. :)


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221

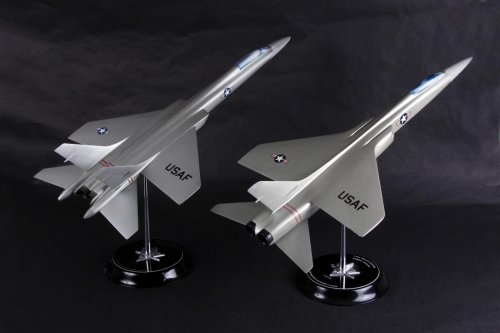

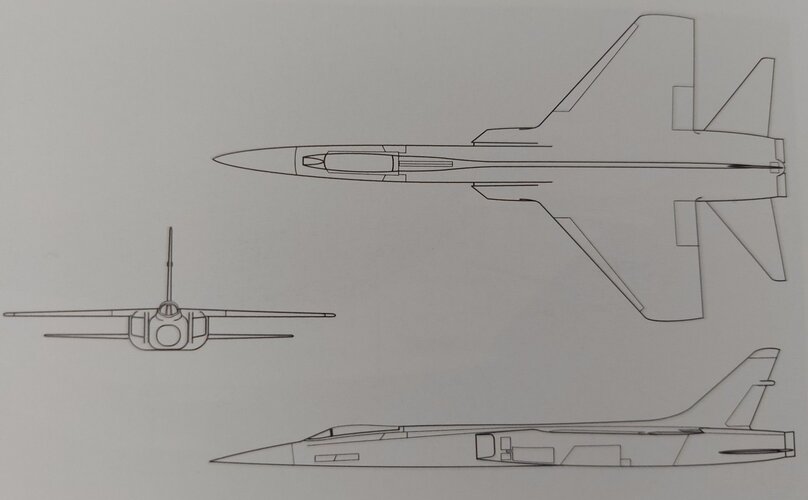

Continuing with the WS-302A entry from North American Aviation. The best account of this important tactical bomber program can be found in Tony Buttler's book American Secret Projects / Bombers 1945-1974.

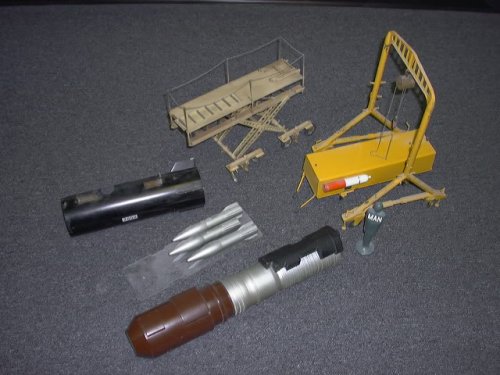

This particular WS-302A model shows the single-fin variant, with the early intakes. The missile bay detail is from the twin-tail variant, with variable ramp intakes (as found on the A3J Vigilante).

Just a thought: when this airplane was designed, only 10 years had passed since the end of WWII and the spectacular accomplishments of North American's own B-25 medium bomber.


Attachments

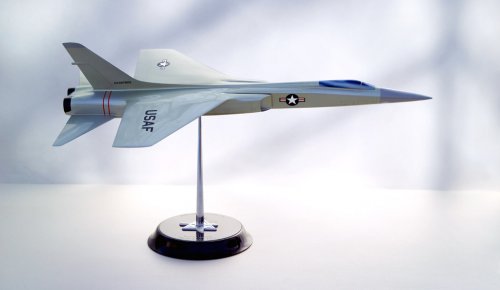

  • NAA WS-302A 03.jpg
    NAA WS-302A 03.jpg
    158.2 KB · Views: 296

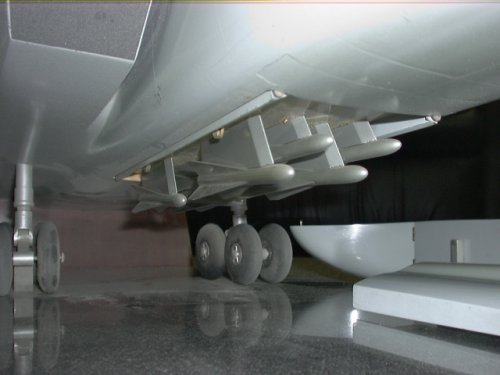

  • NAA WS-302A Missile Bay.jpg
    NAA WS-302A Missile Bay.jpg
    160.8 KB · Views: 298

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,274
Reaction score
1,796
Thanks a lot! Stunning stuff!


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221

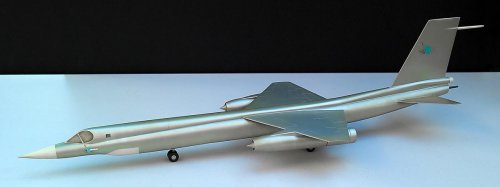

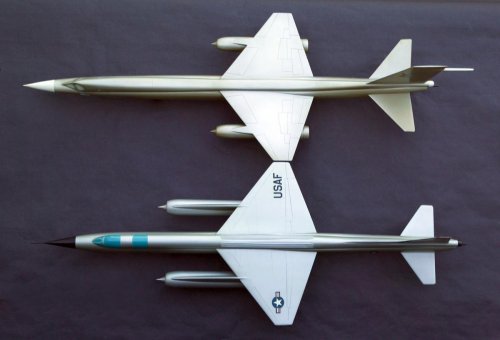

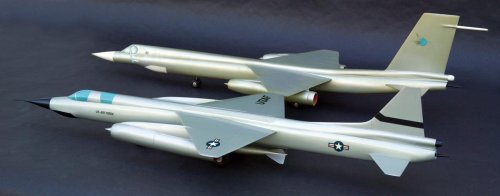

A pair of Douglas proposal models for WS-302A. The Model 1364 (top aircraft with tail boom) is from January, 1956. Does anybody know anything about the other variant? It appears to have a lot in common with the Douglas Model 1355 LRI (WS-202A).

Also, does anybody know what the long fuselage "louvers" are for, above the wing root? (No, they are not VTOL lift engine intakes!)


Attachments

  • Douglas WS-302A Bombers Rear.jpg
    Douglas WS-302A Bombers Rear.jpg
    32.6 KB · Views: 186
  • Douglas WS-302A Bombers Top.jpg
    Douglas WS-302A Bombers Top.jpg
    67.1 KB · Views: 177
  • Douglas WS-302A Bombers.jpg
    Douglas WS-302A Bombers.jpg
    45.5 KB · Views: 195

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,603
Reaction score
7,630

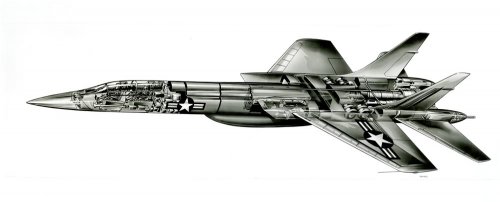

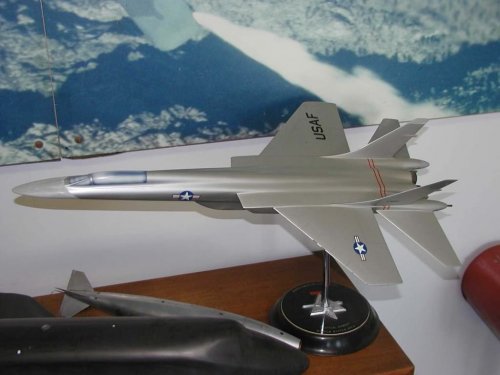

Cutaway of the NAA entry plus a few more pics from Retrorocket's Photobucket which probably came from Circle-5. Last pic (ATFmodel.jpg) appears to be Retrorocket's own photo.


Source: http://s421.photobucket.com/user/retrorocketmodels/library/?sort=6&page=1


Attachments

  • NAAWS-302ACutawayDwgsml.JPG
    48.5 KB · Views: 242
  • DSC00011.JPG
    40.2 KB · Views: 209
  • DSC00013.JPG
    75.1 KB · Views: 162
  • ATFmodel.JPG
    70.8 KB · Views: 233

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221
PaulMM (Overscan) said:
Cutaway of the NAA entry plus a few more pics from Retrorocket's Photobucket which probably came from Circle-5. Last pic (ATFmodel.jpg) appears to be Retrorocket's own photo.
Credit for the twin-tail cutaway drawing of the NAA WS-302A goes to SPF member aim9Xray.
Bottom photo ("ATFmodel.jpg" :( ) was taken at the NAA trisonic wind tunnel in El Segundo, California. This twin-tail WS-302A model is now in a private collection.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,603
Reaction score
7,630
circle-5 said:
A pair of Douglas proposal models for WS-302A. The Model 1364 (top aircraft with tail boom) is from January, 1956. Does anybody know anything about the other variant? It appears to have a lot in common with the Douglas Model 1355 LRI (WS-202A).

Also, does anybody know what the long fuselage "louvers" are for, above the wing root? (No, they are not VTOL lift engine intakes!)


Not engine related. Unlikely to designed for letting stuff in, so perhaps designed for letting stuff out. What would eject upwards?


Only thing springs to mind would be chaff dispensers. Rather a lot of them though.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,110
Hi,

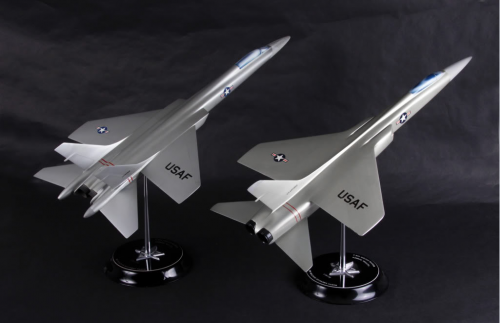

anther picture to NAA WS-302A Model,with twin tail.


Attachments

  • 1.png
    407.1 KB · Views: 266

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221
Big photo. Better than small photo.


Attachments

  • NAA WS-302A 54 & 56.jpg
    NAA WS-302A 54 & 56.jpg
    100.3 KB · Views: 382

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
46
I'll have to do a check on exact performance capability, but honestly, they might have probably made do by de-navalizing an A3J/A-5.
