McDonnell-Douglas Model 265 AFTI project

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
I have this picture, of McDonnell-Douglas' Model 265, which is labelled "AFTI". Did McDonnell-Douglas submit Model 265 to the AFTI program?


Attachments

  • afti - amdac mcdd model 265-1 big - 01-2.jpg
    afti - amdac mcdd model 265-1 big - 01-2.jpg
    22.4 KB · Views: 4,106

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,886
Reaction score
804
overscan said:
I have this picture, of McDonnell-Douglas' Model 265, which is labelled "AFTI". Did McDonnell-Douglas submit Model 265 to the AFTI program?

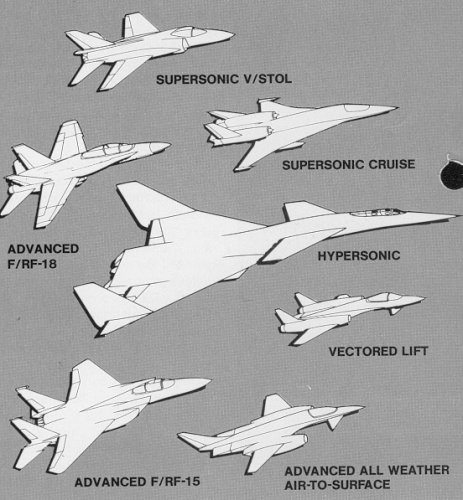

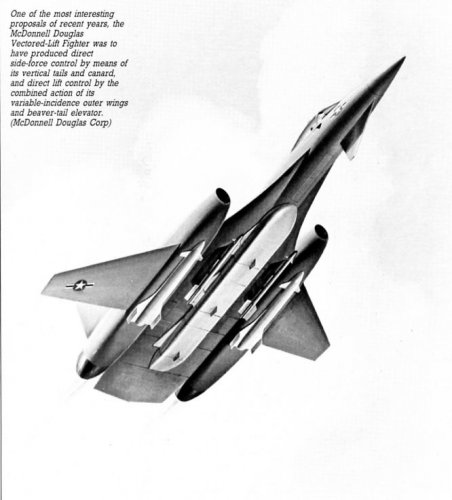

As I know YES ... I was searching on my harddrive and this is all I found so far, sometimes saved under a wrong designation ... but here it is:

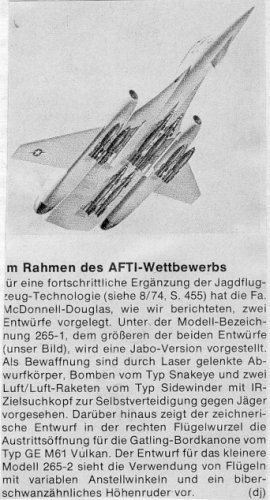

This is from a German magazine "Flug Revue" (don't know the issue) and it states that McDD suggested two designs under the Model 265 disignation. One often labeled mod. 265-1 and another design called mod. 265-2.

I found several of both - but mostly the 265-1 !


Attachments

  • AFTI - AMDAC McDD model 265-1 - text .jpg
    AFTI - AMDAC McDD model 265-1 - text .jpg
    176.1 KB · Views: 1,825
  • AFTI - AMDAC McDD model 265-1 big - 01-2.jpg
    AFTI - AMDAC McDD model 265-1 big - 01-2.jpg
    22.4 KB · Views: 1,509
  • AFTI - AMDAC McDD model 265-1 big - 03.jpg
    AFTI - AMDAC McDD model 265-1 big - 03.jpg
    31.1 KB · Views: 2,471
  • AFTI - AMDAC McDD model 265-1 big - 05.jpg
    AFTI - AMDAC McDD model 265-1 big - 05.jpg
    89.7 KB · Views: 1,684
  • AFTI - AMDAC McDD studies bw.jpg
    AFTI - AMDAC McDD studies bw.jpg
    228.6 KB · Views: 1,162

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,876
Reaction score
366
McDonnells Submission three view.


Attachments

  • McAFTI-2.jpg
    179.8 KB · Views: 1,026

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,312
Reaction score
3,307
The Douglas 265 has become symbol of this forum. who make the 3-d rendering of this lovely project ?


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,876
Reaction score
366
Hi Archibald,
The rendering on the site appears to be just a colorized version of this image that I assume was originally made by the artists at McDonnel Douglas (it's shown on the first page of this thread)
index.php


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,312
Reaction score
3,307
That's nice! I've already noticed that both pictures looked similar... I thought it was 3-D rendering (this mean that it is very well done ;))

Just a question : this plane would have been build instead of the modified
F-16 ?


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
12
Website
www.freewebs.com
overscan said:
I have this picture, of McDonnell-Douglas' Model 265, which is labelled "AFTI". Did McDonnell-Douglas submit Model 265 to the AFTI program?

Getting back to AFTI, where can I find more info on the McDonnell-Douglas Model 265. I did a search and just came back to this thread (probably doing it wrong). It looks pretty but I don't understand it at all. I read somewhere it was a VSTOL project, how did that work? And what's with the lack of tail surfaces? I know it's got those little chin fins (like the F-16A AFTI) and a sort of beaver tail but doesn't look like an improvement to me, especially if it had an all moving wing like the similar Rockwell concept. Does the '265' have an all moving wing too? etc, etc.
Cheers, Woody


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
170
Website
www.hitechweb.genezis.eu
I think that you are searching right, in this thread is collected information about Model 265. I dont know if you saw the internal 3 view and a short description posted in reply no. 22 by Sundog. If not, this can help.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
Supersonic Fighter Development. Roy Braybrook. Ed Haynes. 1987 ISBN 0-85429-582-8

Anyone can identify the weapons in ths drawing?

Thanks,

Antonio


Attachments

  • McDD Vectored Lift Fighter.jpg
    McDD Vectored Lift Fighter.jpg
    53.8 KB · Views: 474

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
Hello

It's the McDonnel Douglas AMDA project ,1973 .
AMDA is for advanced manoeuvring demonstrator aircraft .

Cheers

Richard


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,876
Reaction score
366
According to our info here it was known as the McDonnell Douglas AFTI proposal.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,474
Reaction score
975
I see a picture of that project nearly every day! ;):)

Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720

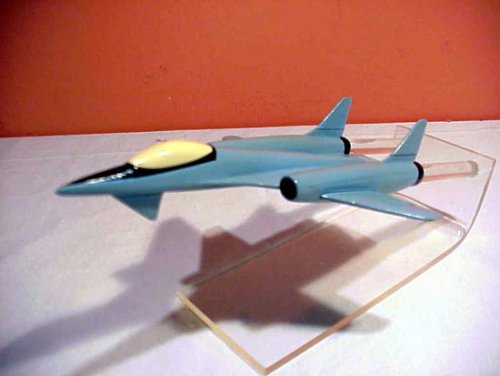

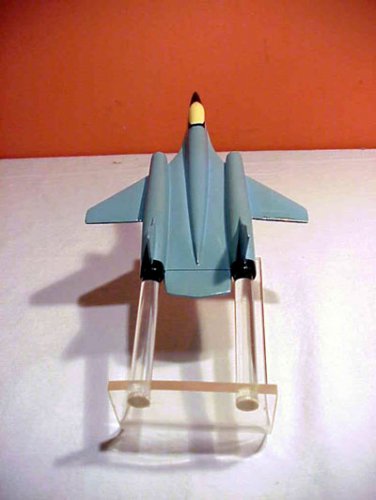

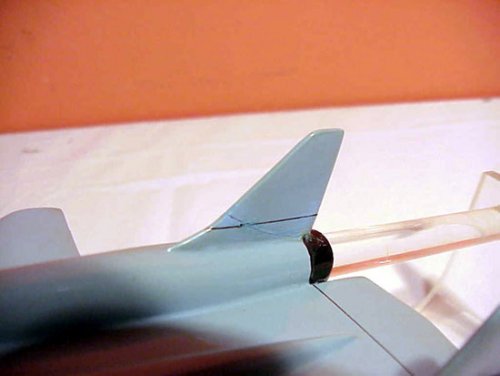

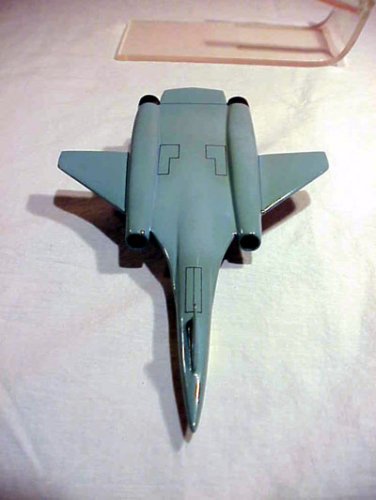

Pictures from Ebay added. Project was also called VLF - Vectored Lift Fighter.


Attachments

  • mdpro1.jpg
    46.1 KB · Views: 817
  • mdpro2.jpg
    45.9 KB · Views: 732
  • mdpro3.jpg
    40.5 KB · Views: 659
  • mdpro4.jpg
    49.4 KB · Views: 649
  • mdpro5.jpg
    45.2 KB · Views: 664

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720

Interesting report.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
It is now confirmed that the Model 265 (Vectored Lift Fighter) formed part of the agile fighter joint studies between McDonnell-Douglas and MBB. Around 1978, the two companies worked together on new fighter technologies for AFTI and TKF-90 respectively and a report was produced that year which examined the McDD VLF and the early MBB TKF-90 canard delta configuration with a view to producing a demonstrator - either a 19,000lb design with twin F404 or RB.199 engines or a 12,000lb design with twin J85s. Both the MBB and McDD designs are fitted with 3d thrust vectoring nozzles.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695

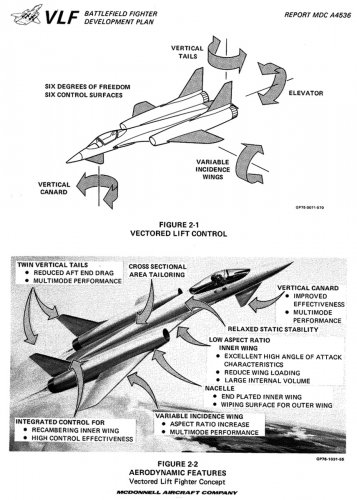

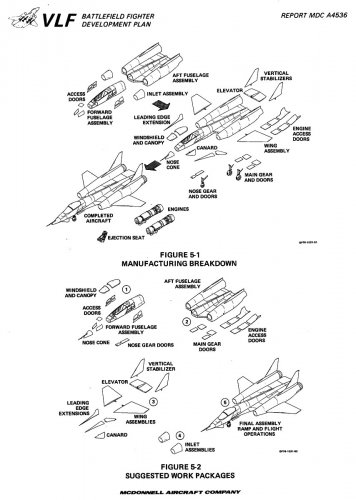

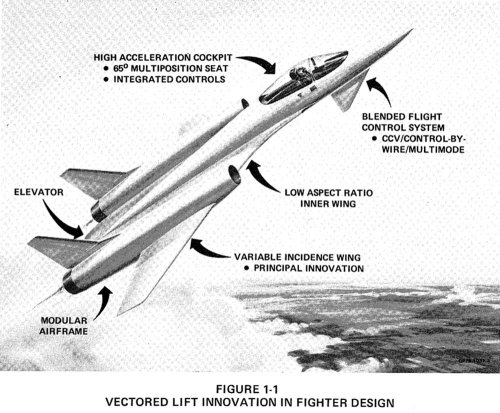

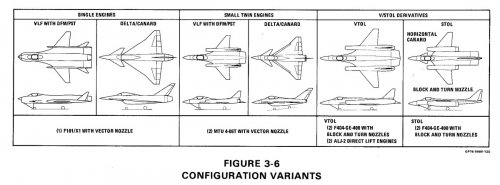

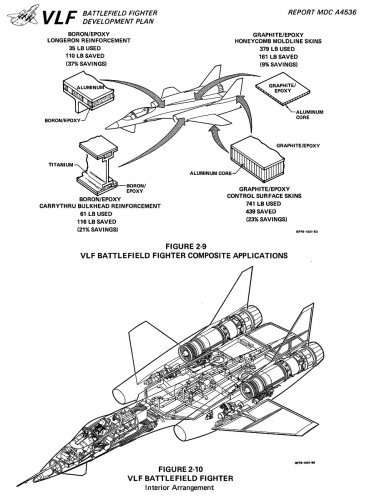

To go with Paul's comments, here are scans of drawings in two different reports I've found over at the Greater St. Louis Aviation Museum. The first one is "VLF Battlefield Fighter Development Plan" dated 15 November 1976.

Enjoy the Day! Mark


Attachments

  • xVLF Model 265 Interior Arrangement.jpg
    xVLF Model 265 Interior Arrangement.jpg
    165.2 KB · Views: 617
  • xVectored Lift Fighter - 4.jpg
    xVectored Lift Fighter - 4.jpg
    183.3 KB · Views: 486
  • xVectored Lift Fighter - 3.jpg
    xVectored Lift Fighter - 3.jpg
    220.7 KB · Views: 558
  • xVectored Lift Fighter - 2.jpg
    xVectored Lift Fighter - 2.jpg
    242.1 KB · Views: 503
  • xVectored Lift Fighter - 1.jpg
    xVectored Lift Fighter - 1.jpg
    227.4 KB · Views: 440

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695

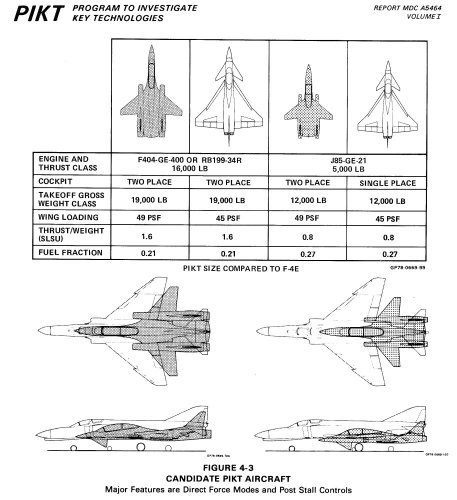

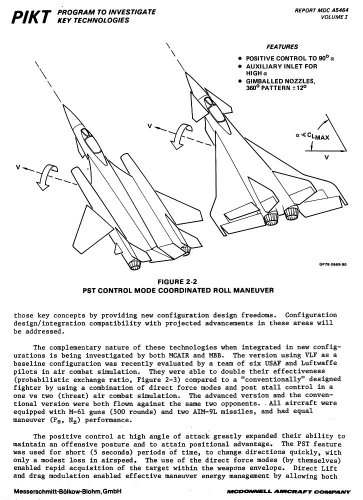

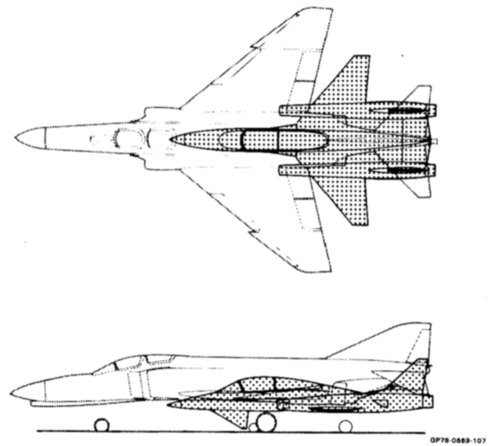

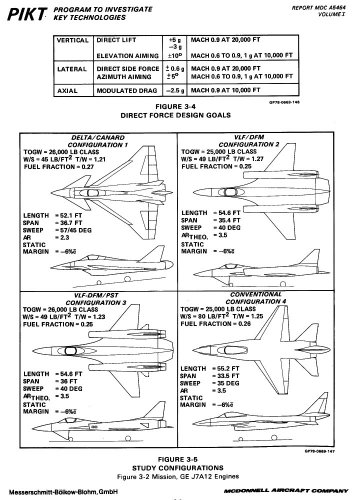

The other report is titled "PIKT - Program to Investigate Key Technologies, Characterization of a Collaborative Fighter Technology/Experimental Aircraft Development Program for the United States and Federal Republic of Germany" dated 20 July 1978.

Question - is this the program (or a spinoff) which led to the X-31?

Enjoy the Day! Mark


Attachments

  • xPIKT - 1.jpg
    xPIKT - 1.jpg
    222.5 KB · Views: 506
  • xPIKT - 2.jpg
    xPIKT - 2.jpg
    195.9 KB · Views: 657
  • xPIKT - 3.jpg
    xPIKT - 3.jpg
    129.5 KB · Views: 617
  • xPIKT - 4.jpg
    xPIKT - 4.jpg
    202.5 KB · Views: 762

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
Not directly, for MBB it was part of their TKF-90 work which fed into the Eurofighter. However MBB's interest in thrust vectoring and post-stall continued and fed into the later program with Rockwell on the X-31.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Hi Nugo -

I'll share everything I find over there and scan. The museum is struggling and previous ups and downs of the museum have seen some of the collection "disappear" into the possession of others. Still, there's quite a bit there and I am able to access and scan it all and have taken on the task of cataloging and indexing it too. I am presently scanning about 40 different 9"x11" photos of various advanced concepts artwork and many of them or totally new to me. consequently, it looks like I will be posting some images in the very near future for everyone to take a crack at and see what Model or concept they are meant to represent. Stay tuned....

Enjoy the Day! Mark


HyperTech

ACCESS: Restricted
Joined
Jan 25, 2007
Messages
16
Reaction score
0
Model 265 was a variable incidence wing concept invented by Don Scheller of McDonnell Aircraft St. Louis. It predated the USAF AFTI program by several years. The USAF rejected the model 265 (there were perhaps 25 or so different configuration integrations) and the AFTI project resulted. MDC St. Louis proposed the AFTI-15, a variable incidence F-15. The final configuration was a three surface F-15 the eventually became the integrated aero-propulsion control demonstrator. The only as to get pilots to fly the variable incidence wing aircraft would have been to black out the canopy and fly by instruments with synthetic vision.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Greetings All -

Here's some McAir artwork to go along with the Vectored Lift Fighter concept....

Enjoy the Day! Mark


Attachments

  • xD4C-106428 Nov-76.jpg
    xD4C-106428 Nov-76.jpg
    89.6 KB · Views: 484
  • xD4C-73862 Jun-70.jpg
    xD4C-73862 Jun-70.jpg
    163.1 KB · Views: 3,049
  • xD4C-105032 May-73.jpg
    xD4C-105032 May-73.jpg
    226.1 KB · Views: 489
  • xD4C-117091-1 Apr-76.jpg
    xD4C-117091-1 Apr-76.jpg
    127.4 KB · Views: 480

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
Seems a single engine design using the same basic concept. Scan by Mark Nankivil.


Attachments

  • xD4C-116613-1 Jun-75.jpg
    xD4C-116613-1 Jun-75.jpg
    91.4 KB · Views: 399

HyperTech

ACCESS: Restricted
Joined
Jan 25, 2007
Messages
16
Reaction score
0
overscan said:
Pictures from Ebay added. Project was also called VLF - Vectored Lift Fighter.
This was a transonic demonstrator aircraft proposed to demonstrate the basic principles of the vectored incidence wing with the fuselage beavertail control surface for trim. the fundamental concept was that the fuselage could be aimed about plus or minus 15 degrees without changing the flight path angle or the fuselage could remain on track while the wings angle of attack was increased to maintain track. The real sticking point came in ground attack when the flight path was level and the nose pitched down to maintain track on the target. Pilots have only the fuselage angle to estimate flight path so they IMMEDIATELY broke of the attack as they assumed they were flying at the ground not level. There were full scale operationally sized supersonic configurations as well as transonic concepts. It was a really unique concept that went against all of the status quo thinkers and macho pilots who did not need automatics.


HyperTech

ACCESS: Restricted
Joined
Jan 25, 2007
Messages
16
Reaction score
0
overscan said:
It is now confirmed that the Model 265 (Vectored Lift Fighter) formed part of the agile fighter joint studies between McDonnell-Douglas and MBB. Around 1978, the two companies worked together on new fighter technologies for AFTI and TKF-90 respectively and a report was produced that year which examined the McDD VLF and the early MBB TKF-90 canard delta configuration with a view to producing a demonstrator - either a 19,000lb design with twin F404 or RB.199 engines or a 12,000lb design with twin J85s. Both the MBB and McDD designs are fitted with 3d thrust vectoring nozzles.
A German team headed by Wolfgang Herbst was hired to assist in a STOL fighter competition that stayed on to develop the CADE Computer Aided Design Evaluation concept. Wolfgang was a close in maneuvering combat advocate with high angle of attack, thrust supported, off angle shots. When the team returned to Germany he concentrated on high angle of attack, slow maneuvering combat. On result was the Rockwell X-31 and the configuration of the Eurofighter. To my knowledge he never advocated the VLF concept


HyperTech

ACCESS: Restricted
Joined
Jan 25, 2007
Messages
16
Reaction score
0
Archibald said:
The Douglas 265 has become symbol of this forum. who make the 3-d rendering of this lovely project ?
Most of these isometric renderings were hand drawn by a single individual with an uncanny skill to look at a 3-view and sketch the result free hand. He unfortunately had a problem that after a long number of years made his employment difficult and so there was no one ever to replace him except unemotional computer graphics.


HyperTech

ACCESS: Restricted
Joined
Jan 25, 2007
Messages
16
Reaction score
0
Woody said:
overscan said:
I have this picture, of McDonnell-Douglas' Model 265, which is labelled "AFTI". Did McDonnell-Douglas submit Model 265 to the AFTI program?

Getting back to AFTI, where can I find more info on the McDonnell-Douglas Model 265. I did a search and just came back to this thread (probably doing it wrong). It looks pretty but I don't understand it at all. I read somewhere it was a VSTOL project, how did that work? And what's with the lack of tail surfaces? I know it's got those little chin fins (like the F-16A AFTI) and a sort of beaver tail but doesn't look like an improvement to me, especially if it had an all moving wing like the similar Rockwell concept. Does the '265' have an all moving wing too? etc, etc.

Cheers, Woody


Sorry guys, these concepts predated your references by over a decade. It is they who copied us!!!!


HyperTech

ACCESS: Restricted
Joined
Jan 25, 2007
Messages
16
Reaction score
0
To all:

It is MDC, McDonnell Douglas Corporation, or McAir McDonnell Aircraft Company NOT McDD. The later was a real sore point with Sandy.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
According to the report, Herbst was in charge of the MBB TKF-90 work and was hence jointly responsible for the PIKT study which was investigating key technologies for what the report dubs "NATO-90". MBB's team contributed their TKF-90 work, MDC their Model 265 work.

Of course, Herbst was no stranger to MDC having worked there on the FX (F-15) program from 1966-1970.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Thanks for that insight Hypertech - I'll be sure NOT to reference it that way in the future.

Enjoy the Day! Mark


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
Model 265 patent:


Credited to Donald Scheller and William Leidy.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Good Day All -

I found some more artwork over at the Greater St. Louis Air & Space Museum that is worth sharing.

Enjoy the Day! Mark


Attachments

  • xD4C-117534-3 Apr-77.jpg
    xD4C-117534-3 Apr-77.jpg
    99.6 KB · Views: 836
  • xD4E-591093-2 Jan-77.jpg
    xD4E-591093-2 Jan-77.jpg
    147.1 KB · Views: 880
  • xD4E-591210-2 Nov-77.jpg
    xD4E-591210-2 Nov-77.jpg
    166.3 KB · Views: 867

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
Is that a GAU-8 in the wing root or something even larger calibre? And on the tandem cockpit design it looks like the gun might be movable?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Looks like a variable incidence wing to me, allowing the fuselage with the gun to be
pointed downwards, while the aircraft is still in level flight.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
Indeed, it is the same aerodynamic layout as the Vectored Lift Fighter, Model 265. However in the tandem cockpit pic the gun barrel seems to be away from the fuselage.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
228
overscan said:
Cool! Seems to be a two seat close air support design using Model 265 aerodynamics.

It’s a quirky looker and that big flat belly and offset intakes could make for an easy evolution into a low RCS strike aircraft. The side by side appears to have a FLIR/LD ball under the fuselage which would also enable PGM use for battlefield air interdiction roles. Looks big enough for plenty of fuel for flying 2,000 NM BAI missions. Combining CAS and BAI always made sense to me as it allows you to swing the fleet in accordance with the progress of the campaign.

I'm not sure about the gun being a GAU-8 as this is a pretty wide weapon. Certainly has a hell of a muzzle device and could be a Oerlikon KCB or a GAU-13 30mm. If the tandem seat mount is trainable it would only have a limited train like on the HOKUM but this is still very significant for ground attack as it considerably increases accuracy and allows for level flight strafing for those long columns of enemy trucks...
