Unbuilt ASW/MARPAT versions of airliners?

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,109
Reaction score
213
Jemiba said:
From Aviation Week 1977 1-9 a Boeing derivative of the 727, still 3 engined, but
with the tail side mounted engines moved to pods under the wings. Any explanation
why ? Lower noise level in the cabin, for a better acoustic environment ? ???

I can think of three possibilities:

* There are new engines. Perhaps the rear structure would require too much beefing up to support all three of them.

* Space needed for a MAD sting. Support structure and systems for two side engines could make this difficult.

* Perhaps Boeing was also hoping for a follow-on tanker order. Moving those two engines to the wing frees the rear underside for a refuelling boom.

Starviking


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,384
Reaction score
164
I'm not sure, but the wing-mounted engines appear to have a higher bypass ratio than the 727's standard JT8Ds, I suspect the middle engine was a variant of the same engine, but with a reduced bypass ration to work with the existing inlet (the redesign of that aspect would be expensive). This would free up aft fuselage "real estate" for other systems that they might want to install. Moving the engines like that also greatly reduces the probabability that a catastrophic rotor failure on one engine will take out another engine; I suspect this would be a major concern to the Navy. Loo9king at the underwings engine nacelles, though, I have to wonder if they lengthened the landing gear legs because those nacelles seem to hang farther below the wing than the ones on the 737-100/-200.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,108
Sorry for reviving an old thread, but these articles were lostfor quite a time
and I'm not sure, that it won't happen again... ::)
A maritime patrol version of the Xian Y-7, designated Y-7-2000BF.
(from Aircraft Illustrated February 2001)


Attachments

  • Y-7-2000.JPG
    36.3 KB · Views: 271

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

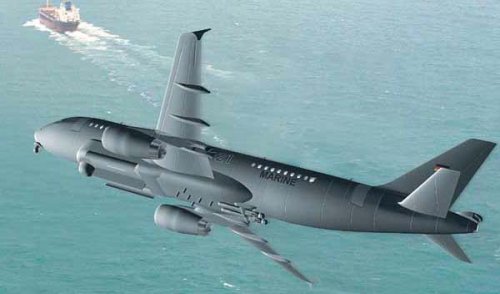

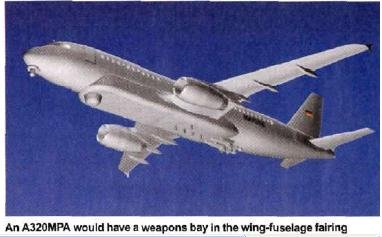

the Airbus A-320MPA.

http://www.flightglobal.com/pdfarchive/view/2002/2002%20-%202356.html?search=mpa%20aircraft%20project


Attachments

  • A-320MPA.JPG
    17.4 KB · Views: 276

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005

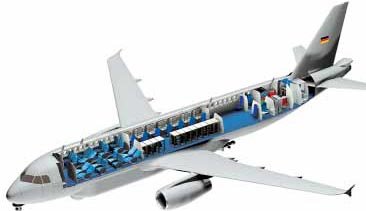

More of the A320MPA (from EADS brochure)


Attachments

  • a320-mpa-interior.jpg
    17.4 KB · Views: 293
  • a320-mpa.jpg
    27.5 KB · Views: 389

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005

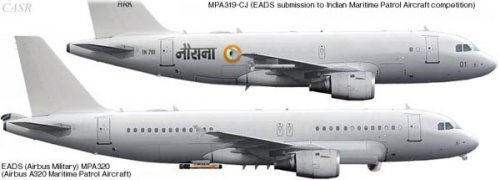

A319MPA (from Flight) and A319MPA/A320MPA comparison.


Attachments

  • a319-mpa-flight.jpg
    12.5 KB · Views: 2,464
  • a320-mpa-comparison.jpg
    27.2 KB · Views: 716

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,104
Reaction score
1,080
Was discovered in lot of Lockheed photos I've obtained recently. Think that would look nice here.


Attachments

  • P-7A LRAACA_sm.jpg
    P-7A LRAACA_sm.jpg
    210.9 KB · Views: 659

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,419
Reaction score
829
"757 ASW"- Boeing candidate for the LRAACA competition based on the 757.

P-7 LRAACA

Orion 21

Source: P-3 to P-8 - an air-sea saga


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
16
Anyone know whatever became of the ASW proposal of the Tupolev Tu-204 from a few years ago?


Edgar812

ACCESS: Restricted
Joined
Aug 12, 2006
Messages
14
Reaction score
1
Hello

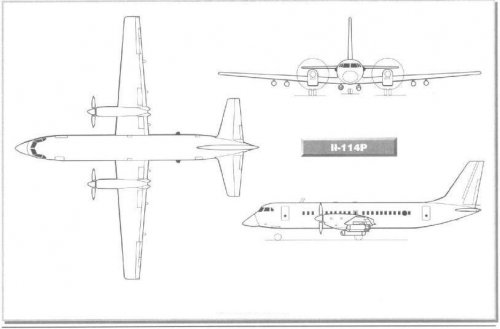

Ilyushin IL-114P:

Edgar812

Mod edit: Image removed from imageshack and attached here.


Attachments

  • il114psw3.jpg
    31.3 KB · Views: 227

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
656
Website
deeptowild.blogspot.com

Attachments

  • p-7-1.jpg
    52.7 KB · Views: 227
  • p-7-4.jpg
    25.1 KB · Views: 229
  • Lockheed_P-7_LRAACA_1989.jpg
    112.2 KB · Views: 193

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,913
Reaction score
280
Some very interesting designs I had not seen or heard of before!
Does anyone have a three-view drawing of the Lockheed P-7 and the McDonnell Douglas P-9 LRAACA designs????

Thanks in advance


Regard
Pioneer


Pavel_P

ACCESS: Restricted
Joined
Mar 24, 2010
Messages
24
Reaction score
4
There was a project of Tu-204P (ASW) to replace Il-38, but without any flying prototype.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
656
Website
deeptowild.blogspot.com

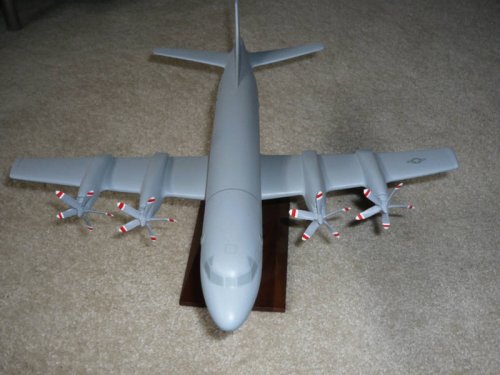

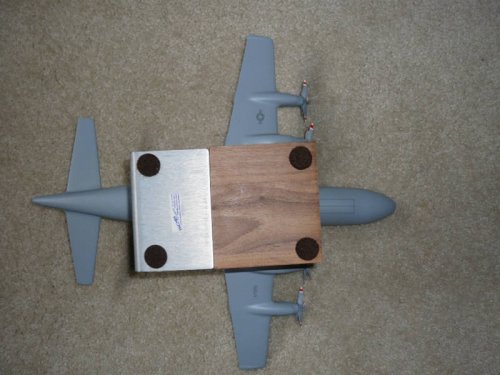

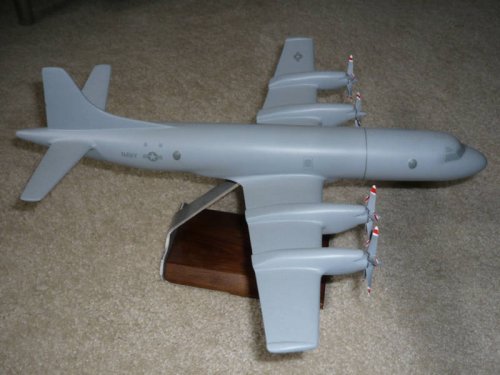

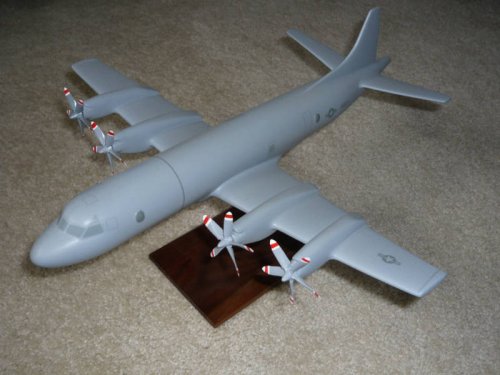

Model of Lockheed P-7 by Pacmin found on eBay.


Description:
A extremely rare factory made, 1:100 Scale, USN Lockheed proposed P-7A sub-hunter Desk Model by Pacmin. The model is made of solid, hard injected molded plastic and resin composite type materials. The model airplane measures approximately 16" long x 14.5" wingspan x 5" tall. Walnut stand included. The model is in brand new condition but there is no original box.

URL: http://cgi.ebay.com/Rare-Pacmin-desk-factory-1-100-Lockheed-P-7A-USN-model-/160463347769?cmd=ViewItem&pt=LH_DefaultDomain_0&hash=item255c5c6039


Attachments

  • !BzTQe4QB2k~$(KGrHqJ,!i!Ew5FV5-9dBMVclFv8Qw~~_3.jpg
    58.8 KB · Views: 79
  • !BzTP4kgCWk~$(KGrHqR,!h!Ew5FLnpjpBMVcjsYur!~~_3.jpg
    51.4 KB · Views: 75
  • !BzTPzKQEGk~$(KGrHqR,!hgEw5kBW09)BMVcjfcsjg~~_3.jpg
    56.2 KB · Views: 75
  • !BzTPuBgBGk~$(KGrHqV,!hMEw4--3DGiBMVcjSzp3Q~~_3.jpg
    54.9 KB · Views: 86

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,050
Reaction score
1,547
Some info on the P-7A.
Flighcrew of five and a mission crew of five. Armament on 12 hardpoints and on the bay with a maximum load of 38,400lbs. 120 sonobuoys in pre-loaded packs fore and aft of wing with 38 inside the cabin for loading into pressurised chutes and up to 150 more on dense packs of eight hardpoints. Avionics included Texas Instruments APS-137(V) radar, Texas Instruments ASQ-81(V)1 MAD, FLIR, LLTV, dual INS, Doppler navigation, Litton ALR-77 ESM and cameras. Eninges were to be the 5,000ehp GE T407-GE-400 with total internal fuel capacity of 66,350lbs. Empty weight 73,750lbs and MTOW 171,000lbs. Max speed 473mph+ at 15,000ft, intial climb 2,890+ ft per min, service ceiling 28,000ft and radius 1,840 miles for a patrol of 5 hours 54 mins. Span 32051m and length 37.49m.
In 1989 it was thought a prototype would fly in late 1991 with service entry in 1994. Likely production numbers then looked like 125+ for the USN and 12 for West Germany.

Somehow given the length of time the P-3C has operated I think the P-7A might have made a useful type given the explosion of MPA sales since the 1990s even though European nations these days tend to sell off thier MPA fleets and shrink them down.


Howedar

ACCESS: Confidential
Joined
Sep 24, 2008
Messages
58
Reaction score
1
flateric said:
Was discovered in lot of Lockheed photos I've obtained recently. Think that would look nice here.
Note the Phoenix (?!?!?!?!) on the outermost hardpoints. It's not Maverick; far too fat.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,419
Reaction score
829
Howedar said:
flateric said:
Was discovered in lot of Lockheed photos I've obtained recently. Think that would look nice here.
Note the Phoenix (?!?!?!?!) on the outermost hardpoints. It's not Maverick; far too fat.
AGM-84 Harpoon


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,477
Reaction score
1,491
Nope, the outer ones are not Harpoon. The inner ones certainly are, but the two outermost weapons on each wing have a long tapered delta-wing that is distinctly different from Harpoon. I'd say it probably is meant to be Maverick, or possibly the longer, air-breathing, Longhorn variant.

Here's a link to a nice walk-around of a P-3B with both Harpoon and Maverick carried, showing that they look quite similar in diameter. Remember that it's only about 1.5 inches difference (13.5-in diameter for Harpoon, 12-in for Maverick).

http://www.primeportal.net/hangar/sal_provenzano/mcas_p-3b/


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,419
Reaction score
829
mea culpa.

I was looking at the wrong picture. Yes, I agree with TomS, it seems to be a AGM-65 Maverick.


Howedar

ACCESS: Confidential
Joined
Sep 24, 2008
Messages
58
Reaction score
1
Must have been late at night; for some reason I had a huge diameter difference in my head between Maverick and Harpoon.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
528

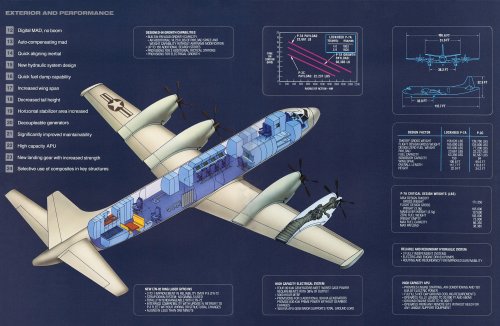

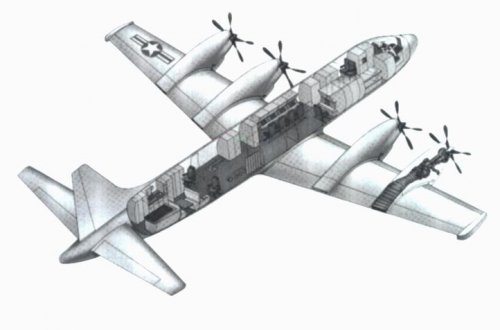

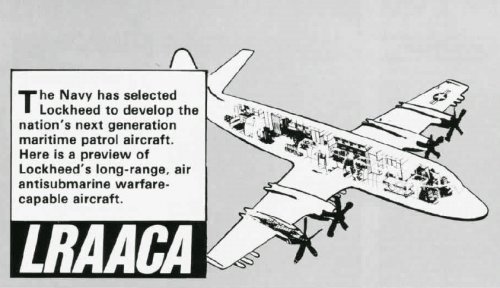

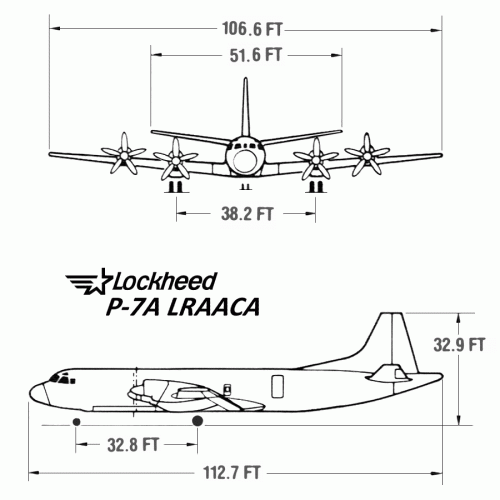

Some of you expressed the wish to see a three-view arrangement of the P-7A... Well, this is not quite it, but the closest I can get so far. Here is a two-view of the P-7A as well as a cutaway view which were both scanned and enhanced from the original P-7A press kit. Loads more stuff in it but it will take some time to work the other pages so stay tuned if you're interested, I'll add it in the following weeks.


Attachments

  • P-7A three-view.gif
    P-7A three-view.gif
    65.3 KB · Views: 584
  • P-7A cutaway.jpg
    P-7A cutaway.jpg
    1.1 MB · Views: 618

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,050
Reaction score
1,547
In late 1988 ATR and Dassault-Breguet proposed the Petrel 42/ Petrel 72 MPA using the airframe of either the ATR 42 or the ATR 72 with an avionics suite similar to that of the Atlantique 2. The Petrel 42 would be primarily an anti-ship variant with AM39 Exocet mounted on stub wings mounted on the undercarriage fairings. The Petrel 72 would be an ASW aircraft with up to four torpedoes. Both would have an under-nose FLIR turret and ventral Iguane radar mounted roughly aft of the cockpit. The Petrel 72 would have sonobouys too. A picture I have in Jane's Civil and Military Upgrades 1993-94 has just one window forward on the starboard side (an escape hatch) and five aft along with a door, presumably for the crew rest area.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
656
Website
deeptowild.blogspot.com

Attachments

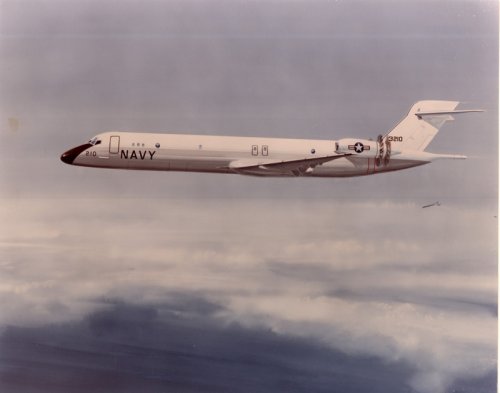

  • MDC-MPA-web-lr.jpg
    77.8 KB · Views: 1,434

Mike OTDP

ACCESS: Restricted
Joined
Dec 4, 2009
Messages
30
Reaction score
3
I don't have photos, but I do know there was a Gulfstream G-III-based bid for the LRAACA program.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,050
Reaction score
1,547
In 'Jane's Civil and Military Upgrades 1993-94' under the Japan Aircraft Development Corporation entry it has the Kawasaki licence-built P-3C Orion. More interesting it then goes on; "for future procurement, Kawasaki has proposed a number of variants to the Japan Defence Agency including an ocean surveillance version, a military transport and a systems testbed."
Has anyone any further details?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
656
Website
deeptowild.blogspot.com

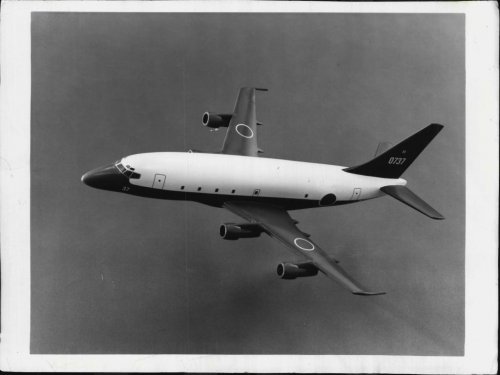

Boeing 737-based maritime patrol aircraft proposed for Japan circa 1974.

Source:
http://www.ebay.com/itm/1974-Boeing-737-version-for-maritime-patrol-Press-Photo-/200794611501?pt=Art_Photo_Images&hash=item2ec04a9f2d


Attachments

  • 6_13_308_img2885B.jpg
    39.4 KB · Views: 134
  • 6_13_308_img2885A.jpg
    63.5 KB · Views: 326

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,108
The BAC 1-11 ASW variant, already shown in #10:


Attachments

  • BAC_1-11_ASW.gif
    170.8 KB · Views: 761

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,740
Reaction score
2,737

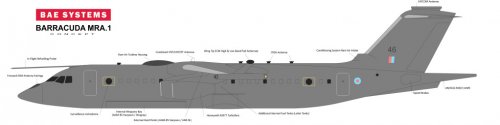

Came across this over on e-goat:


Attachments

  • BAESystemsAvroBarracudaMRA1.jpg
    41.5 KB · Views: 587

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
12
Website
rwrwalker.ca
Just received this 1973 Douglas marketing document from a friend.


Attachments

  • dc10 variant0001.pdf
    1.2 MB · Views: 121

Thetimesreader84

I really should change my personal text
Joined
Nov 25, 2012
Messages
5
Reaction score
0
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=1908.0;attach=16015

From the thread;

http://www.secretprojects.co.uk/forum/index.php/topic,1908.msg16266.html#msg16266

TTR


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
157

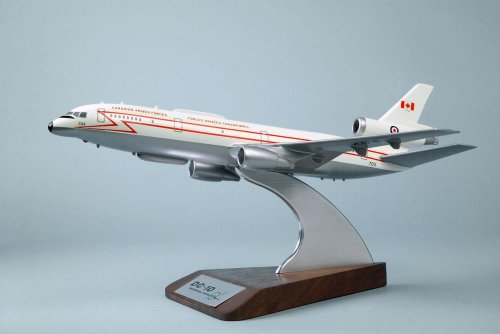

Douglas factory desk model of the MDC DC-10 LRPA (Long Range Patrol Aircraft / Canadian Air Force).


Attachments

  • Douglas DC-10 LRPA.jpg
    Douglas DC-10 LRPA.jpg
    65.1 KB · Views: 469

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
15

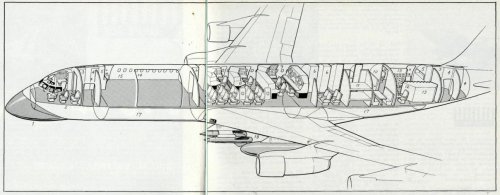

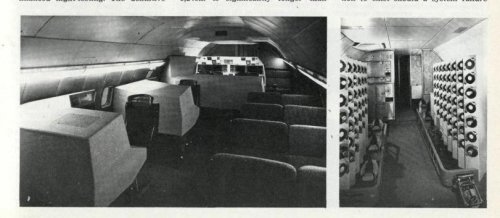

A couple of interior views of the 720 ASW testbed.

Cutaway of the proposed full-on 707-ASW; Bullpups underwing.

All from Flight in 1973.

http://www.flightglobal.com/pdfarchive/view/1973/1973%20-%200155.html

Some refined data by 1974:

  • MTOW 336,000 lb. 18.000 lb of avionics and 7,700 lb of disposable stores.
  • Could also lift 28,000 lb of cargo / personnel over 3,600 nm in secondary transport role, though by 1975 the cargo door had been eliminated from the design
  • Radar had full coverage for 320 deg. azimuth and partial coverage for the remainder
  • MAD on each wing-tip
  • Dash at 520 kts, loiter at 160 kts with partial flap
  • Proposed to Canada and Australia
https://www.flightglobal.com/pdfarchive/view/1974/1974%20-%200276.html

Other note: Germany also considering the smaller four-engined 737-ASW along with the S-3


Attachments

  • 707-ASW_Interior_Flight.JPEG
    45.2 KB · Views: 788
  • 707-ASW_Cutaway_Flight.jpeg
    136.3 KB · Views: 928

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
15
Digging for the 707-ASW finally revealed to me the reason that the CP-140 adopted avionics from the S-3 rather than the P-3.

Apparently Boeing's proposal had leap-frogged a generation of technology ahead of the P-3 and had oodles of internal space.

Lockheed's response was to modify their proposal to use the S-3's Univac AYK-14 computer and other systems, which freed-up a lot of volume as well as improving processing performance.

In the end the 707-ASW was rated as superior on capability and overall performance, but the P-3 won the competition on account of lower operating costs.
