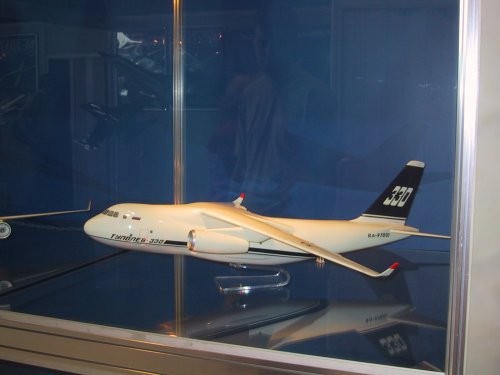

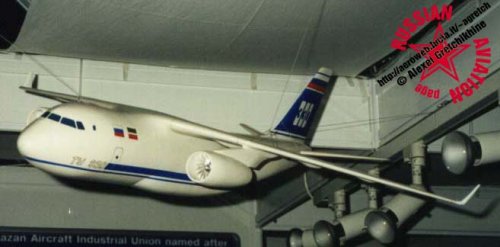

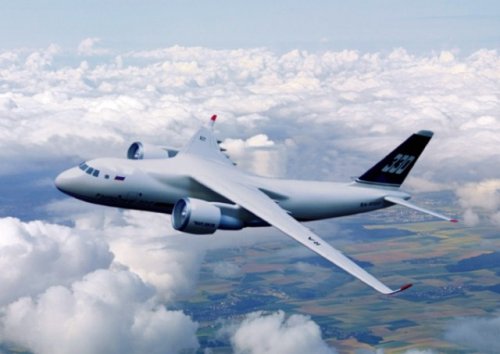

Tupolev Tu-330

Type: Twin-turbofan freight transport.

Program: Announced Spring 1993 as replacement for Antonov An-12. First ten scheduled to be built at Kazan. First flight was scheduled for 1997 with service to begin in 1998.

Design features: Wing design basically similar to Tu-204; engine pylons as Tu-204; rear loading ramp.

Flying controls: Each wing has four-section leading edge flaps, three-section trailing edge flaps, eight spoilers forward of flaps, and aileron. Elevators and rudder each in two sections.

Landing gear: Retractable tricycle type; twin-wheel nose unit; each main unit three pairs of wheels in tandem.

Powerplant: Two Aviadvigatel PS-90A turbofans. Rolls-Royce, General Electric, and Pratt & Whitney turbofans under consideration for export sales. Proposed cryogenic-fuelled version with Samara NK-94 engines and 20,000 kg (44,092 lb) of liquid natural gas is designated Tu-338.

Dimensions, external:
Wing span over winglets: 43.50 m (142 ft 8.5 in)
Length overall: 42.00 m (137 ft 9.5 in)
Height overall: 14.00 m (45 ft 11.25 in)
Rear loading ramp (length, width): 4.00 (13 ft 1.5 in)

Dimensions, internal:
Cargo hold: Length 19.59 m
Width: 4.00 m (13 ft 1.5 in)
Height: 3.55 m (11 ft 7.75 in)

Areas:
Wings, gross: 196,5 sq m (2,115,2 sq ft)

Weights and loadings:
Design payload: 35,000 kg (77,160 lb)
Max take-off weight: 103,500 kg (228,175 lb)

Performance (estimated):
Nominal cruising speed at 11,000 m (36,000 ft) 431-458 kts (800-850 km/h; 497-528 mph)
Nominal range: with 20,000 kg (44,090 lb) payload 3,020 nm (5,600 km; 3,480 miles)
with 30,000 kg (66,135 lb) payload 1,620 nm (3,000 km; 1,865 miles)

Source: Jackson, Paul editor. Jane's All the World's Aircraft 1995-1996. Jane's Information Group 1995 page 397.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,007
Website
deeptowild.blogspot.com

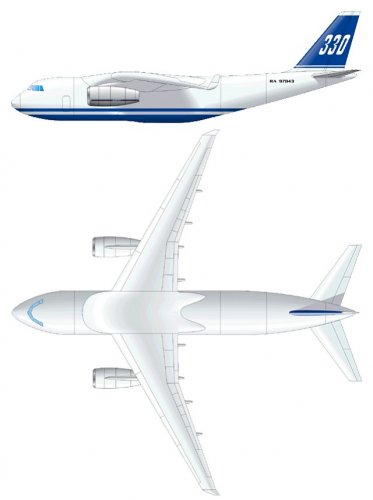

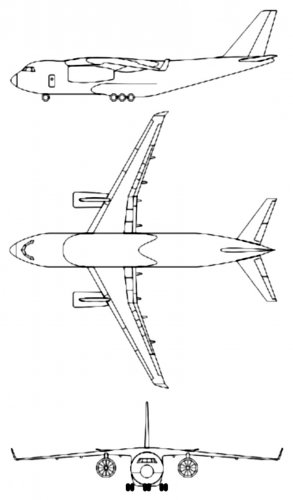

Line drawing of Tupolev Tu-338 variant powered by both liquid natural gas (LNG) and aviation kerosene burning Samara NK-94 engines. Aviation kerosene is stored in wing fuel tanks and liquid natural gas is stored in upper fuselage fairing designed to minimize aerodynamic drag.

Source: http://www.tupolev.ru/English/Show.asp?SectionID=82&Page=2


Attachments

  • kr_004_s.jpg
    17 KB · Views: 2,084

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
73

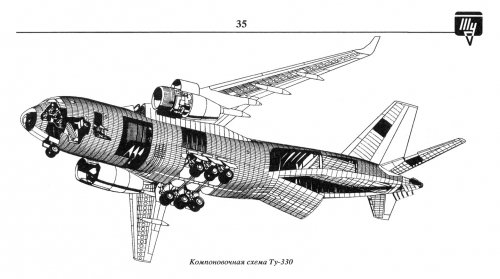

Tu-330 cutaway.
Source: Aviatsiya i Kosmonavtika No.12/2000, p.35 (V.Rigmant's article from cycle "Under "ANT" & "Tu" marks).


Attachments

  • tu330-cutaway_resize.jpg
    166.8 KB · Views: 183

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
316

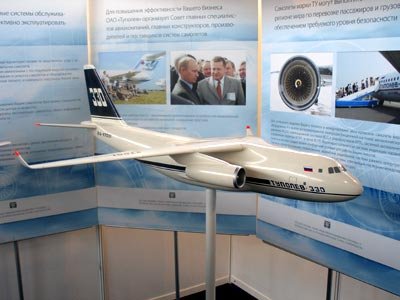

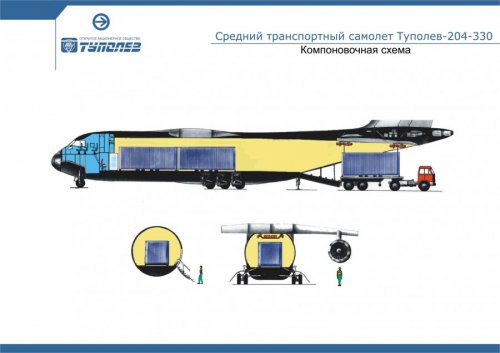

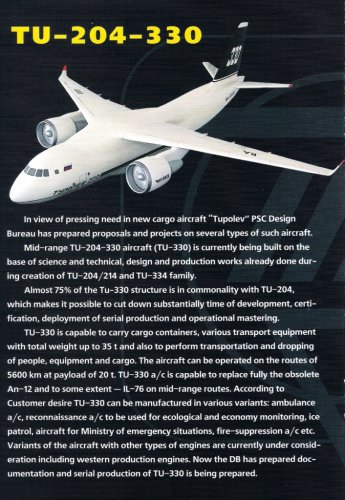

In its early stages the Tu-330 was also referred to as the Tu-204-330 due to it's '75% structure commonality' with the Tupolev Tu-204.

Not to be confused with the Tu-204-300 (Tu-234), the shortened and longer-range derivative of the Tu-204.

Source: Tupolev - Today and Tomorrow (Tupolev Booklet dating from the mid-90's)


Attachments

  • Tupolev_Tu-204-330.jpg
    556.3 KB · Views: 129

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
316
The attached press release from Tupolev, dating from 1996, outlines the companies idea for the future use of cryogenic fuels and the justification for the firms commitment to development.

As well as briefly covering the Tu-155/Tu-156 program it also touches on the use of Tu-204 (Tu-204K -> Tu-206 -> 206K), Tu-230, Tu-330 and Tu-334 in LNG projects.

The document also covers the proposed distribution of such fuels to remote parts of Russia via Tu-330 tanker and Aerosleighs (remember the Tupolev AC-2?)


Attachments

  • Tupolev_Aviation_Cryogenic_Programme_1996_Press_Prelease_Brochure.pdf
    596.1 KB · Views: 53

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,271
Reaction score
1,771
Deino said:
Uppsss ... :eek: I did not know that there was a fuselage mock-up !

Occasionally was exploring its guts on a Thursday...


flanker

ACCESS: Top Secret
Joined
Mar 20, 2008
Messages
911
Reaction score
168
The main activities of "Tupolev" are further developing the program and Tu-204/214 family of aircraft Tu-334, the development of the middle class cargo aircraft Tu-330, a regional administrative and Tu-324, works on the practical implementation of aircraft in operation on alternative fuels as well as the modernization of long-range aircraft and naval aviation.

Read full article: http://top.rbc.ru/events/25/12/2013/896973.shtml

PS: And the board meeting took place in future it seems. ;)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,271
Reaction score
1,771


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,425
Reaction score
6,090

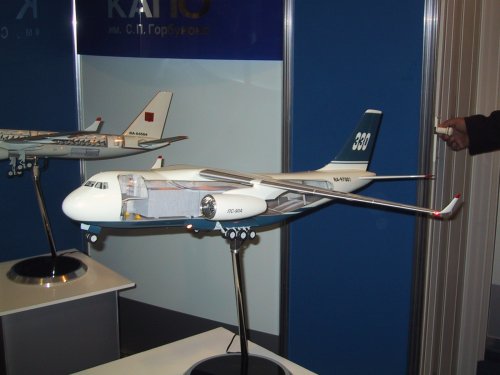

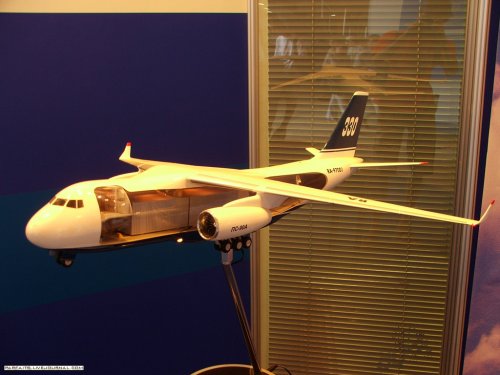

flateric said:

Amazing find my dear Flateric.


Attachments

  • 3.jpg
    75.8 KB · Views: 488
  • 2.jpg
    69.1 KB · Views: 502
  • 1.jpg
    102.3 KB · Views: 517

Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,546
Reaction score
661
Fan diameter's grown a whole bunch, interesting.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,007
Website
deeptowild.blogspot.com

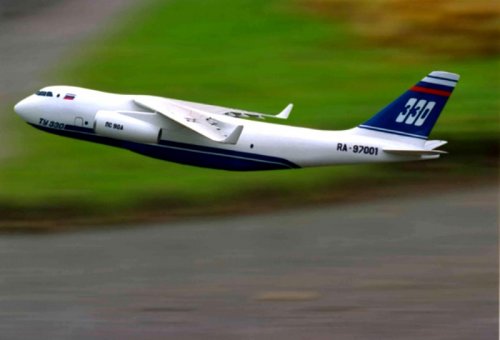

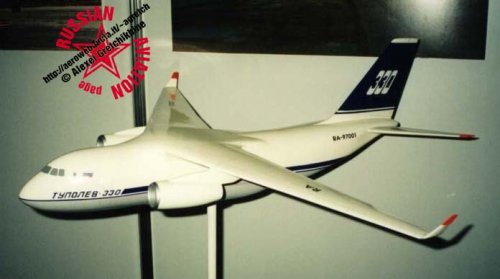

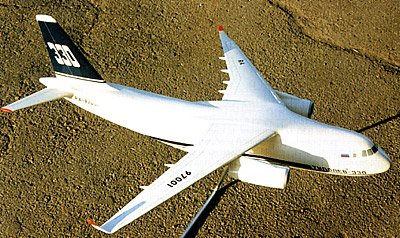

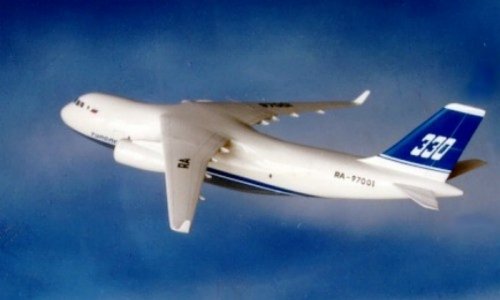

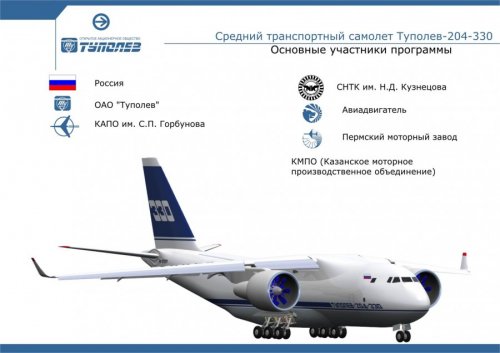

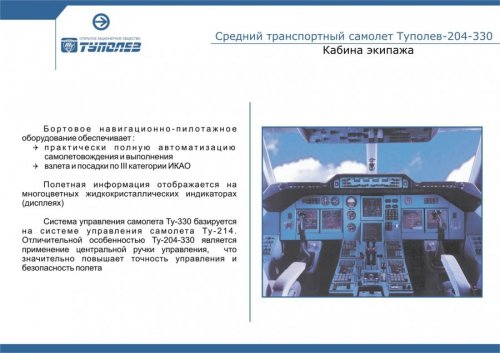

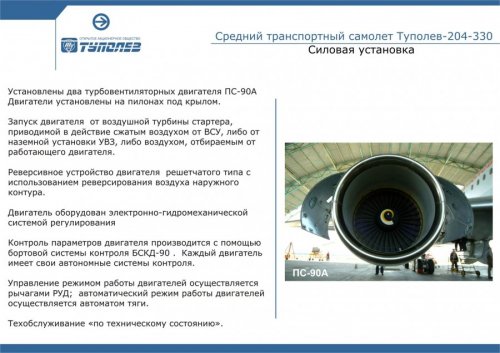

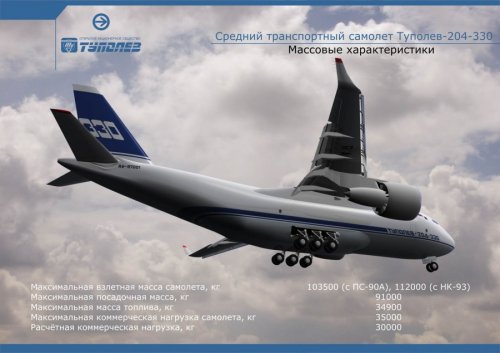

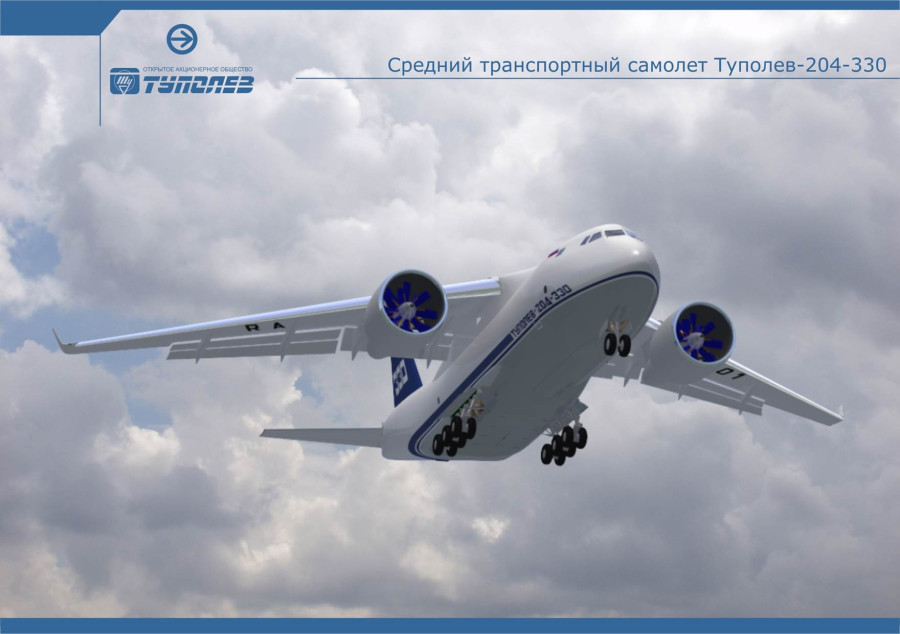

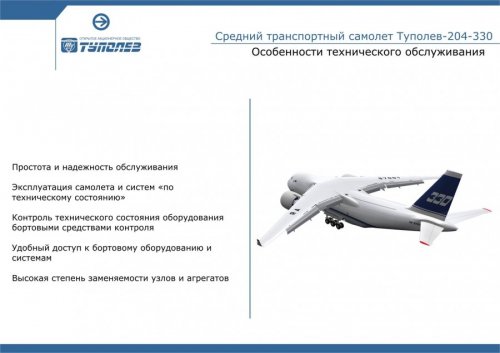

The remaining slides.

Source:


Attachments

  • 13358_900.jpg
    77.4 KB · Views: 205
  • 14305_900.jpg
    135.1 KB · Views: 186
  • 14510_900.jpg
    112 KB · Views: 63
  • 14619_900.jpg
    72 KB · Views: 66
  • 15272_900.jpg
    100 KB · Views: 71
