Ilyushin Il-112

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,142
Reaction score
1,256

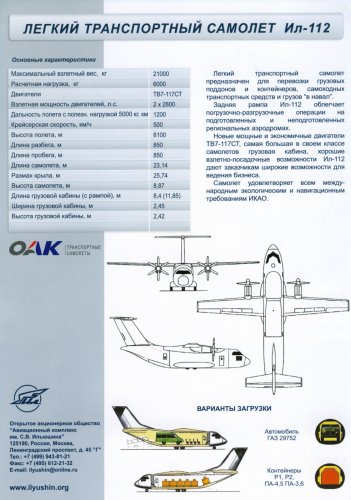

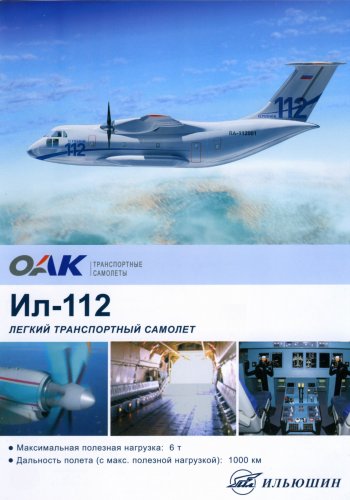

official UAC leaflet of ill-fated Il-112


Attachments

  • il-112-1 [1600x1200].jpg
    il-112-1 [1600x1200].jpg
    267.5 KB · Views: 139
  • il-112-2 [1600x1200].jpg
    il-112-2 [1600x1200].jpg
    330.8 KB · Views: 250

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
If so it will be very sad news indeed,Ill hope some one has the official message of the cancellation of this very promising project


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,142
Reaction score
1,256
no, it's not cancelled...but will suck much more from budget
design with implemented flaws from the beginning
let's stop at this and wait 2013


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com

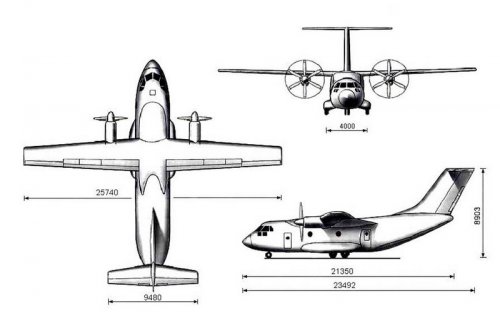

Source:
http://warfare.ru/rus/?lang=rus&linkid=2566&catid=258
http://195.16.90.15/legkii-voenno-transportnyi-samolet-il-112v


Attachments

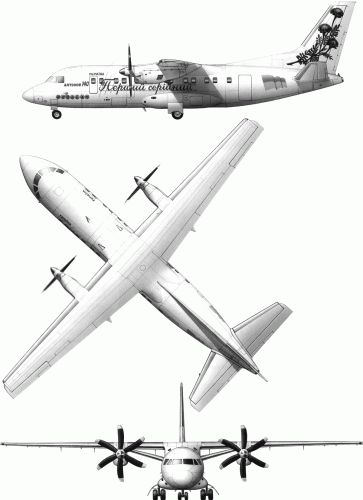

  • an140-1.gif
    506.2 KB · Views: 115

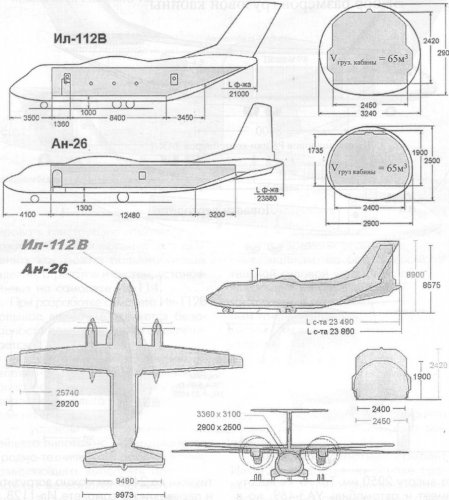

  • il_112_scheme.jpg
    53.3 KB · Views: 101

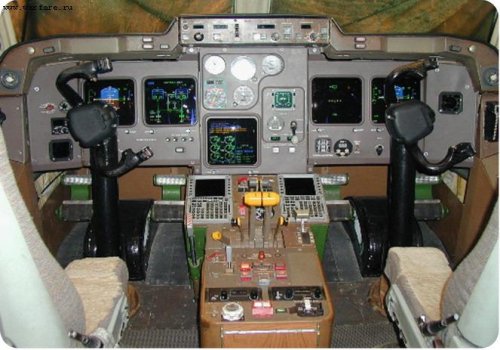

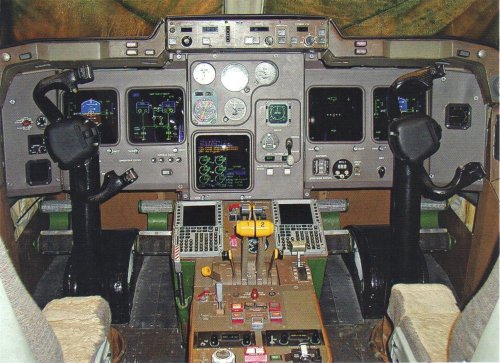

  • cockpit.jpg
    58.7 KB · Views: 68
  • il-112.jpg
    50.5 KB · Views: 67

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com

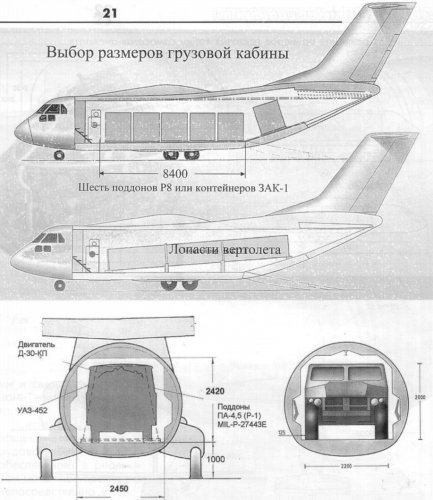

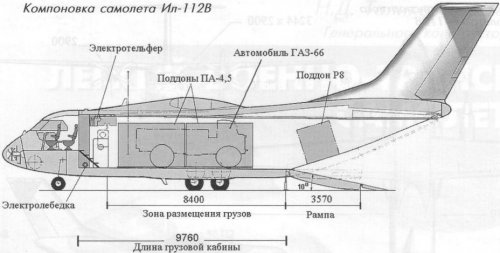

Source:
http://crimso.msk.ru/Site/Arts/Art5338.htm


Attachments

  • 22-1.jpg
    173.8 KB · Views: 107
  • 23-2.jpg
    79.4 KB · Views: 61
  • 23-1.jpg
    122 KB · Views: 69
  • 21-1.jpg
    219.4 KB · Views: 77
  • 20-1.jpg
    90.6 KB · Views: 77

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,142
Reaction score
1,256
Il-112 officially dead for a while


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,958
Reaction score
356
GTX said:
Quite an attractive design.

I Agree GTX!!

I particularly appreciate the Soviet / Russian appreciation for the non-intrusive wing box arrangement of their transport/cargo aircraft designs! -As is the case with the IL-112 design. Something the West has for to longer neglected as an important operational factor in its designs, which effects operational practicality and limitations in carrying capacity (If my memory serves me correctly, I think the Airbus A400M is the first Western design to incorporate this in its design). Add to this the overhead gantry system appreciated and incorporated in Soviet/Russian designs!!
Regards
Pioneer


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
580
Reaction score
230
The Ilyushin Il-112 design must have one of the most laboured births ever!

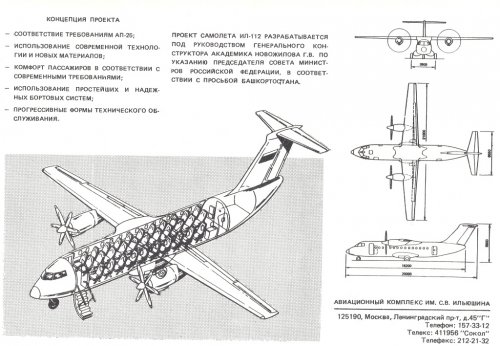

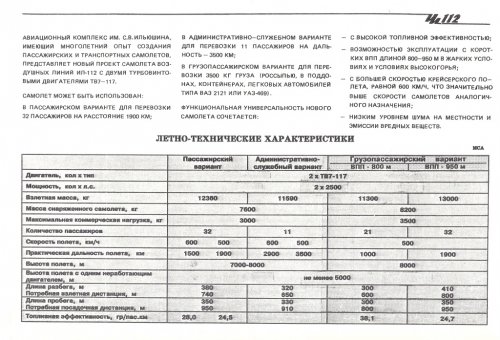

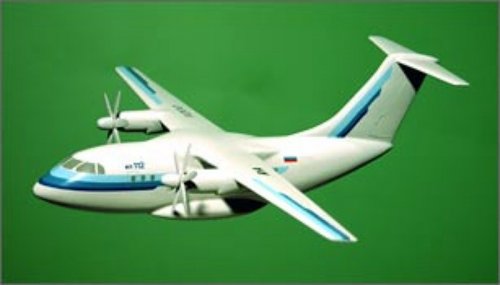

The leaflet below was given to me at a Redhill Helitech Exhibition in 1991 and shows the design at that stage (all in Russian).

It was a high wing design, with a T-tail powered by a pair of TV-7-117 engines.

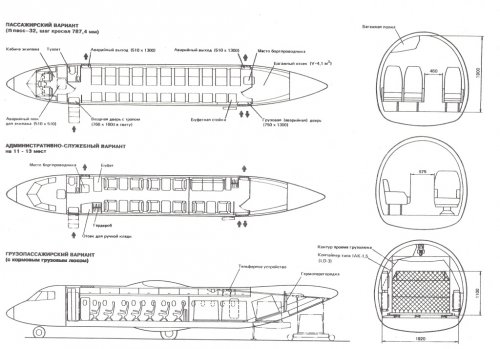

Available at that stage as a 32 passenger or 11 Business ("Administration") version.

Length: 20.0m
Wing Span: 21.0 m
Height: 5.4 m
Top speed: 600 km/h
Normal Ceiling: 5,000 m
Practical Range: 1,500 miles in passenger configuration
Practical Range: 2,900 miles in business configuration


Attachments

  • Ilyushin_Il-112_04.jpg
    219.3 KB · Views: 724
  • Ilyushin_Il-112_03.jpg
    376.3 KB · Views: 797
  • Ilyushin_Il-112_02.jpg
    327.5 KB · Views: 895
  • Ilyushin_Il-112_01.jpg
    411.9 KB · Views: 1,013

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600
Ilyushin Il-112T pictures scanned from Air Fleet No. 63 (2.2007):


Attachments

  • Il-112T_scan08small.jpg
    150.7 KB · Views: 76
  • Il-112T_scan07small.jpg
    126.7 KB · Views: 80
  • Il-112T_scan06small.jpg
    214.3 KB · Views: 59
  • Il-112T_scan05small.jpg
    115.3 KB · Views: 63
  • Il-112T_scan04small.jpg
    136 KB · Views: 72
  • Il-112T_scan03small.jpg
    126.8 KB · Views: 80
  • Il-112T_scan02small.jpg
    127.2 KB · Views: 86
  • Il-112T_scan01small.jpg
    168 KB · Views: 65

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com
Source:
http://www.vpk-news.ru/articles/14977
http://crimso.msk.ru/Site/Crafts/Craft29824.htm
http://militaryrussia.ru/blog/topic-710.html
http://warfare.be/db/lang/rus/catid/258/linkid/2566/


Attachments

  • 06-02.jpg
    51.1 KB · Views: 89
  • 46-1.jpg
    50.3 KB · Views: 73
  • stkG2.jpg
    97.6 KB · Views: 59

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com
"Russia revives Il-112V transport aircraft"
Karl Soper, Washington, DC - IHS Jane's Defence Weekly
14 August 2013

Source:
http://www.janes.com/article/25889/russia-revives-il-112v-transport-aircraft

lIyushin hopes to receive a contract for 62 Il-112V transport aircraft from the Russian Ministry of Defence (MoD) before the end of 2013, a spokesman for the design bureau told state news agency RIA Novosti.

The reports are further indication that Russia has revived the twin turboprop aircraft programme, which it effectively cancelled in 2011. The Il-112V is designed to carry six tonnes of cargo to a range of 1,000 km, the Il-112V is the proposed military variant of the Il-112 passenger aircraft concept, which also includes the Il-112T freighter.

United Aircraft Corporation is quoted in Russian business daily Vedomosti as saying the decision to resume Il-112V development was made in July, with an official announcement to be made soon.


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
317
Reaction score
154

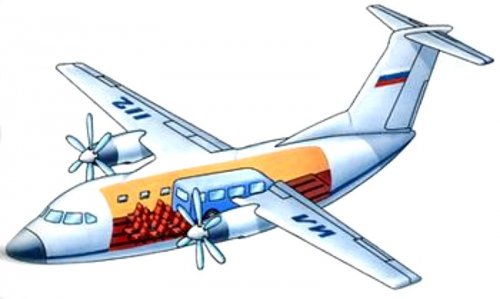

IL-112 multi-purpose transport

Design work on this high-wing twin-turboprop transport started in 1994.
- See more at: http://www.kamov.net/russian-aircraft/ilyushin-il-112/#sthash.NR76q9oI.dpuf


Attachments

  • Ilyushin-Il-112.jpg
    29.7 KB · Views: 58
  • il-112.jpg
    126.1 KB · Views: 62

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,676
Reaction score
4,662
athpilot said:
Here are some nice IL-40 artworks by world of warplanes. very nice.


Very nice artwork Athpilot,


and may be the lower aircraft was Il-42 or Il-102.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com
athpilot said:
IL-112 multi-purpose transport

Design work on this high-wing twin-turboprop transport started in 1994.
- See more at: http://www.kamov.net/russian-aircraft/ilyushin-il-112/#sthash.NR76q9oI.dpuf

Already document at:
http://www.secretprojects.co.uk/forum/index.php/topic,8748.0.html


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
580
Reaction score
230
The Ilyushin web site still has a page entry for the Il-112V variant, although it does not appear to have been updated since 2013 .....

"Light military transport aircraft Il-112V is designed for transporting and parachuting of light weaponry and equipment, cargoes and military personnel, as well as for transporting a wide variety of cargoes when operated in commercial service.

It is capable of auto landing approaches to categorized aerodromes (minimum requirement being ICAO category II) and manual landing approaches to aerodromes poorly equipped with, or having no radio technical equipment."

http://ilyushin.org/en/aircrafts/projects/1183/


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,465
Reaction score
953
The Ilyushin Il-112V tactical airlifter for the Russian air force will make its maiden flight in the summer of 2017, according to Yuri Slyusar, president of United Aircraft Corporation (UAC). Russia selected the the Il-112V, being developed from the Il-114 airliner, rather than the Antonov An-140T, because of Russia’s poor relations with Ukraine. The new airlifter will replace Russia’s aging fleet of Antonov An-26s, in a program that was first defined in the late 1990s, as the LVTS (Russian acronym for Lightweight Military-Transport Aircraft).

Slyusar revealed the date during a visit to the Voronezh Aircraft Production Plant (Russian acronym VASO) in late October. VASO will build the Il-112 instead of the An-140T, including the prototypes—a task that traditionally was undertaken by the Ilyushin design bureau’s experimental plant in Moscow city. Ilyushin successfully completed wind-testing of scaled models of the Il-112 at the Central Aero-Hydra Dynamics Institute (Russian acronym TsAGI) in 2008-2009, but further work slowed because the Russian MoD opted for the lower-cost An-140T. The Il-112V will be a completely Russian aircraft, including avionics and Klimov Boratyr turboprop engines, a higher-power version of the TV7-117, already flown on the Il-114 and Mil Mi-38.

VASO is currently still building An-148 regional airliners, against orders from the Ilyushin Finance Corp. and some government entities. But this is likely to end soon. Earlier this year VASO and other Russian companies complained that they could not complete new An-148s because of late delivery of parts from Ukrainian vendors, notably the landing gears being supplied by Dnepropetrovsk-based YuzhMash, whose economic situation worsened during Ukraine’s economy downturn.

Earlier, Slyusar said that VASO will continue producing the Ilyushin Il-96 widebody airliner at rate of two to three per year until 2023. These will go mainly to the Russian defense ministry, as air tankers, flying command posts and special mission aircraft, including the air transport detachment serving President Putin and his ministers. VASO is also a key supplier of airframe parts, subassemblies and components to other UAC programs, including Sukhoi SuperJet 100 regional jet; MC-21 next-generation narrow body airliner; Il-76MD-90A strategic airlifter; and Sukhoi T-50 (PAKFA) next-generation fighter.
Source: http://www.ainonline.com/aviation-news/defense/2015-11-02/uac-sets-first-flight-date-il-112-airlifter


kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,431
Reaction score
391

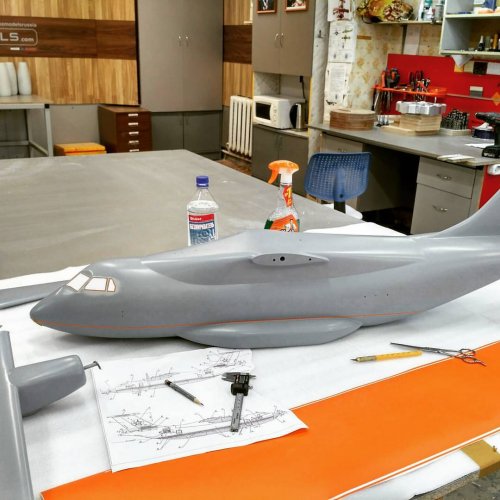

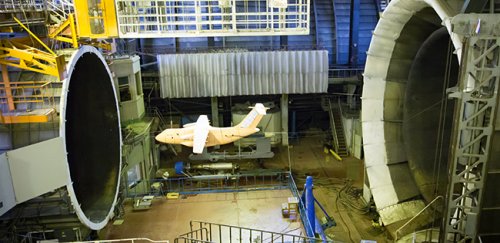

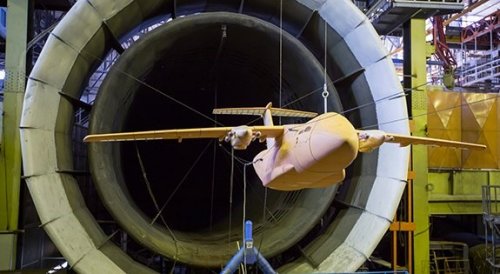

Large wind tunnel model of the Il-112 at TSAGI.


Attachments

  • Il-112Tsagi01.jpg
    73.5 KB · Views: 43
  • Il-112Tsagi02.jpg
    239.1 KB · Views: 45

kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,431
Reaction score
391

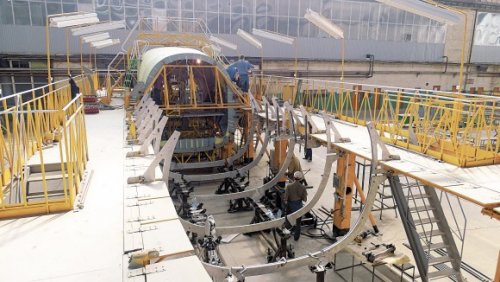

Construction of the first prototype has just begun.


Attachments

  • Il-112PrototypeConstruct.jpg
    95.5 KB · Views: 63

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,676
Reaction score
4,662

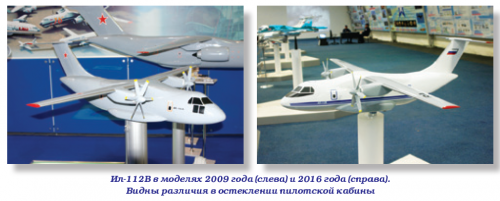

From Kryl'ya Rodine 1-2/2017


Attachments

  • 73.png
    590.2 KB · Views: 61

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com

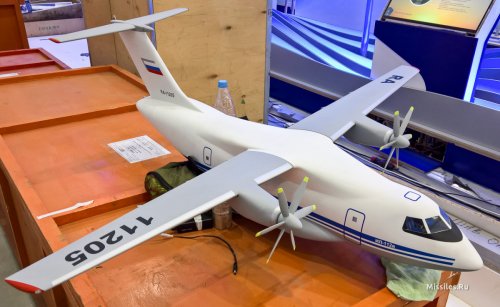

Source:
https://missiles2go.ru/2016/09/03/fotoobzor-s-foruma-armia-2016/


Attachments

  • wp_20160903_14_26_14_pro.jpg
    680.3 KB · Views: 482

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com
Source:
http://aviation21.ru/il-112v-vaso-predlagaet-oao-il-pereproektirovat-krylo/


Attachments

  • il-112v-820x410.jpg
    53.8 KB · Views: 419

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com
Source:
http://www.uacrussia.ru/en/aircraft/lineup/transport/il-112v/


Attachments

  • 1f83442d307b5850e9fcd0c259ca5604.jpg
    139.4 KB · Views: 409

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com

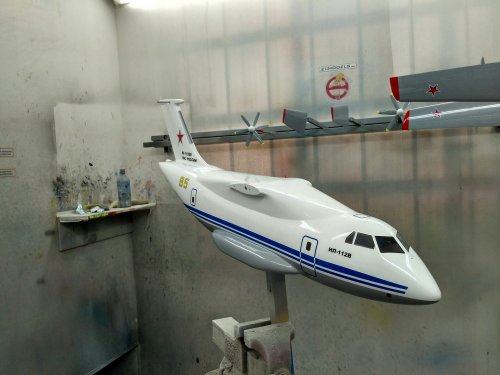

Source:
http://detonator666.livejournal.com/3513509.html


Attachments

  • ydWkqEE_x6E.jpg
    348.1 KB · Views: 31
  • Ci_6XIFeYX8.jpg
    140.3 KB · Views: 27
  • Y4gx38npV04.jpg
    136.7 KB · Views: 29
  • 39BaL1hJdw8.jpg
    453.4 KB · Views: 30
  • 9jMg49UcFE0.jpg
    473.8 KB · Views: 27
  • zgtOLti_3G0.jpg
    283.4 KB · Views: 34
  • QunRhThe5ds.jpg
    118.9 KB · Views: 34
  • NIrjIA8rEqY.jpg
    357.9 KB · Views: 28
  • IYKuZvPO_e4.jpg
    95 KB · Views: 363
  • Ob4gkoEqiBc.jpg
    439.1 KB · Views: 390

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
783
Website
deeptowild.blogspot.com
Source:
http://detonator666.livejournal.com/3513509.html


Attachments

  • bWK-8yt0jvY.jpg
    307.9 KB · Views: 34
  • 8UdqFFWTDgk.jpg
    246 KB · Views: 38
  • CM4ofHySGe0.jpg
    428 KB · Views: 40

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,465
Reaction score
953
Russian_Defence said:
Fresh images of the 1st and 2nd Ilyushin-112V prototypes - 0101 & 0102 respectively , at TsOS VASO in Voronezh,Russia.
Link (Twitter): https://twitter.com/Russian_Defence/status/953751664497971200


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,129
Reaction score
3,949
https://www.flightglobal.com/news/articles/picture-first-il-112v-transport-nears-debut-sortie-454002/


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,129
Reaction score
3,949
In other news, from back in June:

Triton said:
"Support Grows For Unmanned Tanker, Transport Aircraft"
Jun 11, 2018 Graham Warwick | Aerospace Daily & Defense Report

Source:
http://aviationweek.com/awindefense/support-grows-unmanned-tanker-transport-aircraft

From surviving in contested airspace to supplying remote areas, interest in unmanned transport and tanker aircraft is growing.

A U.S. Senate committee is proposing funding to “explore options for optionally manned and more survivable tankers,” while Russia’s Ilyushin is studying an unmanned cargo demonstrator based on the Il-112V light transport.

In its markup of the fiscal 2019 defense budget, the Senate Armed Services Committee says it is “concerned about the growing threat to large high-value aircraft” and recommends an increase of $10 million, for a total of $38.4 million, for prototyping a contested environment tanker.

Essential to the operational availability and range of U.S. combat and transport aircraft, the Air Force’s Boeing KC-135 and KC-46A aerial refueling tankers “are manned and increasingly difficult to protect,” the committee says.

“Given the increasingly challenging operating environments our potential adversaries are presenting, it is prudent to explore options for optionally unmanned and more survivable tankers that could operate autonomously as part of a large, dispersed logistics fleet that could sustain attrition in conflict,” it says.

An unmanned tanker prototype could draw on research underway at Boeing to increase the level of automation in its commercial aircraft and to address a looming pilot shortage by introducing supervised autonomy, as well as demonstrations of a robotic co-pilot by subsidiary Aurora Flight Sciences under Darpa’s Alias program.

In Russia, meanwhile, Ilyushin has signed a memorandum with Kronstadt Group to create a joint working group to develop an unmanned transport aircraft. Kronstadt is developing the Orion-E, Russia’s first Predator-class medium-altitude, long-endurance UAV.

“It is in our interests to create transport drones that could solve the tasks of cargo transportation to remote areas with difficult accessibility,” says Alexey Rogozin, general director of Ilyushin and vice president for transport aviation at parent company United Aircraft Corp.

The first prototype Il-112V military transport is nearing completion at the VASO aircraft manufacturing plant in Voronezh and is expected to fly this year. Powered by two 3,500-shp Klimov TV7-117ST turboprops, the aircraft has a maximum payload of 11,000 lb. and a range of 1,500 nm with a 7,700-lb. load.

“Given the active development of the Arctic, it can be assumed that aircraft capable of transporting up to several tons of cargo from one point to another in an autonomous mode will be highly demanded,” Rogozin says.

“We want to be technologically ready to open this market. Joint work with [Ilyushin] will allow us to optimize the time and resources, and therefore the first to create answers to market demands,” says Kirill Dybko, executive director of Kronstadt Group.

The first step under the joint working group will be to create a road map for research. Kronstadt’s Center for Advanced Studies and Ilyushin’s Center for Aerospace Technologies in Zhukovsky will be involved in the project. The Myasishchev design bureau, part of Ilyushin, will later become the main focus for the work.

Kronstadt presented a three-stage plan for the introduction of unmanned air cargo services at the Aeronet-18 conference in Moscow on June 1. This begins with “last mile” delivery of small packages, then shifting short- and medium-range freight from land transport to aircraft, and finally regular long-haul cargo transport using unmanned aircraft.

In the medium term, Kronstadt says in a June 1 release, the Aviation Unmanned Transport Network project is being implemented. “A demonstrator of a transport unmanned aerial system is being created and a pilot project on unmanned delivery of goods on a regional scale is being implemented.”
