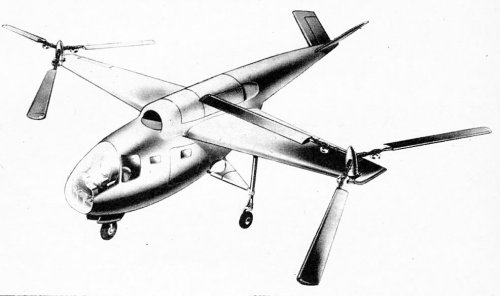

This artist impression is from an original Transcendental Aircraft corp. document,
I think. In vertiflite summer 2006 was a very comprehensive article about this
company, where it was shown, too, with an additional drawing of the aircraft
in forward flight.


Attachments

  • TC-mod-3.JPG
    19.6 KB · Views: 411

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,012

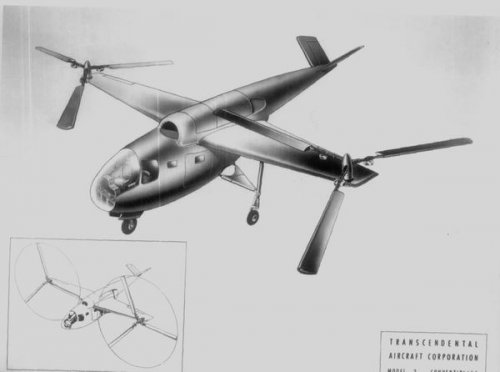

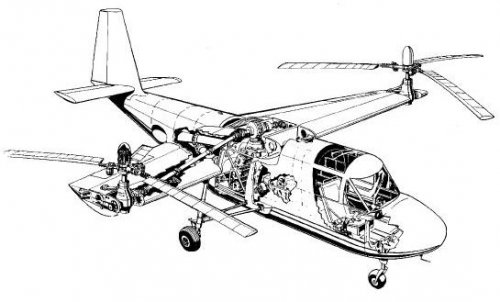

From the same source;


the Model-2 convertiplane.


Attachments

  • Transcendental_Model-2.jpg
    31.5 KB · Views: 334

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,542
Reaction score
1,213
Transcendental Model 1-G Characteristics
Powerplant
Lycoming O-290-A
Brake horsepower . . . . . . . . . . . . . . . 160 HP @ 3000 RPM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 ft
Wing
Span. . . . . . . . . . . . . . . . . . . . . . . . . . 21 ft
Area. . . . . . . . . . . . . . . . . . . . . . . . . . 63 sq ft
Chord. . . . . . . . . . . . . . . . . . . . . . . . . 3 ft
Loading . . . . . . . . . . . . . . . . . . . . . . . 27.7 lb/sq ft
Airfoil section . . . . . . . . . . . . . . . . . . NACA 23015
Width. . . . . . . . . . . . . . . . . . . . . . . . . 38 ft (to outer tip of rotor disc)
Height . . . . . . . . . . . . . . . . . . . . . . . . 7 ft
Rotor
No. of rotors . . . . . . . . . . . . . . . . . . . 2, interconnected
Type. . . . . . . . . . . . . . . . . . . . . . . . . . articulated
Blades/proprotor . . . . . . . . . . . . . . . . 3
Diameter . . . . . . . . . . . . . . . . . . . . . . 17 ft
Chord. . . . . . . . . . . . . . . . . . . . . . . . . 4 in
Disc loading . . . . . . . . . . . . . . . . . . . 3.6 lb/sq ft
Rotational speed
Helicopter mode . . . . . . . . . . . . . . . . 633 rpm
Weight
Empty . . . . . . . . . . . . . . . . . . . . . . . . 1450 lb
Gross . . . . . . . . . . . . . . . . . . . . . . . . . 1750 lb
No. of seats . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Transcendental Model 2 Characteristics
Powerplant
One Lycoming . . . . . . . . . . . . . . . . . O-435-23
Brake horsepower . . . . . . . . . . . . . . . 250 HP@ 3200 RPM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 ft 1 in
Wing
Span. . . . . . . . . . . . . . . . . . . . . . . . . . 22 ft 9 in
Area. . . . . . . . . . . . . . . . . . . . . . . . . . 100 sq ft
Airfoil section . . . . . . . . . . . . . . . . . . NACA 23015
Width. . . . . . . . . . . . . . . . . . . . . . . . . 39 ft (to outer tip of rotor disc)
Height . . . . . . . . . . . . . . . . . . . . . . . . 9 ft 5 in
Rotor
No. of rotors . . . . . . . . . . . . . . . . . . . 2, interconnected
Type. . . . . . . . . . . . . . . . . . . . . . . . . . articulated
Blades/proprotor . . . . . . . . . . . . . . . . 3
Diameter . . . . . . . . . . . . . . . . . . . . . . 18 ft
Chord (constant) . . . . . . . . . . . . . . . . 0.356 ft
Disc loading . . . . . . . . . . . . . . . . . . . 4.4 lb/sq ft
Weight
Empty . . . . . . . . . . . . . . . . . . . . . . . . 1579 lb
Gross . . . . . . . . . . . . . . . . . . . . . . . . . 2249 lb
Useful load . . . . . . . . . . . . . . . . . . . . 670 lb
No. of seats . . . . . . . . . . . . . . . . . . . . . . . . . . 2


Source: The History of the XV-15 Tilt Rotor Research Aircraft: From Concept to Flight by Martin D. Maisel, July 1, 2001, ISBN: 1931641277


Attachments

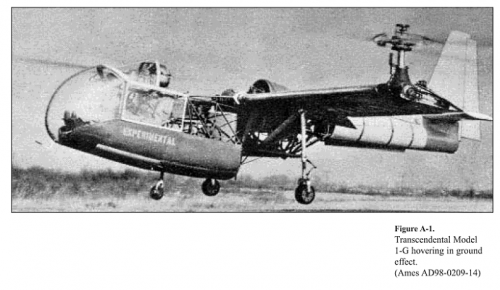

  • Transcendental_Model_1-G_The History of The XV-15 Tilt Rotor_From Concept to Flight_Martin D.png
    Transcendental_Model_1-G_The History of The XV-15 Tilt Rotor_From Concept to Flight_Martin D.png
    193.8 KB · Views: 191

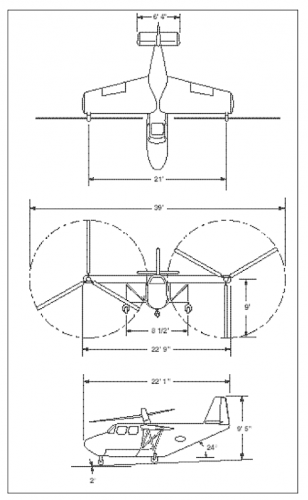

  • Transcendental_Model_2_3view_The History of The XV-15 Tilt Rotor_From Concept to Flight_Martin D.png
    Transcendental_Model_2_3view_The History of The XV-15 Tilt Rotor_From Concept to Flight_Martin D.png
    41 KB · Views: 195

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
700
Reaction score
489

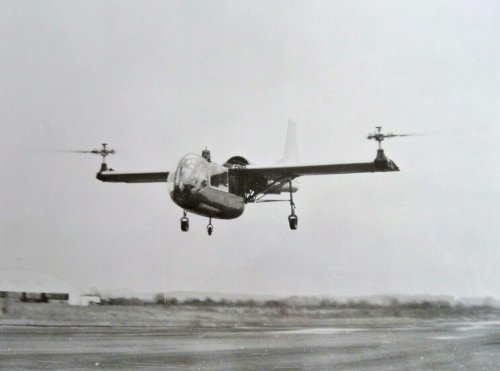

Model 1


Attachments

  • Transcendental-Aircraft-Model-1.jpg
    186.6 KB · Views: 63

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
601
Reaction score
315

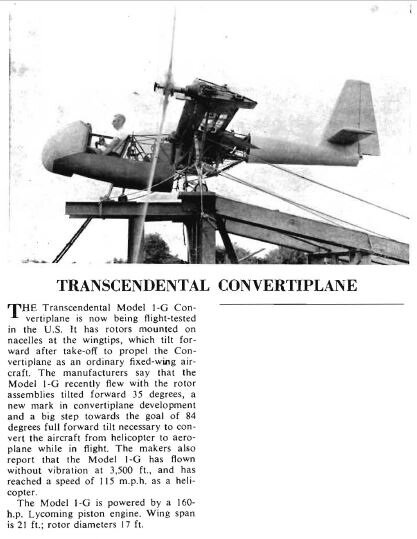

A piece on the Trancendental 1-G Convertiplane from Air Pictorial (June 1955).


Attachments

  • Trancendental_1-G_Convertiplane_(AP-1955-06)_Article.JPG
    74.8 KB · Views: 59

Aeroweanie

ACCESS: Restricted
Joined
May 2, 2020
Messages
3
Reaction score
7
Robert Lichten, then an employee of Kellet Aircraft, was one of the founders of the Transcendental Company. He designed the Model 1-G with Mario Guerrieri, another former employee of Kellet. Lichten left in Transcendental 1948 and went to work for Bell Aircraft in Buffalo, transferring to the helicopter division in Texas in 1952. At BH, he and Ken Wernicke were the designers of the XV-3, which led to the XV-15, which led to the V-22, BA609 (now the AW609) and V-280. He was also responsible for the design of all initial development versions of the UH-1 and of the JetRanger helicopters at Bell. Lichten was killed in a car crash in 1971 and a American Helicopter Society award is given annually in his name.


Platt-LePage Aircraft

ACCESS: Confidential
Joined
Oct 19, 2007
Messages
59
Reaction score
20
Website
www.platt-lepageaircraft.com
Robert Lichten, then an employee of Kellet Aircraft, was one of the founders of the Transcendental Company. He designed the Model 1-G with Mario Guerrieri, another former employee of Kellet. Lichten left in Transcendental 1948 and went to work for Bell Aircraft in Buffalo, transferring to the helicopter division in Texas in 1952. At BH, he and Ken Wernicke were the designers of the XV-3, which led to the XV-15, which led to the V-22, BA609 (now the AW609) and V-280. He was also responsible for the design of all initial development versions of the UH-1 and of the JetRanger helicopters at Bell. Lichten was killed in a car crash in 1971 and a American Helicopter Society award is given annually in his name.
Robert Lichten got his start at Platt-LePage Aircraft Co. working under Haviland Platt, on their Tilt-Rotor concepts.
Haviland Platt having patented his Tilt-Rotor ideas, would eventually receive a financial settlement from Bell during the XV-3 development, to avoid patent infringement "problems" due the primacy of Haviland Platt's patent, and his noted experience as an expert witness in patent cases.


Attachments

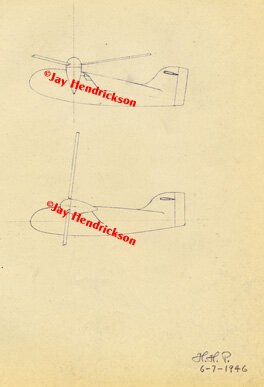

  • PLLP tiltrotor 1.jpg
    PLLP tiltrotor 1.jpg
    44.9 KB · Views: 33
