Hi,

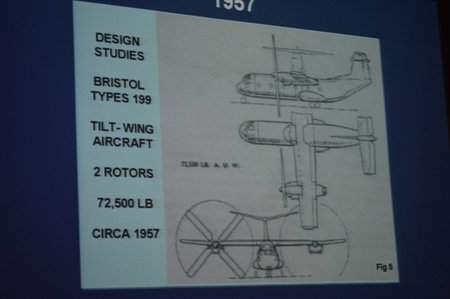

the Bristol-199 was a tilt-wing VTOL convertiplane project of 1956,powered by four Rolls-Royce
Tyne or Proteus engines.


http://aerosociety.com/News/Insight-Blog/2267/Birds-of-Prey-the-CV22-Osprey-in-the-UK


Attachments

  • Bristol Type 199 tiltwing.jpg
    Bristol Type 199 tiltwing.jpg
    47.2 KB · Views: 409
  • 1.png
    293 KB · Views: 415

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,602
Reaction score
926
Significant differences between the two designs, I wonder which was the earlier?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,262
Schneiderman said:
Significant differences between the two designs, I wonder which was the earlier?

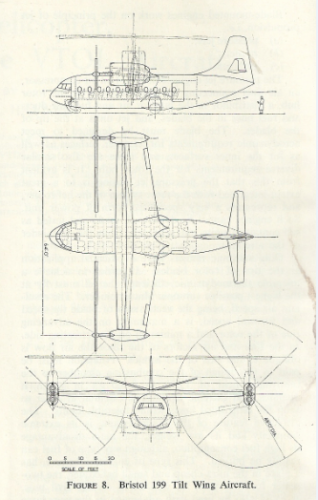

I think the lower was earlier,that's because almost I found it in British Aeronautical book of 1956.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,602
Reaction score
926
I would agree, but I'm surprised that you say that the drawing was published in 1956. Do you know which book that was?

Hafner says that studies had commenced based on the Vickers Viscount and that this subsequently evolved to become a military freighter; the black and white image shows some similarities to the Viscount and the colour images has rear ramp doors. The internal report on these studies was issued in 1961 after Bristol's helicopter division had merged with Westland and was the subject of a conference paper by Hafner in 1963


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,262
Sorry Sir,

I check,it was from British Aeronautical book of 1961,you are right,the upper was the earlier.
