hesham said:
the Jacobs 104 was unconventional helicopter project

A whole webpage is devoted to the Jacobs 104 Convertiplane on Prototypes.com, Jean-Philippe Colliat's excellent website:
http://xplanes.free.fr/omni/omni-4.html



You can learn there that the project was cancelled during initial flight testing of the prototype. It is not known if the aircraft actually transitioned in flight. The program's assets were purchased by Vanguard and some mechanical elements such as the rotors and transmission were incorporated into their Omniplane prototype.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,550
Reaction score
6,287
hesham said:
Hi,

the Jacobs 104 was unconventional helicopter project and may it was
submitted to convertiplane competition;http://www.secretprojects.co.uk/forum/index.php/topic,636.0.html

http://www.flightglobal.com/PDFArchive/View/1953/1953%20-%200113.html

Hi,

may be this convertiplane was involved in McDonnell XV-1 competition;

http://www.secretprojects.co.uk/forum/index.php/topic,636.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,550
Reaction score
6,287

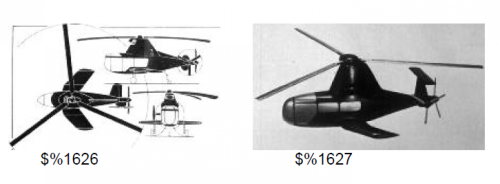

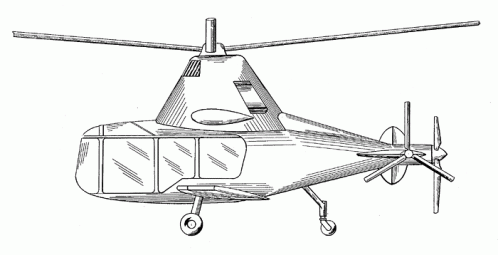

From a patent,the Jacobs 104 drawing.


Attachments

  • Jacobs 104.gif
    Jacobs 104.gif
    21.1 KB · Views: 604

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,550
Reaction score
6,287

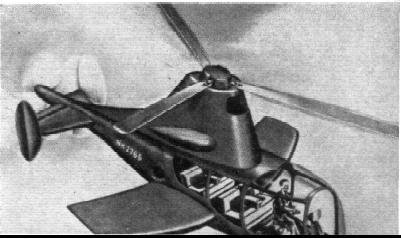

Page 175;

http://kulturserver-nds.de/home/hubtest/medien/Neg.Nr.GUN.pdf


Attachments

  • 1.png
    95.8 KB · Views: 60

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
706
Reaction score
522

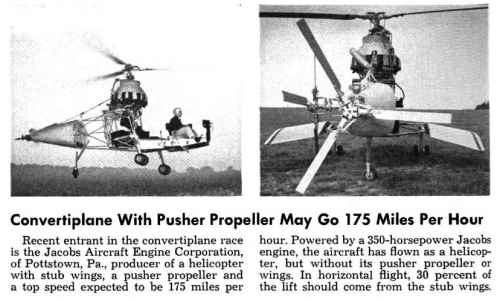

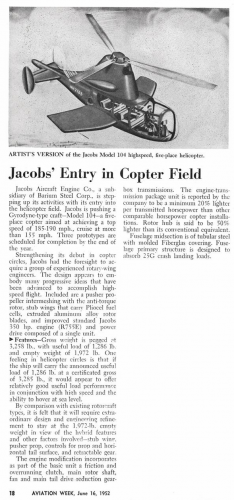

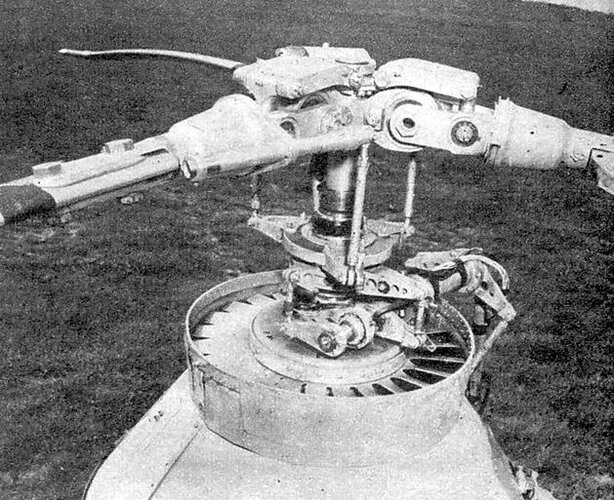

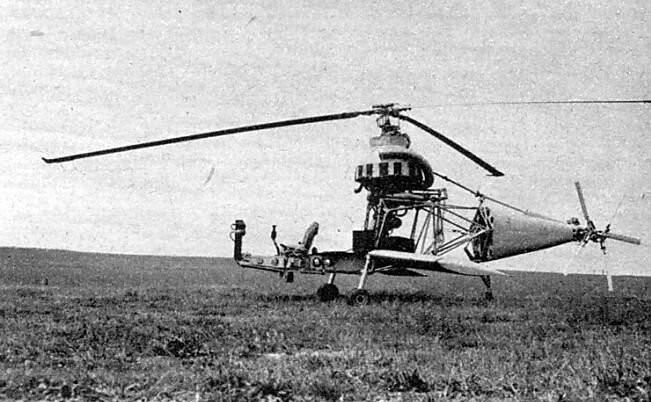

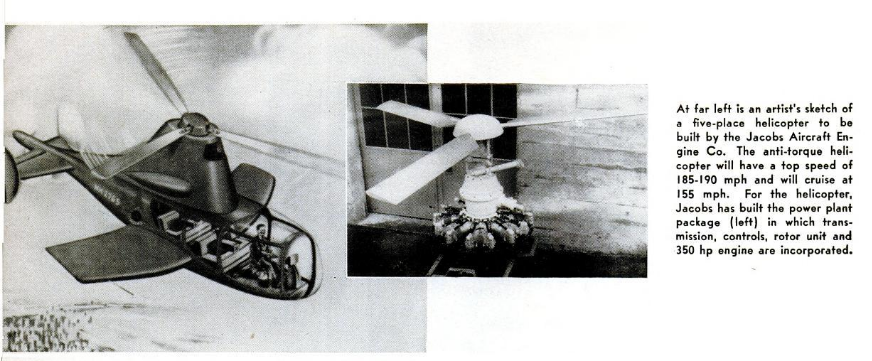

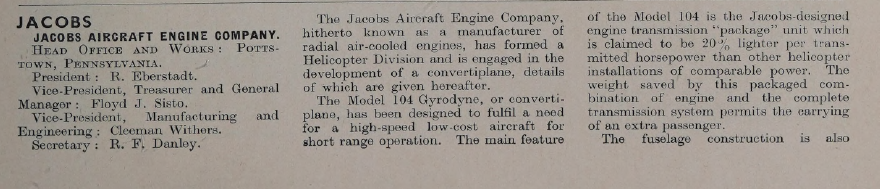

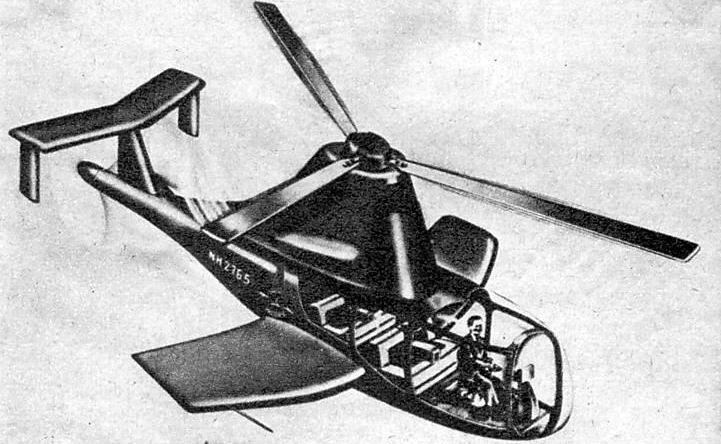

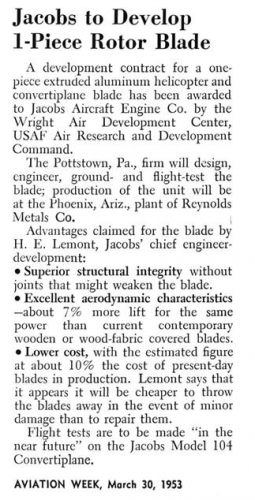

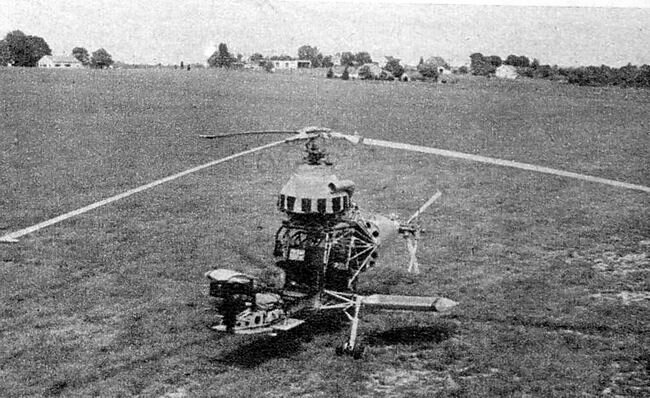

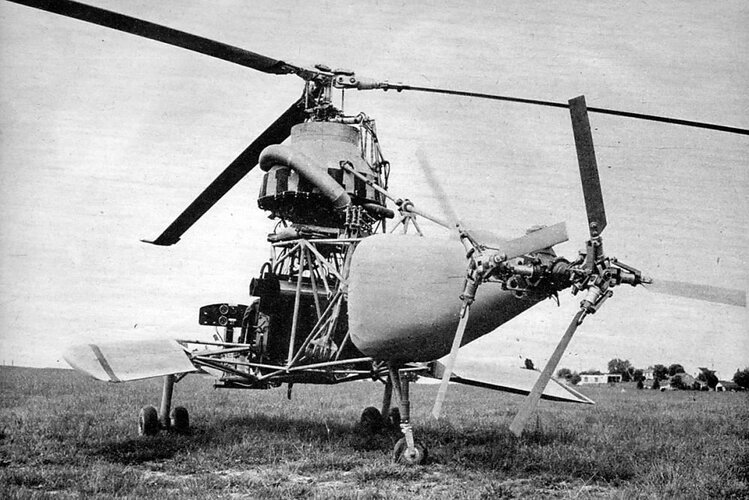

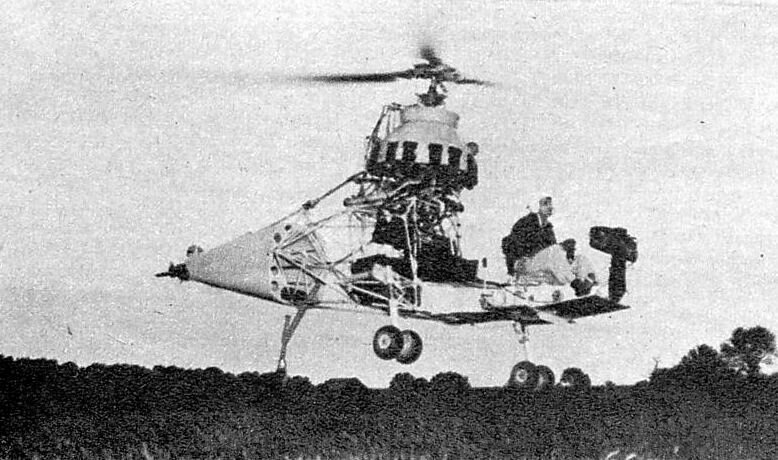

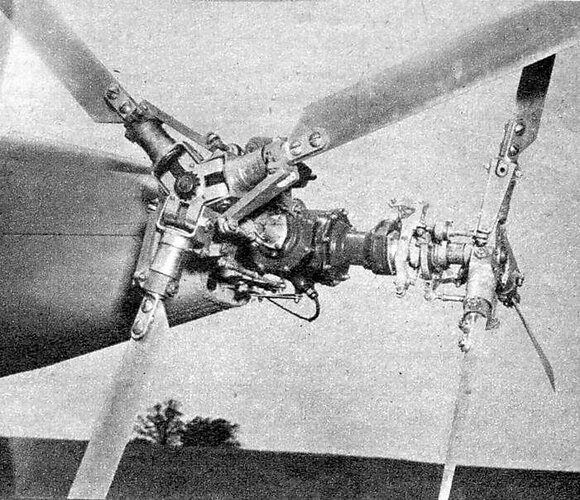

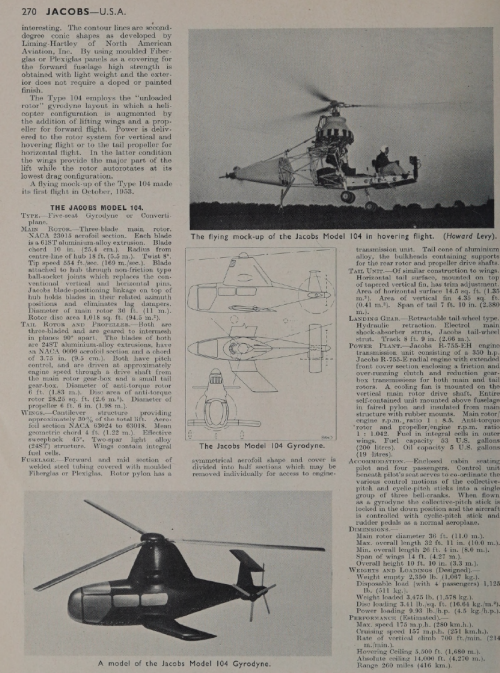

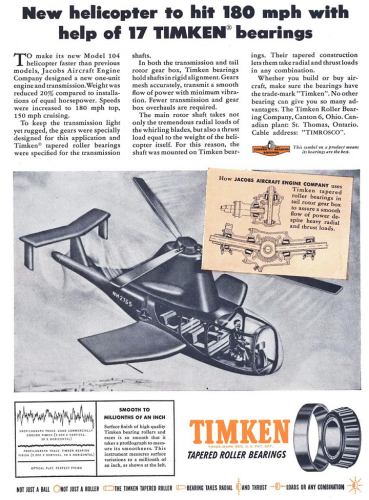

A little more info.


Attachments

  • 104 ad.png
    104 ad.png
    1,007.2 KB · Views: 45
  • 104.png
    742.4 KB · Views: 51
  • tfuo.png
    255.7 KB · Views: 43

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,550
Reaction score
6,287
Hi,

an Info needs a confirm,there was a Project proceeded this ,called Jacobs 103,maybe
also a convertiplane ?.
