Specification X.197T was issued in March 1959 to cover the design and construction of an aircraft to investigate the low-speed characteristics of the slender delta wing, in collaboration with the RAE.

Bristol submitted its Type 215. Designs were also tendered by Fairey, Miles and Handley-Page.
The Handley-Page proposal was selected and, in final, resulted in the HP.115 (under the revised specification ER.197D).


Is there more information available on those 4 initial X.197T proposals?

Thanks in advance


Attachments

  • HP-115.jpg
    33.4 KB · Views: 148

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,601
From Aeroplane Monthly .9.94, the original design to this specification


Attachments

  • X197T.JPG
    14 KB · Views: 175

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,095
Reaction score
643

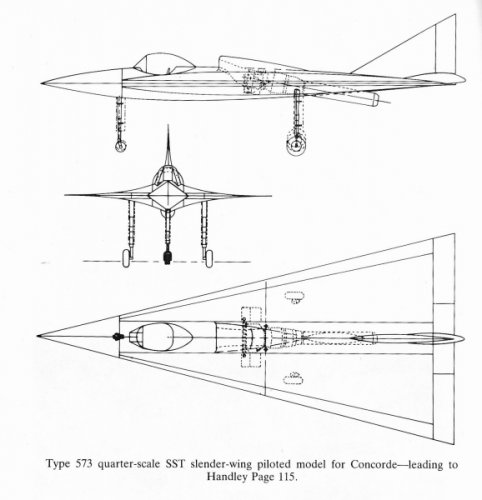

Supermarine type 573

3-view on page 332 of putnam's 'Supermarine', project list on page 353 has this to say:-

"(type)573 Quarter Scale SST Model for Concorde"

nothing that I can see in putnam's 'Miles', :(

cheers,
Robin.


Attachments

  • type 573.jpg
    type 573.jpg
    82 KB · Views: 160

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
615
Reaction score
165
Jemiba, Robunos,
Thanks a lot for information.
If the project presented in Aeroplane Monthly seems to be at the origin of the HP-115, the Supermarine Type 573 is a discovery for me (connection with Fairey or Bristol?)
Thanks again

Best regards,
