British T16/48 Spec.

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Hi,

the Spec. T16/48 was issued for new piston-powered basic
trainer to replace the Percival Prentice,the contenders were;

Avro-714
Airtech
Air Service Training
Auster AOP A.9
Blackburn B-80
Boulton Paul P.115 & P.116
Chrislea
De Havilland
English Electric
Elliotts EoN 2
Fairey
Folland Fo.132
General Aircraft GAL-?
Heston JC.?
Handley Page Reading HPR.2
Miles M-?
Percival P.56 Provost (the winner)
Planet
Slingsby
Westland

I will explain the Blackburn B-80 and Boulton Paul P.115 & P.116
later,and we know very well the Percival P.56 and HPR.2 and for
Avro-714 it was based on Avro-701,but let us discovered the
other tenders;
for the Eliotts its project was side by side and was designed
by helping of Aviation & Engineering projects Ltd. company
and for the Auster I can't determine its type;
who want to discover with me ?.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537

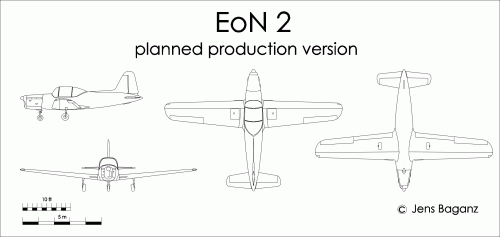

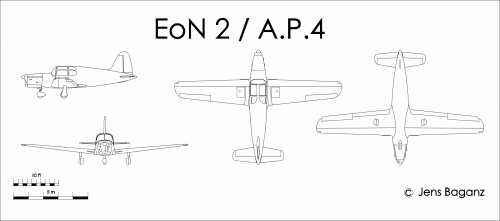

For the Elliotts (EoN) entry, I think it was the EoN 2, AFAIK the only trip of this
company, much better known for their sailplanes, into the world of powered
aircraft. It was described some years ago in an issue of "Wingspan". One
prototype flew for several years, I think, but the production version, with
cut-down fuselage and "bubble canopy" never left the drawing board, IIRC.
Will look for this magazine tomorrow, it's on the attic, and it's too cold now !


Attachments

  • EoN-2.GIF
    61.5 KB · Views: 1,901
  • EoN-2_1.GIF
    68.5 KB · Views: 1,691

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Thank you my dear Jemiba,

and the most interesting entry as I think,was from English Electric.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
I swear by my God,

exactly as I expected before,and from the member LAW,the Folland
proposal was Fo.132.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Hi,

as the member AM display a site for British Aviation,the Auster
proposal for T16/48 was A.9.

http://britishaviation-ptp.com/id131.html

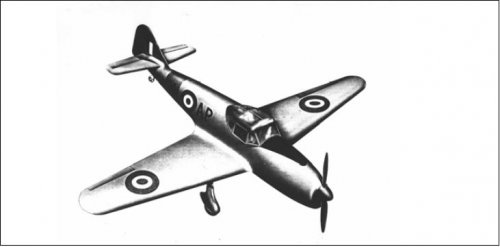

Also the Avro-714 from Avro Heritage site.


Attachments

  • 714.JPG
    20.4 KB · Views: 1,453

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Hi Fabulousfour,


the aircraft was built as EoN 1,one only,and after that redesigned as
EoN 2,with new engine,De Havilland Gipsy Major of 145 hp and
lengthened nose-wheel leg,so may be it was EoN 2.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Hi,

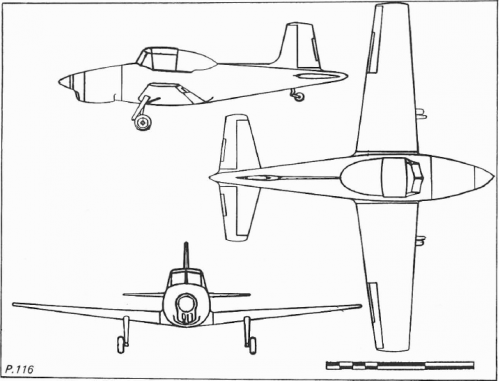

here is the Boulton Paul P.116 Project.


Attachments

  • P.116.png
    115.2 KB · Views: 930

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
hesham said:
the Spec. T16/48 was issued for new piston-powered basic
trainer to replace the Percival Prentice,the contenders were;

Planet

Hi,

the Planet Company submitted a proposal for this competition,maybe developed
from Satellite ?;

http://www.secretprojects.co.uk/forum/index.php/topic,1170.msg244361.html#msg244361


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Hi,

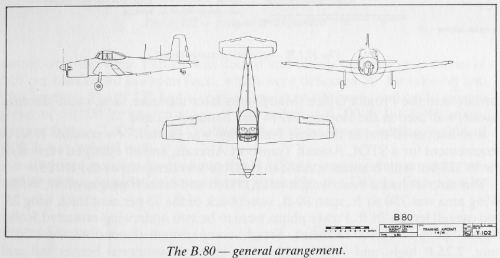

here is the Blackburn B-80 proposal.


Attachments

  • B.80.png
    360.7 KB · Views: 649

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Excellent Schneiderman,many thanks,

if you can help us in other unknown Projects,that will be great.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,593
Reaction score
914
This 1948 design from Fairey was probably their submission.

edit.....more here https://www.flightglobal.com/pdfarchive/view/1948/1948%20-%200163.html


Attachments

  • Fairey Primer 1948.jpg
    Fairey Primer 1948.jpg
    220.2 KB · Views: 81

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
hesham said:
Airtech
Air Service Training

Wow,amazing find my dear Schneiderman,

and can I ask you,what was those two companies,we never heard about them except in
this specification,and did they design any other aircraft or Projects ?,and thanks.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,593
Reaction score
914
After the war, and the cancellation of hundreds of contracts, anyone who could hold a pencil and spell the word aeroplane tried to get work by tendering to any specification that came along ;)
Which two companies were you asking about.


Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,597
Reaction score
3,034
A potted history of Air Service Training can be found on Wikipedia https://en.wikipedia.org/wiki/Air_Service_Training also Grace's Guide http://www.gracesguide.co.uk/Air_Service_Training.
Note there is a spurious reference in the Wiki article to AST having been previously Airwork Services but this is a mistake.
AST was founded by John Siddeley and later became part of Hawker Siddeley Aircraft. I don't think it ever designed its own products but perhaps they were offering refurbished or modified existing trainer stock?

A mere snippet of AirTech info can be found on Grace's Guide: http://www.gracesguide.co.uk/Airtech.
Again, they were probably offering some kind of refurb or modification deal.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Many thanks my dear Schneiderman and Hood,

but as my dear Schneiderman said and as I understand,maybe they have own
designs or as you said my dear Hood,just a conversions from un-owned real
airplanes.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,593
Reaction score
914
Sorry Hesham I missed where you had posted the names of the two companies.

More about Airtech here
http://www.haddenhamairfieldhistory.co.uk/airtech.htm
http://www.britishaviation-ptp.com/airtech.html

I agree with Hood, it seems unlikely that they had approved design capability.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
Oh my God,amazing sites,thank you my dear Schneiderman,

there was also C4 for AST,as a high-speed winged target,that's new for me ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
For Chrislea,did it develop a trainer Project from the aircraft actually built ?.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,059
Reaction score
595
This, from 'British Sailplanes and Gliders', N.H.Ellison, 1970, page 116:-

"A two-seat side-by-side seating training aircraft, designed by Elliotts of Newbury and Aviation & Engineering Products Ltd., to the above specification in competition to the Percival P56, Handley Page H.P.R. 2 and the Auster A.9
projects. All metal light alloy stressed skin construction.
Wing span: 12.34 m., 40' 6". Length: 9'25m., 30’ 4”.
Wing area: 22.3 sq.m., 240 sq.ft. Aspect ratio: 6.83."


cheers,
Robin.


Attachments

  • EoN T.16 48 Trainer 3 view.jpg
    EoN T.16 48 Trainer 3 view.jpg
    52.3 KB · Views: 149
