SNCAN (Nord Aviation) and Nord-SFECMAS Projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Nord-1800 was a project of jet bomber.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
And the NORD 1150 was a design powered by 3 Marboré engines., I gratefully
got a scan of the Fana article mentioning it by Tophe.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
first the SNCAN types (although we are severly leaving the "secret" region ! ;D )


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Hi,

SFECMAS-1404 :was a very strange design ,as a single seat
delta wing intercopter project,powered by
one Turbomeca Marbore II turbojet engine.


Attachments

starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
983
Reaction score
52
hesham said:
Hi,

SFECMAS-1404 :was a very strange design ,as a single seat
delta wing intercopter project,powered by
one Turbomeca Marbore II turbojet engine.
Hi Hesham,

where did the pilot sit? Does it have a prone cockpit in the nose?

Starviking


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Hi,

Nord N-1480.

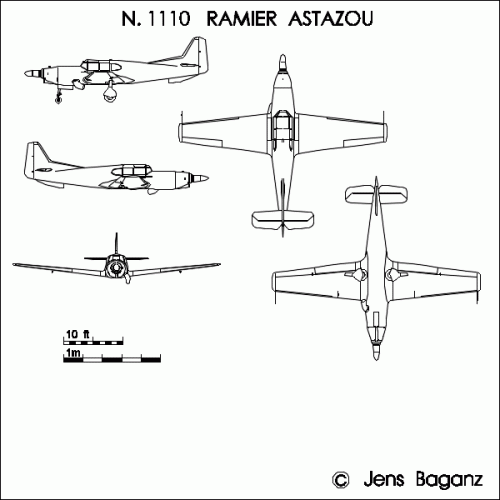

Nord N.1110 :was experimental N.1101 fitteed with Turbomeca
Astazou turboprop engine.

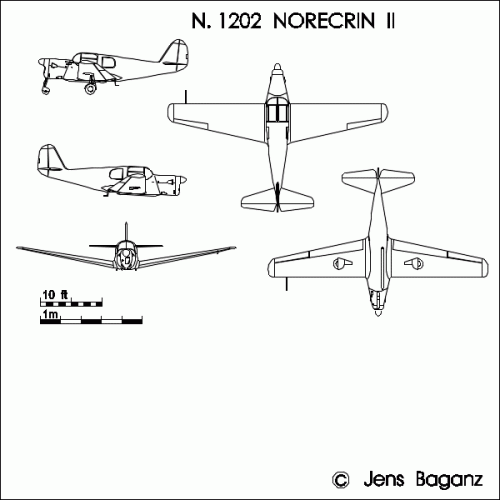

Nord N.1202 :was N.1201 fitted with 160 hp Potez 4DO1 engine.

And most of us know the Nord N.2500 to N.2510 variants and projects
,for example the N.2510 was ASW project version.The more interesting
the N.2520 project had 5m increased in length and 7 tonnes add to
the weight.

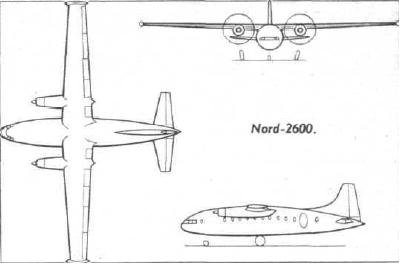

The Nord N.2600 was twin engined high wing 40-passenger
transport project,powered by 350 1b Rolls-Roryce Dart
turboprop engines,estimated speed was 295 mph.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
hesham said:
My dear Jemiba,

Do you have a more info about the Nord N.3500 civil/military transport aircraft projects ?.
Sorry for the Nord 3500, I drew a blank, but I really would like to see it ;D

For Brochet aircraft there's a very good site here:
http://avions.brochet.free.fr/
The MB.130 is shown in model form, I just can see one engine,
but at least it's a twin-boom a/c.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Hi,

I spoke about this bomber before,the Nord N.1800A B6 was six
seat piston engines heavy bomber,the N.1800B was a trubo-
prop version and the N.1800C was a jet bomber version (ATAR).
Has anyone a drawing to it ?.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
My understanding is, that the N.1800 A, B and C weren't just versions with
different engines, but really different designs. The first design got the suffix "A",
when it already was cancelled, because another, bigger design was submitted,
which later gave way to the "C" design with ATAR jet engines.


toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,202
Reaction score
73
Hi all

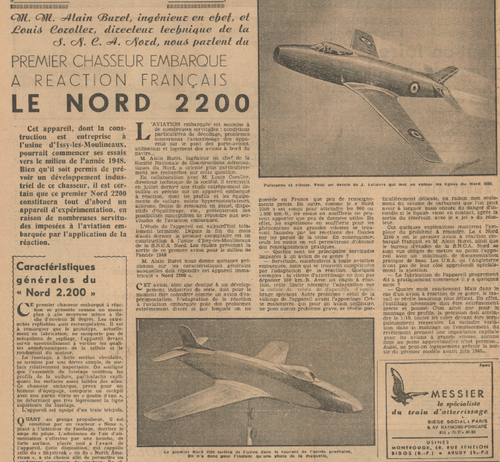

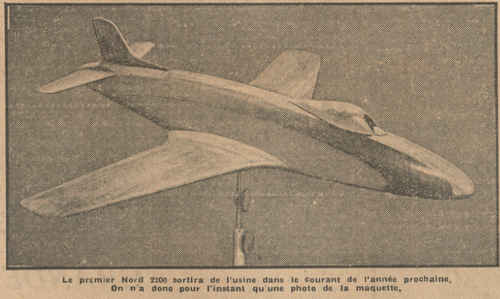

and the nord 2200 from "aviation magazine"


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Jemiba said:
And the NORD 1150 was a design powered by 3 Marboré engines., I gratefully
got a scan of the Fana article mentioning it by Tophe.

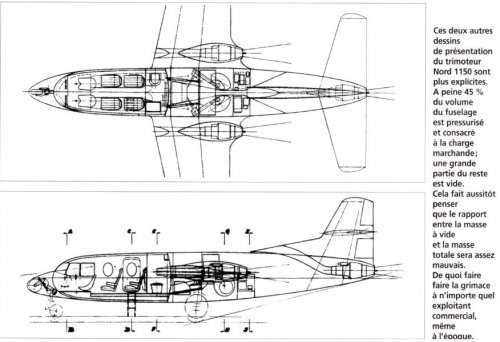

Also from Le FANA 436,


the details of Nord N.1150 executive jet aircraft project.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
255
Very nice. You've been posting a lot from Le Fana these past three weeks... Did you scan a collection? It's really nice, but I hope we won't get into trouble with Editions Larivière... :-\


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536

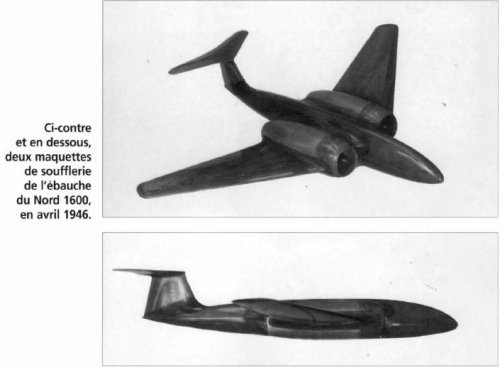

The model of the 1600 (with T-tail) is shown in Cunys "Les Aviosn De Combat Francais", too,
with the additional clue, that then still Rateau jet engines with larger diameter were considered.


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
562
Reaction score
134
hesham said:

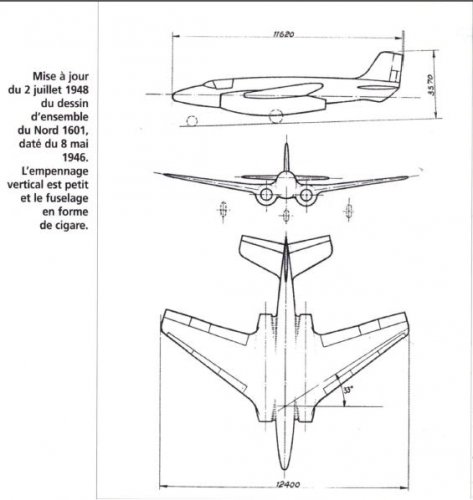

From Le FANA 436,

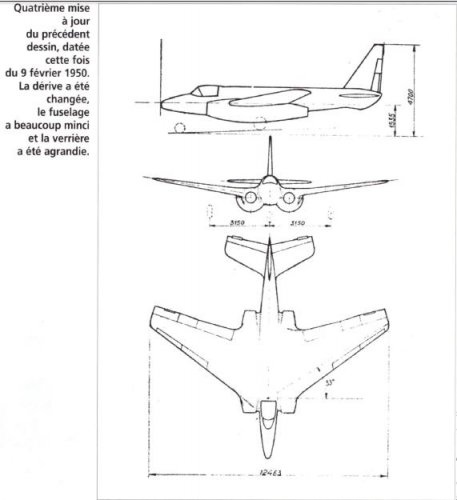

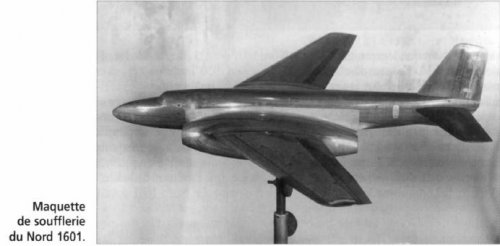

here is the Model of N.1600 project,and N.1601 of 1946,as a Model and 3-view,
also the final design to N.1601 of 1950.
Do you know if there were advanced, non-experimental versions of N.1601 design, which of course had never been built? Some websites say about an all-weather version...

Piotr


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536

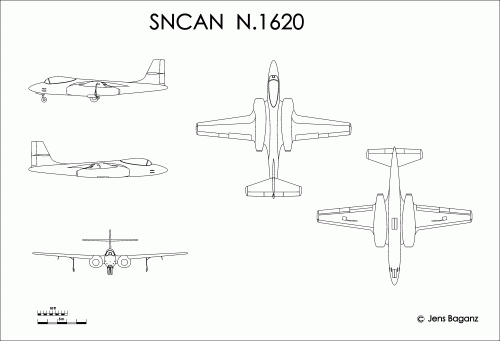

Maybe the N.1620, which is mentioned by Cuny ? Made a 3-view quite a while ago, using an
artist impression and description:
(artist impression from Jean Cuny, Docavia N°30)


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Stargazer2006 said:
Very nice. You've been posting a lot from Le Fana these past three weeks... Did you scan a collection? It's really nice, but I hope we won't get into trouble with Editions Larivière... :-\

That's a big advertising for them,as I did with Flight International. :D


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
255
hesham said:
That's a big advertising for them,as I did with Flight International. :D
Though you may think along those lines, remember there are some publishers who definitely do not see it that way. Think of the constant hassle on this forum with anything published by the Ian Allan Group for instance (which includes Midland, Classic, Airlife and so forth)...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
And we keep on never display a materials from their new books.


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
562
Reaction score
134
Jemiba said:
Maybe the N.1620, which is mentioned by Cuny ? Made a 3-view quite a while ago, using an
artist impression and description:
(artist impression from Jean Cuny, Docavia N°30)
It seems quite intriguing that Nord 1601 had swept wings and its 'derivative', conceived as an operational aircraft, was to have strainght wings. Was Nord 1620 indeed a developed version of Nord 1601?

By the way the article from "Le Fana de'l Aviation" No. 436 contains single piece of information on Nord 1620: its 'total' weight was to be 14,850 kg (while that of Nord 1601 was only 5,992 kg). So it would suggest that Nord 1620 was to be significantly heavier and bigger that Nord 1601.

Piotr


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
I would regard the N.1601 rather as an aerodynamic testbed, than a prototype
of a service version, comparing weights may be a bit misleading. And about chosing
a straight wing may have had , it may be a similar case, as the Douglas F3D Skyknight,
where a straight wing was used, too.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Hi,

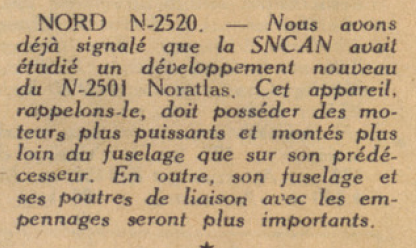

we spoke before about Nord N.2520 which developed from N.2500,but does anyone
hear about Nord N.2580 ?.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
No. Maybe a typo of N.2508, the version with auxiliary jet engines at the wing tips ?
Where is this designation mentioned ?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Jemiba said:
No. Maybe a typo of N.2508, the version with auxiliary jet engines at the wing tips ?
Where is this designation mentioned ?

May be that's right my dear Jemiba,

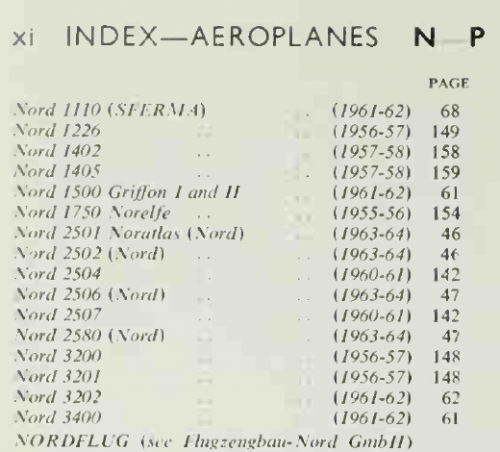

the Jane's All the World's Aircraft 1963-1964 will make us sure.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536
If you have that volume at hand, perhaps you could check, if on page 47, as given by
the index, really the "N.2580" is mentioned ?
Looking at that list a typo otherwise seems quite natural, I think


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
255
You don't even NEED to check the original volume to see it's a typo...

Check the page number: the 2508 can be found in exactly the same place in the book as the 2501-2507!!!

A typical example of getting all heated up over absolutely nothing. And typically the kind of blooper that ought to be discarded straight away, given everyone's experience in researching data here for many years in so many books and stuff.


Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
5
Just realised that this scan of an Aviation Magazine cover shows a lovely view of the R2800 installation on the 2508.

http://3.bp.blogspot.com/-pRLUqDAnxgU/UqX08e636KI/AAAAAAAAHdU/WJJ2vJBjYOQ/s1600/Nord+2508+AM+n%C2%B0265.jpg


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
546
Reaction score
160
Jemiba said:
Maybe the N.1620, which is mentioned by Cuny ? Made a 3-view quite a while ago, using an
artist impression and description:
(artist impression from Jean Cuny, Docavia N°30)
.......................................................................

N-1620 looks like it was designed by the same (German?) engineers who designed the CF-100 fighter and Jetliner for AVRO of Canada (1950s.)


Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
4
Website
rwrwalker.ca
Slightly off topic but:

The Avro Canada design team early post war was mostly British, with a smattering of Canucks and European refugees. The reason designs from this era look similar is because all the designers around the world were reading the same texts and using the same design and analysis tools. The same thing goes on today.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,124
Reaction score
213
The 2200 appears to be an F-86 clone.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176

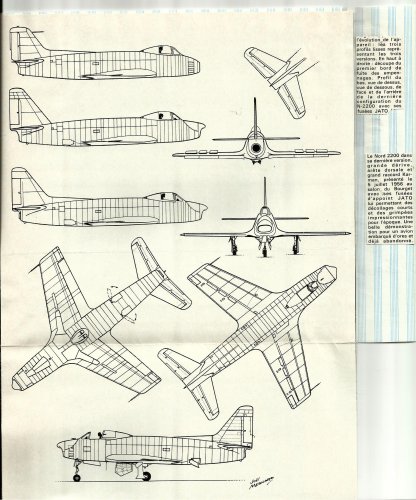

From Le Fana 449.


Attachments

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,904
Reaction score
491
Foo Fighter said:
The 2200 appears to be an F-86 clone.
The Nord 2200 was one of the three naval fighter competitors - for a PA-28 Clemenceau (not the one we knew, an earlier one) in 1949. Of the three, it was the better of the lot... in the sense it did not killed any pilot and had good flight characterstics. Except it was way too heavy for its Nene and its climb rate was abysmal.
The two competitors were
- Arsenal VG-90, two build, two crashed, Decroo and Dellys killed
- NC-1080 (Centre) one build, one crashed, Pierre Gallay killed.

Overall, a disaster. And the PA-28 was not even build ! A total waste of money and pilots.

https://www.google.com/search?q=%22Nord+2200%22&client=firefox-b-ab&source=lnms&tbm=isch&sa=X&ved=0ahUKEwij3Pqop6TdAhWNzYUKHee5A34Q_AUICigB&biw=1680&bih=936

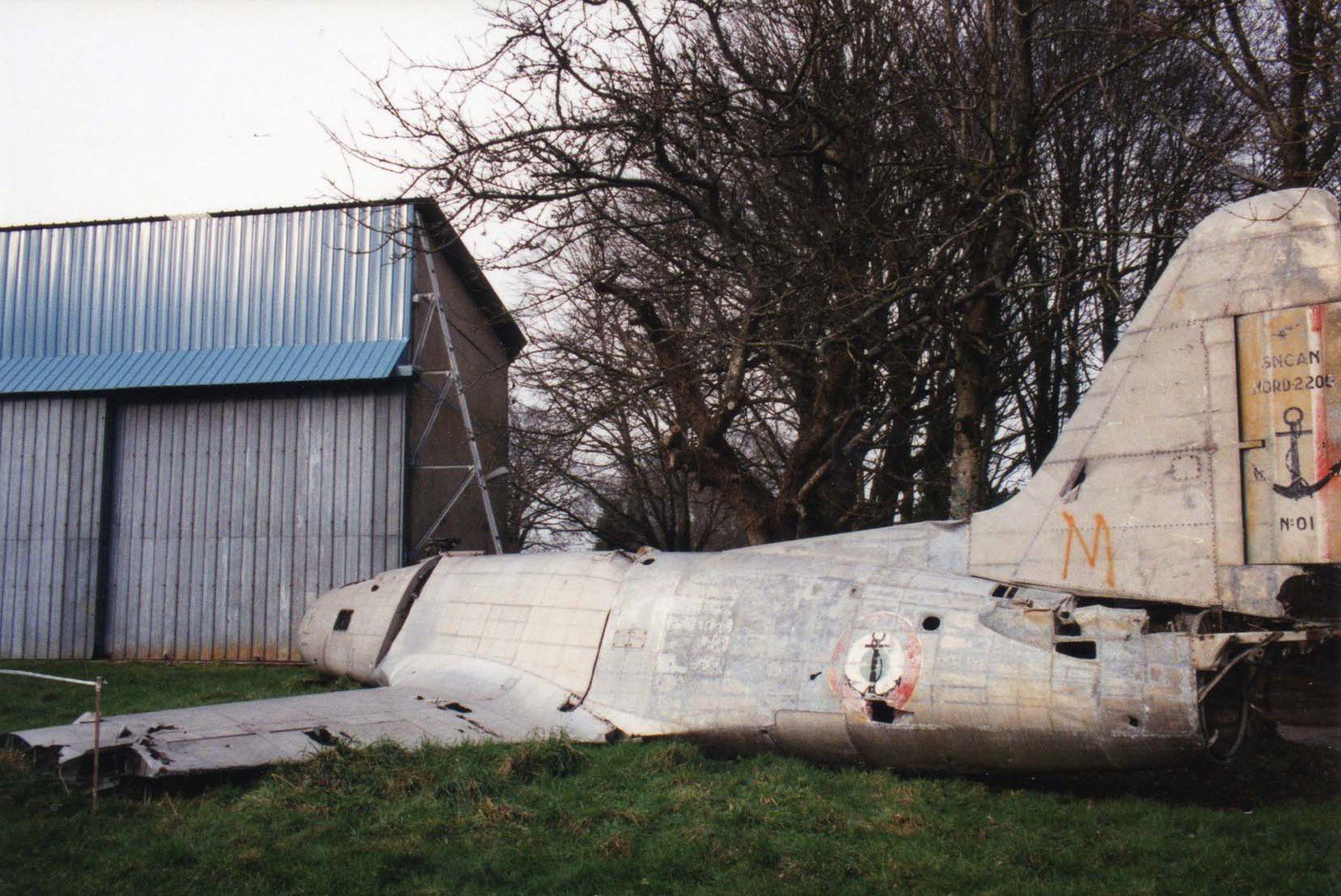

What was left of the Nord 2200 until recently. Unfortunately the wreck was beyond repair or restoration and was scrapped.



hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
From Aviation Francaise 1947,

here is an artist drawing to early Nord N-2200 concept,so weird ?!.


Attachments

Last edited:

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176

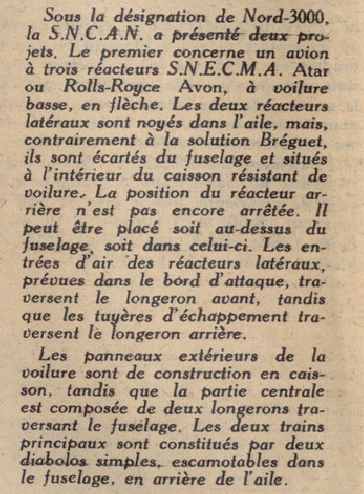

From Aviation magazine 1953,

here is a good Info about Nord N-3000 jet airliner Project,in two variants;

Under the designation of Nord-3000, S.N.C.A.N. presented two Projects. The first concerns an airplane
with three S.N.E.C.M.A. Jets Atar or Rolls-Royce Avon, airfoil low, soaring. The two reactors lateral
are drowned in the wing, but,unlike the Bréguet solution,they are moved away from the fuselage and
located inside the resistant box of sails. The position of the rear reactor has not yet been determined.
He can be placed either above the fuselage, either in this one. The air intakes of the side reactors,
provided in the leading edge, cross the front spar, while that the exhaust nozzles pass through the rear
spar.

The external breakdowns of the sails are in box construction, while the central part is made up of two
beams crossing the fuselage. The two trains main consist of two simple diabolos. retractable in the
fuselage, behind the wing.

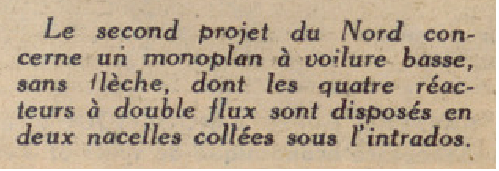

The second Project from the North concerns a low-wing, arrowless monoplane, the four double-flow
Jets of which are arranged in two pods glued under the lower surface.


Attachments

Last edited:

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
From Aviation magazine 1954,

here is a small Info about Nord N.2520,which developed from N.2501.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176

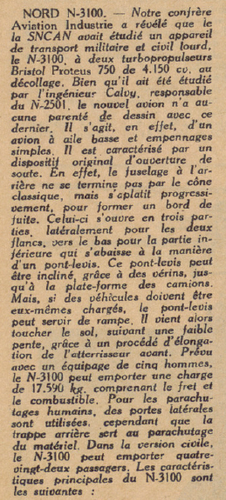

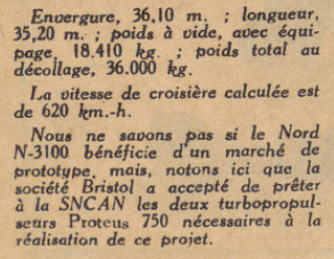

From Aviation magazine 1954,

here is all Info about Nord N.3100 Project.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
From Aviation magazine 1969,

here is a Nord N.400,I know dear Caravellarella send it before,but where ?.


Attachments

Top
