Skoda-Kauba aircraft:

the company tried to develope a flying bomb to RLM,so the proposed
of flying bomb was tested in a light monoplane,the V.1 wehich was written
off in a crash.two modified,the V.1A and V.2, were tested before the project
was abandoned in 1943.other designs in the series were the V.3 light
sports aircraft,theV.4 fighter trainer,the V.5 single seat piston engined
fighter,the V.6 twin boom pusher monoplane,the V.7 canard research

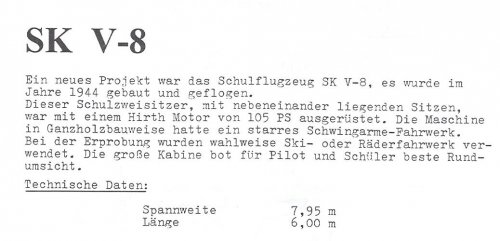

aircraft and the V.8 primary trainer aircraft,anther aircraft and projects
to this company,the SK-257 which based on V.4, SL-6 research aircraft
based on V.6,P.14 ramjet fighter project and with Fiesler the FiSk-199 ,
it was well known.

Last edited:

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,326
Reaction score
1,425

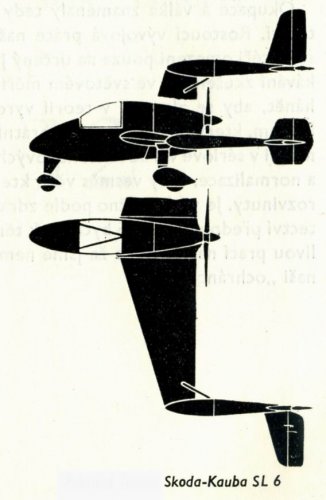

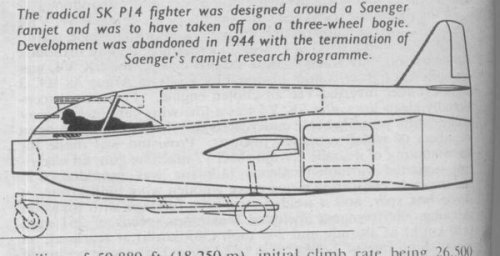

Bought a pile of Flying Reviews this year and in the November '65 issue
was an article (3pages) about Skoda Kauba. Here two pictures of the SL6
and the P14 :


Attachments

  • Skoda_Kauba_SL6.JPG
    39.6 KB · Views: 892
  • Skoda_Kauba_P14.JPG
    32.7 KB · Views: 848

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,189
Reaction score
4,653
In le Fana de l'aviation of 1992 (same nubers as the CF-105 arrow) was a monography of the Skoda aircrafts, and there was also pictures of the skoda Kauba. have to check!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,177
Reaction score
5,725
The Completing story of Skoda-Kauba aircraft,

Skoda-Kauba aircraft:the company tried to develop a flying bomb to RLM,so the proposed of flying bomb was tested in a light monoplane,the V.1 which was written off in a crash.two modified,the V.1A and V.2, were tested before the project was abandoned in 1943.other designs in the series were the V.3 light sports aircraft,the V.4 fighter trainer,the V.5 single seat piston engined fighter,the V.6 twin boom pusher monoplane,the V.7 canard research aircraft and the V.8 primary trainer aircraft.anther aircraft and projects to this company,the SK-257 which based on V.4, SL-6 research aircraft based on V.6,P.14 ramjet fighter project and with Fiesler the FiSk-199 ,it was well known.The V.9 a miniature aircraft which was to have been powered by an engine of only 15 hp,V.10 was trainer aircraft,powered by two Argus As 411 engines,V.11 was advance trainer with a single Argus As 411 and V.12 aerodynamic research aircraft embodying forward wing sweep and powered by a 70 hp engine.


Raketyr

ACCESS: Restricted
Joined
Feb 7, 2008
Messages
11
Reaction score
9
Hello everybody,

I am looking for drawings of Skoda Kauba planes. I am the most interested in projects Kauba V5 and Kauba SL6. Does anybody have those?

Thank you.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
There was a number of Le Fana with a lot of info. More details tonight :)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,177
Reaction score
5,725
Execuse me my dear pometablava,

but a small info about Skoda V.5 here;
http://www.secretprojects.co.uk/forum/index.php/topic,836.0.html


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,326
Reaction score
1,425

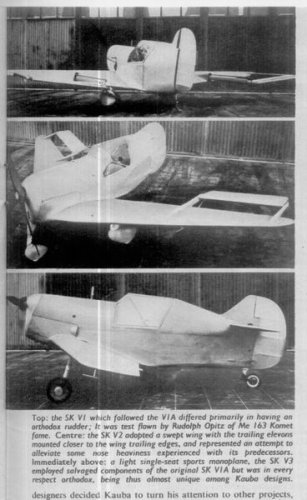

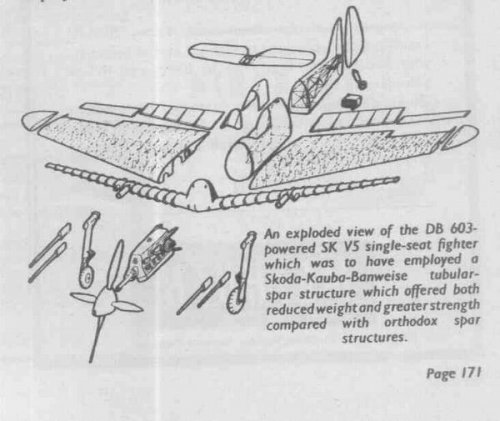

Apart from the SL6 and the P14, already mentioned by Hesham, the same Flying Review
article showed the SK VI A, SK VI, V2 and the V3 with photos and the V5 with an
exploded view.


Attachments

  • SK_VIA.JPG
    42.5 KB · Views: 681
  • SK_VI-V2-V3.JPG
    43.5 KB · Views: 669
  • SK_V5.JPG
    43.4 KB · Views: 647

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
156

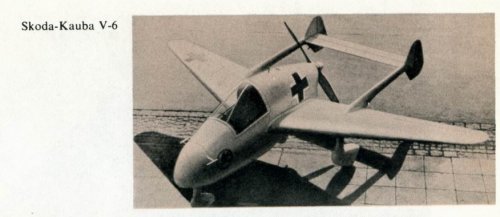

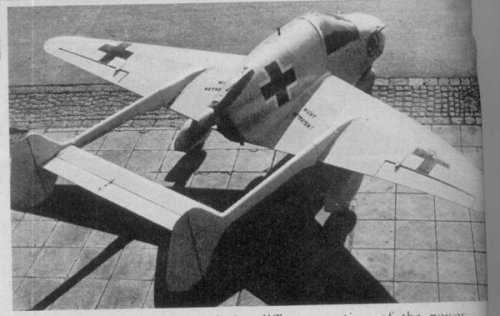

Emersed some bumble around SL-6 and SK-V6.
See please photo from V.Nemecek "Ceskoslovennska Letadla 1918-1945"


Attachments

  • S-K  SL6.jpg
    S-K SL6.jpg
    41.9 KB · Views: 259
  • S-K V-6.jpg
    S-K V-6.jpg
    44.9 KB · Views: 258
  • Skoda-Kauba.jpg
    75.5 KB · Views: 258

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
38

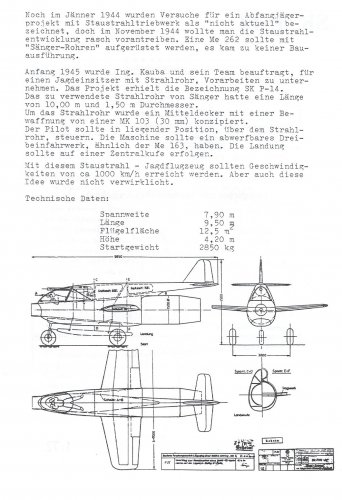

Thanks for posting that, Joe. The supersonic P.14 version is mentioned in Jet Planes of the Third Reich, The Secret Projects vol.1 with the note that "no further details are known", and I've wondered how it would have looked like.


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
I have read that the P.14S could reach a top speed of 3200 km/h.
I think that this is a construction from Dr. Eugen Sänger.
It is also known as "Staustrahlüberschallflugzeug"

I have heard that Skoda have built a 1:1 model of this project.


Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
101
Reaction score
8
A lot of German projects claimed supersonic potential, but the Germans (or anyone else for that matter) had no real understanding of transonic and supersonic aerodynamics.

Kim M


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
A lot of German projects claimed supersonic potential, but the Germans (or anyone else for that matter) had no real understanding of transonic and supersonic aerodynamics.

I agree with you :)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
We must no confuse the Skoda-Kauba designs with the
work of Eugen Sänger.

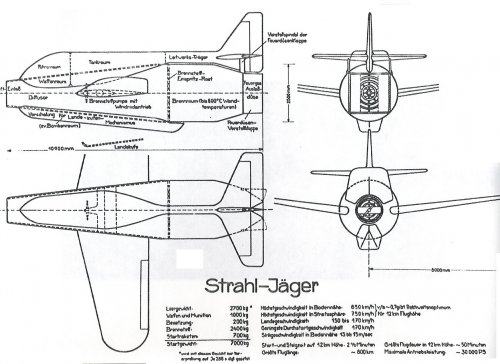

The max. estimated speed of the Lorin powered Sänger Strahljäger project
was +- 850km/h at sea level.

Naca TM No 1106


AF

ACCESS: Restricted
Joined
Oct 21, 2007
Messages
44
Reaction score
1

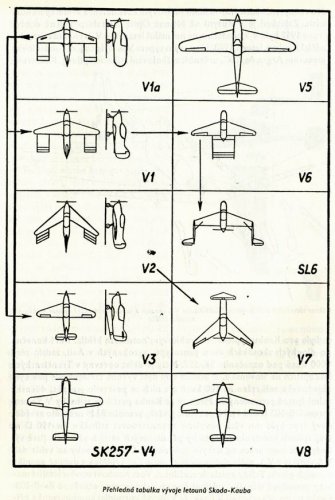

skoda-kauba piston planes development tree
http://i83.photobucket.com/albums/j296/honzaaf/skodakauba.jpg

skoda kauba V5 assembly
http://i83.photobucket.com/albums/j296/honzaaf/skodakaubav5assembly.jpg

skoda kauba SL6
http://i83.photobucket.com/albums/j296/honzaaf/skodakaubasl6.jpg

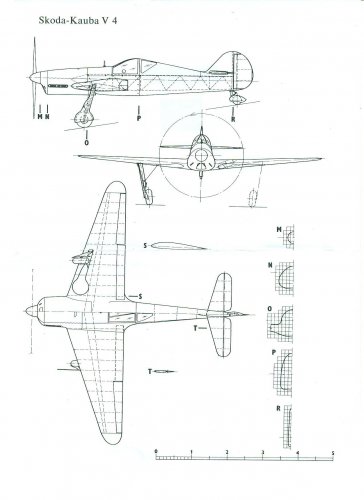

skoda-kauba V4
http://i83.photobucket.com/albums/j296/honzaaf/skodakaubav.png

does anybody have 3 side draws of Skoda - Kauba aircraft??


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
By the way here is a Fieseler-Skoda project
http://www.xs4all.nl/~tozu/me109/family/FiSk-199.htm


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,177
Reaction score
5,725
Hi,

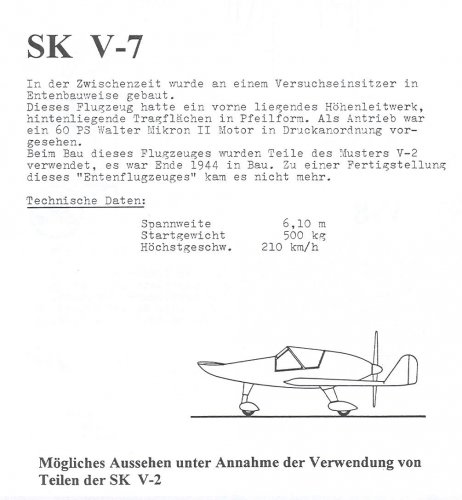

Skoda V.7.


Attachments

  • cz v.7.jpg
    cz v.7.jpg
    43.1 KB · Views: 435

Merv_P

ACCESS: Confidential
Joined
Jul 29, 2006
Messages
115
Reaction score
7

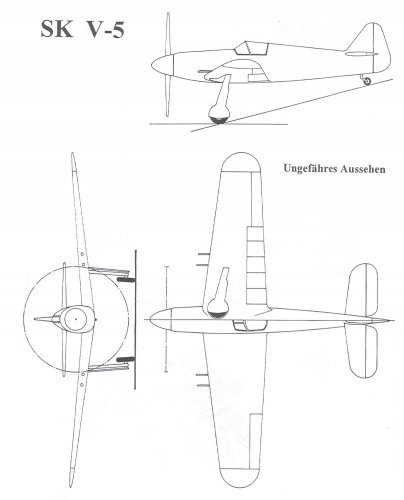

Skoda Kauba V5 said:
;) ;) ;) ;) ;) ;)
have anybody v5 plans?

I've seen mention of them in the 'Reichdreams Dossiers'. They're being released in downloadable form at the moment. Justo might be willing to post an individual 3-view; he's done so in the past.

All I've seen for this aircraft is a box-art picture.


Attachments

  • Skoda-Kauba_V5.jpg
    33.6 KB · Views: 423

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,406
Reaction score
151
Website
cluttonfred.info
I don't have any plans, but our own Orionblamblam is making the Miranda/Mercado Reichdreams series available for download and the Skoda-Kauba V5 is featured in one:

UNKNOWN! No. 1
36 pages including 1/72 scale drawings of 23 unknown WWII airplanes together with a brief history and technical data (English Text). Coloured cover and back cover.

P.Z.L. P56 A/B "Kania" (Poland)
Renard R.40 (Belgium)
Nakajima Ki.62 (Japan)
North American F.T.B. Mid-Fuselage Mustang (USA)
Reggiane Re 2006 (Italy)
V.L. PYORREMYRSKY (Finland)
Skoda Kauba V5 (Germany)
Aresenal VG.30/33/36/39/40/50/60 (France)
Nikitin-Schevchenko IS-1/IS-2/IS-4/IS-14/IS-18 (USSR)
Saab J27 (Sweden)
Hawker P.1027 "R.R. Eagle/Tempest" (Great Britain)


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,012
Reaction score
419
Hi all,

I search for more info´s and drawing for the Skoda-Kauba projects Sk.V.7; Sk.V.9 to Sk.V.(P.?)13.... ???

Servus Maveric


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,908
Reaction score
3,862
Website
www.amazon.com

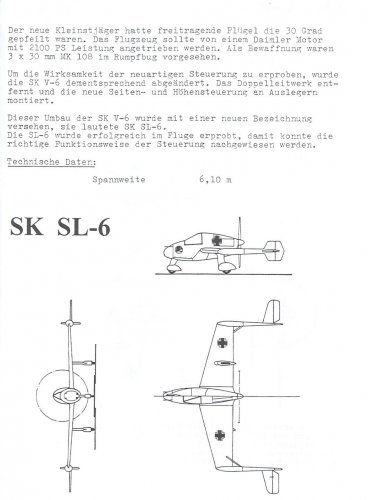

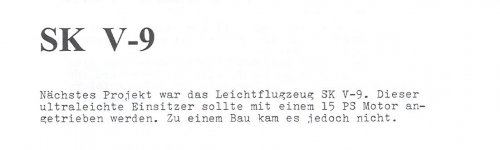

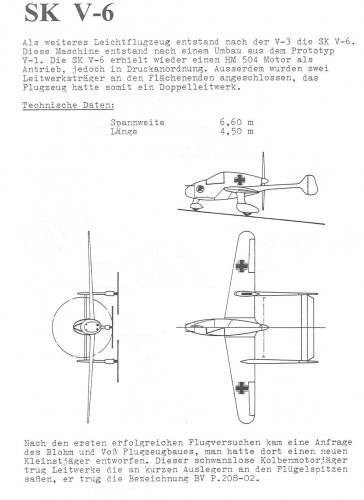

Skoda Kauba stuff here... (post -1)


Attachments

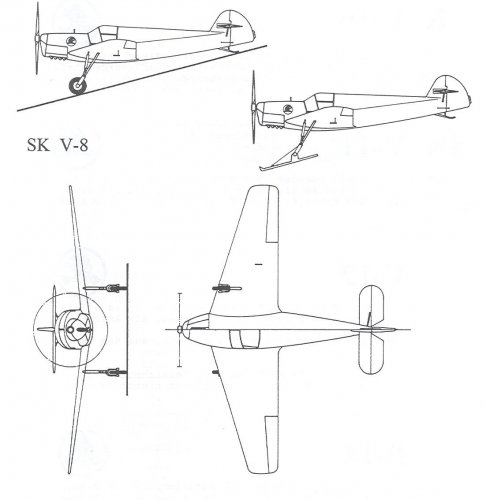

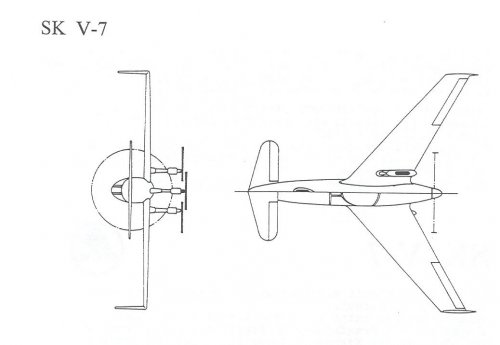

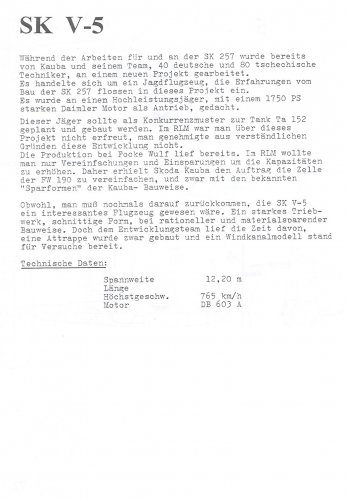

  • Escanear0001.jpg
    169 KB · Views: 428
  • Escanear0002.jpg
    87.3 KB · Views: 448
  • Escanear0003.jpg
    134.4 KB · Views: 411
  • Escanear0004.jpg
    122.4 KB · Views: 249
  • Escanear0005.jpg
    100.8 KB · Views: 232
  • Escanear0006.jpg
    37.6 KB · Views: 219

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,908
Reaction score
3,862
Website
www.amazon.com
Skoda Kauba stuff here... (post -2)


Attachments

  • Escanear0012.jpg
    252.2 KB · Views: 327
  • Escanear0011.jpg
    230.6 KB · Views: 222
  • Escanear0010.jpg
    182.9 KB · Views: 179
  • Escanear0009.jpg
    29 KB · Views: 169
  • Escanear0008.jpg
    72.3 KB · Views: 201
  • Escanear0007.jpg
    65.9 KB · Views: 195

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,326
Reaction score
1,425
Mole said:
Neat, though could anyone translate the German text?

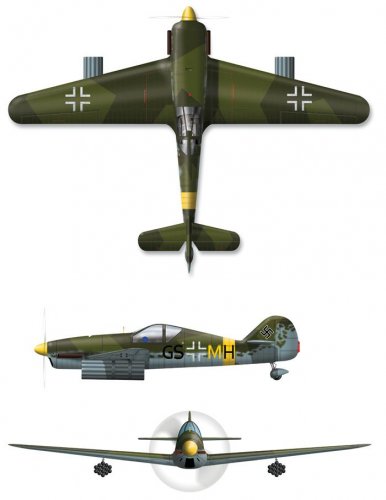

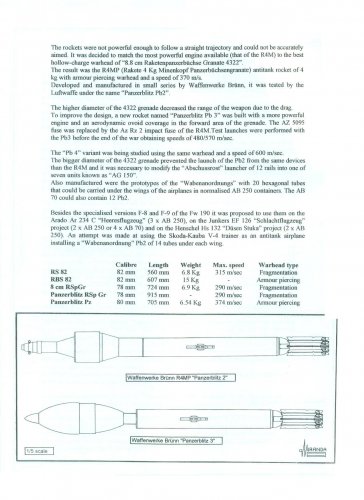

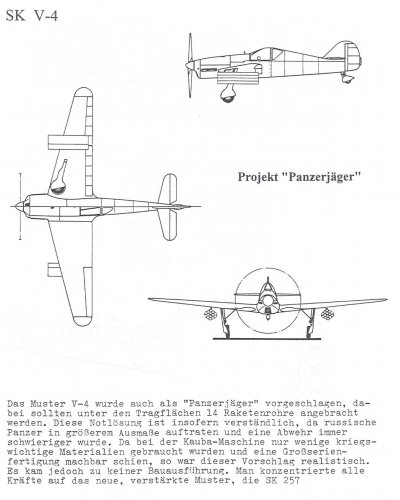

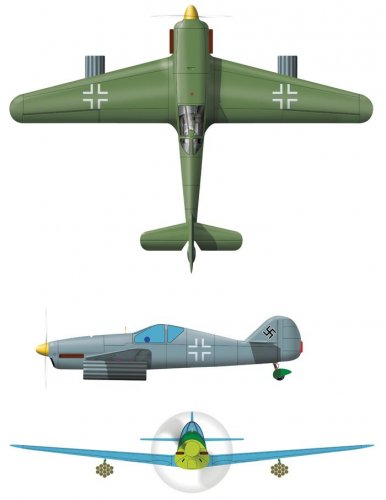

" The type V-4 was proposed as a "tank killer". too,carrying 14 rocket launch tubes
under the wings. This makeshift is understandable, as ever more russian tanks
were met on the battle field and defending them became more and more difficult.
The Kauba type didn't need a lot of strategic important materials, so production in
large numbers seemed to be realistic.Nevertheless, the project never came to fruition
All efforts were concentrated on the new, improved type, the SK 257. "


skip

ACCESS: Restricted
Joined
Jun 11, 2010
Messages
1
Reaction score
0
Hi all, A new kid on the block here.. I am seeking help in finding information and hopefully photo's of the Skoda Kauba sk v12. Aerodynamic research aircraft, built in the mid 1940's.... Thanks in advance to any and all replies ..


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
47
Website
cmeunier.chez-alice.fr

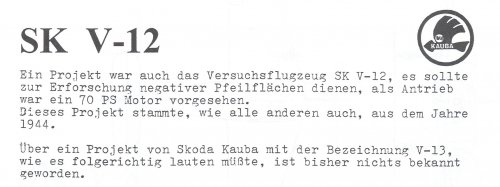

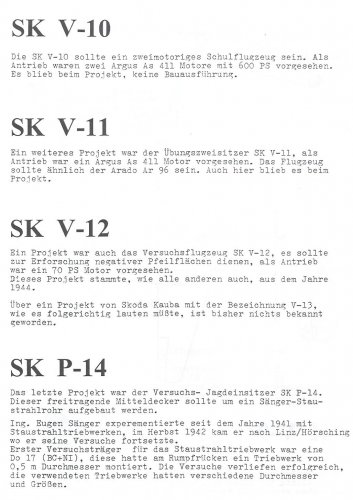

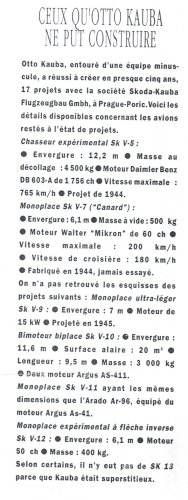

Translation from French source of Justo:
"(staying as projects)
Experimental single-seater with forward swept wing sk V-12 - span 6.1m, engine 50hp, weight 400kg."


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
42
Does any one have a 3-view of the SK 257 please?


Many thanks
P


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
47
Website
cmeunier.chez-alice.fr
Internet had one but it was discarded, maybe due to Copyright issue. If you have problems getting it with Google, ask me (my E-mail is on my profile, not yours so I could not send it directly). Or/and I will check Nemecek book for a bigger view maybe. :)


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
47
Website
cmeunier.chez-alice.fr
Tophe said:
I will check Nemecek book for a bigger view maybe. :)
In Vaclav Nemecek's book "Ceskoslovenska leteadla" (Nase Vojsko publ. 1968), page 28 of 3-views part, is the Skoda-Kauba V 4, maybe not the re-engined SK-257. Would that be useful? For a 1968 book, I think there cannot be a Copyright issue.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,908
Reaction score
3,862
Website
www.amazon.com
"Does any one have a 3-view of the SK 257 please?"


Attachments

  • ñ 002.jpg
    ñ 002.jpg
    84.5 KB · Views: 1,071
  • ñ 001.jpg
    ñ 001.jpg
    156.8 KB · Views: 1,136
  • ñ.jpg
    351 KB · Views: 1,123

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
42
In your debt as usual Justo.
Brilliant.
Many thanks


Peter :)


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
42

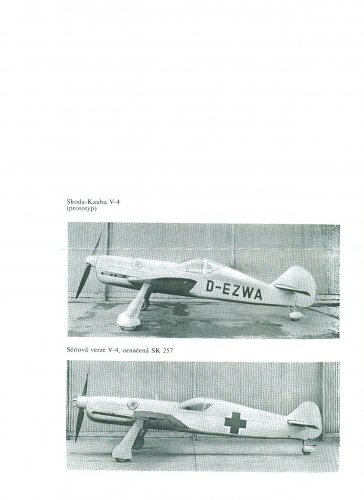

Progress report on the SK V4.


The first prototype flight I think was in 1943?
When would the RLM directive of using light fighters such as the SK V4 as a tank killer have been?


Many thanks
P


Attachments

  • SKV4PROF1.jpg
    36.3 KB · Views: 284

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
42
Another question or two please re: SK V4.


Were all movable surfaces metal skin or were the tail and flaps fabric covered?


Also fuel tanks positions if anyone could point them out please?


Progress pic below.


Many thanks
P


Attachments

  • SKV4PROF2.jpg
    38.9 KB · Views: 271
