My dears,

you know that company TNCA,and its aircraft were as follwoing;

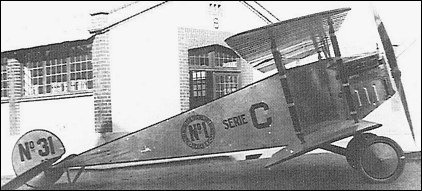

series C Microplano single seat biplane fighter which was powered

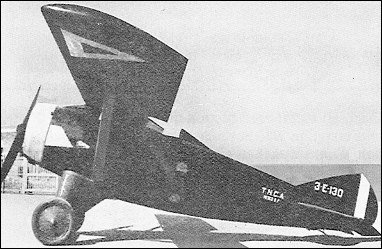

by one 180 hp Hispano-Suiza engine,Model 3 E-130 was also single
seat parasol wing monoplane fighter,powered by one 160 hp Le Rhone

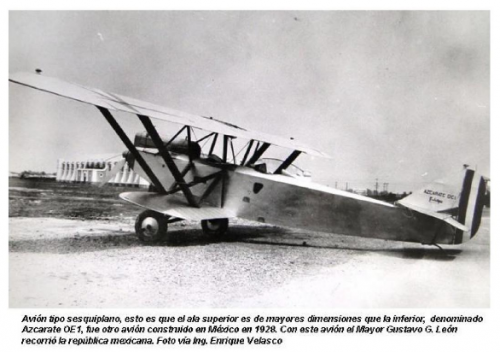

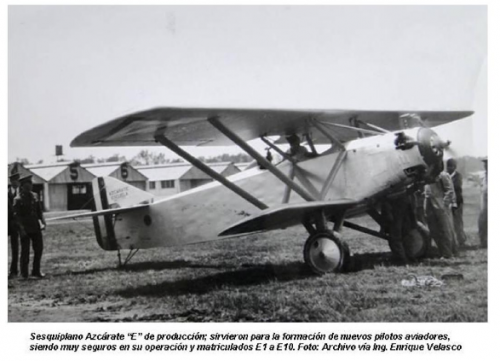

engine,series A was two seat general purpose biplane,Azcarate E was
two seat trainer sesquiplane,O E-1 two seat light bomber and reconna-
issance sesquiplane,series H was two seat trainer aircraft,Teziutlan was
primary trainer aircraft and one from post war TTS-5 six seat twin engined
general purpose transport aircraft.

do you know TNCA Quetzolcoat aircraft?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
Hi,

no one knows Quetzolcoat or anther aircraft to this company !.


Attachments

  • tnca_microplano.jpg
    26.8 KB · Views: 712
  • tnca_tololoche.jpg
    30.7 KB · Views: 643

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
346
Hi hesham,

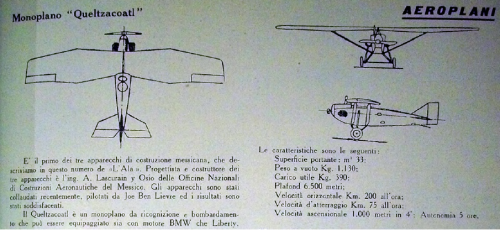

the TNCA Quetzalcoatl was the model 4-E-131, a two-seater light bomber or reconnaissance monoplane fitted with a 185h.p. B.M.W.
The model 6-E-136 was a version of the 4-E-131 known as Quetzalcoatl-Liberty with a 400h.p. Liberty.
The model 5-E-132 was a two-seater training monoplane fitted with a 80h.p. Le Rhone.
A picture and a 3-view of the 4-E-131 I have found in the JAWA of 1926/27.

Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
Hi,

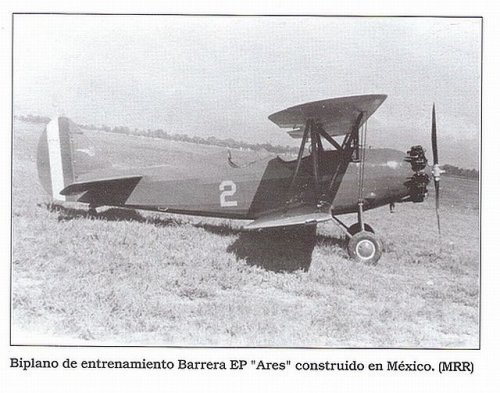

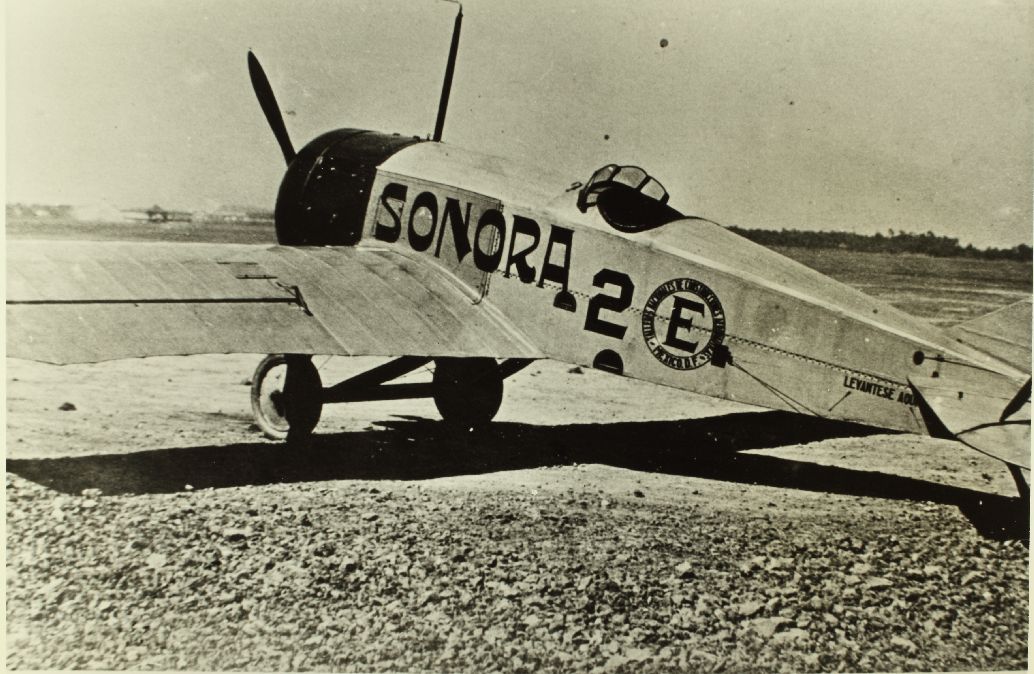

here is the TNCA Barrera or Barreda and Sonora aircraft.


Attachments

  • TNCA Barrera.JPG
    TNCA Barrera.JPG
    67.9 KB · Views: 425
  • Sonora.jpg
    74.6 KB · Views: 407

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
480

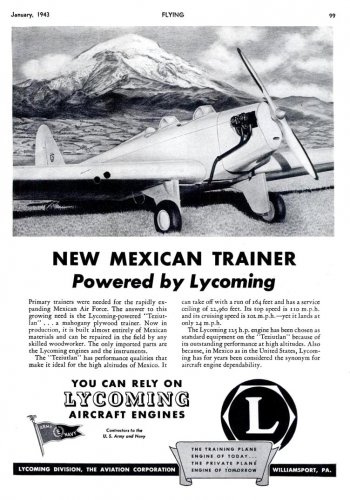

A 1943 ad for Lycoming featuring the Teziutlan:


Attachments

  • TNCA Teziutlan.jpg
    TNCA Teziutlan.jpg
    183.7 KB · Views: 273

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
Hi,

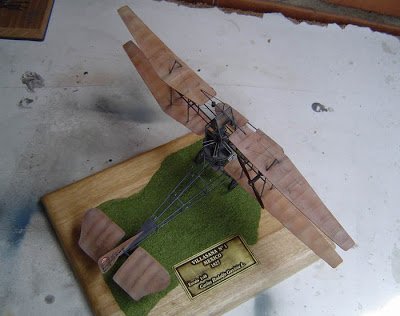

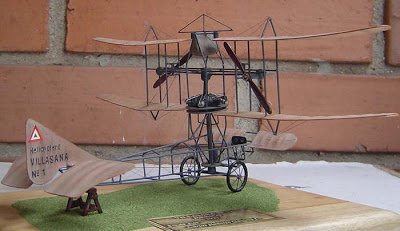

Mr. Juan Guillermo Villasana designed a Villasana No.1,it was an experimental helicopter
built in Mexico between 1923 to 1925;

http://drsamuelbanda.blogspot.com.eg/2012/11/la-aviacion-en-la-revolucion-mexicana_18.html


Attachments

  • 3.jpg
    32.6 KB · Views: 39
  • 2.jpg
    31.5 KB · Views: 33
  • 1.jpg
    31.5 KB · Views: 31

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
480
hesham said:
Mr. Juan Guillermo Villasana designed a Villasana No.1,it was an experimental helicopter
built in Mexico between 1923 to 1925;
http://drsamuelbanda.blogspot.com.eg/2012/11/la-aviacion-en-la-revolucion-mexicana_18.html

Very interesting, but slightly out of place as this was not a TNCA aircraft.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
480

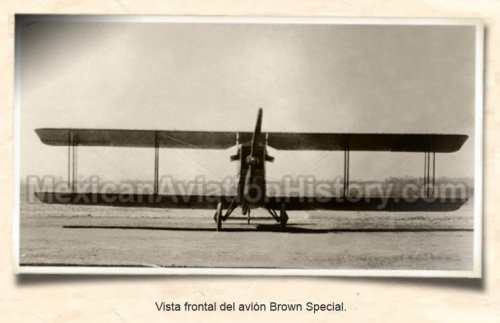

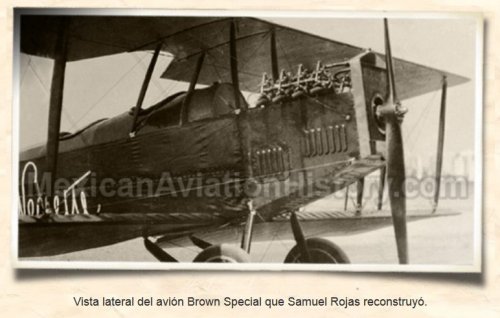

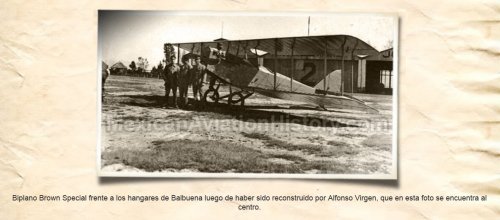

Here is the 1921 Brown Special, a biplane trainer with inline engine, designed and built by Lawrence W. ("Larry") Brown in the United States and assembled by TNCA in Mexico for use with the Fuerza Aeréa Mexicana. Larry Brown began to fly in 1914, and built his first aircraft in 1916 for aerobatics. He first wound up in Mexico as a mercenary pilot, and later as an aeronautical consultant for the Mexican government (he also had a small transport and agricultural work business). Four "Specials" are said to have been built, though possibly only two were assembled locally. Only number "51" is known.


Attachments

  • Special 01.jpg
    Special 01.jpg
    107.2 KB · Views: 36
  • Special 02.jpg
    Special 02.jpg
    61.3 KB · Views: 34
  • Special 03.jpg
    Special 03.jpg
    51.4 KB · Views: 29

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
Yes I know that,

but maybe built the TNCA company,also in Wikipedia,they included it under this company;

https://en.wikipedia.org/wiki/List_of_aircraft_(Tn)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
480
hesham said:
but maybe built the TNCA company,also in Wikipedia,they included it under this company;

The list simply says that Villasana designed an aircraft called the Latino America for TNCA, but it doesn't necessarily mean it's the same type. I'm not a specialist of Mexican aviation, so I couldn't say for sure, but I think one has to be careful before asserting things one isn't sure about.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
94

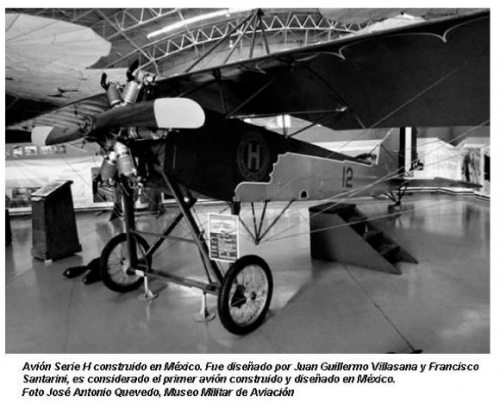

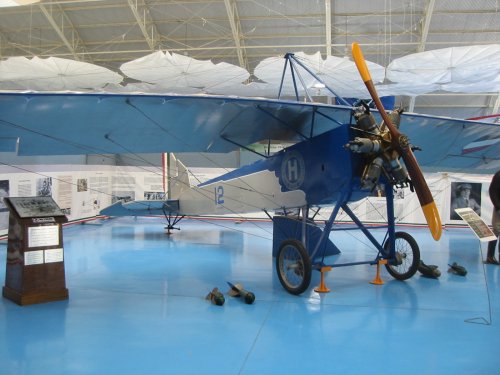

Photo of the TNCA Serie H reconnaissance aircraft on display at the FAM Museum close to Mexico city.
Span: 11,70m
Lenght: 7,20m
Height: 3,60m
Engine: Aztati (Garza Blanca) radial 6 cylinders.
Weapons: One 8mm machine-gun and 50kg bomb load.

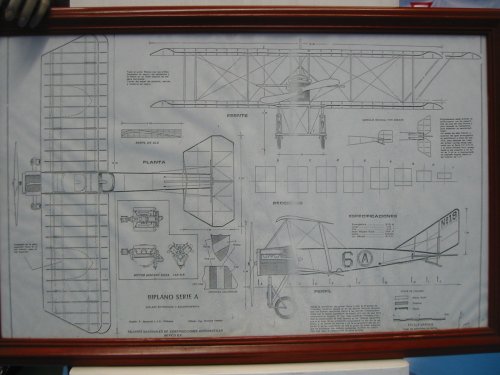

And Photo of a drawing of the TNCA Serie A.


Attachments

  • Photo 036.jpg
    Photo 036.jpg
    812.2 KB · Views: 34
  • Photo 038.jpg
    Photo 038.jpg
    756 KB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
I forget the source for those pictures.


Attachments

  • e.png
    293.7 KB · Views: 41
  • d.png
    246.7 KB · Views: 40
  • c.png
    292.3 KB · Views: 40
  • b.png
    255.2 KB · Views: 38
  • a.png
    621.8 KB · Views: 38

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
480
Nice photos.

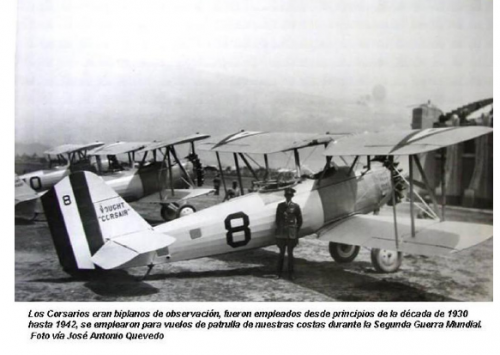

The Vought Corsair certainly was not a TNCA aircraft.
Also, the first aircraft in the color illustration was co-designed by Villasena, which proves he drew a lot of planes. But it doesn't look like it's related to TNCA either...
Perhaps this topic should be renamed as "Mexican aircraft" to reflect the change in focus?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
OK,no problem my dear Sykblazer,

we can change the title.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788

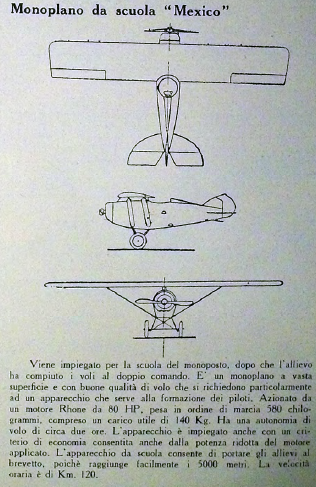

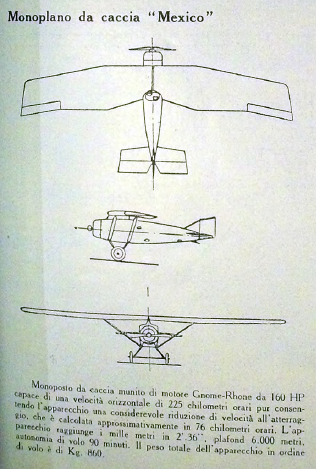

Maybe all of them were from TNCA,right ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201925%2003.pdf


Attachments

  • 3.png
    876.2 KB · Views: 110
  • 4.png
    320.7 KB · Views: 92
  • 5.png
    352.9 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
Hi,

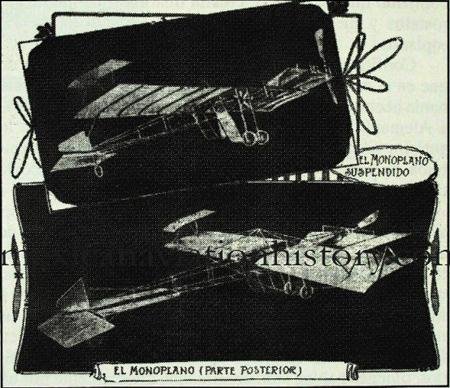

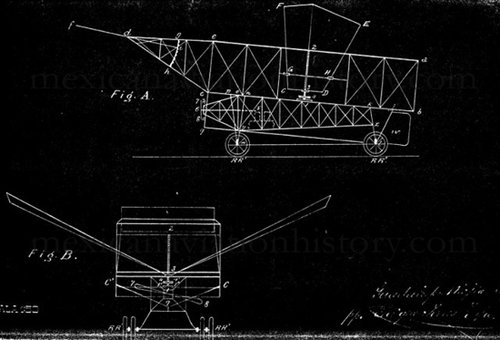

here is some Mexico aircraft designer;
- Juan Guillermo Higareda
- Juan Ordoñez, Carlos Michel and the brothers Juan Pablo and Eduardo Aldasoro Suárez

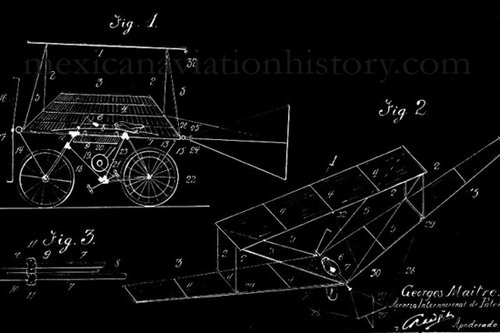

- Georges Maitre
- Jalisco Guadalupe Mejía López
- Arturo Certuche and Leopoldo Sea

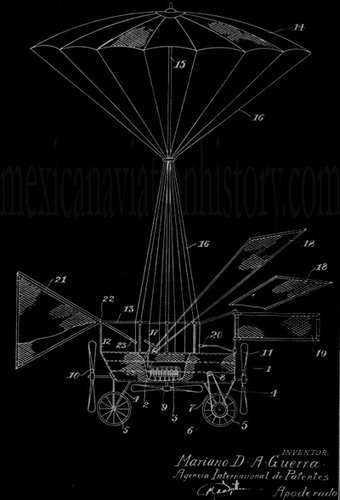

- Mariano DA Guerra



Attachments

  • 1.jpg
    58.2 KB · Views: 19
  • 2.jpg
    65.1 KB · Views: 12
  • 3.jpg
    81.2 KB · Views: 12
  • 4.jpg
    104.2 KB · Views: 13
  • 5.jpg
    44.2 KB · Views: 12
  • 6.jpg
    86.3 KB · Views: 12
