Hi
could anyone confirm please, the 4 letters in the small circle, are they RYLA?


Many thanks
P


Attachments

  • SK LOGO.jpg
    SK LOGO.jpg
    21.3 KB · Views: 257

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34
I can see where you are coming from Malcolm.
It's a possibility.
P


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34

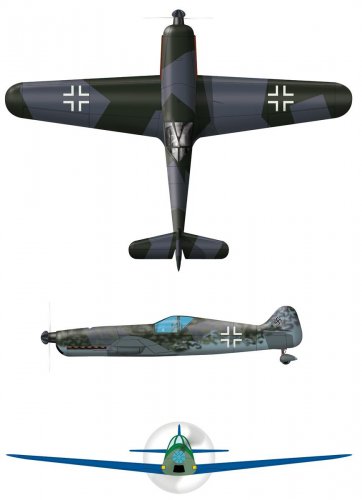

Made a start on the 257.

I was wondering, if this had made a light fighter, what would have been the most likely armament and where would it have been housed/located?

I was thinking if not the rocket tubes as on the V4, then maybe a gun pod under each wing in a similar position?
Or am I barking up the wrong tree as usual ;) ?


P


Attachments

  • SK257PROF1.jpg
    41.4 KB · Views: 265

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Looking good! Can't wait to see this one finished. Oh, and congrats on the magnificent Junkers 'Stuka.'


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34
Interesting Bill.
Did you find anything more re: digging?


I've done a bit more on the SK257. In progress.


Many thanks
p :)


Attachments

  • SK257 2.jpg
    SK257 2.jpg
    51.3 KB · Views: 281

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34
Thanks Grey havoc and Bill.


Once I get one profile done, it's comparatively easy to do different versions.
It's a matter of changing the colour scheme layer(s), markings and adding or deleting hardware.
So I'll do one with the bombs and one stripped of armaments.


P :)


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34
Speaking of schemes. I'm searching for apt markings.
Any suggestions to which units may have flown the 257 if it had made full production?


Many thanks
P :)


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,047
Reaction score
3,859
Jagdgeschwader 101 was one possibility.

http://en.wikipedia.org/wiki/Jagdgeschwader_101
http://www.asisbiz.com/Luftwaffe/jg101.html
http://soldadosyuniformes.wordpress.com/2010/11/16/dewoitine-d-520/dewoitine-d-520-jagdgeschwader-101-con-base-en-pau-francia-1944/


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34
Thank you Grey H
as big help.


A few ideas formulating....
:) P


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34

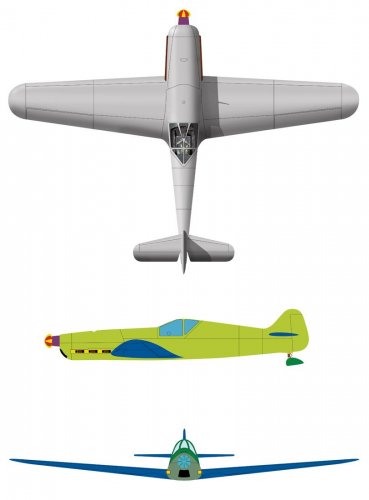

A further progress report...


many thanks
p :)


Attachments

  • SK257X.jpg
    58.4 KB · Views: 431

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
34
Thanks Grey havoc.
I've a few more versions to do yet.
:)
P


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
189
Dos anyone have a good drawing or the specs on it.This all I can find on it.

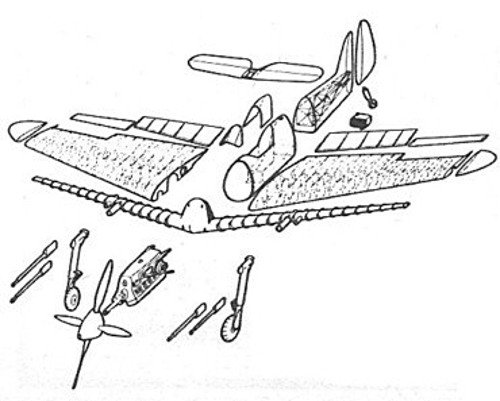

An exploded view of the DB 603-powered SK V5 single-seat fighter which was to have employed o Skoda-Kouba-Banweise tubular-spar structure which offered both reduced weight and greater strength compared with orthodox spar structures. .


Attachments

  • SK_V5_370x297.jpg
    41.9 KB · Views: 770
  • SkV5.jpg
    37.7 KB · Views: 773

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
It doesn't look so different from the V-4, which evolved into the Sk 257...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624

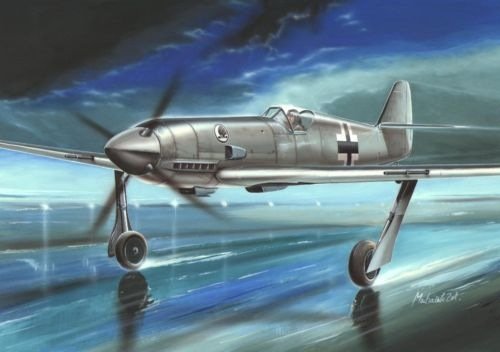

The Skoda-Kauba V.5.


Attachments

  • SK V.5.jpg
    SK V.5.jpg
    87.3 KB · Views: 664

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
57

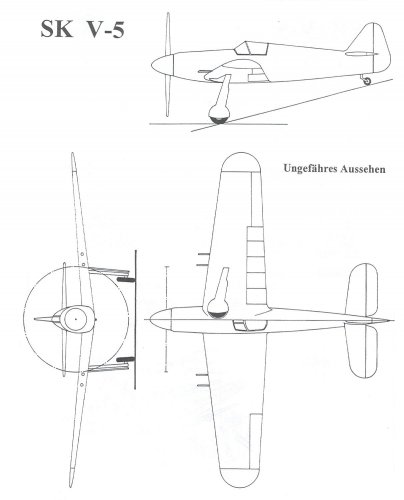

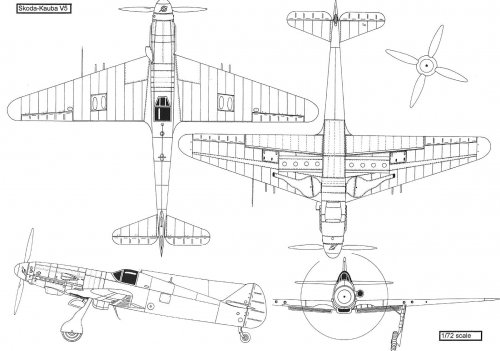

If this is still actual - here is Justo's drawing. I don't remember where did I found it, but I think it was somethere in this forum. I hope Justo will not oppose.


Attachments

  • sk-v5_miranda.jpg
    177.2 KB · Views: 540

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
189
Thanks that is great any one have info on it specs.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
57
airman said:
Specification :
speed 765 km/h and four cannons of 20 mm as armament !


Also 12.2 m wing span and 4500 kg takeoff weight. Unfortunately no other data.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599

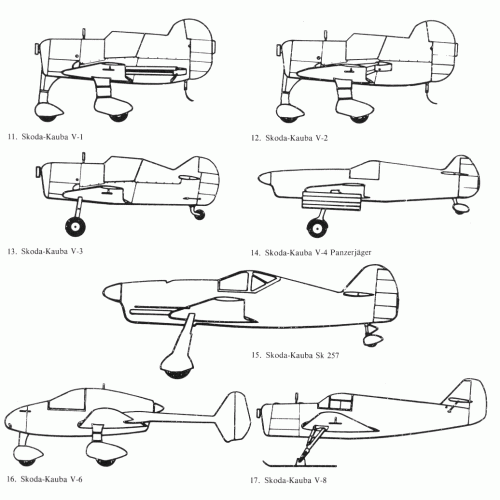

A set of profiles for Skoda-Kauba types, from Die Deutsche Luftrüstung 1933-1945 Vol.4:


Attachments

  • profiles.gif
    135 KB · Views: 706

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624
I modify the first post to contain all Skoda-Kauba aircraft.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Thanks hesham. I have temporarily merged all Skoda-Kauba related topics (there was a mix of projects in each of them) and later on we can split this one for the most prominent projects/prototypes.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Did some more merging from various threads that really covered similar or related types. Will split the SK 257 and V-4 later on.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599

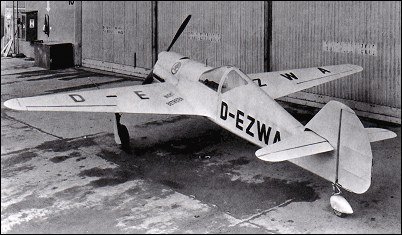

A photo of the Skoda-Kauba Sk 257 which I haven't seen before in this topic:


Attachments

  • skoda-kauba.jpg
    35.7 KB · Views: 352

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
270
Reaction score
33
Who knows how the original Skoda-Kauba flying bomb should look?


At least the V-1 without cockpit, but also without landing gear?
Is there anybody who has a drawing or something of the original project?


Jan


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Does anyone have that "Le Fana de L`aviation" magazine?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624
hesham said:
My dear Wurger,


I will check about it.


By the way my dear Wurger,


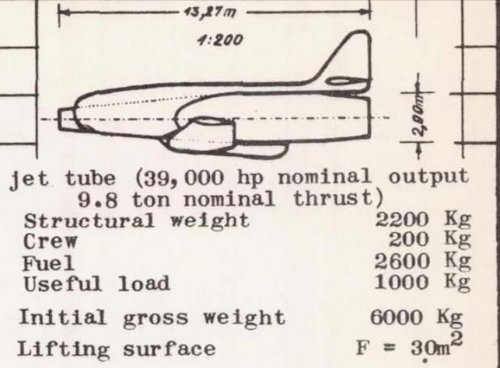

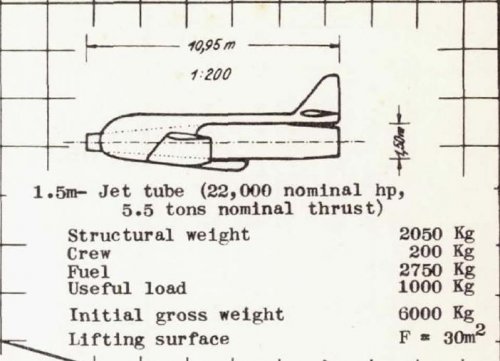

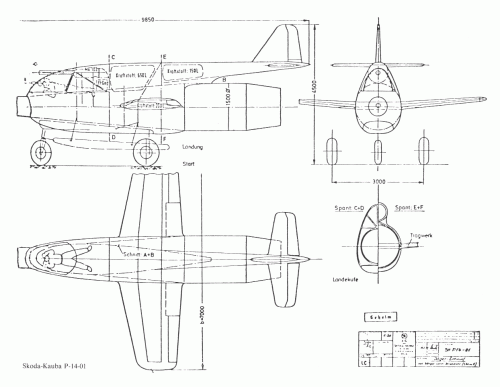

I have Le FANA issue 272,it has many Skoda aircraft and projects.

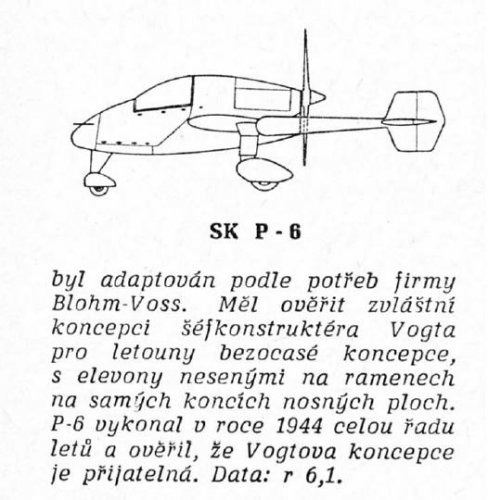

Here is the Skoda P-6 or SL-6.


Attachments

  • P-6.JPG
    44.4 KB · Views: 281
