SIAI Marchetti SV.20

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320

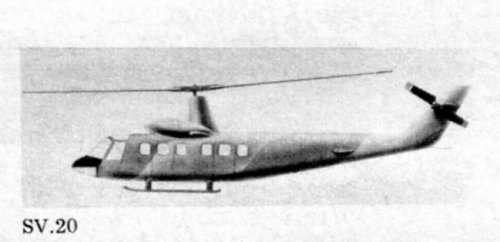

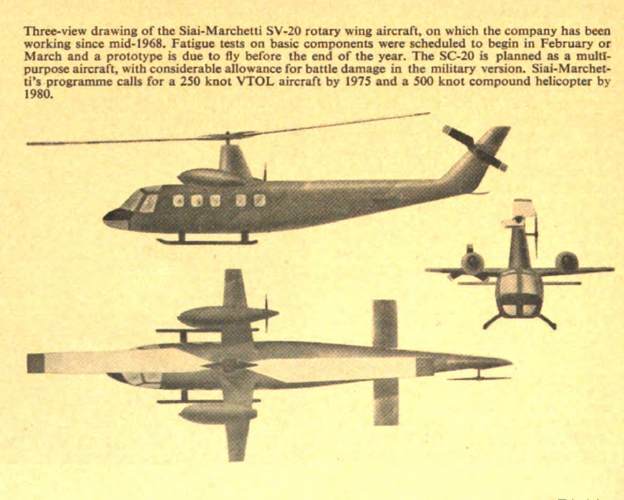

I found this drawing on an advertisement published on Aviation Magazine International Number 516 15-June-1969 (the same issue where I found the Mirage Mach 3 :))

There is no other info but the drawing. Please could you give more info about this unbuilt project?

Thanks in advance


Attachments

  • SV 20.jpg
    SV 20.jpg
    64.8 KB · Views: 380

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Dear Pometablava,

the SIAI SV.20 was twin engined high speed compound helicopter,
and all information about it in;

www.vtol.org/pdf/stov59.pdf#search='SIAI%20SV.20%20helicopter'


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

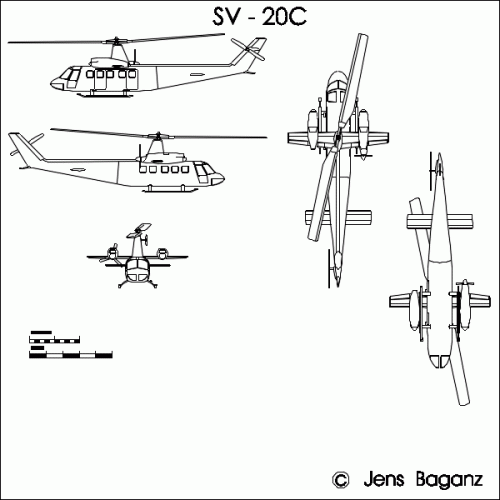

The construction of the SV.20 prototype was begun in 1968, but was never
completed and the project was cancelled in 1972.
The two PT6C-30 engines were located in nacelles on the stub wings, the right
engine additionally driving a pusher prop.
Maximum speed was expected as 390 km/h, maximum payload 2050 kg.


Attachments

  • SV20.GIF
    21.8 KB · Views: 371

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
Hesham and Jemiba,

thanks a lot for the info ;)

The pdf from vtol.org is great and Boxkite is one of the co-authors


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

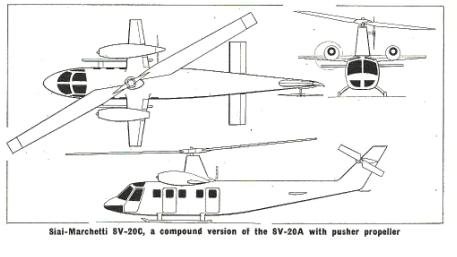

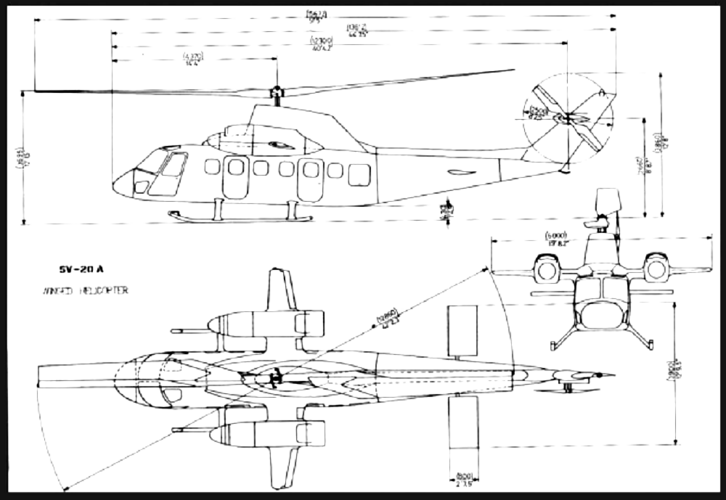

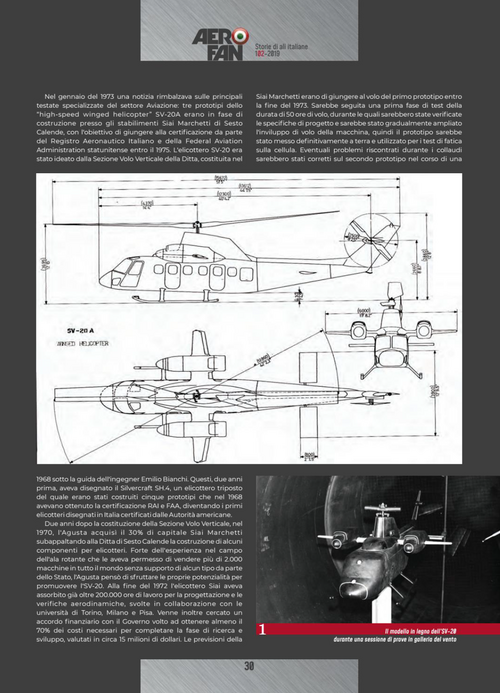

there was two projects,the SV.20A as a normal helicopter
with wing and the SV.20C a compound helicopter as my
dear Jemiba explained.


Attachments

  • SV.20A.JPG
    30.1 KB · Views: 277
  • SV.20C.JPG
    17.6 KB · Views: 291

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Confirm. The SV-20 was completend in mock-up form and was almost completed as a protortype when Agusta "bought" SIAI and the work was immediately stopped and the unfinished proto broken up. Guess why ? There are still VERY bad feelings between former employees on the matter.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
219
Re: SIAI-Marchetti SV-20 helicopter project......

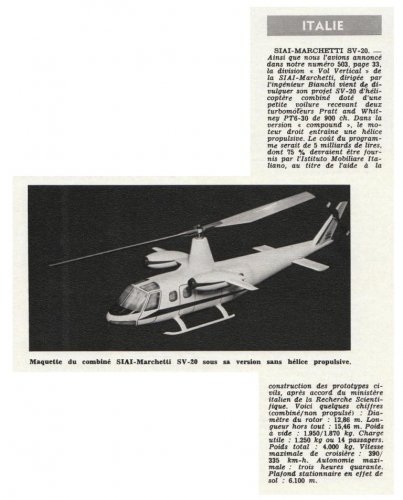

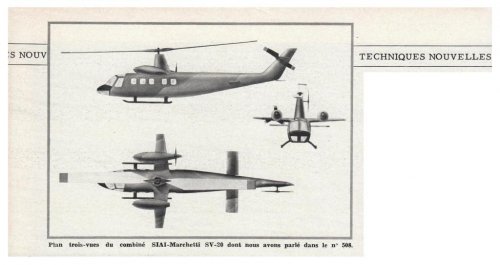

Dear Boys and Girls, here are two images with captions in French of the SIAI-Marchetti SV-20 helicopter project which isn't "secret". Both images come from 1969 issues of Aviation Magazine International......

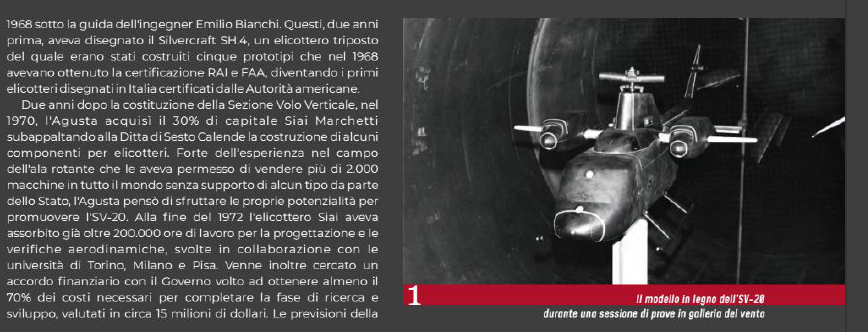

The first image shows a model of the standard helicopter version of the SV-20......

The second image shows the compound helicopter version of the SV-20 with a pusher propellor on the starboard engine nacelle......

Terry (Caravellarella)


Attachments

  • SIAI-Marchetti SV-20 helicopter project - Aviation Magazine International - No.jpg
    SIAI-Marchetti SV-20 helicopter project - Aviation Magazine International - No.jpg
    96.7 KB · Views: 248
  • SIAI-Marchetti SV-20 compound helicopter project - Aviation Magazine International - No.jpg
    SIAI-Marchetti SV-20 compound helicopter project - Aviation Magazine International - No.jpg
    66.2 KB · Views: 97

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
136
Reaction score
53

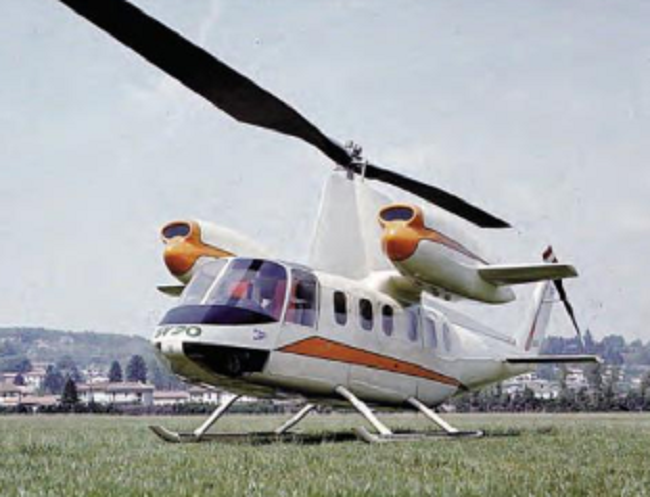

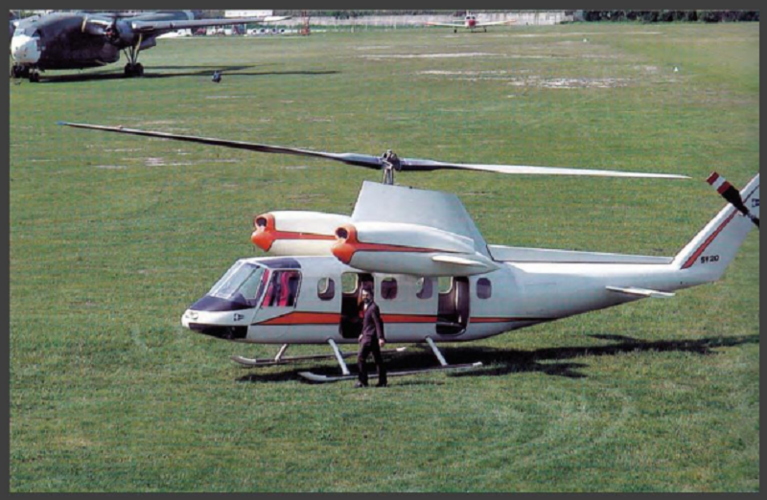

Another photo


Attachments

  • siaimarchettis210sv20 (1).jpg
    siaimarchettis210sv20 (1).jpg
    38.1 KB · Views: 85

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
16

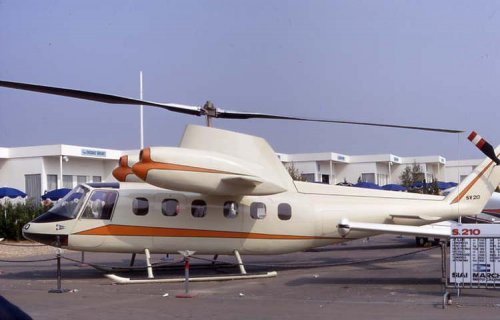

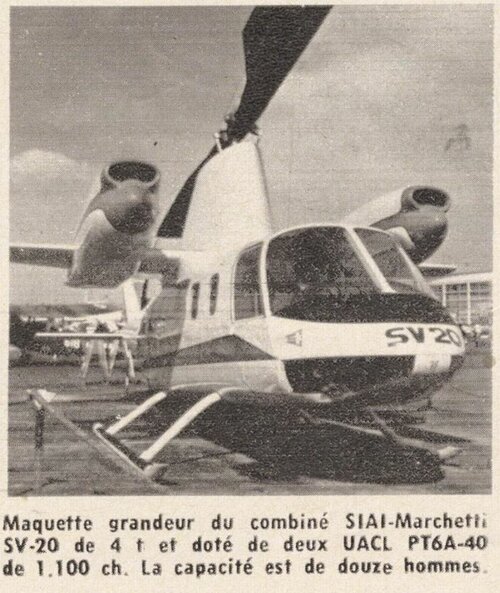

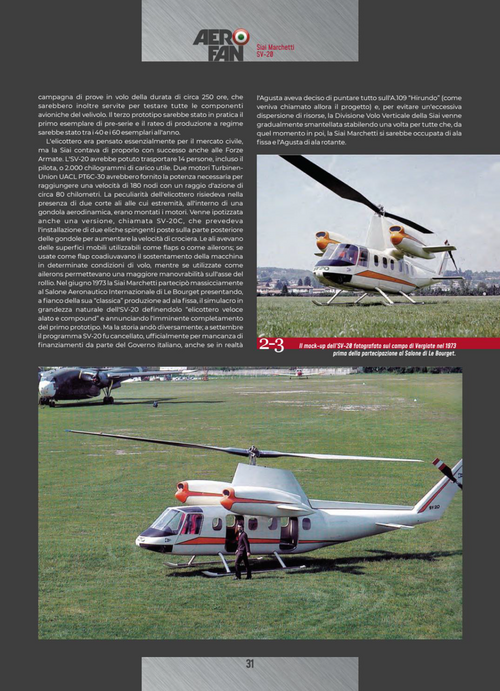

Probably from the same event as the photo above, a poor scan of the SV.20A mock-up at the 1971 Paris Air Salon.

Flight notes for the proposed SV.20CH:

An almost conventional 12-seat helicopter with two PT6s mounted on
stub wings, the aircraft should be transformed into a compound helicopter
—the SV20CH—by 1974. A start on the first variant with a range of 350
n.m., 650km should be made within a year and selling price will be about
$0.5 million.

The twin-bladed semi-rigid teetering rotor has a span of 42ft. Maximum
take-off weight is around the 8,8201b, 4,000kg mark allowing a payload of
2,0371b, 924kg.

The compound helicopter will use the port PT6 to drive the rotor while the second
will drive a pusher propeller.

https://www.flightglobal.com/pdfarchive/view/1971/1971%20-%200922.html


Attachments

  • SIAI_SV.20A_Paris_1971.JPEG
    96.3 KB · Views: 59

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880

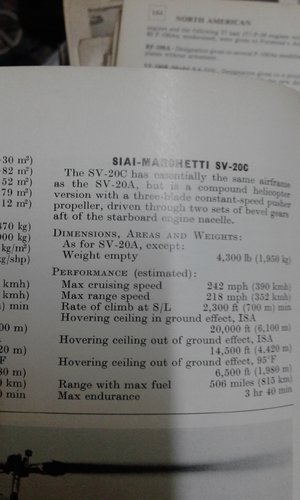

From JAWA 1969.


Attachments

  • ٢٠١٩١١٢٠_١٥٢٣٣٦.jpg
    1.1 MB · Views: 30
