Aermacchi Projects

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
50
The below artwork came from an early 90s Aermacchi advertisement in AW&ST.



What is it?

It appears to be a supersonic advanced trainer.

The advertisement featured similar illustrations of the MB-339 and AMX, and there was a reference to a "international military program" referred to as "PTS 2000."

Google gave me this excerpt from an AIAA article:

Paolo Mezzanotte said:
The PTS-2000 (for Pilots Training System 2000) was proposed by Aermacchi of Italy, joined by Dornier and MBB of Germany.

http://www.aiaa.org/content.cfm?pageid=406&gTable=mtgpaper&gID=7494

I don't know whether the article has any more information, or even images.

Does anyone know anything more?


Attachments

  • MysterySupersonicTrainer.jpg
    55.6 KB · Views: 1,306

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
76
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

Drawing from another Aermacchi Ad


Attachments

  • IT- Aermacchi Trainer_001.jpg
    IT- Aermacchi Trainer_001.jpg
    15.7 KB · Views: 1,347

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

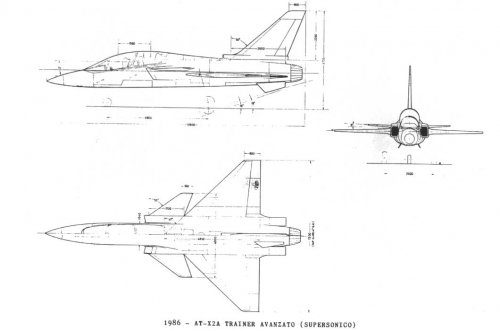

Ok, it took a while, and I'm convinced I have a lot of other material reagrding this topic. the problem is to find it.
Anyway, this is the story. After Aeronautica Militare chose the MB-339 design for an advanced trainer (the other was the more interesting MB-338), Bazzocchi started to think on a successor. In 1985 he drafted the AT-X2 (frst image), a canard delta with lateral intakes. Recognizing the potential of the aircraft Bazzocchi evolved in 1986 it in a advanced supersonic trainer (a new Talon) the AT-X2A, first with a middle wing, side intakes (second image), and then exploring a low wing, ventral intake configuration (a small EFA ;) or EAP or the hell the project was named back then),. You see it in the third image. Finally, in 1987, tha configuration returned to the middle wing, lateral intakes, and was named ATX (echoing the AMX). All those project were canard configurations. This projects were frozen for lack of interest. Bazzocchi retired and in middle-to-late 1990's In late '80s Aermacchi entered an agreement with Dornier to develop an advanced trainer for European air forces, capable to merge in one aircraft the advanced phase and the pre-operational one (this is normally done on two seat versions of supersonic first line aircraft and introduce the pupil to supersonic flight etc. muinus the combat and specific first-line features).

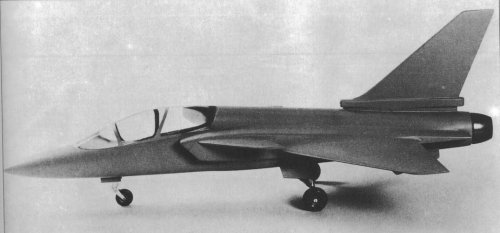

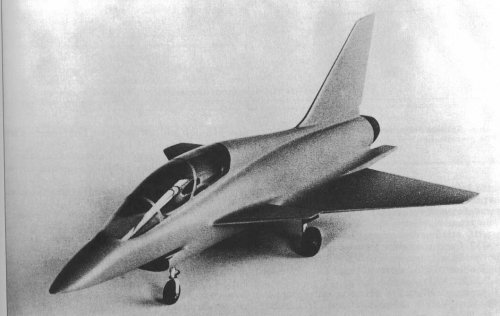

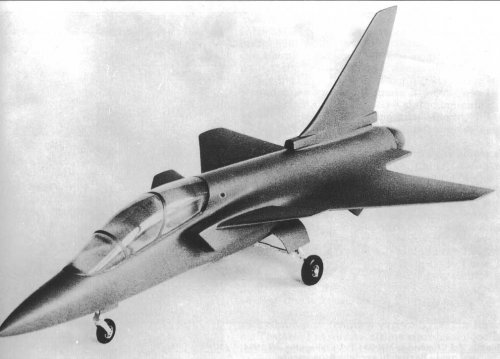

This is the PTS-2000, an evolution of the ATX minus the canard and with a larger wing.


Attachments

  • at-x2 1985.jpg
    at-x2 1985.jpg
    41 KB · Views: 1,436
  • at-x2a.jpg
    32.7 KB · Views: 1,649
  • at-x2a-1986.jpg
    59.3 KB · Views: 511
  • atx_1987.jpg
    57.8 KB · Views: 383

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
50
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

Skybolt said:
Ok, it took a while, and I'm convinced I have a lot of other material reagrding this topic. the problem is to find it.
Anyway, this is the story. After Aeronautica Militare chose the MB-339 design for an advanced trainer (the other was the more interesting MB-338), Bazzocchi started to think on a successor. In 1985 he drafted the AT-X2 (frst image), a canard delta with lateral intakes. Recognizing the potential of the aircraft Bazzocchi evolved in 1986 it in a advanced supersonic trainer (a new Talon) the AT-X2A, first with a middle wing, side intakes (second image), and then exploring a low wing, ventral intake configuration (a small EFA ;) or EAP or the hell the project was named back then),. You see it in the third image. Finally, in 1987, tha configuration returned to the middle wing, lateral intakes, and was named ATX (echoing the AMX). All those project were canard configurations. This projects were frozen for lack of interest. Bazzocchi retired and in middle-to-late 1990's In late '80s Aermacchi entered an agreement with Dornier to develop an advanced trainer for European air forces, capable to merge in one aircraft the advanced phase and the pre-operational one (this is normally done on two seat versions of supersonic first line aircraft and introduce the pupil to supersonic flight etc. muinus the combat and specific first-line features).
This is the PTS-2000, an evolution of the ATX minus the canard and with a larger wing.

Thanks for your amazing response.

I have read a little about various proposals that preceded the MB-339, and I have the impression that the final Viper engined configuration was chose over an Adour engined alternative. I have never even heard of the MB-338 designation?

The ATX is entirely new to me. I would assume that the F404 was intended, although the intake area looks a bit too small. I get the feeling that this proposal is smaller than the contemporary Gripen. Do you have any other details?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

The MB-338 was high-wing, and produced a series of derivative (or so) designs, like the ligjht CAS MB-341, an ancestor of the AMX.
As for the engine of the ATX, I'll find.


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?


Any illustration or 3 view?

Raravia


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

M.B.338V from "Gente dell'aria" volume 3


Attachments

  • Aermacchi MB-338V.jpg
    Aermacchi MB-338V.jpg
    203.1 KB · Views: 317

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

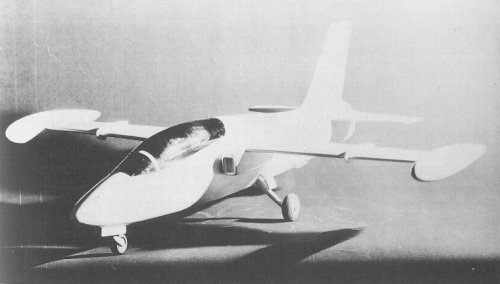

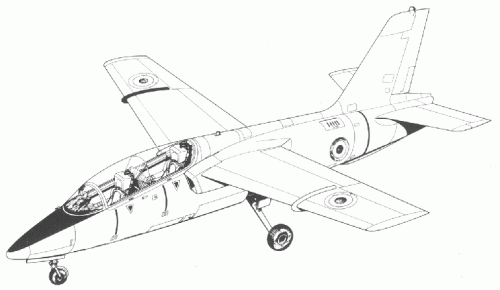

"The MB.338A basic/advanced trainer project. Powerplant would have been a Rolls-Royce/Turbomeca Adour - as used in the Hawk." (Caption from "AIR Enthusiast" No. 51 (page 35 / COPYRIGHT: Aermacchi via Roy Braybrook)


Attachments

  • Aermacchi MB.338A.GIF
    Aermacchi MB.338A.GIF
    105.1 KB · Views: 349

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

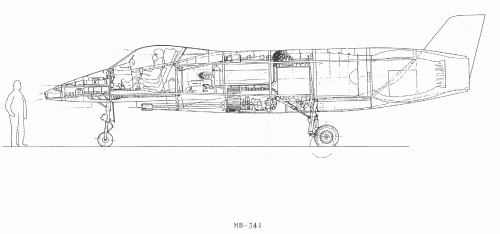

M.B.341, also from "Gente dell'aria" volume 3 (Caption: "Disegno dell'MB-341, in cui sono evidenziati gli impianti di bordo.")


Attachments

  • Aermacchi MB-341.gif
    Aermacchi MB-341.gif
    182.4 KB · Views: 484

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?

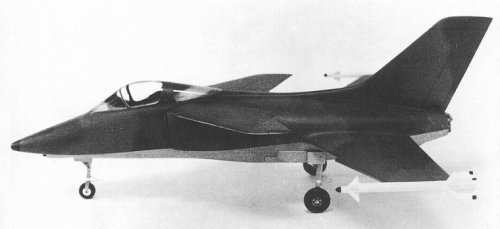

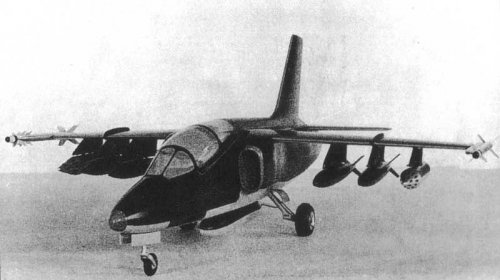

Model picture of M.B.341B (Source: "Gente dell'aria" volume 3/caption: "Modello del bireattore canard per l'addestramento avanzato MB-341 B del 1982.")


Attachments

  • Aermacchi MB-341B.JPG
    Aermacchi MB-341B.JPG
    155.4 KB · Views: 382

raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
Re: Aermacchi Supersonic Trainer? PTS 2000? Before the M-346 and Mako?



Thank you Boxkite!

Great pictures.

Raravia


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
I've seen references to a MB-340 CAS aircraft that was said to resemble a smaller A-10 and powered by two M45H engines like the HFB 614 used.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

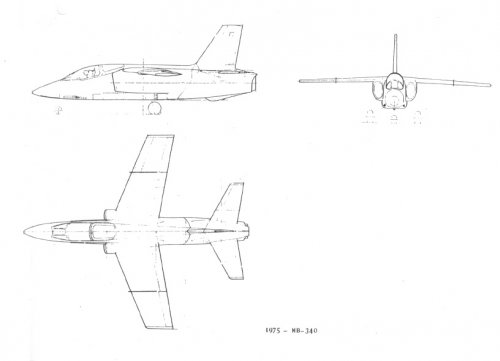

Here it is, Sir! Not much A-10... More a high-wing A-9... ;D 1975
AMX derived more or less directly from this one. Brazil and South Africa were very interesed, and SA went all along till a minute before signing the contract, but at the eleventh hour it changed its mind. Later AMI drafted its CBR-80 speification on the MB-340 but kept in adding thngs, so the weight went up and up, and then we have the AMX... ::)

This particular image comes from a now defunct Italian magazine. Yu can find it in the above mentioned "Gente dell'Aria" volume, also.


Attachments

  • MB-340.jpg
    32.8 KB · Views: 397

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,497
Anther project to Aermacchi was MB.336 jet trainer.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
Let us not forget the MB-328, -329, and -330 series of business aircraft. The last-named would be the easiest to model from a 1/48 MB.326/339 kit and the 1/48 Testor's/IMC Lear 23/24. Modelling either of the other two would require the engines and nacelles from a Pucara, or other Astazou-powered aircraft.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
The last-named would be the easiest to model from a 1/48 MB.326/339 kit and the 1/48 Testor's/IMC Lear 23/24. Modelling either of the other two would require the engines and nacelles from a Pucara, or other Astazou-powered aircraft.

You advanced and experienced modellers always put "Nip and Tuck" ashame... :D
Not to mention "Dr. Moreau's island".. ;D


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145

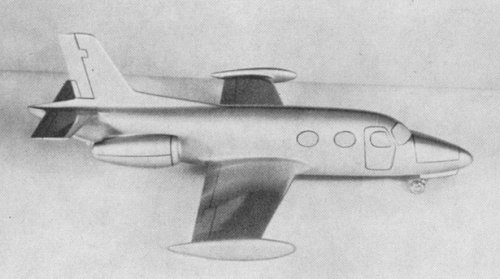

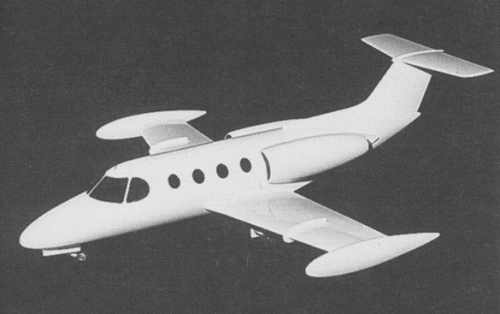

For those, who have no access to M.B.330 drawings, here come two different layouts, the M.B.330 and the M.B.330B.

M.B.330.gif & M.B.330.jpg => “Der Flieger“ 11/1964 (page 278)

M.B.330B.gif => ”The MB.330B business jet, one of several [is this a reference to the M.B.328 and M.B.329?] Aermacchi studies in this area.“ / “AIR Enthusiast” No. 51 (page 35) / COPYRIGHT: Aermacchi via Roy Braybrook

Can anybody help with illustrations of the M.B.328 and M.B.329?

Btw, AE # 51 shows two different concepts of the Aermacchi M.B.334 regional aircraft, one is more conventional with rear jet engines, the other one is equipped with pusher turboprops on both sides of the rear fuselage.


Attachments

  • M.B.330.gif
    46.9 KB · Views: 789
  • M.B.330.jpg
    46.3 KB · Views: 651
  • M.B.330B.gif
    143.5 KB · Views: 651

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
MB.328 and MB.329 were twin-turboprop business aircraft. The MB.328 had them on the wing while the MB.329 had them mounted on the aft fuselage. I know that there are drawings of these out there, either in a back issue of Aerofan or in a book covering Aermacchi aircraft.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,477
Reaction score
206
Complementary to Skybolt's reply#12 in page 1

Source:
Arriva il SABA, l'anti-elicottero by Gianni Cortese
Volare (Italian Aviation Magazine)

Refered in the article as the Italian SABA, a misterious project numbered MB-340 is described.
The MB340 work was later applied in the development of the AMX.
This is a conceptual drawing from Gianfranco Rotondi and originaly published by Air Press. It seems to be one of the concepts from the MB340 family of designs.


Attachments

  • File0288.jpg
    21 KB · Views: 811

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
mmmm, I suspect Gianni Cortese made things up a little bit... the MB-340 was a CAS, never intended AS A DESIGN for the anti-chopper role... Every light CAS, with their low stall speed and agility, can naturally be used as a SABA, even A-10 are... Bur Aermacchi wasn't so fool to design such a specialized aircraft back then, and there was no requirement by the Aeronautica Militare for that matter.
Think what a wonderful SABA would have been the C22J ... 8)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

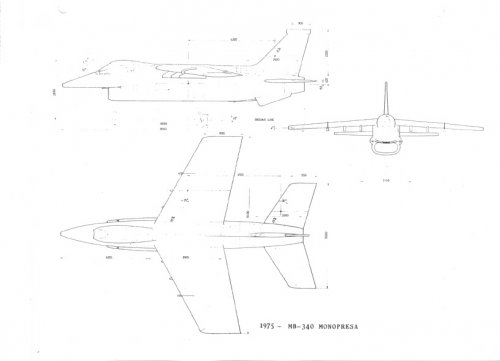

First dozen is for the MB-340...

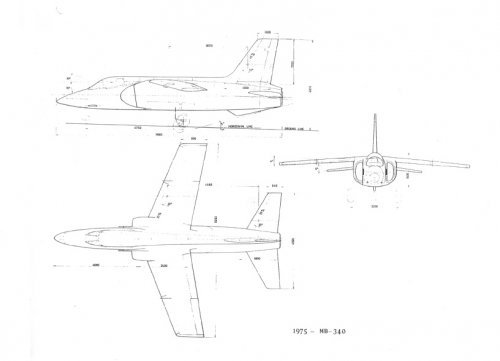

1) Basic
2) Different intakes
3) Ventral intake

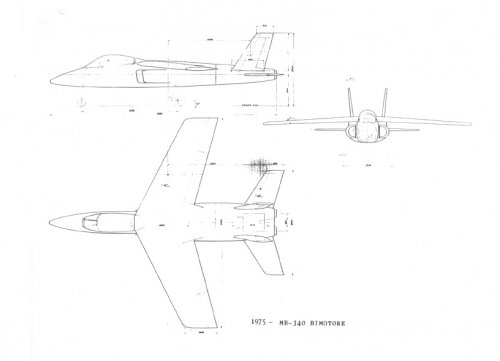

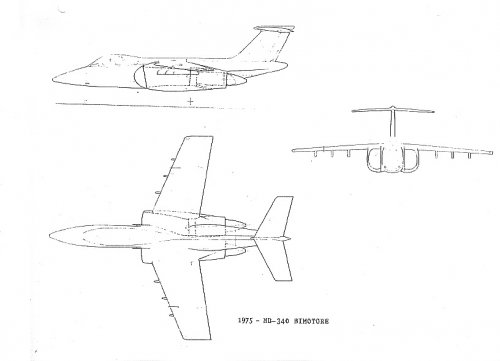

4) Two-engines, F-15-style tail


Attachments

  • MB-340_twoeng.jpg
    39.4 KB · Views: 459
  • MB-340_ventrale.jpg
    39 KB · Views: 409
  • MB-340_2.jpg
    42.8 KB · Views: 398
  • MB-340_1.jpg
    37.2 KB · Views: 754

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
5) Two engine, T-Tail, CAS

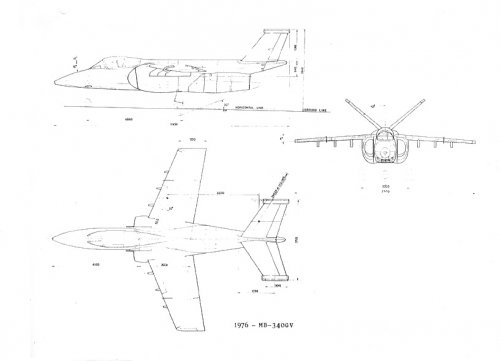

6) V-tail

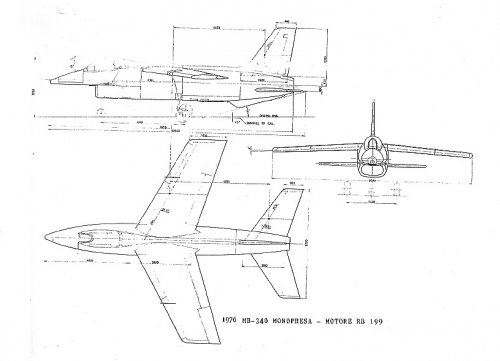

7) RB199 engine w/out afterburner (the way to go...)

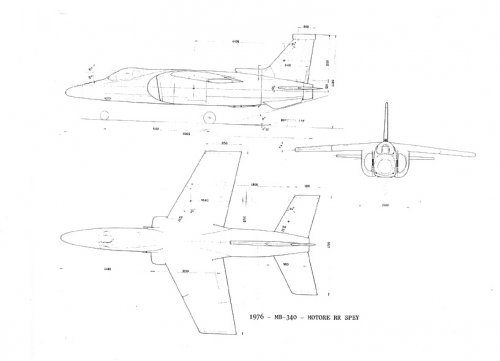

8 ) Spey engine (sigh...)


Attachments

  • MB-340_twoeng-Ttail.jpg
    47.5 KB · Views: 381
  • MB-340GV.jpg
    47.6 KB · Views: 408
  • MB-340_RB199.jpg
    77.2 KB · Views: 465
  • MB-340_Spey.jpg
    48 KB · Views: 410

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

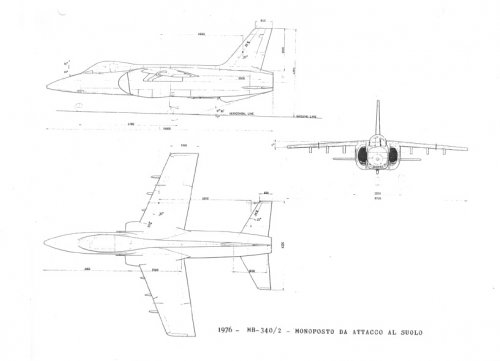

9) MB-340/2 CAS RB199 engine

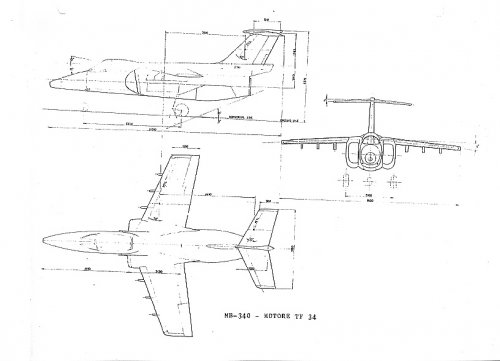

10) MB-340/3 CAS TF34 engine

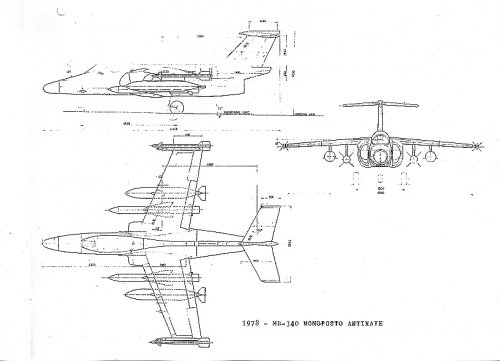

11) MB-340/3 antiship

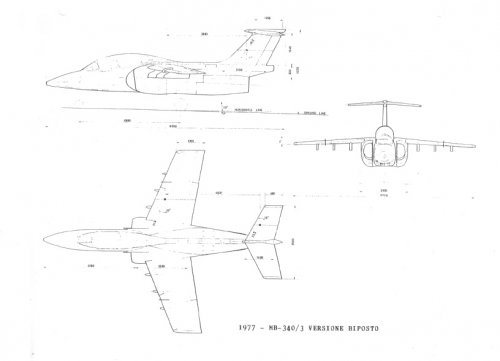

12) MB-340/3 two-place


Attachments

  • MB-340-3_2place.jpg
    43.9 KB · Views: 374
  • MB-340-3_monoplace_antiship.jpg
    84 KB · Views: 430
  • MB-340_TF34.jpg
    70.2 KB · Views: 362
  • MB-340-2_CAS.jpg
    47.9 KB · Views: 351

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
I've seen references to a MB-340 CAS aircraft that was said to resemble a smaller A-10 and powered by two M45H engines like the HFB 614 used.

Elm, this beast existed but wasn't in the MB-340 series, it came earlier and was fashioned for a foreign country. And yes, one of the design iteration was very similar to the A-10.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

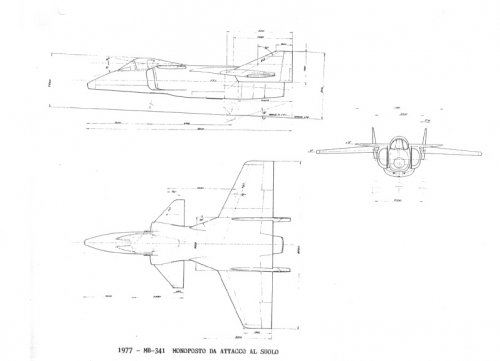

And, no, I didn't forget the MB-341. Only, it has a very interesting evolution, so I'll keep for a separate topic. For now, a 3-view of the initial configuration. It was a CAS, at least for the first iterations, then...

And, BTW, if you are thinking that the MB-340 and 341 pictures you are seeing are posted here for the first time ever in any published souerce, well, you are perfectly right.. 8) ;D


Attachments

  • MB-341_basic.jpg
    47.8 KB · Views: 494

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145
Phantastic line! Are there more Aermacchi titbits?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,475
Skybolt, I think your work deserves a full article in Air Enthusiast. Very interesting to see something of projects in Italy: my collection didn't even have an Italy folder until your posts.

THANKS!


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

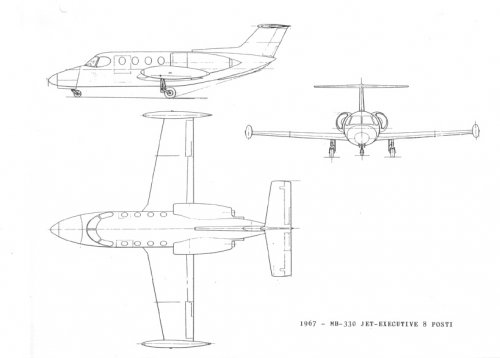

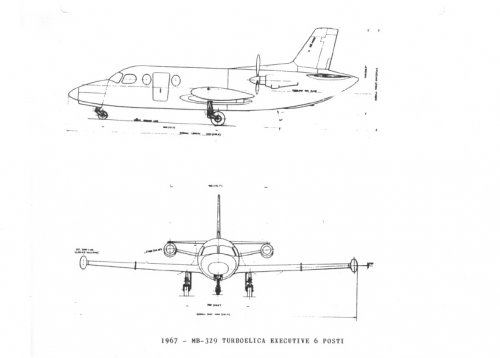

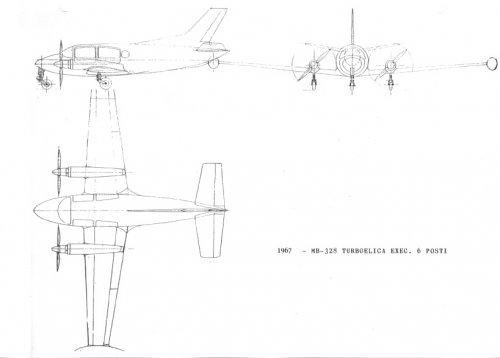

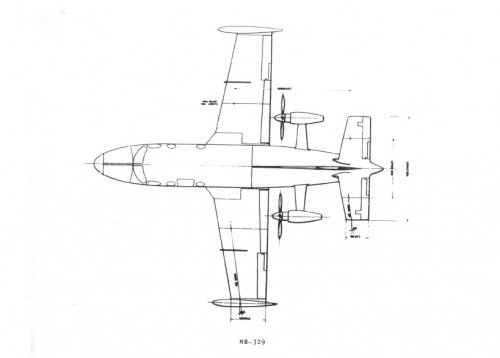

Sure, let's return to the MB-328, MB-329, MB-330 line... ;)


Attachments

  • MB-328.jpg
    45.3 KB · Views: 1,394
  • MB-329.jpg
    41.7 KB · Views: 1,324
  • MB-329_2.jpg
    36.7 KB · Views: 1,229
  • MB-330.jpg
    46.1 KB · Views: 1,175

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
Thanks Overscan, but I'm relatively far from being able to do something serious about Macchi's projects, since I for now have only pictures and 3-views... Dimensions can be inferred, but weight, performances, engines (in most cases) and whereabouts of the design are unknown or very poorly known... For SIAI Marchetti that's different, by the way...


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
From what I've read, MB.328 and MB.329 used Astazou turboprops while MB.330 used CJ-610, same as Learjet. If you figure they all basically used the MB.326 wing (a valid assumption given the structural breakdown of the MB.326), it should be reasonably easy to determine basic dimensions.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
Actually, dimensions are easy: perhaps they are not visible at 72 DPI, but the designs I have are GAs with quotes. Problems is weight, performances and reasons why (excluding engines)


Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
102
Reaction score
5
You advanced and experienced modellers always put "Nip and Tuck" ashame... :D
Not to mention "Dr. Moreau's island".. ;D
[/quote]

Are we not modelers?


giorgio

ACCESS: Restricted
Joined
Oct 1, 2007
Messages
9
Reaction score
1
Is any friend in possession of any picture of the Aermacchi MB-340 proposed strike fighter ( probably early 70s'...)
Thanks in advance and...

Regards from

Giorgio (Turin-Italy)


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Hallo,

anybody have technical data for the M.B.340 and the M.B.341???

Thanks

Servus Maveric
