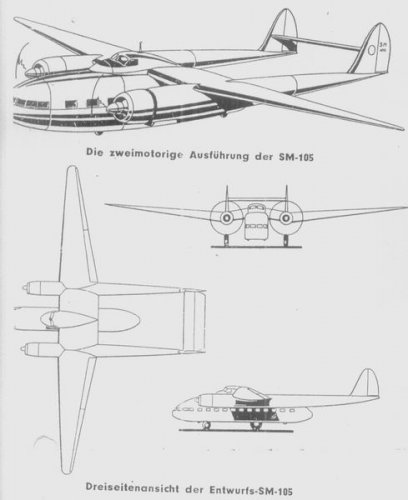

A design very similar to the US Fairchild XC-120 Packplane, the
SIAI-Marchetti SM-105. A twin or four engined high wing transport
with only a rudimentary fuselage, housing the cockpit. For carrying
the payload detachable pods would have been used.
(From Flieger 1952)


Attachments

  • SM-105.JPG
    26.8 KB · Views: 826

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
196
Uh, I have everything on the SM-105. Now I am in Rome, let me come back. Actually the project is from 1948.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,318
Reaction score
1,389
"Actually the project is from 1948"

Well, as it still is today, german magazines are often not really up to date ... :D
It was a series of articles about the postwar italian aviation.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
937
Reaction score
496
Looks like the view would have been terrible from the cockpit for landing with the cargo pod on.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,318
Reaction score
1,389
"Looks like the view would have been terrible from the cockpit for landing with the cargo pod on."

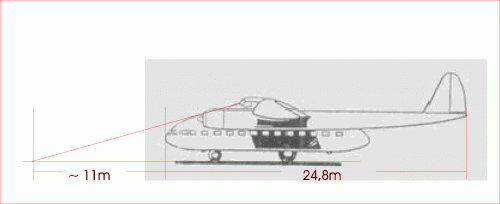

But probably much better, than the view ahead from most tail draggers. After a tragic airshow
accident last year, where a light aircraft was cut into pieces by the prop pf a Grumman avenger,
an investigation revealed, that the Avenger pilot could have seen the other aircraft only, if it
would have been at least 73,7 m away !


Attachments

  • view.GIF
    41.6 KB · Views: 696

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
196

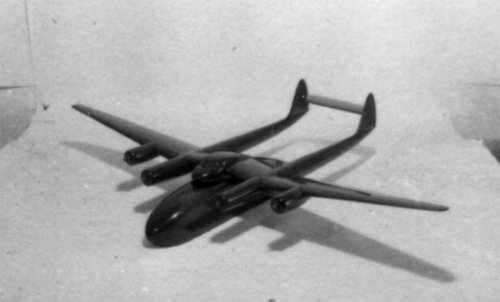

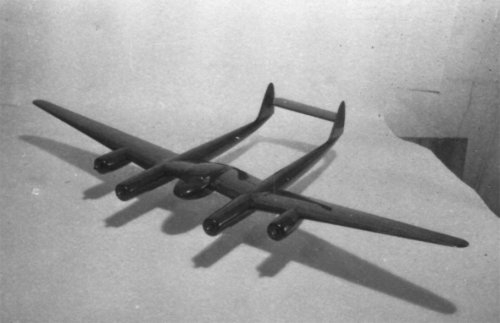

I'm back, here I am. Let's strat witha couple f images I have at hand. They are of the windtunnel model, first without the pod, second in complete configuration. The aircraft could fly w/o the pod. The aircraft would have taken off and land in an almost flat mode, like the B.52. The pod had landing gears. AH, naturally, these are never seen before images. 8)


Attachments

  • Sm-105_model_1.jpg
    63.5 KB · Views: 692
  • Sm-105_model_2.jpg
    62.1 KB · Views: 657

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Welcome back Sky!
This seems to be a larger four engined variant...


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
196
Yep. Actually Marchetti preferred this last variant. There was a third one, with a fixed keeled pod, tendered for the Italian Air Force amphibious SAR requirement of 1948 (no aircraft bought, they stayed with the CANT Z-506 till late '50s). I'm scanning other drawings.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340
Skybolt said:
I'm scanning other drawings.

Hmm it would be interesting to see these 'other drawings' that you were scanning four years ago ;)...

Piotr


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,678
Hi,

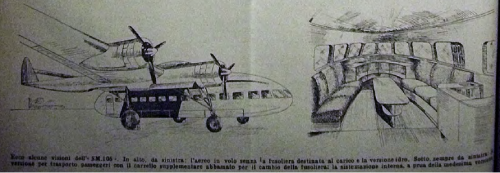

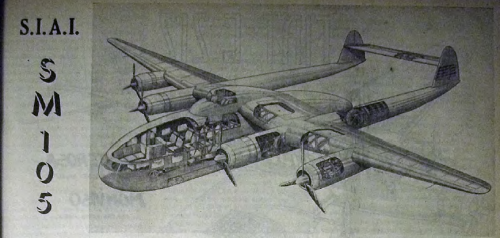

here is a Savoia-Marchetti SM.105 drawing;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201948%2002.pdf


Attachments

  • SM.105.png
    755.2 KB · Views: 310

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,678
Hi,

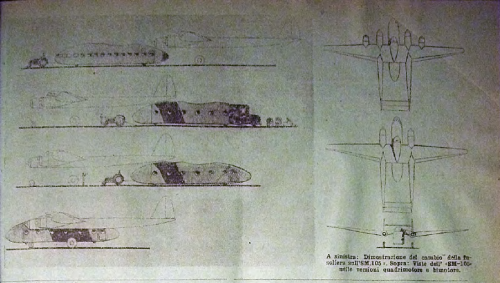

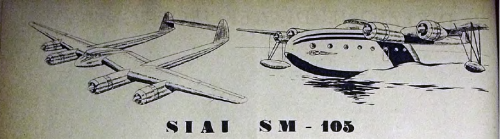

here is a more drawings to SIAI SM.105,with aflying boat version,it's new
for me.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201948%2003.pdf


Attachments

  • 3.png
    1,011.5 KB · Views: 89
  • 2.png
    598.7 KB · Views: 70
  • 1.png
    519.4 KB · Views: 68

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
49

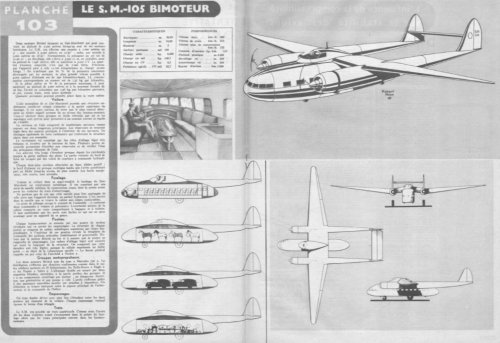

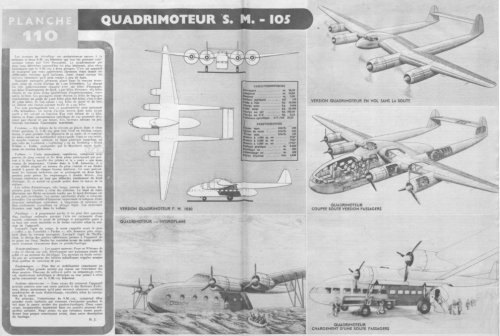

From the French aviation magazine "Décollage" 1948 :

http://gallica.bnf.fr/ark:/12148/bpt6k97670559/f6.item

http://gallica.bnf.fr/ark:/12148/bpt6k9767929x/f7.image

Moved and merged with older topic


Attachments

  • Capture d’écran 2017-03-22 à 10.15.33.jpg
    Capture d’écran 2017-03-22 à 10.15.33.jpg
    249.9 KB · Views: 93
  • Capture d’écran 2017-03-22 à 10.18.47.jpg
    Capture d’écran 2017-03-22 à 10.18.47.jpg
    296 KB · Views: 100
