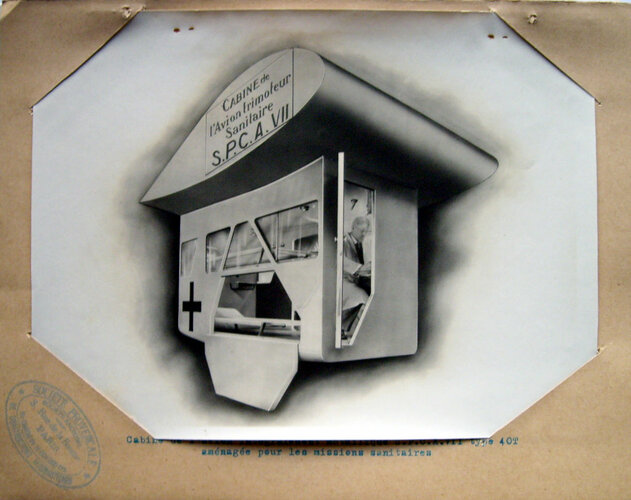

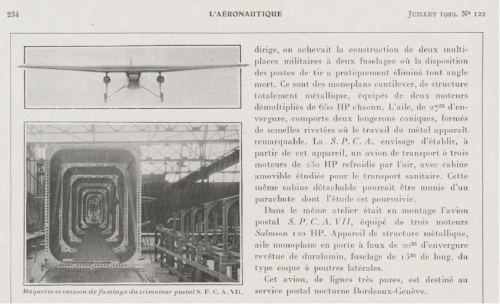

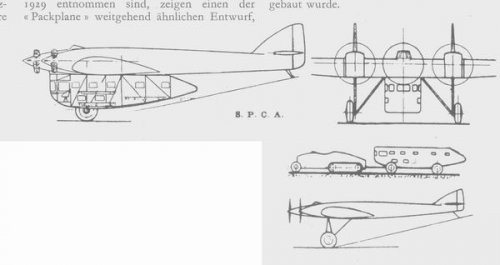

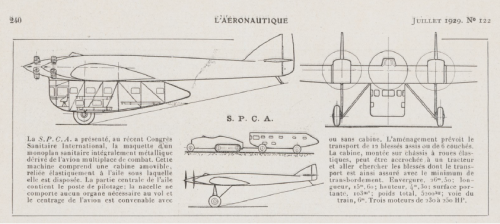

Neither the Fairchild XC-120, nor the SIAI-Marchetti SM-105 was a new idea:

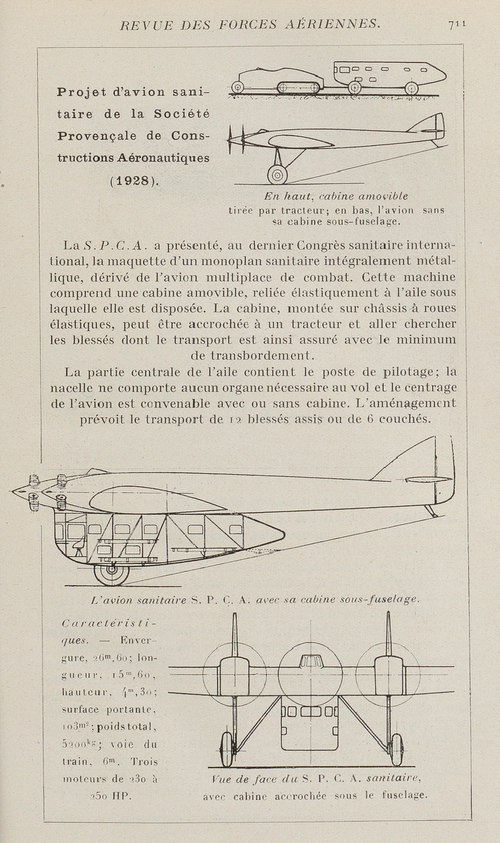

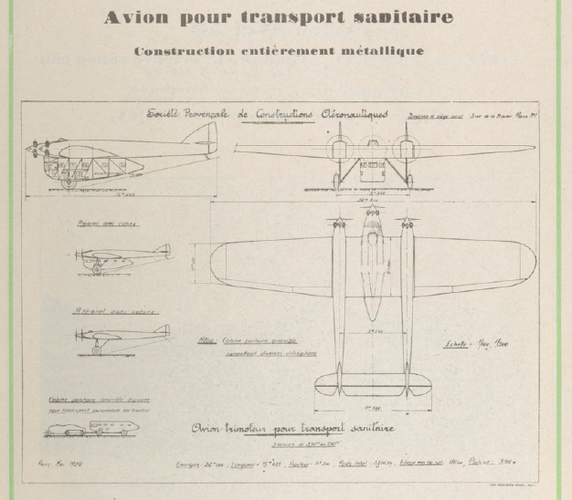

Here's a proposal for such an aircraft from 1929, made by the Société Provencale
de Construction Aéronautique (SPCA), intended especially for medical evacuation:
(from L'Aeronautique 7/1929)


Attachments

  • SPCA_01.JPG
    20.9 KB · Views: 679

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
VERY interesting, I'm readying an article on detachable pods transports...


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,437
Reaction score
1,476
Website
beyondthesprues.com
Skybolt said:
VERY interesting, I'm readying an article on detachable pods transports...

That would be an interesting article - what is it from if I may ask?

Regards,

Greg


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245

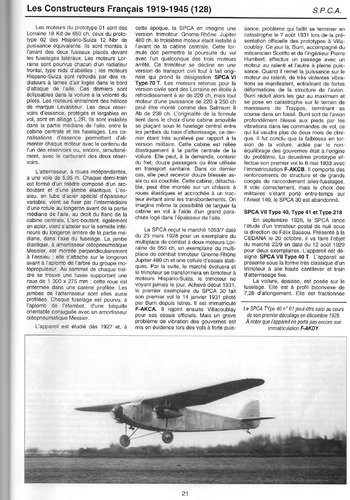

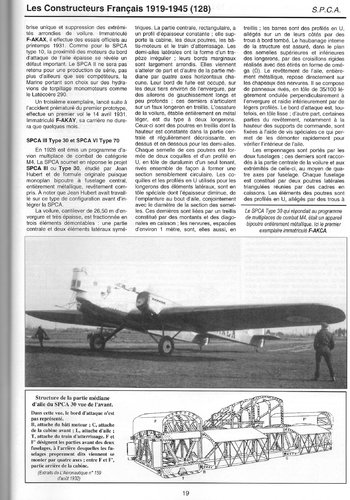

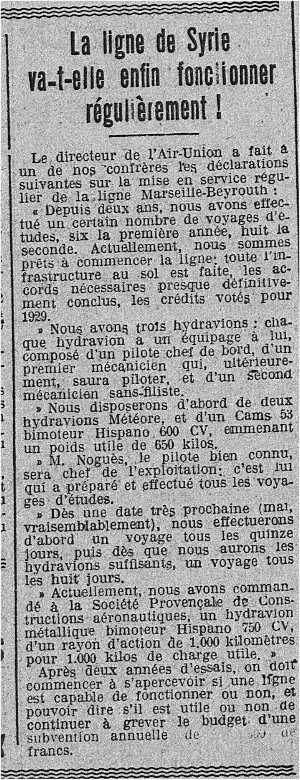

Dear Jemiba, here is a article in French about the SPCA 70 air-ambulance pack-plane "project" of 1927......

The article comes from the 15th March 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
So, Fairchild seems to have copied the French to 'invent' the XC-120, so... the French copied the Fairchild C-82 to 'invent' the Noratlas? Without any Copyright in either direction? No patent? Twin-boom illegality?


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,650
Reaction score
6,213
Tophe said:
So, Fairchild seems to have copied the French to 'invent' the XC-120, so... the French copied the Fairchild C-82 to 'invent' the Noratlas? Without any Copyright in either direction? No patent? Twin-boom illegality?

I could be wrong, but I'd say independent development.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Tophe said:
So, Fairchild seems to have copied the French to 'invent' the XC-120, so... the French copied the Fairchild C-82 to 'invent' the Noratlas? Without any Copyright in either direction? No patent? Twin-boom illegality?

And Tophe copied them ALL to make his crazy airplanes!!!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
My dear Caravellarella,

thank you for that great info,and in your picture,the SPCA 50 was a project
for patrol recce flying boat,intended to compete Latecoere-380 Bis and
Latecoere-381,Breguet-Short Trimotor and Villiers-23,the later was a
project,I spoke about it before;

http://www.secretprojects.co.uk/forum/index.php/topic,395.msg6247/highlight,villiers+320.html#msg6247


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

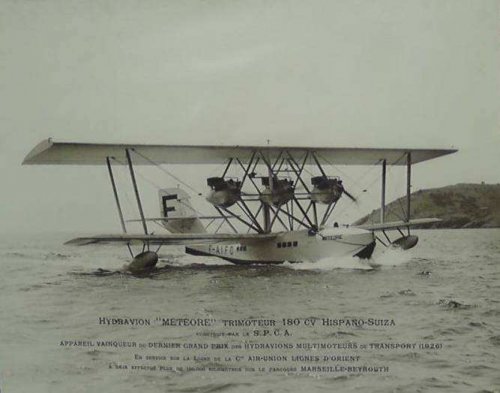

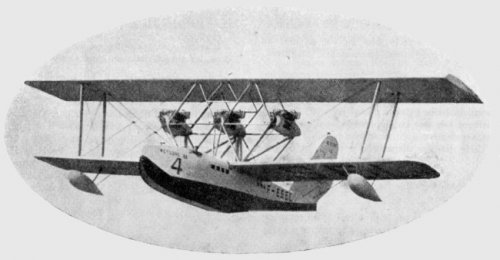

Once they had turned the Schneider works at Le Creusot into the SPCN (Société Provençale de Constructions Navales), the French Messageries Maritimes company launched the SPCA (Société Provençale de Constructions Aéronautiques) on June 12, 1925; the head of the company estimated that seaplane operation was a natural extension of maritime ship routes.

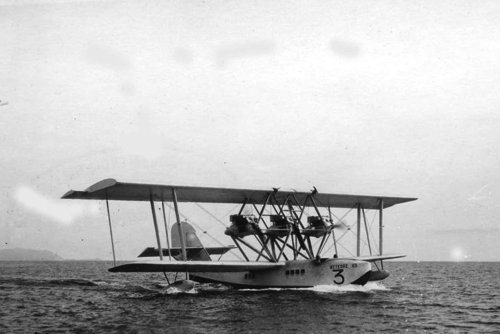

Taking up the project of engineer Conflenti from CAMS, the SPCA had two Météore 63 aircraft built in Meudon by the Letord company. These were assembled at La Ciotat, along with a third example built in 1928.

Following the 1926 naval competition at Saint-Raphaël, the Météore was to become the first seaplane to receive a certificate of airworthiness for public transport in the first category (maritime routes over 500 kms). The Météore was assigned to the Marseille-Alger (Marseilles-Algiers) route and sank in Algiers on its first flight (being later replaced on the same route by the #2 Météore).

The Météore was then piloted by Maurice Noguès to inaugurate Air Union's oriental line to Beirut.

Other all-metal aircraft (torpedo seaplanes, mail transports and bomber prototype) were then developed by the team of Paulhan-Pillard, with a few accidents along the way. All in all only nine seaplanes and a few landplanes were produced by SPCA.


Attachments

  • Météore.jpg
    65 KB · Views: 334
  • SPCA Météore (Fondation Latécoère).jpg
    SPCA Météore (Fondation Latécoère).jpg
    186.7 KB · Views: 301
  • Météore poster.jpg
    Météore poster.jpg
    125.9 KB · Views: 253

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

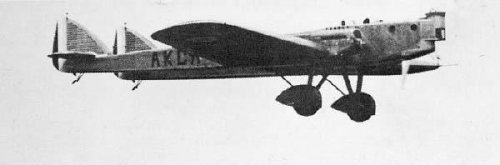

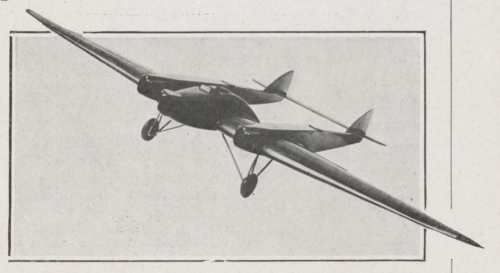

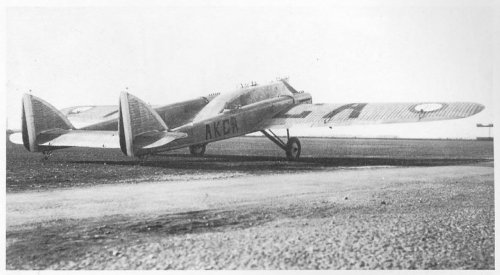

The SPCA 30 was a multiplace combat design that was built in two examples in 1930, the first powered by two 600 hp Lorraine engines, the second by two 600 hp Hispano-Suiza engines. The engineer who studied the aircraft died before its construction. Another engineer took over, but unfortunately the perfomance of the type during tests was less than satisfactory.

The aircraft's only remarkable performance, if somewhat accidental, took place on August 7, 1931 at Villacoublay, before a select audience made up of Marshal Philippe Pétain and the Aeronautical commission of the French House of Parliament. After a low pass with one engine at low regime and the other at full throttle, the pilot decided to go at full throttle on both engines, only to find the two fuselages vibrating heavily. The vibration was so strong that his attempts to immobilize the rudder resulted in both his shoes being shredded, with part of the stirrup perforating his left foot. A tear even appeared in the port fuselage, but after reducing engine power the vibrations subsided. The crew considered ejecting, but then realized that they were flying at less than 100 meters above a wood that separated the runway from the golf course.

After a flight at higher altitude, the crew had to make a forced landing on a tank operating field at Trappes, and as the aircraft didn't have any brakes then, it ended up muddled in a four-meter deep trench. The propellers and landing gear had to be repaired on the spot and the aircraft had to take off from a 250-meter long space, facing a row of poplar trees.

The C.E.V. (Centre d'Essais en Vol) requested that further development be pursued on the prototypes to address a problem of centering, but this didn't work out and the type had to be abandoned.


Attachments

  • SPCA 30_.jpg
    SPCA 30_.jpg
    14 KB · Views: 60
  • SPCA 30.jpg
    SPCA 30.jpg
    385.4 KB · Views: 79
  • SPCA 30 (F-AKCA).jpg
    SPCA 30 (F-AKCA).jpg
    427 KB · Views: 77

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

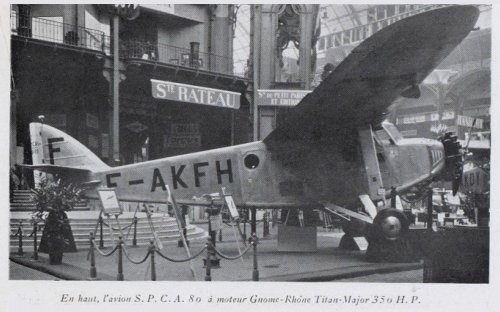

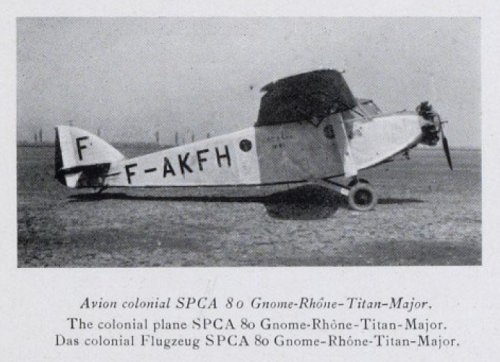

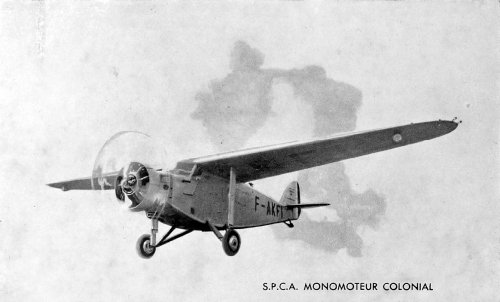

The SPCA 80 was a single-engine colonial plane powered by a 350 hp Gnome-Rhône Titan-Major engine. Two prototypes were built (F-AKFH and F-AKFI).


Attachments

  • SPCA 80.jpg
    SPCA 80.jpg
    211.1 KB · Views: 60
  • SPCA colonial airplane.jpg
    SPCA colonial airplane.jpg
    474.9 KB · Views: 60
  • SPCA 80 at the Grand Palais.jpg
    SPCA 80 at the Grand Palais.jpg
    401 KB · Views: 64

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

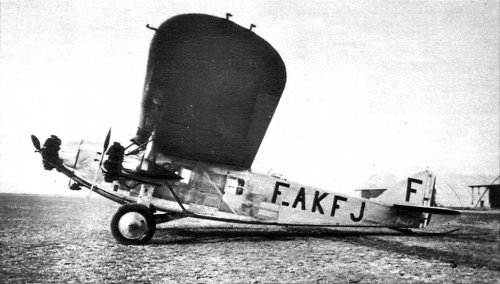

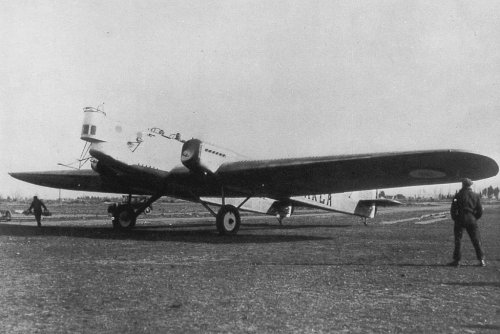

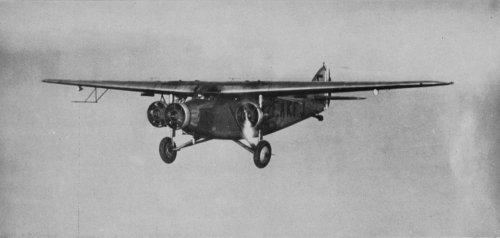

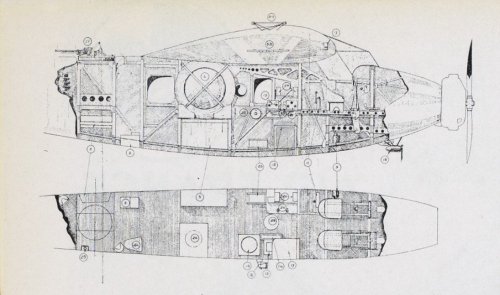

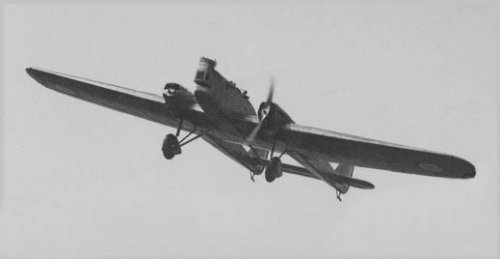

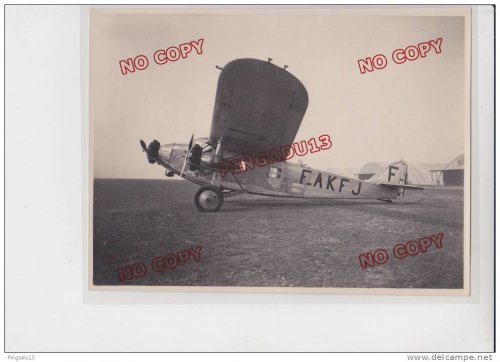

The SPCA Type 90 was a larger, trimotor derivative of the SPCA 80 colonial aircraft, and was entered in a 1932 competition for colonial trimotors. Like all other aircraft of this type, it had to be a multipurpose machine, capable of performing a variety of rather dissimilar tasks. First flown on December 8, 1932 at Istres, the aircraft confirmed the company's expectations. It remained stable even without the pilot's grabbing the controls. On December 23, it was registered F-AKFJ.

The French government awarded nine contracts for a total of 13 prototypes to be delivered to the Ministry of Colonies. The market for the SPCA IX Type 90 Col 3 amounted to FF 2,795,000 out of the 36,155,000 total. All were all high-wing monoplanes except for the Weymann Type 66 biplane. All were powered by radial engines, which were more sturd, less heavy and more easily maintained than the water-cooled types.

The SPCA Type 90, which had been developed under the guidance of engineer Redon, received the highest grades and finished first in the competition. Apart from the strict colonial work, it was liable to be used as a troop transport for 14 men, their weapons and their packages. In its strictly sanitary version, it could carry 10 men, six on stretchers and four sitting.

In April 1933, the aircraft was taken to Villacoublay, beginning a new test phase at the STAé in May. After three days of testing it was handed over to the GAN (Groupe des Avions Nouveaux, or New Airplanes Group). After the 350 hp Gnome-Rhône Titan engines received Townsend cowlings to reduce drag, the SPCA started in September a new series of tests in the hands of state pilots Barrucand and Bogard. At the end of the year, the aircraft was fitted with Messier propeller brakes to be used in case of engine failure.

On January 30, 1934, the SPCA 90 escaped a severe accident. When the port engine tore apart and flipped back 180 degrees, it made a breach into the cockpit area. Pilot Jacques Lecarme kept his cool and asked his passengers to jump for fear that the wing was going to tear off. Yet the aircraft managed to land safely, emphasizing the sturdiness of Redon's design.

Fitted with a new engine mount and vertical rudder, the SPCA 90 was sent on April 25 to the new CEMA (which replaced both the STAé and GAN) and parked in the "Guynemer" hangar. Unfortunately, no production of the type (or any other colonial type, for that matter) ensued, despite its proven qualities.


Translated/adapted from Aviation Magazine.


Attachments

  • SPCA 90 cutaways.jpg
    SPCA 90 cutaways.jpg
    498.1 KB · Views: 96

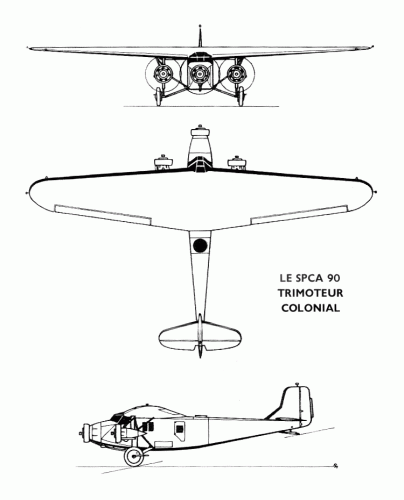

  • SPCA 90 three-view.gif
    SPCA 90 three-view.gif
    59.6 KB · Views: 77
  • SPCA 90 taking off.jpg
    SPCA 90 taking off.jpg
    514.2 KB · Views: 55

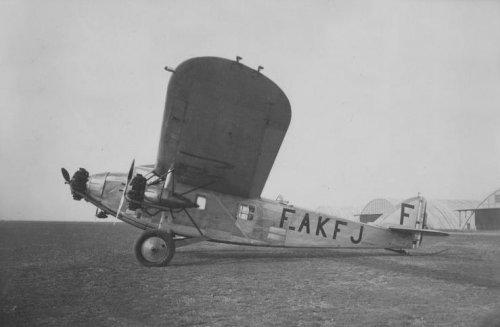

  • SPCA 90 side view.jpg
    SPCA 90 side view.jpg
    312.8 KB · Views: 61
  • SPCA 90 trimotor.jpg
    SPCA 90 trimotor.jpg
    219.8 KB · Views: 61

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,487
Great collection -- thanks Stéphane! On my designation list, I show the SPCA 80 fitted with a lower-power 300 hp Titan-Major (Gnome-Rhône 7Kb). Is that an error?

http://www.secretprojects.co.uk/forum/index.php/topic,18695.0.html


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Apophenia said:
On my designation list, I show the SPCA 80 fitted with a lower-power 300 hp Titan-Major (Gnome-Rhône 7Kb). Is that an error?

All I can say is that I copied these pictures directly from the engine company's inhouse publication, so at least the info underneath the pictures is meant to be reliable (unless it was wishful thinking on the part of Gnome-Rhône, which is also possible). Now the funny thing here is that they refer to the power of the engine using the "HP" unit instead of the usual "CV" found in those magazines... The two units supposedly mean the same but are in fact a little different, so perhaps 300 CV and 350 HP would be the same? Can anyone help with this unit thing?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

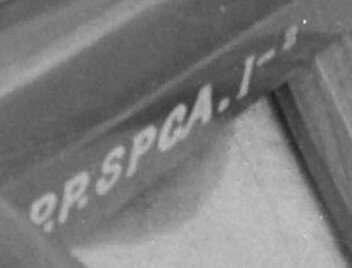

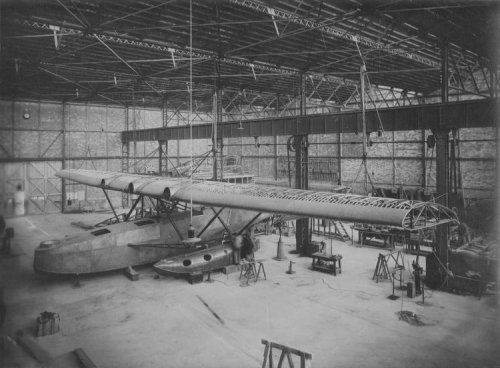

Also, just realized that the construction photo had a caption referring to the SPCA VII (SPCA 40), not the SPCA 80. I'm reposting the picture separately here instead.


Attachments

  • construction.jpg
    382.3 KB · Views: 477

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

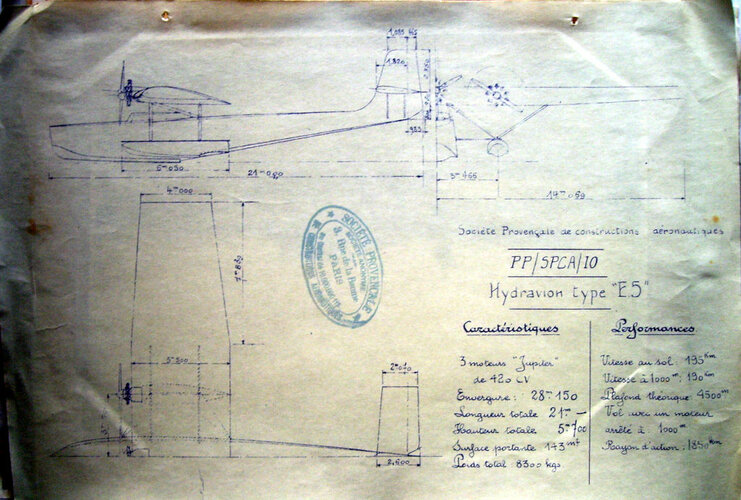

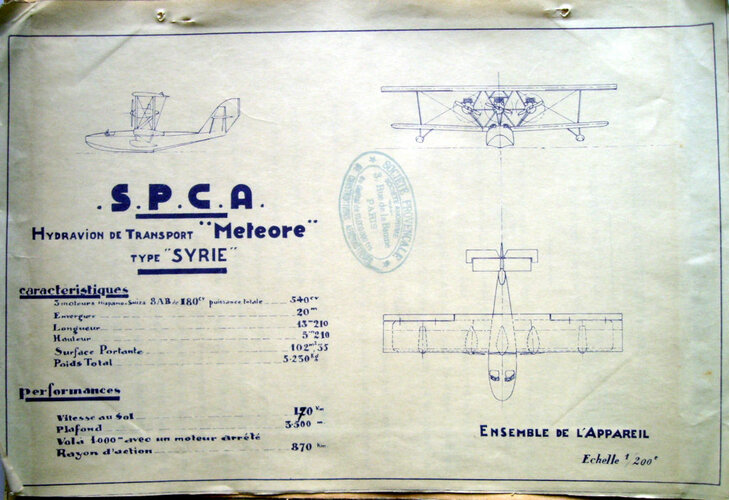

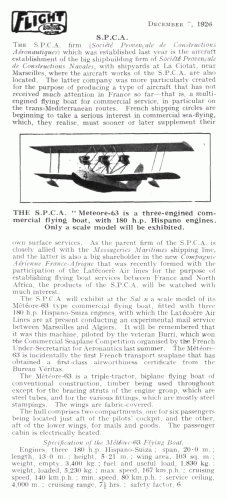

More material on the SPCA Météore 63...


Attachments

  • Météore in Flight, 9 December 1926.gif
    Météore in Flight, 9 December 1926.gif
    284.5 KB · Views: 404
  • France1926-SPCA-Meteore.jpg
    36.8 KB · Views: 371

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,487
Stargazer2006 said:
More material on the SPCA Météore 63, which is also designated as the E-5 in the Popular Aviation article attached below...

Curiouser and curiouser ... Photos of the E-5 seemed to show the SPCA 10 :eek:

On horsepower and CV (for cheval fiscal versus ch for cheval vapeur): The two measures are almost identical -- HP being roughly 98% of CV. So, rounded up, 350 HP equals 355 CV while 300 HP equals 304 CV.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

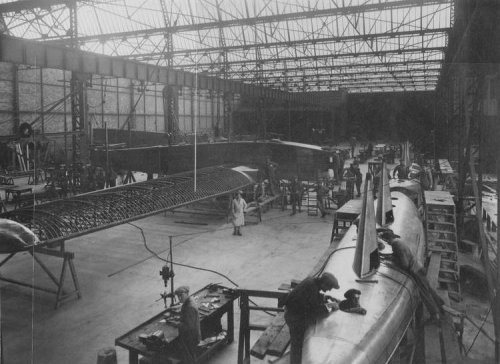

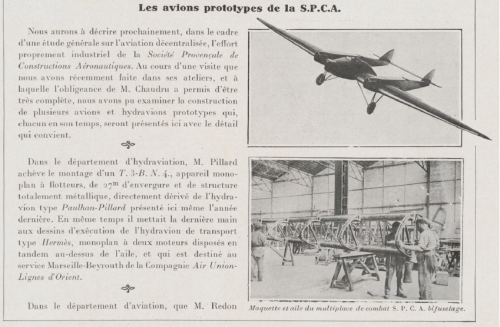

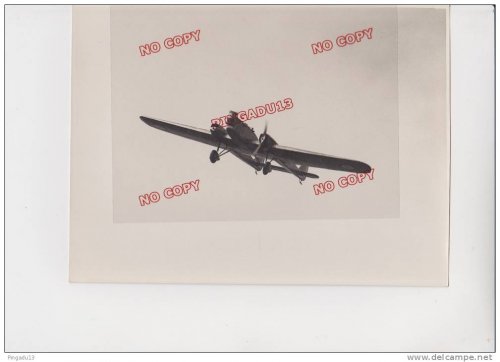

Here is a set of pictures which I saved from the web and that once were for sale.

The JPG samples had watermarks all over so I had to do some heavy work cleaning them, and in a few cases I had to figure out what the missing details could be. Because this is only tentative, I cannot swear on their accuracy, so I'm also attaching the "originals" for comparison.

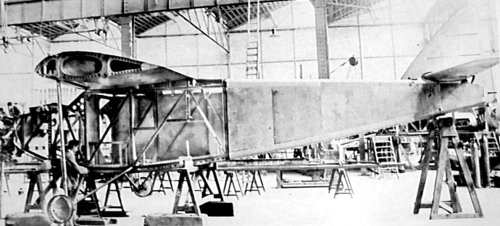

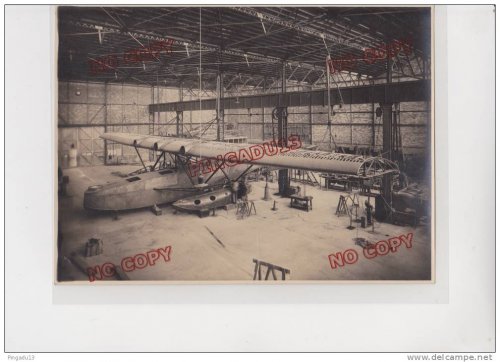

  • SPCA III type 30 combat multiplace - 1st example flying at Istres

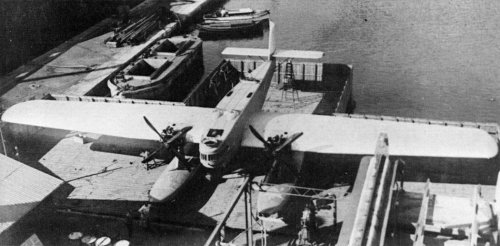

  • SPCA 90 colonial trimotor first flown at Istres on Dec. 8, 1932
  • SPCA T-3 BN4 (Type Paulhan-Pillard) assembly (2 pictures)


Attachments

  • SPCA Marseille Bd Oddo assemblage hydravion torpilleur T3BN4 Type Paulhan Pillard.jpg
    SPCA Marseille Bd Oddo assemblage hydravion torpilleur T3BN4 Type Paulhan Pillard.jpg
    85.1 KB · Views: 59
  • T-3 BN4 assembly 2 retouched.jpg
    T-3 BN4 assembly 2 retouched.jpg
    236.6 KB · Views: 64
  • SPCA La Ciotat assemblage hydravion torpilleur T3BN4 Type Paulhan Pillard.jpg
    SPCA La Ciotat assemblage hydravion torpilleur T3BN4 Type Paulhan Pillard.jpg
    84.7 KB · Views: 42
  • T-3 BN4 assembly 1 retouched.jpg
    T-3 BN4 assembly 1 retouched.jpg
    72.6 KB · Views: 51
  • La Ciotat SPCA 90 trimoteur police coloniale 1 er vol Istres 8 déc 1932.jpg
    La Ciotat SPCA 90 trimoteur police coloniale 1 er vol Istres 8 déc 1932.jpg
    60.7 KB · Views: 51
  • SPCA 90 side view retouched.jpg
    SPCA 90 side view retouched.jpg
    112.3 KB · Views: 69
  • La Ciotat avion bipoutre SPCA III type 30 1 er exemplaire Multiplace de combat en vol Istres.jpg
    La Ciotat avion bipoutre SPCA III type 30 1 er exemplaire Multiplace de combat en vol Istres.jpg
    37.3 KB · Views: 339
  • SPCA 30 retouched.jpg
    SPCA 30 retouched.jpg
    35.6 KB · Views: 365

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Apophenia said:
Stargazer2006 said:
More material on the SPCA Météore 63, which is also designated as the E-5 in the Popular Aviation article attached below...

Curiouser and curiouser ... Photos of the E-5 seemed to show the SPCA 10 :eek:

On horsepower and CV (for cheval fiscal versus ch for cheval vapeur): The two measures are almost identical -- HP being roughly 98% of CV. So, rounded up, 350 HP equals 355 CV while 300 HP equals 304 CV.

My fault! I got mixed up on this one. OF COURSE the article is about the E-5, which WAS the SPCA 10 (also known as the Paulhan-Pillard flying boat). I removed the image and am reposting it here, along with a poster of the same. Sorry again about the blunder.


I have also added a picture of the SPCA 30 in the first page...


Attachments

  • France1931-SPCA.jpg
    65.3 KB · Views: 61

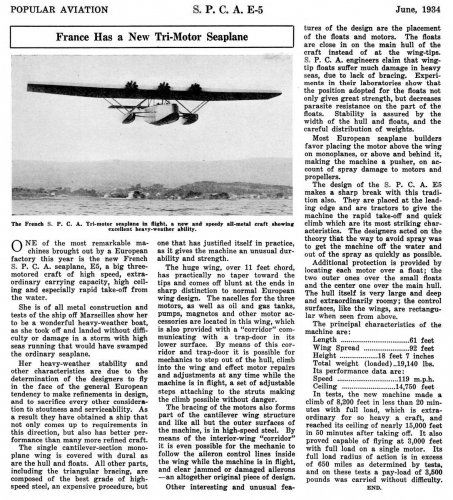

  • SPCA E-5 from Popular Aviation, June 1934.jpg
    SPCA E-5 from Popular Aviation, June 1934.jpg
    1 MB · Views: 71

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Jemiba said:
Neither the Fairchild XC-120, nor the SIAI-Marchetti SM-105 was a new idea:

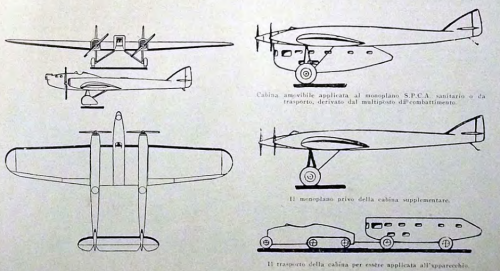

Here's a proposal for such an aircraft from 1929, made by the Société Provencale
de Construction Aéronautique (SPCA), intended especially for medical evacuation:
(from L'Aeronautique 7/1929)


Also from Les Ailes journal.


http://gallica.bnf.fr/ark:/12148/bpt6k6555794t/f3.image


Attachments

  • SPCA.JPG
    21.5 KB · Views: 74

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
From l'Aeronautique journal 1929,


here is the early Models to SPCA-30 and SPCA-40 aircraft.


Attachments

  • SPCA-30.png
    633.3 KB · Views: 72
  • SPCA-40.png
    324.7 KB · Views: 56
  • SPCA-1.png
    689.7 KB · Views: 46
  • SPCA-2.png
    755.7 KB · Views: 52

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Jemiba said:
Neither the Fairchild XC-120, nor the SIAI-Marchetti SM-105 was a new idea:
Here's a proposal for such an aircraft from 1929, made by the Société Provencale
de Construction Aéronautique (SPCA), intended especially for medical evacuation:
(from L'Aeronautique 7/1929)


With more info,from the same source.


Attachments

  • SPCA.png
    466.9 KB · Views: 80

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989

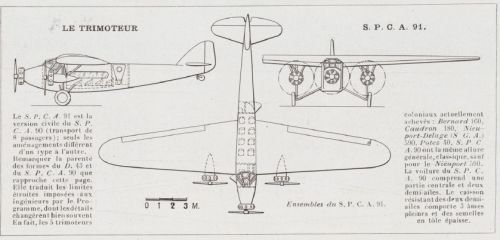

Also from l'Aeronautique 1932,


the little known variant,SPCA-91T airliner.


Attachments

  • 91.png
    466 KB · Views: 80

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Jemiba said:
Neither the Fairchild XC-120, nor the SIAI-Marchetti SM-105 was a new idea:
Here's a proposal for such an aircraft from 1929, made by the Société Provencale
de Construction Aéronautique (SPCA), intended especially for medical evacuation:
(from L'Aeronautique 7/1929)

And from Italian Aeronautic.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Aeronautica/L'Aeronautica%201932%2002.pdf


Attachments

  • 1.png
    891 KB · Views: 74

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,068
Reaction score
4,153
Hi! SPCA-20 prototype torpedo bomber.
http://www.airwar.ru/enc/bww1/spca20.html
"The program for the development of bombers and torpedo bombers of naval aviation, which was launched in 1927, required the creation of seaplanes of two types: for operations on the high seas and in the coastal zone.
In accordance with the requirements of the program for action on the high seas, six aircraft were created: four-engine Bernard H 340, SAB AB 21, Latécoère 550 and two-engine Farman 311, CMS 60 and SPCA II (they can be supplemented with LeO 204, which was installed on floats LeO 203 ). All these aircraft were contracted, but most of these seaplanes were unsuccessful.
The SPCA II (or SPCA PP 20), developed by the Marseilles company in collaboration with Alphonse Tellier, had an advanced design for float seaplanes performing the functions of bombers and torpedo bombers. "

"France's Navy headquarters refused to accept the aircraft for service. As in the case of the SPCA II, the engines were mounted too close to the thick wing, becoming some kind of air brakes.
The emphasis in the program of creating seaplane torpedo planes was shifted towards single-engine coastal class vehicles, one of which - Latécoère 290 - was put into serial production. None of the seaplanes for operations on the high seas has been put into serial production."

"Wing span : m 26.22, Length : m 18. 62, Height : m 6.40, Wing area : m2 123.00,
Weight : kg empty aircraft 4300, normal take-off 7300
engine's type : 2 PD Gnome-Rhône 9 Ae , Power : hp 2 x 480, Maximum speed : km / h 180 , Cruising speed : km / h 165
Practical range : km 1200 , Practical ceiling : m 5000, Crew : people 4
Armament : only planned

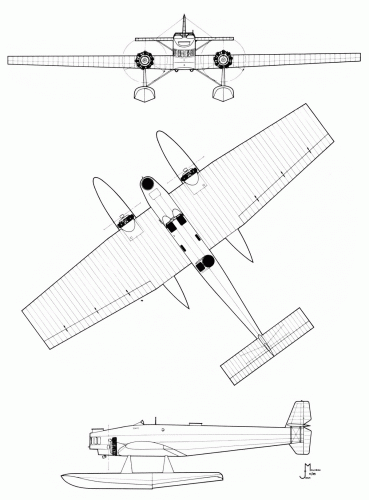

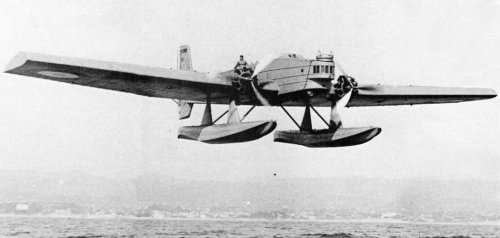

Attachments

  • spca20-1.gif
    359 KB · Views: 98
  • spca20-1.jpg
    58.2 KB · Views: 80
  • spca20-2.jpg
    93.7 KB · Views: 78

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hi,

does anyone hear about Paulhan-Pillard Type 10,12 & 17 of 1927 ?.

http://www.acam.asso.fr/histo/premiers_equipements6.php


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989

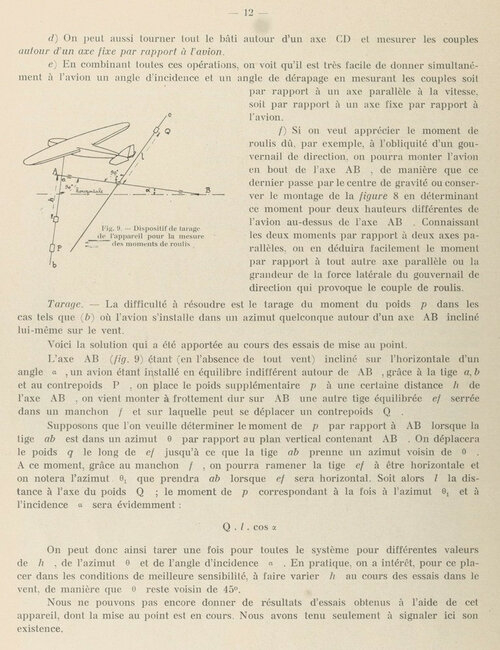

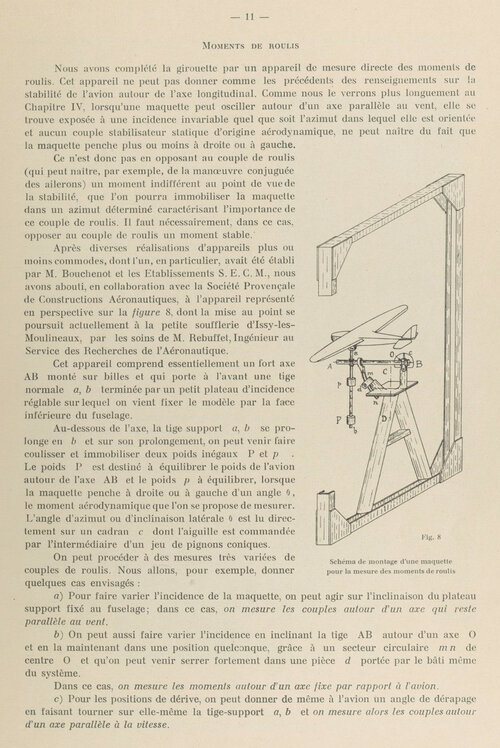

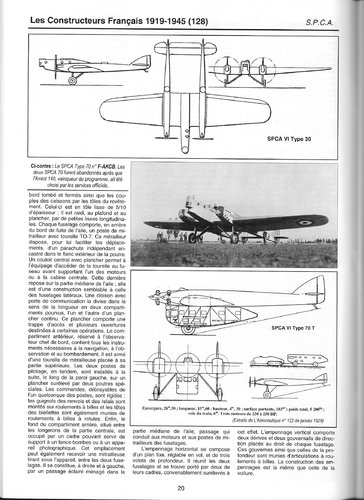

For my dear Zichek,

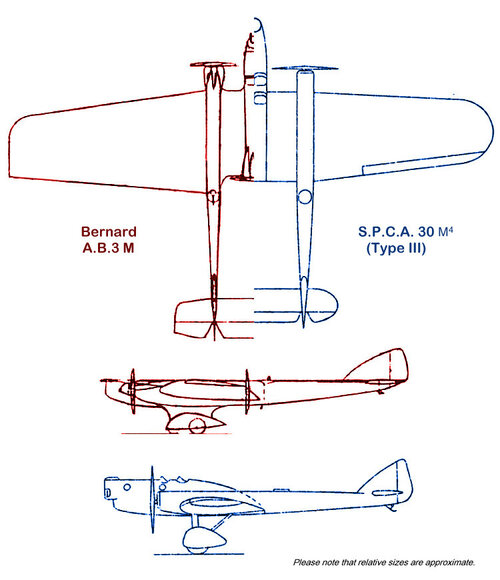

all Info about Type-30,from TU magazine.


Attachments

  • 2018-06-10 19-56-34_1072.jpg
    2018-06-10 19-56-34_1072.jpg
    1.3 MB · Views: 62
  • 2018-06-10 19-57-31_1073.jpg
    2018-06-10 19-57-31_1073.jpg
    1 MB · Views: 59
  • 2018-06-10 19-58-44_1074.jpg
    2018-06-10 19-58-44_1074.jpg
    1.4 MB · Views: 58

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989

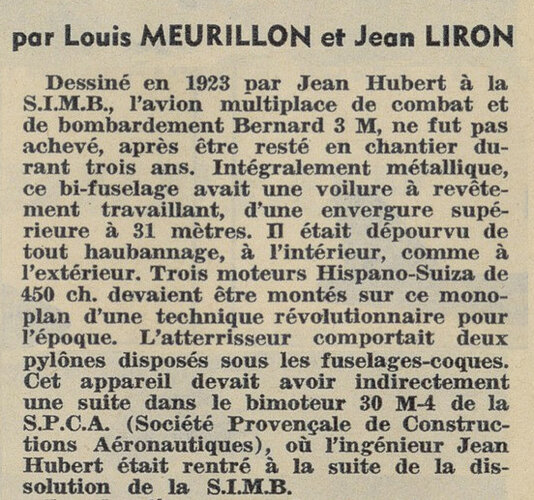

From, Annuaire_de_l'aéronautique__bpt6k9810211h.


Attachments

  • 9.png
    534.6 KB · Views: 41

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989

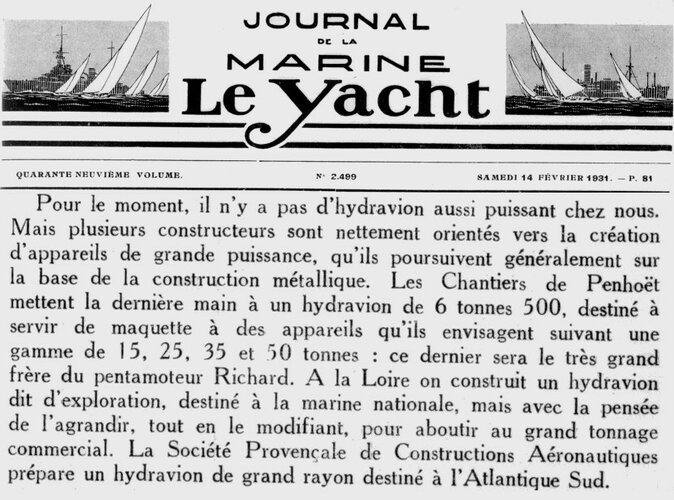

From Aerophile 1934,

the SPCA.91T.


Attachments

  • 1.png
    126.8 KB · Views: 19

Similar threads

Top
