Shenyang's indigenous J-11B

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476

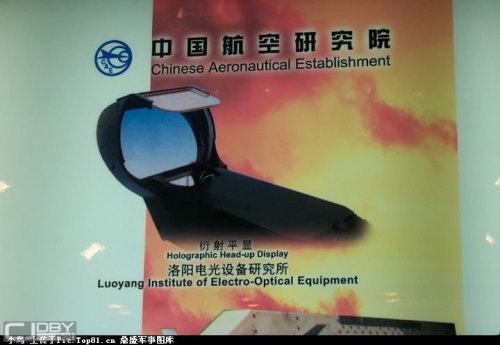

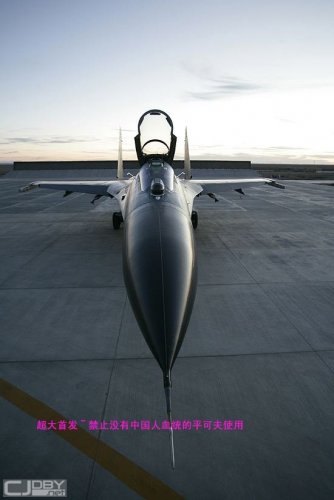

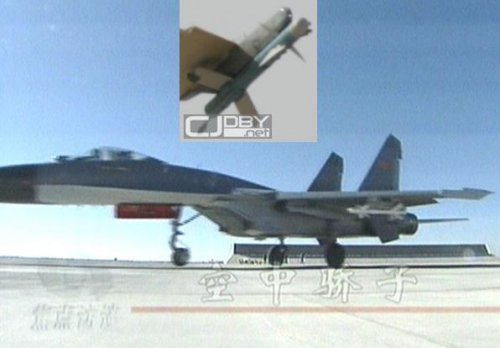

China are now producing J-11B with a variety of indigenous equipment. It is equipped with WS-10A turbofans, a wide angle holographic HUD, new KLJ series radar, Su-30MKK style IRST, and a glass cockpit. It can be armed with PL-12 and PL-8 AAMs.


Attachments

  • b.jpg
    41.9 KB · Views: 272
  • J-11B + PL-8.JPG
    J-11B + PL-8.JPG
    27 KB · Views: 81
  • j11bjan86hd6.jpg
    32.2 KB · Views: 76
  • j11bjan85io6.jpg
    44.3 KB · Views: 196
  • j11bjan83wu0.jpg
    50.8 KB · Views: 227
  • J-11B + PL-8.JPG
    J-11B + PL-8.JPG
    27 KB · Views: 276
  • a.jpg
    44 KB · Views: 227

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,414
Reaction score
1,452
I wonder if they're paying all applicable licensing fees ;)


Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1
Why would they pay fees for the individual components they developed. They already paid for the aerodynamic "likeness" that is the single seat Su-27. So much so they even have to copy the blade RWR extensions near the engine intake even if there is nothing there.


Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1

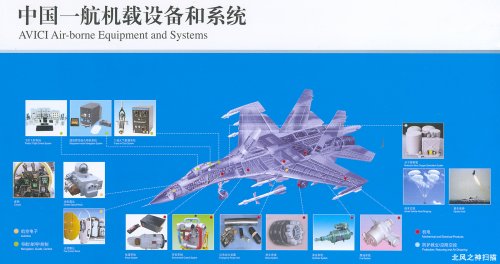

Avionics poster for the J-11B. Shows cockpit with 4 MFDs, though it still uses the older HUD, the FCS, and the radar among other things.


Attachments

  • J-11B_diagram.jpg
    563.3 KB · Views: 162

Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1

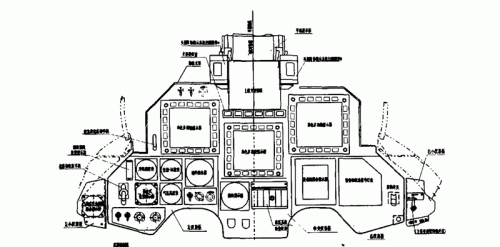

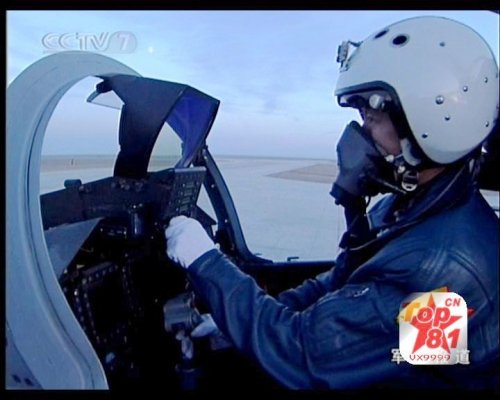

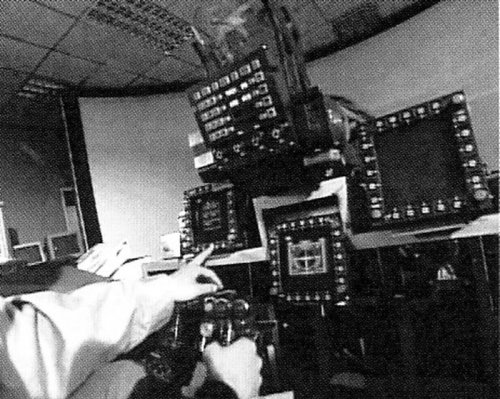

A view of the actual cockpit. Compare to the tricked up J-11 cockpit that adds another MFD on top of the dashboard (see corner of poster).


Attachments

  • J-11B_cockpitlive.jpg
    50.2 KB · Views: 69
  • J-11A_cockpit.jpg
    67.3 KB · Views: 60
  • J-11B_cockpit_dashborad.gif
    57.6 KB · Views: 95
  • J-11B_cockpit.jpg
    117.9 KB · Views: 90

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,736
Reaction score
511

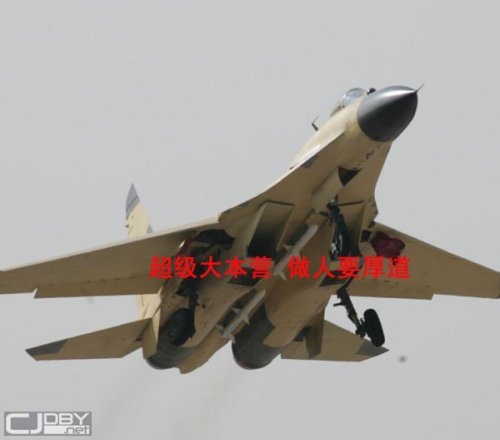

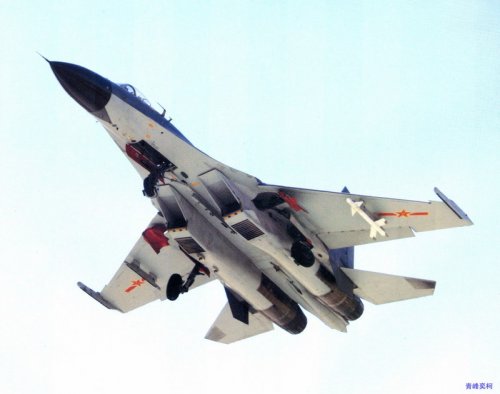

Here it is ... finally the first clear picture of a WS-10A-powered and PL-8 armed J-11B !!!

Deino ;D


Attachments

  • J-11B best  + PL-8.jpg
    J-11B best + PL-8.jpg
    84.2 KB · Views: 179

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476

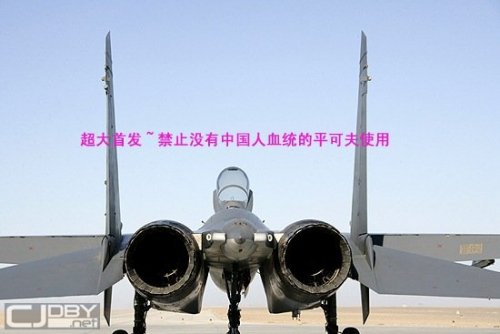

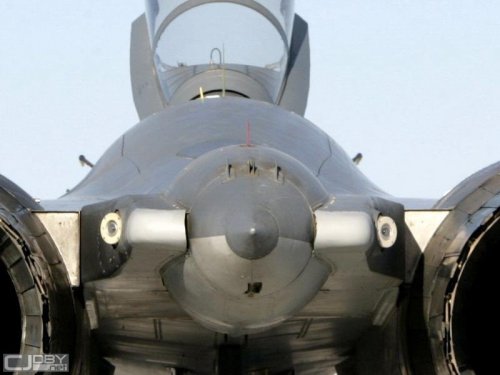

Rear view shows optical type MAWS on tailcone


Attachments

  • j-11b.jpg
    51.6 KB · Views: 102

Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1
The MAWS can also be seen underneath the right engine intake.


Attachments

  • RWR.jpg
    12.1 KB · Views: 53
  • RWR1.jpg
    7.1 KB · Views: 52

Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1
Yeah that's supposed to be where the pylon is.

It would be kind of strange if they "decommissioned" that pylon for putting those "eyes" there.

Trying to look for similar "eyes" on the J-10.


--- Looking closer under magnification, its too big to be the same thing now.


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,020
Reaction score
255
Perhaps the RWR fairings on the intakes are not empty afterall? Would be a sensible location too.


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
Mightn't the 'MAWS' be laser warning receivers? Seems a strange place to put IR/UV sensors, right next to the jetpipes.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476
Thats a great point, Mike ;D

"Oh my god, theres two HUGE missiles either side of me!"


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
That reminds me of a woman I used to work with...!


Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1
I think its just strictly optical. The devices look like they got wide angle lenses.

Since one set is placed near the rear RWRs, the other set may also be placed near the front RWRs mounted in the blades near the engine intake.


Tam

ACCESS: Confidential
Joined
Jan 6, 2007
Messages
74
Reaction score
1

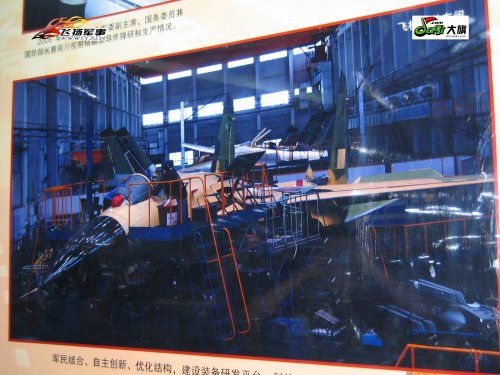

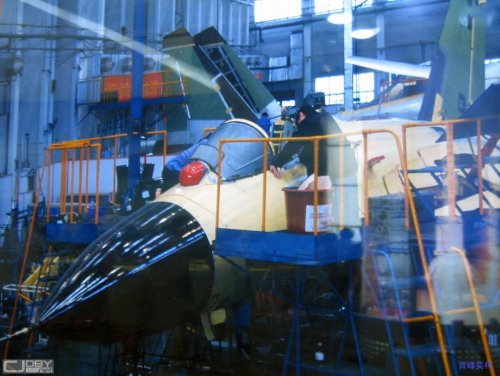

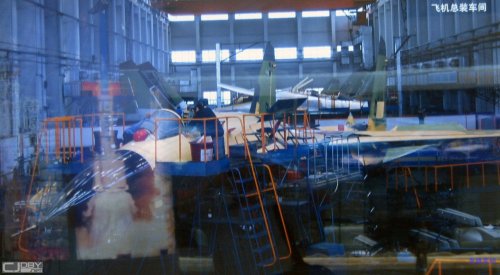

Some latest pics from the PLA 80th Anniversary exhibition. Looks like the plane is in serial production. Note they got two seaters too.


Attachments

  • J-11B_production.jpg
    150.9 KB · Views: 600
  • J-11B_production2.jpg
    170.8 KB · Views: 488
  • J-11B_posters_PLAanniv.jpg
    257.5 KB · Views: 458

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,736
Reaction score
511

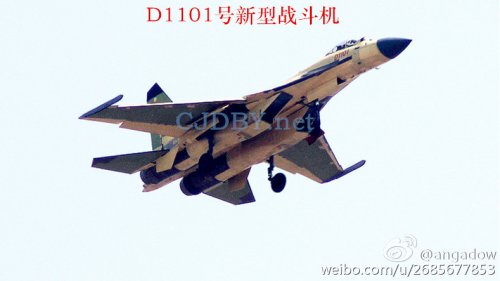

A further improved variant of J-11B in the same class of American F/A-18E has been under development at 601/SAC as J-11D. It features a new AESA radar and FBW systems which are thought to be based those of J-16. New generation of AAMs can be carried including PL-10 and PL-15. More composite material was used in its wing and tail sections. It might also have a RAM coating in order to reduce the RCS but this has not been confirmed. The AESA radar was speculated to have been developed by the 14th Institute and was tested onboard a J-11B radar testbed in 2014. The first J-11D prototype (D1101) took off successfully from the SAC airfield on April 29, 2015, powered by two WS-10A engines. Its forward IRST/LR appears to have been offset to the starboard side of the windshield, suggesting an IFR probe was installed on the port side, an arrangement similar to that of J-15. It is possible the earlier J-11Bs could be upgraded to the D standard in the future.

http://chinese-military-aviation.blogspot.de/p/fighters-ii.html#J-11D


Attachments

  • J-11D prototype - maiden flight 29.11.15 - 2.jpg
    J-11D prototype - maiden flight 29.11.15 - 2.jpg
    13 KB · Views: 338
  • J-11D prototype - maiden flight 29.11.15 - 1.jpg
    J-11D prototype - maiden flight 29.11.15 - 1.jpg
    74.7 KB · Views: 343

stealthflanker

ACCESS: Top Secret
Senior Member
Joined
Feb 12, 2010
Messages
592
Reaction score
270
Amazing, looking at the radome.. Slanted bulkhead. Only make sense with solid state ESA radar installation.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,736
Reaction score
511

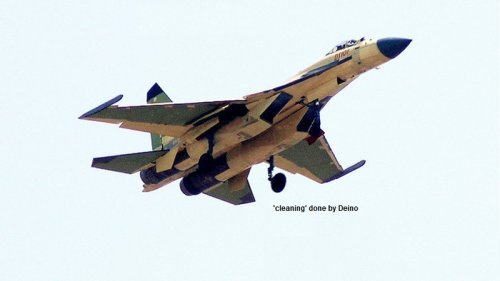

A bit cleaned up by myself !! ;)


Attachments

  • J-11D prototype - maiden flight 29.11.15 - clean.jpg
    J-11D prototype - maiden flight 29.11.15 - clean.jpg
    69.9 KB · Views: 103

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,736
Reaction score
511

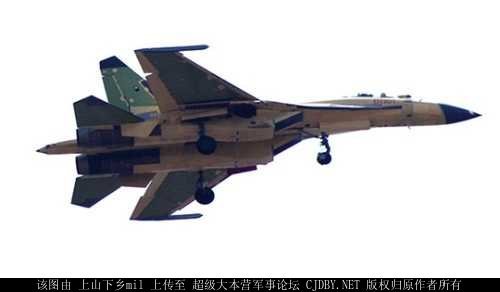

Finally .... and reportedly the second aircraft followed on 27. October 2015.


Attachments

  • J-11D 1101 - 11.11.15 2.jpg
    J-11D 1101 - 11.11.15 2.jpg
    136.4 KB · Views: 92

flanker

ACCESS: Top Secret
Joined
Mar 20, 2008
Messages
889
Reaction score
105
Looking sharp! Among other obvious things, is the IRST bigger/different or is it just me?


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,736
Reaction score
511
flanker said:
Looking sharp! Among other obvious things, is the IRST bigger/different or is it just me?

Yes, indeed it looks different

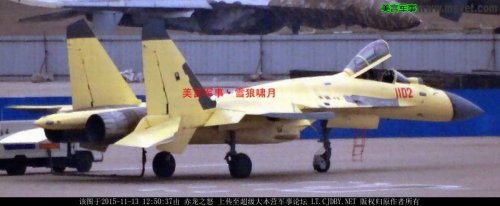

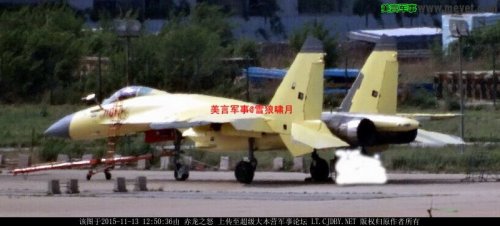

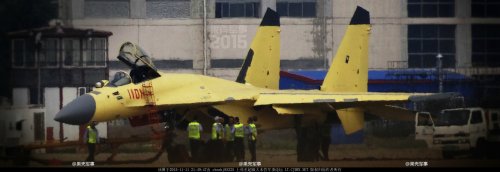

By the way, here's no. 02 showing the IRF-probe.


Attachments

  • J-11D 1102 - 13.11.15 - 1.jpg
    J-11D 1102 - 13.11.15 - 1.jpg
    48 KB · Views: 38
  • J-11D 1102 - 13.11.15 - 2.jpg
    J-11D 1102 - 13.11.15 - 2.jpg
    55 KB · Views: 45
