During 1970/71, the Norvegian Aker Group studied concepts for an icebreaking tanker with the capability of year round operation under Artic conditions. Three concepts were considered: a conventional hull icebreaker (IBT) and a couple of semi-sumersible concepts (SSIT).

Source: Aviation & Marine magazine April 1976 issue.


Attachments

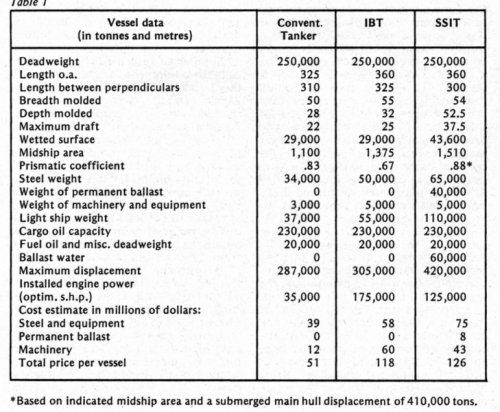

  • Conventional tanker, IBT and SSIT data table.jpg
    Conventional tanker, IBT and SSIT data table.jpg
    293.3 KB · Views: 200
  • IBT and SSIT concepts.jpg
    IBT and SSIT concepts.jpg
    214.5 KB · Views: 234
SSIT selected project


Attachments

  • SSIT art.jpg
    SSIT art.jpg
    191.5 KB · Views: 200

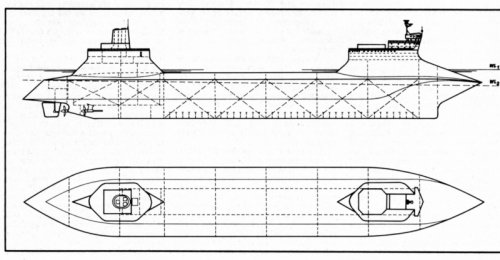

  • SSIT drawing.jpg
    SSIT drawing.jpg
    181 KB · Views: 200

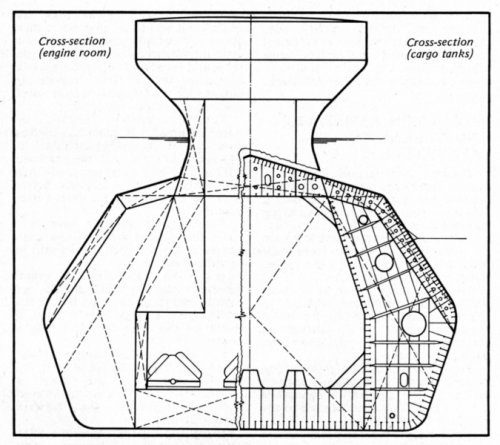

  • SSIT section.jpg
    SSIT section.jpg
    223 KB · Views: 184
