Hi all,

at Dimensione Cielo 10 I have found a little info about the SAIMAN 303. If you have please post a drawing and technical data...

Thanks and Servus Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Hi Maveric,

I think nothing called SAIMAN 303,but SAIMAN 203,because this company
had C,LB and number 200 series,and we know the Model-200,201,202,204,
205 and 208 only.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Hi all,

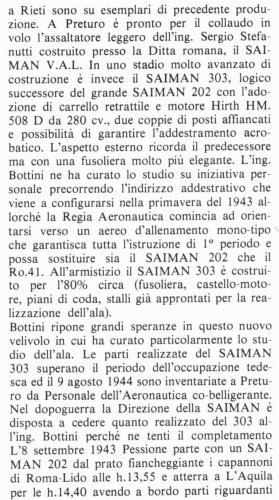

hesham, look at this pic. It´s from dimensione cielo 10, the aircraft is called SAIMAN 303! ;)
I believe we need help from Skybolt...

Hello Skybolt...Skybolt...Skybolt... :-*

Servus Maveric


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Sorry Mav, I've just noticed your cry for help !
I'll ask the author of Dimensione Cielo 10 and come back with a definitive answer.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Uh, yes, I asked Giancarlo: he found the note on the 303 in a document, but no more.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,582
Reaction score
884
So, in a paraphrased nutshell, what we've got is ...

The SAIMAN 303 was in an advanced construction stage. Seen as a logical successor to the SAIMAN 202 trainer, the 303 was designed by Chief Designer, Ing Mario Bottini, in the Spring of 1943 as a response to Regia Aeronautica interest in a single type for primary training (incl. Ro.41 replacement).

The 303 retained the side-by-side seating of the 202 but had a retractable undercarriage [the 202 had a fixed, spatted gear] and a 280 hp Hirth HM. 508 D inline [the 202 had a 130 hp Alfa Romeo 110]. Externally, the 303 is said to resemble the 202 but with a more elegant fuselage shape.

SAIMAN 303 construction reached the 80% complete stage - fuselage completed, motor mounts and tailplane installed in preparation for attachment of the wings.

Oh, and also mention of Sergio Stefanutti's light attack V.A.L. being constructed by SAIMAN.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Apophenia said:
So, in a paraphrased nutshell, what we've got is ...

The SAIMAN 303 was in an advanced construction stage. Seen as a logical successor to the SAIMAN 202 trainer, the 303 was designed by Chief Designer, Ing Mario Bottini, in the Spring of 1943 as a response to Regia Aeronautica interest in a single type for primary training (incl. Ro.41 replacement).

The 303 retained the side-by-side seating of the 202 but had a retractable undercarriage [the 202 had a fixed, spatted gear] and a 280 hp Hirth HM. 508 D inline [the 202 had a 130 hp Alfa Romeo 110]. Externally, the 303 is said to resemble the 202 but with a more elegant fuselage shape.

SAIMAN 303 construction reached the 80% complete stage - fuselage completed, motor mounts and tailplane installed in preparation for attachment of the wings.

Oh, and also mention of Sergio Stefanutti's light attack V.A.L. being constructed by SAIMAN.

80% complete, but no photo or drawing?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Apparently, no. It isn't a never heard thing. Think of the Re-2006, the MB-902, or the Alfa 1902, the SAIMAN VAL, etc.
