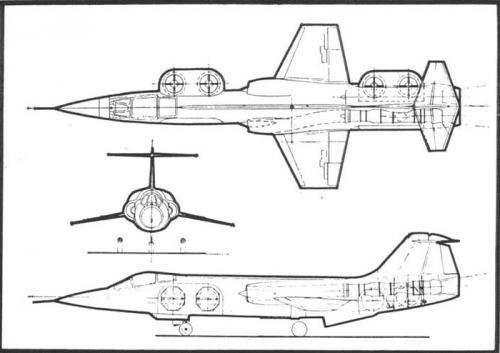

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

Ryan-esque looking designs

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

Yes,very similar to Ryan design.

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

PaulMM (Overscan) said:
Looks like the Soviet textbook simply stole these and painted over the US insignia.

They didn't do that. They simply took some US pics "as is". The circle areas you think are patches covering up the US markings are actually the lift-fans!
These are drawings we've had on this forum, perhaps even several times. And I remember a discussion as to whether the bottom one was Ryan or NAA. To me it is definitely a Ryan/G.E. thing.

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

Skyblazer said:
PaulMM (Overscan) said:
Looks like the Soviet textbook simply stole these and painted over the US insignia.

They didn't do that. They simply took some US pics "as is". The circle areas you think are patches covering up the US markings are actually the lift-fans!
These are drawings we've had on this forum, perhaps even several times. And I remember a discussion as to whether the bottom one was Ryan or NAA. To me it is definitely a Ryan/G.E. thing.

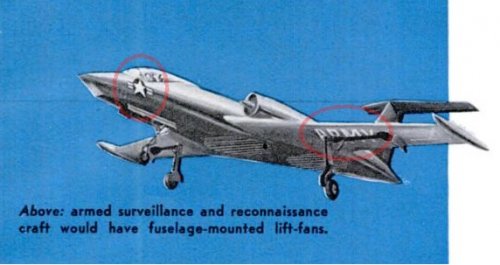

Those lift fans are not in the areas where the markings had been covered up.


Attachments

  • Recce VTOL circled.jpg
    Recce VTOL circled.jpg
    59.2 KB · Views: 610
Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

The Artist said:
Those lift fans are not in the areas where the markings had been covered up.

My bad. :-[

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

Hey, it's a Friday, what other excuse do you need? :)

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

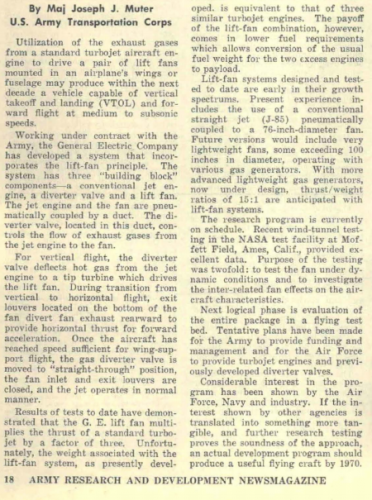

Hi,


as my dear Lark said before,it was from General Electric Company;


http://asc.army.mil/docs/pubs/alt/archives/1961/Jul_1961.PDF


Attachments

  • 1.png
    528.9 KB · Views: 197
  • 2.png
    586.4 KB · Views: 166
Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

hesham said:
as my dear Lark said before,it was from General Electric Company;

No. General Electric was not a proponent of airframes. They associated with Ryan on every Vertifan project, and this is one of them.

Read the article!! It says they "developed a system" for a "lift-fan". They did not originate the aircraft design!!!

In my dear scott's site,

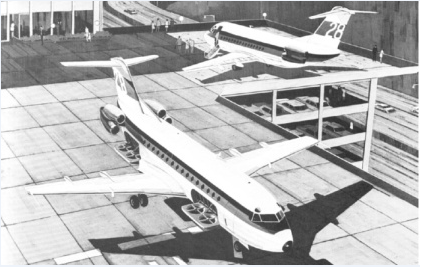

here is a Ryan VTOL Jetliner Project.

http://www.aerospaceprojectsreview.com/blog/?p=1203


Attachments

  • Ryan.png
    117.7 KB · Views: 151
hesham said:
here is a Ryan VTOL Jetliner Project.

In that case you maybe should have cut the image in two, or explained what the other design is, because it's ambiguous.

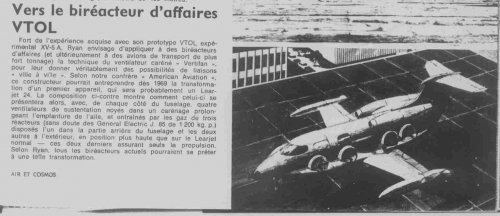

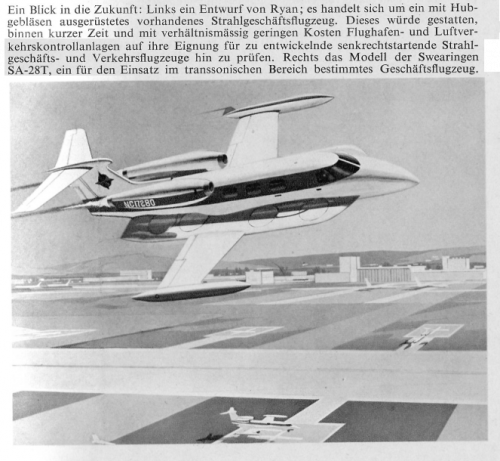

The Ryan project is on the left (the other one is Bell). As clearly shown, it's not so much a Ryan design as the projected application of their Vertifan technology to the Fokker F28.
They studied the exact same modifications on other aircraft such as the Gulfstream and the Learjet.


Attachments

  • Ryan_STOVL_Bizjet_Interavia_Germany_November_1969_page1773.png
    291.4 KB · Views: 165
  • Ryan-VTOL-Bizzjet.JPG
    49.4 KB · Views: 128
I fixed it Skyblazer,

and we must merged those topics;

http://www.secretprojects.co.uk/forum/index.php/topic,1938.msg224424.html#msg224424

Liftfan types split and merged

Courtesy of San Diego Air and Space Museum:
F 1793 Ryan XV-5A Vertifan Acceptance
Film donated by the Ryan Aeronautical Company to the San Diego Air and Space Museum in the 1990s.
Video:
https://youtu.be/dXq21JHpVuA
Code:
https://youtu.be/dXq21JHpVuA
Maybe someone can attach some screenshots during the Christmas holidays.☺

fightingirish said:
Courtesy of San Diego Air and Space Museum:
F 1793 Ryan XV-5A Vertifan Acceptance
Film donated by the Ryan Aeronautical Company to the San Diego Air and Space Museum in the 1990s.
Video:
https://youtu.be/dXq21JHpVuA
Code:
https://youtu.be/dXq21JHpVuA
Maybe someone can attach some screenshots during the Christmas holidays.☺
Muchos gracias for postin Sir

The Ryan Vertifan;

http://archive.aviationweek.com/search?exactphrase=true&QueryTerm=Ryan+project&start=40&rows=20&DocType=Article&Sort=&SortOrder=&startdate=1916-08-01&enddate=2016-01-04&LastViewIssueKey=&LastViewPage=


Attachments

  • 1.png
    120.8 KB · Views: 894
Jemiba said:

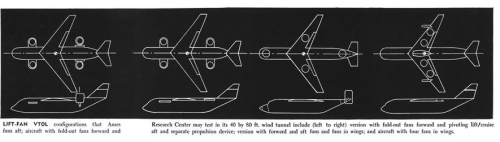

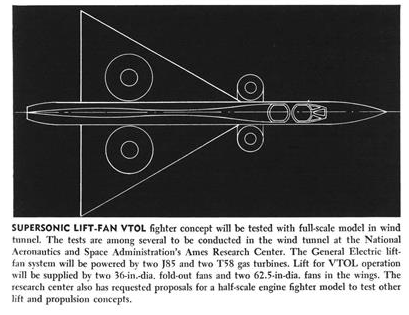

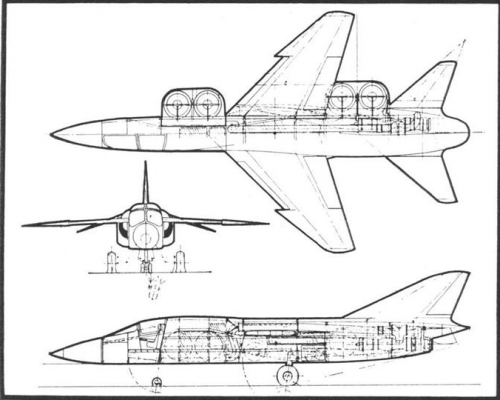

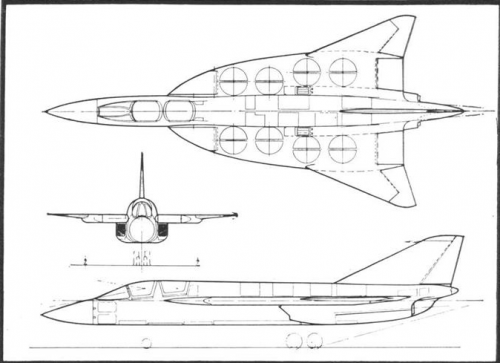

From Aviation Week .08.1965 some more lift fan concepts,
for transports, including the CX-6A and a VTOL fighter.
(pictures inversed)

Hi,

http://archive.aviationweek.com/image/spread/19650809/28/2
http://archive.aviationweek.com/image/spread/19650809/30/2


Attachments

  • 190.png
    150.8 KB · Views: 149
  • 187B.png
    175.1 KB · Views: 707
  • 186C.png
    137.3 KB · Views: 740
  • 4.png
    141.6 KB · Views: 742
  • 3.png
    83.9 KB · Views: 764
Just found this at a local estate sale. A FERMO but not metal.... it's resin. Was nasty with years of nicotine, but cleaned up nicely. Had old NASA lettering.


Attachments

  • IMG_2076.JPG
    142.6 KB · Views: 277
Ummm...Retractable vertifan??? :eek:
Pictures source : Google

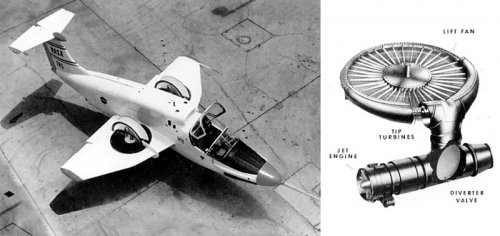

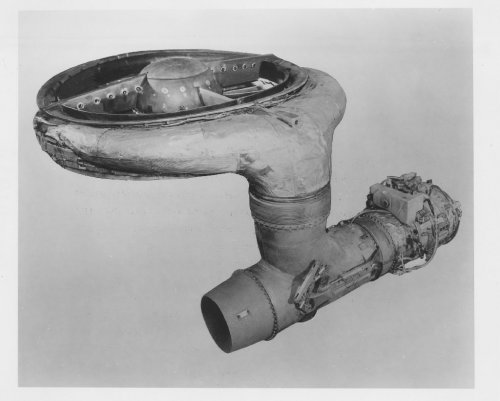

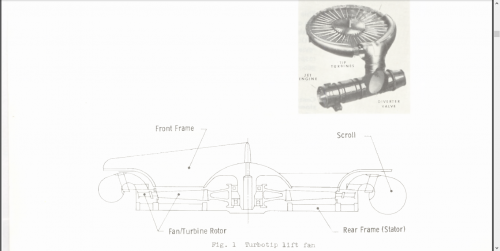

Turbotip Lift Fan Design
W. W. THOMAS
Manager,
V/STOL and Advanced Systems Engineering,
General Electric Co.,
Cincinnati, Ohio
http://www.google.co.jp/url?sa=t&rct=j&q=&esrc=s&source=web&cd=7&ved=0ahUKEwidwKyv-ojLAhXLJJQKHUykBIYQFgg7MAY&url=http%3A%2F%2Fasmedigitalcollection.asme.org%2Fdata%2FConferences%2FASMEP%2F84052%2FV001T01A109-72-GT-111.pdf%3FresultClick%3D1&usg=AFQjCNGO1uUZMaOuEO79NKxz2KzDcFqfEg&sig2=Uuh7se2vtpc5W199_mI1eg

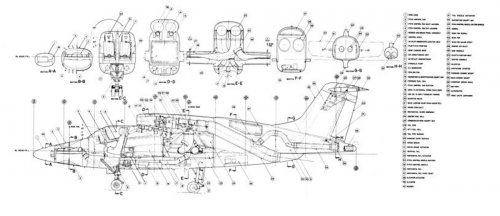

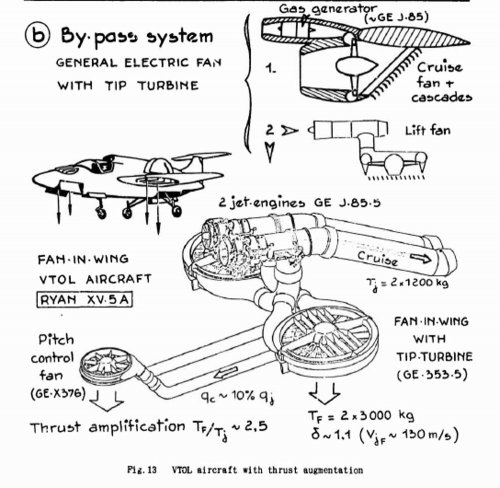

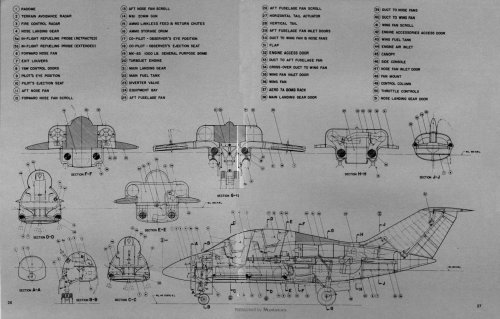

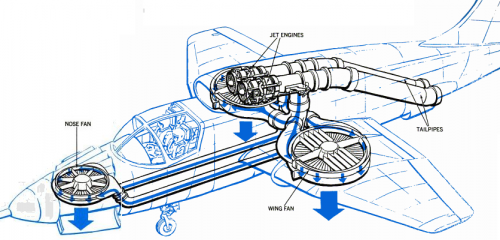

According to XV-5 vertifan drive gas supply system drawing, each main jet engine seems to supply all three vertifans to prepare for one engine trouble. Also XV-5 has a vertical direction reaction trim control system at the tail of the aircraft.

Trust amplification is about 2.5!!
NATO excellent large report.
http://www.dtic.mil/dtic/tr/fulltext/u2/688921.pdf


Attachments

  • tip turbine system.jpg
    tip turbine system.jpg
    151.4 KB · Views: 152
  • ryan_xv-5_general_arrangement.jpg
    105.8 KB · Views: 151
  • 2016-02-21_2231.png
    245.2 KB · Views: 244
  • 5684532173_4b6a5f0f90_b.jpg
    118.6 KB · Views: 260
  • Ryan_X_V_Vertifan.png
    123 KB · Views: 285
  • various_5.jpg
    95.1 KB · Views: 274
Recently posted by the San Diego Air & Space Museum (SDASM) at their YouTube site, footage of the 5 October 1966 crash landing of the XV-5A (62-4506) which resulted in the tragic death of Bob Tittle. Footage from several different angles is provided, including (beginning at the 7 min 35 sec mark) an on-board camera on the underside of the aircraft which shows what appears be the rescue sling which was ingested into the aircraft's port-side wing liftfan inlet (shown at the 3 min 57 sec mark and 6 min 13 sec mark) resulting the crash. Sadly, Tittle suffered his fatal injuries from his seat ejecting sideways and tumbling due to the torque placed on the aircraft as it touched down.

YouTube - SDASM - F 2032 Ryan XV-5A Vertifan VTOL Accident/Crash Footage Pilot Bob Tittle
http://www.youtube.com/watch?v=F_M_4Csimm4

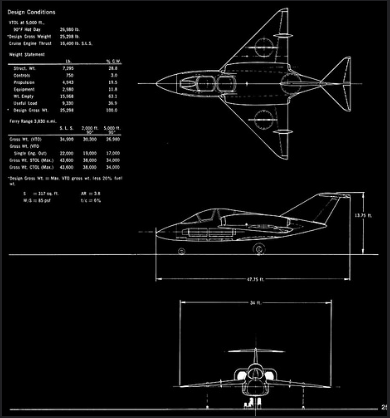

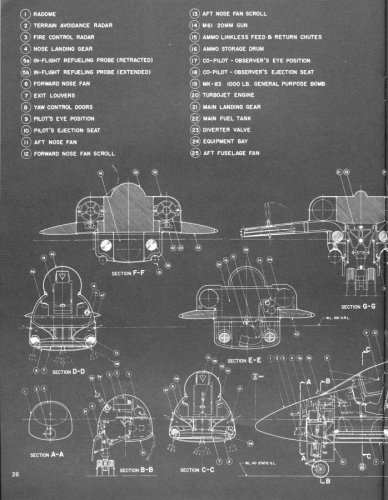

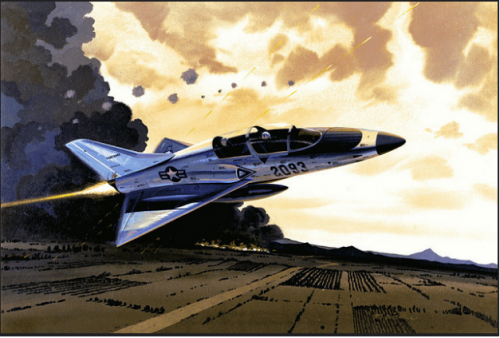

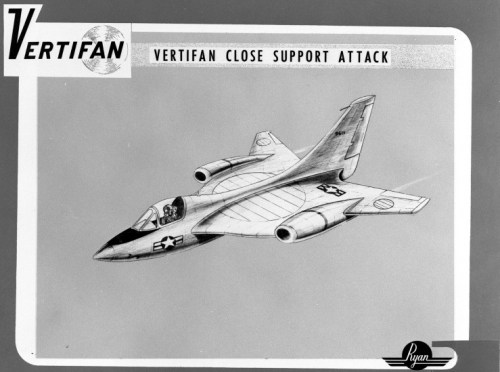

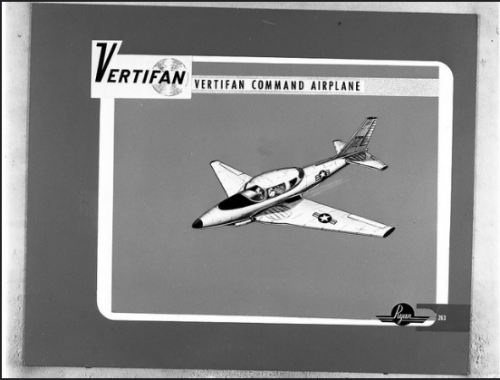

From my dear Rolf;

https://www.flickr.com/photos/sdasmarchives/


Attachments

  • 7.png
    56 KB · Views: 141
  • 5.png
    73 KB · Views: 130
  • 4.png
    105 KB · Views: 173
  • 2.png
    565.3 KB · Views: 188
  • 1.png
    374.3 KB · Views: 175
  • 0.png
    196.4 KB · Views: 137
  • 8.png
    415.5 KB · Views: 1,539

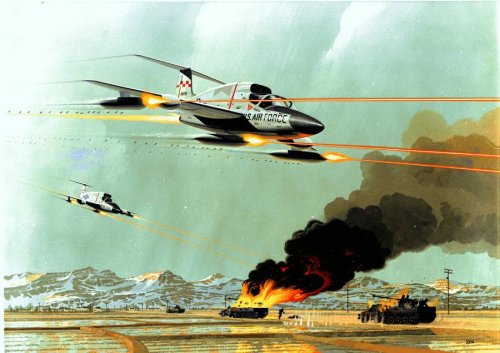

Art for Ryan Vertifan doing CAS
https://www.flickr.com/photos/sdasmarchives/34369889362/in/dateposted/


Attachments

  • XV-5 Ryan Vertifan Close Air Support art.jpg
    XV-5 Ryan Vertifan Close Air Support art.jpg
    88.4 KB · Views: 242

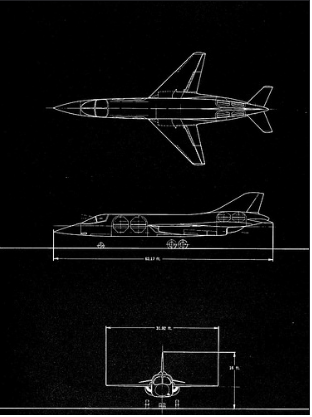

Uploaded today by SDASM on Flickr, design with 4 Fan-in wing and 4 jets:
https://www.flickr.com/photos/sdasmarchives/33720448203/in/dateposted/


Attachments

  • Ryan 4-Fan 4-Jet design to ID .jpg
    Ryan 4-Fan 4-Jet design to ID .jpg
    93.2 KB · Views: 181
PaulMM (Overscan) said:
Quick stitch together.
:) B)
Great work, Overscan!

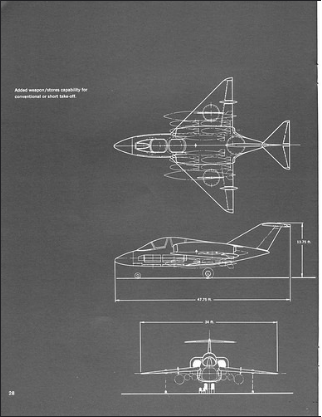

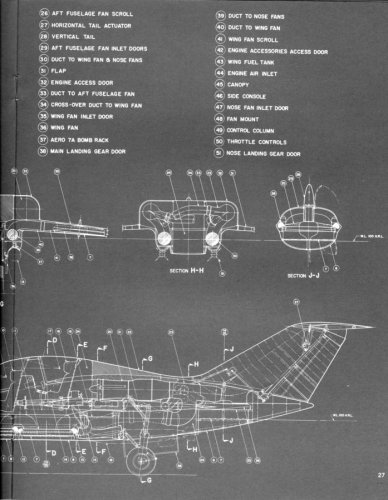

Can you please again stich these pictures of the Model 182 together and clean it up?


Attachments

  • 33690743384_6423ced511_o.jpg
    121.6 KB · Views: 145
  • 33584639563_c17ecc335b_o.jpg
    183.7 KB · Views: 168
https://www.flickr.com/photos/sdasmarchives/34371004626/in/album-72157680435446852/

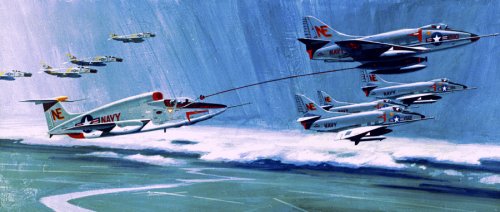

Navy XV-5?


Attachments

  • 34371004626_8bc8fdd9cc_o.jpg
    175.2 KB · Views: 251
Maybe a (C)SAR variant for the US Navy. Please notice the black oval as a window left under the cockpit.
The (C)SAR variant is described in post #85 ff.

PaulMM (Overscan) said:
https://www.flickr.com/photos/sdasmarchives/34371004626/in/album-72157680435446852/

Navy XV-5?

Nice find my dear Paul.

Retoched by Motocar


Attachments

  • Copia de 33584639563_c17ecc335b_o.jpg
    Copia de 33584639563_c17ecc335b_o.jpg
    223.6 KB · Views: 215
Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

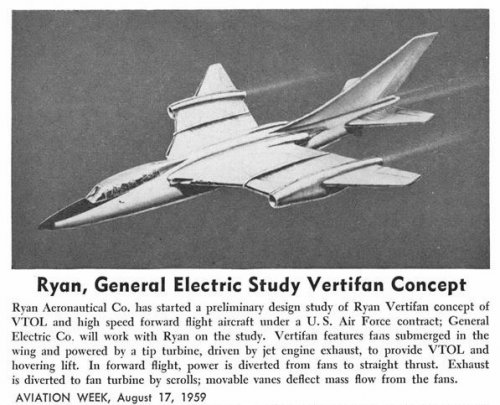

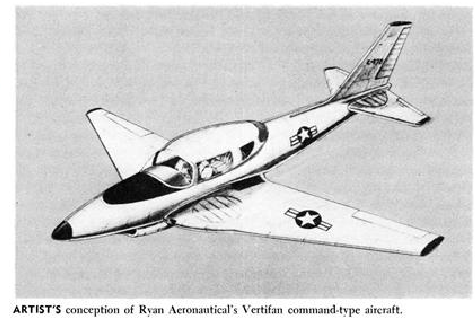

Ryan GE vertifan from 1959.


Attachments

  • Ryan GE vertifan.jpg
    Ryan GE vertifan.jpg
    131.2 KB · Views: 164
Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

Pioneer said:
Interesting!
When the U.S. Army had ambition ;)

Regards
Pioneer

Either that or they were still looking for a way around the Key West Agreement

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

Skyblazer said:
hesham said:
as my dear Lark said before,it was from General Electric Company;

No. General Electric was not a proponent of airframes. They associated with Ryan on every Vertifan project, and this is one of them.

Read the article!! It says they "developed a system" for a "lift-fan". They did not originate the aircraft design!!!

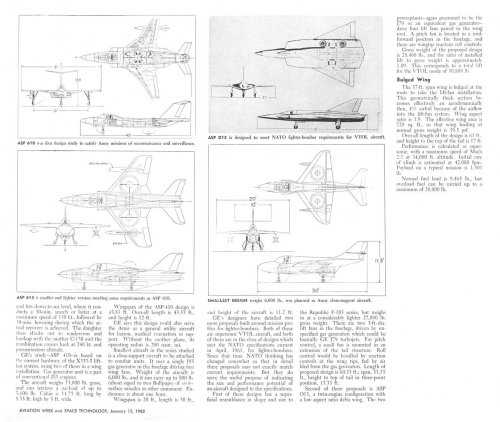

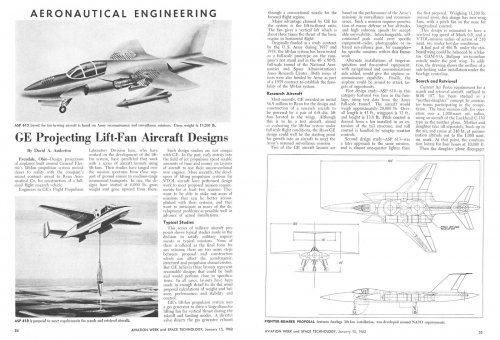

From Aviation Week & Space Technologies, January the 15th, 1962.


Attachments

  • AW 1962-01-15_p54-55.jpg
    AW 1962-01-15_p54-55.jpg
    303.6 KB · Views: 241
  • AW 1962-01-15_p59,61,63.jpg
    AW 1962-01-15_p59,61,63.jpg
    573.6 KB · Views: 275
Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

We can merge those topics;

https://www.secretprojects.co.uk/forum/index.php/topic,1938.75.html


done

Re: Unknown USA VTOL Surveillance & Recce Aircraft Project of 1960s

hesham said:

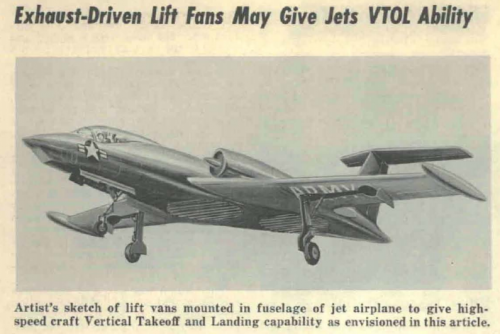

here is unknown VTOL surveillance and recce low-wing aircraft project of 1961,intended for
army and had a lift fans in fuselage,can anyone ID it ?,page 33;

http://books.google.com.eg/books?id=1ZUDOCzJUrcC&pg=PA32&dq=flying+magazine+jan+1961&hl=en&sa=X&ei=iS8MVOq_GIjDO4_dgdAJ&ved=0CCUQ6AEwAzg8#v=onepage&q=flying%20magazine%20jan%201961&f=false

After my dear Lark recognized it as General Electric/Ryan design,maybe there was a competition for VTOL
surveillance and recce aircraft during 1960s,and maybe Grumman G-260-4C involved in it ?.

hesham said:
From my dear Rolf;

https://www.flickr.com/photos/sdasmarchives/

What is this?

index.php


It doesn't seem to fit with the others.

There is a error in the link so I've echoed it in this post:
index.php

Grey Havoc said:
There is a error in the link so I've echoed it in this post:

I don't get you. The pic has always shown perfectly in Avimimus's post.

Skyblazer said:
Grey Havoc said:
There is a error in the link so I've echoed it in this post:

I don't get you. The pic has always shown perfectly in Avimimus's post.

They are not the same.

The first link is:

Code:
[IMG]https://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=1938.0;attach=579158;imagep[/IMG]

And the second (Gray Havoks') is:

Code:
[IMG]https://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=1938.0;attach=579158;image[/IMG]

Note that the first has a trailing "p", ie ";imagep"

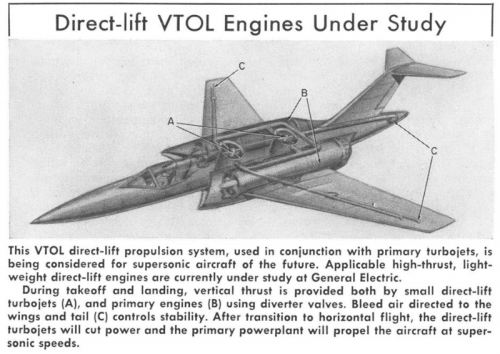

Here is a strange VTOL aircraft Project,maybe designed by Ryan ?,confirm
needed.

http://archive.aviationweek.com/image/spread/19610703/36/2


Attachments

  • GE.png
    447.2 KB · Views: 501
It was under the heading "Flight Propulsion News"in Aviation Week, July the 3rd, 1961, so with a high probability
it's not an aircraft project, but just a proposed application for a the lift engines developed by General Electric, as
the text implies.
And ... it's definitely not a liftfan design !
