General Dynamics F-111 Projects

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,370
Reaction score
587

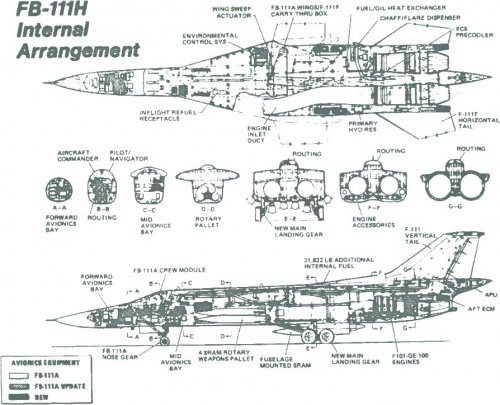

65 FB-111As to be modified to FB-111H, and/or up to 100 FB-111Hs built. Initial funding for two prototypes. $380m for prototype development, with a total program cost of $7000m, for a unit price of $42.1m (less than half the unit price of the B-1) for a 167 aircraft fleet.

43 percent commonality with structure, 79 percent of subsystems of the basic aircraft. Main features are the stretched fuselage and the use of F101 engines. Bomb bay size almost doubled, to allow 4 or 5 nuclear weapons instead of 2. External hardpoints increased to 12, 6 on the wings and 6 on the sides and bottoms of the air intakes. Two wing hardpoints fixed, usable at minimum sweep only. Maximum wing sweep is reduced to 60 deg, with maximum speed reduced to Mach 1.6.

Avionics suite include GE APQ-144 radar, modified APQ-134 TFR, APN-200 Doppler, AJN-16 and SKN-2400 INS, dual IBM CP-2A computers, AN/ALQ-131 band 1 & 2 jammers, AN/ALQ-137 jammer, AN/ALQ-153/154 tail warning, AN/ALR-62 RWR, AN/ALE-28 chaff/flare dispensers.

Engine: 2 x F101-GE turbofans, rated at 17,000lb st dry and 30,000lb st afterburning.
Max speed: Mach 1.6 above 36,000ft, cruise speed Mach 0.75, low altitude penetration speed Mach 0.85 at 200 ft, takeoff distance 6,700ft, high altitude ferry range 6,900 miles.

Empty weight: 30,408 lb
MTOW: 140,000lb
Max in-flight gross weight: 156,000lb (after refuelling)

Span: 70ft spread, 44ft 10in swept
Length: 88ft 2.5in
Height: 22ft
Wing area: 550 ft

Armament: 5 nuclear bombs, 4 AGM-69A SRAM, 3 ALCM-A in the internal bay. 10 weapons on 12 hardpoints.
Air International Jan 1978


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,370
Reaction score
587
Internal fuel: 64,574lb

Air International, April 1978.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
Were the undercarriage and airbrake changed or moved to make more room for the bomb bay ???
Always thought the F-111 had big growth potential, it just needed better engines...


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,289
Reaction score
18
If I remember well, the FB-111H was preceded (or followed ??? ) a by an FB-111G


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
Skybolt said:
If I remember well, the FB-111H was preceded (or followed ??? ) a by an FB-111G
Are you not mixing up, that after leaving the SAC to the TAC and adding conventionel weapons systems the FB-111A was called F-111G?

The FB-111B was a planned version also with General Electric F101 engines.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
From Matej's site:

Source: http://www.hitechweb.genezis.eu/bombers1b.htm


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,289
Reaction score
18
Are you not mixing up, that after leaving the SAC to the TAC and adding conventionel weapons systems the FB-111A was called F-111G?
You're right ! :-[


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,370
Reaction score
587
FB-111G

Rejected proposal derived from FB-111A with lengthened fuselage and other aerodynamic changes, to allow carriage of 4 SRAM 4,100 miles at height or 2,200 miles at low altitude.

Unit cost $25m (F-111 cost: $16m)

Source:

Air Enthusiast September 1971


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
So we have now
- FB-111A
- FB-111B (http://home.att.net/~jbaugher1/f111_10.html)

- FB-111G
- FB-111H
(from here)

Maybe it's a stupid question, but what about the FB-111C/D/E/F ???
It seems that the FB-111 serie was independant from the basic F-111 list...


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,289
Reaction score
18
The FB-111B had a "C" subversion, don't know differences, probably in avionics ???


Angel

CLEARANCE: Restricted
Joined
Oct 12, 2006
Messages
17
Reaction score
0
HI, thanks Matej.

You know the specifications of the plane?


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
Hmm I found more details about the FB-111 serie here
http://www.fb-111a.net/History.html

According to this website...

"When the B-1 project was cancelled in July 1977, the USAF was left to find a replacement and plans to modify the FB-111A were studied. GD began to explore the possibilities of an enlarged FB-111 variant and the original proposal called for converting the FB-111As to FB-111H followed by another proposal in 1979 to produce 89 FB-111B from F-111D and 66 FB-111C from FB-111A. The modifications involved adding a 15ft extension to the fuselage and the widening by 1.5ft of the rear fuselage to accommodate a pair of GE F101 afterburning turbofans. The aircraft would have possessed the capacity for 68,000lbs of fuel and the ability to carry a dozen of SRAMs."


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
Found at key forum:

datafuser said:
A November 1965 draft memorandum by McNamara regarding Recommended FY 1967-71 Strategic Offensive and Defensive Forces found at http://www.state.gov/r/pa/ho/frus/johnsonlb/x/9060.htm mentions FB-111M-3, a little known 3-seat variant of the FB-111.

Below is the part of the memorandum that describes the FB-111M-3.

"The FB-111M-3 is a larger version of the F-111. It would have a longer fuselage, a maximum takeoff gross weight of 130,000 lbs compared with 111,000 lbs for the FB-111A and would carry a crew of 3 instead of 2. It would also have about a 10 percent greater combat range. The AMSA is an entirely new and larger aircraft which has yet to be developed. The characteristics and cost of the AMSA were discussed in considerable detail in my memorandum on this subject last year.

The first operational FB-111s could be available in FY 1969 and the first FB-111M-3s about a year later. For a force of 210 U.E. aircraft, the FB-111M-3 would cost about $800 million more than the FB-111As, including development and production. The most significant operational factor in favor of the FB-111M-3 over the FB-111A is the availability of space for a crew of 3 instead of 2. The larger crew could spread the heavy workload and reduce the strain involved in strategic missions. The FB-111, however, would have essentially the same performance as the fighter version and could be easily used in that role. The FB-111M-3 would have less range with the same payload in that role because of its greater weight, and could not operate as efficiently from the shorter runways for which the F-111A was designed."

Cheers,
Sunho


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
A 3-seat F-111 ???!!! very interesting find! any pic of the beast ?


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,657
Reaction score
31
The proposed FB-111M-3 could have made a good base for a dedicated EW/ECM escort, long before the EF-111A was designed or built.

Regards
Pioneer


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,990
Reaction score
144
".. any pic of the beast ?"

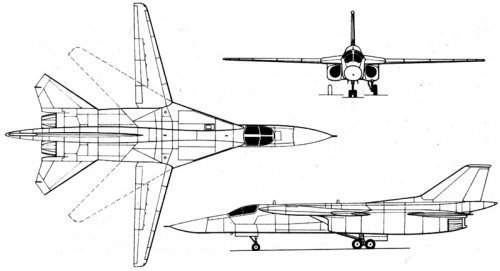

Just a sideview fromAngelucci/Bowers "The American Fighter" and I can't
see a place for the third crew member there ...


Attachments

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
Maybe it's stupid, but we have two more questions to answer now
- FB-111 list now aparently extend to the letter M
- the M variant in itself seems to have subvariants... ::)


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
Jemiba,
don't get mixed up between the FB-111M-3 and the FB-111H!

The FB-111M-3 concept is from 1968/69, the FB-111H is from 1978!
So nearly 10 years later!

But I don't still know if there are any similarities! ???


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,990
Reaction score
144
"..don't get mixed up between the FB-111M-3 and the FB-111H!"

Ooops, sorry !

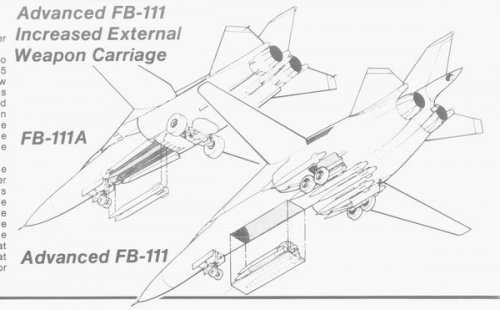

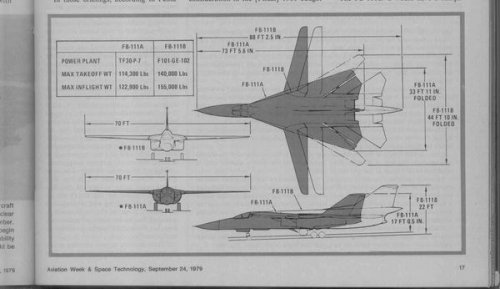

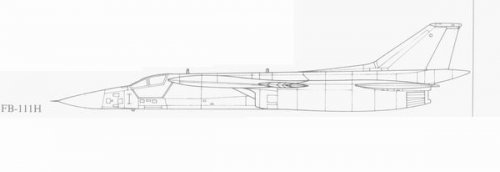

Nevertheless here ae some pictures of the H
(from AviationWeek 9/79 and Sqadron Signal No.35), but no mentioning
of the M-3 ...


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,289
Reaction score
18
Sometimes topics come back... ;D

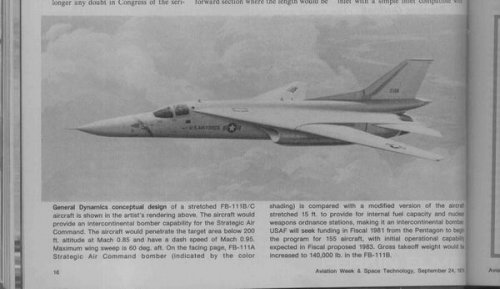

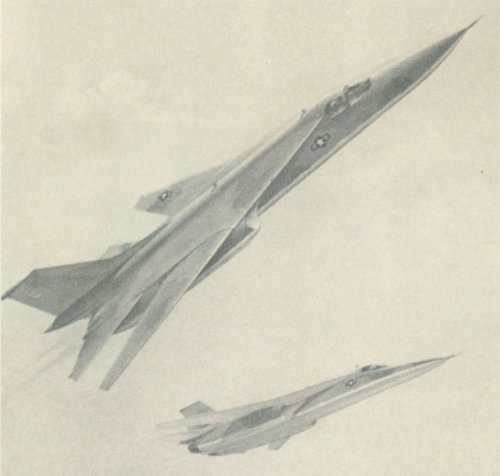

The 3-view and artistic impression is not of the H version, but of the "B" one. Here is another artistic impression of the B/C proposal (AW&ST June 16 1980). Engine two F101s, Armament: 12 N-bombs or SRAMs two in weapons bay, 4 under the wings, 4 under the belly and two under the chin on both side of the landing gear. A variant studied had an enlarged weapon bay, capable of 5 bombs and/or SRAMs. Max sweep cut back to 60 deg from 72.5, so no more sea level supersonic dash capability (max sea level speed 0.95 Mach). Range


Attachments

Firefly 2

CLEARANCE: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
0
overscan said:

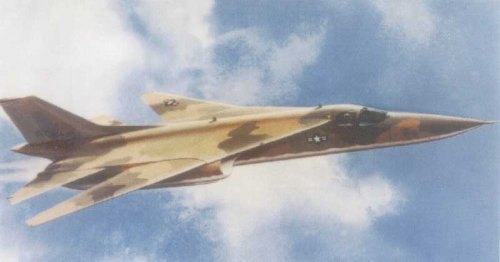

Stretched F-111, 1982 (designation not given). Via http://www.dodmedia.osd.mil
In a very old " Avions & Pilotes" magazine I have this AI was listed as representing FB111H


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,657
Reaction score
31
I am looking for information on the last ditch attempt by General Dynamics-Grumman to save the F-111B carrier-based program, known as Super Weight Improvement Program ‘SWIP’.
I have seen a desk top model of this proposed modified F-111B SWIP (Super Weight Improvement Program).
Does anyone have any drawings or pics of this F-111B SWIP?
Does anyone have the specifications of this proposed F-111B SWIP?
And what was done to by GD-Grumman to achieve the weight savings?

From memory when I sore the pic of the desk-top model of the F-111B SWIP, it looked shorter than the standard F-111B

Regards
Pioneer


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,289
Reaction score
18
Haven't it at hand, but I seem to remember there i something like that in the F-111B issue of Naval Fighters by Steve Ginter.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
A weight improvement program was started called SWIP for
Super Weight Improvement Program.
It managed to remove about three thousend pounds with
internal changes.
The SWIP F-111B looked the same externally.

From : Grumman F-14 Tomcat.
James Perry Stevenson. Aero Publishers Inc.1975.USA


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,251
Reaction score
5
I suspect a lot of the weight reduction came about the same way it was done on the F-35, a lot of multi-piece assemblies were reduced to one machined piece instead of the assembly, removing redundant flanges and fasteners. At the same time, a much more rigorous stress analysis approach would indentify where material could be safely removed without sacrificing strength or airframe life.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,370
Reaction score
587
There was also CWIP, Colossal Weight Improvement Program.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,657
Reaction score
31
overscan said:
There was also CWIP, Colossal Weight Improvement Program.
Please tell me more Overscan


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,370
Reaction score
587
The SWIP program was a weight saving program, which was implemented on F-111B #4 onwards, but it did little better than counteract natural weight growth. Plans were therefore made for CWIP - Colossal Weight Reduction Program, stages I, II, III. Major surgery, almost entirely in the fuselage, could cut 4,000lb off the structure weight and almost meet Navy requirements. In so doing, however, commonality fell from 80% to 29%. In fact, the resulting "Navy II F-111B" design was virtually a new design, with a long nose housing all the AWG-9 equipment previously behind the cockpit, increasing internal fuel 2000lb and improving avionics accessibility. Landing gear was moved back, and body pylons added for the Phoenix missiles. A completely new canopy and windshield was fitted which, together with increased flap deflection and a raised pilot seat, improved views during carrier landing. At this point, with commonality practically abandoned, and still mediocre performance, Grumman and the Navy started looking at a new airframe to fit the AWG-9 and TF-30 engines- VFX.

Source:

Bill Gunston, F-111, Modern Combat Aircraft 2, Ian Allan, 1978


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,657
Reaction score
31
Thanks for this info on the Colossal Weight Reduction Program - CWIP Overscan -
It sounds as if they almost did it - making the F-111B carrier operational friendly!
As much as I liked the Grumman F-14 Tomcat - I still like to think what if the F-111B CWIP had of been put into production


Regards
Pioneer


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
If CWIP-program went on, maybe the F-111B might have had conventional ejection seats instead of an escape pod. Just like later with the B-1 programme.
But at that moment, "the Navy refused the substitution of the crew capsule with ejection seats, which would have saved 500 lb, the reduction of the 3.5 hour loiter time and would not consider reducing the Phoenix missile (1000 lb each) load from six to four."

Source: Carlo Kopp - THE GENERAL DYNAMICS F-111 profile


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
overscan said:
The SWIP program was a weight saving program, which was implemented on F-111B #4 onwards, but it did little better than counteract natural weight growth. Plans were therefore made for CWIP - Colossal Weight Reduction Program, stages I, II, III. Major surgery, almost entirely in the fuselage, could cut 4,000lb off the structure weight and almost meet Navy requirements. In so doing, however, commonality fell from 80% to 29%. In fact, the resulting "Navy II F-111B" design was virtually a new design, with a long nose housing all the AWG-9 equipment previously behind the cockpit, increasing internal fuel 2000lb and improving avionics accessibility. Landing gear was moved back, and body pylons added for the Phoenix missiles. A completely new canopy and windshield was fitted which, together with increased flap deflection and a raised pilot seat, improved views during carrier landing. At this point, with commonality practically abandoned, and still mediocre performance, Grumman and the Navy started looking at a new airframe to fit the AWG-9 and TF-30 engines- VFX.

Source:

Bill Gunston, F-111, Modern Combat Aircraft 2, Ian Allan, 1978
This brilliant explanation perfectly prove how absurd Mc Namara requirement were... ::)
Or the F-111B was 80% similar to the -A, (but too heavy!!!), or it was to become an enterely different aircraft!!!


uk 75

CLEARANCE: Top Secret
Joined
Sep 27, 2006
Messages
1,272
Reaction score
26

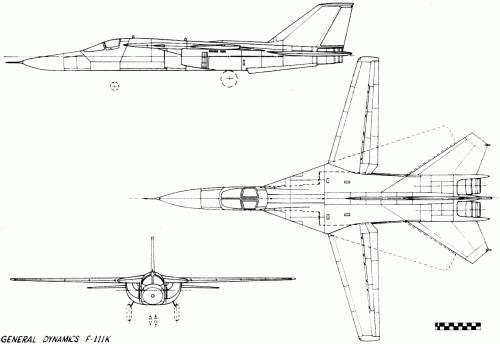

I know that this is a well covered subject, but I do not seem to be able to find a good three view of the RAF F 111 K version. I am trying to have one made by Custom Desk Models ( see my thread on Collectors Aircraft Models in the other section). I know it had a refueling probe and different wings.

Uk 75


uk 75

CLEARANCE: Top Secret
Joined
Sep 27, 2006
Messages
1,272
Reaction score
26
Joe, Tin Wing

Thanks for this. I guess all I really need to decide is whether I want a probe on my model.

UK 75
