From http://www.abo.fi/~mlindroo/SpaceLVs/Slides/sld054.htm
"Two Rockwell TAV concepts from 1980. The Trans-Atmospheric Vehicle would have the capability to routinely cruise and maneuver into and out of the atmosphere -- either to gain rapid responsiveness for military low Earth orbit missions or to attain very rapid intercontinental transport services from conventional military airports. The USAF Flight Dynamics Laboratory contracted with Rockwell and General Dynamics in the “Advanced Military Spaceflight Capability Technology Identification” program which investigated critical technologies in various ground- or air-launched systems."
Was always wondering how this stuff would look during operations in atmosphere - and voila, have found it in Steve Pace's 'B-2 Spirit. The Most Capable War Machine On The Planet' Of course, Pace's picture caption as usual are totally out of this world:)


Attachments

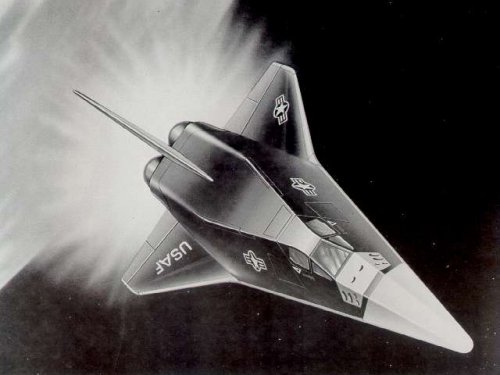

  • tav_r80b.jpg
    25.9 KB · Views: 1,808

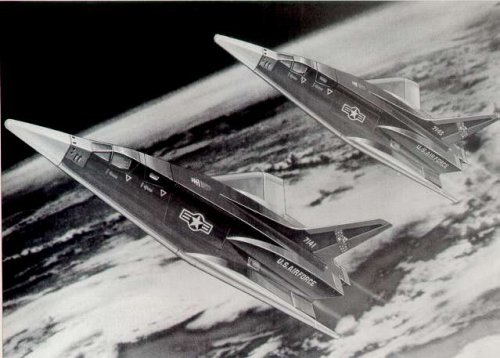

  • tav_r80a.jpg
    37.3 KB · Views: 1,786

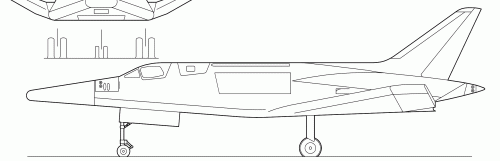

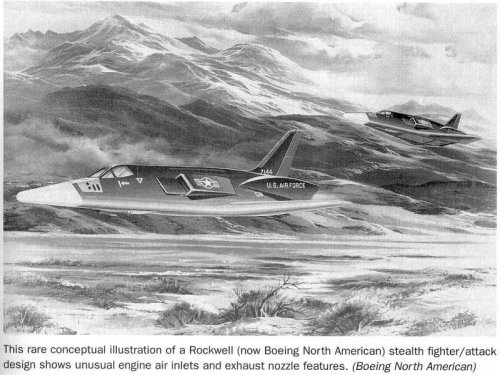

  • RI_TAV80s_atmoper_s.jpg
    75.6 KB · Views: 1,836

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,056
Reaction score
4,455
Ahhhh!!! Markus Lindroos fantastic website!!! (albeit its form is rahter crude).
I've found this one four years ago while searching Space Shuttle original form (in 1969, before budget cuts) and Rockwell competitors on the project.
Some fantastic stuff there...
Sadly, it seems that this website hadn't been updated since 2001 ???
It could be cool having Mr Lindroos here no ? ;)


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,358
Reaction score
2,200
Website
www.aerospaceprojectsreview.com

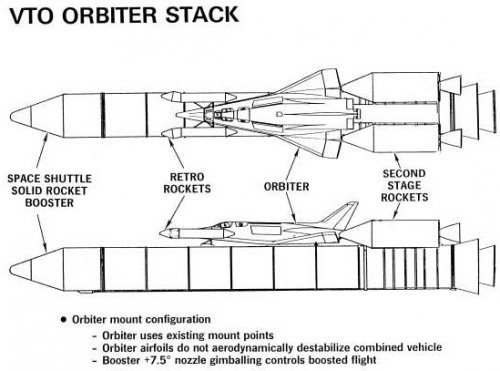

The design shown is the MRCC (Multi Role Common Core) aerospace plane. Designed to be an F-111 replacement, it could be either launched suborbitally from the side of a Shuttle SRB; launched into orbit from the side of an SRB (with substantial additioanl rocket propulsion elements); or launched into orbit from the cargo bay of the Shuttle. It had one large rocket engine and two turbojets; the turbojets could be removed and replaced with more rocket propellant and OMS-type engines.

It's one of the first designs I drew up for "US Bomber Projects."


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,518

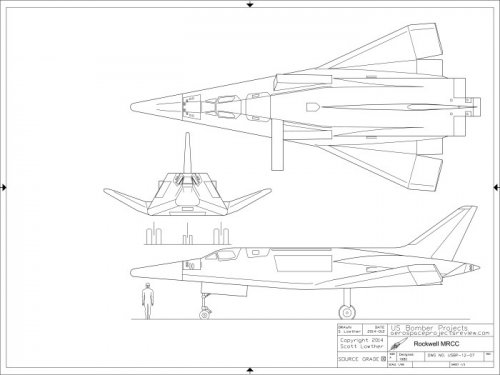

http://www.up-ship.com/Book/images/mrccsnippet.gif


Attachments

  • mrccsnippet.gif
    29.4 KB · Views: 1,486

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,518
<...The next generation of advanced fighter aircraft
may be the last to operate exclusively in the atmosphere.
By the beginning of the next century, it may be technically possible to deploy
a vehicle that will be able to leave the atmosphere
and fly into low Earth orbit to perforn a
mission, fly back into the atmosphere to perform
another mission, and land conventionally. This
advanced aerospace plane (AAP) will potentially
be able to provide rapid global response and
perform a variety of missions such as strategic
offense, reconnaissance, strategic defense,
tactical interdiction. and show of force.
These missions may be enhanced by rapid and
versatile launching scenarios from the ground,
air, or in space. All applications of the AAP will require
effective hypersonic operations.>


From

AIM-85-0346

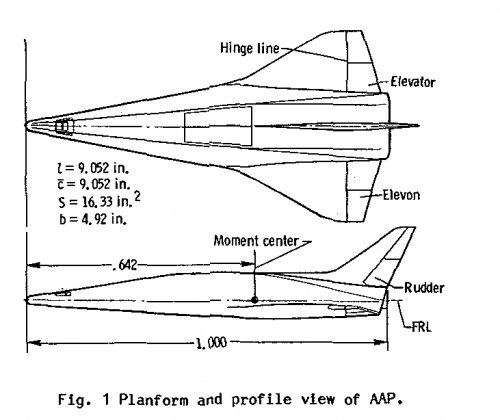

Hypersonic Characteristics of an Advanced Aerospace Plane
R.S. McCandless and C.I. Cruz,
NASA Langley Research Center, Hampton, VA
AIAA 23rd Aerospace Sciences Meeting
January 14-1 7, 1985/Reno, Nevada


Attachments

  • Langley1985AAP.jpg
    100 KB · Views: 1,555

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,518
From Dan Raymer site http://www.aircraftdesign.com/


Attachments

  • rockwell_arospaceplane1980s.jpg
    77.2 KB · Views: 291

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,518
enjoy


Attachments

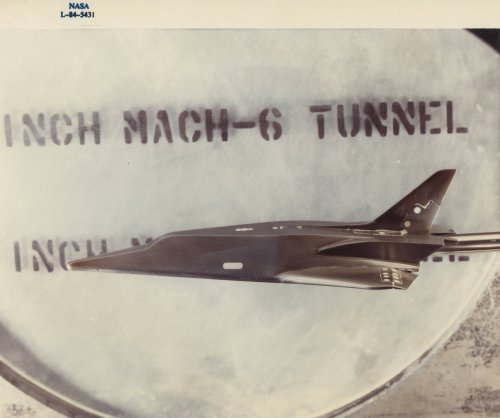

  • L-84-5431.jpg
    408.7 KB · Views: 185

Desert Dawn

ACCESS: Confidential
Joined
Mar 5, 2009
Messages
194
Reaction score
2
Website
www.picturetrail.com
flateric said:

Hi Flateric,

Good work ! I had a better look at it back home.

WOW !! An almost carbon copy of my resin model kit ! :) Except for the wings that are almost horizontal on this version of wind test tunnel which seem to indicate it is a AAP from NASA that was not yet completely the AAP from NASA that we have seen before and which itself was yet more different from the MRCC TAV from Rockwell (the AAP where NASA was playing with shapes from the USAF as usual and trying various studies on it for their own purpose and for general aerodynamic science), and the jet engine fairings that are a little bit shorter, though it still is a quasi carbon copy from the model which i made from the official blueprints drawings from Rockwell to represent the better known Rockwell TAV MRCC version shown in the artist illustrations.

Below i show the comparison of the model kit without wings to have a better look, and with its typical canted up wings. The later studies of Nasa's AAP had mostly horizontal wings of a different shape than the actual Rockwell MRCC TAV.







And for your enjoyment, a Gimp 'painting' i made, derived from one of the photos i took of my model:




(You know that there are different versions of those wind tunnel models. I have seen one which is different from both this one and the blueprints which was a study where Nasa tried a different type of canopy and front fuselage, different wings, etc, to test the stability of said new configuration. The shape was not as good looking as the MRCC TAV from the Rockwell blueprints.

Stephane
Stratosphere Models.
Website: http://www.picturetrail.com/stratospheremodels
Email: stratospheremoddels@yahoo.fr


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,518
Desert Dawn said:
I have seen one which is different from both this one
and the blueprints which was a study where Nasa tried a different type of canopy and front fuselage, different wings, etc,
this one?
http://www.secretprojects.co.uk/forum/index.php/topic,1615.msg18399.html#msg18399


Desert Dawn

ACCESS: Confidential
Joined
Mar 5, 2009
Messages
194
Reaction score
2
Website
www.picturetrail.com
flateric said:
Desert Dawn said:
I have seen one which is different from both this one
and the blueprints which was a study where Nasa tried a different type of canopy and front fuselage, different wings, etc,
this one?
http://www.secretprojects.co.uk/forum/index.php/topic,1615.msg18399.html#msg18399

Hi Flateric,

slightly different, it actually had the jet engine rear fuselage fairings not as blended with the fuselage as the artist illustrations and blueprint that we were familiar with before. It's in one of the AAP tech papers. So looks like the drawing you posted is also another itteration of AAP from Nasa, derived from the MRCC.

Stephane.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638

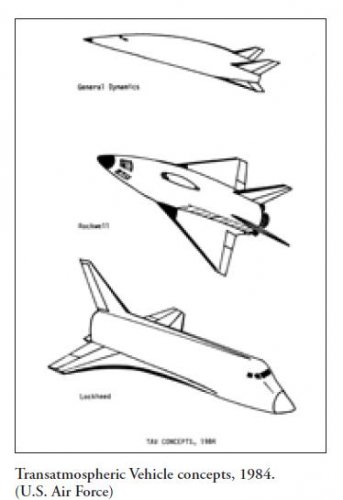

The TAV concepts from 1984; Lockheed,Rockwell and General Dynamics.


Attachments

  • 1.JPG
    21 KB · Views: 148

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
58

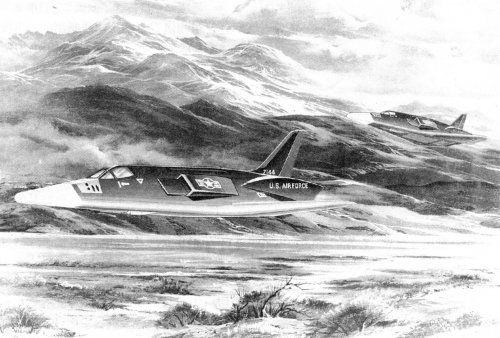

Public relations at Rockwell International sent me this image around 1985-1987 and it appears to be of a stealth fighter design - no design number or NA number came with though. Any thoughts? -SP


Attachments

  • Rockwell International Stealth Fighter-300dpi.jpg
    Rockwell International Stealth Fighter-300dpi.jpg
    465.4 KB · Views: 743

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
99
Something occurred to me today. And it goes back to something Scott said in a thread about putting a recoverable crew capsule atop an SRB for paying tourists. Well it made me wonder if there was variant of the MRCC considered for carrying passengers. Seems logical enough.

Seems like if the concept were fleshed out enough, you could have a semi-decent space tourism vehicle.

And Scott, if you ever put the MRCC doc up for sale, then you already have a customer.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
99
Scott, will the actual MRCC brief one of your Patreon goodies in the near future?


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,056
Reaction score
4,455
How could I miss this thread back then, no idea - the very MRCC concept is completely awesome.
Now here is a REAL "space fighter" - unlike that silly Soviet Uragan non-existing thing...


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,056
Reaction score
4,455
What I like in that concept is the very idea of one internal-tankage rocketplane launched by just one shuttle SRB.
No drop tanks, no intermediate stage, just two vehicles, both reusable - yet the maths work - even from a 0.88 PMF dumb solid, a rocketplane with RL-10B-2 at 460 seconds specific impulse can launch itself into orbit with a respectable payload.

Boeing RASV through HAVE REGION demonstrated PMF of 0.88 could be achieved. Even at 0.80 or 0.75 however a RL-10B powered rocketplane could still go into orbit from the back of a SRB.

9.81*260*ln((600+50+7)/(90+50+7))+9.81*465*ln((50+7)/(10+7))

Get 7 mt payload to 9338 m/s

The Shuttle SRB is a big dumb cheap recoverable steel tube with fertilizers inside, recoverable at sea.

The rocketplane is... everything else, including versatile. Not having drop tank(s) immensely helps versatility.

In fact it is perhaps the closest from a practical RLV and SSTO I've ever seen. Rockwell played smart there.

One could even integrate that thing horizontally like Russians do, then erect it vertically for launch.
