First post of a long topic about Italian battleship Francesco Caracciolo and the many designs for her in 1914-1919.

A quick summary;
A-series with 12x381mm guns
B-series unknown?
C-series definitive Caracciolo with 8x381mm guns in duples. What was actually built (but not finished)
D-series with 12x381mm guns in 3 quadruples
F-series with 8x381mm guns in 2 quadruples
G-series with 16x381mm guns in 4 quadruples

A few pieces of fictional artwork as well, if completed, if updated in 1930s etc.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
681
Reaction score
166

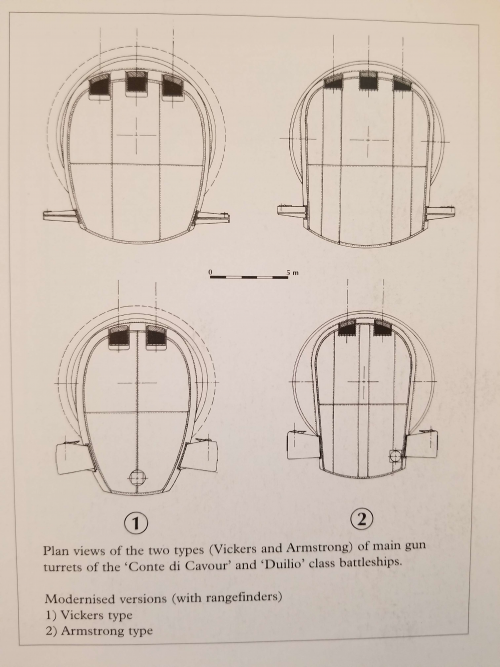

After building the Cavour and Duilio class battleships in 1910-1912, the Regia Marina had a bit of a puase before continuing with construction of new ships. Various designs were considered with 280mm,305mm, 343mm, 356mm, 381mm and 406mm, but development focused on the 381mm gunned version.

In 1914 4 ships were laid down,
Francesco Caracciolo
Cristoforto Columbo
Marcantonio Colonna
Francesco Morosini

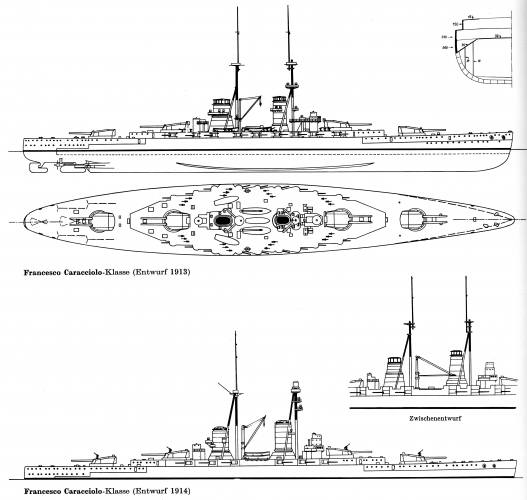

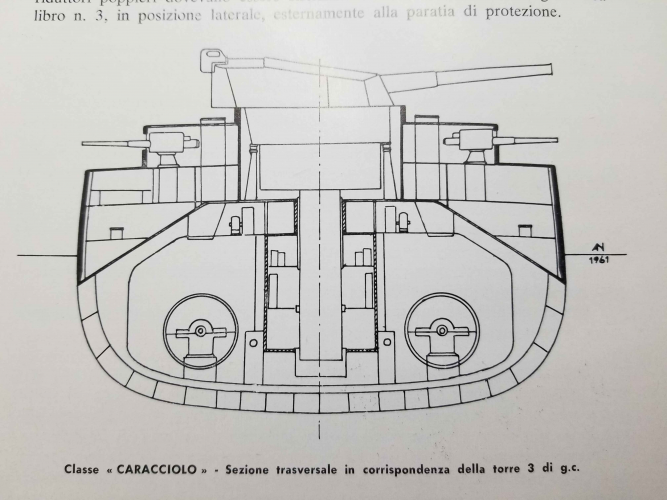

This final design had the following particulars

Displacement 34,000tons legend
212m x 29.6m x 9.5m
20 Yarrow boilers, oil firing, 4 Parsons Turbines driving 4 propellors
105,000shp giving 28knts
Range of 8000nm @ 10knts with 1800tons of oil
Armour
300mm - 220mm - 150mm belt
51mm deck
400mm turret faces, 300mm barbettes
Armament

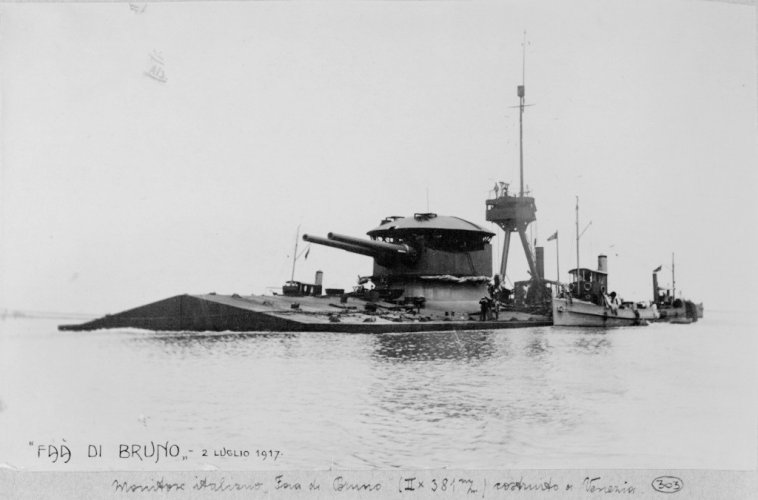

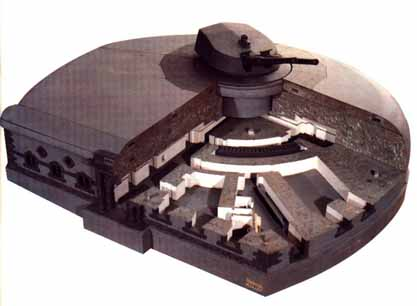

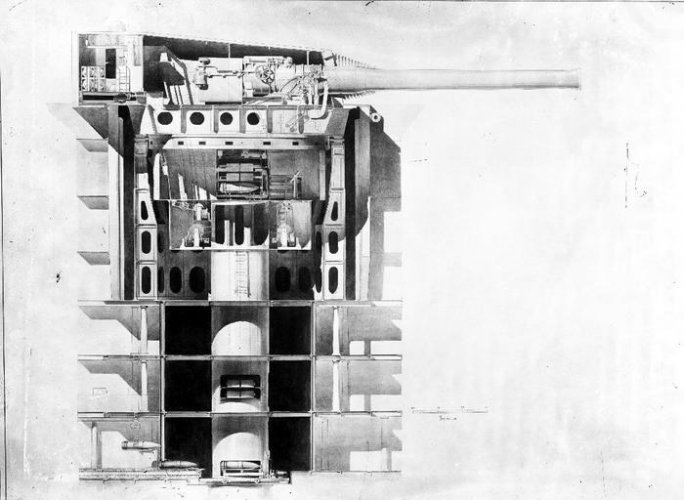

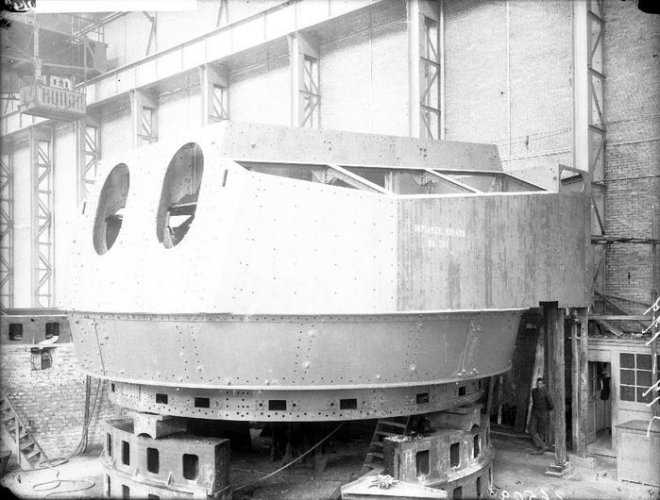

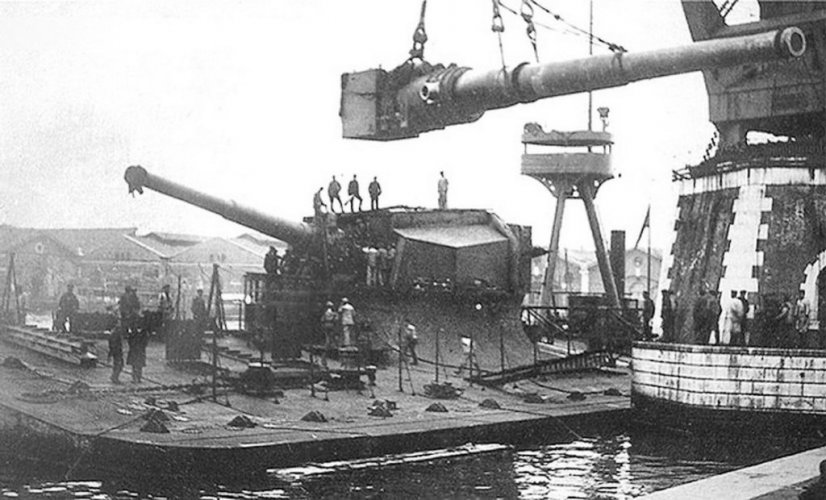

8x381mm/40 in duples, 12x152/45, 12x100/47, 12x40/39

Images;

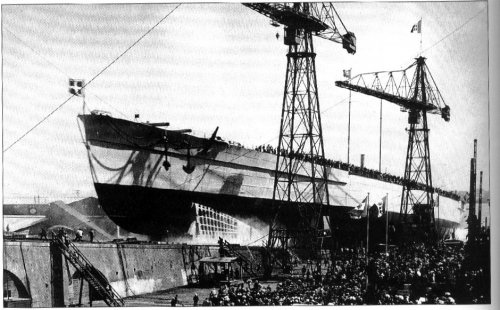

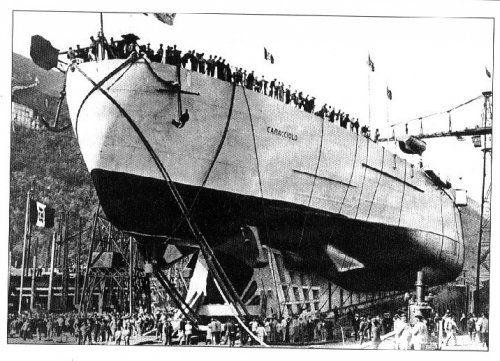

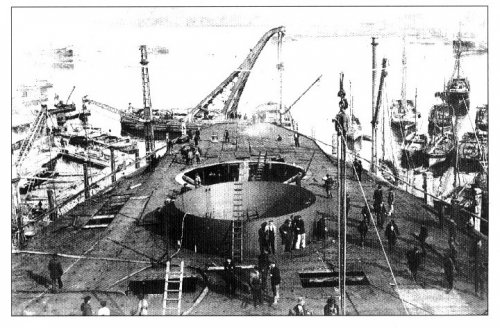

Francesco Caracciolo in various stages of completion in 1915


Attachments

  • caracciolo 1.jpg
    caracciolo 1.jpg
    209.1 KB · Views: 468
  • caracciolo 2.jpg
    caracciolo 2.jpg
    145.7 KB · Views: 381
  • caracciolo 3.jpg
    caracciolo 3.jpg
    153.8 KB · Views: 380

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
681
Reaction score
166

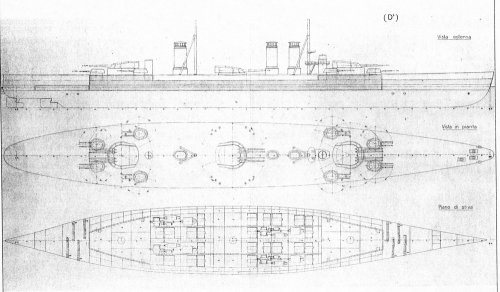

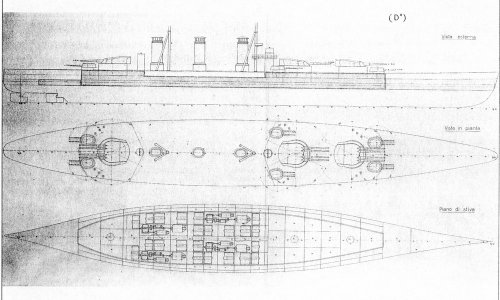

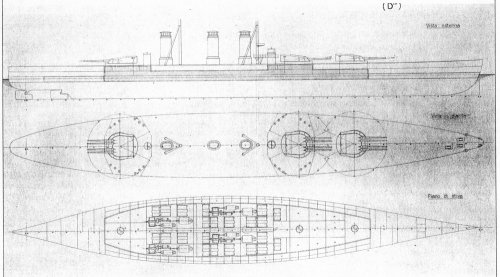

D-series ships with 12x381mm guns in quadruple turrets

Displacement c. 35000tons
Speed between 25/27knts
Protection 270mm external belt, 150mm internal belt, deck unknown

Armament
D 16x170mm, 20x100/47
D' 12x170mm, 16x100/47
D'' 16x170mm, 22x100/47
D''' 24x100/47
D bis, 12x170mm, 30x100/47


Attachments

  • Progetto_d2_12_381_resize.jpg
    185.8 KB · Views: 197
  • Progetto_D1_12_381_resize.jpg
    183.4 KB · Views: 445
  • Progetto_D_12_381_resize.jpg
    176 KB · Views: 473

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
681
Reaction score
166

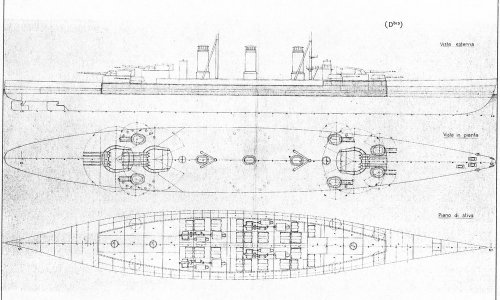

D''' and D bis images


Attachments

  • ProgettoD3_12_381_resize.jpg
    181.9 KB · Views: 163
  • Progetto_Dbis_12_381_resize.jpg
    192.4 KB · Views: 184

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
681
Reaction score
166

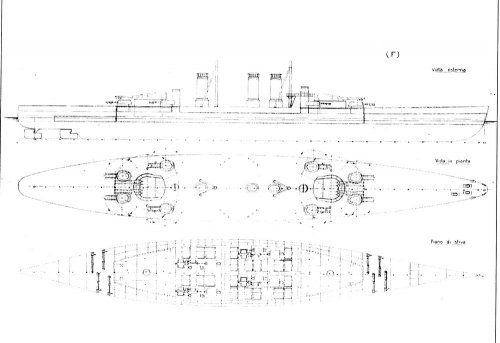

F-series with 8x381mm guns in 2 quadruple turrets

F
30,000tons
25/27knts
protection same
16x170mm, 24x100mm

F'
32,000tons
29/31knts
protection same
16x170mm, 24x100mm


Attachments

  • Progetto_F_8_381_resize.jpg
    103.2 KB · Views: 215
  • Progetto_F1_8_381_resize.jpg
    153.2 KB · Views: 230

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,193
Reaction score
4,921
Any idea as to why the Francesco Caracciolo was cancelled?


Hoo-2b-2day

ACCESS: Confidential
Joined
Feb 27, 2008
Messages
66
Reaction score
1
These ships wer first suspened due to WW1 and when hostilties were over the design was outdated as well as Italy being unable to fund the completion of these ships. The name ships hull lingered around into the 1920's being considered for converion to a merchant ship or latter an aircraft carrier, but the money was not available so ended up being scrapped.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,193
Reaction score
4,921
Makes sense. Any idea what major Naval, or more likely Army, project was competing for the same resources as the Francesco Caracciolo construction in 1916? Or was it just a general drain on/shortage of resources that caused a practically completed warship to be shelved?


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,646
Reaction score
913
Are you sure are those secondary guns are 170mm? There were no such calibre in use in the Regina Marina, only 152mm, 190mm and 203mm at that time.
Even the 152mm guns were of old British ones of the 6inch EOC QF Mark I on the Garibaldi class Armoured Cruiser which also used the 203mm EOC Pattern W, while the San Giorgo the 190mm Model 1908 guns.


Frankthebuilder

ACCESS: Restricted
Joined
Dec 4, 2020
Messages
1
Reaction score
6
First post of a long topic about Italian battleship Francesco Caracciolo and the many designs for her in 1914-1919.

A quick summary;
A-series with 12x381mm guns
B-series unknown?
C-series definitive Caracciolo with 8x381mm guns in duples. What was actually built (but not finished)
D-series with 12x381mm guns in 3 quadruples
F-series with 8x381mm guns in 2 quadruples
G-series with 16x381mm guns in 4 quadruples

A few pieces of fictional artwork as well, if completed, if updated in 1930s etc.
Ho dear Friends

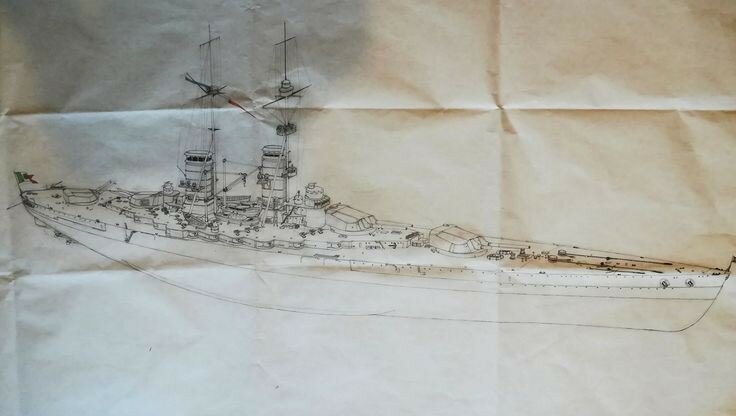

Here my art concepts of the battleship Caracciolo what if completed by 1919



T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
First post of a long topic about Italian battleship Francesco Caracciolo and the many designs for her in 1914-1919.

A quick summary;
A-series with 12x381mm guns
B-series unknown?
C-series definitive Caracciolo with 8x381mm guns in duples. What was actually built (but not finished)
D-series with 12x381mm guns in 3 quadruples
F-series with 8x381mm guns in 2 quadruples
G-series with 16x381mm guns in 4 quadruples

A few pieces of fictional artwork as well, if completed, if updated in 1930s etc.
Ho dear Friends
Here my art concepts of the battleship Caracciolo what if completed by 1919

View attachment 652339
Very nice artwork.this ship would be very impressive if it was realy build!


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,646
Reaction score
913
Nice looking drawing though it is sad that it's such low resolution one you uploaded
