Postwar Payen projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,150
Reaction score
1,029
Anther projects from Payen I didn't hear about it;
Payen Pa-41,Pa-47,Pa-51,Pa-60, Pa-65 and Pa-600.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197

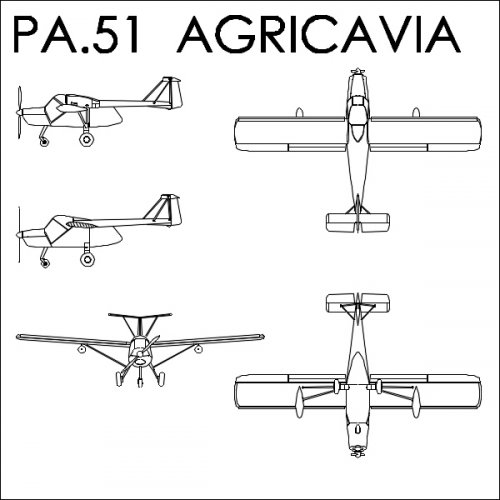

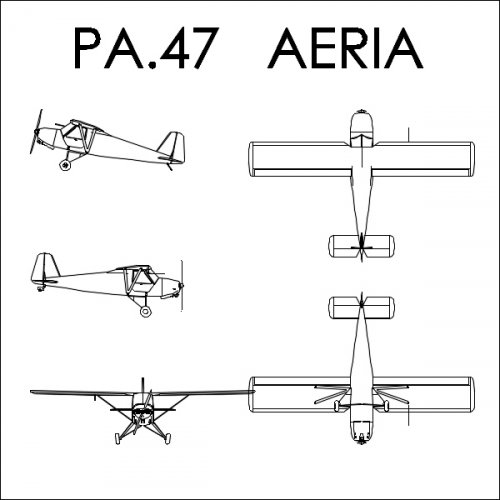

All I have is the Pa.47 , the Pa.51 and, no, not the Pa.60, but the Pa.61,
which was a direct derivative of the 60. But I'm afraid , they all are quite
unspectacular and so not very uninteresting for this forum.
The Pa. 60 is shown in Pierre Gaillards "Les Avions Francais" unfortunately
with a very murky photo.
And the Payen Pa.59 Aldebaran wasn't that strange, for a time when
tail sitter designs were "en vogue", I think (after the war !
)
The other Payen designs are very interesting for me, too ! ;D


Attachments

richard B

CLEARANCE: Confidential
Joined
Aug 17, 2006
Messages
87
Reaction score
9
Hi,Jemiba!
Do you know the " Aviation Française Magazine " or " A F M " ?
it's full of pictures of French aircraft , built and rare projects
(in the last number Payen projects : jet ,twin prop, one prop-normal cockpit ...)
more on the " afm avia editions " site


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,150
Reaction score
1,029
Hi,

dear Flitzer,sorry I have no scanner now,but I will try to
send a drawings.
Payen Pa.48 Mars:
it was a single seat tailless intercopter,powered by one
Hispano-Suiza Nene turbojet engine,unusual landing gear
and it had top speed 1300 km/h.

I discovered that Payen Pa-600 was a transport aircraft project.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Jemiba is very,very close about the Payen-Fouga Pa 562...


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197

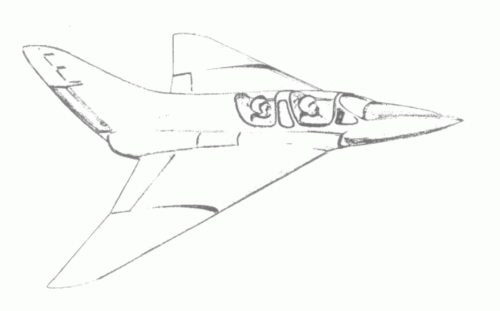

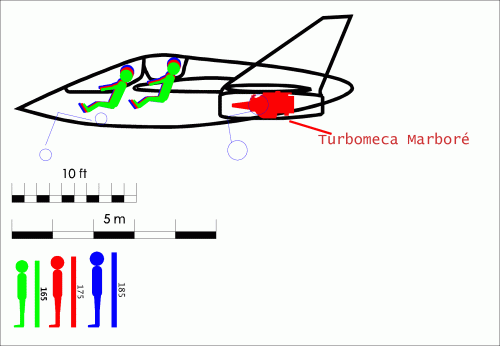

Ok, about the Pa.562 :
With another drawing I've got from lark, I think, there's no doubt about the type.
Dimensions can quite easily be deduced by the cockpit section.As more or less the
complete forward fuselage of the Magister would have been used, the front
landing gear would be that of the Magister and to my opinion, the most logical
and plausible solution for the main gear is that of the Magister, too.
Position is taken from larks picture, which shows the main spars, were the retracted
legs would be housed.
Elementary, my dear Watson ! ;D


Attachments

circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
49
I admittedly know next to nothing about Payen. Without his name on the airplane, I would have thought Lippisch. I will let you experts assign the correct model number for this fun little delta jet.


Attachments

Machdiamond

CLEARANCE: Secret
Joined
Jan 15, 2007
Messages
327
Reaction score
1
PA-49.
The prototype is on display at Le Bourget museum.
-Luc


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
49
OK -- thank you Luc


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197

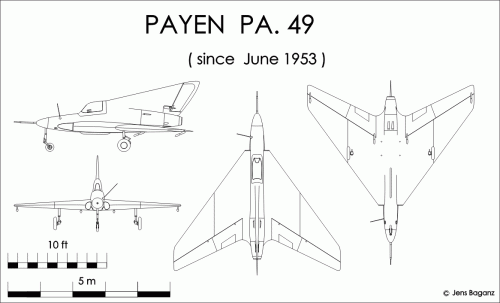

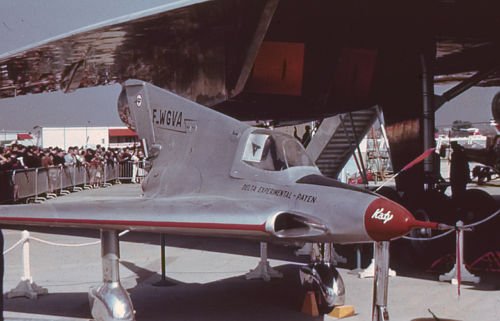

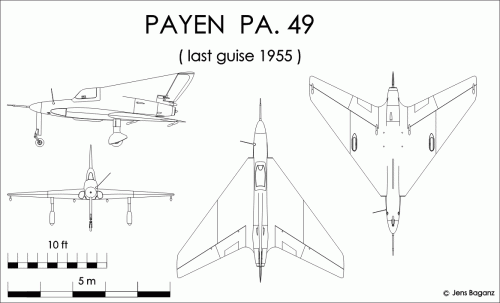

Indeed, and as it already has its wheel spats on this photo, it's in its last guise, as the landing gear
was the main detail, that was changed several times:


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Wow, Jens! Don't think I'd seen the whole series of drawings before... Awesome!

Payen often gave nice and original names to his designs... The PA-49 was called "Katy" (though I believe at the time of its first flight on January 22, 1954 it was only known as the "Delta Jet").


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
Yes, would be nice to know, what's really in those names. Perhaps not really so for the Pa.380 "Anaconda", but maybe
for the Pa.46/17 "Paloma" ? Or of course the "Katy" ? Who were it ? His then recent girl friends ? ;)

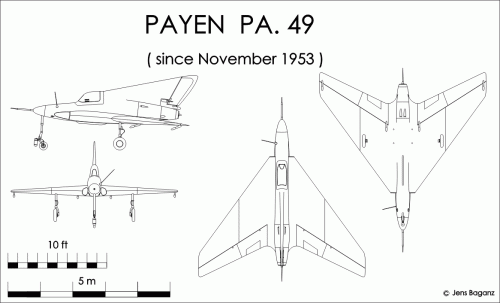

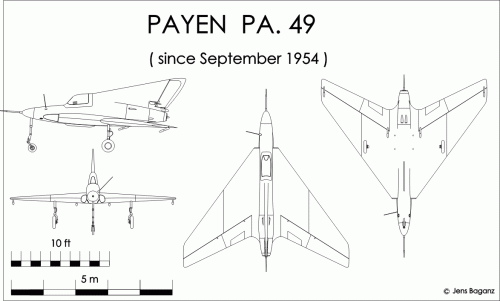

BTW, the Pa.49 got its first modification on the originally retractable landing gear, because with the low angle of attack
the single center wheel allowed, it couldn't leave the ground !


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Yes, the first version was designated Pa.49A (or design K 79) while the second was called the Pa.49B (or K 82).

Unbuilt variants were the single-seat Pa.49/2 (or Pa.492) and the twin-seat Pa.49/5 (or Pa.495).


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,772
Reaction score
44
Good morning Jens,

do you have some technical data for your both projects?

Thanks... ;)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,150
Reaction score
1,029
Amazing drawings my dear Jens.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
Maveric said:
do you have some technical data for your both projects?

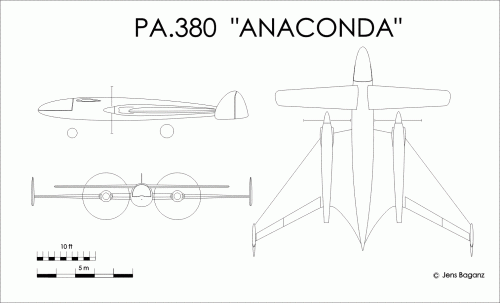

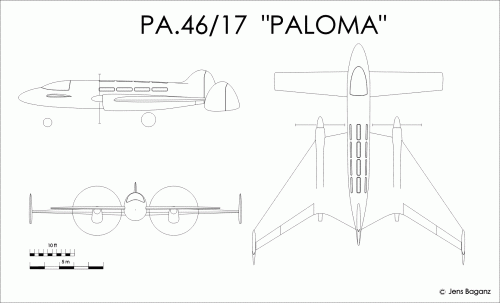

Unfortunately not, just the design number K69 for the "Paloma", a light passenger aircraft designed in 1946,
and K47 for the "Anaconda", a transatlantic mail plane, that was even designed already in 1939. I just mentioned
it here because of it's name, principally it should have gone to the early projects section.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Jemiba said:
Unfortunately not, just the design number K69 for the "Paloma", a light passenger aircraft designed in 1946,
and K47 for the "Anaconda", a transatlantic mail plane, that was even designed already in 1939. I just mentioned
it here because of it's name, principally it should have gone to the early projects section.
Interesting "K" numbers! I have the Anaconda as the Pa.380 and the Paloma as the Pa.46/17.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
Me too, the K-numbers were given in the Trait d'Union issue about Payen.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197

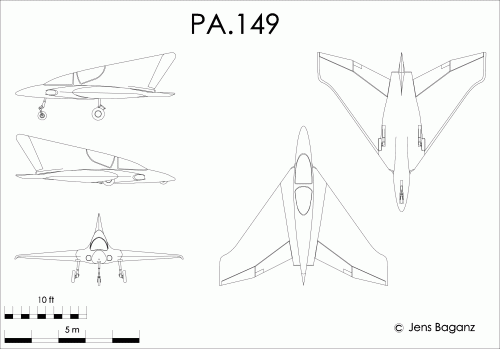

Probably a derivative of the Pa.49, too, the Pa.149:


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
A few projects from an old issue of Le Trait d'Union:

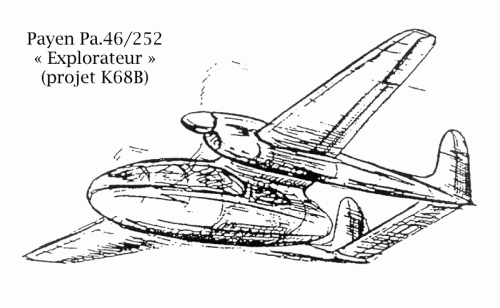

  • Payen Pa.46/252 « Explorateur » (K68B)

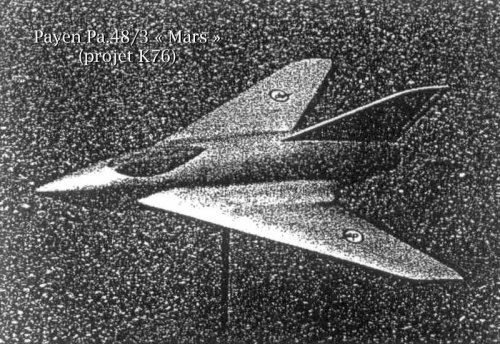

  • Payen Pa.48/3 « Mars » (also known as the Pa.483) (K76)
  • Payen Pa.53 « Roland » (K83)
  • Payen Pa.57 « Aton » trainer (K87)
  • Payen Pa.59 « Aldébaran » VTOL interceptor (K88)

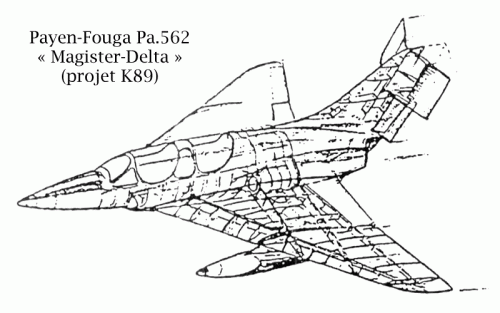

  • Payen-Fouga Pa.562 « Magister-Delta » trainer (K89)

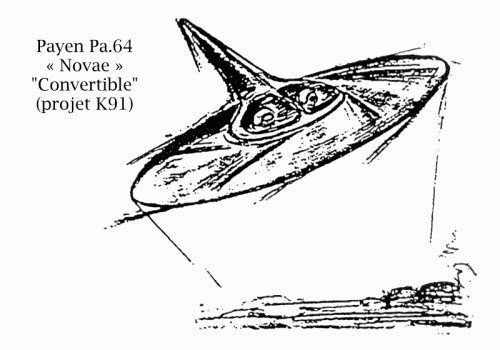

  • Payen Pa.64 « Novae » "convertible" flying saucer (K91)

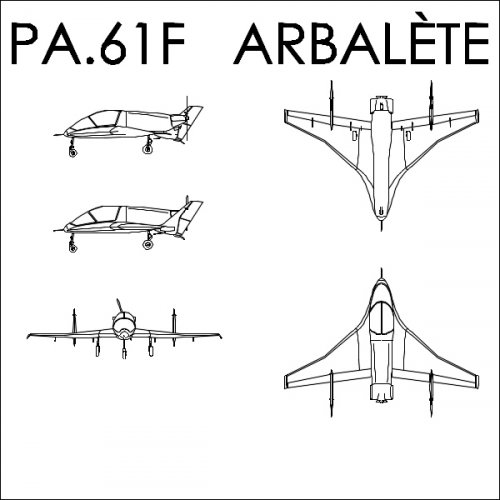

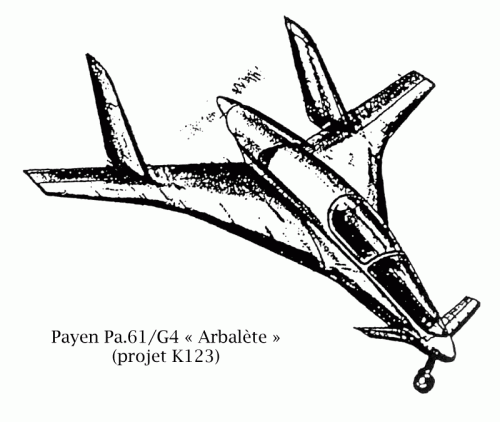

  • Payen Pa.61/G4 « Arbalète » (K123)


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197

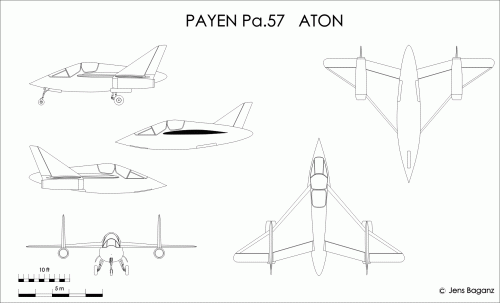

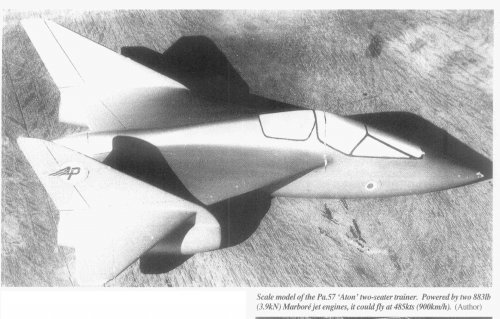

There was a model of the Pa.57, shown in a AirEnthusiast article, which shows some differences to the drawing
from Trait d'Union. I used it as main basis for a 3-view, quite speculative and not better than source grade 2, of course.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98

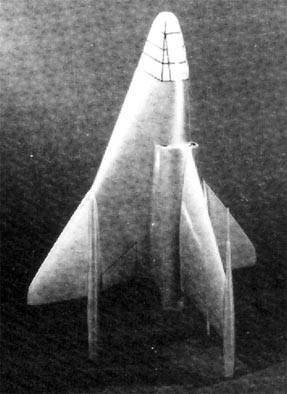

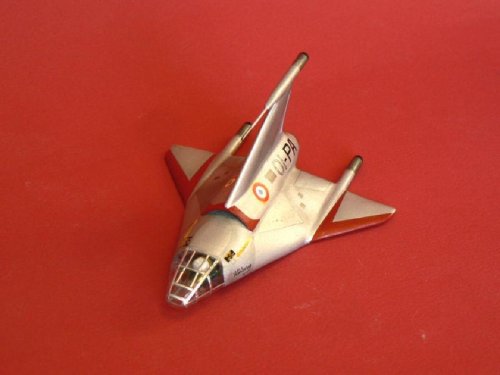

The Pa.59 illustration, although by Payen himself (as was the rest of the pics I posted) also shows some differences from the scale model built that was built later on. Last pic is an image of the resin model that was marketed by Sharkit.


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Just a little add..
'Katy' was the firstname of one of Payen daughters.
She tried to put order in the great many designs of the great man
by give them a 'K, designator following by a number.

From te K1 - RAP.10 of1929
to K168 - Pa.171 of 1992


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
Thank you Paul,

had heard about his daughter before, but forgotten the name. Was just a joke,
that maybe it was the name of his girl friend . ;)

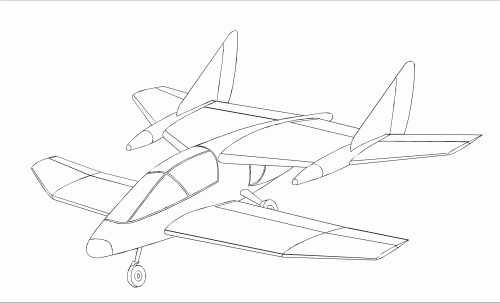

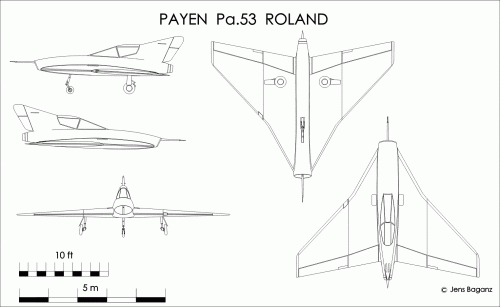

I used the drawing of the Pa.53 Roland for a 3-view, too, assuming that it was relatively
similar to the Pa.49, so again source grade 2.


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
Video of Payen Pa.49 "Katy" on display in the Le Bourget museum.

http://www.youtube.com/watch?v=eTrJb6J9-mQ


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
lark said:
Just a little add..
'Katy' was the firstname of one of Payen daughters.
She tried to put order in the great many designs of the great man
by give them a 'K, designator following by a number.

From te K1 - RAP.10 of1929
to K168 - Pa.171 of 1992
It's funny, this echoes almost exactly what I wrote earlier today in the Payen designations thread!


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Strange coïncedent indeed Star...There was no telepathic contact
between us as far as I know. just got the info from a T.U. (complete list)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
lark said:
Strange coïncedent indeed Star...There was no telepathic contact
between us as far as I know. just got the info from a T.U. (complete list)
Same here! But it's funny that we thought of posting the same bit of information on the very same day!!!

(great minds) ;D


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197

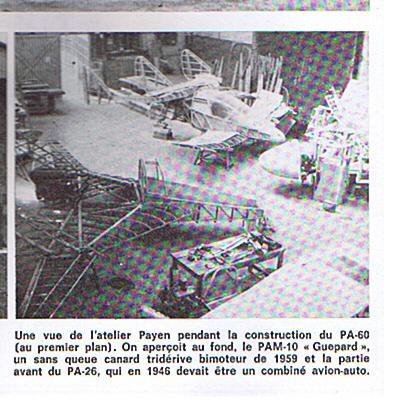

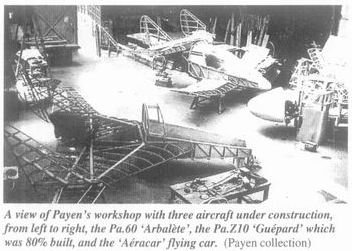

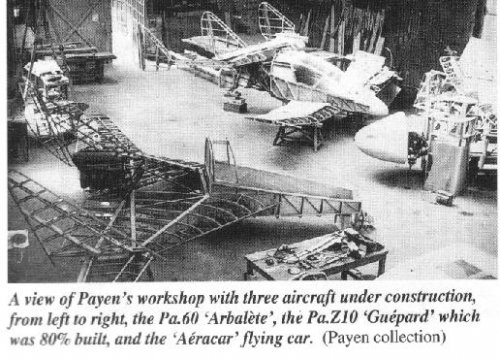

My favourite photo about Payen designs and prototypes still is the one from AirEnthusiast
March/April 1997, showing the workshop and, besides the pretty well known Pa.60, the Z.10
and the Aéracar. Would give a lot for more photos of that moment !


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
With Deltafans help, I once tried to make a sketch of the Pa M.10/Pa.Z10 "Guépard",
to get an idea of its appearance.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Jemiba said:
With Deltafans help, I once tried to make a sketch of the Pa M.10/Pa.Z10 "Guépard",
to get an idea of its appearance.
Ha! I had this one in my files and it looked like your style, so I was right!

I assume you must have posted it elsewhere on the forum already... The filename you affixed to it may be the reason I listed the Pa.Z10 as "seen also as the Pa.M10 in another source"... Was that a typo of your doing, or did it have some basis to it?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
Oops, sorry ! Did a search before, but should have just looked for "Guépard", instead of its
designation. Well ok, for that, I owe you at least a 3-view of it .
About the "PAM-10", I got it from the same photo, but shown in another source (which I cannot
tell in the moment !). It's the one, I used as source and that's why I used the desigantion, too.

Phew ! You somewhat scared me ! Thought, that maybe it was me, who had unleashed a "new"
and wrong designation. But even if it is wrong, it wasn't me ! ;)


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Interesting that the designation "PA-26" (or rather Pa.26) reappears here. I purposely removed it from my list because I had no valuable source for it (the type is known elsewhere as the Pa.G5). Even have the name "Minié" for it, but I have no idea whether this is genuine or the result of successive typos...


c460

CLEARANCE: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
6
I guess you already know that, but "Minié" was an obscure French engine manufacturer, so maybe it was just the name of the engine.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
c460 said:
I guess you already know that, but "Minié" was an obscure French engine manufacturer, so maybe it was just the name of the engine.
I thought that the engine maker was spelt "Mignié" but I was wrong. Since that's the correct spelling then it's probably just a transcription mistake and it refered to the engine. Thanks for that suggestion!


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,021
Reaction score
197
Great models indeed. But with regards to the Payen-Melot Pa.22/1R I as shown as an operational
type there, I think, it would have had severe difficulties with rotation for take-off !

About designations, I think Stargazer is quite right, a lot of carefulnes is really recommended here.
Not sure where, but I saw, that misinterpretations of for example "65" as " G5" or something like
that were quite frequent.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Jemiba said:
Great models indeed. But with regards to the Payen-Melot Pa.22/1R I as shown as an operational
type there, I think, it would have had severe difficulties with rotation for take-off !

About designations, I think Stargazer is quite right, a lot of carefulnes is really recommended here.
Not sure where, but I saw, that misinterpretations of for example "65" as " G5" or something like
that were quite frequent.
Yes, the Aéracar is wrongly given as the Pa.65 in some sources because of the "G vs. 6" confusion.
It is clear however that the Aéracar designations carried the letter "G" for Guérin, who designed the type with Payen.

Besides, in the system used after 1947 (which was by then rather coherent), the Pa.65 was another design (the Otarie II).

Top
