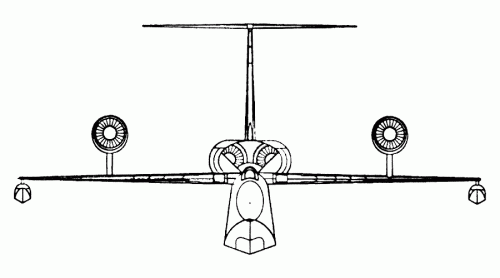

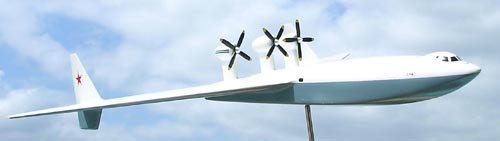

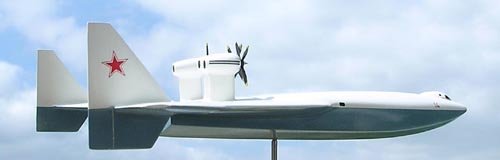

On the Bartini T-20A, it seems to me engine water ingestion would have been a big problem.
I wonder how Bartini was going to remedy?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,197
Website
deeptowild.blogspot.com

Attachments

  • 07153557.jpg
    71.8 KB · Views: 1,345
  • 07153603.jpg
    55.7 KB · Views: 1,314

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
557
Reaction score
234
Website
www.avicopress.ru

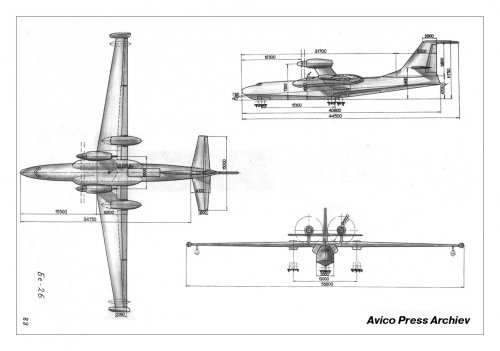

Hi all!

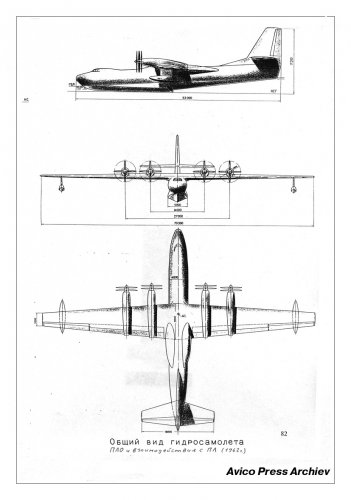

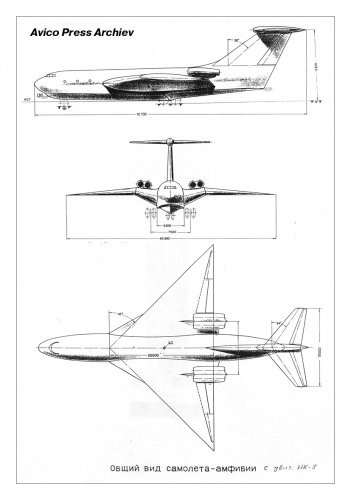

Some of many Beriev's projects from 60-ies.


Attachments

  • ASA-2 project 1962 00.jpg
    ASA-2 project 1962 00.jpg
    297.6 KB · Views: 344
  • ASA project 1962 00.jpg
    ASA project 1962 00.jpg
    269.7 KB · Views: 355
  • Be-26 00.jpg
    Be-26 00.jpg
    255.8 KB · Views: 391

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971

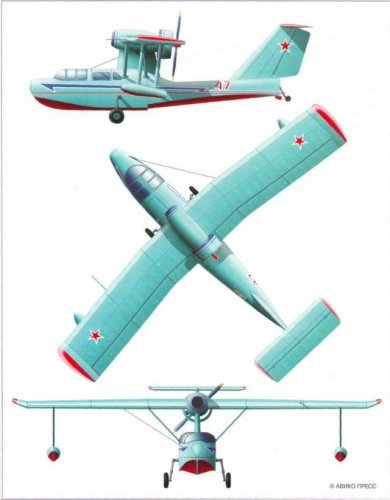

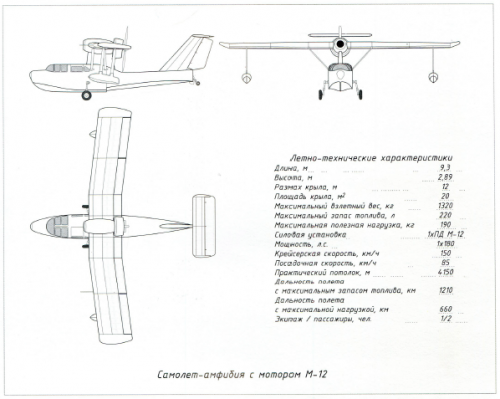

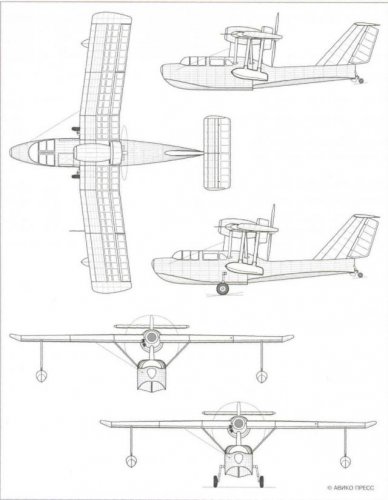

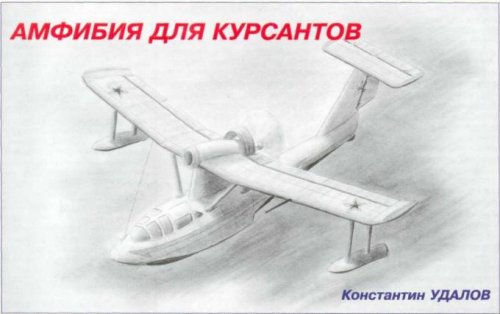

According to the site Alternativnaya Istoriya, the following is a 1947-1949 design by Beriev for an apparently undesignated flying club cadet trainer entered in a competition against Chetverikov, Grokhovski, MAI and SAI designs.

Is this a genuine Beriev proposal or does the site's name indicate yet another "what-if" type source?

Thanks to any specialists who can shed some light on the question!


Source: http://alternathistory.org.ua/amfibiya-dlya-kursantov


Attachments

  • beriev-03-640x822.JPG
    42.4 KB · Views: 170
  • beriev-02-640x826.JPG.jpg
    45.5 KB · Views: 132
  • beriev-01-680x426.JPG
    31.9 KB · Views: 124

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
86
Stargazer2006 said:
Is this a genuine Beriev proposal or does the site's name indicate yet another "what-if" type source?

The article was published in Krylia Rodiny No.11/2003, the author is no one else than ucon (Konstantin Udalov).

Another mention: http://www.avicopress.ru/index.php/aviation/russian/138-2010-10-10-07-08-10.

Stargazer2006 said:
in a competition against Chetverikov, Grokhovski, MAI and SAI designs.

Not SAI, KAI (Kazan' Aviation Institute). SAI is Italian ;) .

P.S. Probably it should be Gribovsky, rather than Grokhovsky - the latter man died a year before.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Thanks a lot redstar72!

Once again you refer to a magazine I do have... The problem is I don't have an index to all the magazines I have, and that would be a very useful thing... especially for Russian magazines, as my Russian is very basic and it takes me a while to find something in the contents table!

Do you know of index files for Russian magazines that would recapitulate contents by manufacturers or themes? (like Excel charts for instance). I have many issues of the following, either in paper or digital formats, and would appreciate a way to search through them easily!
  • Авиамастер (Aviamaster)
  • АвиаПарк (AviaPark)
  • Авиация (Aviatsiya)
  • Авиация и Время (Aviatsiya i Vremya)
  • Авиация и космонавтика (Aviatsiya i Kosmonavtika)
  • АэроПлан (Aeroplan)
  • Аэрохобби (Aerohobby)
  • Взлёт (Velyet)
  • Гражданская Авиация (Grazhdanskaya Aviatsiya)
  • Мировая авиация (Mirovaya Aviatsiya)
  • История авиации (Istoria Aviatsii)
  • Крылья Родины (Krylia Rodiny)
  • Мир Авиации (Mir Aviatsii)
  • М-Хобби (M-Hobby)
  • Полигон (Polygon)
Thanks a lot for any help you can provide!


otxentero

Первым делом самолеты
Joined
Dec 1, 2012
Messages
7
Reaction score
0
Stargazer2006 said:
Do you know of index files for Russian magazines that would recapitulate contents by manufacturers or themes? (like Excel charts for instance). I have many issues of the following, either in paper or digital formats, and would appreciate a way to search through them easily!
  • Авиамастер (Aviamaster)
  • АвиаПарк (AviaPark)
  • Авиация (Aviatsiya)
  • Авиация и Время (Aviatsiya i Vremya)
  • Авиация и космонавтика (Aviatsiya i Kosmonavtika)
  • АэроПлан (Aeroplan)
  • Аэрохобби (Aerohobby)
  • Взлёт (Velyet)
  • Гражданская Авиация (Grazhdanskaya Aviatsiya)
  • Мировая авиация (Mirovaya Aviatsiya)
  • История авиации (Istoria Aviatsii)
  • Крылья Родины (Krylia Rodiny)
  • Мир Авиации (Mir Aviatsii)
  • М-Хобби (M-Hobby)
  • Полигон (Polygon)
Thanks a lot for any help you can provide!

That is a very good question gentlemen. I am also a maniac of Russian books and magazines, and I use to get lost when trying to find something. There are no indexes of those publications. It is a heavy job, but it worths.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Hi,


here is some Beriev projects;

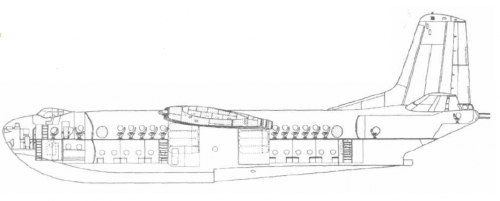

Be-24 amphibian passenger aircraft
R-2 jet seaplane

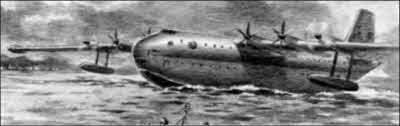

TBD BK-2 six-engined patrol flying boat

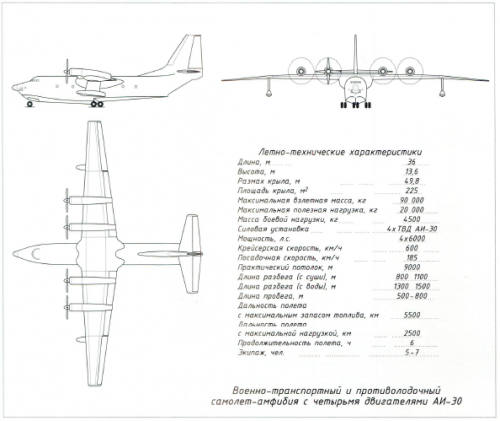

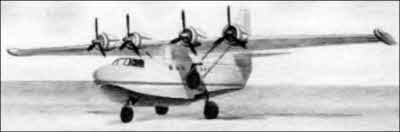

An-30 Project military transport and anti-amphibious aircraft with four engines
Antonov An-30.


http://lib.rus.ec/b/373000/read


Attachments

  • Be-24.jpg
    5.8 KB · Views: 147
  • R-2.jpg
    10.5 KB · Views: 171
  • TBD BK-2.jpg
    TBD BK-2.jpg
    7 KB · Views: 180
  • An-30.jpg
    6.9 KB · Views: 181

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Thanks hesham, though most of this is old news and already listed elsewhere I think.
  • The R-2 was an unbuilt version of the 1952 R-1 twin-jet maritime reconnaissance bomber flying boat which was to use the new VK-5 engines.
  • "TBD BK-2" is not only totally wrong as a type designation, but it actually should read "TVD VK-2" as your picture represents the unbuilt Printsessa, a very large 1947-49 passenger/patrol flying boat project powered by six TVD VK-2 turboprop engines.
  • The Be-24 was a 1963 amphibian passenger transport plane project.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
I have done my best to sort out the mess that hesham has made of the Beriev topics (putting amphibians in new topics when we already had dedicated topics, placing pre-1945 projects in the postwar section). Things seem to be okay now, but of course the number of downloads for each pic moved starts back at zero (don't think it matters much).

We now have FOUR Beriev topics on this forum and I would appreciate that things be posted where they ought to:
  • Early Beriev projects (pre-1946 unbuilt seaplanes and landplanes)
  • Postwar Beriev amphibians and seaplane projects
  • Postwar Beriev landplane projects
  • Beriev designation systems
Thanks in advance to you all!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
OK Stargazer,


I will correct it,but it's not my fault,the Google translation is so bad.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
hesham said:
I will correct it,but it's not my fault,the Google translation is so bad.

But I HAVE corrected it, hesham! Moved the seaplane An-30 to this here topic; moved the KOR-2 and MDR-10 to the Early projects topic. Also moved my comments.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Hi,


Beriev Be.10 (first allocated) was amphibian version of Be.6,with retractable landing
gear,project of 1948.

C

CostasTT

Guest
The AN-30 does look kind of like the Convair Tradewind. I suppose with Kuznetsov engines it would work better than the T-40 engined US plane.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Hi,

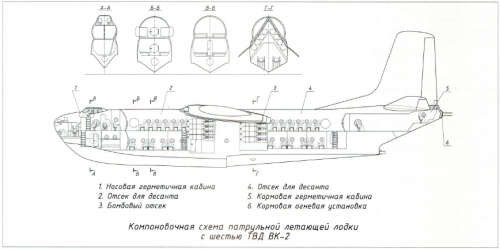

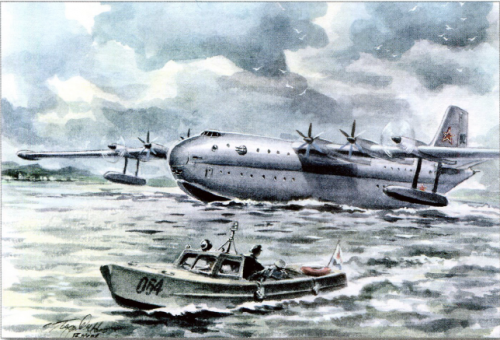

here is a Beriev TVD-VK-2 six engined patrol flying boat project.


Kryl'ya Rodine 2/2001


Attachments

  • TVD-VK-2.png
    342.2 KB · Views: 1,097
  • TVD-VK-2  II.png
    TVD-VK-2 II.png
    110.1 KB · Views: 1,038

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
hesham said:
here is a Beriev TVD-VK-2 six engined patrol flying boat project.

It's the Printsessa (Princess) of 1947-49, and we already have a topic on this one:
http://www.secretprojects.co.uk/forum/index.php/topic,17941.0

Also, I remember clearly that someone told you elsewhere on the forum that "TVD-VK-2" was only the designation for the engines...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Sorry for this double post my dear Skyblazer,


I search for "TVD-VK-2",and found it only here.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
From Kryl'ya Rodine 3-4/2016,

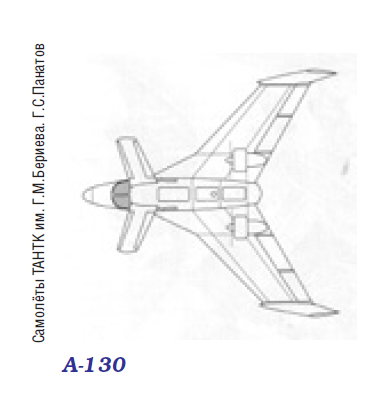

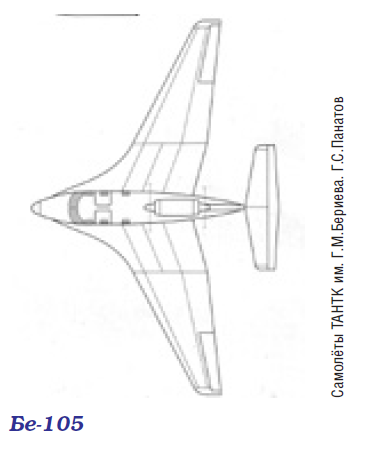

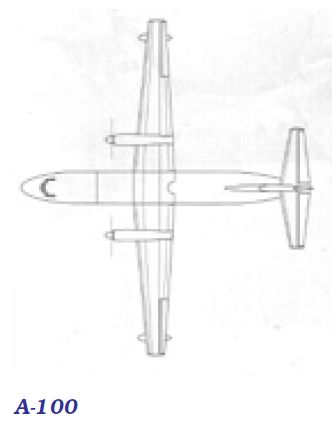

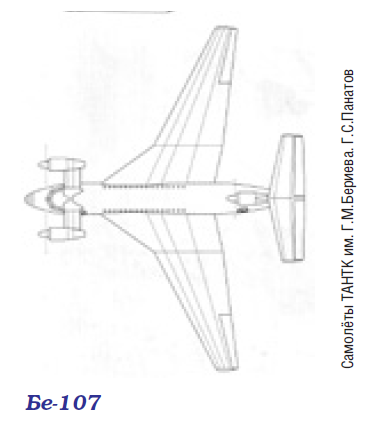

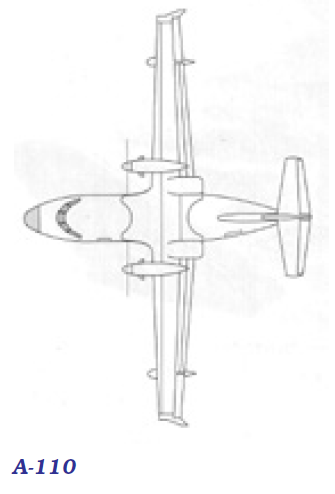

here is a Beriev A-100,A-110,A-130,Be.105 and Be.107 drawing Projects.


Attachments

  • Be.107.png
    52.4 KB · Views: 114
  • Be.105.png
    47.8 KB · Views: 106
  • A-130.png
    50 KB · Views: 800
  • A-110.png
    48.9 KB · Views: 814
  • A-100.png
    44.1 KB · Views: 852

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Hi,

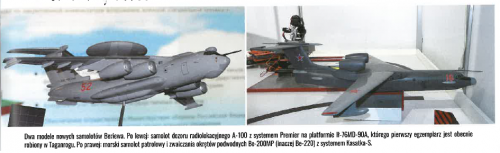

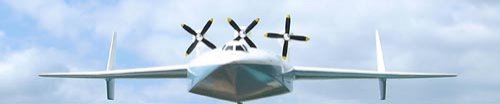

here is a Models for Beriev A-100 and Be.220.

Lotnictwo Aviation International 2016-10


Attachments

  • 1.png
    308.2 KB · Views: 272

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,532

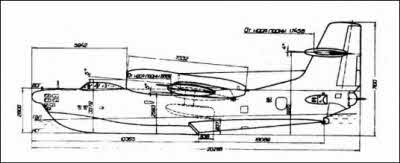

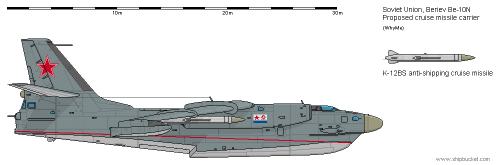

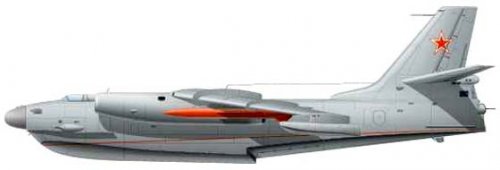

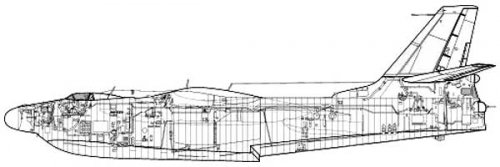

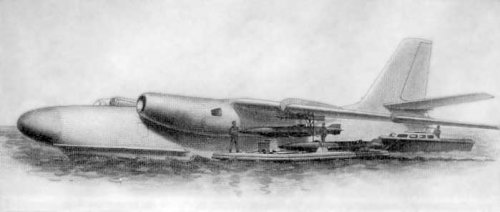

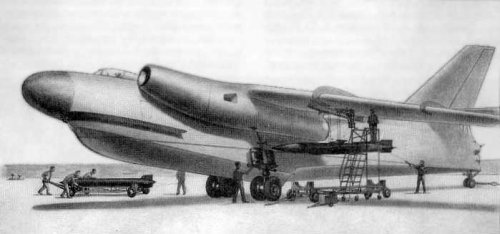

Hi! Beriev-10N.
http://testpilot.ru/russia/beriev/be/10/n/be10n.htm

http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Ftestpilot.ru%2Frussia%2Fberiev%2Fbe%2F10%2Fn%2Fbe10n.htm&sandbox=1

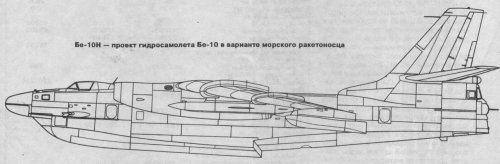

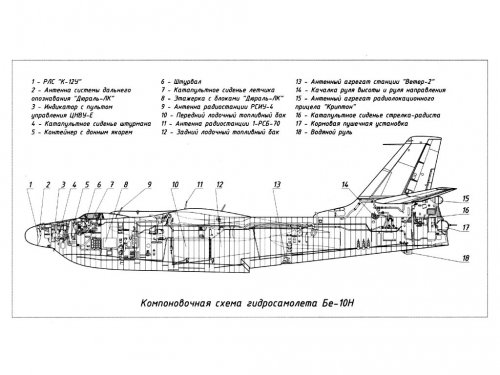

"CM Resolution № 564-275 on May 26, 1958 work on a cruise anti-ship missile K-12 were transferred to the DB-49 Beriev . Be-10H bomber Beriev decides to make missiles K-12 in combination with the carrier aircraft Be-10N, created on the basis of his jet flying boat Be-10 . The entire system, including the aircraft, called K-12B. "


Attachments

  • be10n_c.jpg
    19.6 KB · Views: 182
  • be10n_2.jpg
    18.4 KB · Views: 139
  • be10n_1.jpg
    27.2 KB · Views: 166
  • be10n.jpg
    11.7 KB · Views: 193
  • Beriev%20Be-10N%20and%20K-12BS%20-%20Russia.png
    16.4 KB · Views: 179

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,532
Hi! R-1.
Wikipedia.
https://en.wikipedia.org/wiki/Beriev_R-1

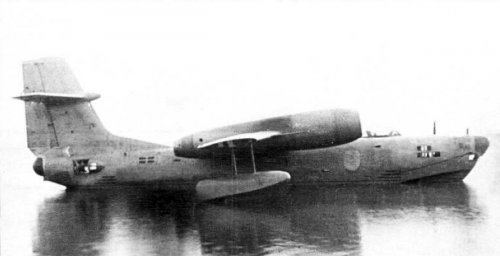

"The Beriev R-1 (known in-house as 'product R')[1] was the first Soviet turbojet-powered flying boat."

http://www.navy.su/aviation/airplanes-after1945/beriev-r1/index-photo.htm


Attachments

  • r-1_03.jpg
    68.8 KB · Views: 123
  • r-1_02.jpg
    67.9 KB · Views: 125

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,532

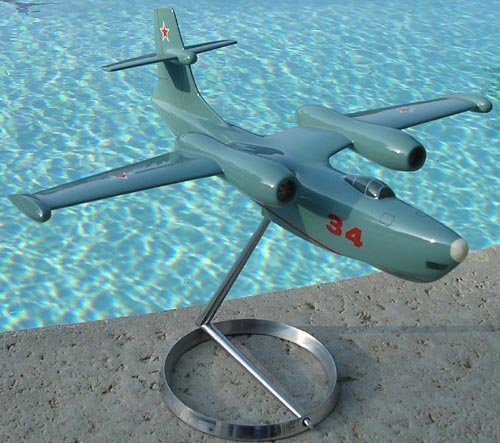

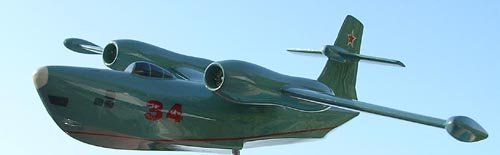

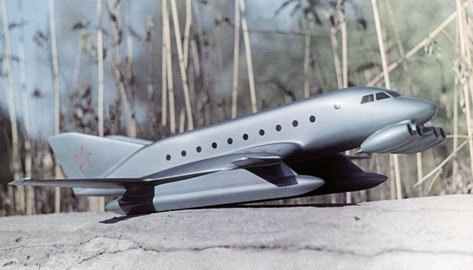

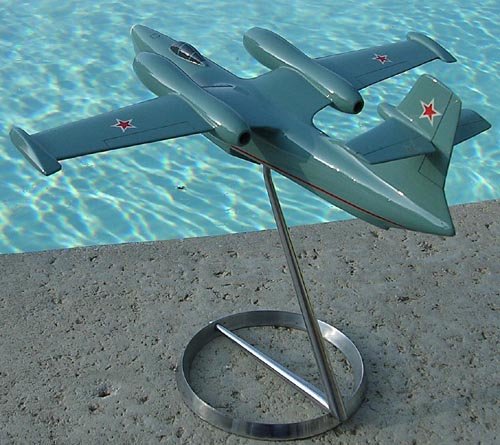

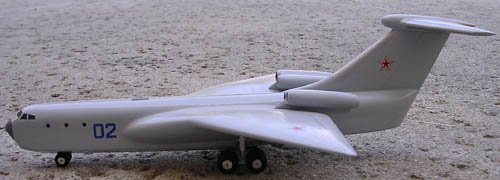

Hi! R-1 Beriev original model. Engine nacelle shape is little different from actually built R-1.
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_48&products_id=1580


Attachments

  • 04195621.jpg
    94.6 KB · Views: 84
  • 04195618.jpg
    47.3 KB · Views: 83
  • 04195614.jpg
    91.9 KB · Views: 83

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,532

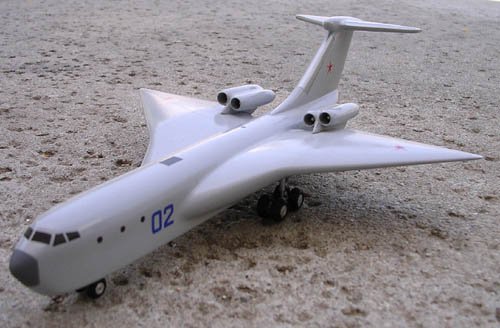

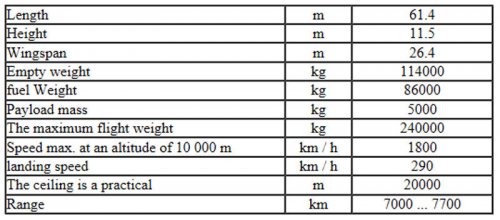

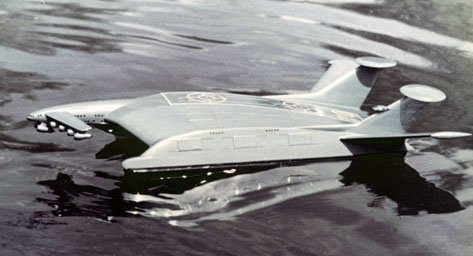

Triton said:
Artist's impression of Beriev supersonic marine bomber and reconnaissance project of 1957.

Source: http://www.testpilot.ru/russia/beriev/ss/ss.htm

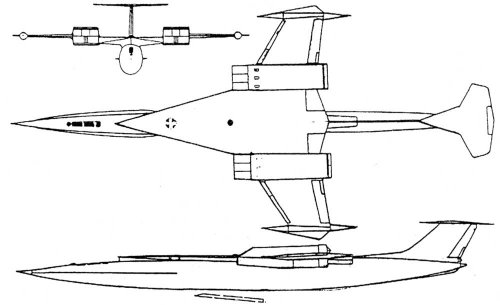

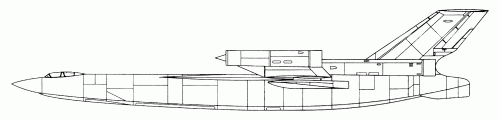

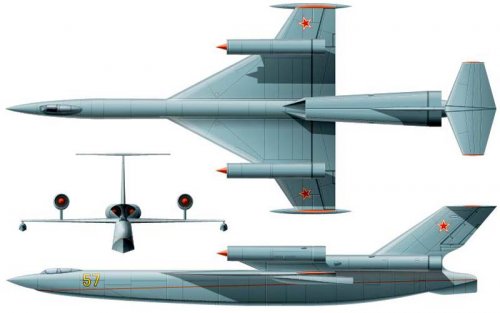

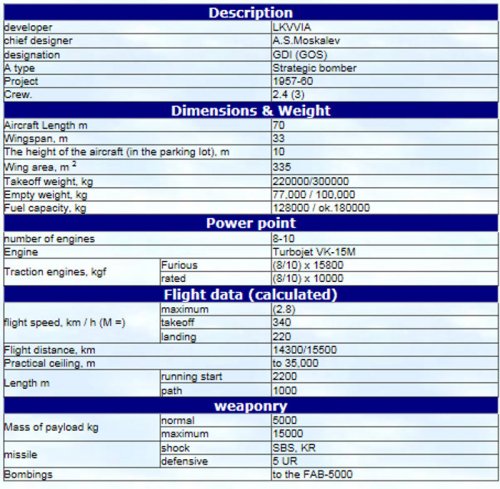

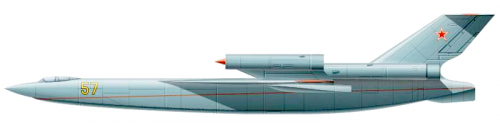

Hi! SD IDB supersonic long-range maritime reconnaissance sea plane bomber.
http://www.aviation-gb7.ru/SD_MBR.htm

This seaplane looks like "Leningrad Air Force Academy GSB-GS-1 strategic flying-boat bomber(8 to 10 engines!!)."
http://www.secretprojects.co.uk/forum/index.php/topic,10850.msg108995.html#msg108995


Attachments

  • GSB SPECIFICATION.jpg
    GSB SPECIFICATION.jpg
    141.3 KB · Views: 103
  • SD-IDB (2).jpg
    SD-IDB (2).jpg
    33.8 KB · Views: 110
  • GSB-GS-1.jpg
    37.1 KB · Views: 97
  • SD-IDB.jpg
    62.7 KB · Views: 87
  • SD IDB front view.gif
    SD IDB front view.gif
    11.6 KB · Views: 96
  • SD IDB plan view.gif
    SD IDB plan view.gif
    46.8 KB · Views: 96
  • SD IDB side view.gif
    SD IDB side view.gif
    28.2 KB · Views: 108
  • SD IDB side color.png
    SD IDB side color.png
    115.2 KB · Views: 98

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,532
Hi!

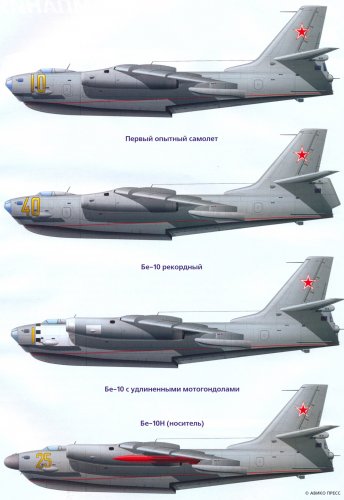

http://www.navy.su/aviation/airplanes-after1945/be10/index-photo.htm
https://topwar.ru/71291-be-10-pervyy-v-mire-seriynyy-reaktivnyy-gidrosamolet.html
http://kativ.eu/ivoHobby/photo/Default.aspx?dir=/Books/%D0%A1%D0%B0%D0%BC%D0%BE%D0%BB%D0%B5%D1%82%D1%8B/%D0%91%D0%B5%D1%80%D0%B8%D0%B5%D0%B2%20%D0%91%D0%B5-10/


Attachments

  • be10_09.jpg
    96.2 KB · Views: 100
  • 1426815601_be-10-18.jpg
    64.2 KB · Views: 107
  • Krilya%20012.jpg
    497.2 KB · Views: 145

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887

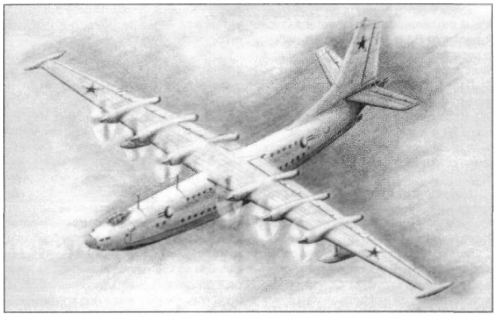

The Beriev VK-2.

Самолеты ТАНТК им. Г.М. Бериева 1945-1968


Attachments

  • 3.png
    293.5 KB · Views: 773
  • 2.png
    248.2 KB · Views: 858
  • 1.png
    711.7 KB · Views: 949

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Also from; Самолеты ТАНТК им. Г.М. Бериева 1945-1968,

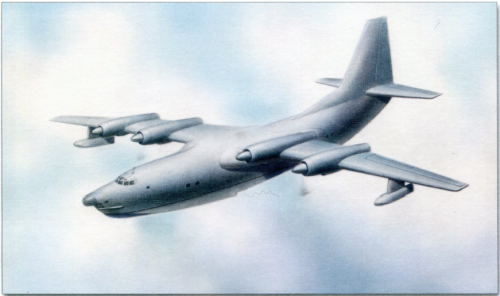

the Beriev AI-30.


Attachments

  • 1.png
    928.5 KB · Views: 608
  • 2.png
    197.2 KB · Views: 527

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
Also from; Самолеты ТАНТК им. Г.М. Бериева 1945-1968,

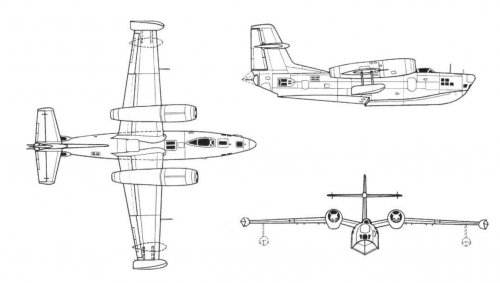

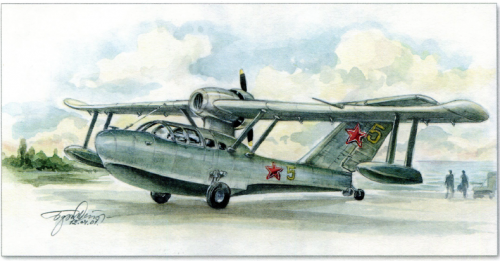

here is a Beriev M-12 amphibian Project of 1949.


Attachments

  • 1.png
    713.1 KB · Views: 116
  • 2.png
    233 KB · Views: 146

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
In my files,

the Beriev early R-1 flying boat Project had a shorter nose than the production one.


WhyMe

Loves all kinds of seaplanes
Joined
Dec 14, 2015
Messages
10
Reaction score
2
Website
s1086.photobucket.com
hesham said:
In my files,

the Beriev early R-1 flying boat Project had a shorter nose than the production one.

From what I've read, after many test flights and modifications of R-1, Beriev started working on the updated aircraft R-2 that had a different nose (among other updates) but only a mock-up of it was built.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
No,there was no relationship to R-2,the early drawing to R-1 had a shorter nose.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
In my files,

the Beriev A-200 was an amphibian,later redesigned as Be.200.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
In my files,

the Beriev A-25 was a single engined four-seat light multi-purpose amphibian
Project of 1995,any drawing ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,993
Reaction score
6,887
hesham said:
In my files,

the Beriev A-25 was a single engined four-seat light multi-purpose amphibian
Project of 1995,any drawing ?.

As I know,this Project was never mentioned a Russian books about Beriev ?.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
86
hesham said:
Also from; Самолеты ТАНТК им. Г.М. Бериева 1945-1968,
the Beriev AI-30.

It is called "Military transport and anti-submarine amphibian aircraft with four [Ivchenko] AI-30 engines". The aircraft itself didn't obtain any index.

hesham said:
Also from; Самолеты ТАНТК им. Г.М. Бериева 1945-1968,
here is a Beriev M-12 amphibian Project of 1949.

Similar thing: "amphibian aircraft with M-12 engine".

And the same thing with "patrol flying boat with six [Klimov] VK-2 turboprops". All these projects didn't have indexes of their own.


Similar threads

Top
