Beriev Be-42PE

Triton

Donald McKelvy
Senior Member
Joined
14 August 2009
Messages
9,707
Reaction score
2,021
Website
deeptowild.blogspot.com
Source:
http://www.russiadefence.net/t1719p75-asw-aircrafts-for-russian-navy
http://www.beriev.com/eng/A-42PE_e/A-42PE_e.html

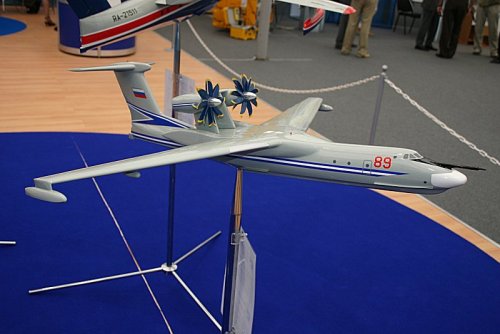

The A-42PE patrol search and rescue amphibian in export version is developed for patrolling in sea and coastal zones. The aircraft is equipped with two D-27A turboprofan engines, 14000 h.p. takeoff power eoch of one PD-33AC booster engine, with power 5200 kg.
The aircraft is equipped with systems:

"Sea Dragon" search-and-sighting system,
ARIA-B integrated and flight and navigation system,
airborne communication system.


Aircraft Performance
Wing span, m 41.62
Aircraft length,m 45.04
Aircraft height, m 11.07
Wing area, m2 200
Wheel base, m 14.835
Wheel track, m 5.71
Maximum take-off weight, kg 96000
Combat load:
- normal, kg 4000
- maximum, kg 8500
Maximum speed (ISA, 8000m), km/h 770
Cruise speed (ISA, 8000m), km/h 650-710
Operatinal altitude, m 12000
Mission flight altitude, m 100-2000
Maximum range, km 11500
Base requirements I class airfield, hydrodrome
Runway length requiered in ISA conditions, m 1800
Seaworthiness:
- Sea state 4-5
- Wind wave hight, m 2
Crew 7
Radius action for antisubmarine warfare with normal combat load and 5% fuel reserve with sonar buoys deployment
(4 hours patrolling):
- without refueling, km 3500
- with refueling, km 5000
- with deployment of dipping sonar module
(12 hours patrolling while the amphibian is afloat), kg 4000


Attachments

  • day_01_068.jpg
    69.9 KB · Views: 223
  • A-42PE.jpg
    30.9 KB · Views: 221

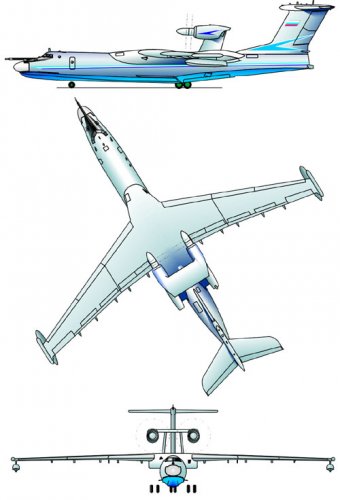

  • A-42PEview.jpg
    61.4 KB · Views: 219
