Hello!

I´ve reading in a polish website about some polish projects of different types of postwar aircrafts

http://powiat.mielec.pl/poser/samoloty/index.htm

But sadly the links to the illustrations are broken. Anybody know something more about it?

There is two of them:



Raravia


Attachments

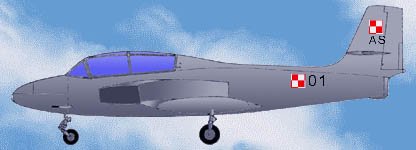

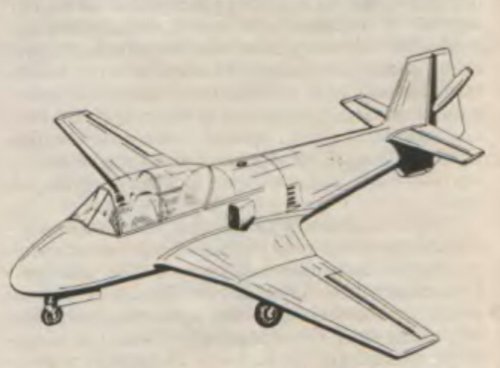

  • Sandauer AS TS-11 1957.jpg
    Sandauer AS TS-11 1957.jpg
    13.6 KB · Views: 1,355

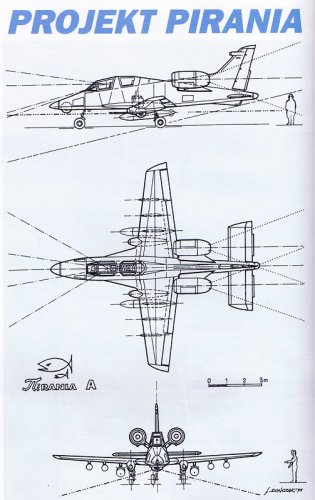

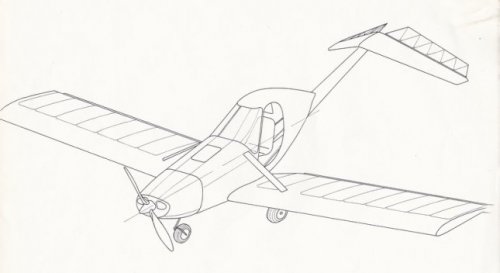

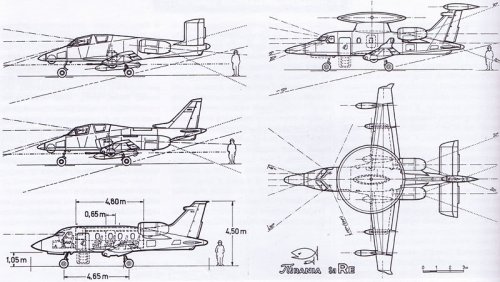

  • Altair pirania.jpg
    Altair pirania.jpg
    35.9 KB · Views: 1,452

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

this site have a many projects ,such as TS.17 Pelikan,do anyone know it ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hallo,

I asked before about TS-17,I get it;

TS-17 Pelikan :single engined high wing cabin light aircraft with fixed
landing gear,project only.

Also Mielec M.3 Pliszka :tandem two seat single engined trainer aircraft,
it didn't enter production.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

the LWD Szpak-1 was a project of low wing open cockpit side-by-side
two seat trainer aircraft with fixed t/w u/c and 125 hp M-11D radial
engine.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu
raravia said:
http://powiat.mielec.pl/poser/samoloty/index.htm

But sadly the links to the illustrations are broken. Anybody know something more about it?

There is two of them:

Info about the Altair Pirania (the original source was this: http://www.powiat.mielec.pl/poser/samoloty/pozostale2/pirania.htm):

HISTORIA
Projekt taniego samolotu pola walki Pirania opracowany w 1991 w Instytucie Lotnictwa przez inż. Tomasza Makowskiego. Pirania lokowała się w luce między śmigłowcami bojowymi a większymi samolotami szturmowymi o napędzie odrzutowym. Założono cenę nie wyższą niż 3 mln USD w wersji podstawowej i dwuparametrową optymalizację kosztów oraz unifikację części z istniejącymi samolotami. Przewidziano stosowanie silników turbośmigłowych o mocy od 500 kW do 1100 kW oraz silników odrzutowych o ciągu od 1000 daN do 2200 daN, awioniki różnych generacji, a także możliwość stworzenia wersji o podwyższonej manewrowości z małymi powierzchniami destabilizującymi z przodu kadłuba. Rozpoczęcie produkcji seryjnej było planowano w 6 lat od rozpoczęcia projektu technicznego.
KONSTRUKCJA
Płat: Półskorupowy, metalowy. Jednoczęściowy, trójdźwigarowy między gondolami silników i dwudźwigarowy do końcówek. Dwuszczelinowe klapy semi-Fowler i szczelinowe lotki obu skrzydeł wzajemnie zamienne.
Kadłub: Metalowy, półskorupowy.
Kabina: Jedno- lub dwumiejscowa, opancerzona, szyby pancerne.
Usterzenie: W układzie T, całkowicie metalowe, stery zunifikowane.
Sterowanie: Linkowo-popychaczowe.
Podwozie: Chowane hydraulicznie, częściowo wystające dla ochrony płatowca w przypadku awarii systemu wypuszczania.
Awionika: 3 zestawy awioniki o różnym poziomie złożoności.
NAPĘD
2 silniki turbośmigłowe w układzie pchającym, nad płatem, o mocy 550-1100 kW. Zbiorniki paliwa o pojemności 850 dm3
UZBROJENIE
Stałe - działko GSz-23 kal.23 mm, podwieszane - na 8 lub 9 węzłach podskrzydłowych.
DANE TECHNICZNE
Rozpiętość 11,5 m
Długość 11,5 m
Wysokość 4,00 m
Pow. nośna 22,0 m2
Masa własna 1800 /1890 kg
Masa całkowita 5000 kg
Prędkość maks. 602 km/h
Prędkość min. 160 km/h
Czas wznoszenia 35,0 m/s
Pułap >10000m
Zasięg 4000 km


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,259
The description seems to point at an aircraft like an enlarged Antonov An-14, using components
of the Heinkel He 111 and BMW Bramo 323 engines, size probably a little bit smaller than the Arado 232.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Jemiba said:
The description seems to point at an aircraft like an enlarged Antonov An-14, using components
of the Heinkel He 111 and BMW Bramo 323 engines, size probably a little bit smaller than the Arado 232.


May be my dear Jemiba,but it means also;there is anther project,the CSS-14 ?.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315

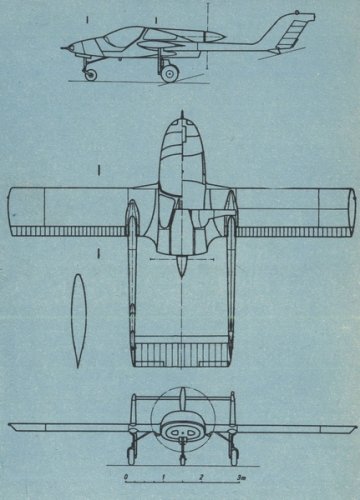

Here are pictures of the first airplane to use name 'Bies', which was to be a aerobatics-training aircraft designed by LWD in the late 1940s as well as of two versions of Bies designed by Tadeusz Sołtyk some 10 years later, and rejected in favour of more conventional layout that eventually was built in quantity.

Piotr


Attachments

  • TS_Bies_IIIvariant.JPG
    52.9 KB · Views: 554
  • TS_Bies_IIvariant.JPG
    45.4 KB · Views: 561
  • LWD_Bies_1948.JPG
    50.2 KB · Views: 578

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315

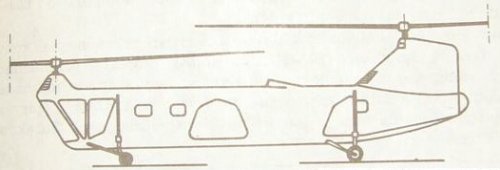

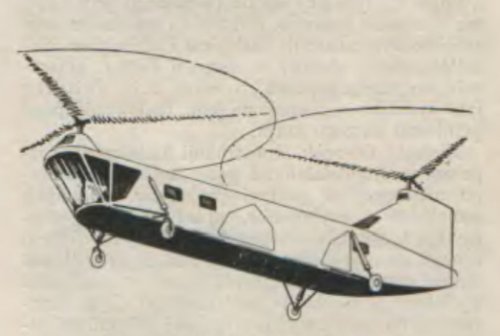

And now here is an artist's impression of the GIL-3 tandem rotor helicopter as well as its side view.

Piotr


Attachments

  • GIL-3_artistsimpression.JPG
    45.6 KB · Views: 528
  • GIL-3.JPG
    38.4 KB · Views: 518

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315

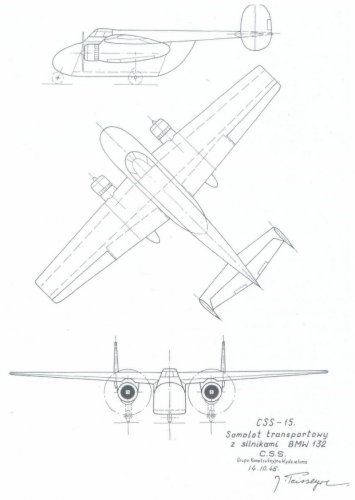

hesham said:
Who has a drawing to this CSS-15,a transport and communication aircraft project ?
they called a Polish Beverley.


http://www.samolotypolskie.pl/samoloty/710/33/CSS-152

A bit of googling, a trip to a library, few minutes with a scaner and here it is: CSS-15 in an original drawing dated 14 October 1948 with a signature of its designer Jerzy Teisseyre.

Cheers,
Piotr


Attachments

  • CSS-15_3v_mod.JPG
    164.1 KB · Views: 595

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Wow my dear Petrus;


it was very nice design,thank you,do you have any Info about CSS-14
project ?.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315
hesham said:
do you have any Info about CSS-14 project ?.

If my memory serves me well a source I know sais that "CSS-14" was presumably an original designation of a project that then became CSS-15.
My guess is the project under CSS-14 designation could have had different configuration than CSS-15.


The CSS-15 in the drawing I posted represents its variant with BMW-132 engines; there was also a variant with Bramo-323 Fafnir engines.


Piotr


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
The Leaper link is well worth the visit. Even without speaking Polish, Google Translate of the main text and the many additional drawings, including of a two-seater, show a very interesting design and a real effort to simplify the structure and assembly. Thanks for sharing, Hesham.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Mole said:
The Leaper link is well worth the visit. Even without speaking Polish, Google Translate of the main text and the many additional drawings, including of a two-seater, show a very interesting design and a real effort to simplify the structure and assembly. Thanks for sharing, Hesham.


You are right my dear Mole;


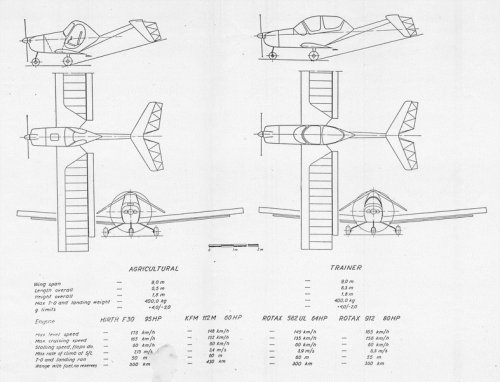

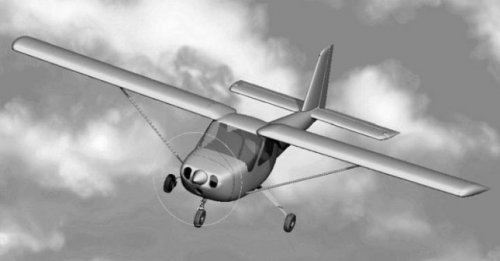

and here is the two-seat version.


Attachments

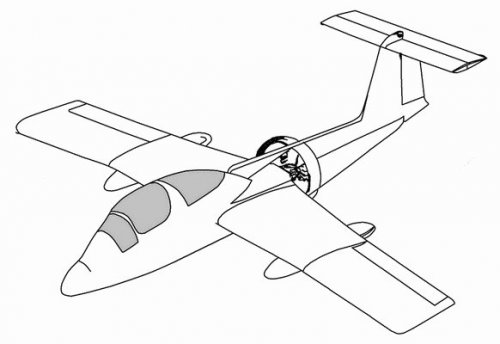

  • M-XX two-seat.jpg
    M-XX two-seat.jpg
    329.1 KB · Views: 501

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,259
Interesting, as at least the two-seater would qualify in most countries
for the ULA category.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,580
Reaction score
4,305
Here's a current project from PZL Swidnik:
Polish manufacturer PZL-Świdnik has announced plans to fly an unmanned/optionally-piloted version of its single-engined SW-4 helicopter, revealing the development during the 3-6 September MSPO exhibition in Kielce, Poland.

"The maiden flight of the Solo prototype, in a piloted configuration, is expected not later than June 2013," said Nicola Bianco, managing director of the AgustaWestland-owned company. "But we want to fly it earlier."

The Solo is a development of the SW-4 Puszczyk trainer, 20 of which are used by the Polish Air Force Academy in Deblin.

Świdnik last year began piloted flight tests to collect the data needed to develop an unmanned version, with software development for its flight management system and ground control station being conducted by AgustaWestland in Italy.

Powered by one Rolls-Royce M250 C20R/2 engine producing 457shp (336kW), the development would be capable of performing a range of military and law enforcement tasks, carrying surveillance and communications equipment. It could also be armed for some battlefield duties, or fly cargo supply and medical evacuation sorties.

Sources suggest that the Italian armed forces could have a requirement for the Solo, although no official requirements have been published.
LINK


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Please see this info about Polish Gotha-242,as CSS-242M;


After the Second World War, the Polish western territories taken over a number of transport glider Gotha Go-242 .From 1946-1947 put forward in the press aviation proposal to use gliders Go-242 by motorized road constructions on the two lobes of the BMW-132 engines with a capacity of 588 kW (800 hp), also from the spoils of war. The concept, of course, combined with the relevant design work and the construction of adaptive robots airframe. In 1948, the conversion of a glider Gotha Go-242 was developed in the Construction Group Dedicated CSS in. Renumbered aircraft designed CSS-242m. The proposal, however, went unnoticed, without arousing much interest.

http://www.samolotypolskie.pl/samoloty/1109/126/CSS-242M2


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315

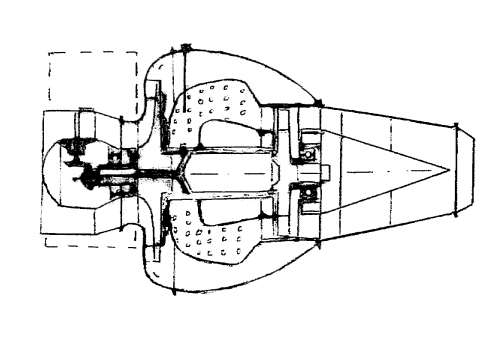

M-9 Ziemowit* trainer project of 1959 (construction team: Stanislaw Jachyra, Adam Borowski, Marek Augustynik) from PZL-Mielec. Span 8.15m, length: 9.2m. It was to be powered by the TO-1 jet engine (by Tadeusz Mirski) that was to develop 400kp thrust.


* Ziemowit is a Polish male first name, also known as a name of a legendary ruler of ancient Poland.


Attachments

  • M-9 Ziemowit.png
    M-9 Ziemowit.png
    45 KB · Views: 432
  • TO-1.png
    63.9 KB · Views: 93

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Wow,nice find my dear Petrus,many thanks,

I knew it before but I hadn't a drawing for it;

http://www.secretprojects.co.uk/forum/index.php/topic,4653.msg256139.html#msg256139


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

in 1949,the Section Aviation Mechanics Wheels Students Warsaw University of Technology
designed SLPW-1,a two-seat low-wing sporting aircraft Project,powered by one 90 hp Cirrus
Minor engine.

http://www.samolotypolskie.pl/samoloty/1888/126/SLPW-1

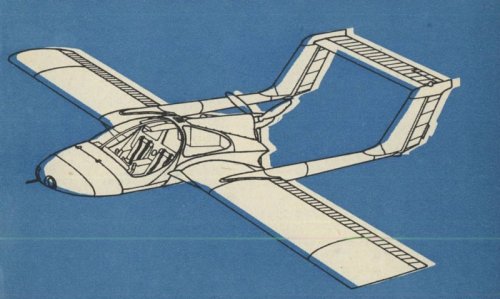

Attachments

  • SLPW-1.jpg
    107.3 KB · Views: 71
  • SLPW-1_00.jpg
    17.6 KB · Views: 64

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978

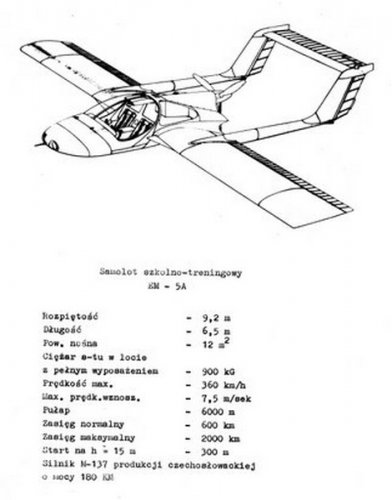

The PZL M-17 (EM-5A);

http://www.samolotypolskie.pl/samoloty/2375/126/PZL-M17-EM-5A-Dudus-Kudlacz

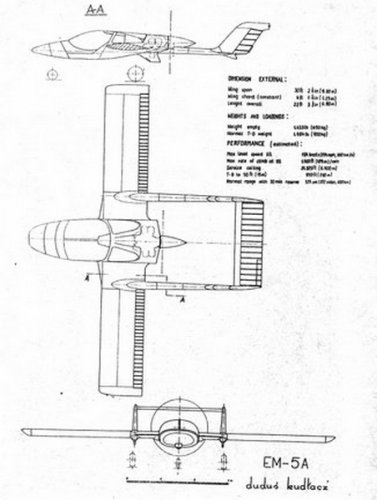

Attachments

  • Prospekt_M17-2.jpg
    133.4 KB · Views: 89
  • Prospekt_M17-1.jpg
    99 KB · Views: 85
  • M17_04.jpg
    258 KB · Views: 72
  • M17_03.jpg
    250.3 KB · Views: 79
  • M17_02.jpg
    260.1 KB · Views: 93
  • M17_01.jpg
    213.9 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

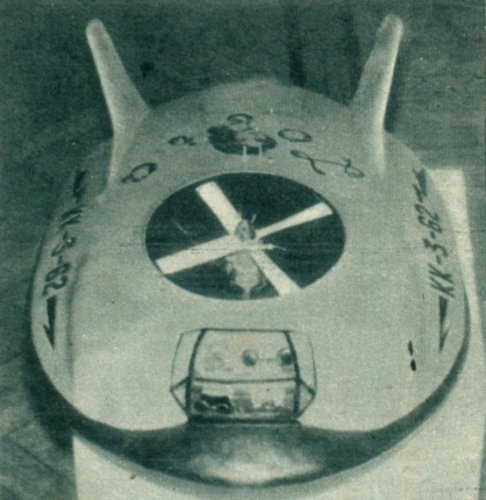

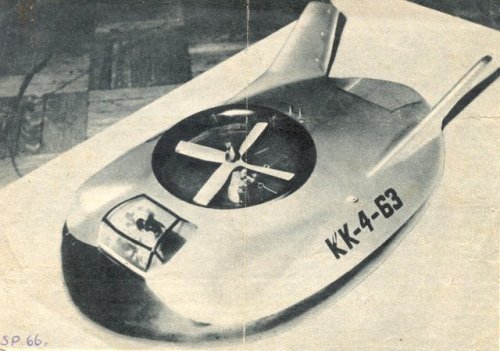

a VTOL Hovercraft designed by Krzysztof Komenda;

In the early 1960s Krzysztof command of the model shop Aero Club Workers in Swidnik developed a hovercraft project. In 1962. Exhibition New Technique Youth, organized by the Central Committee of the Union of Socialist Youth and the Museum of Technology NOT in Warsaw, was demonstrated flying model hovercraft its construction.
This model, designated KK-3-62, is formed as a shell laminate. Całkowita- Weight 1.5 kg. Samozapłonowy engine with a displacement of 25 cm 3. Rotor czterołopatowy. The area nośna- 2.5 dcm 3. The fuel tank capacity of 15 cm 3 provided a flight time to 5 min. lotu- height of 30 mm. Max- speed of 25 km / h. Founded version of this hovercraft KK-4-63.
In 1974. Krzysztof command worked on a large hovercraft. After many years, in 2004. Again he worked on a large hovercraft.

http://www.samolotypolskie.pl/samoloty/13911/126/Komenda-poduszkowiec-KK-4-63


Attachments

  • preview_komuda.jpg
    63.1 KB · Views: 58
  • Komenda_poduszkowiec_KK-4-62.jpg
    241.1 KB · Views: 53

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

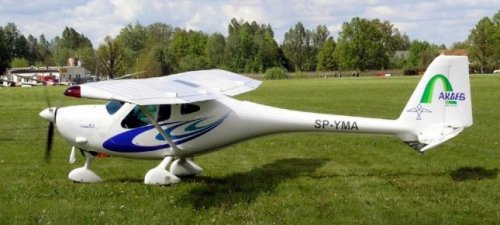

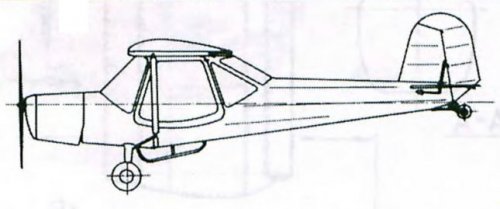

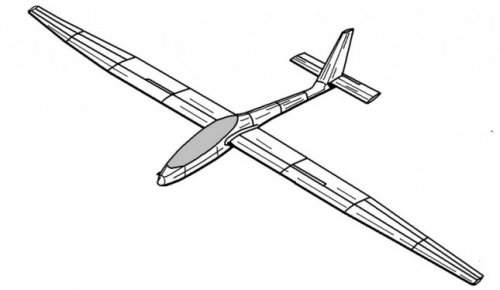

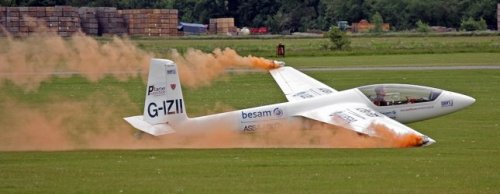

Mr. Jerzy Cisowski was a small designer,in 1990 he began with construction of S-1 Swift,
a single-seat shoulder-wing glider,followed by Twist Master,anther single seat glider,but
remained a project,the Tukan was a high-wing cabin sporting monoplane project of 1995,
later the Remos G-3 Mirage was a ultra-light high-wing monoplane,built and flown in 1997.

http://www.samolotypolskie.pl/samoloty/690/126/Cisowski-Jerzy2


Attachments

  • preview_remos-g-3-mirage_src_1.jpg
    48.8 KB · Views: 950
  • preview_Cisowski_Tukan_00.jpg
    27.1 KB · Views: 962
  • preview_swift-s-1_src_1.jpg
    35.9 KB · Views: 972

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978

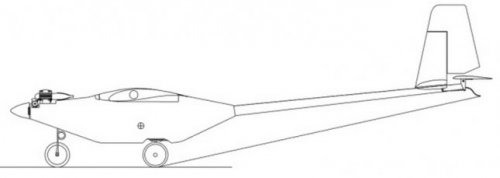

Hi,

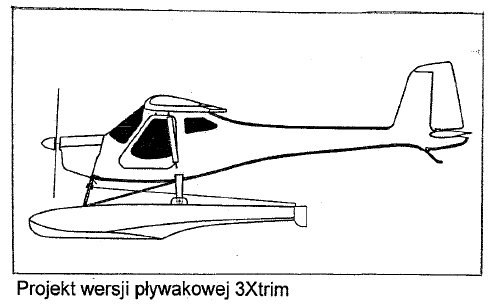

As I understand,the Eol-2 was two-seat ultra-light aircraft developed with floats as
a Project.

http://www.samolotypolskie.pl/samoloty/1564/126/Eol-2-Gemini-Ultra2
http://www.smil.org.pl/ptl/wyklady/19_Rodzina_samolow_EOL.pdf


Attachments

  • 1-19.png
    15 KB · Views: 859

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

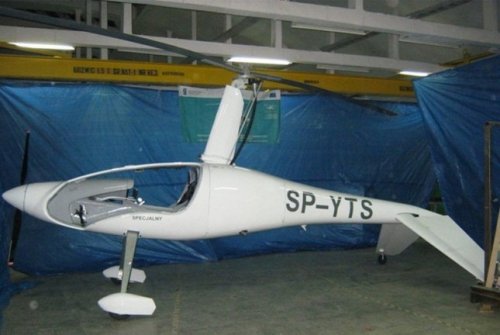

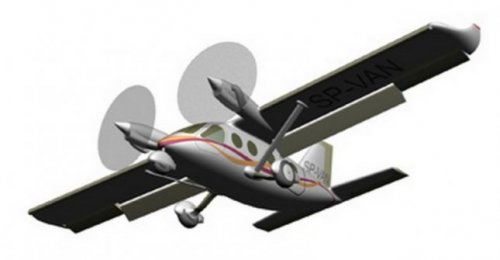

here is an IL I-28 gyroplane prototype,with very odd shape;

http://www.samolotypolskie.pl/samoloty/13966/126/I-28

https://translate.google.com/translate?sl=pl&tl=en&js=y&prev=_t&hl=ar&ie=UTF-8&u=http%3A%2F%2Fwww.samolotypolskie.pl%2Fsamoloty%2F1262%2F126%2FInstytut-Lotnictwa-IL2&edit-text=


Attachments

  • preview_I-28.jpg
    47.9 KB · Views: 778

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315
At http://www.secretprojects.co.uk/forum/index.php/topic,14172.msg280483.html#msg280483 you may find info on GIL-2 and GIL-3 helicopter projects.

Piotr


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Thank you my dear Piotr,

and here is a little know IL Project for two-seat school trainer aircraft of 2000,no other
details are known.

http://www.samolotypolskie.pl/samoloty/3620/79/IL--dwumiejscowy-samolot-szkolny


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978

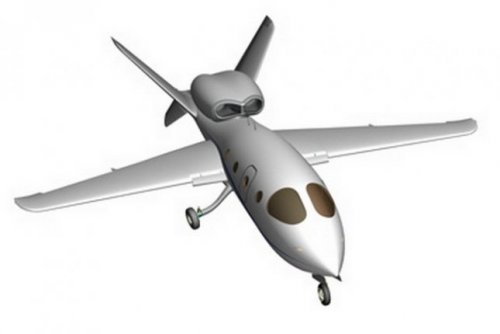

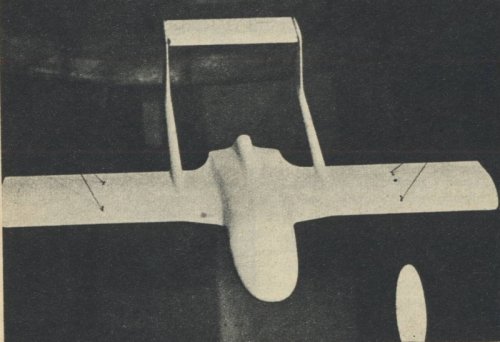

Hi,

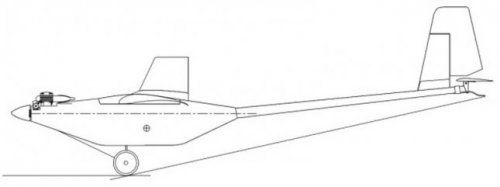

here is a PW (Warsow University of Technology) Meleager I and II unmanned flying camera
or UAV aircraft Projects.

http://www.samolotypolskie.pl/samoloty/3347/126/Meleager-992
http://www.samolotypolskie.pl/samoloty/3346/78/HGMS-4


Attachments

  • 1.jpg
    13 KB · Views: 64
  • 2.jpg
    12.2 KB · Views: 104

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Hi,

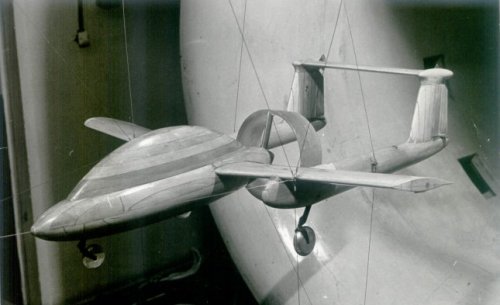

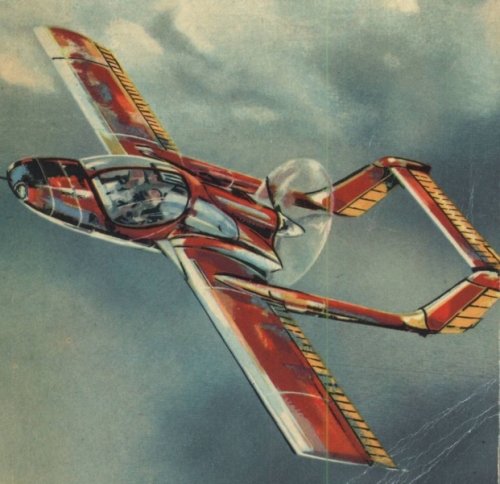

what are those Projects,can anyone ID them ?.

http://modelwork.pl/viewtopic.php?p=372574


Attachments

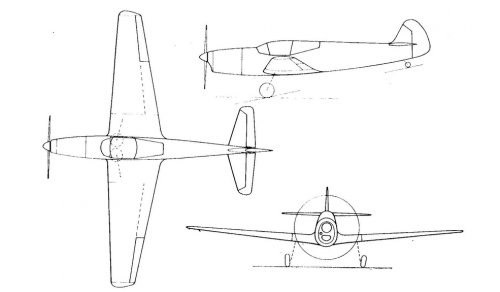

  • s14.jpg
    85.2 KB · Views: 225

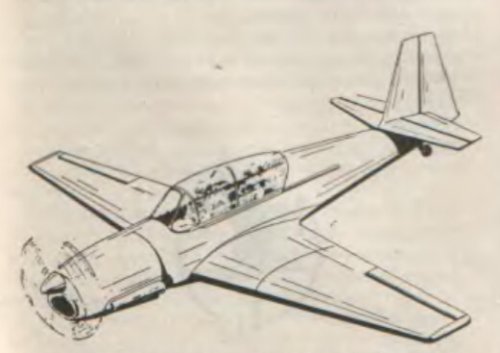

  • s16.jpg
    95.2 KB · Views: 273

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978
Thank you my dear Bigvlada,

but we want to any confirm ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,978

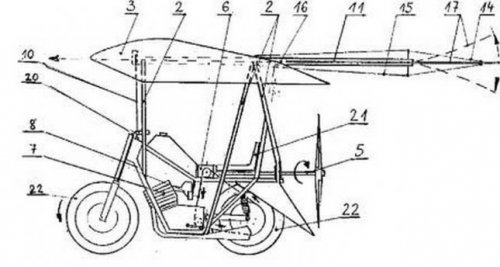

A Flying Motorcycle,designed by Bugoslaw Dzikowicz;

http://www.samolotypolskie.pl/samoloty/912/126/Dzikowicz-pojazd-latajacy-hybryda


Attachments

  • preview_dzikowicz-pojazd-latajacy-hybryda_src_1.jpg
    41.4 KB · Views: 100

Similar threads

Top
