Piana Canova Airplanes and Projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

http://www.flightglobal.com/pdfarchive/view/1935/1935%20-%200956.html


Attachments

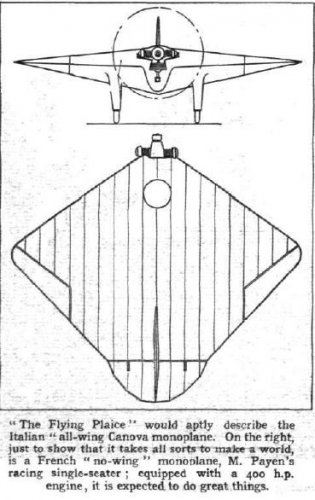

  • Flying Plaice.JPG
    Flying Plaice.JPG
    40.9 KB · Views: 1,146

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,921
Reaction score
267
Re: Italian all-wing aircraft

http://www.flightglobal.com/pdfarchive/view/1935/1935%20-%200956.html

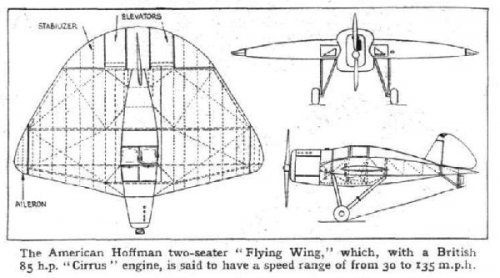

the Hoffman momoplane, illustrated in the link above, looks very like the 'Arup' series of aircraft, see here:-

http://www.youtube.com/watch?v=Nxz1UF67EQI

also see here for a 'flying flounder', to go with the 'flying plaice', and some custer channel wing stuff, and, some Horton wingless plane footage,

http://www.youtube.com/watch?v=i8y5suPs1uE

there's also a very good article in one of my 'Aeroplane Monthly's, about the arups, will find it out, as and when.

cheers,
Robin.


Attachments

  • hoffman 2 seater flying wing.jpg
    hoffman 2 seater flying wing.jpg
    43.8 KB · Views: 999

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Re: Italian all-wing aircraft

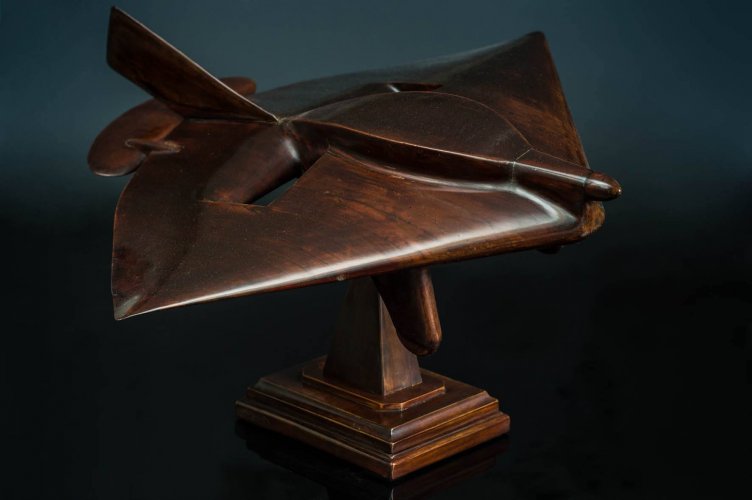

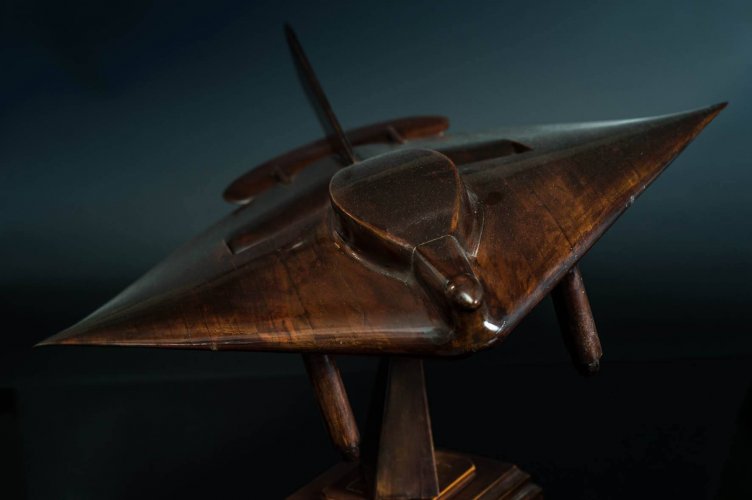

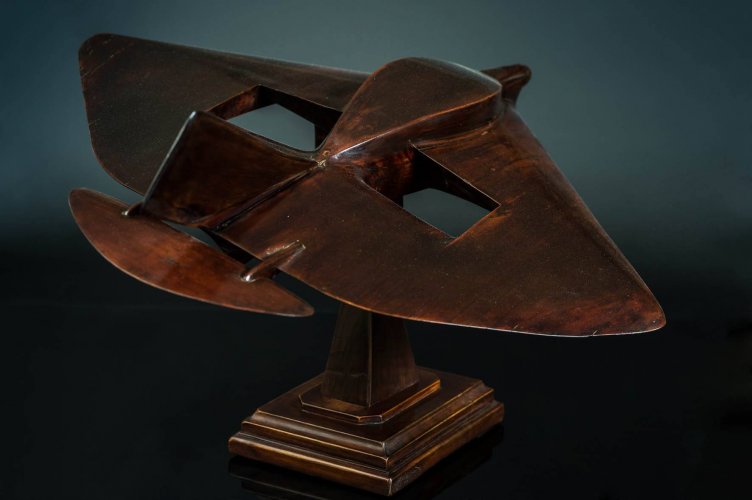

The plane posted by Hesham is one of the numerous projects by Piana-Canova, who developed the rhomboidal wing. It flew only in sailplane form, but it flew very well. Projects span from light sportplanes to huge boatplanes and bombers. During the mid-30s Piana-Canova had some exchanges with Alessandro Marchetti that went as far as a brief proposal for a rhomboidal-wing version of the S-84.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Re: Italian all-wing aircraft

Welcome back, Justo... :)


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,368
Website
www.amazon.com
Re: Italian all-wing aircraft

Thanks Skybolt!

I have posted a small drawing of the Alfa 1101.
I would be grateful for any additional information on this engine, which is of great interest to me.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,921
Reaction score
267
Re: Italian all-wing aircraft

was reminded about this by the 'flying flapjacks' thread,

http://www.secretprojects.co.uk/forum/index.php/topic,6203.msg51102.html#msg51102

here, as promised, are the arups, from 'Aeroplane Monthly' july 1979, pp.340-45, article entitled,
'Those Amazing Arups'

cheers,
Robin.


Attachments

  • Arup No.3.jpg
    Arup No.3.jpg
    50.9 KB · Views: 928
  • Arup No.1.jpg
    Arup No.1.jpg
    38.4 KB · Views: 898
  • Arup Nos. 2 and 4.jpg
    Arup Nos. 2 and 4.jpg
    117.3 KB · Views: 864
  • snyder glider.jpg
    snyder glider.jpg
    199.5 KB · Views: 71

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,844
Reaction score
289
Re: Italian all-wing aircraft

Has anyone ever found drawings of the Arup aircraft? I've looked, but I don't recall finding good drawings of either the S-2 or S-4.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
93
Re: Italian all-wing aircraft

Sundog said:
Has anyone ever found drawings of the Arup aircraft? I've looked, but I don't recall finding good drawings of either the S-2 or S-4.

I find this one in an old EAA publication,

Cheers,


Attachments

  • Arup006.jpg
    230.4 KB · Views: 150

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,921
Reaction score
267
Re: Italian all-wing aircraft

in an earlier post here:-

http://www.secretprojects.co.uk/forum/index.php/topic,5110.msg40631.html#msg40631

i wrote,

http://www.flightglobal.com/pdfarchive/view/1935/1935%20-%200956.html

the Hoffman monoplane, illustrated in the link above, looks very like the 'Arup' series of aircraft,

now, re-reading the 'Aeroplane Monthly' article, i find the attached paragraph. Further, the image 'Arup006.jpg' is attributed to one 'R.J.Hoffman'.
So, i think it's highly likely that the Hoffman who designed the Hoffman monoplane, is the same Hoffman who helped to design the Arups.

cheers,
Robin.


Attachments

  • hoffman monoplane text.jpg
    hoffman monoplane text.jpg
    64.3 KB · Views: 61

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
93
Re: Italian all-wing aircraft

robunos said:
So, i think it's highly likely that the Hoffman who designed the Hoffman monoplane, is the same Hoffman who helped to design the Arups.

Indeed, Raoul Hoffman designed the Arup S1 and S2 before moving to Florida where he designed his "All Wing"
.
Ralph Grainchen was the designer of the Arup S3 and S4.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,921
Reaction score
267
Re: Italian all-wing aircraft

Indeed, Raoul Hoffman designed the Arup S1 and S2 before moving to Florida where he designed his "All Wing"
.
Ralph Grainchen was the designer of the Arup S3 and S4.

Excellent! that fills in some more of the story.

cheers,
Robin.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
93
Re: Italian all-wing aircraft

Along or after his PC-100 (experimental glider), PC-140 (touring aircraft) and PC-500 (competition glider), it seems that Piani-Canova has designed an experimental aircraft that can be used as a trainer aircraft, the PC-85; and, after WWII, a jet aircraft, both equipped with rombhoïdal wing.
Is there documention available on those two last projects?

Thanks in advance.


fluxflyer

ACCESS: Restricted
Joined
Feb 21, 2010
Messages
2
Reaction score
2
Re: Italian all-wing aircraft

The Canova monoplane , PC-140 I'm guessing, would make an easy to build full scale ultalight.
The drawings posted on this forum shows ailerons and center trailing edge elevator. I found
pictures of this model online that showed Junkers type aileron and elevators below the trailing edge
in their own airstream. Please comment if you know the specifics of the Canova monoplane's control surface arrangement.

http://www.rcgroups.com/forums/showthread.php?t=1242669

shows the control surfaces as mentioned.


fluxflyer

ACCESS: Restricted
Joined
Feb 21, 2010
Messages
2
Reaction score
2
Re: Italian all-wing aircraft

A former U.S. Air Force test pilot, Chuck Tucker had recently tested a low aspect flying wing
model he designed named Vortex. It was a scaled down prototype of 12 ft. span and 10 ft. chord
rectangle. The tricycle landing gear had mains, wingtip mounted, and nose, beneath firewall ,
squared off wingtips and a large center mounted vertical stabilizer, rudder. Chuck's Vortex
project may have been adopted and ompleted by model club members of Morgan Hill, California
after He passed away more than a year ago. There were a few photos of Vortex posted at

http://twitt.org , month unknown.


pesholito

ACCESS: Restricted
Joined
Jun 9, 2008
Messages
40
Reaction score
0
Re: Italian all-wing aircraft

fluxflyer said:
A former U.S. Air Force test pilot, Chuck Tucker had recently tested a low aspect flying wing
model he designed named Vortex. It was a scaled down prototype of 12 ft. span and 10 ft. chord
rectangle. The tricycle landing gear had mains, wingtip mounted, and nose, beneath firewall ,
squared off wingtips and a large center mounted vertical stabilizer, rudder. Chuck's Vortex
project may have been adopted and ompleted by model club members of Morgan Hill, California
after He passed away more than a year ago. There were a few photos of Vortex posted at

http://twitt.org , month unknown.
See pages 6, 12, 15 and 16 of the pdf document in the link:
http://www.sccmas.org/wp-content/uploads/2013/11/2007_November.pdf


pesholito

ACCESS: Restricted
Joined
Jun 9, 2008
Messages
40
Reaction score
0
Re: Italian all-wing aircraft

pesholito said:
fluxflyer said:
A former U.S. Air Force test pilot, Chuck Tucker had recently tested a low aspect flying wing
model he designed named Vortex. It was a scaled down prototype of 12 ft. span and 10 ft. chord
rectangle. The tricycle landing gear had mains, wingtip mounted, and nose, beneath firewall ,
squared off wingtips and a large center mounted vertical stabilizer, rudder. Chuck's Vortex
project may have been adopted and ompleted by model club members of Morgan Hill, California
after He passed away more than a year ago. There were a few photos of Vortex posted at

http://twitt.org , month unknown.
See pages 6, 12, 15 and 16 of the pdf document in the link:
http://www.sccmas.org/wp-content/uploads/2013/11/2007_November.pdf


More pictures of the same airplane:


http://www.sccmas.org/photogallery/thumbnails.php?album=48&page=1
http://www.sccmas.org/photogallery/thumbnails.php?album=48&page=2
http://www.sccmas.org/photogallery/thumbnails.php?album=48&page=3


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Re: Italian all-wing aircraft

That's a Models,great find Pesholito.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,921
Reaction score
267
Re: Italian all-wing aircraft

Flying toast, to go with our flying flapjacks...(just need eggs and bacon, now... ;D B) )

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Re: Italian all-wing aircraft

Hi,


here is the Piana-Canova PC.140 aircraft.


http://www.avia-it.com/act/biblioteca/libri/PDF_Libri_By_AVIA/Aeronautica%20-%20Brinati%20T.%20Fischetti%20U.%20Stefanutti%20S..pdf


Attachments

  • Piana-Canova.png
    623.1 KB · Views: 786

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Re: Italian all-wing aircraft

zeroc said:

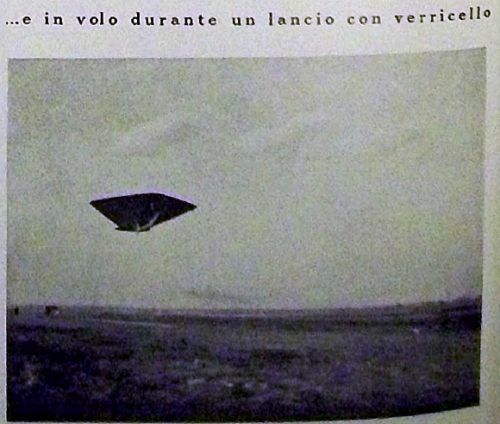

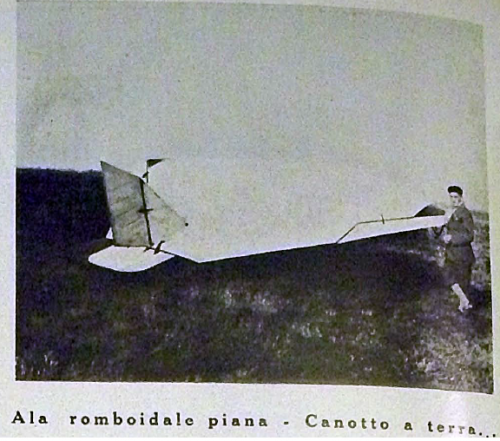

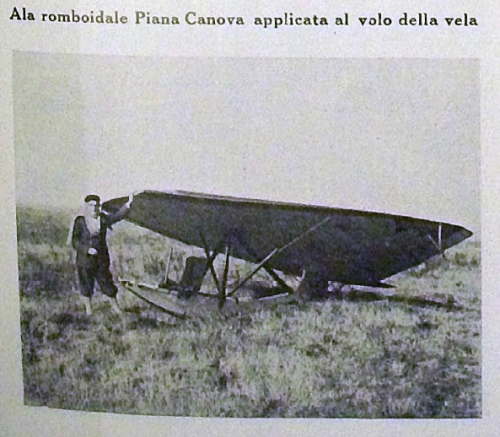

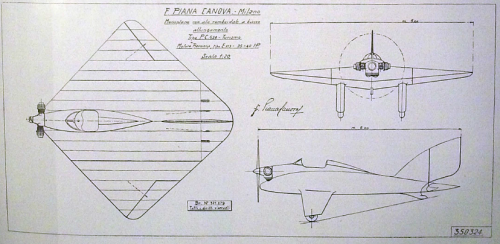

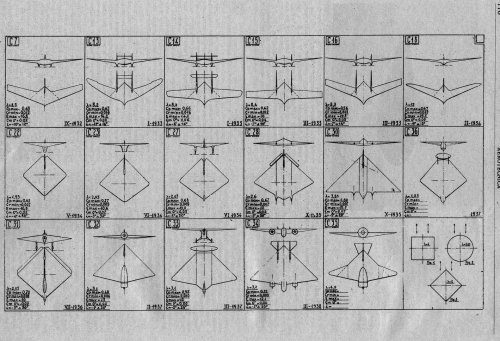

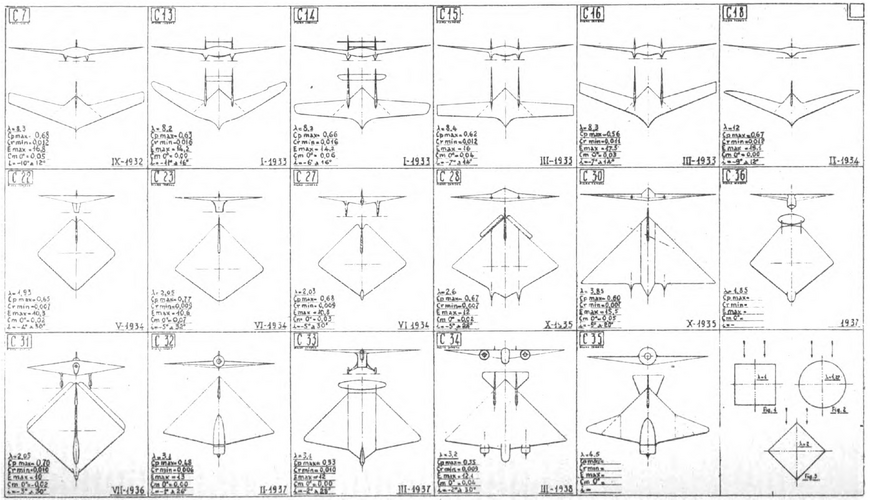

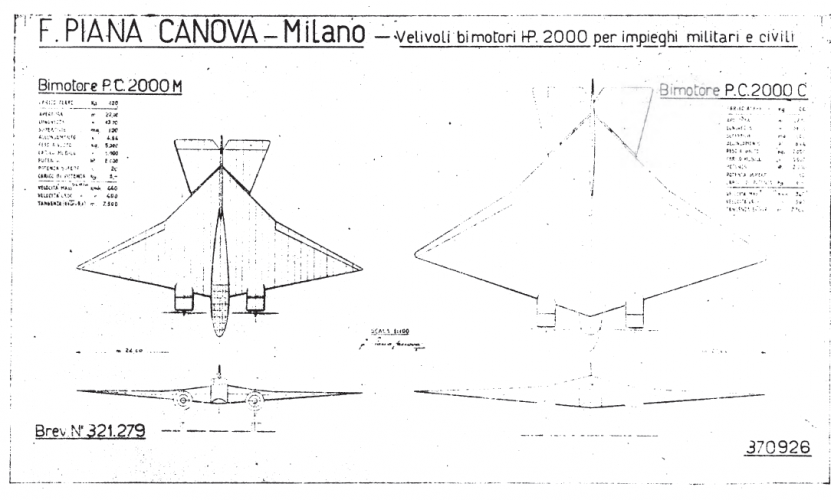

Other Piana-Canova projects.


Oh my God,amazing and marvelous drawings,thank you Zeroc very much,


but can I ask you that,if the picture,the prefix "C" means a Model or not ?,and if that
symbol related to PC series ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Re: Italian all-wing aircraft

Hi,

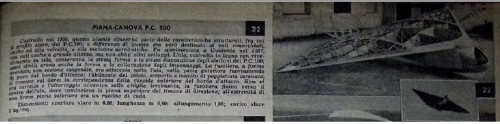

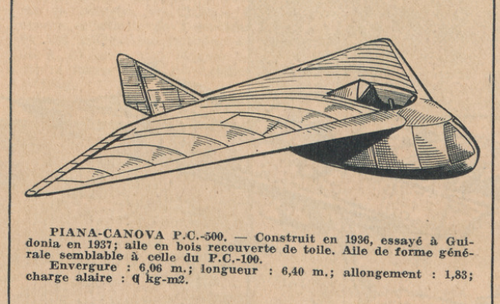

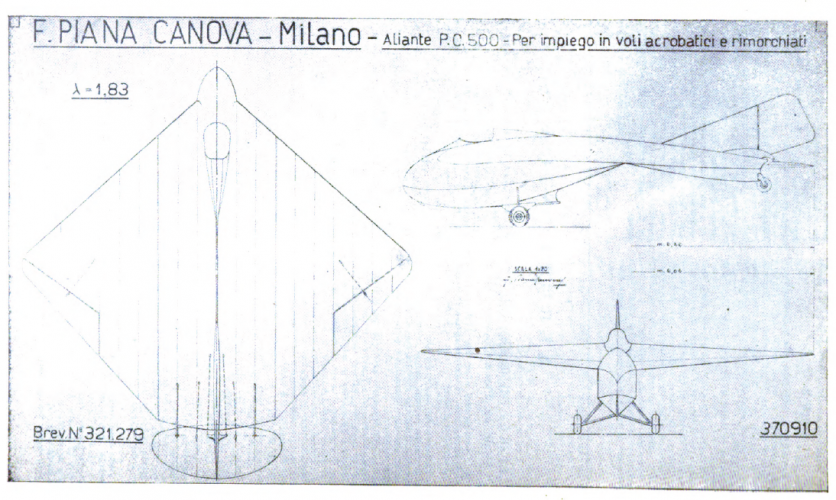

here is the Piana-Canova PC.100 and PC.500.


Attachments

  • FlyingWings_AilesVolantes_Nurfluegel_AlaVolante_KN_Pic_CanovaPC100.jpg
    84.3 KB · Views: 466
  • FlyingWings_AilesVolantes_Nurfluegel_AlaVolante_KN_Pic_CanovaPC500.jpg
    84 KB · Views: 441

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Re: Italian all-wing aircraft

hesham said:
but can I ask you that,if the picture,the prefix "C" means a Model or not ?,and if that
symbol related to PC series ?.

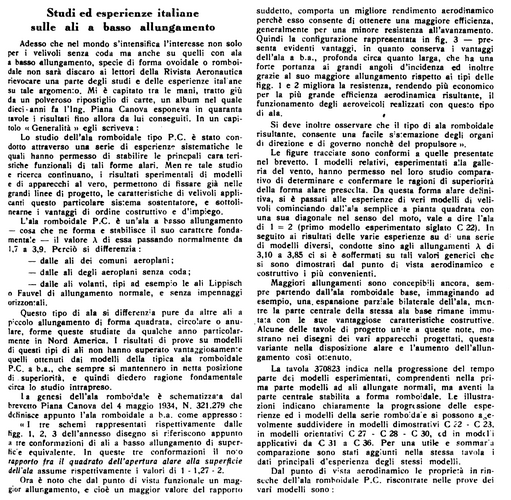

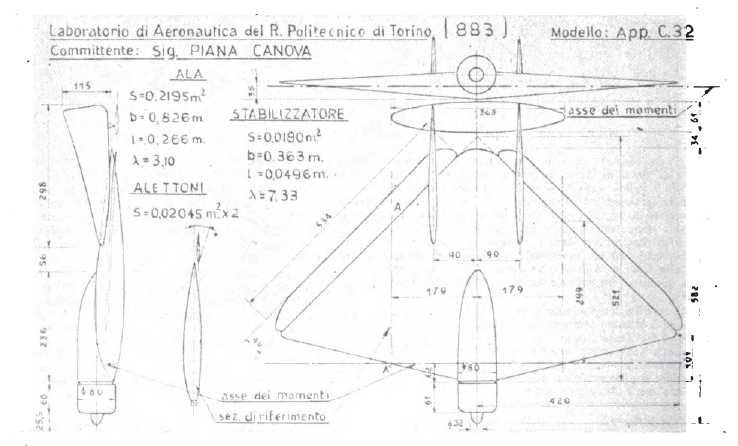

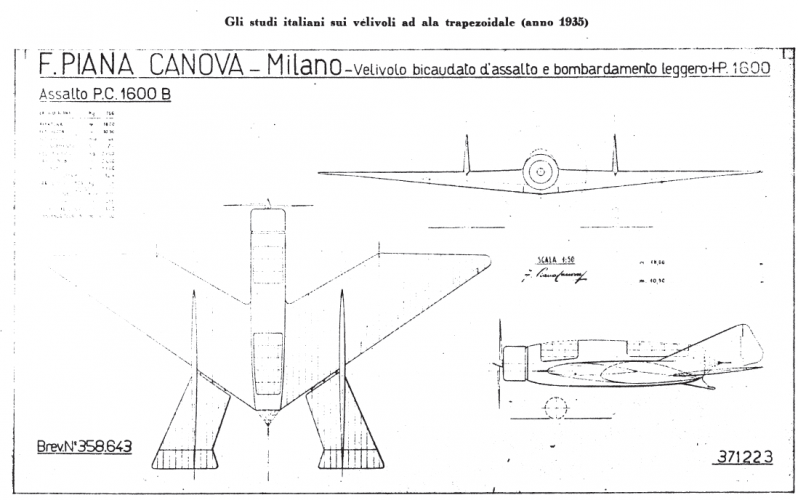

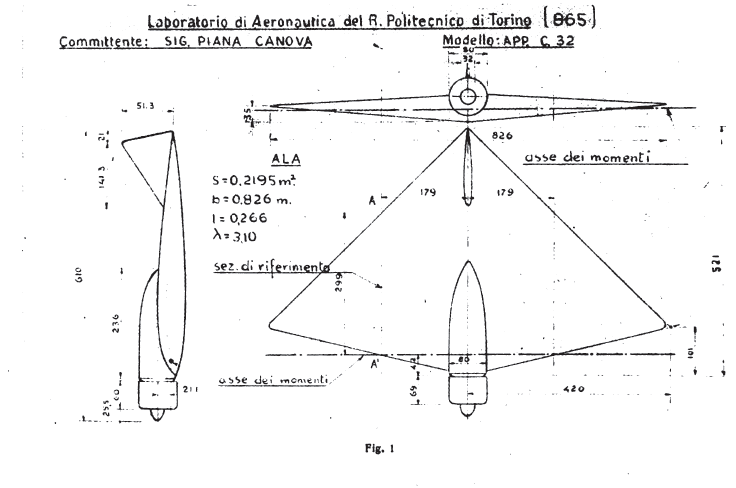

It seemed to be this series for a Projects or Drawing numbers (Suffix "C").

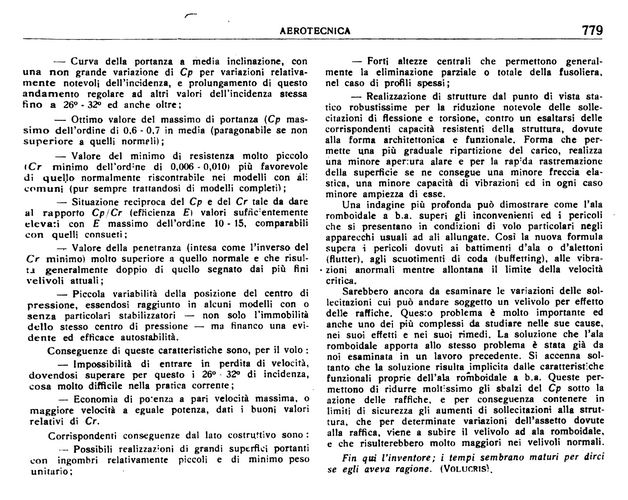

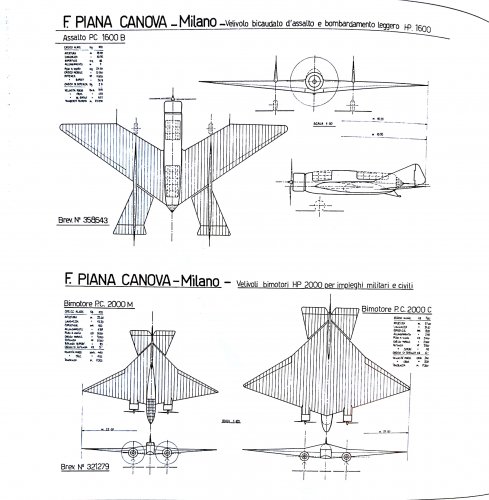

We must don't forget the PC.1600 heavy fighter Project,which I hope to get a drawing
to it.


Attachments

  • scansione0033.jpg
    1 MB · Views: 385

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Re: Italian all-wing aircraft

Hi,

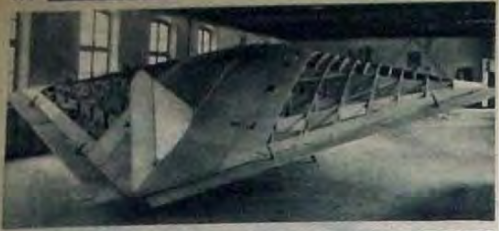

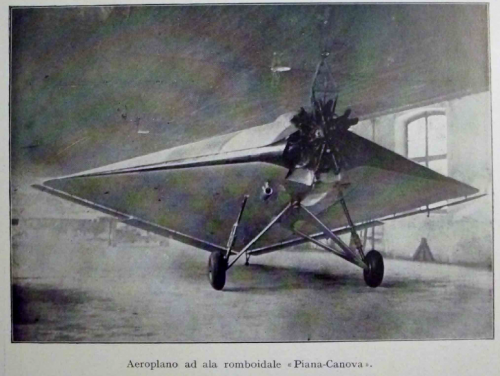

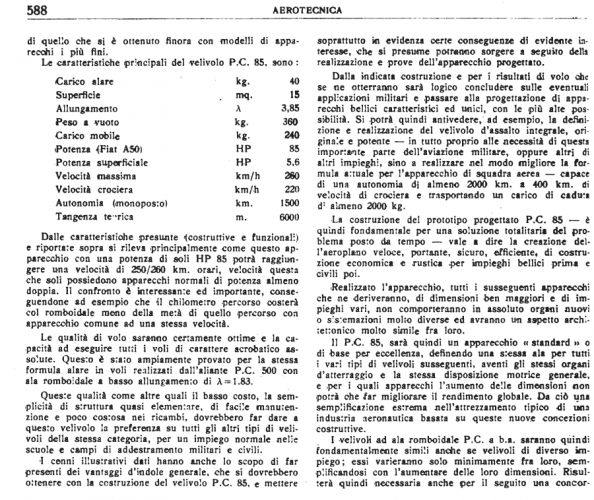

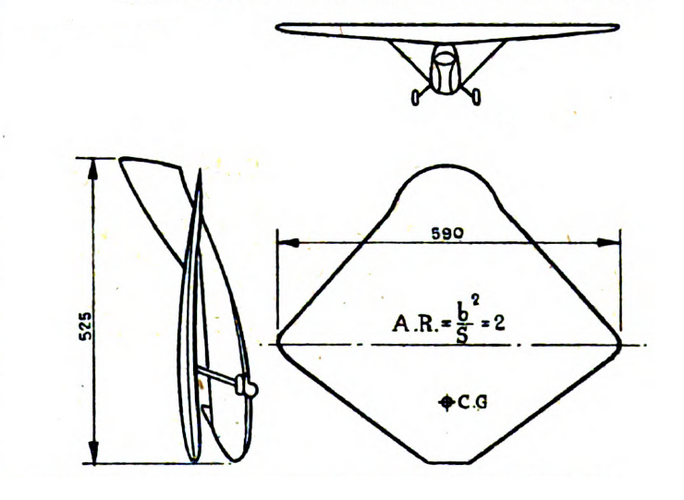

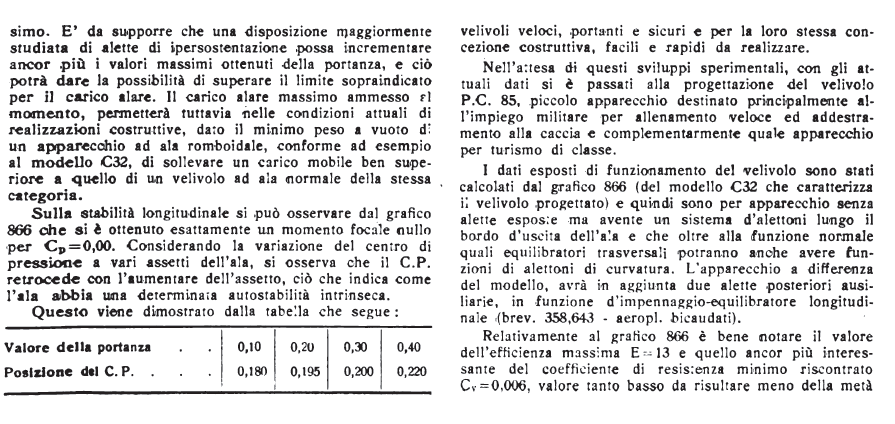

the Piana Canova PC-85 was a two-seat trainer with a rhomboid wing airplane,I don't know if
it was actually built or not ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

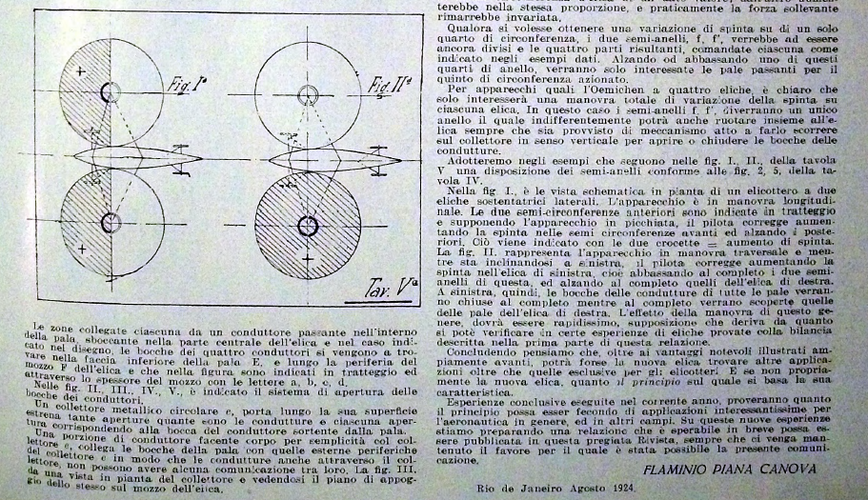

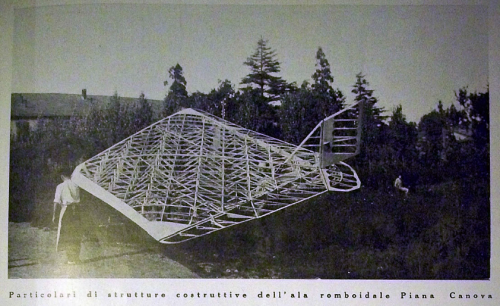

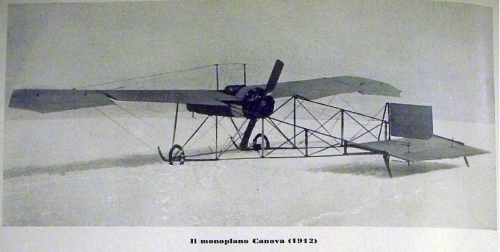

I think we must change this title into Piana Canova Airplanes and Projects.

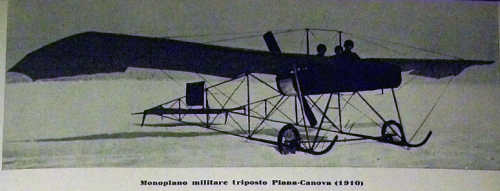

He started with a PC-I of 1908,it was a single seat monoplane powered by one engine,
the PC-II was a three-seat monoplane of 1910/11,the PC-III was a seaplane biplane with
swivel fuselage of 1914.

He also designed a three-seat pusher monoplane in 1912.

A jet aircraft with a rhomboid wing was projected,but no more details are known ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201933%2001.pdf
https://it.wikipedia.org/wiki/Canova_PC-140


Attachments

  • 2.png
    727.4 KB · Views: 57

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

Mr. Piana Canova emigrated to Brazil in 1919 and returned in 1931,if some had
a book about Latin American aviation,we can know his activities about aviation
there ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

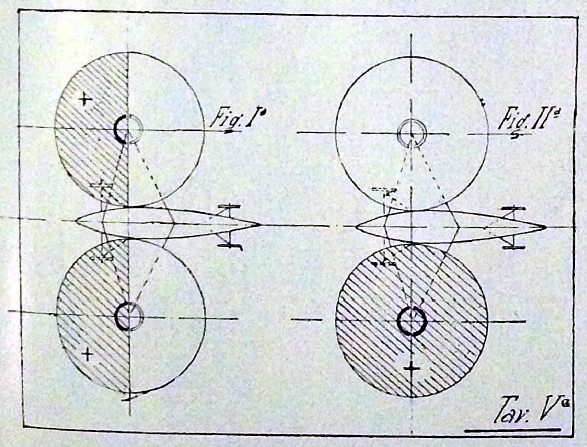

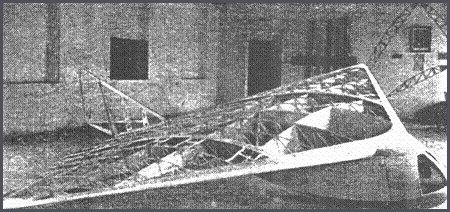

here is a Piana Canova PC-II & PC-III.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201933%20011.pdf


Attachments

  • PC-II.png
    518.7 KB · Views: 31
  • PC-III.png
    639.9 KB · Views: 35

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

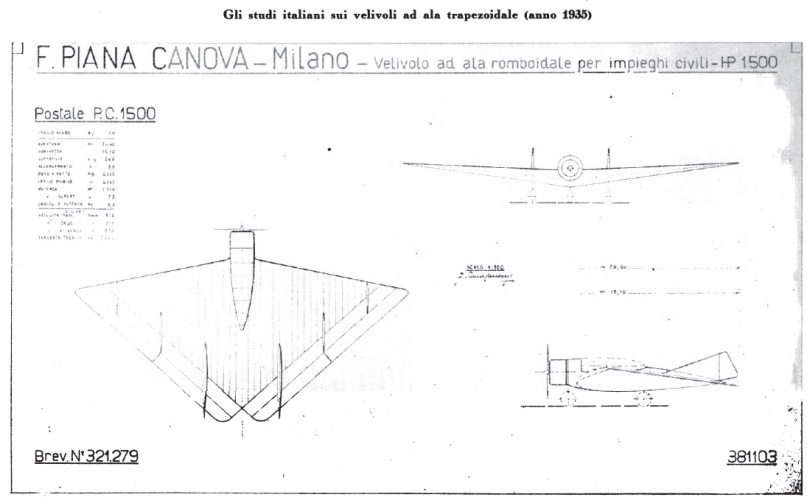

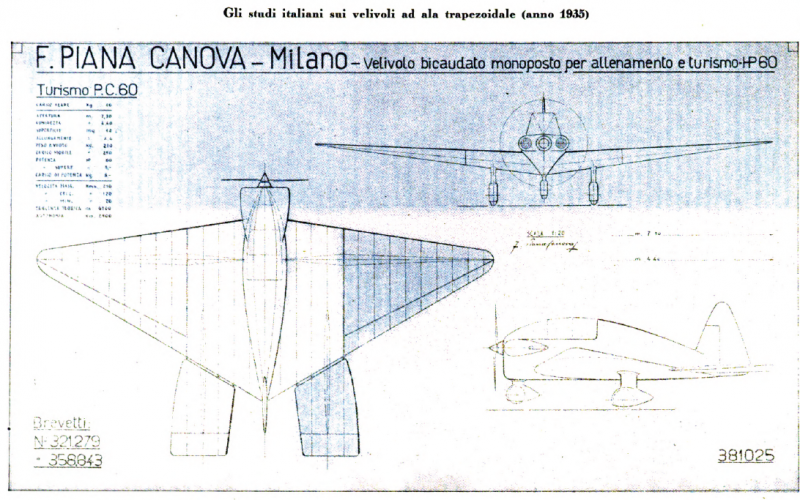

here is a Canova PC.656 Project,with some of his gliders.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201935%2005.pdf


Attachments

  • 6.png
    640.7 KB · Views: 53
  • 5.png
    1 MB · Views: 54
  • 4.png
    590.7 KB · Views: 49
  • 3.png
    626.6 KB · Views: 70
  • 2.png
    685.1 KB · Views: 88

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

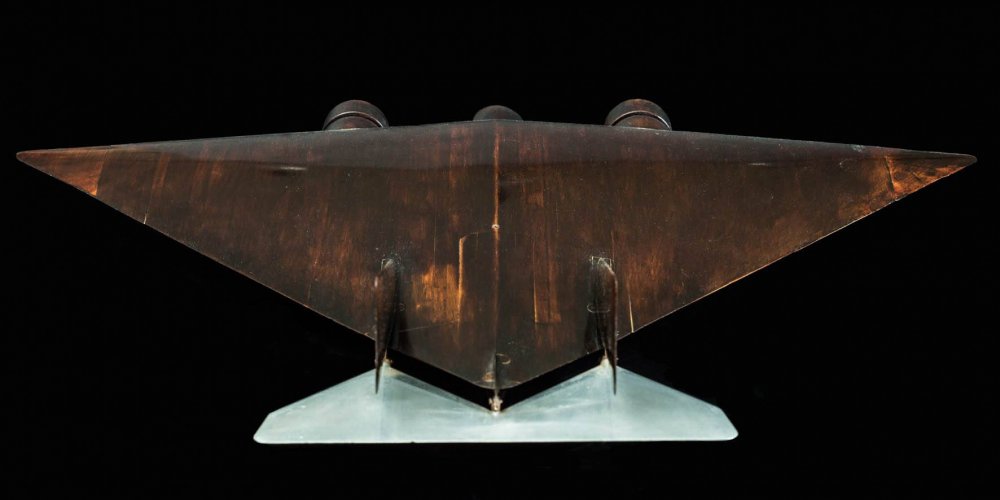

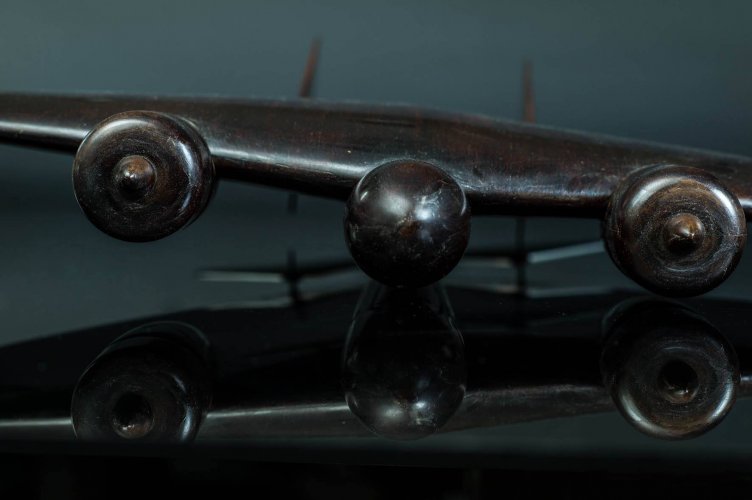

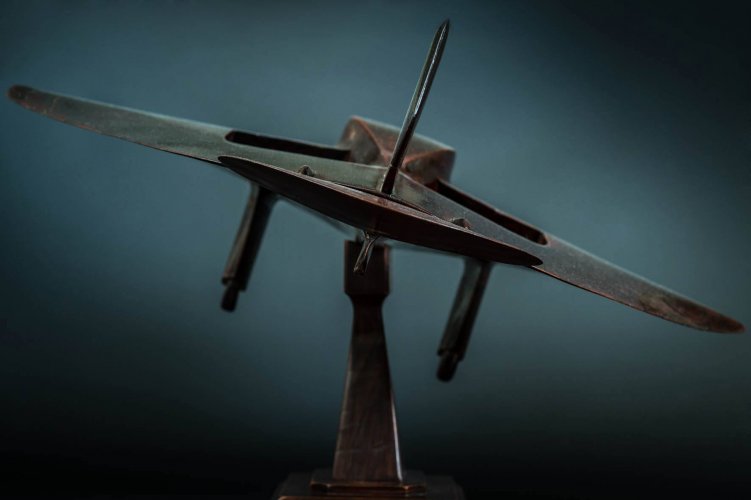

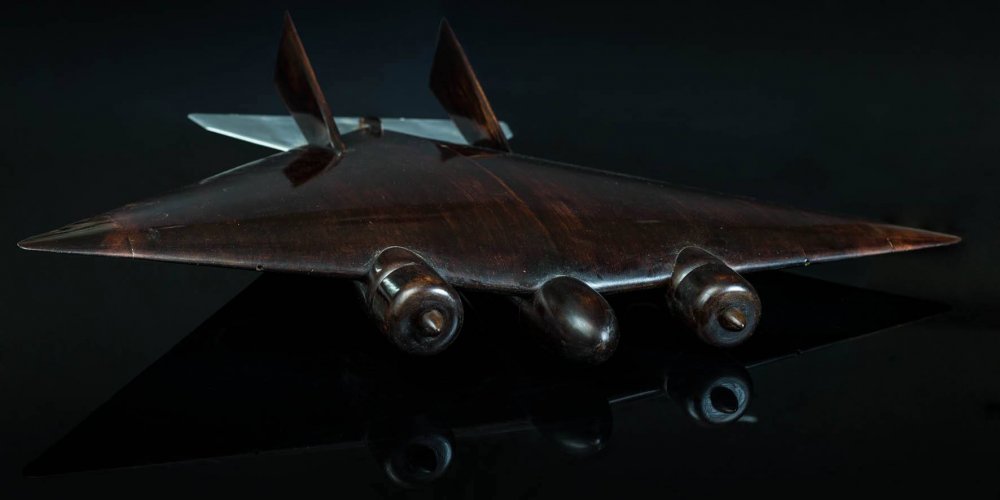

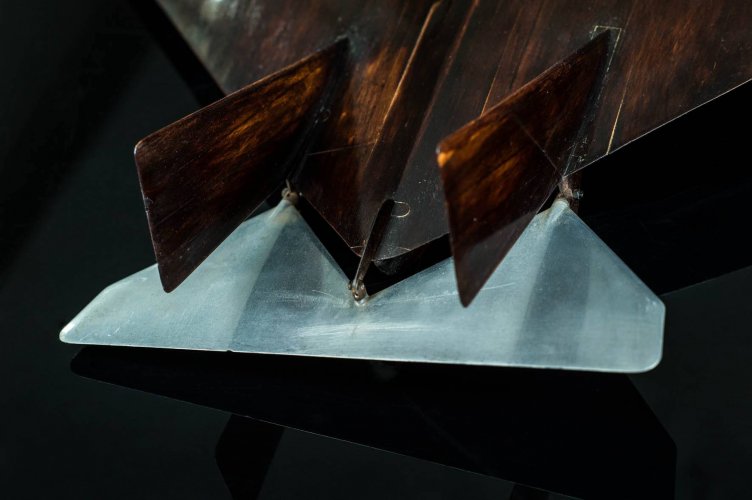

when I check from my files,I found that Mr. Piana Canova designed a three engined heavy
bomber Project of flying wing shape,does anyone hear about it ?,sorry I don't remember
the source.


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
31
Website
www.res-aeronautica.com
Dear friends,
Here I post the 3-views of the Piana Canova PC 1600, single engined attack aircraft, and the PC 2000, a double engine combat aircraft.
Source: Gente dell'Aria, Vol. 3, Giorgio Evangelisti, Olimpia Editore.
Best regards.
--
Luca


Attachments

  • Pc 1600 - Pc 2000.jpg
    Pc 1600 - Pc 2000.jpg
    276.3 KB · Views: 426

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
93
Many thanks Lucamax!

Is the book "Gente dell'Aria, Vol. 3" presenting more information about Canova works?


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
31
Website
www.res-aeronautica.com
Retrofit said:
Many thanks Lucamax!

Is the book "Gente dell'Aria, Vol. 3" presenting more information about Canova works?

Yes, I bought the book today and I did not read yet, but from a first look I found a lot of informations about Canova's works.
I'll share them in this post during the next days!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

and Canova PC.2000 was intended for civil and military roles.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
Hi,

there was an aircraft appeared in 1950,mentioned in Aerofiles sites;

http://www.aerofiles.com/_ca.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
From Ali Nuove 4/1955,

the Piano Canova PC.140 aircraft.


Attachments

  • 1.png
    563.2 KB · Views: 194

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
From Ali Nuove 12/1959,

here is a more Info about PC.100 and PC.500.


Attachments

  • 1.png
    323.2 KB · Views: 106
  • 2.png
    364 KB · Views: 102

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745
From Aviation magazine 1962,

the PC.500 with more Info.


Attachments

  • 500.png
    533.2 KB · Views: 39

Similar threads

Top
