Hi,

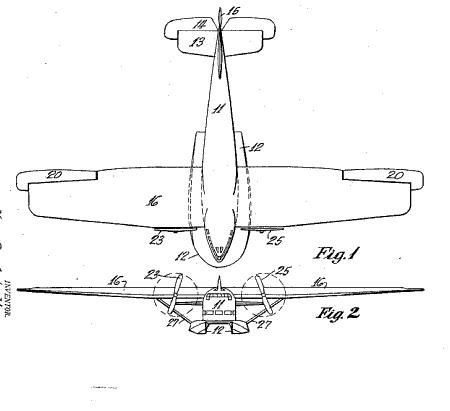

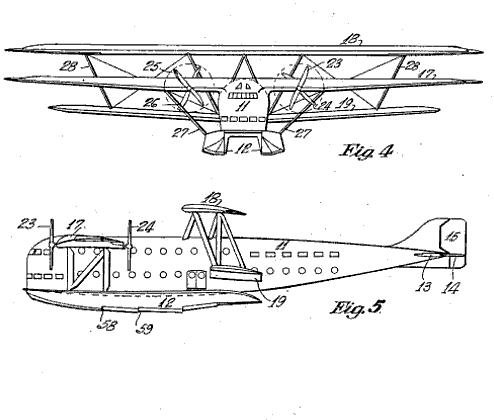

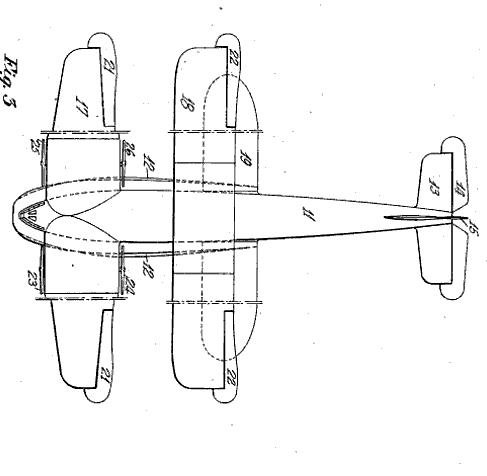

that designer was a mystery,he created a patent between 1920 and 1929,for seaplane,
and he designed a seaplane in 1929,also he designed a 100-passenger Transatlantic
seaplane,14-passenger air transport aircraft and four engined transatlantic aircraft
beside this 60-passenger twin float flying boat.

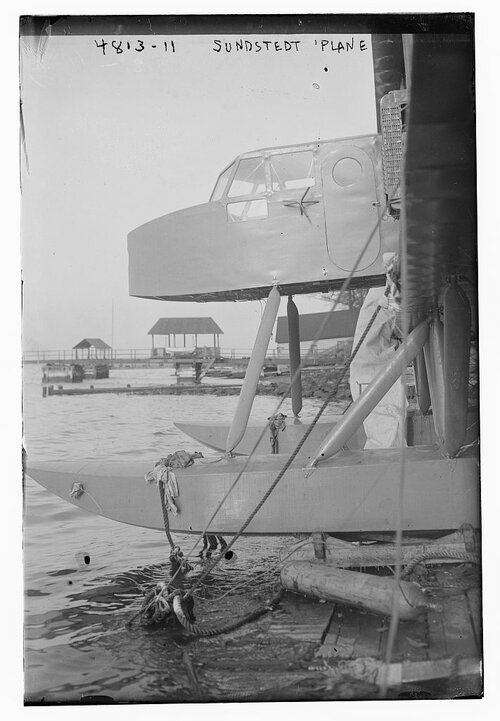

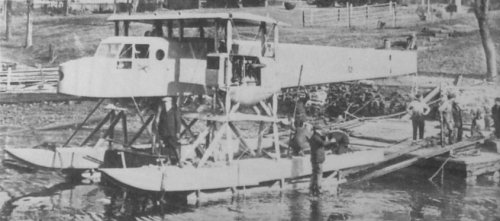

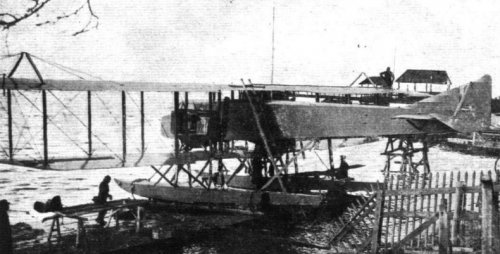

Of course I know his first work at Sweden and his seaplane of 1919,but who know more.


http://specialcollections.wichita.edu/collections/ms/95-30/95-30-A.HTML


Attachments

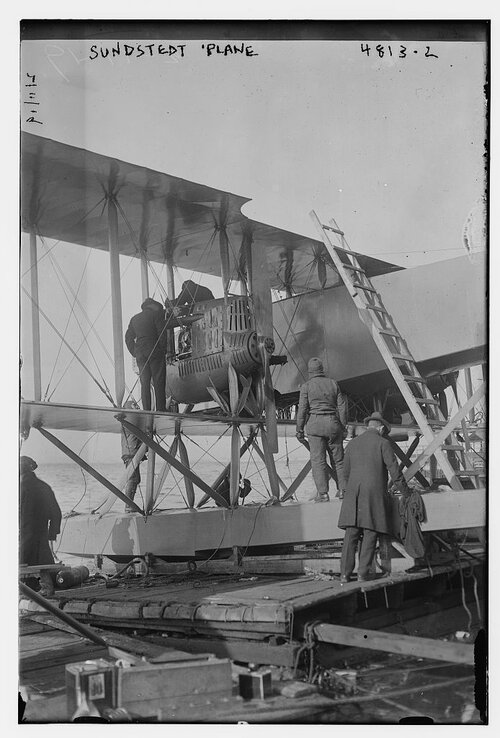

  • 1919-1.jpg
    64 KB · Views: 633
  • 1919-2.jpg
    64.3 KB · Views: 604

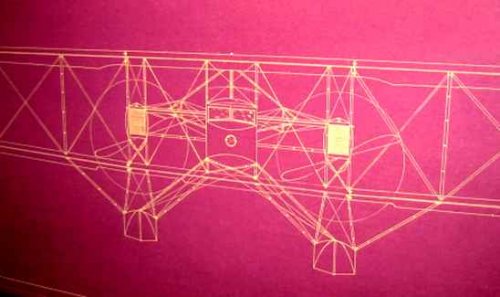

  • Sundstedt  3.jpg
    Sundstedt 3.jpg
    15.5 KB · Views: 573

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
Re: Capt. Sundstedt transatlantic flying boat

hesham said:
...but who know more.

Perhaps http://www.aerofiles.com/_st.html ?
His float plane remained the only actually built type. The description of the flying boat as
"twin float flying boat" may be somewhat misleading, I would describe it as a flying boat
with a catamaran hull, so avoiding it to be mistaken for a float plane.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594

Attachments

  • Sundstedt  four engined-2.jpg
    Sundstedt four engined-2.jpg
    32.3 KB · Views: 34
  • Sundstedt  four engined-1.jpg
    Sundstedt four engined-1.jpg
    25 KB · Views: 23
  • Sundstedt  twin engined.jpg
    Sundstedt twin engined.jpg
    19.4 KB · Views: 481

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
7
Re: Capt. Sundstedt transatlantic flying boat

Hello, all -- Happy New Year! Just bought two copies of a magazine called Air World on eBay, and the December 1934 issue had two articles regarding Sundstedt and his airplane projects.

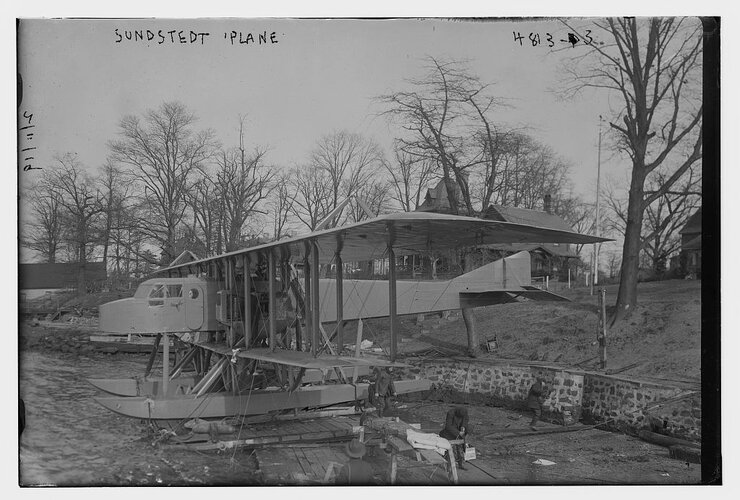

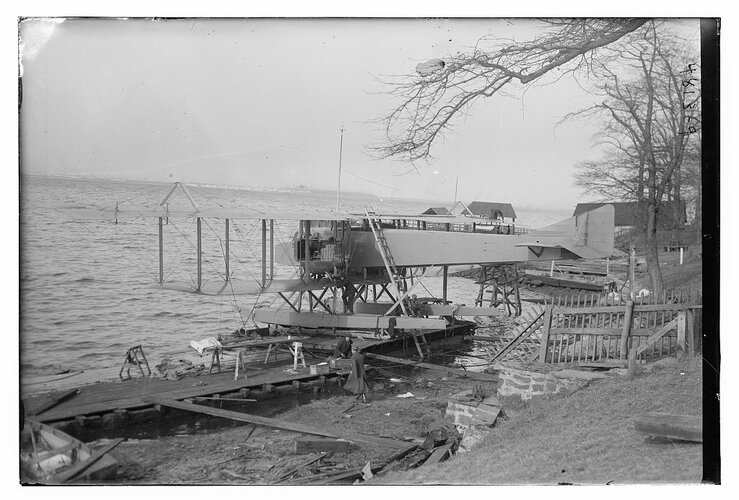

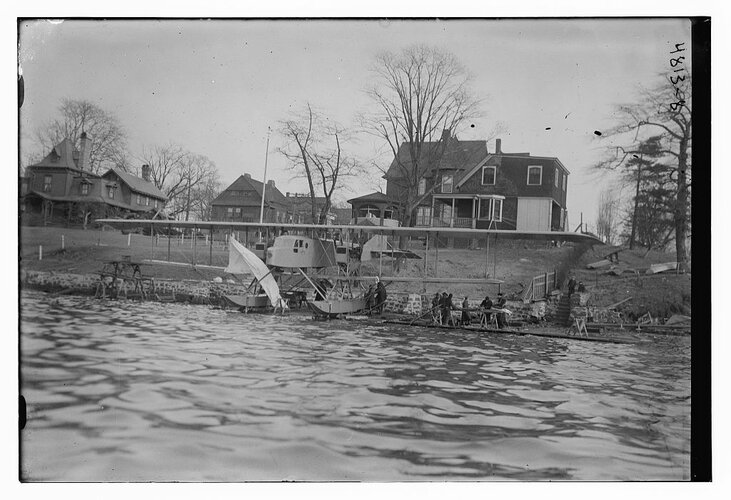

One article provides some bio details. Sundstedt joined the Swedish Royal Navy Corps of Cadets in at the age of 12, became a captain in the Swedish Merchant Marine in 1907 and "began flying with Baron Cederstrom" (?) in 1909. Studied French aircraft factory practices in 1913 and made a non-stop flight from Paris to Stockholm in 1914. Entered the Swedish navy that same year and was detailed to head an aircraft factory in Stockholm. Took a leave of absence and became a French military aviator in 1915, where he taught night flying, supervised aircraft construction, designed pontoons for Farman. Moved to New York in 1916 "to build a seaplane of his own design for trans-Atlantic flying and the result was eventually sold to the [U.S.] Navy." Was with Gallaudet in 1917. Using money provided by Norwegian shipbuilder Hannevig, he began another trans-Atlantic seaplane design in 1918--"one of the largest seaplanes built up to that time, with pontoons of a new design, box beam wing spars, and the first use of balsa wood fairings." Was with Aeromarine in 1921-22, and his design of a night bomber w/an all-metal wing and steel tube fuselage won "the U.S. Government prize." [Anybody know what this refers to?] In 1930 he sold a design for a 40-passenger seaplane "to a foreign government." Here's a picture of him piloting a Farman (see pic #4)

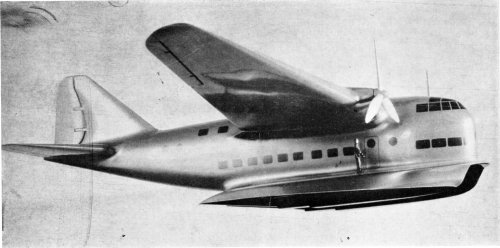

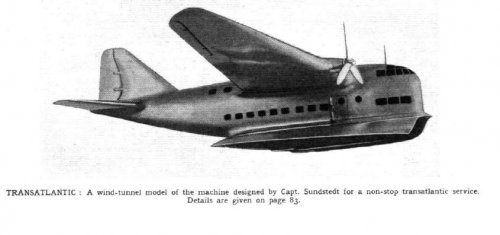

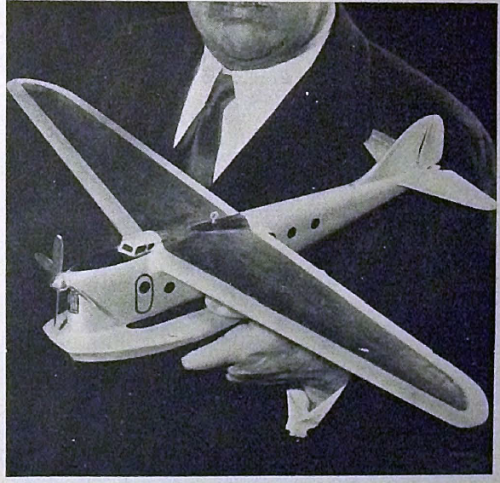

The other article describes a 60-passenger trans-Atlantic seaplane project called the Sundstedt HS-340. The description of the propulsion arrangement is rather vague, saying only that it would use "multiple engines" totaling 4,500 hp and geared together, with each set driving a propeller. Dimensions are span 140', length 88' and height 30'. Gross weight was 62,000 lbs. Two images were included: (see pics #1 & #2)

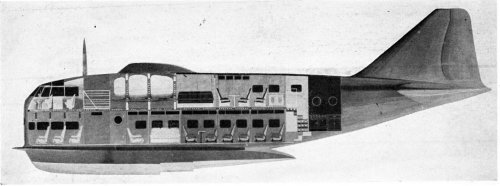

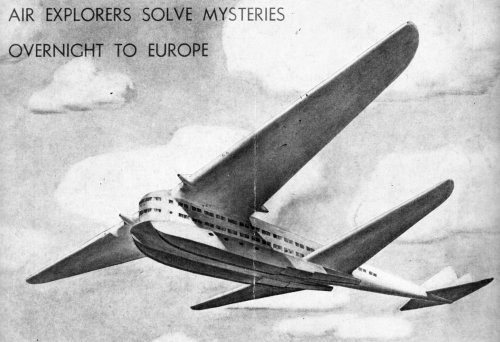

But the niftiest image was a projected 250-passenger seaplane that would follow upon the HS-340 -- see pic #3. Unfortunately, it's not further identified.


Attachments

  • Sundstedt 004.jpg
    Sundstedt 004.jpg
    106.8 KB · Views: 25
  • Sundstedt 002.jpg
    Sundstedt 002.jpg
    174.6 KB · Views: 49
  • Sundstedt 003.jpg
    Sundstedt 003.jpg
    323.8 KB · Views: 66
  • Sundstedt 001.jpg
    Sundstedt 001.jpg
    183.3 KB · Views: 75

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
Re: Capt. Sundstedt transatlantic flying boat

Happy new year Clioman,and great find.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
Re: Capt. Sundstedt transatlantic flying boat

Although it's hard to assess from that sketch (Sunstedt 003), that tandem wing
with its long tail looks, as if it inevitably would ditch its tailplane during take-off
and landing.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
Re: Capt. Sundstedt transatlantic flying boat

Jemiba said:
Although it's hard to assess from that sketch (Sunstedt 003), that tandem wing
with its long tail looks, as if it inevitably would ditch its tailplane during take-off
and landing.

Assuming it doesn't have retractable floats...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
Avimimus said:
Assuming it doesn't have retractable floats...

Indeed, but as there seem to be windows in those catamaran floats, I think, it's quite
unlikely. as that probably wouldn't have allowed access from the upper part then.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
I think you are right based upon the other designs in the thread.

I guess they expected it to lift off the water without changing attitude? Maybe relying on wing incidence, an air-cushion forming under the catamaran float to get enough lift?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
Well, the idea with the aircushion sounds possible to me, a kind of flying SES then.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
Hi,

I never saw a single engined flying boat Project for him before ?;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201932%2007.pdf


Attachments

  • 3.png
    771.3 KB · Views: 34
