On wikipedia https://en.wikipedia.org/wiki/Japanese_military_aircraft_designation_systems

we have Nakajima Ki-13 ( attacker airplane) , Mitsubishi Ki-14 (recon. coop.) , Kawasaki Ki-22 , Tachikawa Ki-29 , Mitsubishi Ki-42 ( Heavy Bomber ) , Nakajima Ki-37 ( fighter) , Mitsubishi ki-39 , Mitsubishi Ki-40 ( HQ Recon. ) , Mitsubishi Ki-47 (L. Bomber ) , Mitsubishi Ki- 50 ( H. Bomber ) and experimental Kawasaki Ki-89 all aircraft remained remained at state of projects .

Sorry but my desire of knowlegde is uncontainable :eek:


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Nakajima Ki-13 was a unknown project still now. Official document are not survived or not discovered.
Gakken "The IJA aircraft" says that Ki-13 was a heavy armed recon-bomber. Ki-13 was a successor of Kawasaki 88-shiki recon and Nakajima 94-shiki recon.

Mitsubishi Ki-14 was a unknown project still now,too. Official document are not survived or not discovered.
Gakken "The IJA aircraft" says that Mitsubishi Ki-14 was a reconnaissance, transporting supplies, artillery spotting duties aricraft.

Ki-14 was a successor of Mitsubishi 92-shiki recon?


Attachments

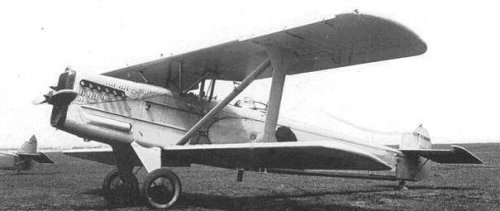

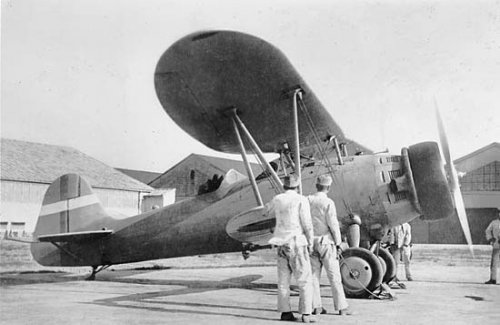

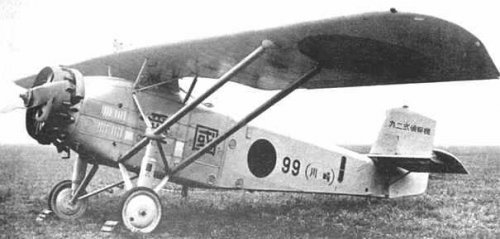

  • Kawasaki 88-shiki recon.jpg
    Kawasaki 88-shiki recon.jpg
    18.6 KB · Views: 298
  • Nakajima 94-shiki recon.jpg
    Nakajima 94-shiki recon.jpg
    40.3 KB · Views: 295
  • Mitsubishi 92-shiki recon.jpg
    Mitsubishi 92-shiki recon.jpg
    19.7 KB · Views: 293

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212

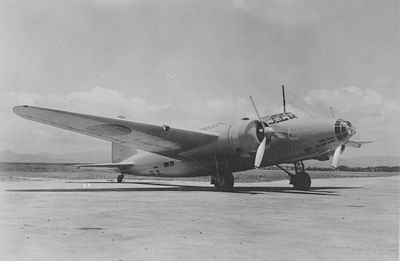

Kawasaki Ki-22 was a competitor of Nakajima Ki-19 heavy bomber and Mitsubishi Ki-21 heavy bomber. This competition was planned in1935.
Ki-22 was terminated when basic design inspection by the IJA.


Attachments

  • Nakajima Ki-19 heavy bomber prototype.jpg
    Nakajima Ki-19 heavy bomber prototype.jpg
    25.4 KB · Views: 289

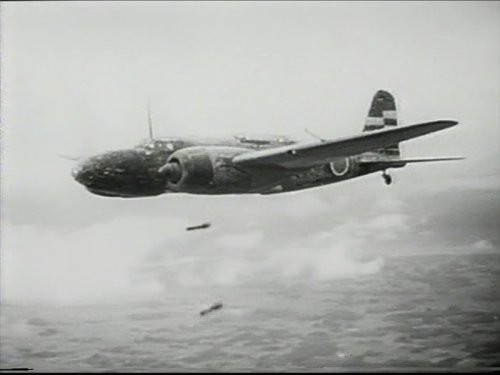

  • Mitsubishi Ki-21 heavy bomber(97-shiki heavy bomber).jpg
    Mitsubishi Ki-21 heavy bomber(97-shiki heavy bomber).jpg
    11.1 KB · Views: 285

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
According to Gakken's book, Tachikawa Ki-29 was a light bomber which targets were enemy aircraft at the air field and enemy base which did not need heavy weapon to destroy it. The IJA ordered Tachikawa to develop this light bomber in February 1936. This project terminated when basic design inspection by the IJA.
Specification
Span : 12m, Length : 7m, Height : 2.6m, Wing area : 19 square meter, Empty weight : 1,420kg, Gross weight : 1,760kg, Maximum speed : 485km/h,
Range : 1,000km, Armament : two 7.7mm gun.

This specification is almost same as Tachikawa Ki-36 specification except maximum speed requirement.
https://en.wikipedia.org/wiki/Tachikawa_Ki-36
"Ki-36 General characteristics
Crew: two
Length: 8.00m (25ft 3in)
Wingspan: 11.80m (38ft 8.5in)
Height: 3.64m (11ft 11.25in)
Wing area: 20m² (215.29ft²)
Empty weight: 1,247kg (2,749lb)
Loaded weight: 1,660kg (3,660lb)
Powerplant: 1 × Hitachi Army Type 98 Ha-13a nine cylinder air-cooled radial engine, 380kW (510hp)
Performance
Maximum speed: 348km/h (216mph)
Cruise speed: 235km/h (146mph)
Range: 1,235km (767mi)
Service ceiling: 8,150m (26,740ft)
Wing loading: 83kg/m² (17lb/ft²)
Power/mass: 0.23kW/kg (0.31hp/kg; 0.14hp/lb)
Time to 3000m (9,845ft): 6min 39sec
Armament
one fixed, forward-firing 7.7mm (0.303in) machine-gun , one flexible 7.7mm (0.303in) machine-gun in rear cockpit.
up to 150kg (331lb) external bombload."


Attachments

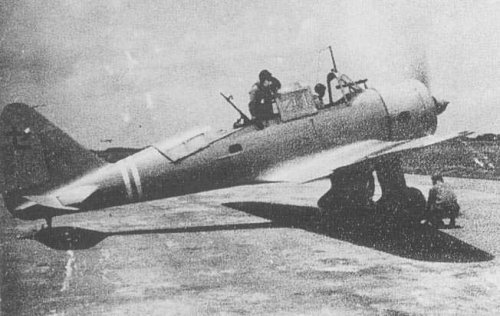

  • Ki-36.jpg
    34.6 KB · Views: 35

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Mitsubishi Ki-42 was a heavy bomber planned in 1937. Only basic research was done by Mitsubishi. Ki-42 detail is unknown stll now.

Nakajima Ki-37, Kawasaki Ki-38 and Mitsubishi Ki-39 were twin engine two seat fighter-bomber, planned in 1937.Only basic design were done.
Ki-38 design became Ki-45 base design.

Mitsubishi Ki-40 was a long range high speed recon planned in 1937. Only basic research was done. There is a possibility that Ki-40 was a Ki-39 sister aircraft.

Source : Gakken "The IJA aircrfat".

Ki-38.
http://www.secretprojects.co.uk/forum/index.php/topic,27588.msg229358.html#msg229358

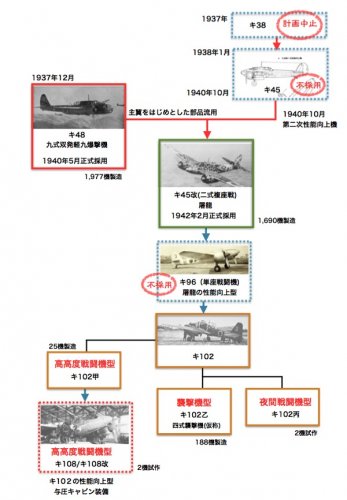

Chart Japanese words translation
キ : ki, 計画中止 : Plan cancellation、不採用 : Declined, 年 : year, 月 : month, 主翼をはじめとした部品流用 : Parts diversion such as main wing, 九九式双発軽爆撃機 : 99-shiki twin engine light bomber, 正式採用 : It's adopted formally, 製造 : production, 改 : modification type, 二式複座戦闘機 : 2-shiki two seat fighter, 屠龍 : Toryu, 単座戦闘機 : single seat fighter, 性能向上型 : The performance improvement type, 高高度戦闘機型 : The high altitude fighter type, 甲 : ko(a), 乙 : Otsu(b), 丙 : Hei(c), 襲撃機型 : Attack aircraft type, 夜間戦闘機型 : night fighter type, 試作 : experimental production, 与圧キャビン装備 : with pressurized cabin


Attachments

  • Cap20180.jpg
    107.3 KB · Views: 57

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Mitsubishi Ki-47 was a light bomber planned in 1937. Ki-47 was a Ki-48 like light bomber?

Ki-48.
https://en.wikipedia.org/wiki/Kawasaki_Ki-48


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Mitsubishi Ki-50 was a competitor of Nakajima Ki-49/100-shiki heavy bomber, planned in 1935.
But Mitsubishi was very busy because of Ki-21/97-shiki heavy bomber modification.
Ki-50 design might be terminated when basic design inspection by the IJA.

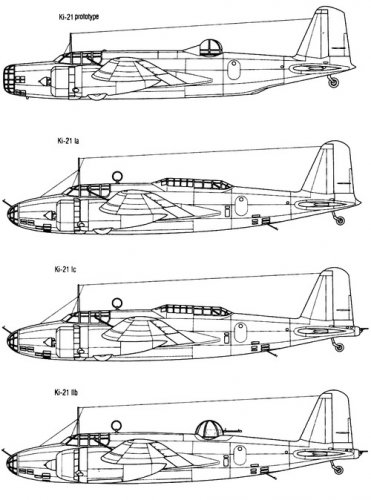

Ki-21Ⅱ flight performance was superior compared with Ki-49. So it's possible to assume that Ki-50 was realized as Ki-21Ⅱ.
Source : Gakken "The IJA aircraft".

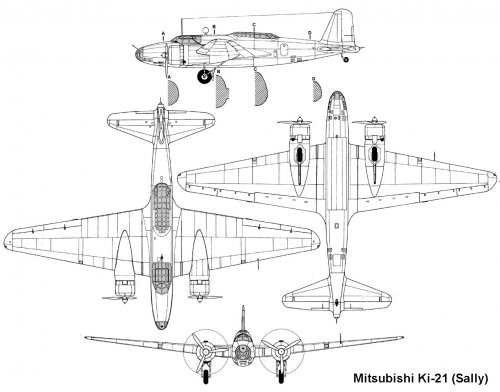

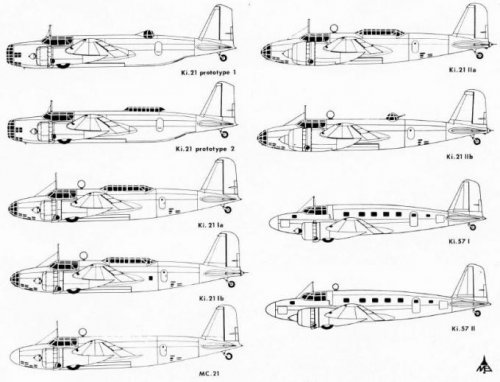

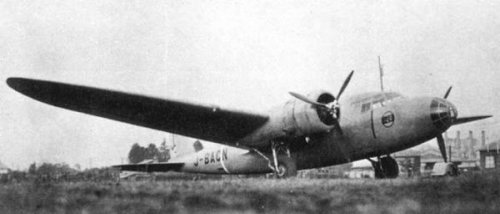

Side view source.
http://alternathistory.com/samolet-dlya-dalnikh-pereletov-mitsubishi-ohtori-yaponiya


Attachments

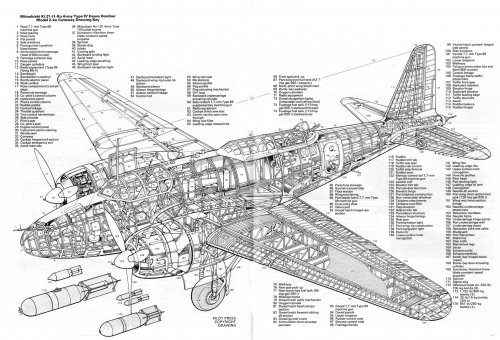

  • ki21-2.jpg
    773.2 KB · Views: 49
  • mitsubishi_ki_21_sally-64029.jpg
    85.7 KB · Views: 41
  • Ki-21%20-%20MC_21%20-%20Ki-57-680x519.jpg
    49.2 KB · Views: 39
  • ki-21Ⅰ.jpg
    143.4 KB · Views: 44
  • Ki-21ⅡOtsu.jpg
    159.9 KB · Views: 38
  • Ki-21Ⅱko.jpg
    199.4 KB · Views: 41

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212

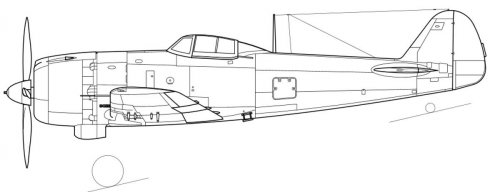

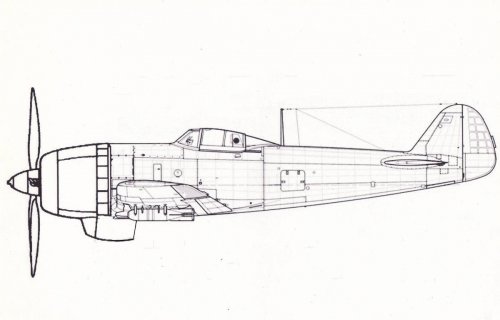

Hi! My image for Nakajima Ki-117 fighter.
Ki-117 was a Hayate with powerful Ha-44(Ha-219, take off power : 2,400hp) engine without turbocharger.
Ki-117 planned to begin production in October 1945.
Span : 12.3m, Length : 10.18m, Wing area : 22.3 square meter, Empty weight : 3,540kg, Gross weight : 4,797kg, Maximum speed : 670km/h, Range : 1577km, two 20mm cannon.

I set propeller diameter 4m same as Tachikawa Ki-94Ⅱ which had a Ha-44 engine. Too larger? ;D
Ki-84 Hayate propeller diameter is 3.05m.


Attachments

  • Nakajima Ki-117.jpg
    Nakajima Ki-117.jpg
    68.5 KB · Views: 57
  • Nakajima Hayate Ki-84.jpg
    Nakajima Hayate Ki-84.jpg
    39.9 KB · Views: 48

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,300
Reaction score
151
Website
zeef.com
thank you : i know nakajima ki-117 by 2 volume of japanese aircraft projects !

:)
